AVE4/BN - Faucet Caple - Free user manual and instructions

Product Type	Kitchen Faucet
Model	AVE4/BN
Brand	Caple
Finish	Black Nickel
Material	Brass
Number of Holes	1-hole installation
Handle Type	Single lever
Spout Height	7.9 inches (200 mm)
Spout Reach	5.9 inches (150 mm)
Flow Rate	1.5 GPM (5.7 L/min) at 60 PSI
Cartridge Type	Ceramic disc
Connection Size	3/8 inch compression
Weight	2.5 kg (5.5 lbs)
Installation Type	Deck-mounted
Included Components	Faucet, mounting hardware, supply hoses
Warranty	5 years limited
Certifications	cUPC, NSF 61
Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Sprayer Included	No (pull-down optional)
Return Policy	30-day return from authorized dealers

Frequently Asked Questions - AVE4/BN Caple

Can I install the faucet myself?

Yes, the faucet is designed for DIY installation. It comes with a detailed manual and all necessary hardware. Ensure you have basic plumbing tools and follow the instructions carefully.

What is the minimum water pressure required?

The faucet operates best at a water pressure of 45-80 PSI. Lower pressure may reduce flow rate.

Does the AVE4/BN include a sprayer?

No, this model does not include a separate sprayer. However, it is compatible with a pull-down sprayer attachment (sold separately).

How do I clean the black nickel finish?

Clean with a soft, damp cloth and mild soap. Avoid using abrasive cleaners, scouring pads, or harsh chemicals that can damage the finish.

Is the faucet compatible with a 1-hole countertop?

Yes, the AVE4/BN is designed for single-hole installation. For three-hole setups, a deck plate (not included) can be used.

What should I do if the faucet leaks?

First, check that all connections are tight. If leaking persists, the cartridge may need replacement. Contact Caple customer service for a replacement cartridge.

What is the flow rate of this faucet?

The faucet has a flow rate of 1.5 gallons per minute (5.7 liters per minute) at 60 PSI, meeting WaterSense standards.

Can I use this faucet with a water filtration system?

Yes, it can be connected to a countertop or under-sink filtration system. Use the standard 3/8 inch connections.

How do I adjust the temperature limit?

The faucet has a temperature limit stop. To adjust, remove the handle and rotate the limit ring to the desired maximum temperature. Reassemble carefully.

Where can I find spare parts for the AVE4/BN?

Spare parts such as cartridges, aerators, and handles are available through Caple authorized dealers or the official Caple website. Use the model number AVE4/BN.

USER MANUAL AVE4/BN Caple

BLACKENED COPPER, BRUSHED NICKEL & CHROME TAP CARE, INSTALLATION AND GUARANTEE INFORMATION

Model code: AVE4/BC, AVE4/BN & AVE4/CH

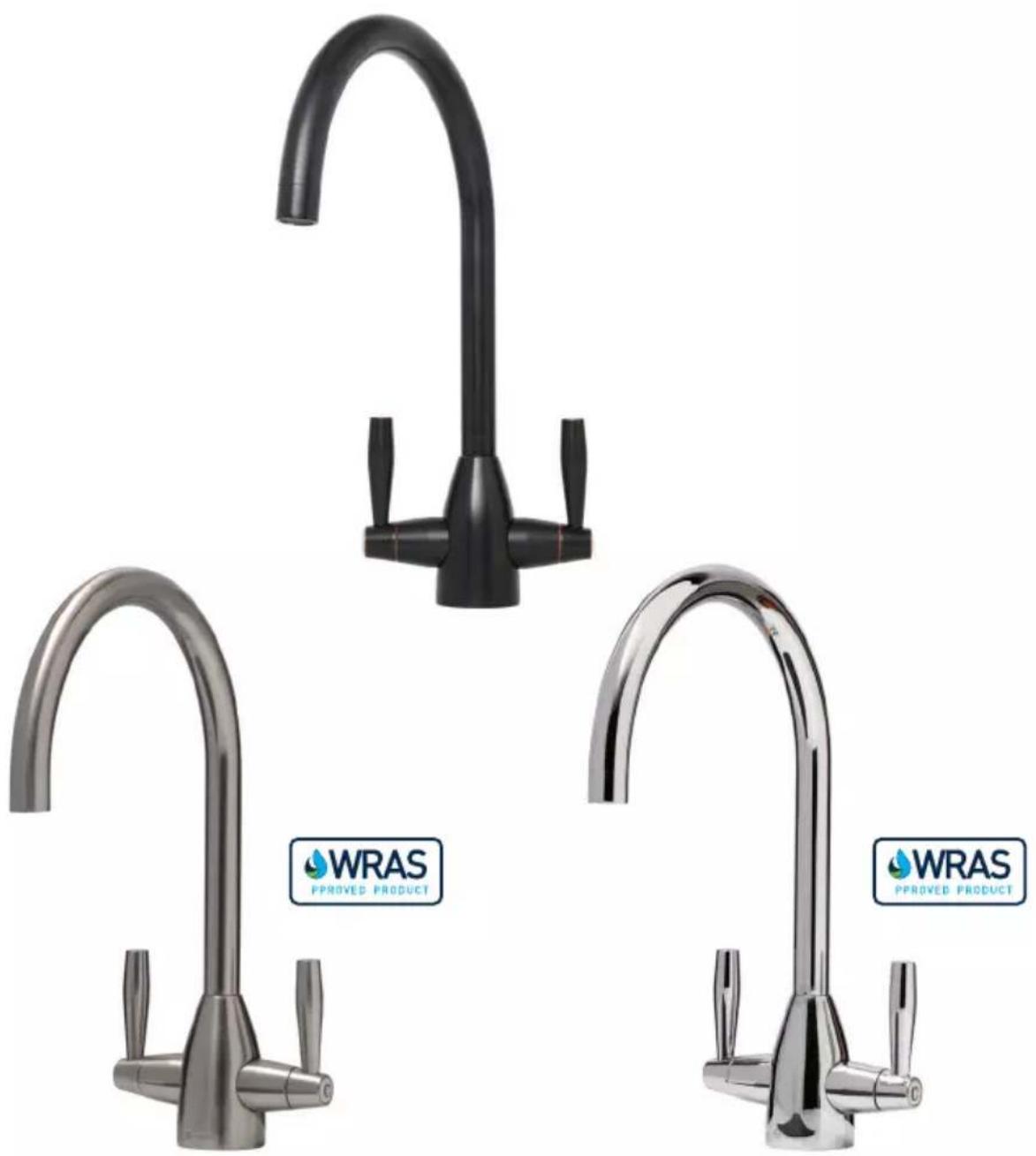

Three stainless steel kitchen faucet designs with WRAS product logos (no text on faucet itself)

INSTALLATION GUIDE

Thank you for purchasing your Caple tap.

These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble free operation providing our care and installation guidelines have been followed.

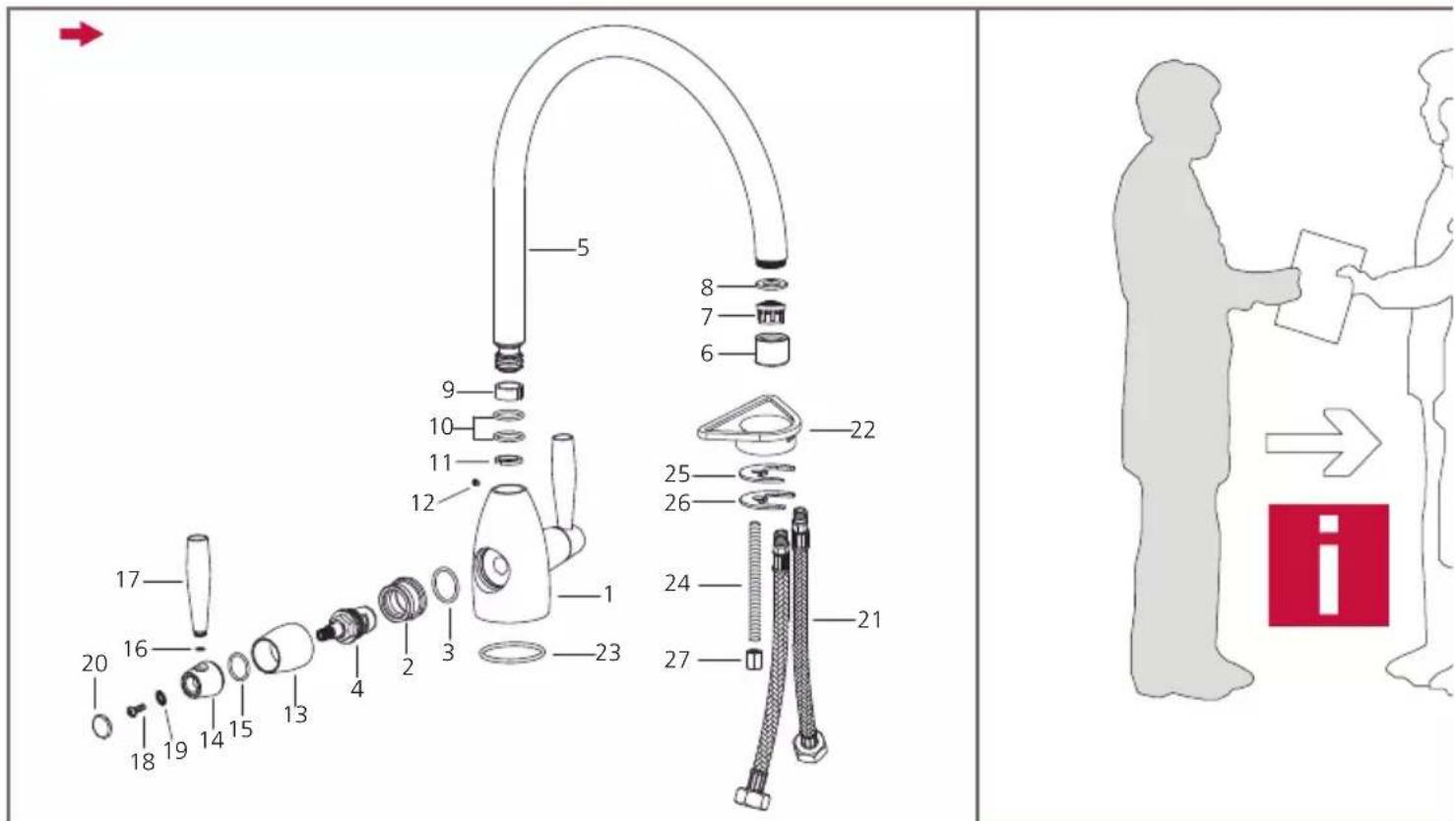

NOTE: Please see back page for installation instructions

INSTALLATION INSTRUCTIONS

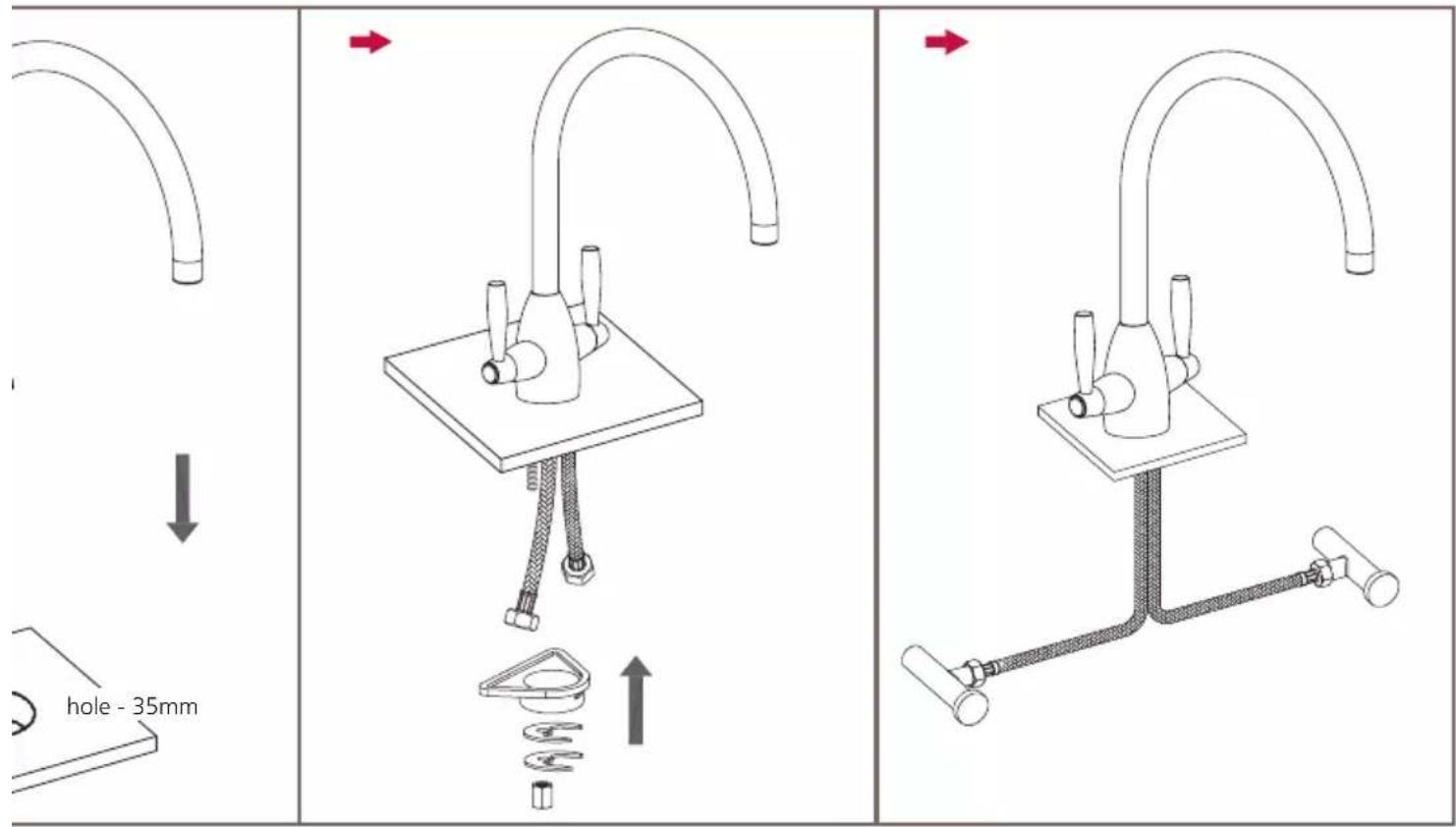

• Turn the spout and body so the tap is facing forwards, the screw on the spout indicates the rear of the body. The hot water connection should be on the left of the tap.
• Ensure the hot and cold pipes are thoroughly flushed to remove any debris.
• A 35mm hole is required in either the sink or worktop.
• The fixing bolt must be screwed into the tap base, ensuring the threads of the bolt are not damaged in the process.
• Pass the nylon washer over the fixing bolt flush to the bottom of the tap base, then pass the bolt through the

CARE OF YOUR TAPS

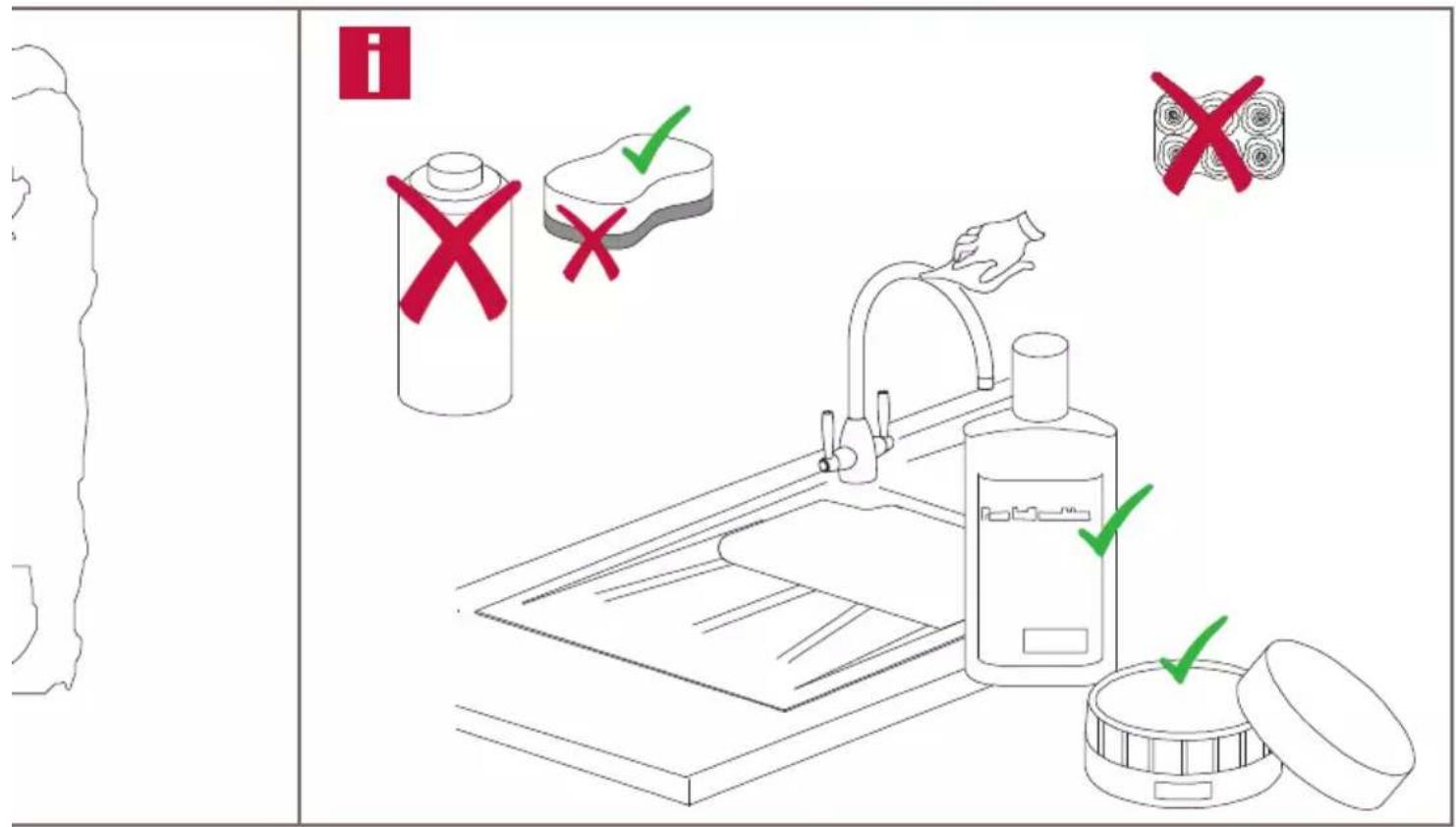

• Only clean your taps with soap or mild liquid detergent and clean water then dry using a soft cloth
• Do not use chemical cleaners, or bleach based solutions to clean your tap, contact could affect the finish of your tap.

PRE INSTALLATION CHECKS

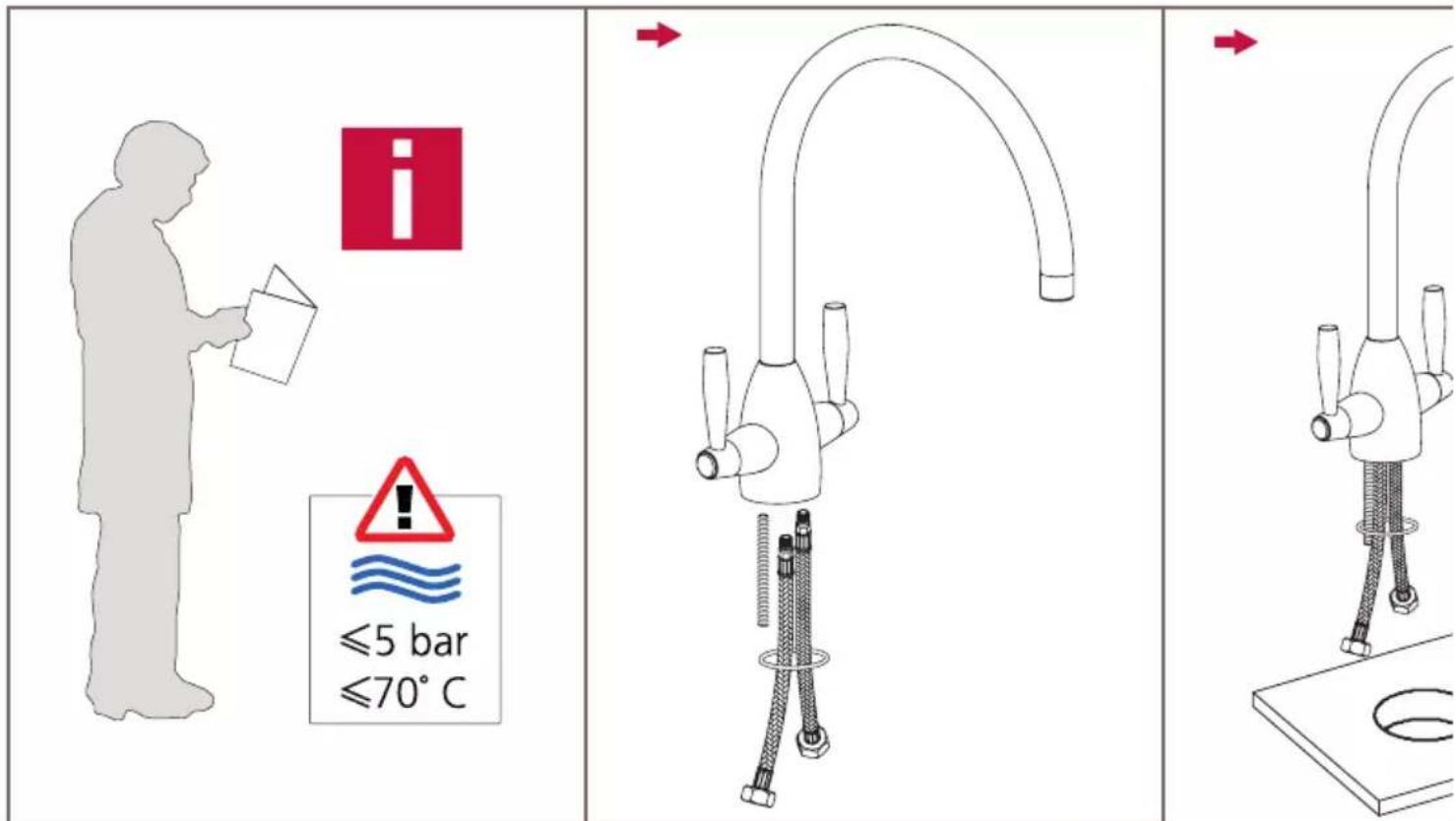

• The temperature of the hot water supply must not exceed 70^ C.
• Water pressure requirements: minimum required pressure varies dependent on model, maximum pressure 5 bar.
• Always seek advice from a qualified installer to ensure your installation and water supply to your taps comply with the water regulation (WRAS) requirements and good plumbing practice.

POST INSTALLATION POINTS

• We suggest when connecting screw connections that PTFE tape is used before the joints are fully tightened.
• Before use correctly check the installation for leaks, and turn the hot and cold water on to thoroughly flush any small particles that may have been dislodged during the tap installation.

sink or worktop (ensuring the nylon washer remains directly under the tap base).

• Pass the rubber washer and then the metal washer (on the underside of the sink/worktop) over the fixing bolt and fix using the fixing nut.
• Screw the flexi-tail pipes into the base of the tap, ensuring the pipes threads are not damaged in the process. If the flexi-tails are already inserted into the tap base, please ensure these are screwed in tightly to prevent any leaks.

• Finally connect the flexi-tail pipes to the hot and cold supplies ensuring they are connected to the correct supplies.

• Do not use abrasive cleaners, liquids, powders or pads. These will damage the finish of your tap and void the guarantee.

• Provided all of the above points are adhered to the surface finish of your Caple Tap is guaranteed for 5 years.

• It is good practice to ensure that both hot and cold water supplies to your tap are of an equal pressure to provide a consistent flow. If supplies are not of equal pressure then a non return valve should be fitted on the hot inlet.

• Supplies of water should be from a common source (mains or tank fed).
• We recommend that a service valve is installed in the supply lines to the tap to enable water isolation if required.

- THESE INSTRUCTIONS ARE INTENDED AS A GUIDE, IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A CERTIFIED PLUMBER.

GUARANTEE

• Your Caple tap is guaranteed for 5 years.
• Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim in writing.
• It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.

TERMS AND CONDITIONS

• Guarantee conditions are only valid if the Care guidelines listed above are followed.
• Our obligation under the guarantee is to the original purchaser, and may not be transferred.
• The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
• Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
• No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim – even if attached to the product.
• If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes of occurred since the initial supply.
• We reserve the right to inspect any tap before committing to support under the guarantee conditions.
