Product Type	Kitchen Faucet (Single Control)
Model Codes	ASP2/AN, ASP2/PG
Brand	Caple
Color	Black and Silver
Handle Material	Stainless Steel with Curved Glass End
Body Material	Stainless Steel
Installation Type	Deck Mounted
Control Type	Single Lever
Maximum Hot Water Temperature	70°C (158°F)
Maximum Water Pressure	5 bar (72.5 psi)
Minimum Water Pressure	Varies by model; consult manual
Recommended Supply Pressure	Equal hot and cold pressure for consistent flow
Cleaning Method	Mild soap and water; dry with soft cloth
Prohibited Cleaners	Abrasive cleaners, bleach, chemical cleaners, scouring pads
Warranty	5 years (surface finish and manufacturing defects)
Warranty Conditions	UK domestic use only; original purchaser; proof of purchase required
Compliance	WRAS regulations recommended
Installation Notes	Use PTFE tape on screw connections; flush system after installation
Spare Parts	Available via Caple Customer Care (0117 938 1900)
Non-Return Valve	Recommended on hot inlet if pressures unequal

Frequently Asked Questions - ASP2/AN Caple

What is the maximum hot water temperature for the Caple ASP2/AN faucet?

The maximum hot water temperature should not exceed 70°C. Exceeding this may damage the faucet.

What water pressure is required for the ASP2/AN?

The maximum water pressure is 5 bar. Minimum pressure varies by model; consult the manual. For consistent flow, ensure hot and cold supplies are at equal pressure.

How should I clean the Caple ASP2/AN faucet?

Clean only with soap or mild liquid detergent and clean water, then dry with a soft cloth. Do not use abrasive cleaners, bleach, or scouring pads.

What does the 5-year warranty cover on the Caple ASP2/AN?

The warranty covers manufacturing defects, materials, and workmanship for 5 years. It applies to UK domestic installations and requires proof of purchase. Normal wear and tear, poor installation, or accidental damage are not covered.

Can I install the ASP2/AN on mains or tank-fed systems?

Yes, the faucet can be used with both mains and tank-fed water supplies. Ensure supplies are from a common source and pressures are balanced.

Do I need a non-return valve for the Caple ASP2/AN?

A non-return valve is recommended on the hot inlet if the hot and cold water pressures are not equal, to prevent backflow and ensure consistent flow.

What should I do after installing the faucet?

Check for leaks, and flush the system by turning on both hot and cold water to remove any debris dislodged during installation.

How do I obtain spare parts for the ASP2/AN?

Spare parts can be purchased from Caple's Customer Care at 0117 938 1900.

Is professional installation recommended for the ASP2/AN?

Yes, it is recommended to seek advice from a qualified installer to ensure compliance with water regulations and good plumbing practice.

Can I use abrasive cleaners on the Caple ASP2/AN?

No, abrasive cleaners, liquids, powders, or pads will damage the finish and void the warranty. Use only mild soap and water.

USER MANUAL ASP2/AN Caple

ASPEN SINGLE CONTROL CARE, INSTALLATION AND GUARANTEE INFORMATION

MODEL CODE: ASP2/AN, ASP2/PG

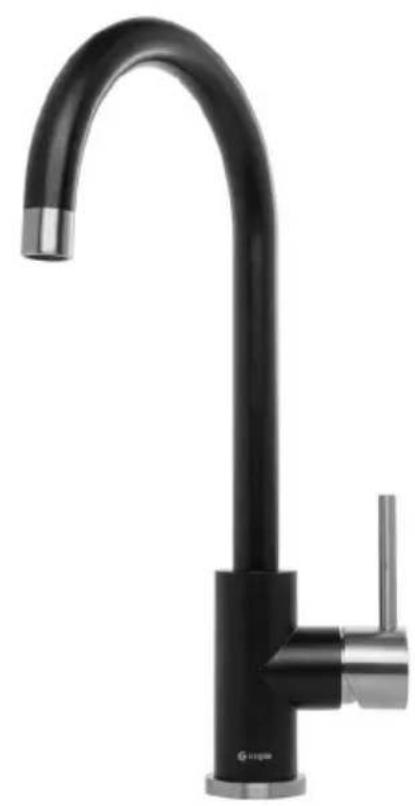

Black and silver kitchen faucet with curved handle and stainless steel fittings (no text or symbols visible)

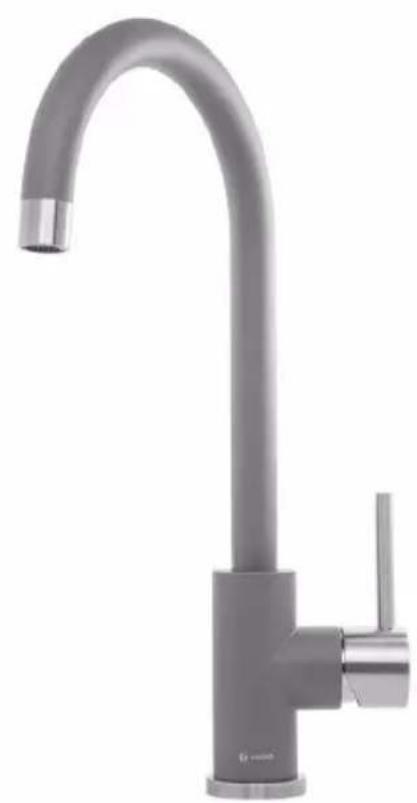

Modern kitchen faucet with curved glass end and stainless steel handle (no text or symbols visible)

INSTALLATION GUIDE

Thank you for purchasing your Caple tap.

These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble

free operation providing our care and installation guidelines have been followed.

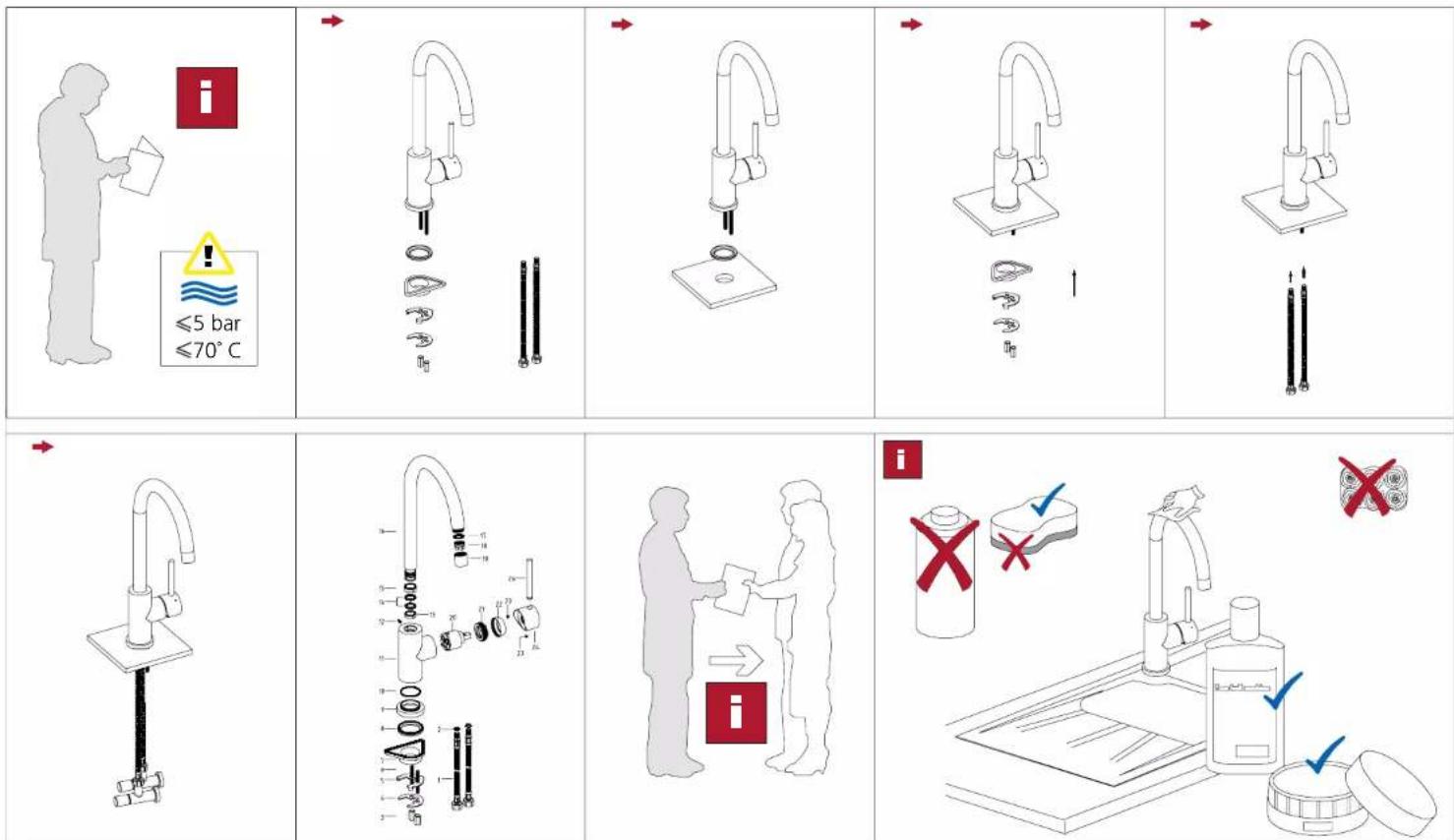

NOTE: Please see back page for installation instructions

CARE OF YOUR TAPS

• Only clean your taps with soap or mild liquid detergent and clean water then dry using a soft cloth
• Do not use chemical cleaners, or bleach based solutions to clean your tap, contact could affect the finish of your tap
• Do not use abrasive cleaners, liquids, powders or pads. These will damage the finish of your tap and void the guarantee.
• Provided all of the above points are adhered to the surface finish of your Caple Tap is guaranteed for 5 years.

PRE INSTALLATION CHECKS

• The temperature of the hot water supply must not exceed 70^ C.
• Water pressure requirements: minimum required pressure varies dependent on model, maximum pressure 5 bar.

• Always seek advice from a qualified installer to ensure your installation and water supply to your taps comply with the water regulation (WRAS) requirements and good plumbing practice.

• It is good practice to ensure that both hot and cold water supplies to your tap are of an equal pressure to provide a consistent flow. If supplies are not of equal pressure then a non return valve should be fitted on the hot inlet.

• Supplies of water should be from a common source (mains or tank fed).
• We recommend that a service valve is installed in the supply lines to the tap to enable water isolation if required.

POST INSTALLATION POINTS

• We suggest when connecting screw connections that PTFE tape is used before the joints are fully tightened.
• Before use correctly check the installation for leaks, and turn the hot and cold water on to thoroughly flush any small particles that may have been dislodged during the tap installation.

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE, IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A CERTIFIED PLUMBER.

GUARANTEE

• Your Caple tap is guaranteed for 5 years.
• Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim in writing.
• It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.

TERMS AND CONDITIONS

• Guarantee conditions are only valid if the Care guidelines listed above are followed.
• Our obligation under the guarantee is to the original purchaser, and may not be transferred.
• The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
• Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
• No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim - even if attached to the product.
• If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes of occurred since the initial supply.
• We reserve the right to inspect any tap before committing to support under the guarantee conditions.
