Product Type	Kitchen Mixer Tap
Model	ASPQ2/CH
Brand	Caple
Finish	Chrome Plated
Material	Brass Body
Installation Type	Deck-mounted, Single Hole
Overall Height	Approx. 370 mm
Spout Reach	Approx. 220 mm
Swivel Range	360 Degrees
Flow Rate	6 L/min at 3 bar
Water Supply Connections	1/2" Flexible Hoses
Valve Type	Ceramic Disc Cartridge
Handle Type	Single Lever
Temperature Control	Yes, via Lever
Weight	Approx. 1.8 kg
Cleaning & Maintenance	Wipe with damp cloth; avoid abrasive cleaners
Certification	WRAS Approved
Spare Parts Available	Cartridge, Aerator, Flex Hoses
Warranty	2 Years
Packaging Contents	Faucet, Fixing Kit, Instructions

Frequently Asked Questions - ASPQ2/CH Caple

How do I install the Caple ASPQ2/CH faucet?

Installation is standard for single-hole deck-mounted faucets. Ensure the sink or countertop has a hole of at least 32 mm. Connect the 1/2-inch flexible hoses to the water supply, insert the faucet through the hole, and secure with the included fixing nut. Turn on water and check for leaks. Refer to the manual for detailed steps.

Can I use the faucet with low water pressure?

Yes, it works with standard mains pressure. The recommended minimum pressure is 0.5 bar. If pressure is too low, flow may reduce. Ensure supply lines are fully open.

How do I clean the faucet?

Clean with a soft damp cloth and mild soap. Rinse and dry. Do not use abrasive cleaners, scouring pads, or harsh chemicals as they may damage the chrome finish.

What is the warranty on this faucet?

Caple offers a 2-year warranty against manufacturing defects. This covers parts and labour. Proof of purchase is required. Contact Caple support for claims.

How do I replace the cartridge if the faucet drips?

Turn off water supply, unscrew the lever and handle cap, remove the cartridge retaining nut, and pull out the old cartridge. Insert a new one (Caple recommended) and reassemble. Tighten securely but not overtighten.

Is the faucet compatible with a 3-hole sink?

The ASPQ2/CH is designed for single-hole installations. For 3-hole sinks, a separate deck plate (escutcheon) may be needed to cover extra holes. Ensure the deck plate is compatible.

Does it come with hot and cold hoses?

Yes, the faucet includes two 1/2-inch flexible hoses: one for hot and one for cold. They are typically 500 mm long. Ensure proper connection to supply.

How do I adjust the temperature setting?

The single lever controls both flow and temperature. Move lever left for hot, right for cold. The default mixing ratio can be adjusted by turning the hot water stop under the handle (if equipped). Refer to manual.

What spare parts are available for this model?

Common spare parts include the ceramic cartridge, aerator, flexible hoses, and handle lever. They are available from Caple authorized dealers or online.

Can the faucet swivel freely?

Yes, the spout rotates 360 degrees, allowing flexible positioning over the sink. If movement is stiff, check the O-ring under the base and apply silicone grease if needed.

USER MANUAL ASPQ2/CH Caple

CHROME TAP CARE, INSTALLATION AND GUARANTEE INFORMATION

MODEL CODES: ASP2/CH & ASPQ2/CH

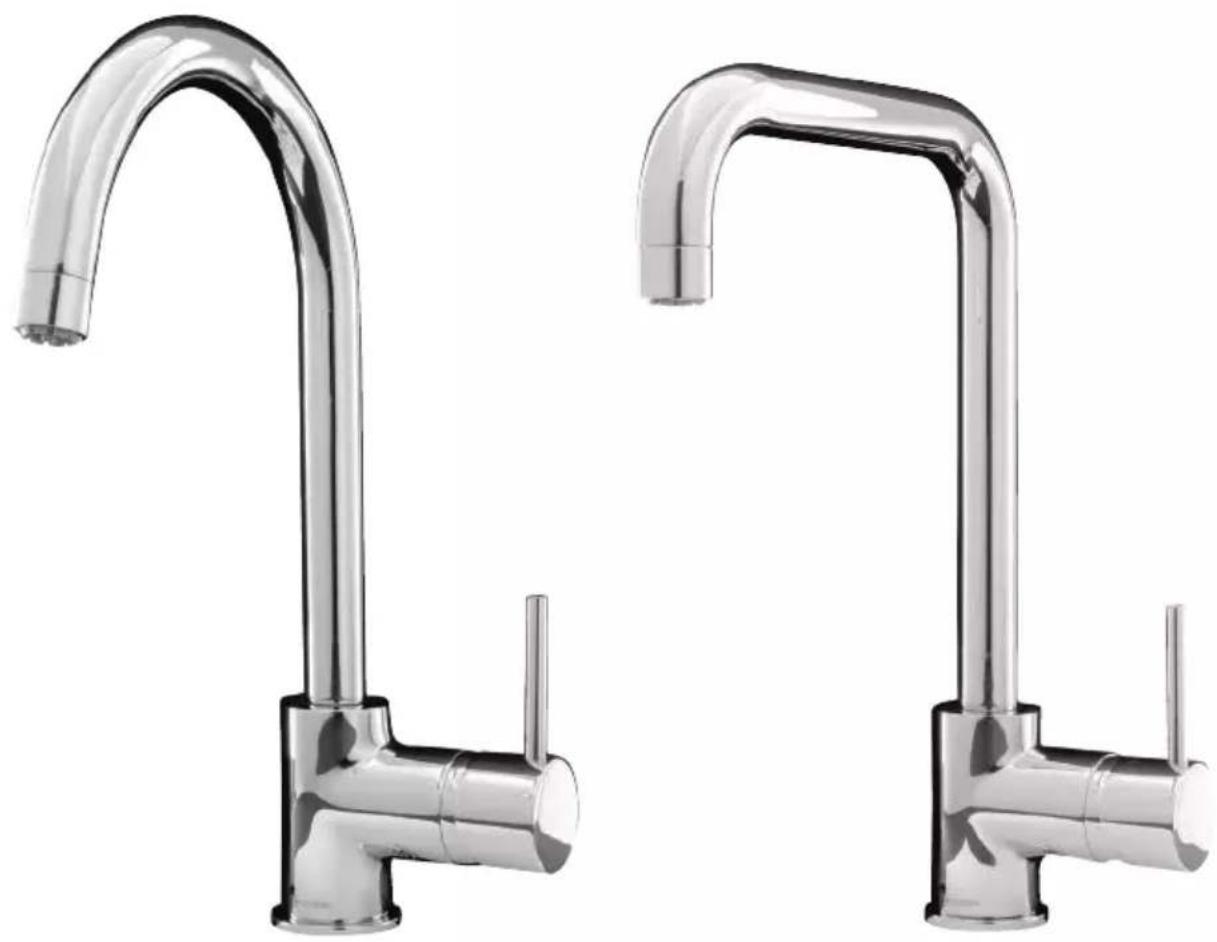

Two modern stainless steel kitchen faucet designs, one curved and one straight, shown against a white background (no text or symbols visible)

INSTALLATION GUIDE

Thank you for purchasing your Caple tap.

These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble

free operation providing our care and installation guidelines have been followed.

NOTE: Please see back page for installation instructions

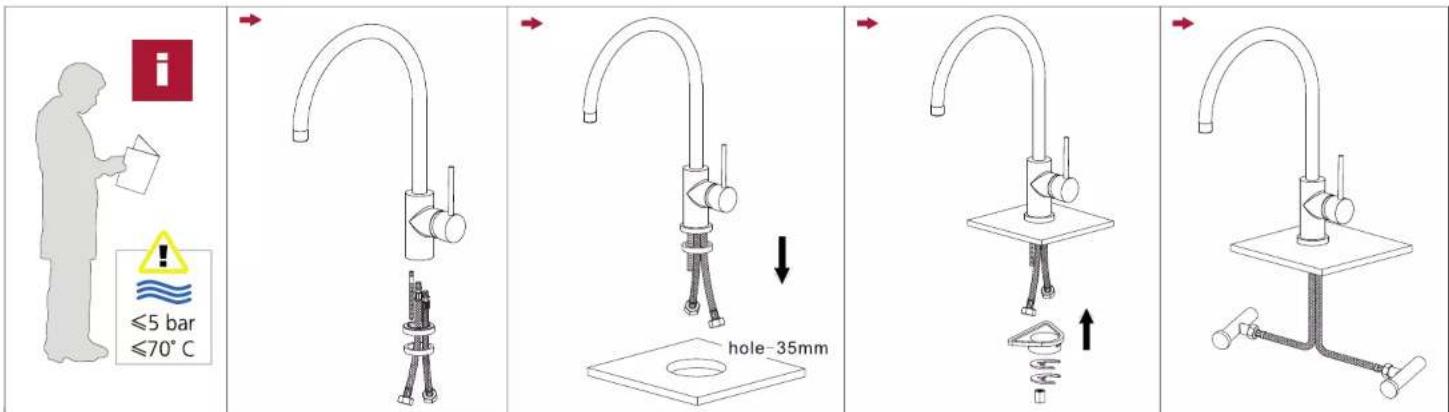

INSTALLATION INSTRUCTIONS

• Turn the spout and body so the tap is facing forwards, the screw on the spout indicates the rear of the body. The hot water connection should be on the left of the tap.
• Ensure the hot and cold pipes are thoroughly flushed to remove any debris.
• A 35mm hole is required in either the sink or worktop.
• The fixing bolt must be screwed into the tap base, ensuring the threads of the bolt are not damaged in the process.
• Pass the nylon washer over the fixing bolt flush to the bottom of the tap base, then pass the bolt through the sink or worktop (ensuring the nylon washer remains directly under the tap base).
• Pass the rubber washer and then the metal washer (on the underside of the sink/worktop) over the fixing bolt and fix using the fixing nut.
• Screw the flexi-tail pipes into the base of the tap, ensuring the pipes threads are not damaged in the process. If the flexi-tails are already inserted into the tap base, please ensure these are screwed in tightly to prevent any leaks.
• Finally connect the flexi-tail pipes to the hot and cold supplies ensuring they are connected to the correct supplies.

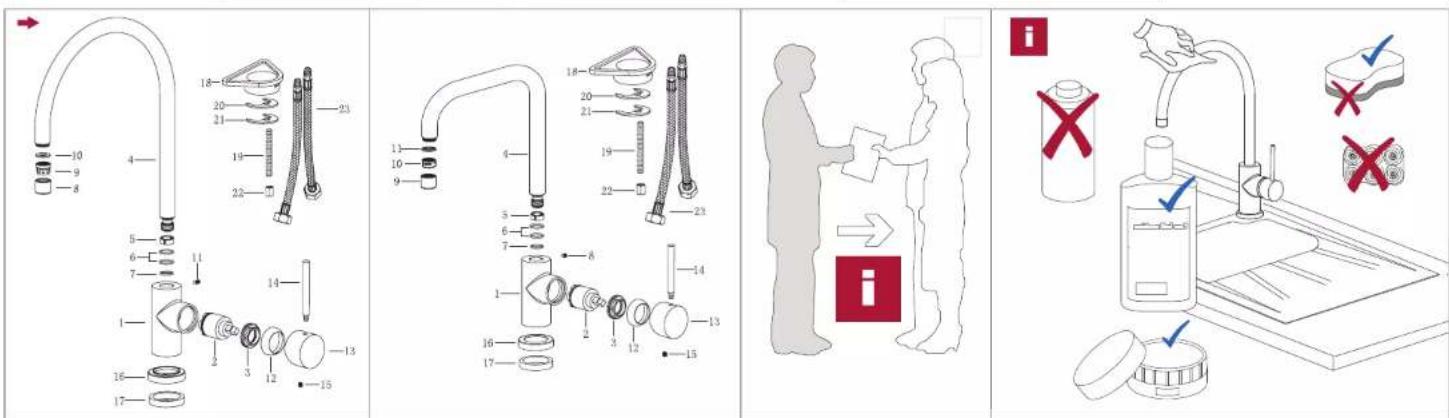

CARE OF YOUR TAPS

• Only clean your taps with soap or mild liquid detergent and clean water then dry using a soft cloth
• Do not use chemical cleaners, or bleach based solutions to clean your tap, contact could affect the finish of your tap.
• Do not use abrasive cleaners, liquids, powders or pads. These will damage the finish of your tap and void the guarantee.
• Provided all of the above points are adhered to the surface finish of your Caple Tap is guaranteed for 5 years.

PRE INSTALLATION CHECKS

- The temperature of the hot water supply must not exceed 70^ C.

- Water pressure requirements: minimum required pressure varies dependent on model, maximum pressure 5 bar.

- Always seek advice from a qualified installer to ensure your installation and water supply to your taps comply with the water regulation (WRAS) requirements and good plumbing practice.

- It is good practice to ensure that both hot and cold water supplies to your tap are of an equal pressure to provide a consistent flow. If supplies are not of equal pressure then a non return valve should be fitted on the hot inlet.

- Supplies of water should be from a common source (mains or tank fed).

- We recommend that a service valve is installed in the supply lines to the tap to enable water isolation if required.

POST INSTALLATION POINTS

• We suggest when connecting screw connections that PTFE tape is used before the joints are fully tightened.
• Before use correctly check the installation for leaks, and turn the hot and cold water on to thoroughly flush any small particles that may have been dislodged during the tap installation.

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE, IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A CERTIFIED PLUMBER.

GUARANTEE

• Your Caple tap is guaranteed for 5 years.
• Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim in writing.
• It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.

TERMS AND CONDITIONS

• Guarantee conditions are only valid if the Care guidelines listed above are followed.
• Our obligation under the guarantee is to the original purchaser, and may not be transferred.
• The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
• Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
• No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim - even if attached to the product.
• If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes of occurred since the initial supply.
• We reserve the right to inspect any tap before committing to support under the guarantee conditions.
