GH800 - Headphones Mad Dog - Free user manual and instructions

Product Type	Gaming Headset
Brand	Mad Dog
Model	GH800
Connectivity	USB 2.0
Microphone	Detachable, high sensitivity
Driver Diameter	53mm
Impedance	64Ω ±15%
Frequency Response	20Hz – 20KHz
Sensitivity	106dB ±3dB
Microphone Frequency Response	100Hz – 10kHz
Microphone Sensitivity	-42 ±3dB
Sound	7.1 virtual surround sound
Backlight	RGB (adjustable via remote)
Headband	Adjustable
Ear Cushions	Ventilated
Controls	Volume +/-, Mic on/off, Backlight change
Compatibility	Windows XP/Vista/7/8/10
Package Contents	Headset, detachable microphone, user manual & warranty
Power Source	USB (5V, 500mA typical)
Safety	Read manual, avoid prolonged high volume, keep away from children
Maintenance	Wipe with dry cloth; do not immerse in liquid
Repair	Only by authorized service
Warranty	24 months from delivery
Disposal	WEEE compliant, recycle properly

Frequently Asked Questions - GH800 Mad Dog

How do I install the Mad Dog GH800 headphones on my computer?

Plug the USB connector into a working USB 2.0 port. The device should be detected automatically. For full functionality (e.g., 7.1 sound), download and install the driver from https://maddog.pl/sterowniki/sterowniki-i-instrukcje.

Why is there no sound or very low volume?

First, turn up the volume using the remote controls on the headphone cable. Also check that the computer's volume is not muted or too low. Ensure the headphones are properly connected to a working USB port.

The microphone does not work. What should I do?

Make sure the mic switch on the remote is turned on (the LED indicator should be lit). Also verify that the microphone is correctly attached to the headset. Check computer audio settings to ensure the headset is selected as the input device.

How do I adjust the RGB backlight?

Press the backlight control button on the headphone remote to cycle through different lighting modes. The backlight can also be turned off completely.

Can I use the GH800 with a gaming console like PlayStation or Xbox?

The headphones are officially compatible with Windows PCs (XP/Vista/7/8/10). They may work with consoles that support USB audio, but functionality is not guaranteed. For best performance, use with a computer.

How do I clean the headphones?

Use a soft, dry cloth to wipe the ear cushions and headband. Do not use any liquids, as moisture may damage the electronics. Avoid dropping or subjecting the headset to severe shocks.

What is the warranty period and what does it cover?

The Mad Dog GH800 comes with a 24-month warranty from the date of delivery, covering manufacturing defects. It does not cover damage from improper use, wear and tear, or unauthorized repairs. Proof of purchase is required.

The headphones are detected but only mono sound is coming out. What could be wrong?

Ensure the driver software is installed to enable 7.1 surround sound. If audio is still mono, check that the headphone connector is fully inserted and try a different USB port. Also verify sound settings in the control panel.

How do I dispose of the headphones when they are no longer usable?

Do not dispose of them with household waste. Follow local regulations for WEEE (Waste Electrical and Electronic Equipment) recycling. Take them to a designated collection point or contact your local waste authority.

Can I replace the ear cushions if they wear out?

Yes, ear cushions are replaceable. Contact Mad Dog support or check the manufacturer's website for compatible replacement parts. Avoid using the headset with damaged cushions to maintain comfort and sound quality.

USER MANUAL GH800 Mad Dog

Operating manual and warranty conditions

* - notes the colour of the device

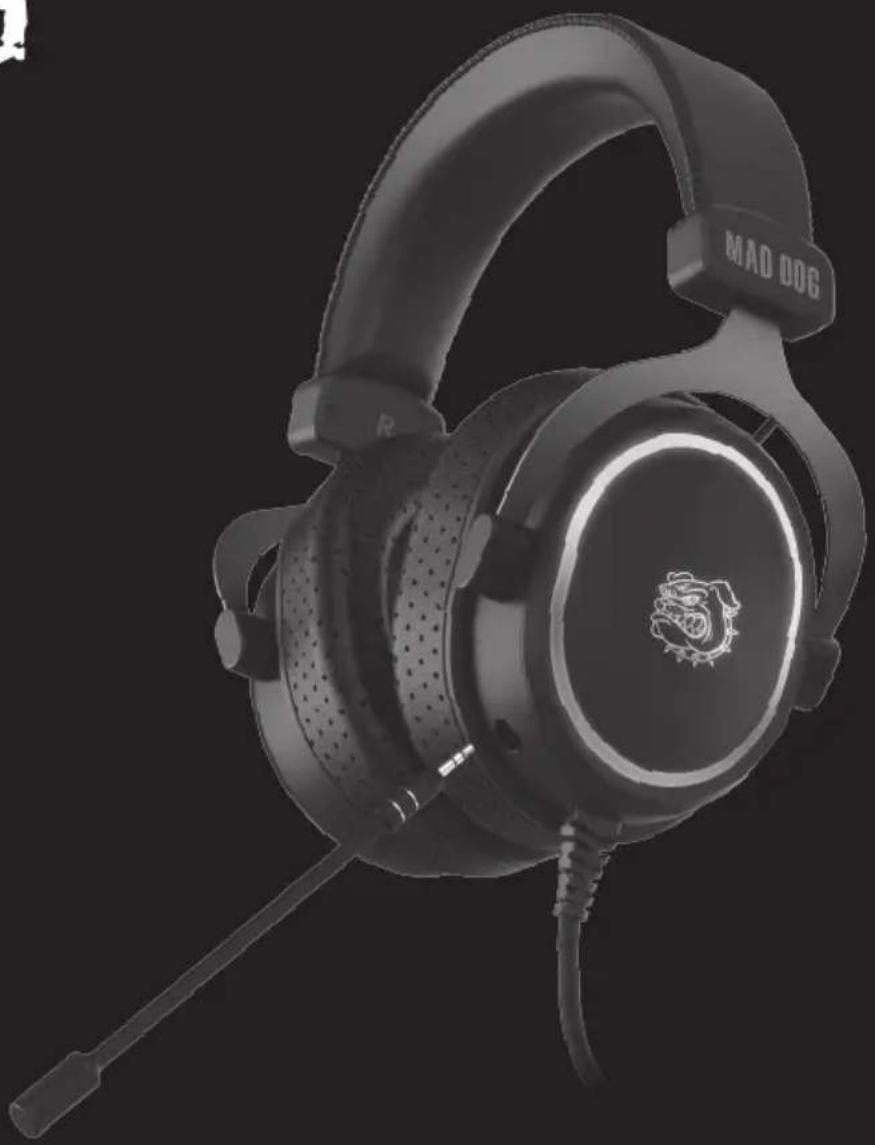

Black and white photo of a MAD DOG headboard with earplifier and microphone (no visible text or symbols on the headset body)

WARUNKI BEZPIECZEŃSTWA I ZAGROŻENIA

PROBLEMY I ROZWIĄZANIA

SAFETY CONDITIONS AND HAZARDS

Before using the device please read the entire user manual carefully.

1. Use the device according to its intended purpose described in the operating manual. Do not interfere and do not change the design of the device, as this is dangerous.
2. Do not immerse the device in water or any other liquid. Do not expose the device to moisture.
3. Do not use the device in dusty rooms and do not store it near or on hot surfaces.
4. To avoid damage to your hearing, do not use the device at a high volume level for a prolonged period of time. Make sure that the device with a fixed high volume will no be used by children, whose hearing is particularly vulnerable to damage.

1. Do not expose the device to severe shocks.

2. If you experience discomfort while using the device, please immediately stop using it.

3. Take special care when using headphones while performing any activity as they impair your ability to hear.

4. The product should be stored out of the reach of children.

5. Do not use the device after you notice that any of its components is damaged.

6. Any repairs should be ordered from the manufacturer, an authorized service center or a person with appropriate qualifications.

7. When disconnecting the device, always1 pull the plug, and not the cord.

8. Never place heavy objects on the headset, as this may cause damage or deformation.

9. Cushions may become damaged as a result of prolonged storage or use.
10. Do not braid and wrap the cord around your neck. Failure to follow this precaution may result in asphyxiation.

INTRODUCTION

Thank you for the trust you have placed in us when you purchased your Mad Dog device.

We are convinced that this high quality device will provide you with a lot of joy and satisfaction during its use.

PLEASE CAREFULLY READ AND FOLLOW THE OPERATING MANUAL!

This device is intended for domestic or other non-commercial use.

The manufacturer will not be held liable for damages resulting from improper or non-compliant use.

MAIN FEATURES

• Adjustable Headband
• RGB backlight
• High sensitivity detachable microphone
• 7.1 Sound
• USB 2.0 Compatibility

SPECIFICATION

• Microphone: Yes, detachable
• Speaker impedance: 64Ω±15%
• Headphones frequency response: 20Hz – 20KHz

• Speaker sensitivity: 106dB ±3dB

• Mic frequency response: 100Hz-10kHz

• Mic Sensitivity: -42 ±3dB
• Membrane diameter: 53mm
• Connectivity: USB

PACKAGE CONTENTS

• MAD DOG GH800 Headset
• Detachable microphone
• User manual and warranty conditions

REQUIREMENTS

• Device with USB 2.0 port
- Windows XP/Vista/7/8/10 OS

PRODUCT DESCRIPTION

1. Adjustable Headband
2. Ventilated ear-muffs
3. Detac hable microphone
4. RGB h eadphone backlight
5. Mic LED indicator
6. (+) Volume control
7. (-) Volume control
8. Mic O N/OFF
9. Changes the headphone backlight

INSTALLATION

1. Plug the USB plug into the USB socket of the computer. The device should be detected automatically.
2. In order to use the full functionality of the headphones, you need to download and install the software, which can be downloaded via the QR code or at the following website: https://maddog.pl/sterowniki/sterowniki-i-instrukcje

TROUBLESHOOTING

PROBLEMS SOLUTIONS
The headphones do not work.	Make sure that the headphones are connected to a working USB port.
The headphone backlight does not work. Turn on the backlight on the headphone remote.
Quiet sound in headphones or no sound at all.	Turn up the volume with your headphone remote or in computer settings.
The microphone does not work. Turn on the microphone on the headphone remote.

ECO-FRIENDLY AND ENVIRONMENTALLY FRIENDLY DISPOSAL

This device is marked in accordance with the Directive of the European Parliament and of the Council of 2012/19/EU of 4 July 2012 on waste electrical and electronic equipment (WEEE), with the symbol of a crossed-out waste bin:

Do not dispose of devices marked with this symbol, together with household waste.

For disposal return the device to your local waste treatment and disposal facility or contact your local authorities.

YOU CAN HELP PROTECT THE ENVIRONMENT!

Proper handling of waste electrical and electronic equipment contributes to avoiding harmful consequences for human health and the environment resulting from the presence of hazardous components and improper storage and processing of such equipment.

WARRANTY CONDITIONS FOR HEADPHONES GAMING

1. ART-DOM Sp. z o.o. with its registered office in Łódź (92-402) at ul. Zakładowa 90/92 National Court Register Number 0000354059 (Guarantor) guarantees that the purchased device is free from physical defects. The warranty covers only defects resulting from the causes inherent in the item sold (manufacturing defects).
2. A disclosed defect will be removed at the Guarantor's expense within 14 days from the date of reporting the damage to the authorized service or point of sale.
3. In exceptional cases, e.g. the need to import spare parts from their manufacturer, the repair period may be extended up to 30 days.
4. The warranty period for the user is 24 months from the date of delivery of the goods.
5. The goods are intended for use only in the conditions of an individual household.
6. The present warranty does not cover:

a. damage caused by using the device in a manner inconsistent with the user manual,
b. mechanical, chemical or thermal damage,
c. repairs and modifications made by companies or persons that were not authorized to do so by the manufacturer,
d. parts that are inherently easy to wear or consumables such as: batteries, bulbs, fuses, filters, knobs, shelves, accessories,
e. installation, maintenance, inspection, cleaning, unlocking, removal of contaminants and instruction.

1. The Guarantor will select the mode of defect removal at its own discretion. Removal of a confirmed defect of the device will take place through warranty repair or replacement of the device. The Guarantor may perform repairs when the buyer requests replacement or the Guarantor may perform replacements when the buyer requests repair, if bringing the goods (device) into conformity in accordance with the granted warranty in the manner selected by the buyer is impossible or would require excessive costs at the part of Guarantor. In particularly justified cases, if both repair and replacement are impossible or would require excessive costs for the Guarantor, the Guarantor may refuse to bring the goods into compliance with the granted warranty and propose another way to settle the warranty claim.
2. The exchange of goods is made at the point of sale at which the goods were purchased (replacement or refund) or an authorized service point, if it offers such service (replacement). The returned device must be complete, without mechanical damage. Failure to comply with these conditions may result in failure to accept the warranty claim.
3. In the event of non-compliance of the goods with the sales contract, the buyer is entitled by law to legal protection measures on the part and at the expense of the seller, and the warranty does not affect these remedies.
4. The present warranty is valid in Poland.
5. The condition for the warranty repair or replacement of the device is the presentation of proof of purchase and the use of the goods in accordance with the information contained in the operating manual.

CAUTION!

Damage or removal of the rating plate from the device may result in warranty being deemed void.

We are constantly improving our products, so they may differ slightly from the image shown on the packaging. Please read the operating manual before operating the device.

ART-DOM Sp. z o.o., ul. Zakładowa 90/92, 92-402 Łódź National Court Register Number 0000354059

v.9
