Product Type	Dehumidifier
Brand	Cotech
Model	Q10M
Power Supply	230–240 V, 50 Hz
Extraction Capacity	10 L/day (at 30°C, 80% RH)
Power Consumption	260 W
Current Draw	1.2 A
Max Air Flow	150 m³/h
Compressor Type	Piston
Refrigerant	R134a
Operating Temperature	+15°C to +35°C
Water Tank Capacity	3.1 L
Dimensions (W x D x H)	342 x 245 x 492 mm
Weight	11 kg
Continuous Drainage	Yes (hose not included, 12 mm ID)
Control Type	Rotary knob (OFF-MAX) with hygrostat
Filter	Washable, removable
Indicators	Full tank (red), power on (green)
Mobility	Wheels, handle
Placement Clearance	At least 10 cm around unit

Frequently Asked Questions - Q10M Cotech

How do I empty the water tank?

When the tank is full, the red indicator lamp lights up and the compressor stops. Pull the tank out using the handle, empty it, then reinsert it until the lamp goes out and the unit restarts.

Can I use continuous drainage?

Yes. Remove the drain hole plug on the back (hole A), connect a drain hose (12 mm ID, not included), and plug hole B inside the tank with the removed plug. Ensure the hose is secure and not frozen in cold weather.

How do I clean the air filter?

Remove the water tank and filter holder. Clean the filter with a vacuum cleaner or wash it in warm water with mild detergent. Make sure it is completely dry before reinstalling. Do not expose to direct sunlight.

Why won't the dehumidifier start?

Check if it is plugged into a live socket, the control knob is set to MAX, the water tank is inserted correctly and empty, and air inlets/outlets are not blocked.

Why is the dehumidifier not extracting moisture?

Ensure the filter is clean, air inlets/outlets are unblocked, and the room humidity is already low (normal in winter/spring). Also verify the operating temperature is above +15°C.

The unit is making unusual noise. What should I do?

Make sure the appliance is standing on a level, firm surface. If noise persists, check for any loose parts and contact customer service.

Water is leaking from the unit. How to fix?

If not using continuous drainage, ensure the drain plug on the back (hole A) is tightly sealed. For continuous drainage, check that the hose is properly attached and not kinked, and that the unit is level if set to MAX operation.

Can I store the dehumidifier for a long time?

Yes. Turn off and unplug the unit, empty and dry the water tank, cover the appliance, and store it in a location away from direct sunlight.

How should I dispose of this product?

Follow local ordinances for disposal of electronic waste. If unsure, contact your local authority for guidance.

What is the recommended operating temperature range?

The dehumidifier operates efficiently between +15°C and +35°C. Do not use it below +15°C as performance may degrade.

USER MANUAL Q10M Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Line drawing of a mechanical device with a circular top and curved internal structure (no text or symbols)

ART.NO MODEL

18-2346 Q10M-UK

36-4380 Q10M

Ver. 201202

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Safety Instructions

• The appliance must always stand upright with the wheels underneath.
• The appliance must stand upright for at least 1 hour before it is used for the first time. The same applies after the appliance has been moved or cleaned, etc.
• Never use the appliance if the mains lead, plug or any other part is damaged or does not work properly. Never try to repair the appliance yourself. Leave it to a professional.
• The appliance must not be covered in any way. Make sure that no foreign objects cover or block the air inlet/outlet. Blockages can lead to fires, electric shocks or damage to the product.
• Never use the appliance in areas where flammable liquids/materials or gases (petrol, solvents, gas cylinders, etc.) are stored or used.
• Unplug the appliance from the wall socket when it is not in use. However, do not use the plug to turn the appliance on and off. The appliance should be controlled using the control knob.
• If the appliance is to be moved, first turn the control knob to OFF. Then unplug the appliance and empty the water tank.
• Never expose the appliance to running water or other liquids. Liquid coming in contact with electric components can be extremely hazardous.
• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone without sufficient experience or knowledge unless they have been instructed in its use by someone who will take full responsibility for their safety.
• Never let children play with the product.

Product description

The appliance draws in humid air from the surroundings and channels it past a cooling element inside the dehumidifier. When the humid air passes the cooling element, the water vapour in the air condenses and runs into the water tank. The air then passes through the condenser where it is warmed slightly before being blow out again.

Placement

• Make sure that the appliance is standing firmly on an even surface.
- The appliance should be placed where it can draw in air from the entire house.
- All interior doors should be opened. Close exterior doors and windows.
- If any part of your house suffers from severe humidity, the appliance can be placed there first and then moved to another part of the house later.
- Position the appliance where the air can circulate freely, leave a space of at least 10 cm around the unit.
- The appliance is fitted with wheels for extra mobility. If you move the appliance: make sure that it is turned off and that the water tank is empty.
- Never place the appliance next to a radiator or heating appliance.

Buttons and functions

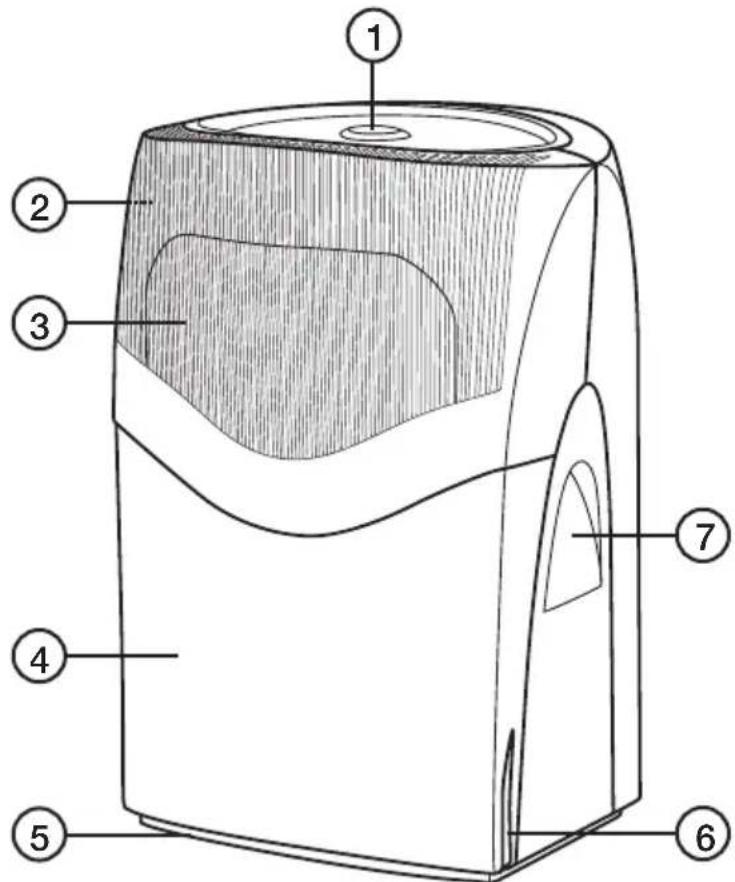

Front

1. Control panel
2. Air inlet
3. Filter (inside the dehumidifier)
4. Water tank
5. Wheel
6. Water tank handle
7. Appliance handle

Back

1. Air outlet
2. Hole for continuous drainage
3. Mains lead

Control panel

1. Indicator lamp that comes on when the water tank is full.
2. Indicator lamp that comes on when the dehumidifier is turned on.
3. Control knob (OFF-MAX)

Use

1. Connect the appliance to a permanently installed 230 V wall socket.
2. Turn the control knob (13) on the hygrostat to the desired extraction level.
3. For continuous operation, turn the control knob to MAX.
4. To switch the appliance off, turn the control knob to OFF.
5. Do not use the appliance if the ambient temperature has settled below +15 °C.

Emptying

• When the water tank is full the compressor will stop and the indicator lamp that shows that the water tank is full will shine red.
  • To empty the tank: Grasp the water tank handle (6) and pull the tank straight out.
• After emptying the tank, replace it and make sure that it is inserted correctly so that the indicator lamp goes out and the dehumidifier starts again.
• Note: The indicator lamp will keep shining if the tank is not replaced properly.

Continuous drainage

When the unit is used in a room with high humidity, the water tank will need to be emptied frequently and it might be more practical to set the unit up for continuous drainage.

Procedure:

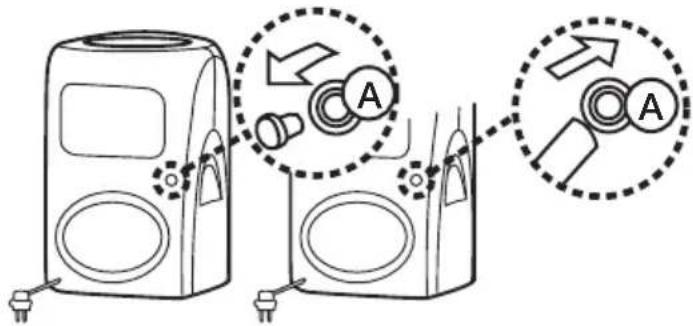

1. Remove the drain hole plug (hole A) on the back of the unit and connect a drain hose with and internal diameter of 12 mm. NOTE! A drain hose is not included.

Simple line drawing of a device with an arrow pointing to its side panel (no text or symbols)

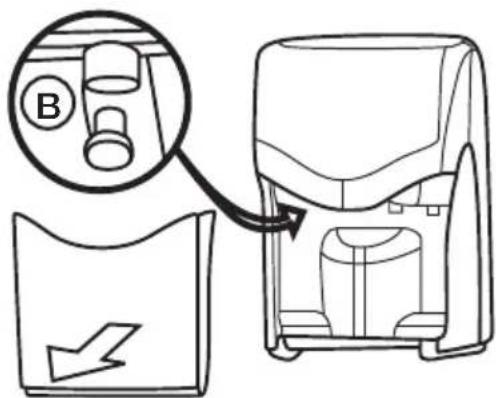

1. Remove the water tank and use the plug from hole A to plug the drain hole in the tank (hole B).

2. Replace the water tank.

NOTE: If the dehumidifier is set to MAX for continuous operation and placed on a sloping floor, it must be aligned so that the corner with the drain hole is at the lowest point. Otherwise there is a risk of the water leaking out.

Line drawings of two household appliances: a portable dishwasher and a circular sink with grid pattern (no text or symbols)

NOTE! Make sure that the water runs freely through the hose and that it is firmly attached. In case of cold weather, make sure the drain hose does not freeze.

Care and maintenance

Use a damp cloth to clean the outer casing.

Never use solvents or corrosive cleaning products.

Cleaning the air filter

Diagram of a device with a downward arrow indicating compression or disassembly (no text or symbols present)

1. Remove the water tank and filter holder.

Line drawing of a box with a piece of paper placed on top, no text or symbols present

1. Use a vacuum cleaner to clean the filter. If it is very dirty wash it in warm water with a mild detergent.

2. Make sure that the filter is completely dry before replacing it.

3. Do not expose the filter to direct sunlight.

Storage

If the appliance is not to be used for a long time:

1. Turn off the appliance and pull out the plug from the wall socket.
2. Empty the water tank and dry it.
3. Cover the appliance and store it in an area not exposed to direct sunlight.

Disposal

Follow local ordinances when disposing of this product. If you are unsure of how to dispose of this product, please contact your local authority.

Troubleshooting

The appliance does not start.	Is it plugged into a wall socket?Is the wall socket live?Is the control knob set to MAX?Is the water tank inserted correctly and empty?Make sure that the air inlet and outlet are not blocked.
The appliance starts but does not extract moisture.	Does the filter need cleaning?Make sure that the air inlet and outlet are not blocked.Is the humidity of the room already at a low level?(this is normal in winter and spring)
The appliance extracts a great deal of moisture.	Is there a window or door open?Is there anything in the room that creates a lot of humidity?
The appliance is abnormally loud.	Make sure the appliance is standing on a level surface.
The appliance is leaking.	Check that the unit is not damaged in any way.If the continuous drainage option is not used, make sure that the drain plug on the back (hole A) is tightly sealed.

Specifications

Model Q10M

Power supply 230–240 V, 50 Hz

Conditions for the

stated values Room temp. +30 °C

Humidity 80 %

Extraction capacity 10 l/day

Current draw* 260 W/1.2 A

Max air flow volume 150 m³/h

Compressor type Piston

Coolant R134a

Operating temp. +15 °C to +35 °C

Water tank 31

External dimensions 342 x 245 x 492 mm

Weight 11 kg

*This value can vary for technical reasons; refer to the markings on the unit.

Luftavfuktare 10 l

ART.NR 18-2346 MODELL Q10M-UK

36-4380 Q10M

Baksida

Simple line drawing of a device with an arrow pointing to its side panel (no text or symbols)

Line drawings of two household appliances: a portable dishwasher and a circular device with a grid-patterned base (no text or symbols)

Diagram of a device with a folded paper and a mechanical component, showing internal structure and directional arrow (no text or symbols)

Line drawing of a box with a piece of paper placed on top, no text or symbols present

ART.NR. 18-2346 MODELL Q10M-UK 36-4380 Q10M

Baksiden

Simple line drawing of a device with an arrow pointing to its side panel (no text or symbols)

Technical line drawings of two household appliances, one with a circular component and the other with a grid-patterned sink (no text or symbols)

Diagram of a device with a downward arrow indicating compression or disassembly (no text or symbols present)

1. Fjern vanntanken og ta ut filterholderen.

Line drawing of a box with a piece of paper placed on top, no text or symbols present

Takaosa

Simple line drawing of a device with a handle and arrow symbol (no text or labels)

Line drawings of two household appliances: a portable dishwasher and a circular sink with grid pattern (no text or symbols)

Diagram of a device with a folded paper and a mechanical component, showing internal components and a downward arrow (no text or symbols)

Line drawing of a box with a lid and handle, no text or symbols present
