Product Type	Freezer
Brand	Jocel
Model	JCV-80
Total Capacity	80 Liters
Freezing Capacity	4 kg/24h
Energy Efficiency Class	F
Annual Energy Consumption	200 kWh
Noise Level	42 dB
Climate Class	N-ST (16°C – 38°C)
Defrost Type	Manual
Refrigerant	R600a
Voltage	220-240 V ~ 50 Hz
Dimensions (H x W x D)	85 x 55 x 55 cm
Weight	28 kg
Temperature Control	Thermostat with 7 settings
Interior Light	No
Number of Drawers	3
Reversible Door	Yes
Stay Time Without Power	Approximately 10 hours
Certifications	CE, RoHS

Frequently Asked Questions - JCV-80 Jocel

How do I set the temperature on the Jocel JCV-80 freezer?

The thermostat is inside the freezer. Turn the knob to the desired setting: 1 is the warmest, 7 is the coldest. The recommended setting is 3 or 4 for normal use.

Why is my freezer not freezing enough?

Check that the thermostat is set correctly and the door is sealing properly. Ensure the condenser coils are clean and there is enough ventilation around the freezer. Also, avoid overloading with warm food.

How often should I defrost the freezer?

Defrost when the ice layer reaches 5-10 mm thickness. For the JCV-80, manual defrost is required. Turn off the freezer, remove food, and let the ice melt. Do not use sharp tools.

What is the storage capacity of the JCV-80?

It has a total capacity of 80 liters, which is suitable for a small household. It can hold approximately 3-4 bags of frozen food.

Can I reverse the door opening direction?

Yes, the JCV-80 has a reversible door. You can change the hinges yourself by following the instructions in the manual. Tools required: screwdriver and spanner.

What should I do if the freezer is noisy?

Normal operational sounds include gurgling, clicking, and humming. Ensure the freezer is level and stable. If noise is excessive, check that it is not touching walls or cabinets.

How do I clean the freezer?

Unplug the freezer and remove all food. Use a mild detergent and warm water to clean the interior and door seals. Wipe dry before plugging back in. Do not use abrasive cleaners.

What does the 'F' energy class mean?

The F energy class indicates a moderate energy efficiency level, typical for older or budget models. It consumes about 200 kWh per year, which may result in higher electricity costs compared to A+ models.

How long can food stay frozen during a power outage?

The JCV-80 can maintain freezing temperature for about 10 hours if the door remains closed. Do not open the door during an outage.

Where can I find spare parts for the JCV-80?

Spare parts can be ordered from the Jocel website or authorized service centers. Common parts include thermostat, door hinge, and temperature control knob. Provide the model number when ordering.

USER MANUAL JCV-80 Jocel

White JOCEL refrigerator with lid and front panel (no visible text or symbols on body)

JCV-80

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

EL COMPARTIMENTO DEL CONGELADOR

Line drawing of a refrigerator with lid and frontrest (no text or symbols)

Line drawing of a refrigerator interior with a hanging lamp and a circular inset showing a person (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Porta Reversível

Posicionamento

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática indicada na placa de características do aparelho:

Classe Climatica	Temperatura Ambiente
S(	)*0°& a )+2 °&
(	)*6°& a )+2 °&
ST	)*6°& a )+8 °&
T	)*6°& a )4+°&

Localização

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

White Jocet refrigerator with lid and front panel (no visible text or symbols on body)

JCV-80

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children aged from \$ to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable & as close to the appliance as you can' and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock &latch 'on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built(in structure, clear of obstruction.

WARNING! )o not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! )o not damage the refrigerant circuit.

WARNING! )o not use other electrical appliances & such as ice cream makers' inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! )o not touch the light bulb if it has been on for a long period of time because it could be very hot. *)

WARNING! 5hen positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! )o not locate multiple portable socket(outlets or portable power suppliers at the rear of the appliance.

• ) o not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- The refrigerant isobutane &+(6--a' is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
- )uring transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments0

• farm houses and by clients in hotels, motels and other residential type environments0
• bed and breakfast type environments0
• catering and similar non(retail applications.

WARNING! Any electrical components &plug, power cord, compressor and etc.' must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a 3special use lamp bulb" usable only with the appliance supplied. This 3special use lamp" is not usable for domestic lighting.

• 6ower cord must not be lengthened.
• 7ake sure that the power plug is not s1uashed or damaged by the back of the appliance. A s1uashed or damaged power plug may overheat and cause a fire.
  • 7ake sure that you can come to the mains plug of the appliance.
  • ) o not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• 8ou must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
  • ) o not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• ) o not put hot on the plastic parts in the appliance.
- ) o not place food products directly against the rear wall.

- Frozen food must not be re(frozen once it has been thawed out. *

- Store pre(packed frozen food in accordance with the frozen food manufacture's instructions.

- Appliance's manufactures storage recommendations should be strictly adhered to. +efer to relevant instructions.

- )o not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

- Ice lollies can cause frost burns if consumed straight from the appliance.

• To avoid contamination of food, please respect the following instructions

- 9pening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for :8h0 flush the water system connected to a water supply if water has not been drawn for ; days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two(star frozen(food compartments & if they are presented in the appliance' are suitable for storing pre(frozen food, storing or making ice(cream and making ice cubes.

• 9ne(, two) and three (star compartments & if they are presented in the appliance' are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• =efore maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
  • ) o not clean the appliance with metal objects.
• ) o not use sharp objects to remove frost from the appliance. <se a plastic scraper.
• +egularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance. ^2'

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- <npack the appliance and check if there are damages on it. )o not connect the appliance if it is damaged. +eport possible damages immediately to the place you bought it. In that case retain packing.

- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

- Ade1uate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

- 5herever possible the spacers of the product should be against a wall to avoid touching or catching warm parts &compressor, con( denser' to prevent possible burn.

- The appliance must not be located close to radiators or cookers.

- 7ake sure that the mains plug is accessible after the installation of the appliance.

Service

- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• ) on't put hot food in the appliance0

• ) on't pack food close together as this prevents air circulating 0

- 7ake sure food don't touch the back of the compartment's'0

• If electricity goes off, don't open the door's'0
  • ) on't open the door&s' fre1uently0
  • ) on't keep the door &s' open for too long time0
• )on't set the thermostat on exceeding cold temperatures0
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases? the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic e1uipment. =y ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

6ackaging materials

The materials with the symbol are recyclable. )ispose the packaging in a suitable collection containers to recycle it.

)isposal of the appliance

*. )isconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING!

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

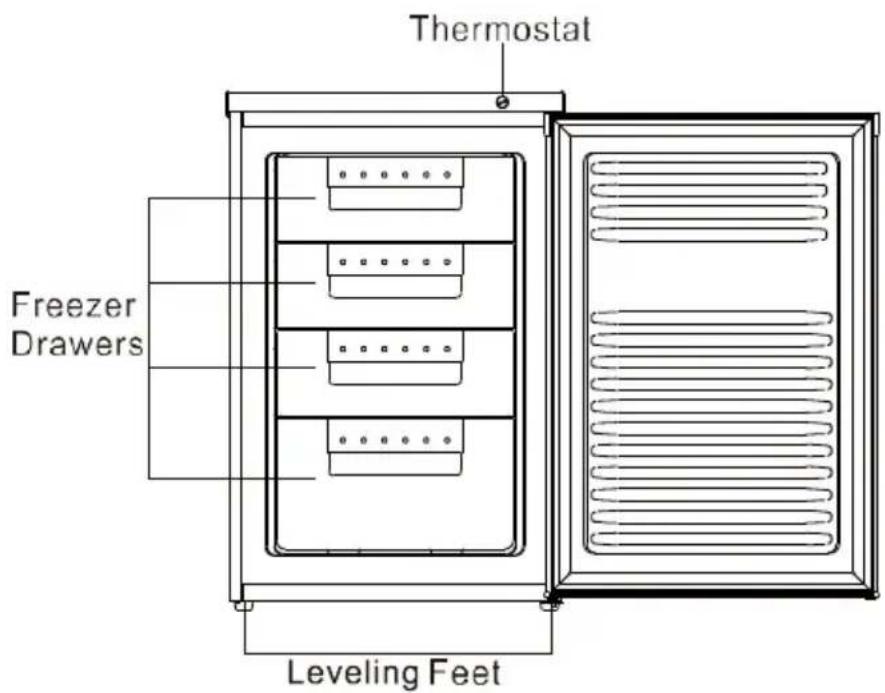

Position different food in different compartments according to below table

Freezer drawer(s)/shelf

·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Note: Above picture is for reference only.

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that \$ people handle the unit during assembly.

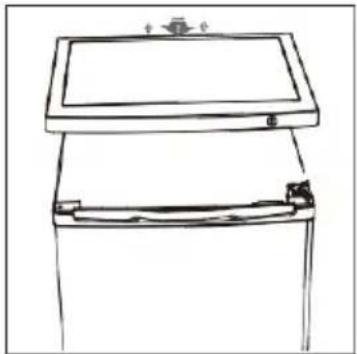

• & remove two screws at rear side of top cover.

\$. &remove top cover and thermostat knob, then place it aside.

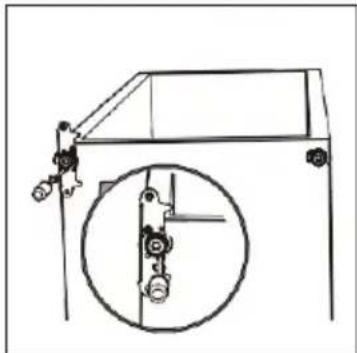

1. (nscrew top hinge and then remove door and place it on a soft pad to avoid scratch.

). (nscrew bottom hinge. Then remove the ad*ustable feet from both side.

Simple line drawing of a rectangular appliance with a lid and handle, no text or symbols present

Line drawing of a mechanical component with a dial indicator and a circular label (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing a pulley mechanism (no text or symbols)

Reverse Door

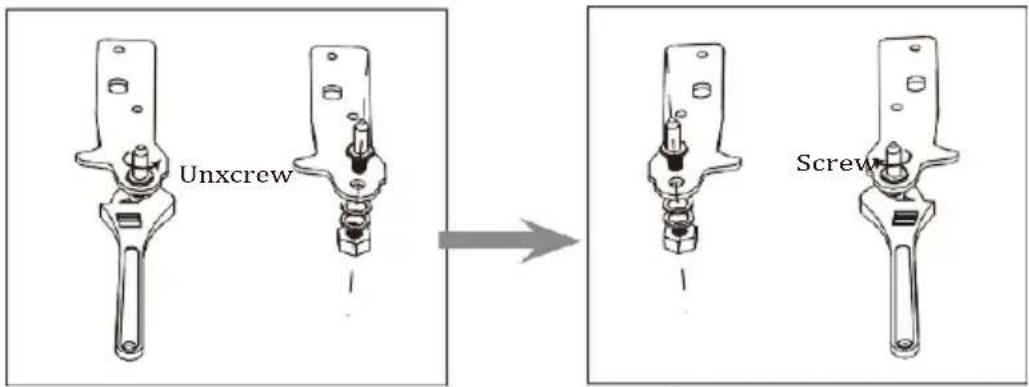

1. (nscrew and remove the bottom hinge pin, turn the bracket over and replace it.

+. &efit the bracket fitting the bottom hinge pin. &eplace both ad*ustable feet.

Technical line drawing of a mechanical assembly with a circular inset showing a pulley mechanism (no text or symbols)

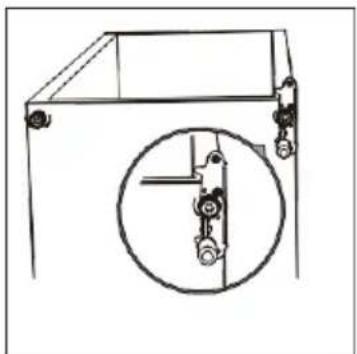

1. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

Line drawing of a mechanical device with a cylindrical component and internal components (no text or symbols)

/. Put the top cover and fix it with \$ screws on the back.

1. Fix the thermostat knob.

Simple line drawing of a rectangular object with a label '0' pointing to its side (no text or symbols on the object itself)

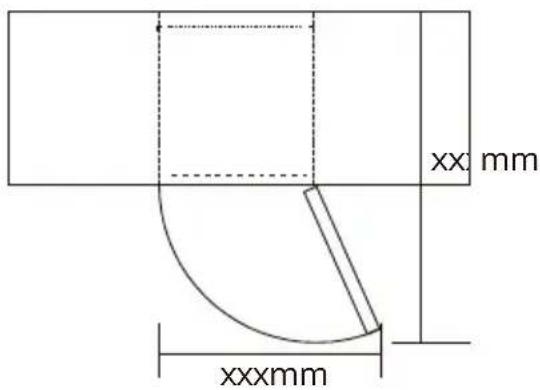

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

Positioning

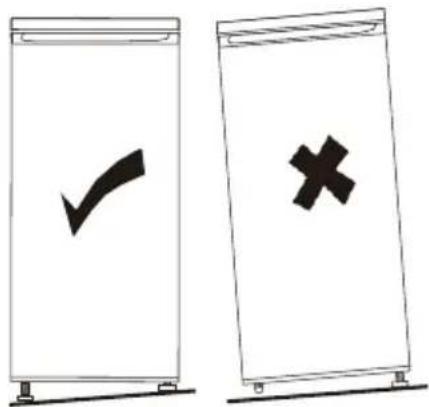

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance!

Climate class	$mbient temperature
SN	&10°C to &(°C
N	&1*°C to &(°C
ST	&1*°C to &(8 °C
T	&1*°C to &(°C

/ocation

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi.net and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. \$accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply0 the plug must therefore be easily accessible after installation.

Electrical connection

1efore plugging in, ensure that the voltage and fre2uency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a 2ualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. 3irectives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 3 settings MIN, NORMAL and MAX. MIN is warmest setting and MAX is coldest setting.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Daily use

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep "frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in \ \%$ hours is specified on the rating plate.
• The freezing process lasts % hours& during this period do not add other food to be frozen.

Storing frozen food

(hen first starting"up or after a period out of use, before putting the product in the compartment let the appliance run at least \$ hours on the higher settings.

Important!) In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under *rising time+, the defrosted food must be consumed quickly or cooked immediately and then re"frozen -after cooked..

Thawing

Deep"frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. )n this case, cooking will take longer.

)ce"cube

This appliance may be equipped with one or more trays for the production of ice"cubes.

/elpful hints and tips

/ints for freezing

To help you make the most of the freezing process, here are some important hints&

• the maximum quantity of food which can be frozen in \ \%$ hrs. is shown on the rating plate0
• the freezing process takes % hours. 1o further food to be frozen should be added during this period0
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs0
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required0
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight0

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter0

• lean foods store better and longer than fatty ones0 salt reduces the storage life of food0

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt0
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt0
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

/ints for storage of frozen food

To obtain the best performance from this appliance, you should&

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer0
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time0
• not open the door frequently or leave it open longer than absolutely necessary.
- 4nce defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacture.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock5 Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. 1 ever clean the appliance with a steam cleaner. 6 moisture could accumulate in electrical components, danger of electrical shock5 /ot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! 7thereal oils and organic solvents can attack plastic parts, e.g. lemon 8uice or the 8uice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• 9emove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. :fter cleaning wipe with fresh water and rub dry.
• accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner. ^2
  • :fter everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed.

1 ever use sharp metal tools to scrape off frost from the evaporator as you could damage it.

/owever, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows&

• pull out the plug from the socket0
• remove all stored food, wrap it in several layers of newspaper and put it in a cool place0
• keep the door open, and placing a basin underneath of the appliance to collect the defrost water0
• when defrosting is completed, dry the interior thoroughly
• replace the plug in the power socket to run the appliance again.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. 4nly a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use -compressor, refrigerant circulation..

Problem	Possible cause	Solution
:pliance does not work	6ains plug is not plugged in or is loose	)insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	6ains malfunctions are to be corrected by an electrician.
:pliance freezes too much	Temperature is set too cold or the appliance runs at MAX setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly ad8usted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	4pen the door only as long as necessary.
	: large quantity of warm food was placed in the appliance within the last $% hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
/eavy build"up of frost on the door seal.	Door seal is not air"tight.	Carefully warm the leaking sections of the door seal with a hair dryer -on a cool setting.. :t the same time shape the warmed door seal by hand such that it sits correctly.
;nusual noises	:pliance is not level.	9e"ad8ust the feet.
	The appliance is touching the wall or other ob8ects.	6ove the appliance slightly.
	: component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	)f necessary, carefully bend the component out of the way.

)f the malfunction shows again, contact the Service Center.
These data are necessary to help you quickly and correctly. (rite the necessary data here, refer to the rating plate.

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.

2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product )5((=(5

Brand JOCEL

Model -&9

Complies with the following European directives and standards implementation:

Low Voltage

2014/35/EU EN 60335-1:2012 + A11:2014

+ A13:2017

EN 60335-2-24:2010 + A1:2019

+ A2:2019

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2006 + A1:2009 +

A2:2011

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013
