Product Type	Motion Sensor
Brand	Hive
Model	Motion Sensor
Category	Home Automation
Dimensions	Approximately 80 x 60 x 30 mm
Weight	Approximately 50 g
Power Supply	2x AAA batteries (included)
Battery Life	Up to 2 years under normal use
Connectivity	Zigbee
Communication Protocol	Zigbee 3.0
Detection Range	Up to 12 meters (120° field of view)
Installation	Wall mount or free standing
Operating Temperature	-10°C to 40°C
Humidity Range	0% to 85% non-condensing
Main Functions	Detects motion, triggers automations, sends alerts via Hive app
Maintenance	Clean with dry cloth; avoid liquids
Safety	Low voltage device; no specific hazards
Spare Parts	Batteries only; sensor is non-disassemblable
Repairability	Not user-repairable; contact Hive support
Warranty	2 years from purchase date
Compatibility	Requires Hive Hub or compatible Zigbee hub

Frequently Asked Questions - Motion Sensor Hive

What does the Hive Motion Sensor detect?

The Hive Motion Sensor detects movement in its field of view using passive infrared (PIR) technology. It can trigger automations like turning on lights or sending alerts via the Hive app.

How do I install the Hive Motion Sensor?

You can place it on a flat surface or mount it on a wall using the included double-sided tape or screws. Ensure the sensor has a clear view of the area you want to monitor, at a height of about 2 meters.

What batteries does the Hive Motion Sensor use?

It uses 2 AAA batteries (alkaline recommended). Battery life is typically up to 2 years depending on usage and temperature.

Do I need a Hive Hub to use the Motion Sensor?

Yes, the Motion Sensor requires a Hive Hub (or compatible Zigbee hub) to connect to your home network and the Hive app.

Can I use the Hive Motion Sensor outdoors?

No, it is designed for indoor use only. Operating temperature is -10°C to 40°C, and it is not weatherproof.

How do I clean the Hive Motion Sensor?

Wipe the sensor with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

What is the detection range of the Hive Motion Sensor?

It has a detection range of up to 12 meters with a 120° horizontal field of view.

How do I reset the Hive Motion Sensor?

Remove and reinsert the batteries. If needed, hold the button inside the battery compartment for 5 seconds until the LED flashes red.

Can I pair the Hive Motion Sensor with other smart home systems?

It is optimized for Hive ecosystem but can work with other Zigbee 3.0 compatible hubs. However, full functionality is only guaranteed with Hive products.

What does the LED indicator on the Motion Sensor mean?

A green flash indicates motion detection; a red flash during setup indicates pairing mode. Refer to the manual for detailed LED patterns.

USER MANUAL Motion Sensor Hive

Front view of a white remote control device with a circular button and two dots (no text or symbols visible)

Welcome to Hive

Your Hive Motion Sensor detects motion in your home, and sends you an alert. This guide tells you everything you need to know.

If you're new to Hive products, please see the user guide provided with your Hive Hub to set up your Hive account.

Getting started:

1 Add your sensor

You can do this using your Hive app or the online dashboard.

Using the Hive app:

• Open the Hive app on your smartphone or tablet. You may be asked to log-in.
• Tap the Menu button and then Install devices, then follow the on-screen instructions.

Using the online dashboard:

• Log in to your Hive account at hivehome.com
• Under Settings select Install devices, then follow the on-screen instructions.

When prompted, pull the tab from the sensor case to start the pairing process.

The LED light on the front will begin to flash amber while it searches to find your hub.

Once your sensor appears on the screen, you can name it and press Save to complete setup.

2 Choose a location

Find a place that has a good view of the area you want to monitor, as long as it's near enough to your Hive Hub or signal booster to stay connected.

• Aim for around 2-3m from the floor as any higher may leave blind spots below.
  • Alternatively, you can rest the sensor on its side on a table or shelf, then you may not need to fix it to the surface.

- Your sensor can detect motion up to 5m away and has a 94° field of view when vertical.

The following might trigger a false motion alert:

• Direct sunlight hitting your sensor.
  • Having a window in view (movement outside a window).
  • Having a heat source in view (such as a hot air blower, a draughty window or an air conditioning outlet).
• Lots of post coming through a letterbox in view.

Remember: Pets can trigger your motion sensor. If you don't want this to happen try placing the sensor where pets won't be seen.

Fix it in place (optional)

If you'd like to check the signal before fixing your sensor in place, you can do this in the app or online dashboard under Manage devices.

When fixing the sensor in place, ensure there is enough space above to slide open the case for future battery replacement.

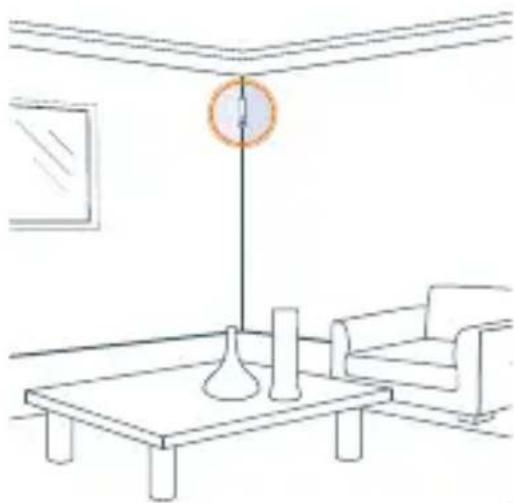

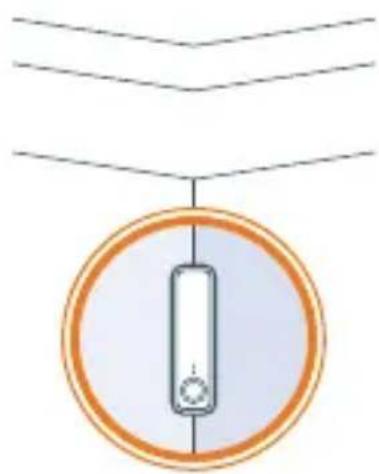

Using the adhesive strips:

• Peel strips from the backing paper and stick to either the back or the angled sides of the sensor depending on where you're attaching it.
• Wipe the area on the surface where the adhesive strips will be attached and make sure it's dry.
• Remove the backing from the adhesive strips so that you can firmly place the sensor on the surface.

Line drawing of a minimalist living room with a coffee table, armchair, and hanging lamp (no text or symbols)

Simple diagram of a hanging object with a central vertical bar and circular base, no text or symbols present.

Remember: Removing the provided adhesive strips from wallpaper or paint can leave marks on the wall.

Usage

Your Hive Motion Sensor is designed for indoor use only.

Battery

When your Hive Motion Sensor battery needs replacing we recommend replacing with 1 new

DURACELL CR123A lithium battery. Caution: Keep battery away from children. If swallowed, consult a physician at once. Battery can explode or leak if heated, disassembled, shorted, recharged, exposed to fire or high temperature or inserted incorrectly. Keep in original package until ready to use. Do not carry batteries loose in your pockets or purse.

Maintenance

Remove the battery from your Hive Motion Sensor before cleaning and keep it away from water and other liquids at all times.

Can we help?

You can view our handy how-to-use videos along with hints and tips at hivehome.com/support

If for any reason you need to return your Hive Motion Sensor, simply return your box and its contents to the retailer. Any return is subject to the retailer's refund policy so please don't forget to check the retailer's refund policy too.

Centrica Connected Home Limited declares that the radio equipment type MOT003 complies with Directive 2014/53/EU. Full declaration text available at: hivehome.com/compliance

Max. radiated power: <10 dBm.

Frequency: 2405 - 2480 MHz

Hive logo with white wave-like design on blue background (no text or symbols)

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with a crossed out wheeled bin should

not be placed into your household rubbish bin. Instead, when they are unable to be re-used, they should be recycled. Your local authority will be able to advise you on the location of the nearest recycling centre that is authorised to accept this type of waste. Please recycle responsibly.
