USER MANUAL Proteus Rayzor Blade S Elation

Technical line drawing of a mechanical device with circular components and a control panel (no text or symbols)

Stylized black-and-white line drawing of a bearded face with a crown and beard (no text or symbols)

PROTEUS™

RAYZOR BLADE S

user manual

©2024 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ELATION brands and product names are trademarks or registered trademarks of their respective companies.

ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [e-mail]

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

[phone] | [phone] fax | www.elationlighting.eu | [e-mail]

Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000

[phone]

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online. Please scan the QR Code with your mobile device or visit www.elationlighting.com for the latest revision/update of this manual, before installation and/or programming.

Date	Document Version	SoftwareVersion ≥	DMX Channel Modes Notes
07/27/2022	.0 1.0.0 28/50	/82/106 Initial Release
08/25/2022	.1 N/C No Change		Updated RDM, Torque Settings for Screws
09/08/2022	.2 N/C No Change	Updated System Menu
10/05/2022	.3 N/C No Change	Updated Dims
12/14/2022	.4 N/C No Change	Added UKCA Approval
02/02/2023	.5 N/C No Change		Added IP65 Rated; updated Limited Warranty, Error Codes, Specifications
08/17/2023	.6 N/C No Change	Updated IP65 Rated
10/06/2023	.7 N/C No Change	Added Shielded Cable note
12/13/2023	.8 N/C No Change		Updated Installation Guidelines and Specifications
03/22/2024	.9 1.2.1		28/50/82/66/72/106 Ch

CONTENTS

General Information 4

IP65 Rated 5

Limited Warranty (USA Only) 6

Safety Guidelines 7

Overview 9

Torque Settings for Screws 10

IP Test Perameters 11

Installation Guidelines 12

System Menu 19

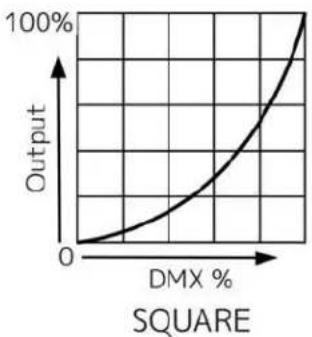

Dimmer Curve Graphs 26

Patching and FX Programming Guide 27

DMX Traits: Main Fixture 30

DMX Traits: RGB Pixels 35

DMX Traits: Strobeline 37

DMX Traits: Sparkled 38

DMX Traits: Color Temperature 39

Pixel Layouts 40

RGBW Pixel FX Table 41

Sparkled FX Table 47

Strobeline FX Table 52

Remote Device Management (RDM) 58

Error Codes 59

Maintenance Guidelines 60

Specifications 61

Dimensional Drawings 62

Optional Accessories 64

GENERAL INFORMATION

FOR PROFESSIONAL USE ONLY

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information. For professional use only.

UNPACKING

Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install and operate the device have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this device to your dealer without first contacting customer support. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

BOX CONTENTS

Omega Brackets (x2)

IP65 Rated 5pin DMX Cable

IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)

IP65 Rated Power Cable

CUSTOMER SUPPORT

Contact ELATION Service for any product related service and support needs.

Also visit forums.elationlighting.com with questions, comments or suggestions.

ELATION SERVICE USA-Monday-Friday 8:00am to 4:30pm PST

323-582-3322 | Fax [phone] | [e-mail]

ELATION SERVICE EUROPE-Monday-Friday 08:30 to 17:00 CET

[phone] | Fax [phone] | [e-mail]

REPLACEMENT PARTS please visit parts.lationlighting.com

IP65 RATED

The International Protection (IP) rating system is commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e. IP65), where the numbers define the degree of protection. The first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the fixture, and the second digit (Water Protection) indicates the extent of protection against water entering the fixture. An IP65 rated lighting fixture is designed and tested to protect against the ingress of dust (6), and low-pressure water jets from any direction (5).

Maritime/Coastal Environment Installations: A coastal environment is seaside adjacent, and caustic to electronics through exposure to atomized salt-water and humidity, whereas maritime is anywhere within 5-miles of a coastal environment.

Maritime installations require additional preparation, and additional service intervals may be needed given the maritime use. In general, IP ratings presuppose freshwater conditions VS maritime conditions, which are typically more “caustic” to IP fixtures (both internally and externally). A duty-cycle may also be needed when units are not in use. During times of high humidity and colder temperatures, condensation may occur internally so the fixture may require a duty-cycle to bring it up to running temperature, allowing any accumulation of moisture to be expelled via the vent valve. Recommendations can change based on installation environmental circumstances.

NOTE: NOT ALL FEATURES LISTED ARE AVAILABLE ON ALL FIXTURES; THE FOLLOWING INSTRUCTIONS MAY NOT APPLY. CONTACT SUPPORT FOR ADDITIONAL DETAILS.

Exterior Maintenance: Inspect the exterior every 30-days. The unit must be powered off/disconnected. The chassis should be inspected for any signs of contaminants. Inspect optics to determine if the lens is obstructed, then clean optics and chassis accordingly. Based on initial finding, schedule maintenance accordingly, keeping in mind that exterior maintenance will be required. Even if the luminaires are NOT in use, maintenance will still be needed given its location (exterior use). The use of a durable type of wax on the chassis is recommended since it will help prevent contaminant build up. Inspect both power and data lines for any signs of contaminants or corrosion. Periodically reapplying di-electric grease, especially in coastal environments. If any signs of corrosion/contaminants are present, clean thoroughly, and/or replace connectors, then reapply di-electric grease. Typically, this should be done annually, or any time an opportunity presents itself. As a preventive measure, annual replacement of both vent valves is recommended. The vent valve membrane can become contaminated and/or clogged causing improper venting of humidity within the luminaire. Inspect all mounting hardware as a precaution.

Interior Maintenance: Inspect the interior every 30-days. The unit must be powered off/disconnected.

• Inspect zoom/focus mechanism, clean optics, lubricate linear bearings (Krytox oil) as needed, inspect belts for wear
• Inspect all rotating effect wheels, manually rotate them, note any resistance
• Inspect all remaining rotating belts for any wear
• Inspect all fans, clean as needed, check rotation, check connections
• Inspect CMY module, manually move flags and check for signs of resistance, and if needed, clean guide rods first, then reapply a thin layer of grease (moly lube)
  • Clean interior with low-volume compressed air, then clean optics prior to reassembly of head covers

Although the base has limited moving parts, the pan belt should also be inspected for wear. Remember to always perform an IP test anytime a cover is removed.

There is no specific time frame regarding the routine replacement of parts such as belts/stepper motors, PCBs, or LEDs. These items should only be replaced on an as needed bases, except for cooling fans, which should be replaced once the luminaries reach 10,000-hours. This is a prophylactic measure intended to keep the unit running as cool as possible, insuring proper function of all internal components. A complete service breakdown is available, please contact [e-mail] for any needed parts or manuals.

LIMITED WARRANTY (USA ONLY)

A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be free of manufacturing defects in material and workmanship for a period of two years (730 days), and Elation Professional product rechargeable batteries to be free of manufacturing defects in material and workmanship for a period of six months (180 days), from the original date of purchase. This warranty excludes discharge lamps and all product accessories. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which Elation Professional concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional factory unless prior written authorization was issued to purchaser by Elation Professional; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or periodic check-up. During the periods as specified above, Elation Professional will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional. All products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect.
E. Elation Professional reserves the right to make changes in design and/or performance improvements upon its products without any obligation to include these changes in any products thereto-fore manu-factured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with the products described above. Except to the extent prohibited by applicable law, all implied warranties made by Elation Professional in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said periods have expired. The consumer's and/or dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional be liable for any loss and/or damage, direct and/or consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

WARRANTY RETURNS

All returned service items whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem, as well as the R.A. number, must also be written down on a piece of paper and included in the shipping container. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Items returned without an R.A. number clearly marked on the out-side of the package will be refused and returned at customer's expense. You may obtain an R.A. number by contacting customer support.

SAFETY GUIDELINES

This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts (omega brackets) included with this fixture should be used for installation. Any modifications to the fixture and/or the included mounting hardware will void the original manufactures warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1-FIXTURE MUST BE PROPERLY GROUNDED.

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURE'S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.

DO NOT PLUG FIXTURE INTO A DIMMER PACK! NEVER OPEN THIS FIXTURE WHILE IN USE! UNPLUG POWER BEFORE SERVICING FIXTURE! NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT! KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

IF THE FIXTURE IS EXPOSED TO ENVIRONMENTAL TEMPERATURE CHANGES SUCH AS RELOCATION FROM AN OUTDOOR COLD TO AN INDOOR WARM ENVIRONMENT, DO NOT POWER THE FIXTURE ON IMMEDIATELY. INTERNAL CONDENSATION AS A RESULT OF ENVIRONMENTAL TEMPERATURE CHANGE CAN CAUSE INTERNAL FIXTURE DAMAGE. LEAVE THE FIXTURE POWERED OFF UNTIL IT HAS REACHED ROOM TEMPERATURE BEFORE POWERING ON.

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK-MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 3.2 FEET (1.0 METERS) MAXIMUM TEMP OF EXTERNAL SURFACE 185° F (85°C) MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE 3.2 FEET (1.0 METER)

SAFETY GUIDELINES

• DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving.
• DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
• DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the fixture securely with ease. NEVER force a power cord connector into the fixture. If the power cord or any of its connectors are damaged, replace it immediately with a new one of similar power rating.
  • DO NOT block any air ventilation slots.
• All fan and air inlets must remain clean and never blocked.
• Always disconnect fixture from main power source before performing any type of service and/or cleaning procedure. Only handle the power cord by the plug end; never pull the plug out by tugging the wire portion of the cord.
• Consistent operational breaks will ensure fixture will function properly for many years.
• ONLY use the original packaging and materials to transport the fixture in for service.

OVERVIEW

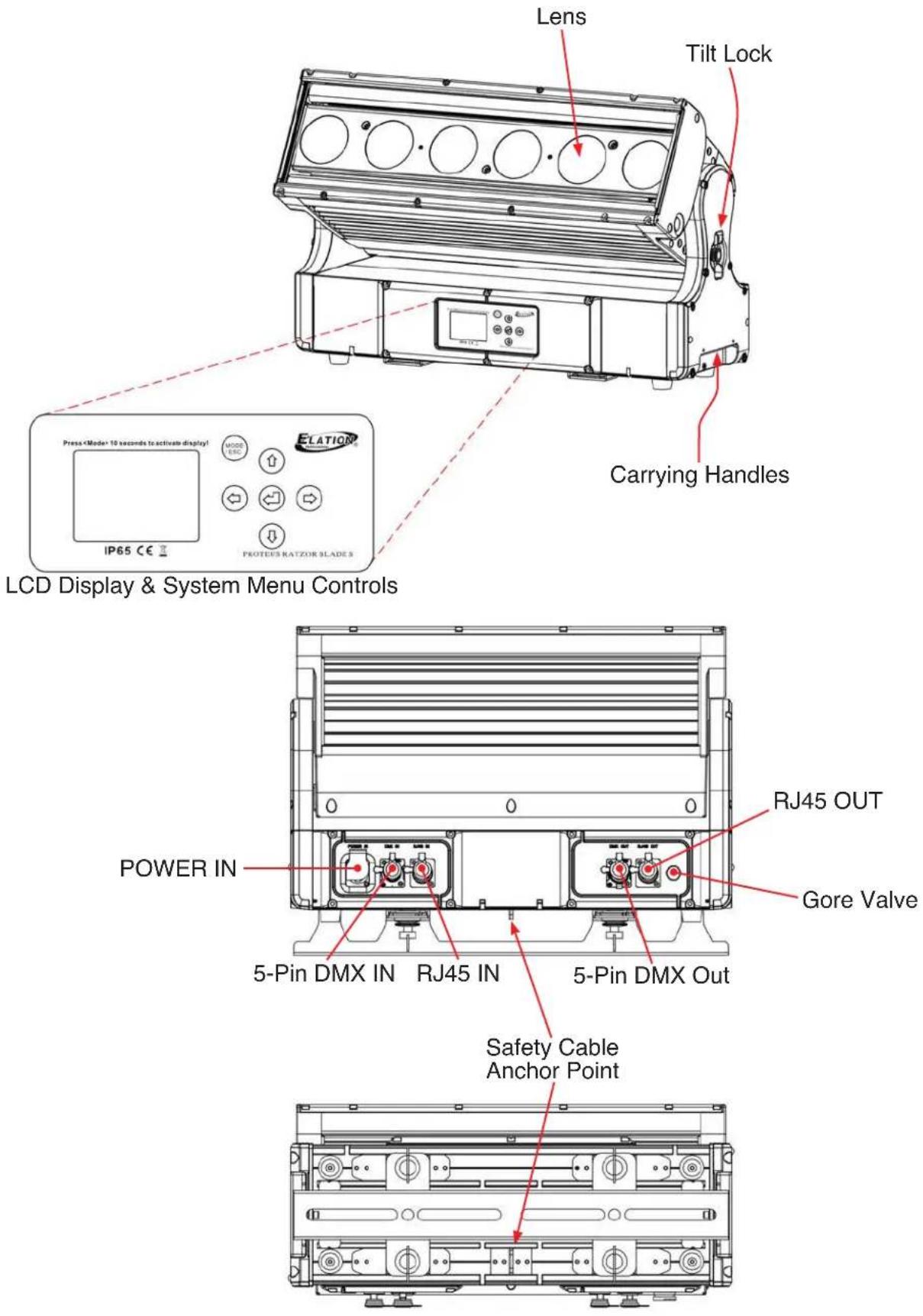

TORQUE SETTINGS FOR SCREWS

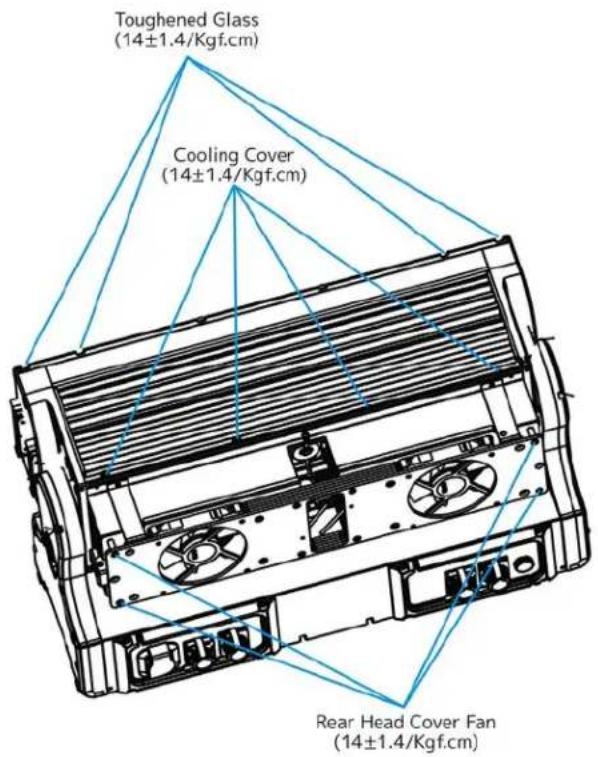

NO. Name Torque Settings/kgf.cm

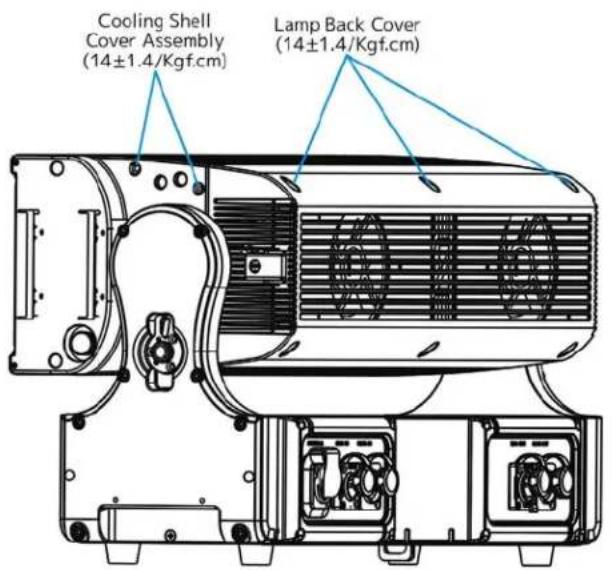

1 Lamp Back Cover 2 7±0.7
2 Cooling Shell Cover Assembly 14±1.4
3 Cooling Cover 14±1.4
4 Toughened Glass 14±1.4
5 Rear Head Cover Fan 14±1.4

CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP65 INTEGRITY, TEST FIXTURE USING THE ELATION IP TESTER. CONTACT ELATION SERVICE FOR MORE DETAILS.

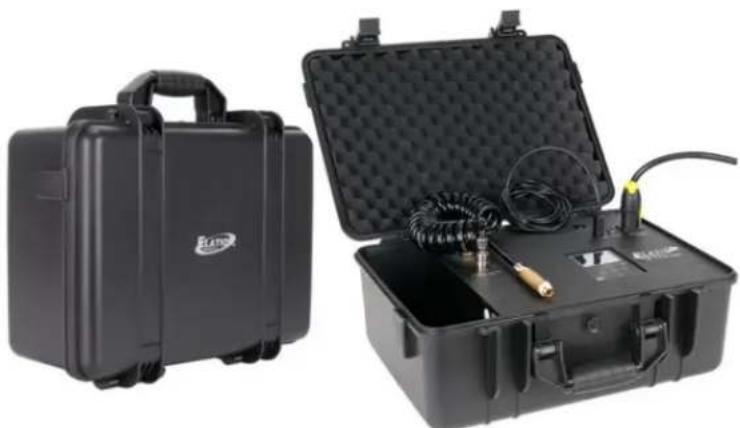

IP TEST PARAMETERS

Following any repair or maintenance procedure that requires disassembly of the fixture, use Elation's IP Tester to confirm the IP integrity of the fixture. The air valve is located on the back panel next to the display screen, as shown in the diagram below. Please contact Elation Service for information regarding the Elation IP Tester, or visit the product information page online at: https://www.elationlighting.com/ip-tester

CAUTION! THE USE OF PROTECTIVE GLOVES AND SAFETY GOGGLES IS STRONGLY RECOMMENDED WHILE PERFORMING THE IP PRESSURE TEST! AVOID PLACING YOUR FACE, EYES, HANDS, ETC IN PROXIMITY TO THE LENS OF THE FIXTURE WHILE PERFORMING THE TEST!

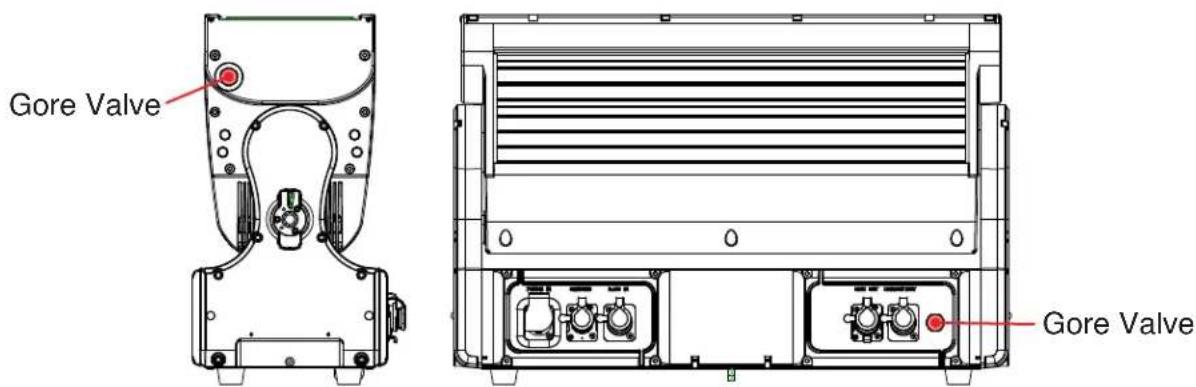

DE-HUMIDIFICATION: IP65 fixtures operating in high-humidity environments may experience residual fogging or condensation. Such fogging will not affect the fixture, and can be removed using the following procedure: position the unit with the air valve pointing upwards, then open the air valve and run the unit for 1-2 hours after reaching operating temperature. Then, while the fixture is still hot, re-install the air valve and allow the unit to cool down. Please note: this procedure should be performed in a dry, climate-controlled environment. Avoid additional fogging by drying the fixture completely before placing into a road case.

Elation Product	Minimum Value		Maximum Value		Steady Time (Hold Time)	Tester Remarks
	Kpa Psi Kpa		Psi S
Proteus Rayzor Blade L/S (Same settings both units)	-17	2.5	-13	-1.9	30		Elation IP Tester
	13.00	1.9	17.00	2.5	30	Elation IP Tester

Two black plastic enclosures with visible wiring and a small probe, one open and one closed (no text or symbols)

INSTALLATION GUIDELINES

FLAMMABLE MATERIAL WARNING

Keep fixture minimum 3.2 feet (1.0m) away from flammable materials and/or pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or installations.

MINIMUM DISTANCE TO OBJECTS/SURFACES

MUST BE 3.2 FOOT (1.0 METERS)

MINIMUM DISTANCE OF INFLAMMABLE MATERIALS

FROM THE SURFACE 3.2 FEET (1.0 METER)

AMBIENT TEMPERATURE RANGE IS -4°F TO 113°F (-20°C TO 45°C).

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.

Before rigging/mounting the fixture to any metal truss/structure or placing the fixture on any surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure or surface is properly certified to safely hold the combined weight of the fixture, clamps, cables, and accessories.

Overhead rigging requires extensive experience, including, amongst others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Fixture ambient operating temperature range is -4^ to 113^ . ( -20^ to 45^ )

Do not use the fixture under or above this temperature.

Fixture should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand.

NEVER stand directly below the fixture when rigging, removing or servicing.

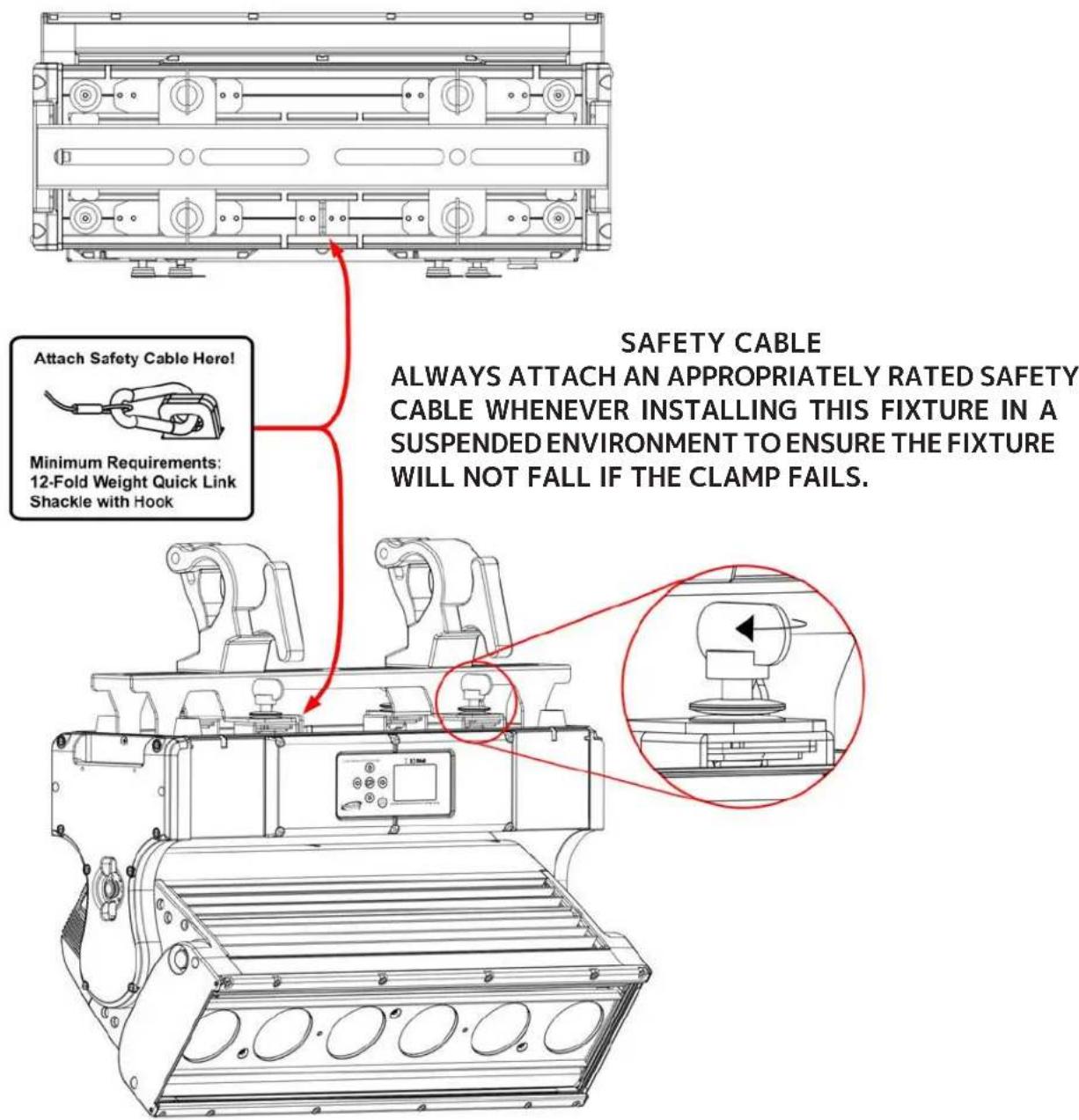

Overhead fixture installation must always be secured with a secondary safety attachment, such as an appropriately rated safety cable.

Allow approximately 10 minutes for the fixture to cool down before servicing.

INSTALLATION GUIDELINES

TILT-LOCK

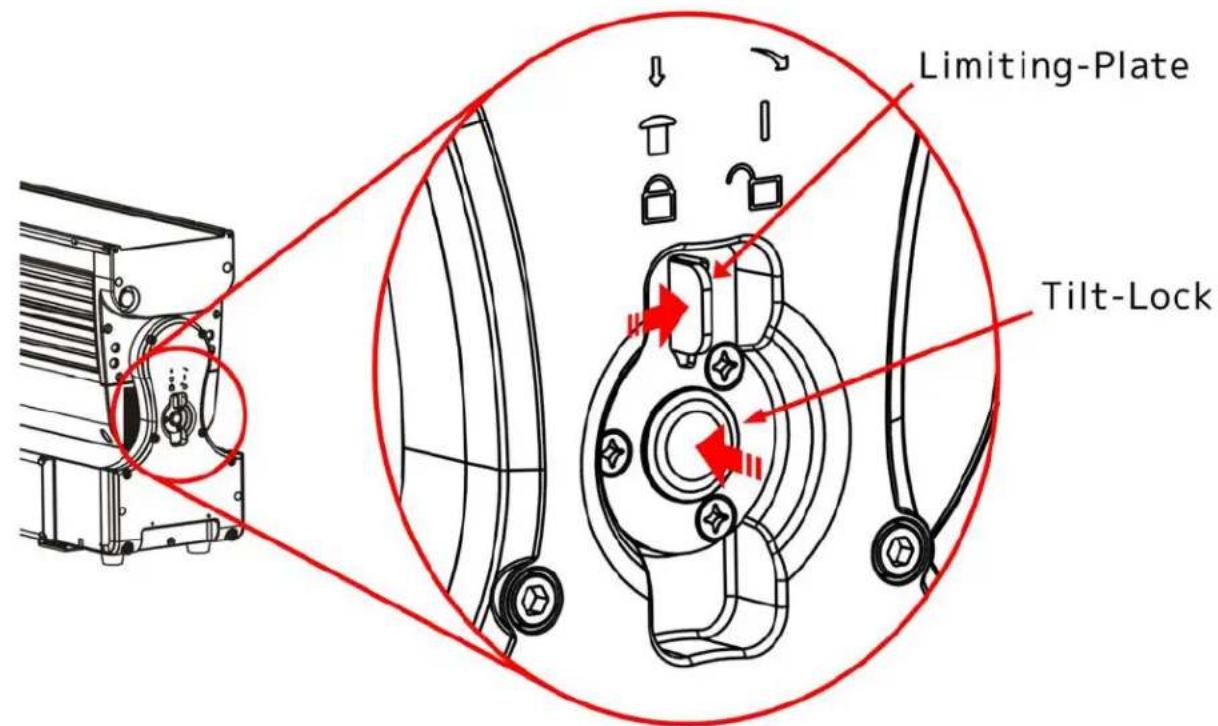

To lock, press the Tilt-Lock Button until it clicks.

To Unlock, press the Limiting-Plate to the right until the Tilt-Lock button pops up.

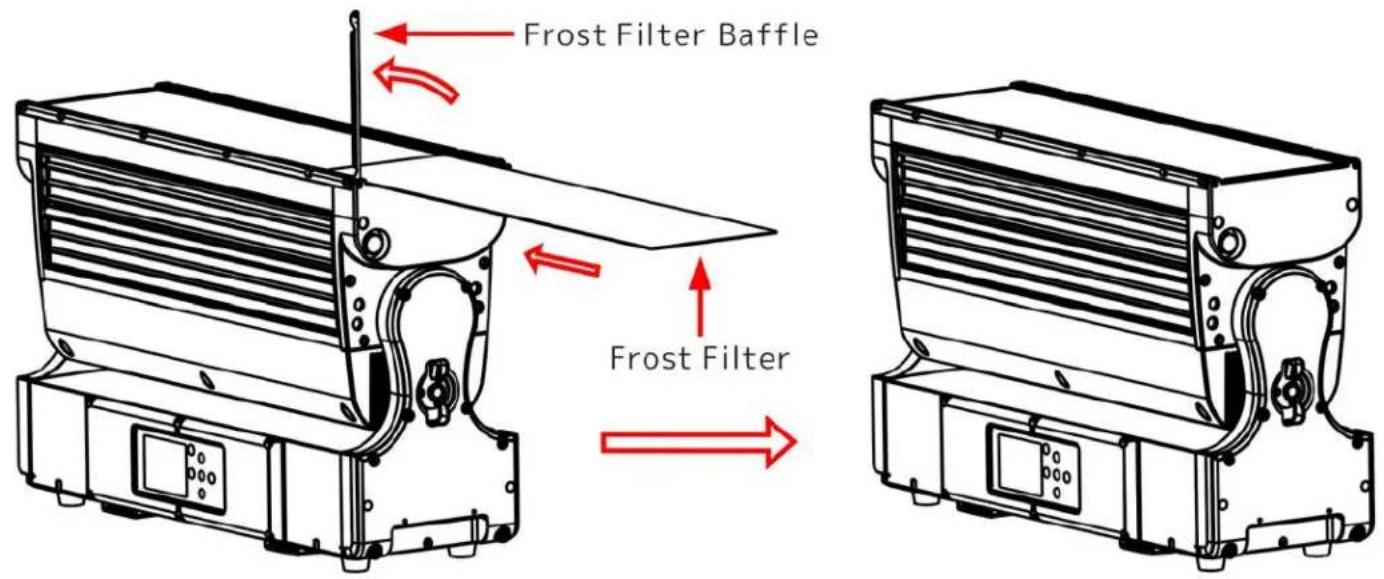

FROST-FILTER

1. Loosen the screws on both sides of the Frost-Filter Baffle and lift it away as shown below.
2. Insert the Frost Filter into the slot above the lens glass and slide it in fully.
3. Replace the Frost-Filter Baffle and tighten the screws

INSTALLATION GUIDELINES

OMEGA BRACKETS WITH CLAMP INSTALLATION

Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener 14 turn clockwise; making sure the fastener is completely locked. Omega Brackets can be installed into the fixture base as illustrated below.

MOUNTING THE FIXTURE ON A TRUSS USING CLAMPS WITH OMEGA BRACKETS

When mounting the fixture to a truss, be sure to secure an appropriately rated professional grade rigging clamp to the included Omega Brackets using an M10 or M12 screw fitted through the center hole of the Omega Brackets. The fixture provides built-in rigging points for a SAFETY CABLE (not included). Be sure to only use one of the designated rigging points for the safety cable and never secure a safety cable to a carrying handle.

INSTALLATION GUIDELINES

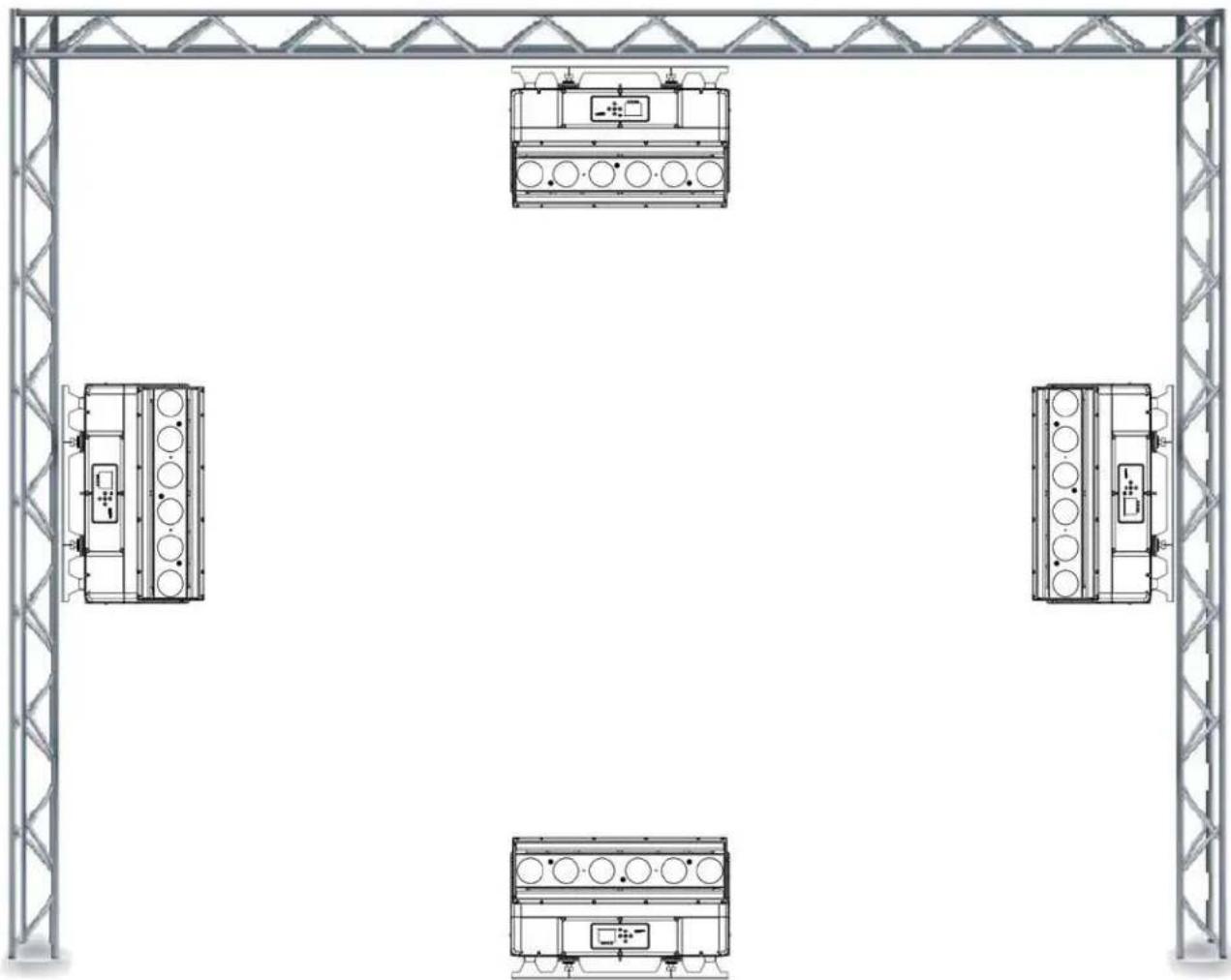

RIGGING

Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Technical line drawing of a steel truss structure with four identical panel layouts arranged in a square layout (no text or symbols)

INSTALLATION GUIDELINES

ART-NET | sACN CONNECTION

When connecting fixture to a network switch to control multiple devices, a Gigabit Ethernet Switch that supports IGMP (Internet Group Management Protocol) is required. Using a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all connected devices to the switch. Click link below for more information about IGMP.

https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol

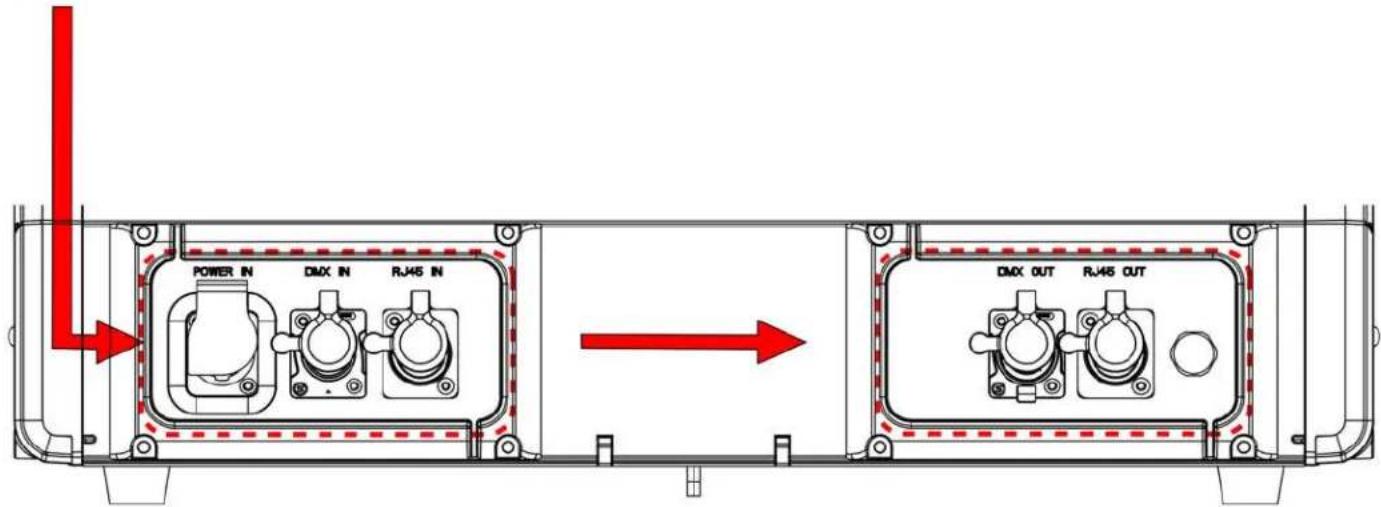

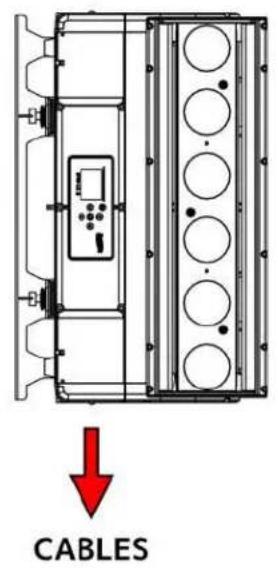

POWER AND DATA CABLES

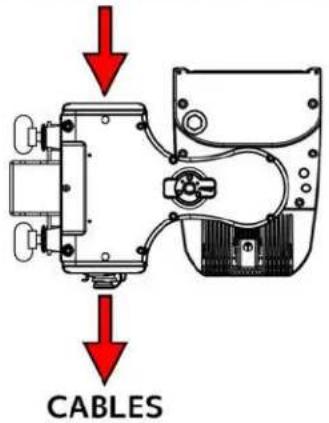

TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL CABLES MUST BE RUN TOWARDS THE GROUND TO PREVENT WATER ACCUMULATION AROUND THE CONNECTIONS.

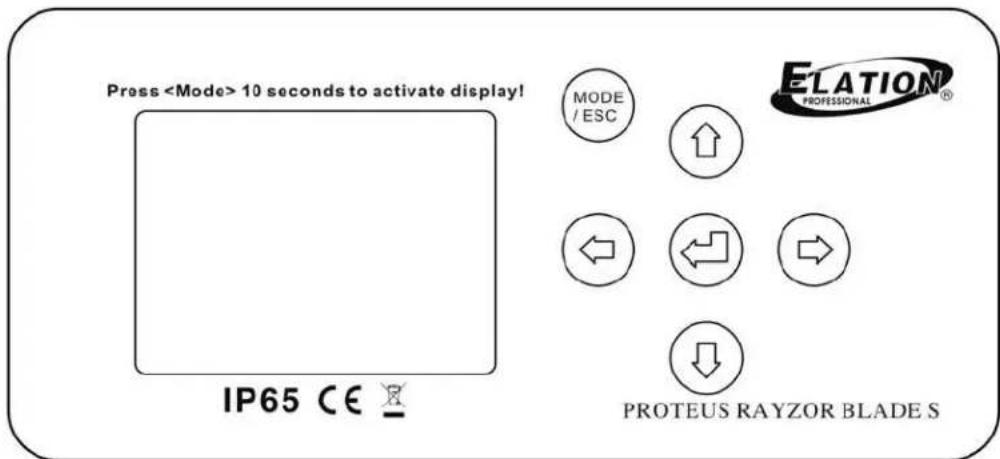

SYSTEM MENU LCD DISPLAY

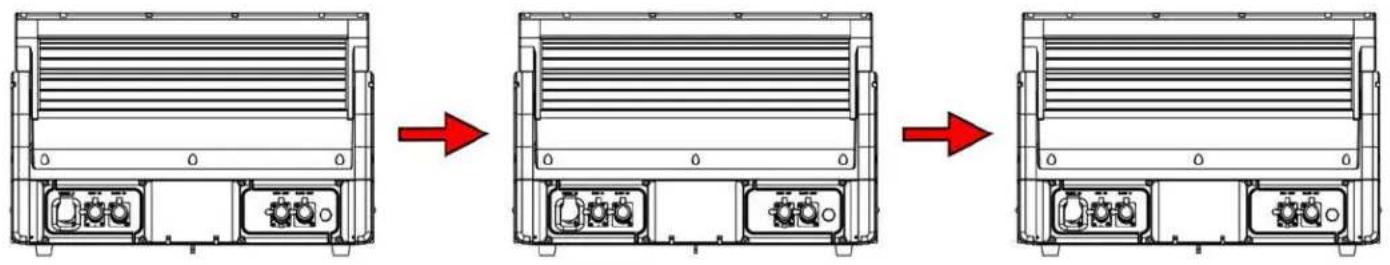

INCLUDED RJ45 DATA CABLE

THE INCLUDED RJ45 DATA CABLE IS FOR FIXTURE TO FIXTURE INTERCONNECTION ONLY! THE RJ45 CABLE CONNECTORS MAY NOT BE COMPATIBLE WITH OTHER RJ45/ETHERCON TYPE CONNECTORS.

Three-step diagram showing a device chassis with heat exchangers and connectors, no text or symbols present.

INSTALLATION GUIDELINES

POWER AND DATA CABLES

ENSURE ALL CONNECTIONS AND ENDCAPS ARE PROPERLY SEALED WITH DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.

TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE AND PREVENT WATER FROM ENTERING THE FIXTURE, SEAL ALL UNUSED CONNECTION RUBBER CAPS.

INSTALLATION GUIDELINES

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

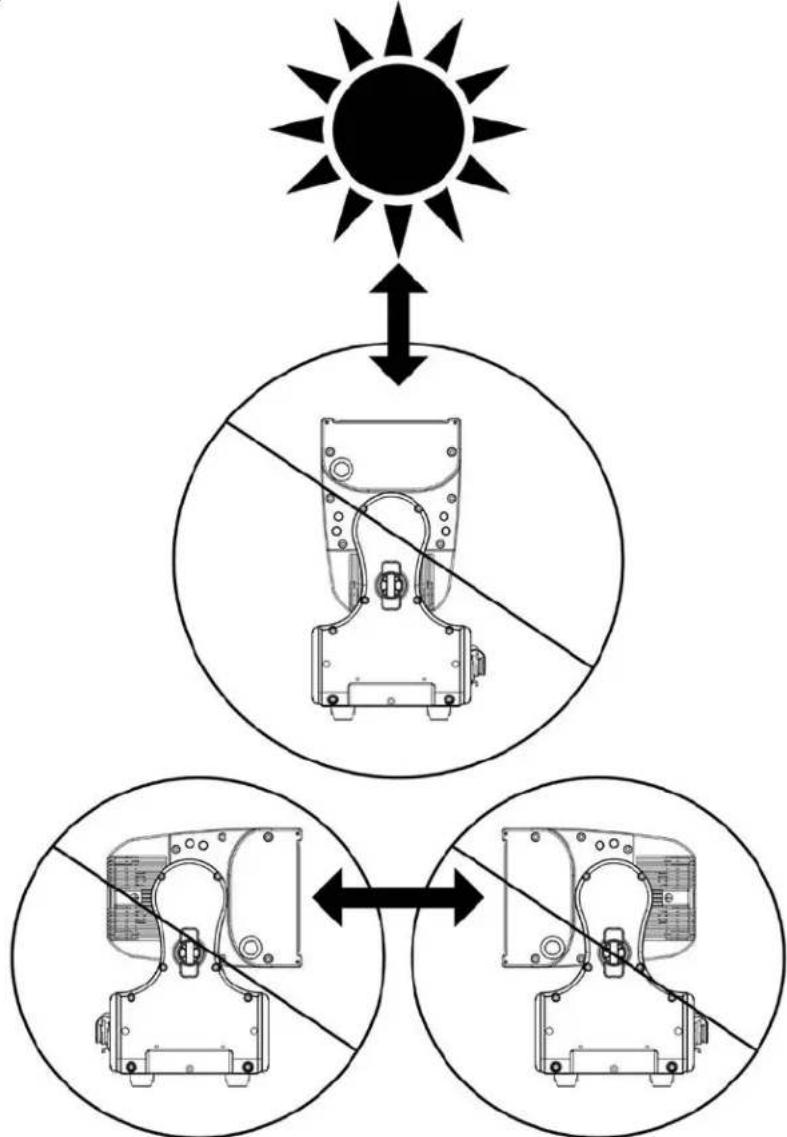

External sources of light beams from direct sunlight, lighting moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of ELATION lighting fixtures, can cause severe internal damage including burning to optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.

This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed. Contact ELATION Service for more details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS WHILE UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

Note: See 'DMX Traits: Fixture' table on page 30 under 'Control' for channel values to engage or disengage these functions.

INSTALLATION GUIDELINES

SUN PROTECTION MODE

The fixture incorporates an automatic protection from harmful sunlight, which can damage a fixture's internal components from extended exposure. Fixtures use an internal sensor to determine their physical orientation, then reorient the fixture towards the ground to prevent sunlight from entering the lens.

This automatic feature only works when the fixture is powered. If the fixture is unpowered during setup, it is necessary to manually reorient the lenses away from the sun, and aim them towards the ground. Even a few minutes of sun exposure can cause damage inside the fixture.

The Sun Protection setting is accessed via the "No DMX Status" menu.

The automatic sun protection positioning is activated under the following conditions:

1. Power on without DMX signal: the fixture always starts in sun protection mode.
2. No DMX Status "Sun Protection": the fixture enters sun protection mode after approximately 3 minutes.
3. Remote DMX control: the sun protection position can be temporarily activated from the lighting console without the need to create a custom position preset. The fixture senses the correct ground orientation. This means that fixtures already facing the ground may not move their heads.

Hold "Sun Protect Position" for 3s to set the fixture to the sun protection position.

Sun protection status displays as "Sun Protection: Active".

The sun protection position deactivates under the following conditions:

1. Connect DMX signal.
2. Remote DMX control: Hold "Sun Protection Off" for 3s.

To avoid harsh or jarring movements, the sun protection position always uses a 5-second fade time when it is activated or deactivated.

HIBERNATION MODE

To reduce wear on the fixture and its components, this mode disables motors and most electronics. Set the hibernation mode countdown time in the Display Menu: "Status Settings / Personality / Hibernation". Hibernation can be fully disabled.

The hibernation mode activates under the following conditions:

1. Loss of DMX: the fixture enters hibernation after the timeout expires. Default is 15 minutes.

2. Remote DMX control: Hold "Hibernate Fixture" for 3s

The hibernation mode deactivates under the following conditions:

1. Connect DMX Signal
2. Remote DMX control: Hold "Hibernate Off" for 3s

The fixture will perform a full calibration cycle, then assume the current DMX status.

Please note that the Hibernation does not change the PT position of the fixtures, allowing the user to set the desired position and then issue the Hibernate command.

To ensure the fixture is protected from harmful sunrays it is recommended to either leave the "No DMX Status" in "Sun Protection" (so the fixture is already in the correct position after 3 minutes of DMX loss) or set the fixture to a safe Tilt position manually first before hibernation.

Burn and heat damage to the fixture's interior components due to external light sources (sun or other fixtures shining into the lens) is never covered under the manufacturers warranty.

SYSTEM MENU

The fixture includes an easy to navigate system menu. The control panel (see image below) located on the front of the fixture, provides access to the main system menu and is where all necessary system adjustments are made to the fixture. During normal operation, pressing MODE/ESC button once will access the fixture's main menu. Once in the main menu you can navigate through the different functions and access the sub-menus with the UP, DOWN, RIGHT, and LEFT buttons. Once you reach a field that requires adjusting, press the ENTER button to activate that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MODE/ESC button.

NOTE: To access the LCD Menu Control Display via the internal battery, press and hold the MODE/ESC button for 10 seconds. The LCD Menu Control Display will shut OFF automatically about 1 minute from the last button press.

SYSTEM MENU

ELATION PROTEUS RAYZOR BLADE S
MAIN MENU	OPTIONS / VALUES (Default Settings in BOLD)			DESCRIPTION
Function	Set Dmx Address A001~AXXX DMX Address Setting
	Dmx Value ALL···DMX Value Display
	Secondary Mode Se	Secondary1, Secondary2, Secondary3 Secondary		Setting
	Auto Program Prim	ary / Alone Auto Program
Information	Time Information	Current Time XXX(K(Hours) Power On Running		Time
		Total Run Time XX(Hours) Fixture Running		Time
		Last Run Time	XXXX(Hours) Fixture Last	Times Clear
		LastRun Password	Password=XXX	Timer Password (038)
		Clear Last Run	ON/OFF	Clear Fixture Last Time
	Temperature Info	LED Temperature	XXX°C/°F	Temperature in LED
		Head Temperature	XXX°C/°F	Temperature in Head
		Base Temperature	XXX°C/°F	Temperature in Base
	Humidity Info	Head Humidity	XXX%	Humidity in Fixture
		Base Humidity	XXX%	Humidity in Base
	Ethernet IP	Ethernet IPXXX. XXX. XXX. XXXXXX. XXX. XXX. XXX		Ethernet IP
	Fan Info	HeadFan1: xxxx RPM......		Fan information
	Software Version	Vx.x.x		Software Version
	Error Info	Error Record 1Error Record 2... ...Error Record 10		TILT....TILT....... ...TILT....
Personality	Status Settings	Address Via DMX	ON/OFF	Address Via DMX
		No DMX Status	Close	The fixture turns off the light output
			Hold	The current fixture state is held until power off or DMX is resumed
			Auto	The fixture recalls the internal auto program
		Tilt Reverse	ON/OFF	Tilt Reverse movement
		Zoom Speed	Fast/Slow	Zoom speed mode
		Strline Pair Dir Horizontal / Vertical		Strobeline pairing direction, Pixel Compact mode only
		Pixel Order	Normal / Inverse	Set pixel order
		Feedback	ON/OFF	Movement Feedback
		Hibernation	OFF, 01M~99M, 15M	Standby Mode
	Service Setting	Password	Password=XXX	Password (050)
		Clear Err. Info	ON/OFF	Clear Err. Info
	Fans Control	Auto/ High/ Silent / Studio / Mute		Fans Control
	Display Setting	Shutoff Time	02~60m 05m	Display Shut Off Time
		Display Reverse	ON/OFF/AUTO	Reverse 180 degree
		Key Lock	ON/OFF	LCD Control Panel Key Lock

SYSTEM MENU

ELATION PROTEUS RAYZOR BLADE S
MAIN MENU	OPTIONS / VALUES (Default Settings in BOLD)			DESCRIPTION
Personality	Temperature C/F	Celsius		Temp C/F
		Fahrenheit
	Initial Status	TILT=XXX......		Initial effect position
	Select Signal	DMX Only		Select SignalArt-Net
		sACN
	Klingnet ON/OFF	Klingnet
	Ethernet IP XXX.X	XX. XXX. XXX Ethernet IP
	Ether Mask IP XXX	XXX. XXX. XXX Ether Mask IP
	Set Universe 000~	32767 Setting Art-Net Universe
	DHCP ON / OFF	Automatically assign IP address
	Ethernet DMX Out	ON / OFF		Enable or disable ethernet DMX output
	Dimmer Mode	Standard		Dimmer Mode
		Stage
		TV
		Architectural
		Theatre
		Stage2
		0s, 0.1s, 0.2s, ..., 10s
	Refresh	1200, 900-1500, 2500, 4000, 5000, 6000, 10000, 15000, 20000, 25000(Hz)		Refresh Frequency Rate Setting
	DimmerCurve	Linear, Square, Inverse Square, S-Curve		DimmerCurve Setting
	Reset Default	ON	PassCode=XXX	Restore factory settings Password (011)
		Off
Reset Function	Reset All			Reset Function
	Reset Tilt
	Reset Others
Effect Adjust	Test Channel	TILT=XXX		Test function
	Manual Control	TILT=XXX:		Manual Control function
	Calibration	Calibrate Password, Password=XXX TILT=XXX:		Password (050) Calibrate and adjust the effects to standard/right position
User Mode	User Mode	Standard, Pixel, Pixel Plus, Pixel Compact, Pixel Compact Sparkled, Extended		Standard channel mode RGBW main LED pattern Extended channel mode
Edit Program	Select Program	Auto Pro Part 1 = Program 1~10 Program 1		Select Programs To Be Run
		Auto Pro Part 2 = Program 1~10 Program 1
		Auto Pro Part 3 = Program 1~10 Program 1
	Edit Program	Prog 1 : Prog 10	ProgTest	Testing Program
			Step 01=SCxxx	Program In Loop
			Step 64=SCxxx	Save and Exit
	Edit Scenes	Edit Scene 001 to Edit Scene 250	Tilt, ...... - Fade Time - - Scene Time - Input By Out	Save and Automatically Return Manual Scenes Edit
	Rec. Controller	XX~XX		Automatic Scenes Recorder

SYSTEM MENU

FUNCTION-Auto Program

Define fixture mode (Primary or Alone) for running Auto Programs. Select desired internal programs under "Select Program", set the number of steps under "Edit program", and edit individual scenes under "Edit Scenes".

PERSONALITY-Status Settings-Address Via DMX

When ON, define the desired DMX address via an external controller.

NOTE: This process assumes the fixture DMX address is set to 001. If fixture DMX address is not at 001, you must adjust the channel numbers accordingly in order for this feature to work.

For example: if your fixture address is 010, then Channel 1 becomes Channel 10, Channel 2 becomes Channel 11, and Channel 3 becomes Channel 12.

1. Connect the fixture to the external controller and power ON.
2. Set the DMX value of Channel 1 on the controller to (7).
3. Set the DMX value of Channel 2 on the controller to (7) or (8). When set to (7), the DMX address can be set between (1) and (255). When set to (8), the DMX address can be set between (256) and (511).
4. Using Channel 3 on the controller set the desired DMX address of the fixture.

Example 1:

If the desired DMX address is 57, set Channel 1 to a value of (7), set Channel 2 to a value of (7), and then set Channel 3 to a value of (57).

Example 2:

If the desired DMX address is 420, set Channel 1 to a value of (7), set Channel 2 to a value of (8), and then set Channel 3 to a value of (164). (256+164=420)

1. After setting Channel 3 to the desired DMX address value, wait approximately 20 seconds for the fixture to complete the address reset function.

PERSONALITY-Service Settings-Password (050)

NOTE: The Service Password MUST be entered in order to access the following menus: Clear Err. Info.

PERSONALITY-Display Setting-Key Lock

When ON, Control Panel buttons lock automatically after exiting main menu for 15 seconds. To unlock, keep MODE/ESC button pressed for 3 seconds.

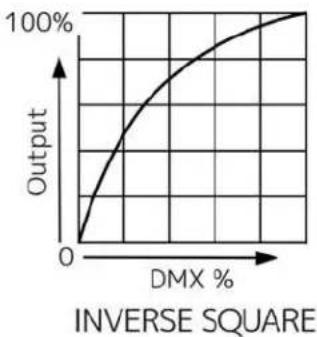

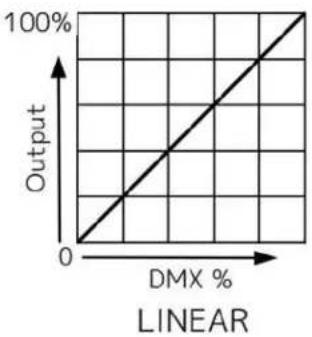

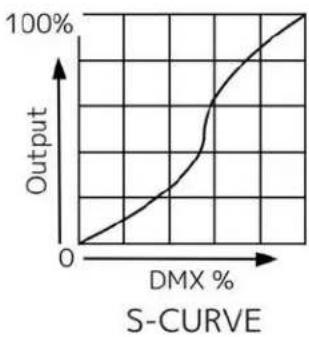

PERSONALITY-Dimmer Curve

SYSTEM MENU

ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION! NOTE: SAVED WHITE BALANCE IS ERASED AFTER A RESET IS PERFORMED!

This function restores all fixture settings to the factory default settings. The password is 011 and must be entered each time a reset is performed.

EFFECT ADJUST-Test Channel

Auto test each individual channel function independently from the DMX control board.

EFFECT ADJUST-Manual Control

Select and manually test and fine adjust each individual channel function Independently from DMX control board. This function will center PAN and TILT motors and set dimmer to 100%. PAN and TILT functions will still operate if the fixture needs to be positioned to a flat clear surface. With the individual functions, you can focus the light on a flat surface (wall) and perform fine adjustments.

EFFECT ADJUST-Calibration ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION.

This function allows small adjustments to be made to the Pan, Tilt, and Zoom movements to compensate for ware or in the event a sensor has been knocked slightly out of place. Because improper use of this function can result in undesired operation this function has been password protected. The password is 050 and must be entered each time the calibration menu function is entered. Because calibration is an extremely delicate procedure, instructions on performing this action are left out of this manual. For a first-time calibrator, please contact our customer support team for step-by-step instructions.

USER MODE SET-Edit User Mode

Create user defined channel orders allowing the fixture to match the channel order of other fixtures on the market for easier operation. A total of three user modes may be configured: User Mode A, User Mode B, and User Mode C.

EDIT PROGRAM-Rec. Controller

The fixture features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from - to). When you call up the scenes at your controller, they will automatically be transmitted to the moving head.

SYSTEM MENU

EDIT PROGRAM-Record Controller-Working With Built-In Programs

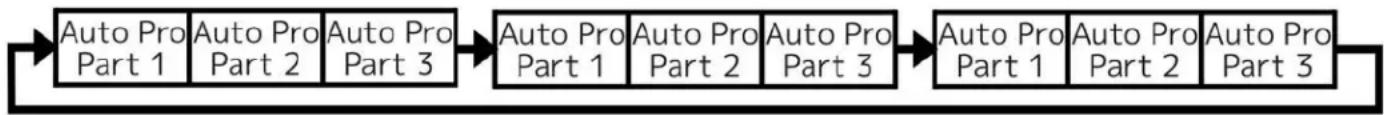

A Primary unit can send up to 3 different data groups to the Secondary units, i.e. a Primary unit can start 3 different Secondary units, which run 3 different programs. The Primary unit sends the 3 program parts in a continuous loop.

The Secondary unit receives data from the Primary unit according to the group which the Secondary unit was assigned to. If e.g. a Secondary unit is set to "Secondary 1" in the menu "Set to Secondary", the Primary unit sends "Auto Program Part 1" to the Secondary unit. If set to "Secondary 2", the Secondary unit receives "Auto Program Part 2".

To start an Auto Program proceed as follows:

1. Secondary Setting

• Select "Function Mode".
• Press ENTER to confirm.
• Select "Set to Secondary".
• Press ENTER to confirm.
• Select "Secondary 1", "Secondary 2" or "Secondary 3".
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.

2. Automatic Program Run

• Select "Function Mode".
• Press ENTER to confirm.
• Select "Auto Program".
• Press ENTER to confirm.
• Select "Primary" or "Alone".
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.

3. Program Selection for Auto Pro Part

• Select "Edit Program".
• Press ENTER to confirm.
• Select "Select Programs".
• Press ENTER to confirm.
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.

- Select "Auto Pro Part 1", "Auto Pro Part 2" or "Auto Pro Part 3", and select which Secondary program is to be sent. Selection "Part 1" means, that the Secondary unit runs the same program as the Primary units.

4. Program Selection for Edit Program

• Select "Edit Program".
• Press ENTER to confirm.
• Select "Edit Program".
• Press ENTER to confirm.
• Select the desired program to edit specific scenes into a specific program.
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.

5. Automatic Scene Recording

• Select "Edit Program".
• Press ENTER to confirm.
• Select "Edit Scenes".
• Press ENTER to confirm.
• Select desired scene numbers. A maximum of 250 scenes can be programmed.
• Press ENTER to confirm.
• Press MODE/ESC in order to return to the main menu.

SYSTEM MENU

EDIT PROGRAM-Record Controller-Working With Built-In Program [continued]

Example:

Program 2 includes scenes: 10, 11, 12, & 13

Program 4 includes scenes: 8, 9, & 10

Program 6 includes scenes: 12, 13, 14, & 15

Auto Pro Part 1 is Program 2

Auto Pro Part 2 is Program 3

Auto Pro Part 3 is Program 6

The 3 Secondary groups run the Auto Program in certain time segments.

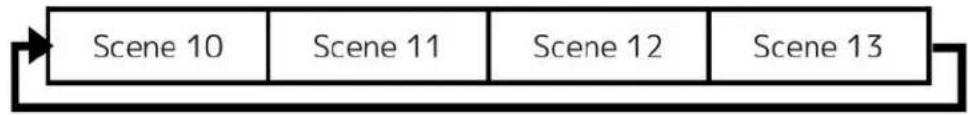

Part 1


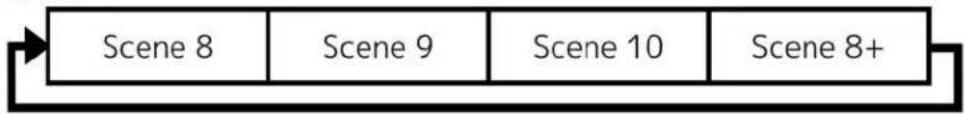

Part 2


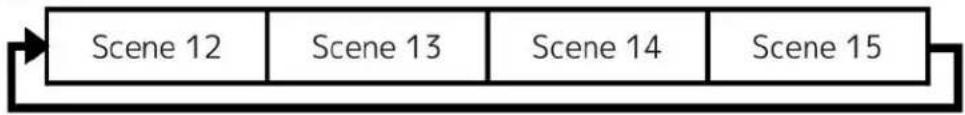

Part 3


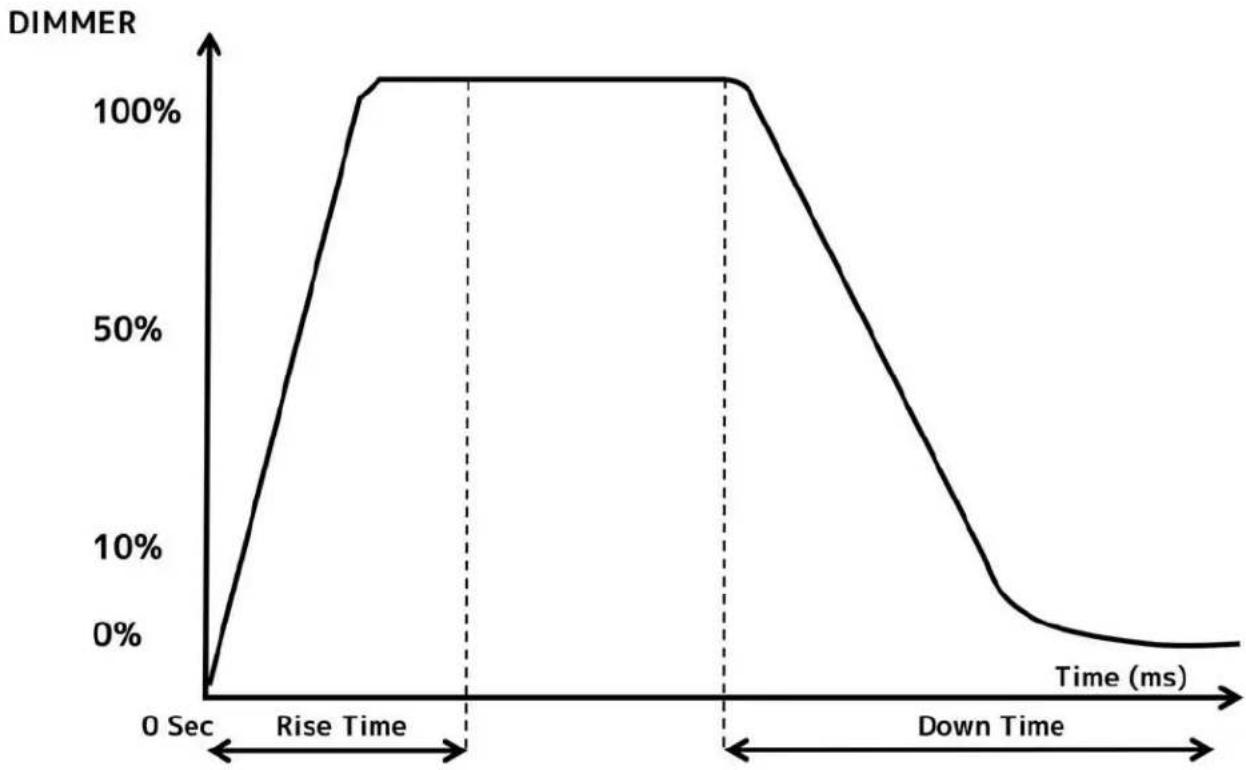

DIMMER MODE

Dimming Curve Ramp Effect	0 sec Fade Time		1 sec Fade Time
	Rise Time (ms)	Down Time (ms)	Rise Time (ms)	Down Time (ms)
Standard (default)	0	0	0	0
Stage	780	1100	1540	1660
TV	1180	1520	1860	1940
Architectural-	1380	1730	2040	2120
Theatre	1580	1940	2230	2280
Stage 2	0	1100	0	1660

PATCHING AND FX PROGRAMMING GUIDE

The Proteus Rayzor Blade S is a versatile fixture that combines three unique fixtures into one chassis. The DMX layout is designed to offer a variety of options for controlling the fixture efficiently, allowing control of many FX with very few channels, or providing full access of all elements for external pixel mappers.

The FX system of the Proteus Rayzor Blades allows many different combinations by changing the curves, offsets, and speed parameters. The RGBW, SparkLED, and StrobeLine systems are separate, and by adjusting color, dimming, and strobe channels, there are endless creative designs possible.

The main fixture contains 6x 60W RGBW cells, while the SparkLED fixture contains 4x2W white LEDs per LED. Two dazzling StrobeLines are added to the edge of the fixture, with 16 elements per side.

For ease of use, the DMX layout is arranged to allow the lighting console to separate the fixture into multiple segments, or parts. It is important to arrange the fixture into the required parts as outline in the DMX table. For simpler programming, the Blade also offers reduced channel modes. However, for easy recall of interesting pixel animations, the fixture contains three independent FX systems for Main, SparkLED, and StrobeLine FX.

Fixture Parts

To control the fixture, a console fixture profile must combine parameters into the correct parts, otherwise, programming of the three layers is very difficult. Please use the part names shown in the DMX table. Please use the part names shown in the DMX table.

Main RGBW Dimmer, Strobe, Pan, Tilt, Main FX Controls, FX Sync

Pixels Red, Green, Blue, White per cell

StrobeLine StrobeLine Dimmer, Strobe, Duration, StrobeLine FX Controls

Strobe StrobeLine Dimmer per pixel

SparkLED SparkLED Dimmer, Strobe, SparkLED FX Controls

LED Sparkled Dimmer per pixel

The number of parts depends on the selected DMX mode of the fixture. Depending on console type and application, it may be useful to have all parts as sub fixtures, or create completely separate fixture types for Main, StrobeLine, and SparkLED with their own smaller subset of fixture parts.

Strobe and Dimmer Sync

For effective programming, it may be helpful to have dimming and strobing of all parts in perfect sync. This can be accomplished by setting the strobe channel of the SparkLEDs or StrobeLines to DMX value 255. It forces dimming and strobing to follow the parameters of the main fixture.

255	Sync Dim and Strobe with Main

The highest output strobe of the Proteus Rayzor Blade L is achieved by synchronizing the StrobeLine and RGBW cells. It provides a rare combination of a focused beam, or wide wash with the dazzling white strobing edges of the fixture.

PATCHING AND FX PROGRAMMING GUIDE

FX Concept

Selection and control of integrated FX on the Rayzor Blade are found in the Main, SparkLED and StrobeLine Parts. All FX are available even in the smallest DMX control mode.

	RGBW FX (see table)
0-255 FX S	election 1 -255
	RGBW FX Speed
0 - 126 Rev	Fast → Slow
127 - 128 Stop
129 - 255 Slow → Fast
	SparkLED FX (see table)
0-255 FX S	election 1 -255
	SparkLED FX Speed
0 - 126 Rev	Fast → Slow
127 - 128 Stop
129 - 255 Slow → Fast

FX for RGBW, SparkLED and StrobeLine contain a selection channel to recall the desired pattern. The pattern direction and speed is then adjusted using the associated Speed channel. FX can run forward / backward and can also be frozen at any time by using "Stop".

The FX table shows the available patterns which are grouped for easier browsing. The first 10 DMX steps of the FX channel are used to change the type of curve for smooth or stepped FX. Once a curve is selected its used for all FX recalled afterwards. When programming cues for fixtures the user must ensure to change the curve first before selecting the pattern. The fixture defaults to the Sinewave pattern after every power cycle.

Simple curved line diagram with an arrow on a blue background (no text or symbols)

Sine Wave

Abstract geometric diagram with two white rectangles and a horizontal line, no text or symbols present

Step Wave (Square)

Abstract geometric diagram with a white zigzag line and arrow on a dark blue background (no text or symbols)

Sawtooth Wave

Simple geometric diagram showing a right triangle above a horizontal line with an arrow below (no text or symbols)

Ramp Up Wave

Simple geometric diagram showing a right triangle above a horizontal line with an arrow, no text or symbols present.

Ramp Down Wave

In addition to the fx direction and speed a Sync channel allows to offset or randomize the fixtures or FX steps.

	FX Offset
0 Idle
1 Fixture Offset 10 Degree
2 Fixture Offset 20 Degree
3-34 Fixture Offset...
35 Fixture Offset 350 Degree
36 Synchronized
3-100 No Function
101-120 Random Fixture Offset
121-140 Random Pixel Order
141-255 Random Steps

PATCHING AND FX PROGRAMMING GUIDE

A full FX cycle is 360-degrees and the fixture allows offsets in 10 degree increments. Offsetting a fixture by 180 would mean it is exactly halfway ahead through the FX cycle. Through individual offsets or utilizing lighting consoles fan functions the fixture allows a variety of spreads for impactful FX.

Three randomization options are provided:

Random Fixture Offset: Every fixture randomly selects any of the 36 offset points. It will then use this until the offset is changed or random offset is selected again.

Random Pixel Order: The actual FX steps are randomized. This shuffling of the fixture order is done once, the fixture will use this shuffled order across all FX until changed.

Random Steps: Every step is randomly chosen every time, giving the most random looks possible. To reshuffle the randomization set the channel to Idle, then reselect the desired random option.

The fixture offers several ways to map the StrobeLines depending on alignment with Blade S or to change the desired FX mapping across the strobe edge. For perfect match of distances, the L fixture contains 33 cells. The alignment can be selected in the StrobeLine FX channel.

DMX	Pixel Alignment
250	Full	All elements are used, FX have the same speed from pixel to pixel
251	Full Sync All elements are used, FX have the same speed across the S and L width
252	Split The Center Element is disabled, all FX act identical as Blade S in two sections
253	Left Elements start at the left edge, with a gap at the right
254	Right Elements start at the right edge, with a gap at the left

The FX system of the Proteus Rayzor Blades allows many different combinations by changing the curves, offsets, and speed parameters. The RGBW, SparkLED, and StrobeLine systems are separate, and by adjusting color, dimming, and strobe channels, there are endless creative designs possible.

DMX TRAITS: MAIN FIXTURE

Features subject to change without notice
MODE/CHANNEL							VALUE	FUNCTION	FADE STATUS	DEFAULT
FIXTURE CONTROL PART/NAME	STD 28CH	PIXEL 50CH	PIXEL PLUS 82CH	PIXEL COMP 66CH	PIXEL COMP SPARK LED 72CH	EXTENDED 106CH
MAIN	1 1 1 1	1 1						Tilt	Fade 127
							0-255	Movement
	2 2 2 2	2 2						Tilt Fine	Fade 127
							0-255	Fine Movement
	3 3 3 3	3 3						CTC	Face 0
							0-10	Disabled
							11-171	Color Temperature 2000K to 10000K
							172-255	10000K
	4 4 4 4	4 4						Color Wheel	Snap	0
							0-9	Open
							10-14	Red
							15-19	Red Orange
							20-24	Light Amber
							25-29	Yellow Amber
							30-34	Greenish Yellow
							35-39	Light Yellow Green
							40-44	Dark Yellow Green
							45-49	Green
							50-54	Teal
							55-59	Cyan
							60-64	Light Blue
							65-69	Aqua
							70-74	Dark Aqua
							75-79	Green Blue
							80-84	Light Lavender
							85-89	Dark Purple
							90-94	Medium Purple
							95-99	Mid Rose
							100-104	Mauve
							105-109	Nice Magenta
							110-114	Warm Magenta
							115-119	Light Red
							120-124	Straw
							125-129	Dark CTB
							130-134	Light Green
							135-139	Purple
							140-144	Lighter Purple
							145-149	Pink
							150-154	Rose
							155-159	White
							160-164	TBD
							165-169	TBD
							170-174	TBD
							175-179	Open
								Color Scroll
							180-201	Clockwise,fast→slow
							202-207	Stop
							208-229	Counter-clockwise,slow→fast
							230-234	Open
								Random Slots
							235-239	Fast
							240-244	Medium
							245-249	Slow
							250-255	Open

DMX TRAITS: MAIN FIXTURE

Features subject to change without notice
MODE/CHANNEL							VALUE	FUNCTION	FADE STATUS	DEFAULT
FIXTURE CONTROL PA RT/NAME	STANDARD 28CH	PIXEL 50CH	PIXEL PLUS 82CH	PIXEL COMP 66CH	PIXEL COMP SPARK LED 72CH	EXTENDED 106CH
MAIN	5 5 5 5	5 5						Strobe	Snap 50
							0-31 Shutter closed
							32-63 Shutter open
							64-95	Strobe (slow → fast)0.289-16.67 Hz
							96-127	Fast Close, Slow Open
							128-159	Fast Open, Slow Close
							160-191	Pulse Effects
							192-223	Random Strobe (slow → fast)
							224-255	Shutter open
	6 6 6 6	6 6						Dimmer	Fade	0
							0-255 0	→ 100%
	7 7 7 7	7 7						Dimmer Fine	Fade	0
							0-255 Fine Dimming
	8 8 8 8	8 8						Dim Modes	Snap	0
							0-20 Standard
							21-40 Stage
							41-60 TV
							61-80 Architectural
							81-100 Theatre
							101-120 Stage 2
								Dimmer Delay Time
							121	0s
							122	0.1s
							123	0.2s
							124	0.3s
							125	0.4s
							126	0.5s
							127	0.6s
							128	0.7s
							129	0.8s
							130	0.9s
							131	1.0s
							132	1.5s
							133	2.0s
							134	3.0s
							135	4.0s
							136	5.0s
							137	6.0s
							138	7.0s
							139	8.0s
							140	9.0s
							141	10s
							142-255	Idle
	9 9 9 9	9 9						Zoom	Fade	255
							0-245 Zoom Wide → Narrow
							246-255 Overdrive Min → Max
		10	10	10	10	10		Zoom Fine	Fade	255
							0-255 Fine Zoom
		11	11	11	11	11		Tilt Speed	Snap	0
							0-225 Max to Min speed
							226-235 Blackout while moving
							236-255 No function

DMX TRAITS: MAIN FIXTURE

Features subject to change without notice
MODE/CHANNEL							VALUE	FUNCTION	FADE STATUS	DEFAULT
FIXTURE CONTROL PART/NAME	STANDARD 28CH	PIXEL 50CH	PIXEL PLUS 82CH	PIXEL COMP 66CH	PIXEL COMP SPARK LED 72CH	EXTENDED 106CH
MAIN 10	12 12 12 12	12						Control		0
							0-9 Idle
							10-19 P xel Order Normal
							20-24 P xel Order Inverse
							25-29	Strobeline Pair Horizontal (Pixel Compact Mode Only)
							30-34	Strobeline Pair Vertical (Pixel Compact Mode Only)
							35-39 Idle
							40-44 Low Noise -Mute
							45-49 Low Noise - Studio
							50-59 Fan Control - Low
							60-69 Fan Control - High
							70-79	Fan Control - Auto (default)
							80-84 Reset All
							85-87 Reset Movement
							88-91 Reset Zoom
							92-100 Idle
							100-168 Refresh Rate (Hz)
							100	900
							101	910
							102	920
							103	930
							104	940
							105	950
							106	960
							107	970
							108	980
							109	990
							110	1000
							111	1010
							112	1020
							113	1030
							114	1040
							115	1050
							116	1060
							117	1070
							118	1080
							119	1090
							120	1100
							121	1110
							122	1120
							123	1130
							124	1140
							125	1150
							126	1160
							127	1170
							128	1180
							129	1190
							130	1200
							131	1210
							132	1220
							133	1230
							134	1240
							135	1250

DMX TRAITS: MAIN FIXTURE

Features subject to change without notice
MODE/CHANNEL							VALUE	FUNCTION	FADE STATUS	DEFAULT
FIXTURE CONTROL PA RT/NAME	STANDARD 28CH	PIXEL 50CH	PIXEL PLUS 82CH	PIXEL COMP 66CH	PIXEL COMP SPARK LED 72CH	EXTENDED 106CH
MAIN 10	12 12 12 12	12					136 1260			0
							137 1270
							138 1280
							139 1290
							140 1300
							141 1310
							142 1320
							143 1330
							144 1340
							145 1350
							146 1360
							147 1370
							148 1380
							149 1390
							150 1400
							151 1410
							152 1420
							153 1430
							154 1440
							155 1450
							156 1460
							157 1470
							158 1480
							159 1490
							160 1500
							161 2500
							162 4000
							163 5000
							164 6000
							165 10000
							166 15000
							167 20000
							168 25000
							169-192 Idle
							193-194 Hibernate Fixture
							195-196 Hibernate Off
							197-198 Sun Protection Position
							199-200 Sun Protection Off
							201-210 Dimmer Curve Linear
							211-220 Dimmer Curve Square
							221-230 Dimmer Curve Inverse Square
							231-240 Dimmer Curve S-Curve (default)
							242-242 Zoom Speed Slow
							243-244 Zoom Speed Fast (default)
							245-249 Idle
							250-251 Display off
							252-253 Display on
							254-255 Idle

DMX TRAITS: MAIN FIXTURE

Features subject to change without notice
MODE/CHANNEL							VALUE	FUNCTION	FADE STATUS	DEFAULT
FIXTURE CONTROL PA RT/NAME	STANDARD 28CH	PIXEL 50CH	PIXEL PLUS 82CH	PIXEL COMP 66CH	PIXEL COMP SPARK LED 72CH	EXTENDED 106CH
MAIN	11 13 1	3 13 13	13					RGBW FX (see table)	Snap 0
							0-255 FX Selection 1-255
	12 14 1	4 14 14	14					RGBW FX Speed	Fade 160
							0-126 Rev Fast → Slow
							127-128 Stop
							129-255 Slow → Fast
	13 15 1	5 15 15	15					FX Offset	Snap 0
							0 Idle
							1	Fixture Offset 10 Degree
							2	Fixture Offset 20 Degree
							3-34	Fixture Offset...
							35	Fixture Offset 350 Degree
							36	Syncronized
							37-100	No Function
							101-120	Random Fixture Offset
							121-140	Random Pixel Order
							141-255	Random Steps

DMX TRAITS: RGB PIXEL FX TABLE

Features subject to change without notice
MODE/CHANNEL							VALUE F	FUNCTION	FADE STATUS	DEFAULT
FIXTURE CONTROL PA RT/NAME	STANDARD 28CH	PIXEL 50CH	PIXEL PLUS 82CH	PIXEL COMP 66CH	PIXEL COMP SPARK LED 72CH	EXTENDED 106CH
MAIN or Pixel 1	14 16 1	16 16 16	16					Red	Fade 255
							0-255 0	→ 100%
	15 17 1	17 17 17	17					Green	Fade 255
							0-255 0	→ 100%
	16 18 1	18 18 18	18					Blue	Fade 255
							0-255 0	→ 100%
	17 19 1	19 19 19	19					White	Fade 255
							0-255 0	→ 100%
Pixel 2		20 20	20 20 20					Red 2	Fade 255
							0-255 0	→ 100%
		21 21	21 21 21					Green 2	Fade 255
							0-255 0	→ 100%
		22 22	22 22 22					Blue 2	Fade 255
							0-255 0	→ 100%
		23 23	23 23 23					White 2	Fade 255
							0-255 0	→ 100%
Pixel 3		24 24	24 24 24					Red 3	Fade 255
							0-255 0	→ 100%
		25 25	25 25 25					Green 3	Fade 255
							0-255 0	→ 100%
		26 26	26 26 26					Blue 3	Fade 255
							0-255 0	→ 100%
		27 27	27 27 27					White 3	Fade 255
							0-255 0	→ 100%
Pixel 4		28 28	28 28 28					Red 4	Fade 255
							0-255 0	→ 100%
		29 29	29 29 29					Green 4	Fade 255
							0-255 0	→ 100%
		30 30	30 30 30					Blue 4	Fade 255
							0-255 0	→ 100%
		31 31	31 31 31					White 4	Fade 255
							0-255 0	→ 100%
Pixel 5		32 32	32 32 32					Red 5	Fade 255
							0-255 0	→ 100%
		33 33	33 33 33					Green 5	Fade 255
							0-255 0	→ 100%
		34 34	34 34 34					Blue 5	Fade 255
							0-255 0	→ 100%
		35 35	35 35 35					White 5	Fade 255
							0-255 0	→ 100%
Pixel 6		36 36	36 36 36					Red 6	Fade 255
							0-255 0	→ 100%
		37 37	37 37 37					Green 6	Fade 255
							0-255 0	→ 100%
		38 38	38 38 38					Blue 6	Fade 255
							0-255	0 → 100%
		39 39	39 39 39					White 6	Fade 255
							0-255 0	→ 100%

Simple curved line diagram with an arrow on a blue background (no text or symbols)

Sine Wave

Abstract geometric diagram with two white rectangles and a horizontal line, no text or symbols present

Step Wave (Square)

Abstract geometric diagram with a white zigzag line and arrow on a dark blue background (no text or symbols)

Sawtooth Wave

Simple diagram showing a right triangle above a horizontal line with an arrow, no text or symbols present.

Ramp Up Wave

Simple geometric diagram showing a right triangle above a horizontal line with an arrow, no text or symbols present.

Ramp Down Wave

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
Waveform	1	1	Sinewave-Cross (default)		In and Out fade start at the same time
	2 2	Sinewave-Full In fade completes, then out fade completes
	3 3	Sawtooth-Cross In and Out fade start at the same time
	4 4	Sawtooth-Full In fade completes, then out fade completes
	5 5	Ramp Up
	6 6	Ramp Down
	7 7	Steps
	8	8
	9	9
	10 10
Intensity	11 11	Single	Reverse, Stop, Forward 1,2,3,4,5,6
	12 12	Single	Bounce Reverse, Stop, Forward 1,2,3,4,5,6,5,4,3,2
	13 13	2 Pixels	Reverse, Stop, Forward Any two random pixels per step
	14 14	3 Pixels	Reverse, Stop, Forward Any three random pixels per step
	15 15	1,2,3 pixels	Reverse, Stop, Forward Pick randomly 1, then 2, then 3 pixels
	16 16
	17 17
	18 18
	19 19
	20 20		Alternate SparkLED	Reverse, Stop, Forward	Alternate evenly (tick/tock/tick/tock) between RGBW Pixel at Full and SparkLEDs @Full. Keep all colors strobes, intensities as set by DMX.
	21 21	Burst	SparkLED Reverse, Stop, Forward		Toggles between RGBW Pixel at Full (long on) and SparkLEDs @Full (short flash). Keep all colors strobes, intensities as set by DMX.
	22 22		Alternate SparkLED 2	Reverse, Stop, Forward	Strobes between RGBW Pixel at Full (short, then off) and SparkLEDs @Full (short, then off). Keep all colors strobes, intensities as set by DMX.
	23 23	Burst	RGBW Reverse, Stop, Forward		Toggles between RGBW Pixel at Full (short flash) and SparkLEDs @Full (long on). Keep all colors strobes, intensities as set by DMX.
	24 24		Lens/SparkLED alternate	Reverse, Stop, Forward	Random Lens @ Full, then different Random Strobe section of 4pixels @ Full. Keep all colors strobes, intensities as set by DMX.
	25 25		Alternate StrobeLED	Reverse, Stop, Forward	Alternate evenly (tick/tock/tick/tock) between RGBW Pixel at Full and Strobeline @Full. Keep all colors strobes, intensities as set by DMX.
	26 26	Burst	StrobeLED Reverse, Stop, Forward		Toggles between RGBW Pixel at Full (long on) and Strobeline @Full (short flash). Keep all colors strobes, intensities as set by DMX.
	27 27		Alternate StrobeLED 2	Reverse, Stop, Forward	Strobes between RGBW Pixel at Full (short, then off) and Strobelines @Full (short, then off). Keep all colors strobes, intensities as set by DMX.
	28 28	Burst	RGBW Reverse, Stop, Forward		Toggles between RGBW Pixel at Full (short flash) and Strobelines @Full (long on). Keep all colors strobes, intensities as set by DMX.
	29 29
	30 30

RGBW PIXEL FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
Intensity	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75

RGBW PIXEL FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
Intensity	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90
	91	91
	92	92
	93	93
	94	94
	95	95
	96	96
	97	97
	98	98
	99	99
	100	100
Color	101	101 RGB	W Cells Reverse, Stop, Forward	Every Pixel Randomly picks a Red, Green, Blue or White on every step
	102	102 RGB	WCMY Cells Reverse, Stop, Forward	Every Pixel Randomly picks a Red, Green, Blue, White, Cyan, Magenta, Yellow on every step
	103	103 Color	Wheel Cells Reverse, Stop, Forward	Every Pixel Randomly picks a color from the color wheel on every step
	104	104 Red	White Cells Reverse, Stop, Forward	Every Cell Randomly picks White or Red on every Step
	105	105 Green	White Cells Reverse, Stop, Forward	Every Cell Randomly picks White or Green on every Step
	106	106 Blue	White Cells Reverse, Stop, Forward	Every Cell Randomly picks White or Blue on every Step
	107	107 Red	Green Cells Reverse, Stop, Forward	Every Cell Randomly picks Red or Green on every Step
	108	108 Red	Blue Cells Reverse, Stop, Forward	Every Cell Randomly picks Red or Blue on every Step
	109	109 Blue	Green Cells Reverse, Stop, Forward	Every Cell Randomly picks Blue or Green on every Step
	110	110	Random White Cell	Reverse, Stop, ForwardRGBW @ Full randomly is set to one cell at a time over the currently mixed color
	111	111 White	Flash Reverse, Stop, Forward	RGBW @ Full flashes once over the current mixed color on all Cells
	112	112 Red	Flash Reverse, Stop, Forward	Red @ Full flashes once over the current mixed color on all Cells
	113	113 Green	Flash Reverse, Stop, Forward	Green @ Full flashes once over the current mixed color on all Cells
	114	114 Blue	Flash Reverse, Stop, Forward	Blue @ Full flashes once over the current mixed color on all Cells
	115	115 Color	Wheel Flash Reverse, Stop, Forward	Current Color Wheel Color @ Full flashes once over the current mixed color on all Cells
	116	116 Alternate Color Reverse, Stop, Forward		Alternates between mixed color and Color Wheel Color on all cells
	117	117
	118	118
	119	119
	120	120
	121	121
	123	123
	124	124
	125	125

RGBW PIXEL FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX	NAME	FX ADJUSTMENT	NOTES/STEPS
Colors	126	1	26
	127	1	27
	128	1	28
	129	1	29
	130	1	30
	131	1	31
	132	1	32
	133	1	33
	134	1	34
	135	1	35
	136	1	36
	137	1	37
	138	1	38
	139	1	39
	140	1	40
	141	1	41
	142	1	42
	143	1	43
	144	1	44
	145	1	45
	146	1	46
	147	1	47
	148	1	48
	149	1	49
	150	1	50
	151	1	51
	152	1	52
	153	1	53
	154	1	54
	155	1	55
	156	1	56
	157	1	57
	158	1	58
	159	1	59
	160	1	60
	161	1	61
	162	1	62
	163	1	63
	164	1	64
	165	1	65
	166	1	66
	167	1	67
	168	1	68
	169	1	69
	170	1	70

RGBW PIXEL FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
Colors	171	171
	172	172
	173	173
	174	174
	175	175
	176	176
	177	177
	178	178
	179	179
	180	180
	181	181
	182	182
	183	183
	184	184
	185	185
	186	186
	187	187
	188	188
	189	189
	191	191
	192	192
	193	193
	194	194
	195	195
	196	196
	197	197
	198	198
	199	199
	200	200
	201	201
	202	202
	203	203
	204	204
	205	205
	206	206
	207	207
	208	208
	209	209
	210	210
	211	211
	212	212
	213	213
	214	214
	215	215
	216	216
	217	217
	218	218
	219	219
	220	220

RGBW PIXEL FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
Colors	221	221
	222	222
	223	223
	224	224
	225	225
	226	226
	227	227
	228	228
	229	229
	230	230
	231	231
	232	232
	233	233
	234	234
	235	235
	236	236
	237	237
	238	238
	239	239
	240	240
	241	241
	242	242
	243	243
	244	244
	245	245
	246	246
	247	247
	248	248
	249	249
	250	250
	251	251
	252	252
	253	253
	254	254
	255	255

SPARKLED FX TABLE

Simple curved line diagram with an arrow on a blue background (no text or symbols)

Sine Wave

Abstract geometric diagram with two white rectangles and a horizontal line, no text or symbols present

Step Wave (Square)

Abstract diagram with a white zigzag line and an arrow on a blue background (no text or symbols)

Sawtooth Wave

Simple geometric diagram showing a right triangle above a horizontal line with an arrow below (no text or symbols)

Ramp Up Wave

Simple diagram showing a white right triangle above a horizontal line and a right-pointing arrow on a blue background (no text or symbols)

Ramp Down Wave

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
Waveform	1	1	Sinewave-Cross (default)		In and Out fade start at the same time
	2 2	Sinewave-Full In fade completes, then out fade completes
	3 3	Sawtooth-Cross In and Out fade start at the same time
	4 4	Sawtooth-Full In fade completes, then out fade completes
	5 5	Ramp Up
	6 6	Ramp Down
	7 7	Steps
	8	8
	9	9
	10 10
SparkLED FX	11 11		Starfield	Reverse, Stop, Forward	Pixels randomly go on and off with random lengths of on and off times
	12 12		1 Pixel	Reverse, Stop, Forward	Random 1 Pixel per step
	13 13		2 Pixels	Reverse, Stop, Forward	Random 2 Pixel per step
	14 14		3 Pixels	Reverse, Stop, Forward	Random 3 Pixel per step
	15 15		4 pixels	Reverse, Stop, Forward	Random 4 Pixel per step
	16 16		5 pixels	Reverse, Stop, Forward	Random 5 Pixel per step
	17 17		7 pixels	Reverse, Stop, Forward	Random 7 Pixel per step
	18 18		8 pixels	Reverse, Stop, Forward	Random 8 Pixel per step
	19 19		Single Row	Reverse, Stop, Forward	One single row per step
	20 20		Single Column	Reverse, Stop, Forward	Single column per step
	21 21		Build Cells	Reverse, Stop, Forward	Add 1 cell per step
	22 22		Pixel Ring Chase	Reverse, Stop, Forward	In every RGBW lens one Sparkled at a time. E.g. Lens 1, Sparkled 1, 8, 19, 7 at the same time Lens 2, 2,10, 20, 9
	23 23		Pixel Row Chase	Reverse, Stop, Forward	In every RGBW pixel one Sparkled at a time. E.g. Lens 1, Sparkled 1, 3+4, 8 at the same time Lens 2, 2, 5+6, 10
	24 24		Pixel Ring Chase 2	Reverse, Stop, Forward	For one RGBW pixel after another turn on one SparkLeds per step, e.g. Lens 1, 1, 4, 8, 3, then Lens 2, 2, 6, 10, 5 etc...
	25 25		Center Out	Reverse, Stop, Forward	Turn on all Sparkleds in Lens 3+4, then step from the center out to the edge
	26 26		Fireworks	Reverse, Stop, Forward	Replicate an exploding firework rocket
	27 27		Ring	Reverse, Stop, Forward
	28 28		Row	Reverse, Stop, Forward
	29 29		Snake	Reverse, Stop, Forward
	30 30
	31 31
	32 32
	33 33
	34 34
	35 35
	36 36
	37 37
	38 38

SPARKLED FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
SparkLED FX	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	84	84
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90

SPARKLED FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
SparkLED Lens Combos	91	91
	92	92
	93	93
	94	94
	95	95
	96	96
	97	97
	98	98
	99	99
	100	100
Full Lens Patterns (all SparkLED in the lens # turn on together)	101	101 Single	Reverse, Stop, Forward	1, 2, 3, 4, 5, 6
	102	102 Single	Bounce Reverse, Stop, Forward	1, 2, 3, 4, 5, 6, 5, 4, 3, 2
	103	103 Fill Row	Reverse, Stop, Forward	1, 1+2, 1+2+3, 1+2+3+4, 1+2+3+4+5, 1+2+3+4+5+6, 1+2+3+4+5, 1+2+3+4, 1+2+3, 1+2, 1
	104	104 2 Pixels	Reverse, Stop, Forward	Any two random pixels per step
	105	105 3 Pixels	Reverse, Stop, Forward	Any three random pixels per step
	106	106 4 Pixels	Reverse, Stop, Forward	Any four random pixels per step
	107	107 1,2,3 pixels	Reverse, Stop, Forward	Pick randomly 1, then 2, then 3 pixels
	108	108
	109	109
	110	110
	111	111
	112	112
	113	113
	114	114
	115	115
	116	116
	117	117
	118	118
	119	119
	120	120
	121	121
	122	122
	123	123
	124	124
	125	125
	126	126
	127	127
	128	128
	129	129
	130	130
	131	131
	132	132
	133	133
	134	134
	135	135
	136	136
	137	137
	138	138
	139	139
	140	140
	141	141
	142	142
	143	143
	144	144
	145	145

SPARKLED FX TABLE

Features subject to change without notice
TYPE	SLOT	DM	MX NAME	FX ADJUSTMENT NOTES/STEPS
Full Lens Patterns (all SparkLED in the lens # turn on together)	146	146
	147	147
	148	148
	149	149
	150	150
	151	151 Out	disabled 1+6
	152	152 Mid	disabled 2+5
	153	153 Center	disabled 3+4
	154	154 Set	1 disabled 1+4
	155	155 Set	2 disabled 2+5
	156	156 Set	3 disabled 3+6
	157	157
	158	158
	159	159
	160	160 Block	2-1 disabled 1+2
	161	161 Block	2-2 disabled 3+4
	162	162 Block	2-3 disabled 5+6
	163	163
	164	164
	165	165
	166	166 Block	3-1 disabled 1+2+3
	167	167 Block	3-2 disabled 4+5+6
	168	168
	169	169
	170	170
	171	171
	172	172
	173	173
	174	174
	175	175
	176	176
	177	177
	178	178
	179	179
	180	180
	181	181
	182	182
	183	183
	184	184
	185	185
	186	186
	187	187
	188	188
	189	189
	191	191
	192	192
	193	193
	194	194
	195	195
	196	196
	197	197
	198	198
	199	199
	200	200

SPARKLED FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT NOTES/STEPS
Sparkled Pattern	201	201 Row 1 disabled
	202	202 Row 2 disabled
	203	203 Row 3 disabled
	204	204 Column 1 disabled
	205	205 Column 2 disabled
	206	206 Column 3 disabled
	207	207 Column 4 disabled
	208	208 Column 5 disabled
	209	209 Column 6 disabled
	210	210 Column 7 disabled
	211	211 Column 8 disabled
	212	212 Column 9 disabled
	213	213 Column 10 disabled
	214	214 Column 11 disabled
	215	215 Column 12 disabled
	216	216 Column 13 disabled
	217	217 Column 14 disabled
	218	218 Column 15 disabled
	219	219 Column 16 disabled
	220	220 Column 17 disabled
	221	221 Column 18 disabled
	222	222
	223	223
	224	224
	225	225
	226	226
	227	227
	228	228
	229	229
	230	230
	231	231
	232	232
	233	233
	234	234
	235	235
	236	236
	237	237
	238	238
	239	239
	240	240 Len1 disabled
	241	241 Len 2 disabled
	242	242 Len3 disabled
	243	243 Len 4 disabled
	244	244 Len5 disabled
	245	245 Len 6 disabled
	246	246
	247	247
	248	248
	249	249
	250	250
	251	251
	252	252
	253	253
	254	254
	255	255

STROBELINE FX TABLE

Simple curved line diagram with an arrow on a blue background (no text or symbols)

Sine Wave

Abstract geometric shape with a horizontal line and arrow, no text or symbols present

Step Wave (Square)

Abstract white line drawing on dark blue background with a horizontal black line and arrow (no text or symbols)

Sawtooth Wave

Simple geometric diagram showing a right triangle above a horizontal line with an arrow, no text or symbols present.

Ramp Up Wave

Simple geometric diagram showing a right triangle above a horizontal line with an arrow below (no text or symbols)

Ramp Down Wave

Features subject to change without notice
TYPE	SLOT	DM	MX NAME	FX ADJUSTMENT	NOTES/STEPS
Waveform	1	1	Sinewave-Cross (default)		In and Out fade start at the same time
	2 2	Sinewave-Full In fade completes, then out fade completes
	3 3	Sawtooth-Cross In and Out fade start at the same time
	4 4	Sawtooth-Full In fade completes, then out fade completes
	5 5	Ramp Up
	6 6	Ramp Down
	7 7	Steps
	8	8
	9	9
	10 10
StrobeLineFX	11 11	Starfield	Reverse, Stop, Forward		Pixels randomly go on and off with random lengths of on and off times
	12	12	Inverse Starfield	Reverse, Stop, Forward	Pixels randomly go on and off with random lengths of on and off times
	13 13	1 Pixel	Reverse, Stop, Forward	Random 1 Pixel per step
	14 14	2 Pixels	Reverse, Stop, Forward	Random 2 Pixel per step
	15 15	3 Pixels	Reverse, Stop, Forward	Random 3 Pixel per step
	16 16	4 pixels	Reverse, Stop, Forward	Random 4 Pixel per step
	17 17	5 pixels	Reverse, Stop, Forward	Random 5 Pixel per step
	18 18	7 pixels	Reverse, Stop, Forward	Random 7 Pixel per step
	19 19	8 pixels	Reverse, Stop, Forward	Random 8 Pixel per step
	20 20	Single Row	Reverse, Stop, Forward	One single row per step
	21 21	Single Column Reverse, Stop, Forward Single column per step
	22 22	Mirror	Reverse, Stop, Forward
	23 23	Mirror Circle	Reverse, Stop, Forward
	24 24		Knight Rider	Reverse, Stop, Forward
	25 25	Marque	Reverse, Stop, Forward
	26 26	Center Out	Reverse, Stop, Forward
	27	27	Fireworks	Reverse, Stop, Forward	Replicate an exploding firework rocket
	28 28	Ring	Reverse, Stop, Forward
	29 29	Row	Reverse, Stop, Forward
	30 30
	31 31
	32 32
	33 33
	34 34
	35 35
	36 36
	37 37
	38 38
	39 39
	40 40

STROBELINE FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
StrobeLineFX	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	75	75
	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	84	84
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90

STROBELINE FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
StrobeLineFX	91	91
	92	92
	93	93
	94	94
	95	95
	96	96
	97	97
	98	98
	99	99
	100	100
	101	101 Single Reverse, Stop, Forward
	102	102	Single Top/Bottom Reverse, Stop, Forward	Top Row chases first, then bottom row
	103	103 1/4	Reverse, Stop, Forward
	104	104 1/4	Top/Bottom Reverse, Stop, Forward
	105	105 1/8	Reverse, Stop, Forward
	106	106 1/8	Top-Bottom Reverse, Stop, Forward
	107	107 Single Bounce	Reverse, Stop, Forward
	108	108 Fill Row	Reverse, Stop, Forward
	109	109 1/4	Bounce Reverse, Stop, Forward
	110	110 1/4	Bounce Single Reverse, Stop, Forward
	111	111
	112	112
	113	113
	114	114
	115	115
	116	116
	117	117
	118	118
	119	119
	120	120
	121	121
	122	122
	123	123
	124	124
	125	125
	126	126
	127	127
	128	128
	129	129
	130	130
	131	131
	132	132
	133	133
	134	134
	135	135
	136	136
	137	137
	138	138
	139	139
	140	140
	141	141
	142	142
	143	143
	144	144
	145	145

STROBELINE FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
StrobeLineFX	146	146
	147	147
	148	148
	149	149
	150	150
	151	151
	152	152
	153	153
	154	154
	155	155
	146	146
	147	147
	148	148
	149	149
	150	150
	151	151
	152	152
	153	153.
	154	154
	155	155
	156	156
	157	157
	158	158
	159	159
	160	160
	161	161
	162	162
	163	163
	164	164
	165	165
	166	166
	167	167
	168	168
	169	169
	170	170
	171	171
	172	172
	173	173
	174	174
	175	175
	176	176
	177	177
	178	178
	179	179
	180	180
	181	181
	182	182
	183	183
	184	184
	185	185
	186	186
	187	187
	188	188
	189	189
	190	190

STROBELINE FX TABLE

Features subject to change without notice
TYPE	SLOT	DMX NAME	FX ADJUSTMENT	NOTES/STEPS
StrobelineFX	191	191
	192	192
	193	193
	194	194
	195	195
	196	196
	197	197
	198	198
	199	199
	200	200
Strobeline Pattern	201	201 Row	1 disabled
	202	202 Row	2 disabled
	203	203 Quarter	1 disabled
	204	204	Quarter 2	disabled
	205	205 Quarter	3 disabled
	206	206 Quarter	4 disabled
	207	207 Column	1 disabled
	208	208 Column	2 disabled
	209	209 Column	3 disabled
	210	210 Column	4 disabled
	211	211 Column	5 disabled
	212	212 Column	6 disabled
	213	213 Column	7 disabled
	214	214 Column	8 disabled
	215	215 Column	9 disabled
	216	216 Column	10 disabled
	217	217 Column	11 disabled
	218	218 Column	12 disabled
	219	219 Column	13 disabled
	220	220 Column	14 disabled
	221	221 Column	15 disabled
	222	222 Column	16 disabled
	223	223 Lens	1 disabled Strobe	LEDs above and below the lens
	224	224 Lens	2 disabled Strobe	LEDs above and below the lens
	225	225 Lens	3 disabled Strobe	LEDs above and below the lens
	226	226 Lens	4 disabled Strobe	LEDs above and below the lens
	227	227 Lens	5 disabled Strobe	LEDs above and below the lens
	228	228 Lens	6 disabled Strobe	LEDs above and below the lens
	229	229
	230	230
	231	231
	232	232
	233	233
	234	234
	235	235
	236	236

STROBELINE FX TABLE

Features subject to change without notice
TYPE	SLOT DM	MX NAME	FX ADJUSTMENT	NOTES/STEPS
Strobeline Pattern	237	237
	238	238
	239	239
	240	240
	241	241
	242	242
	243	243
	244	244
	245	245
	246	246
	247	247
	248	248
	249	249
	250	250
	251	251
	252	252
	253	253
	254	254
	255	255

REMOTE DEVICE MANAGEMENT (RDM)

NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the device to be managed, modified, and monitored remotely (hence, remote device management). This protocol is ideal for fixtures installed in locations that are not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled controller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known as a GET command). The controller can then use it's SET command to modify settings that would typically have to be changed or viewed directly via the unit's display screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.

FIXTURE RDM INFORMATION:

RDM Code Device ID Device Model ID Personality ID
0x68E Open 1678 Open

Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all of the features that you require.

The following parameters are accessible in RDM on this device:

Sensor Definition

Sensor Value

Device Model Description

Manufacturer Label

Device Label

DMX Personality

DMX Personality Description

Device Hours

Tilt Invert

Display Invert

ERROR CODES

When power is applied, the unit will automatically enter a "Reset/Test" mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of "XXer" were as XX will represent a function number. For example, when the display shows "0Er" it means there is some type of error with the Pan motor. If there are multiple errors during the start-up process they will all flash in the display. For example: if the fixtures has errors on Channel 1, 2, and 5 all at the same time, you will see the error message "01Er", "02Er", and "05Er" flash repeated 5 times.

If an error does occur during the initial start-up procedure the fixture will self-generate a second reset signal and try to realign all the motors and correct the errors. If the error persists after a second attempt a third attempt will be made. If after a third attempt all the errors have not been corrected the fixture will make the following determinations:

• 3 or More Errors: The fixture cannot function properly with three or more errors therefore the fixture will place itself in a stand-by mode until subsequent repairs can be made.
• Less Than 3 Errors: The fixture has less than 3 errors; therefore, most other functions will work properly. The fixture will attempt to operate normally until the errors can be correct by a technician. The errors in question will remain flashing in the display as a reminder of internal errors.

Error Codes subject to change without notice

ERROR CODES

Lamp Temp High

Lamp Temp Error

Base Temp High

Base Temp Error

Head Temp High

Head Temp Error

Head Humidity High

Head Humidity Warning

Base Humidity High

Base Humidity Warning

Base Fan1 Error

Base Fan2 Error

Base Fan3 Error

3U2JB1 LED Fan1 Error

3U2JB2 LED Fan2 Error

3U2JB5D Fog Fan 1 Error

3U2JB6D Fog Fan 2 Error

2U01 Com Fail

3U01 Com Fail

3U02 Com Fail

3U03 Com Fail

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics. Clean the external lens surface at least every 20 days with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to insure proper function and extended life.

There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.

Please refer to the following points during routine inspections:

• A detailed electric check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue or sediments.
• NEVER remove the ground prong from the power cable.

FIXTURE DISASSEMBLY

The following points should be observed after performing any maintenance procedure that requires disassembly of the unit:

• After the unit has been reassembled, open the valve, and allow the light to run for approximately 2 hours to dry out any moisture that has been trapped inside the fixture. The process should continue until indicated humidity drops below 15% for the head and 30% for the base.
• Once this has been achieved, the light can be switched off, but the unit should remain connected to power so that the cooling fan can cool down the unit. Please note that allowing cool down time should ALWAYS be done after lamp operation.
• Some units may require partial disassembly in order to gain access to the valve. Please contact Elation service for information regarding the location and access procedure for the valve on your specific unit model.

SPECIFICATIONS

SOURCE

(6) 60W Osram RGBW LEDs

(24) 2W White SparkLED™

(128) 1W Strobe LED

50,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

6,000 Total Lumen Output (RGBW)

CRI 80

Zoom Range 6°-45°

Color temperature SparkLED 4000K

Color temperature Strobe Line 6500K

EFFECTS

Motorized Zoom

Linear Color Temperature Presets (2700-8000K)

RGBW Color Mixing and Pixel Control

White SparkLED Lens Effect

Dual White Strobe Lines (64 pixels per side)

Color Presets and Macros

Electronic Strobe and Variable Dimming Curves

16-bit Dimming

Tilt Angle: 192°

CONTROL / CONNECTIONS

6 DMX Channel Modes (28/50/82/66/72/106 channels)

Pixel controlled Wash, SparkLED and Strobe LED

DMX Adjustable Refresh Rate (900 -25000 Hz)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

RDM Support

IP65 5pin XLR DMX In/Out

IP65 RJ45 Ethernet In/Out (Art-Net, sACN)

IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 19.8 in (504mm)

Width (Base): 7.6 in (194mm)

Width (Head): 6.1 in (155mm)

Height (head up): 13.2 in (336mm)

Height (head 90 degree): 11.3 in (288mm)

Weight: 39.4lbs. (17.9kg)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

700W Max Power Consumption

Ambient Temperature Range: -4°F to 113°F (-20°C to 45°C)

APPROVALS / RATINGS

CE | cETLus | IP65 | UKCA

IP65

Specifications and documentation subject to change without notice.

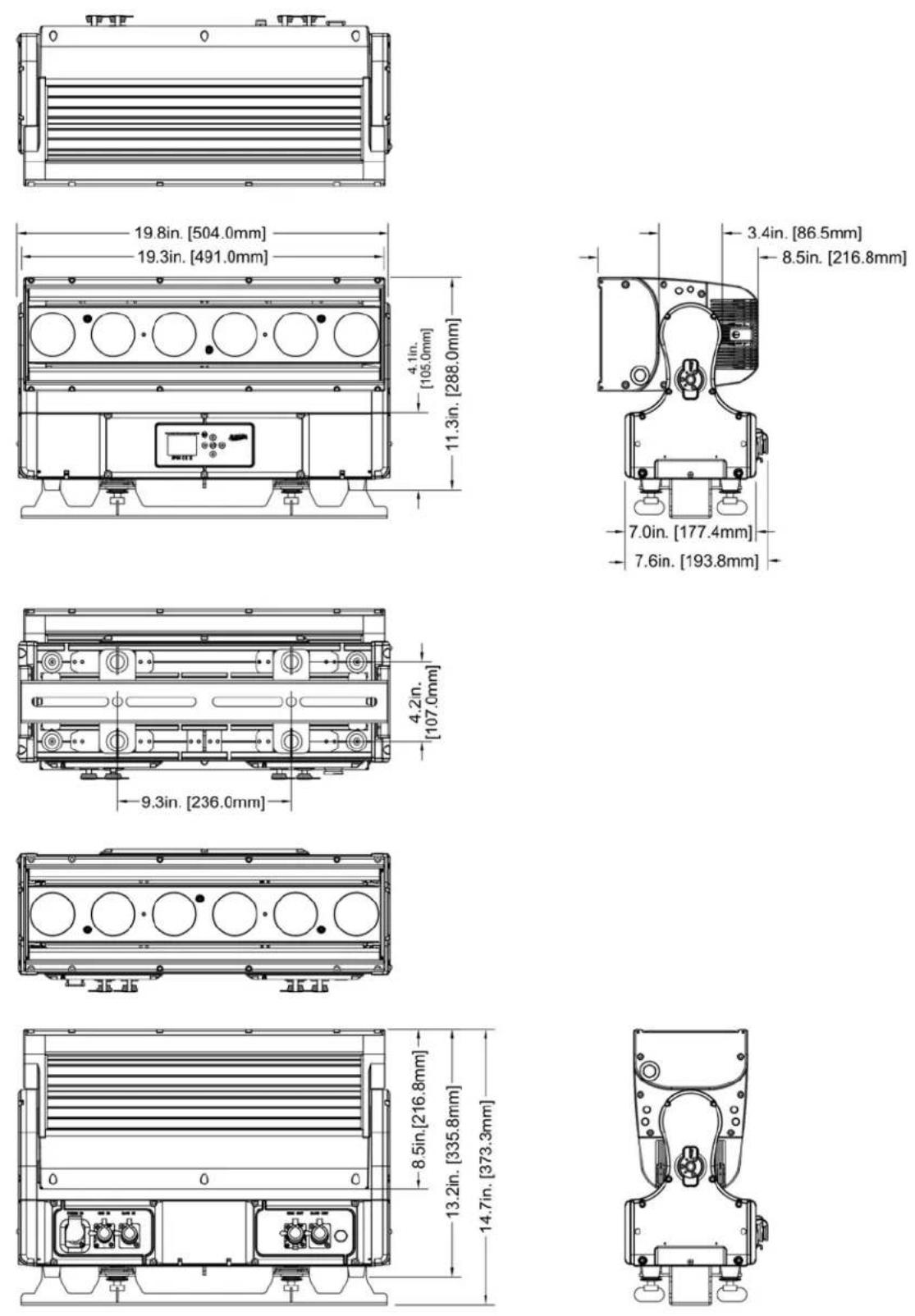

DIMENSIONS-FIXTURE

*Drawings not to scale. Specifications and improvements in the design of this unit and this manual are subject to change without notice.

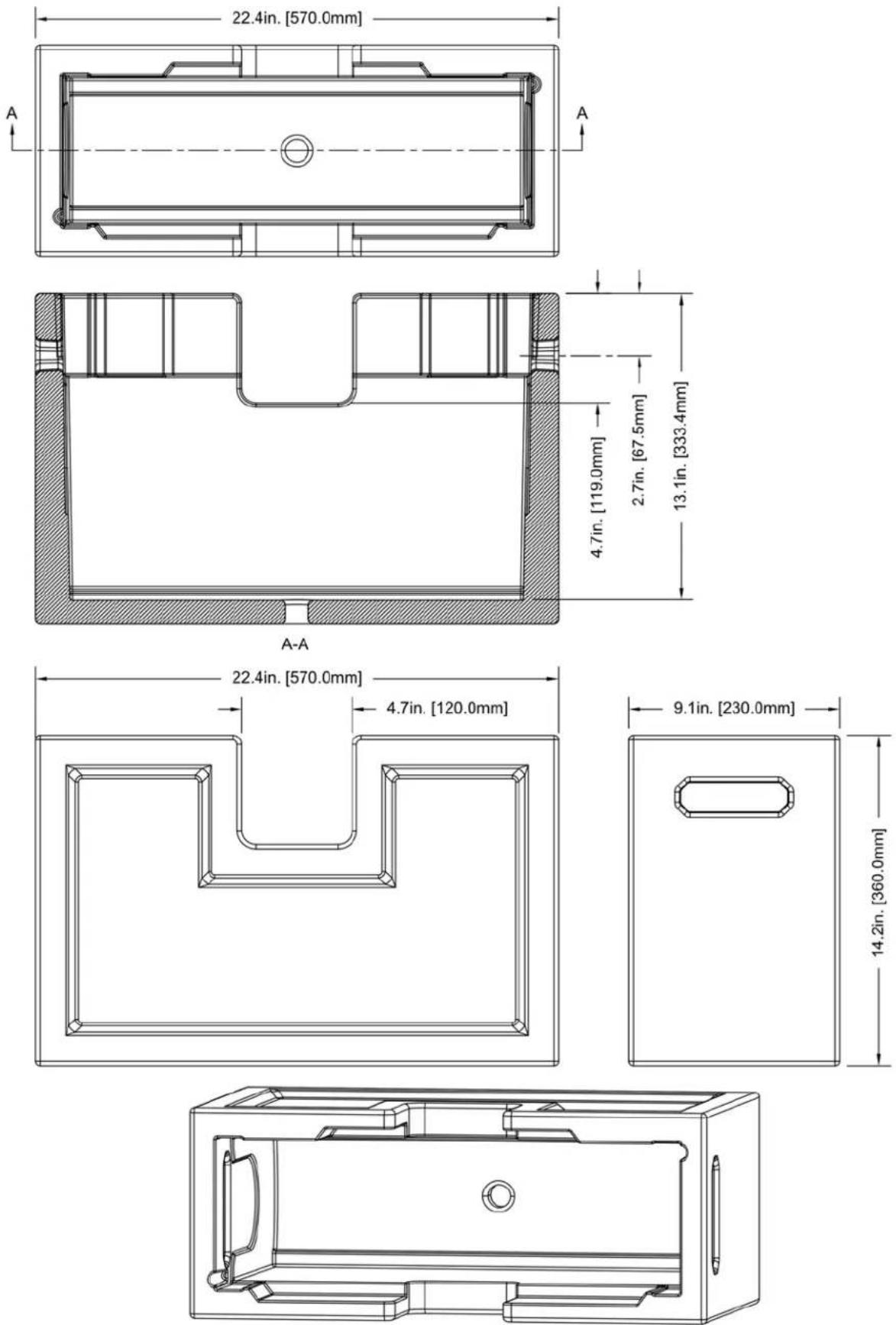

DIMENSIONS-FIL

*Drawings not to scale. Specifications and improvements in the design of this unit and this manual are subject to change without notice.

OPTIONAL ACCESSORIES

ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
SIP126 5 ft. (1.5m) IP65 Power Link Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
	Additional Cable Lengths Available

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device uses and can radiate radio frequency energy and, if not installed and used in accordance with the included instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be deter- mined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate the device.
- increase the separation between the device and the receiver.
- Consult the dealer or an experienced radio/TV technician for help.

- Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected.

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!
