Product Type	Wireless Tri-Band Gigabit Router
Model	A8000RU
Brand	Totolink
Dimensions (L x W x H)	324mm x 203mm x 52.8mm (without antennas)
Power Supply	12V DC / 3.5A
Wireless Standards	IEEE 802.11ac/a/b/g/n
Data Rate (2.4GHz)	Up to 800Mbps
Data Rate (5GHz-1)	Up to 1733Mbps
Data Rate (5GHz-2)	Up to 1733Mbps
Total Bandwidth	Up to 4266Mbps
Processor	1.35GHz Dual-Core CPU with three co-processors
Antennas	8 external detachable 5dBi omnidirectional antennas
Interfaces	4 x 1000Mbps LAN, 1 x 1000Mbps WAN, 1 x USB 3.0, 1 x Power
Buttons	Reset, WPS, Power
LED Indicators	System, WAN, LAN (1 each)
Wireless Security	WPA/WPA2 MIX
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Special Features	MU-MIMO, Beamforming+, Tri-band, QoS, IPTV, VPN Server (PPTP, L2TP, Open VPN), IPv6, USB sharing (FTP, Samba, DLNA)
Package Contents	Router, Power Adapter, Ethernet Cable, Quick Installation Guide
Cleaning and Maintenance	Keep device in a well-ventilated area, clean with a soft dry cloth, avoid liquids and direct sunlight.
Safety Information	Use supplied power adapter only, do not disassemble, keep away from water and heat sources.

Frequently Asked Questions - A8000RU Totolink

What is the maximum wireless speed of the A8000RU?

The A8000RU provides combined speeds up to 4266Mbps: 800Mbps on 2.4GHz and 1733Mbps on each of the two 5GHz bands.

Does the A8000RU support MU-MIMO?

Yes, it supports Wave2 MU-MIMO technology, allowing simultaneous communication with multiple devices, reducing network latency.

How many antennas does the A8000RU have?

It has 8 external detachable omnidirectional antennas with 5dBi gain, including 4 dedicated to 5GHz and 4 shared between 2.4GHz/5GHz.

Can I set up a VPN server on the A8000RU?

Yes, the router supports VPN server with PPTP, L2TP, and Open VPN protocols.

How do I reset the A8000RU to factory settings?

Press and hold the RST button on the back for at least 10 seconds until the LEDs blink, then release.

Does the A8000RU support IPv6?

Yes, it supports IPv6 as per the network settings.

What is the coverage range of the A8000RU?

With 8 high-gain antennas and Beamforming+, it covers larger areas, but actual range depends on environment and obstacles.

Can I use a USB drive with the A8000RU?

Yes, the USB 3.0 port allows file sharing via FTP, Samba, and DLNA media server.

How can I set up IPTV on the A8000RU?

Go to Network settings and enable IPTV feature, then configure the VLAN ID and port as needed.

What is the processor in the A8000RU?

It features a 1.35GHz Dual-Core CPU with three co-processors for high-speed data processing.

USER MANUAL A8000RU Totolink

Wireless Tri-Band Gigabit Router

Exterior view of a TOTO LINK branded electronic device with four external sensors (no visible text or symbols on the device itself)

Overview

AC4000

Wireless Tri-Band Gigabit Router

Model No. A8000RU

A8000RU is AC4300 Wireless Tri-band Gigabit Router which complies with the latest IEEE802.11ac Wave 2 standards and delivers wireless speed up to 4266Mbps. MU-MIMO and Beamforming+ technologies ensure a stable wireless connection to the Internet for multiple devices at the same time. 5GHz Wi-Fi provides a blazing-fast, lag-free Wi-Fi experience for gaming, video streaming or surfing. A8000RU is equipped with eight external 5dBi omni-directional antennas and PA+LNA wireless signal amplification module, extending Wi-Fi over larger areas.

Meanwhile, it supports the VPN, QoS, IPV6, IPTV etc, giving users the best Wi-Fi experience!

Black wireless router with six external antennas (no visible text or symbols)

Features

• Tri-Band technology creates three separated Wi-Fi bands for more devices' connections without degrading the Wi-Fi network performance.
• Simultaneous 800Mbps on 2.4GHz, 1733Mbps on 5GHz(1) and 1733Mbps on 5GHz(2), totaling 4266Mbps bandwidth.
• 1.35GHz Dual-Core CPU and three co-processors perform outstanding ability in data-processing without any delay.
• Full gigabit WAN port and LAN ports support large data streaming via cable connection.
• USB3.0 supports to share files based on the functions of FTP, Samba.
• Eight high-gain antennas improve the sensitivity of signal transmission and reception.
• Beamforming technology supports directional signal transmission and reception, reducing interference.
• MU-MIMO technology supports simultaneous communications with multiple devices, reducing network latency.
• Supports DHCP, Static IP, PPPoE, PPTP and L2TP Internet connection type.
• QoS: Bandwidth Control based on IP address.
• Supports Multiple SSIDs, WPS and Wireless Scheduler.
• Supports WPA/WPA2 MIX.
• APP Managemen.

Black wireless router with five external antennas (no visible text or symbols)

Black wireless router with multiple Ethernet ports and a red indicator light (no visible text or symbols)

4300Mbps Super-high Speed Wi-Fi

1733Mbps on 5GHz(1) and 1733Mbps on 5GHz(2), offers super fast Wi-Fi for Gaming, Video and Download. 800Mbps on 2.4GHz, offers wider wireless coverage as well as strong wall-through ability.

Wave2 MU-MIMO and Beamforming technology

With the latest Wave2 MU-MIMO and Beamforming technology, A8000RU supports to communicate with multiple devices at the same time and supports to transmit the signal to the wireless connected devices intensively, such as smart phones, tablets and laptops, thus improving the bandwidth efficiency and the Wi-Fi experience.

Illustration of a wireless router with five antennas, connected to a smartphone and tablet device, surrounded by abstract architectural floor plans (no text or symbols)

with beamforming

without beamforming

Abstract diagram with a box, pen, and square shapes (no text or symbols)

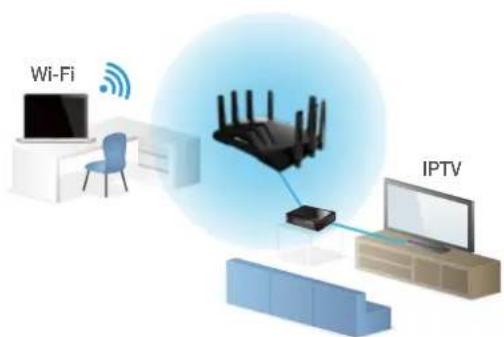

Support IPTV

With top-level configurations on hardware, A8000RU supports much powerful applications on firmware. IPTV is one of the most useful features for the users, which brings very good experience on Wi-Fi and Multi-media.

Specification

Hardware

Interface	- 4 * 1000Mbps LAN Ports- 1 * 1000Mbps WAN Port- 1* Power Port- 1* USB 3.0 Port
Power Supply	- 12V DC / 3.5A
Button	- 1 * RST Button, 1* WPS Button, 1* Power Button
LED Indicator	- 1 * SYSTEM LED, 1* WAN LED, 4* LAN LED
Antenna	- 8* external detachable antennas(4* 5G antennas + 4* 2.4G/5G antennas)
Dimensions (L x W x H)	- 324mm x 203mm x 52.8mm (not concluding antennas)

Wireless

Standards	- IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RF Frequency	- 2.4GHz/5GHz
Data Rate	- 2.4GHz: Up to 800Mbps- 5GHz(1) : Up to 1733Mbps- 5GHz(2) : Up to 1733Mbps
EIRP	- 2.4GHz < 20dBm- 5GHz < 20dBm
Wireless Security	- WPA/WPA2 MIX
Reception Sensitivity	- 2.4G:11b 11M: -81dBm@8% PER11g 54M: -68dBm@10% PER11n HT20 MCS7: -65dBm@10% PER HT40 MCS7: -62dBm@10% PER- 5G: 11a 54M: -68dBm@10% PER11n HT20 MCS7: -65dBm@10% PER HT40 MCS7: -62dBm@10% PER11ac VHT80 MCS9: -51dBm@10% PER

Specification

Software

Home	- Quick Setup - Basic setup - Advanced setup- QR Code - LED - Logout - Reboot
Network	- WAN Setting - LAN Setting - DDNS Setting- IPTV Setting - IPv6 Setting
WAN Type	- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
Wireless	- Basic setup - Guest Network(Multiple SSID)- Wireless Schedule - Access Control - Advanced setup
Parental Control	- Internet time control based on MAC
QoS	- Up/Down speed control on WAN, Bandwidth control based on IP address
Device management	- Static Route - Routing Table - IP/MAC Binding
Security	- MAC Filtering - IP/Port Filtering - URL Filtering
NAT	- Virtual Server(Port Forwarding) - DMZ- VPN passthrough
VPN Sever	- PPTP VPN, L2TP VPN, Open VPN
Storage	- DLNA, Samba, FTP
Tools	- Upgrade Firmware - Time Setup - Remote management- UPnP - Password Settings - Reboot Schedule- Ping Diagnosis - Route Tracking - System Log and so on

Others

Package Contents	- A8000RU Wireless Router *1- Power Adapter *1- Ethernet Cable *1- Quick Installation Guide *1
Environment	- Operating Temperature: 0°C~50°C (32°F~122°F)- Storage Temperature: -40°C~70°C (-40°F~158°F)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing
