HA02B - Uncategorized Scosche - Free user manual and instructions

Product Type	Car Stereo Wiring Harness
Brand	Scosche
Model	HA02B
Compatibility	Select Ford, Lincoln, Mercury vehicles (1998-2008)
Connector Type	ISO/DIN standard with vehicle-specific plug
Wire Gauge	18 AWG
Harness Length	Approximately 12 inches (30 cm)
Material	PVC insulated copper wire
Color	Black/White (color-coded wires)
Installation Type	Plug-and-play, no cutting required
Includes	Harness with wire labels, instruction sheet
Weight	0.2 lbs (90 g)
Dimensions (Packaged)	6 x 4 x 1 inches
Power Handling	Up to 50W per channel
Input Voltage	12V DC (vehicle battery)
Wire Functions	Power, Ground, Speakers, Illumination, Accessory, Antenna
Certifications	CE, RoHS
Maintenance	Keep dry and free of debris; inspect wires periodically
Storage	Store in cool, dry place away from direct sunlight
Safety Notes	Disconnect vehicle battery before installation; avoid short circuits
Repairability	Wires can be spliced; connector not user-replaceable
Warranty	Limited lifetime warranty (Scosche)

Frequently Asked Questions - HA02B Scosche

What vehicles is the Scosche HA02B compatible with?

The HA02B is designed for select Ford, Lincoln, and Mercury vehicles from model years 1998 to 2008. It replaces factory radio connectors.

Do I need to cut any wires to install this harness?

No, the HA02B is a plug-and-play harness. It connects directly to the vehicle's factory wiring without cutting or splicing.

What tools are required for installation?

Basic tools: panel removal tools, wire stripper/crimper (optional), and a multimeter to verify connections. No special tools needed.

Can I use this harness with an aftermarket stereo?

Yes, the HA02B adapts the vehicle's factory wiring to standard aftermarket stereo connections. It includes color-coded wires for easy matching.

Does this harness include an antenna adapter?

The HA02B includes a power antenna wire (blue) but not a physical antenna adapter. You may need a separate adapter for the antenna connection.

What wire colors correspond to what functions?

Standard color code: yellow (battery), red (accessory), black (ground), gray (front right speaker+), gray/black (front right speaker-), white (front left+), white/black (front left-), green (rear left+), green/black (rear left-), purple (rear right+), purple/black (rear right-), blue (power antenna/amp turn-on), orange (illumination).

Is the HA02B compatible with factory amplifiers?

It depends on the vehicle. The harness provides standard speaker wires; if the vehicle has a factory amp, an additional adapter may be required.

How do I test the connections before final installation?

Use a multimeter to check for 12V on the yellow and red wires (with ignition off/on). Also test speaker wires for continuity with a 9V battery.

What should I do if the radio doesn't turn on after installation?

Check the vehicle's fuse for the radio circuit. Verify that the yellow (constant 12V) and red (switched 12V) wires are properly connected. Ensure the ground wire is securely attached to clean metal.

Can I return the harness if it doesn't fit?

Scosche offers a limited lifetime warranty. Check retailer return policy; the harness is vehicle-specific, so confirm compatibility before purchase.

USER MANUAL HA02B Scosche

Receiver Wiring Adaptor

IMPORTANT

Before starting, compare items on your invoice with items received. Carefully check through packaging material. If an item is missing, please call Crutchfield at 1-888-955-6000.

142HA02B

STEP 1 -- MATCH & CONNECT WIRES

Revision 05/04/17

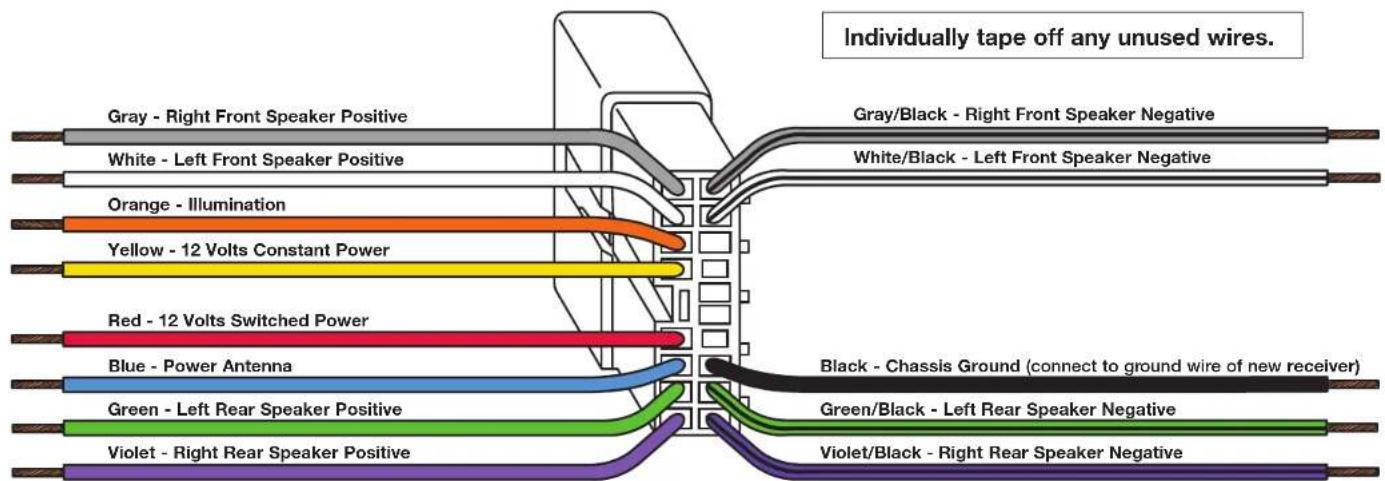

A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

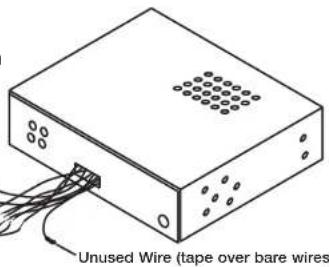

B. Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
C. Individually tape off any unused wires.
D. Make final wiring connections following instructions on the next page.

Receiver Wiring Adaptor Connections

142HA02B

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts Required ▶

Wire Stripper/Crimp Tool

Crimp Caps

A. Strip wires back 1/2".

Line drawing of a mechanical component with internal gear-like structure (no text or symbols)

B. Twist wires together and insert in crimp cap.

Diagram showing a cable being inserted into a connector with an arrow indicating direction (no text or symbols)

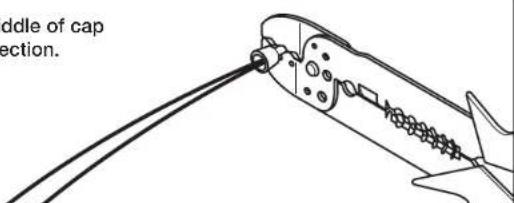

C. Squeeze middle of cap for tight connection.

STEP 2 -- CONTINUED

D. Complete crimp connections for all necessary wires.

E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.

Receiver Wiring Adaptor

Generic Illustration

STEP 3 -- APPLICATION

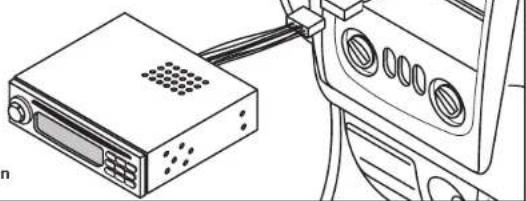

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.

Diagram of a computer tower connected to an external drive (no text or symbols visible)

CRUTCHFIELD

Copyright 2017 Crutchfield Corporation
