Product Type	3.5mm to RCA Stereo Audio Adapter Cable
Connector Type	3.5mm male to 2 RCA male
Cable Length	6 ft (1.8 m)
Weight	0.1 lbs (45 g)
Material	Copper conductors with PVC jacket
Color	Black
Compatibility	Smartphones, tablets, laptops, car stereos, home audio systems
Signal Type	Stereo analog audio
Shielding	Braided shield for noise reduction
Gold-Plated Connectors	Yes, corrosion-resistant
Strain Relief	Molded strain relief for durability
Power Source	Passive, no external power required
Maintenance	Wipe with a soft, dry cloth
Storage	Coil loosely to avoid kinks
Safety	No special precautions; keep away from heat sources
Spare Parts	Not applicable; cable is not user-serviceable
Reparability	Non-repairable; replace if damaged
Brand	Scosche
Model	SAH6

Frequently Asked Questions - SAH6 Scosche

How do I connect the Scosche SAH6 cable?

Plug the 3.5mm end into your device's headphone jack and the RCA ends into the corresponding inputs on your stereo or amplifier. Ensure connections are secure.

Does this cable support microphone or inline controls?

No, the SAH6 is a passive audio cable designed for stereo audio output only. It does not carry microphone signals or support remote controls.

What is the maximum cable length available?

The SAH6 is a 6-foot (1.8-meter) cable. For longer distances, consider an active extension or a different model.

Is the cable shielded to prevent interference?

Yes, the SAH6 features a braided shield that reduces electromagnetic and radio frequency interference, ensuring clear audio transmission.

Can I use this cable with a car stereo?

Absolutely. Plug the 3.5mm end into your phone or MP3 player and the RCA ends into the auxiliary input of your car stereo.

What devices are compatible with the SAH6?

Any device with a standard 3.5mm headphone jack and any audio system with RCA inputs, such as home theater receivers, powered speakers, and car stereos.

Does the cable support high-resolution audio?

Yes, the SAH6 can transmit high-resolution stereo audio up to 24-bit/192kHz, limited only by your source device.

How should I clean the cable connectors?

Use a soft, dry cloth to wipe the connectors. Avoid liquids or abrasive cleaners. For stubborn dirt, use a slightly damp cloth and dry immediately.

Is this cable suitable for outdoor use?

The cable is not weatherproof. Avoid exposure to moisture, extreme temperatures, and direct sunlight to prevent damage.

What should I do if the cable stops working?

Check connections for looseness or damage. If the cable is physically broken, replace it as it is not repairable. Contact Scosche for warranty options if within the warranty period.

USER MANUAL SAH6 Scosche

Speaker Adaptor Bracket

IMPORTANT

Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

142 SAH6

Revision 02/05/14

IMPORTANT

It will be necessary to acquire screws to mount the speaker to the adaptor bracket if speakers are not supplied with screws.

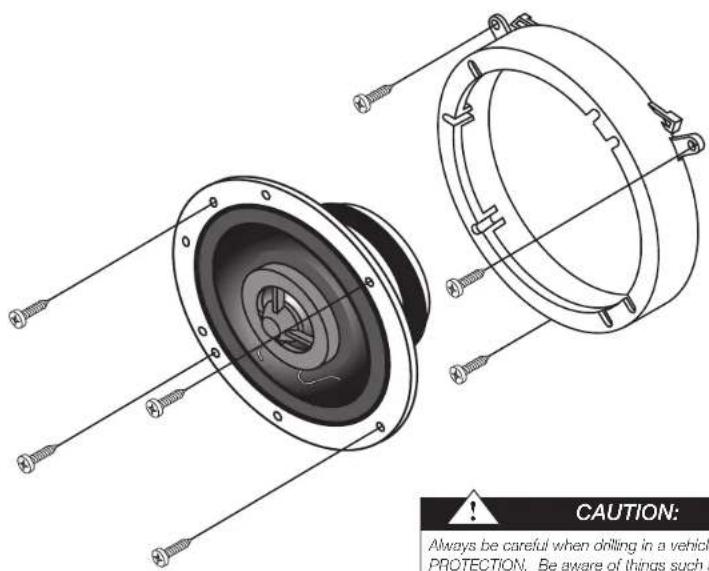

1. Place speaker adaptor bracket on speaker location. Use bracket as a template to mark new mounting holes.
2. Remove bracket and drill new holes with a 1/8" bit.
3. Secure brackets to location with screws supplied.
4. Make speaker wiring connections and secure speaker to bracket.

Tools Required

Phillips Screwdriver

Drill & 1/8" Bit

CAUTION:

Always be careful when drilling in a vehicle. WEAR EYE PROTECTION. Be aware of things such as wiring, windows, fuel lines and safety devices. Check drilling depth and location to avoid damage to vehicle appearance.

Parts ▶ Supplied:

(2) Brackets

(6) # 8 Phillips Screws

*142SAH6*

CRUTCHFIELD

Copyright 2014 Crutchfield Corporation
