SAHR6 - Uncategorized Scosche - Free user manual and instructions

Product Type	Car Stereo Wiring Harness
Brand	Scosche
Model	SAHR6
Compatibility	Select Honda vehicles (1998–2008)
Connector Type	OEM to aftermarket ISO
Wire Gauge	16–18 AWG
Length	12 inches (30.5 cm)
Material	PVC insulated copper
Color	Multi-colored wires with labels
Weight	0.2 lbs (90 g)
Power Handling	Up to 10A continuous
Installation Type	Plug-and-play, no cutting required
Tools Required	Wire stripper, crimp tool (optional)
Warranty	Limited lifetime
Certifications	CE, RoHS compliant
Package Contents	1 harness, wiring diagram
Operating Temperature	-40°F to 185°F (-40°C to 85°C)
Housing Material	Nylon connector
Gender	Male (vehicle side)
Color Coding	Standard aftermarket (yellow battery, red ignition, etc.)

Frequently Asked Questions - SAHR6 Scosche

Which vehicles is the Scosche SAHR6 compatible with?

The SAHR6 is designed for select Honda vehicles from 1998 to 2008, including models like Civic, Accord, CR-V, and Odyssey. Always verify your vehicle's specific connector type.

Does the SAHR6 require cutting or splicing wires?

No, it is a plug-and-play harness that connects directly to your vehicle's factory wiring without cutting. However, you may need to crimp or solder the aftermarket radio's wires to the harness wires.

What tools do I need to install the SAHR6?

You will need a wire stripper and crimp tool or soldering iron for connecting the aftermarket radio. A trim removal tool may help access the factory radio.

Does the harness include installation instructions?

Yes, a wiring diagram and color-coding guide are included. The manual can also be downloaded from the manufacturer's website.

What is the length of the wires on the SAHR6?

The wires are approximately 12 inches long, providing ample length to reach most aftermarket radios.

Can I use the SAHR6 with an aftermarket amplifier?

Yes, the harness supports basic connections for power, ground, speakers, and accessory. For advanced features like steering wheel controls, additional adapters may be needed.

Is the SAHR6 compatible with backup cameras or USB ports?

The harness handles standard power and speaker connections. Multi-media features like backup cameras require specific adapters or direct wiring to the radio.

What is the maximum power rating for the SAHR6?

The harness is rated for continuous currents up to 10 amps, sufficient for most aftermarket radios.

Does the SAHR6 have a warranty?

Scosche offers a limited lifetime warranty against defects in materials and workmanship. Retain your receipt for claims.

Are the wire colors standard on the SAHR6?

Yes, they follow the standard aftermarket color code: yellow (constant 12V), red (ignition 12V), black (ground), and matched pairs for speakers (e.g., white/white-black for front left).

USER MANUAL SAHR6 Scosche

Speaker Adaptor Bracket

IMPORTANT

Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

142SAHR6

Revision 06/10/15

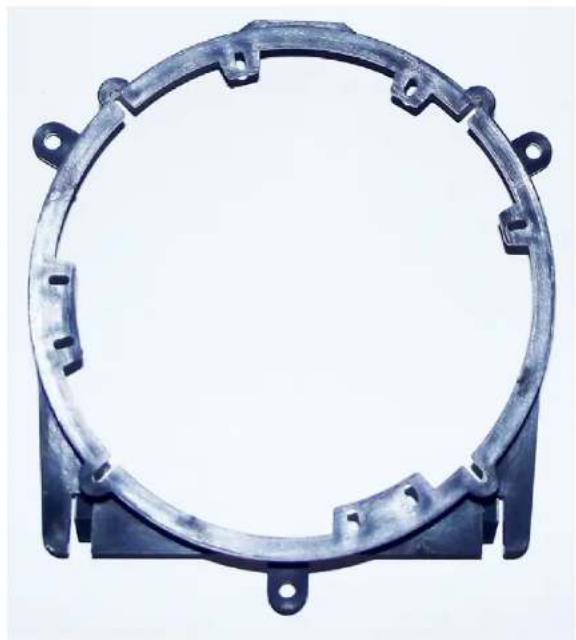

Metal mechanical component with circular frame and mounting holes (no text or symbols visible)

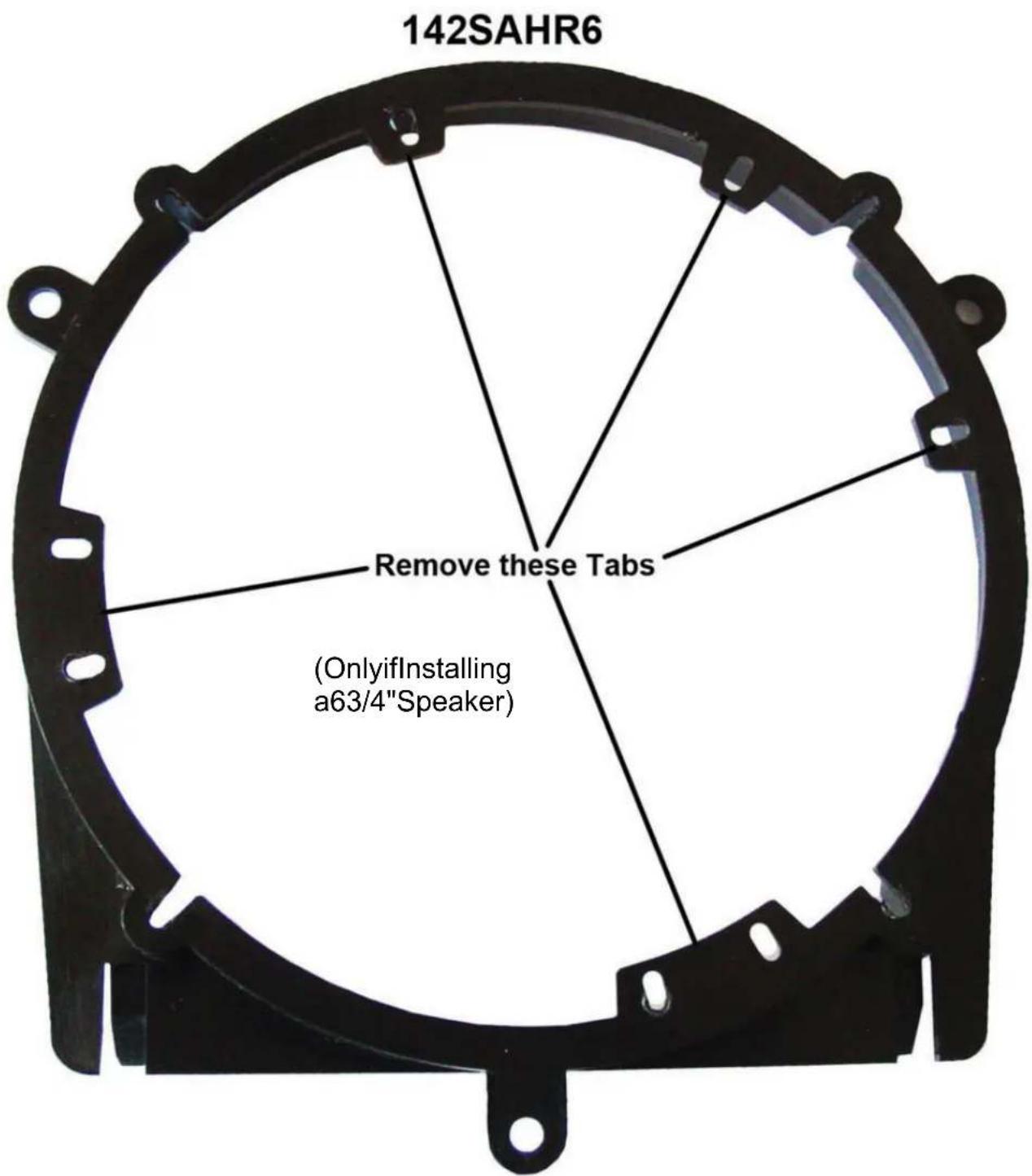

Metallic mechanical bracket component with mounting holes and mounting holes (no text or symbols visible)

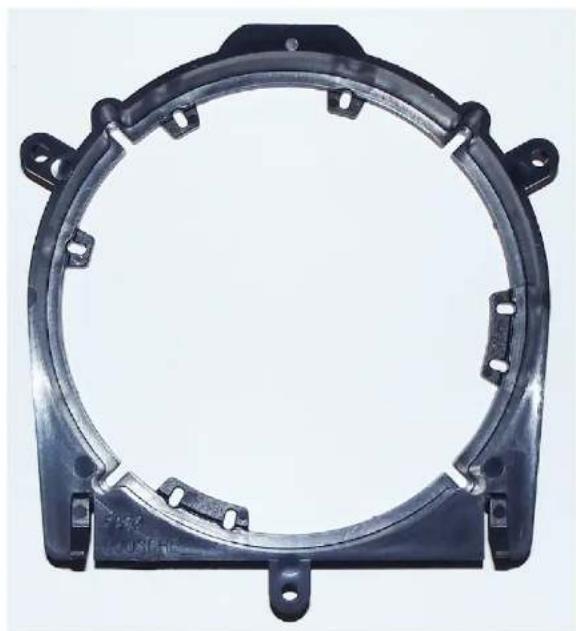

Close-up of a black mechanical component with two metal clips attached (no visible text or symbols)

Parts Supplied:

CRUTCHFIELD

Copyright 2015 Crutchfield Corporation
