| Product Type | Full-range passive 2-way loudspeaker |
| Power Handling (RMS) | 160 W |
| Peak Power | 320 W (5 min max) |
| Impedance | 8 Ω |
| Frequency Response (-3 dB) | 70 Hz - 18 kHz |
| Sensitivity (1W/1m) | 93 dB |
| Dispersion (H x V) | 140° x 140° |
| Low-Frequency Drivers | 2 x 6.5" (150 mm) cone |
| High-Frequency Driver | 1" (25 mm) titanium diaphragm compression driver |
| Connector Type | 1 x Speakon NL4 |
| Dimensions (H x W x D) | 541 x 212 x 194 mm |
| Weight | 9.5 kg (each) |
| Enclosure Material | Premium Russian plywood, multi-angle design |
| Grille | Powder-coated steel |
| Finish Options | Black or white |
| Mounting Options | Wall-mount bracket included, flying points, surface mount |
| Application | Bars, restaurants, meeting rooms, wedge monitoring, arraying |
| Operating Temperature | 0°C to 35°C (typical) |
| Certifications | CE, RoHS |
| Cleaning Instructions | Wipe with dry cloth; avoid solvents |
Frequently Asked Questions - CX-1608 Citronic
What is the power handling of the Citronic CX-1608?
The CX-1608 has a RMS power handling of 160W and a peak capacity of 320W for up to 5 minutes.
What type of connector does the CX-1608 use?
It uses a single Speakon NL4 connector for input. Ensure your amplifier cable is compatible.
Can the CX-1608 be used as a floor monitor?
Yes, the cabinet has a multi-angle design that allows it to be used as a wedge monitor for stage or floor placement.
What is the frequency response of the CX-1608?
The frequency response is 70 Hz to 18 kHz at -3 dB, providing full-range sound for speech and music.
How should I mount the CX-1608 on a wall?
The speaker comes with wall-mount brackets. Securely attach the bracket to the wall using appropriate fixings, then attach the speaker using the provided hardware.
What is the sensitivity of the CX-1608?
Sensitivity is 93 dB at 1W/1m, meaning it can produce high sound levels with moderate amplifier power.
What drivers are inside the CX-1608?
It features two 6.5-inch low-frequency drivers and a 1-inch compression driver with a titanium diaphragm for the highs.
Is the CX-1608 suitable for outdoor use?
The CX-1608 is designed for indoor applications like bars and meeting rooms. Not weatherproof; avoid exposure to rain or extreme conditions.
What is the dispersion pattern of the CX-1608?
It has a wide 140° x 140° dispersion, ensuring even coverage across the listening area.
How do I clean the CX-1608?
Use a soft dry cloth to wipe the cabinet. Do not use abrasive cleaners or solvents that could damage the finish.
User questions about CX-1608 Citronic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Pregnant in PDF format for free! Find your manual CX-1608 - Citronic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CX-1608 by Citronic.
USER MANUAL CX-1608 Citronic
Order ref: 170.356, 170.357
User Manual


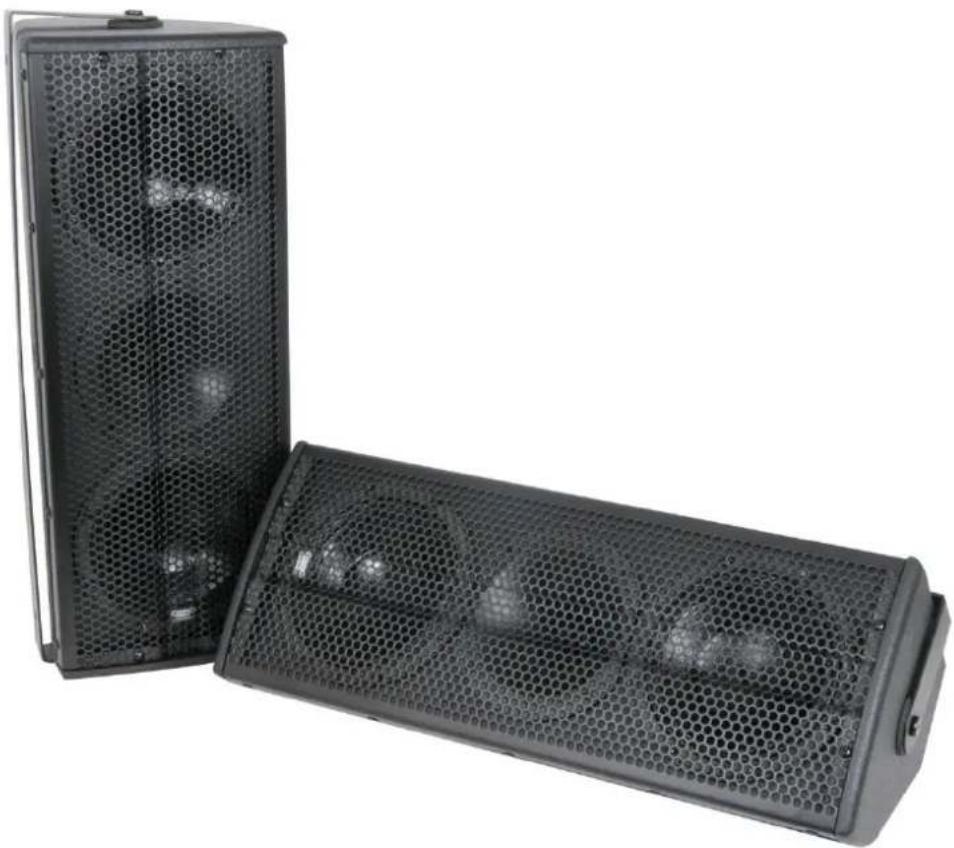

Two black rectangular electronic devices with hexagonal mesh surfaces, one open and one closed, showing internal fan-like structures (no text or symbols visible)Pair of speaker enclosures made from premium Russian ply with multi-angle design for arraying and wedge monitoring. Surface mount via the included bracket or flying points afford convenient installation in bars, restaurants, meeting rooms. Custom designed drivers project full range output with a wide dispersion for excellent coverage to listeners.
• Full range 2-way enclosure
• Powder-coated steel grille
• Computer designed for optimal efficiency
- Wide 140^ × 140^ dispersion
• Supplied in pairs with wall-mount brackets
• Available in durable black or white finish
• Multi-angle cabinets for monitoring or arraying
Specifications
| Power RMS | 160W |
| Power Max | 320W (5 minutes max) |
| LF driver | 2 x 150mm∅ (6") |
| HF driver | Compression driver with 25mm∅ titanium diaphragm |
| Impedance | 8Ω |
| Frequency response (-3dB) | 70Hz - 18KHz |
| Sensitivity (1W/1m) | 93dB |
| Dispersion (H x V) | 140° x 140° |
| Connector | 1 x Speakon® (NL 4) |
| Dimensions | 212 x 194 x 541mm |
| Weight | 9.5kg |
Technical drawings


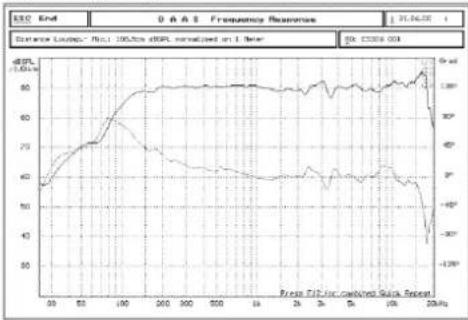

Frequency response - Magnitude Impedance - Magnitude
line
| Time (s) | Voltage (V) | Power (W) | |----------|-------------|-----------| | 0 | 40 | 0 | | 50 | 50 | 10 | | 100 | 60 | 20 | | 150 | 70 | 30 | | 200 | 80 | 40 | | 250 | 85 | 50 | | 300 | 90 | 60 | | 350 | 95 | 70 | | 400 | 100 | 80 | | 450 | 105 | 90 | | 500 | 110 | 100 | | 550 | 115 | 110 | | 600 | 120 | 120 | | 650 | 125 | 130 | | 700 | 130 | 140 | | 750 | 135 | 150 | | 800 | 140 | 160 | | 850 | 145 | 170 | | 900 | 150 | 180 | | 950 | 155 | 190 | | 1000 | 160 | 200 | | 1050 | 165 | 210 | | 1100 | 170 | 220 | | 1150 | 175 | 230 | | 1200 | 180 | 240 | | 1250 | 185 | 250 | | 1300 | 190 | 260 | | 1350 | 195 | 270 | | 1400 | 200 | 280 | | 1450 | 205 | 290 | | 1500 | 210 | 300 | | 1550 | 215 | 310 | | 1600 | 220 | 320 | | 1650 | 225 | 330 | | 1700 | 230 | 340 | | 1750 | 235 | 350 | | 1800 | 240 | 360 | | 1850 | 245 | 370 | | 1900 | 250 | 380 | | 1950 | 255 | 390 | | 2000 | 260 | 400 | | 2050 | 265 | 410 | | 2100 | 270 | 420 | | 2150 | 275 | 430 | | 2200 | 280 | 440 | | 2250 | 285 | 450 | | 2300 | 290 | 460 | | 2350 | 295 | 470 | | 2400 | 300 | 480 | | Peak FCF or combined Quick Repet: -37% - -38% - -39% - -46% - -47% - -48% - -49% - -56% - -66% - -76% - -86% - -96% - -1.36% - -2.36% - -3.36% - -4.36% - -5.36% - -6.36% - -7.36% - -8.36% - -9.36% - -1.36% - -2.36% - -3.36% - -4.36% - -5.36% - -6.36% - -8.36% - -9.36% - -1.36% - -2.36% - -3.36% - -4.36% - -5.36% - -6.36% - -8.36% - -9.36% - -1.36% = -2.36% / -3.36% / -4.36% / -5.36% / -6.36% / -7.36% / -8.36% / -9.36% / -1.36% / -2.36% / -3.36% / -4.36% / -5.36% / -6.36% / -7.36% / -8.36% / -9.36% / -1.36% / -2.36% / -3.36% / -4.36% / -5.36% / -6.36% / -8.36% / -9.36% / -1.36% / <2.36% / >2.36% / <4.36% / >4.36% / <6.36% / >4.36% / <8.36% / >4.36% / <1.36% / <2.36% / >4.36% / <4.36% / >4.36% / <6.36% / >4.36% / <8.36% / >4.36% / <1.36% / <2.36% / >4.36% / <4.36% / >4.36% / <6.36% / >4.36% / <8. &
line
| Time (h) | Voltage (V) | | -------- | ----------- | | 0 | 13.0 | | 50 | 16.0 | | 100 | 45.0 | | 150 | 112.0 | | 200 | 13.0 | | 250 | 16.0 | | 300 | 45.0 | | 350 | 112.0 | | 400 | 13.0 | | 450 | 16.0 | | 500 | 45.0 | | 550 | 112.0 | | 600 | 13.0 | | 650 | 16.0 | | 700 | 45.0 | | 750 | 112.0 | | 800 | 13.0 | | 850 | 16.0 | | 900 | 45.0 | | 950 | 112.0 | | 1000 | 13.0 | | 1050 | 16.0 | | 1100 | 45.0 | | 1150 | 112.0 | | 1200 | 13.0 | | 1250 | 16.0 | | 1300 | 45.0 | | 1350 | 112.0 | | 1400 | 13.0 | | 1450 | 16.0 | | 1500 | 45.0 | | 1550 | 112.0 | | 1600 | 13.0 | | 1650 | 16.0 | | 1700 | 45.0 | | 1750 | 112.0 | | 1800 | 13.0 | | 1850 | 16.0 | | 1900 | 45.0 | | 1950 | 112.0 | | 2000 | 13.0 | | 2050 | 16.0 | | 2100 | 45.0 | | 2150 | 112.0 | | 2200 | 13.0 | | 2250 | 16.0 | | 2300 | 45.0 | | 2350 | 112.0 | | 2400 | 13.0 |Distortion - Magnitude Waterfall - Magnitude
line
| Distance Loops | ESE Cancel | | -------------- | ---------- | | 0 | -75 | | 10 | -60 | | 20 | -45 | | 30 | -30 | | 40 | -15 | | 50 | 0 | | 60 | 15 | | 70 | 30 | | 80 | 45 | | 90 | 60 | | 100 | 75 | | 110 | 60 | | 120 | 45 | | 130 | 30 | | 140 | 15 | | 150 | 0 | | 160 | -15 | | 170 | -30 | | 180 | -45 | | 190 | -60 | | 200 | -75 | | 210 | -60 | | 220 | -45 | | 230 | -30 | | 240 | -15 | | 250 | 0 | | 260 | 15 | | 270 | 30 | | 280 | 45 | | 290 | 60 | | 300 | 75 | | 310 | -60 | | 320 | -45 | | 330 | -30 | | 340 | -15 | | 350 | 0 | | 360 | 15 | | 370 | 30 | | 380 | 45 | | 390 | 60 | | 400 | 75 | | 410 | -60 | | 420 | -45 | | 430 | -30 | | 440 | -15 | | 450 | 0 | | 460 | 15 | | 470 | 30 | | 480 | 45 | | 490 | 60 | | 500 | 75 | | 510 | -60 | | 520 | -45 | | 530 | -30 | | 540 | -15 | | 550 | 0 | | 560 | 15 | | 570 | 30 | | 580 | 45 | | 590 | 60 | | 600 | 75 | | 610 | -60 | | 620 | -45 | | 630 | -30 | | 640 | -15 | | 650 | 0 | | 660 | 15 | | 670 | 30 | | 680 | 45 | | 690 | 60 | | 700 | 75 | | 710 | -60 | | 720 | -45 | | 730 | -30 | | 740 | -15 | | 750 | 0 | | 760 | 15 | | 770 | 30 | | 780 | 45 | | 790 | 60 | | 800 | 75 | | 810 | -60 | | 820 | -45 | | 830 | -30 | | 840 | -15 | | 850 | 0 | | 860 | 15 | | 870 | 30 | | 880 | 45 | | 890 | 60 | | 900 | 75 | | 910 | -60 | | 920 | -45 | | 930 | -30 | | 940 | -15 | | 950 | 0 | | 960 | 15 | | 970 | 30 | | 980 | 45 | | 990 | 60 | | 1000 | -60 | | ... (additional values) are not explicitly labeled in the code.Connection
