USER MANUAL CX-8086 Citronic
Order ref: 170.350, 170.351
User Manual


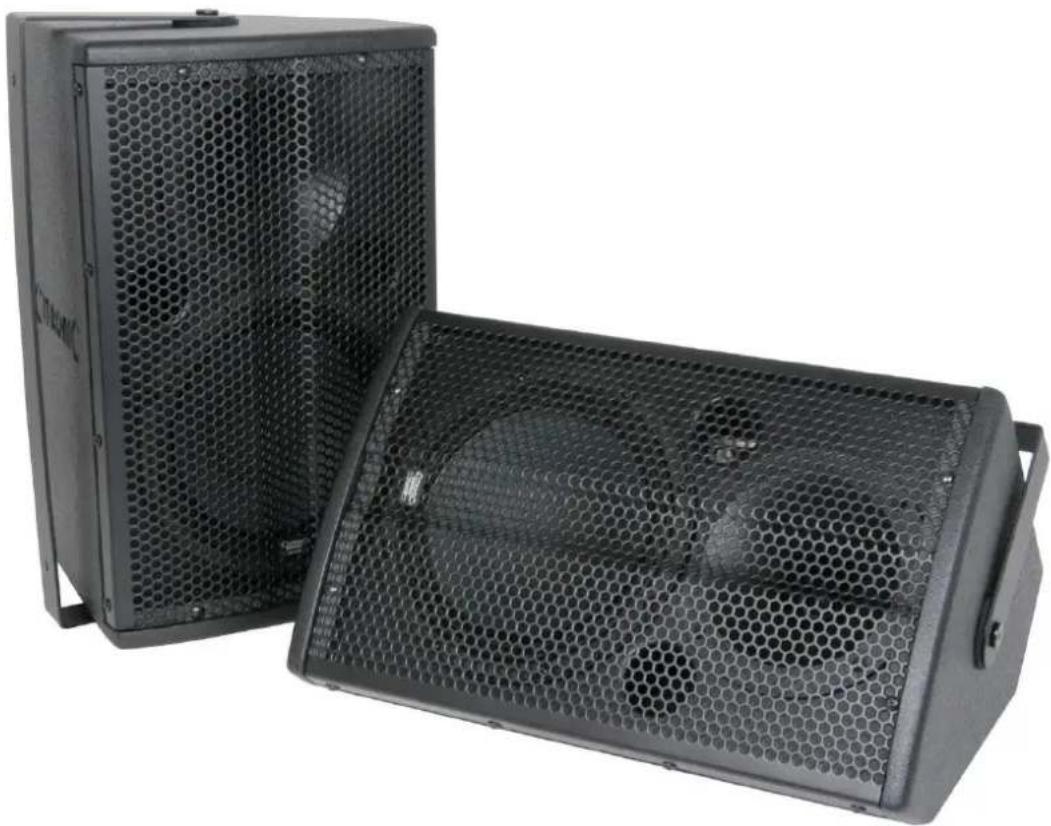

Two black rectangular electronic devices with hexagonal mesh surfaces, one open and one closed, both containing a fan grille (no visible text or symbols)Pair of speaker enclosures made from premium Russian ply with multi-angle design for arraying and wedge monitoring. Surface mount via the included bracket or flying points afford convenient installation in bars, restaurants, meeting rooms. Custom designed drivers project full range output with a wide dispersion for excellent coverage to listeners.
• Full range 2-way enclosure
• Powder-coated steel grille
• Computer designed for optimal efficiency
- Wide 140^ × 140^ dispersion
• Supplied in pairs with wall-mount brackets
• Available in durable black or white finish
- Multi-angle cabinets for monitoring or arraying
Specifications
| Power RMS | 80W |
| Power Max | 160W (5 minutes max) |
| LF driver | 150mm∅ (6") |
| HF driver | Compression driver with 25mm∅ titanium diaphragm |
| Impedance | 8Ω |
| Frequency response (-3dB) | 80Hz - 18KHz |
| Sensitivity (1W/1m) | 90dB |
| Dispersion (H x V) | 140° x 140° |
| Connector | 1 x Speakon® (NL 4) |
| Dimensions | 212 x 194 x 364mm |
| Weight | 6kg |

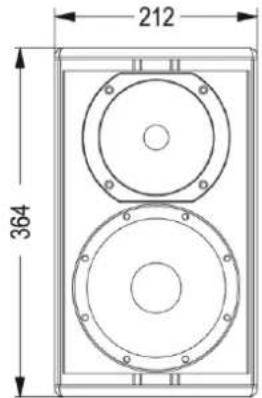

Technical drawings


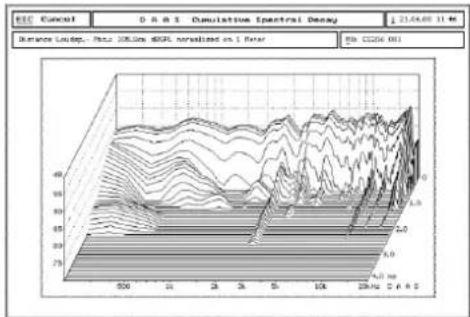

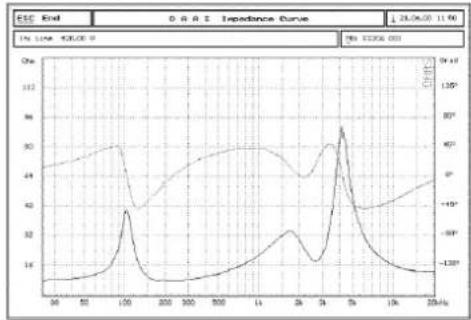

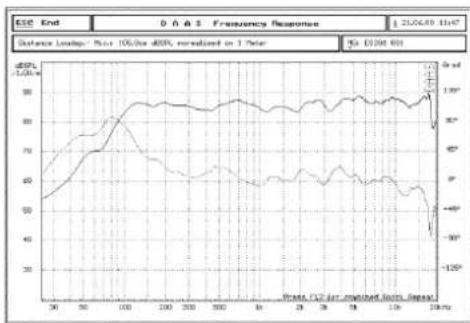

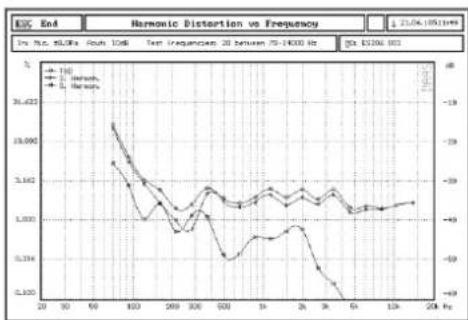

Frequency response - Magnitude Impedance - Magnitude
line
| Days | Frequency Response | | ---- | ------------------ | | 30 | 50 | | 50 | 65 | | 100 | 75 | | 200 | 80 | | 300 | 85 | | 500 | 90 | | 1000 | 95 | | 1500 | 100 | | 2000 | 95 | | 2400 | 90 |
line
| Time (Hz) | Voltage (V) | | --------- | ----------- | | 0 | 16 | | 50 | 44 | | 100 | 80 | | 150 | 16 | | 200 | 44 | | 250 | 80 | | 300 | 16 | | 350 | 44 | | 400 | 80 | | 450 | 16 | | 500 | 44 | | 550 | 80 | | 600 | 16 | | 650 | 44 | | 700 | 80 | | 750 | 16 | | 800 | 44 | | 850 | 80 | | 900 | 16 | | 950 | 44 | | 1000 | 80 | | 1050 | 16 | | 1100 | 44 | | 1150 | 80 | | 1200 | 16 | | 1250 | 44 | | 1300 | 80 | | 1350 | 16 | | 1400 | 44 | | 1450 | 80 | | 1500 | 16 | | 1550 | 44 | | 1600 | 80 | | 1650 | 16 | | 1700 | 44 | | 1750 | 80 | | 1800 | 16 | | 1850 | 44 | | 1900 | 80 | | 1950 | 16 | | 2000 | 44 | | 2050 | 80 | | 2100 | 16 | | 2150 | 44 | | 2200 | 80 | | 2250 | 16 | | 2300 | 44 | | 2350 | 80 | | 2400 | 16 | | 2450 | 44 | | 2500 | 80 |Distortion - Magnitude Waterfall - Magnitude
line
| Frequency (Hz) | Intensity | | -------------- | --------- | | 506 | ~70 | | 1s | ~80 | | 2h | ~90 | | 3h | ~100 | | 5h | ~110 | | 10h | ~120 | | 20h | ~130 | | 24h | ~140 |
