Product Type	Active Wooden Speaker Cabinet with Bluetooth
Brand	Citronic
Model	CUBA-10AW
Dimensions (H x W x D)	507 x 313 x 307 mm
Weight	16.2 kg
Power Supply	230 Vac, 50 Hz (IEC)
Power Output (RMS)	270 W
Power Output (Max)	540 W
Power Output (Peak)	880 W
Main Driver	250 mm (10") Ø
HF Driver	35 mm (1.35") Titanium Compression Driver
Sensitivity	95 dB
Maximum SPL	122.5 dB
Audio Source	Bluetooth receiver, Line inputs (XLR/jack/RCA), Mic/Line input (XLR/jack)
Line Output	XLR (Mix Out)
DSP Presets	Normal, DJ, Voice, Live, Flat
Bluetooth Connectivity	Built-in receiver, auto-pairing with previous device
Mains Voltage Indicator	230 Vac only
Flying Points	M8 points (3 or more recommended for suspension)
Pole Mount	35 mm Ø
Indicators	Power, Signal, Clip, Bluetooth status, DSP profile
Controls	Volume (Line A/Bluetooth, Mic/Line B), Power switch, Bluetooth pairing button, DSP selector, Mic/Line switch
Cleaning	Use soft dry or slightly damp cloth; brush for controls
Safety	Must be earthed; no user-serviceable parts; avoid rain/moisture
Disposal	Do not dispose with household waste; follow local regulations

Frequently Asked Questions - CUBA-10AW Citronic

How do I pair my smartphone with the CUBA-10AW via Bluetooth?

Press and hold the Bluetooth on/off & pairing button for 3 seconds until the blue LED flashes. Search for 'CUBA-10A' in your smartphone's Bluetooth menu and select it. Once paired, the LED stays lit and audio streams wirelessly.

What DSP presets are available and how do I select them?

The CUBA-10AW has five DSP presets: Normal, DJ, Voice, Live, and Flat. Simply rotate the DSP rotary selector on the rear panel; the active preset is shown by the corresponding LED.

What kind of inputs does the CUBA-10AW have?

It features a LINE A input with XLR/jack and RCA sockets, a MIC/LINE B input with XLR/jack socket, and a Bluetooth receiver. Use the MIC/LINE switch to select between microphone or line level for input B.

How do I power on the speaker safely?

Ensure all volume controls are turned fully down, then switch on the power switch. The red power LED will light. Gradually increase volumes after connecting sources.

Can I mount the CUBA-10AW on a stand or suspend it?

Yes, it can be placed on a strong 35mm pole stand or speaker stand. It also has M8 flying points for suspension; use at least three fixing points for safety.

What should I do if the CLIP LED lights continuously?

The CLIP LED indicates overload. If it lights constantly, reduce the volume controls to avoid distortion or damage.

How do I clean the CUBA-10AW?

Use a soft dry or slightly damp cloth to clean the surfaces. A soft brush can remove debris from controls and connections. Do not use solvents.

What are the safety precautions when using this speaker?

Do not expose to rain or moisture. Avoid impact. The unit must be earthed. No user-serviceable parts inside; refer servicing to qualified personnel.

Can I connect multiple CUBA speakers together?

Yes, use the MIX OUT XLR output to link the mixed signal (all inputs) to another active speaker or amplifier.

What is the warranty coverage?

Damage caused by misuse is not covered. The product contains no user-serviceable parts; attempting repairs will void the warranty. Keep proof of purchase.

USER MANUAL CUBA-10AW Citronic

Active Wooden Speaker Cabinets with Bluetooth®

Item ref: CUBA-8A 178.708UK

CUBA-10A 178.710UK

CUBA-10AW 178.740UK

CUBA-12A 178.712UK

CUBA-15A 178.715UK

User Manual

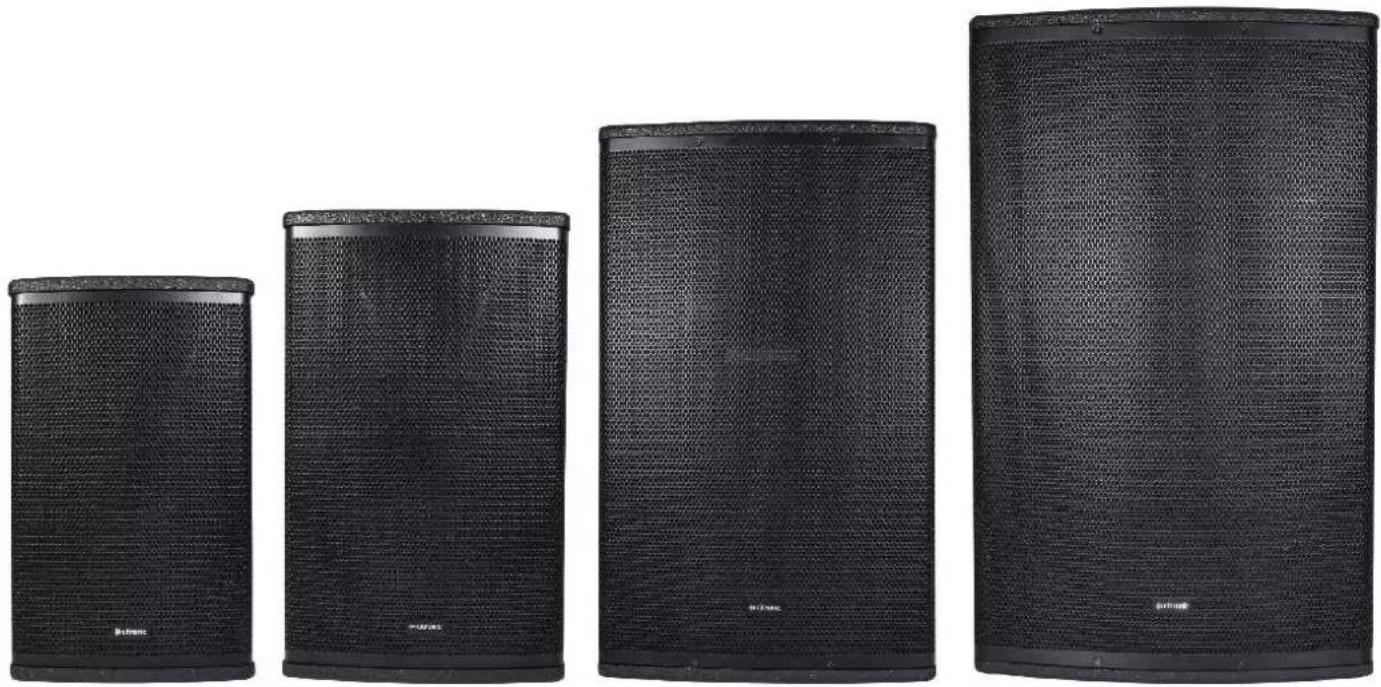

Four black outdoor audio speakers with mesh backouts, arranged in a row (no visible text or labels)

Version 1.0

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing a CUBA active speaker cabinet as part of your sound system.

This product is designed to provide flexible, powerful and efficient output for a wide range of sound reinforcement applications. Please read this manual to achieve optimum performance from your speaker cabinet and avoid damage through misuse.

Package Contents

• CUBA-series active speaker cabinet
- Mains lead(s)

This product contains no user-serviceable parts, so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or return issues.

Warning

To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture.

Avoid impact to any of the components.

No user serviceable parts inside - refer servicing to qualified service personnel.

Safety

- Please observe the following warning conventions

CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

• Ensure that the correct mains lead is used with adequate current rating and mains voltage is as stated on the unit
• Avoid ingress of water or particles into any part of the housing. If liquids are spilled on the cabinet, stop using immediately, allow the unit to dry out and have checked by qualified personnel before further use

Warning: this unit must be earthed

Placement

• Keep the electronic parts out of direct sunlight and away from heat sources.
• Position the cabinet on a stable surface or stand that is adequate to support the weight of the product.
• Allow adequate space for cooling and access to controls and connections at the rear of the cabinet.
• Keep the cabinet away from damp or dusty environments.

Cleaning

• Use a soft dry or slightly damp cloth to clean surfaces of the cabinet
- A soft brush can be used to clear debris from controls and connections without damaging them
• To avoid damage, do not use solvents to clean any parts of the cabinet.

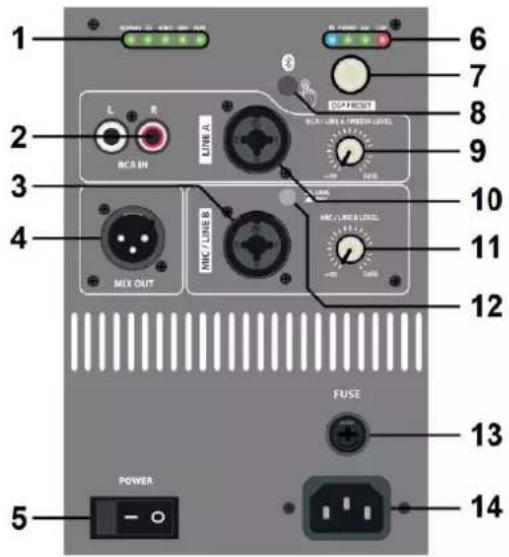

Rear panel layout

1. DSP tone profile setting indicators
2. LINE A input L+R RCA sockets
3. MIC/LINE B input XLR/jack socket
4. MIX OUT line output XLR
5. POWER on/off switch
6. Bluetooth & amp status indicators
7. DSP tone profile rotary selector
8. Bluetooth on/off & pairing button
9. LINE A input & Bluetooth level control
10. LINE A input XLR/jack socket
11. MIC/LINE B input level control
12. Input 2 MIC or LINE level switch
13. Fuse holder (on IEC for CUBA 8A/10A)
14. Mains inlet IEC

Setting up

Position your CUBA active speaker cabinet(s) on a stable surface capable of supporting the load and vibrations from the cabinet or ideally on a strong 35mm∅ pole mount or speaker stand with an adequate safe working load to support the cabinet. Also, each CUBA cabinet has M8 flying points for suspending from a ceiling or truss if required. It is recommended to use 3 or more fixing points for suspension.

Aim the cabinet towards the audience or listeners and not in direct line of sight with any microphones that are connected to the sound system to avoid feedback (howling or squealing caused by the mic "hearing" itself)

Each CUBA active speaker has an inbuilt Bluetooth receiver, which can be paired with a smart phone by holding the Bluetooth on/off & pairing button (8) for 3 seconds. The blue status LED (6) will flash to indicate pairing mode. Search for "CUBA-8A", "CUBA-10A", "CUBA-12A", or "CUBA-15A" in the Bluetooth menu of the smart phone and select to pair. Once paired, the LED will be lit constantly and the audio output from the smart phone will be streamed wirelessly to the CUBA speaker. This input is governed by the LINE A input & Bluetooth level control (9). Pressing the Bluetooth on/off pairing button briefly will switch the Bluetooth receiver on or off. If a previously paired device is within range, the Bluetooth receiver will auto connect.

If a mixing console is being used to control input sources, connect the output of the mixer to the CUBA cabinet LINE input (10) or MIC/LINE (3) with "LINE" selected on the MIC/LINE switch (12) using XLR or 6.3mm jack connectors. If the system is in stereo, then usually one CUBA cabinet will serve the right-side output and another for the left-side output. Normally, the volume of the CUBA cabinet LINE input is turned up high and the output will be controlled at the mixer.

A microphone may also be connected directly to input A if the MIC/LINE switch (12) is in the "MIC" position.

If a playback device (e.g. mp3 or CD player) is to be connected directly to the CUBA cabinet, this is usually connected to the LINE A input L+R RCA connectors (2)

If the inputs to the CUBA speaker cabinet are to be linked onto a further active cabinet or amplifier, the mix of all MIC/LINE/Bluetooth inputs can be fed from the MIX OUT line output XLR to further equipment (4)

When all necessary connections are made, finally connect the supplied IEC power cable (or equivalent) from the mains power supply to the IEC power inlet on the CUBA speaker cabinet, ensuring that the supply voltage is as indicated on the CUBA speaker unit (14)

Operation

With both volume controls turned fully down, switch on the power (5) to the CUBA speaker cabinet. The red power LED (6) will light to confirm powering up.

If a smart phone is paired with the CUBA cabinet, make sure that the Bluetooth receiver is switched on (8) and play a track from the smart phone to test the speaker, turning up the level control (9) gradually.

If a mixer is connected to the CUBA speaker unit, ensure a signal is present, turn up the mixer output part way and gradually increase the volume of the input that the mixer is connected to for checking the output from the CUBA speaker. If the sound is present and OK, turn down the mixer and turn up the CUBA speaker to the maximum required output and control the volume from the mixer.

The status LEDs (6) include "SIG" and "CLIP" indicators. The "SIG" LED will light to show when a signal is present, and the "CLIP" LED should only light briefly on the loudest beats or transients. If this LED lights more continuously, it will be necessary to turn the volume control(s) down to avoid overload.

If a microphone is connected directly to MIC/LINE A input (3), speak into the microphone whilst gradually increasing the volume of the MIC/LINE A input (11) until the required sound level is reached.

For playback devices connected to the LINE B input (2), play an audio track with the playback device volume turned up part way and gradually increase the volume of the LINE B input (9) so that the output can be checked and increase to the required output level.

The CUBA active cabinets have an inbuilt DSP which has 5 optimal settings for different types of input or audio program material: Normal / DJ / Voice / Live / Flat. Although quite self-explanatory, it is worth experimenting with each profile to find the ideal EQ and tone response for each application. Simply turn the DSP rotary selector (7) and the DSP setting indicator LEDs (1) show which setting is active.

Before powering down the CUBA speaker unit, turn down all volume controls to avoid loud noises. If not being used for long periods, disconnect from the mains power supply.

Specifications

Model	CUBA-8A	CUBA-10A (+W)	CUBA-12A	CUBA-15A
Power supply	230Vac, 50Hz (IEC)
Main driver	200mm∅ (8")	250mm∅ (10")	300mm∅ (12")	380mm∅ (15")
Voice coil	50mm∅ (2")	50mm∅ (2")	64mm∅ (2.5")	64mm∅ (2.5")
HF driver	35mm (1.35") Ti CD	35mm (1.35") Ti CD	35mm (1.35") Ti CD	44mm (1.75") Ti CD
Power: rms	250W	270W	400W	450W
Power: max.	500W	540W	800W	900W
Power: peak	800W	880W	1120W	1400W
Sensitivity	94dB	95dB	98dB	99dB
Max. SPL	121.0dB	122.5dB	123.0dB	124.0dB
Inputs	XLR/jack mic/line, XLR/jack/RCA line
Audio source	Bluetooth receiver
Line output	XLR
DSP settings	Normal, DJ. Voice, Live, Flat
Dimensions	435 x 265 x 265mm	507 x 313 x 307mm	625 x 385 x 380mm	708 x 434 x 430mm
Weight	10.7kg	16.2kg	19.2kg	24.7kg

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, AVSL Group Ltd. declares that the radio equipment type 178.708UK, 178.710UK, 178.712UK and 178.715UK is in compliance with Directive 2014/53/EU

The full text of the EU declaration of conformity for 178.708UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/178708UK%20CE.pdf

The full text of the EU declaration of conformity for 178.710UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/178710UK%20CE.pdf

The full text of the EU declaration of conformity for 178.712UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/178712UK%20CE.pdf

The full text of the EU declaration of conformity for 178.715UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/178715UK%20CE.pdf
