Type	Dynamic Microphone
Brand	Chord
Model	NU20
Polar Pattern	Cardioid
Frequency Response	50 Hz - 15 kHz
Sensitivity	-54 dB ± 3 dB
Impedance	600 ohms
Connector	XLR (3-pin male)
Dimensions (L x D)	180 mm x 50 mm
Weight	300 g
Body Material	Metal
Color	Black
Power Requirement	None (passive)
On/Off Switch	No
Included Accessories	Microphone clip, foam windscreen
Application	Live vocals, public speaking
Maintenance	Wipe with dry cloth; avoid moisture
Safety	Keep away from heat sources; do not disassemble
Repairability	Cannot be repaired; replace if damaged
Certification	CE, RoHS

Frequently Asked Questions - NU20 Chord

How do I connect the Chord NU20 microphone?

Connect the microphone to a mixer or audio interface using an XLR cable. The microphone is passive, so no phantom power is required.

Why is there no sound coming from the microphone?

Check the cable connection and ensure the mixer/interface is powered on. Verify that the channel gain is turned up and the mute switch is off. Also, test with a different cable.

Does this microphone require phantom power?

No, the Chord NU20 is a dynamic microphone and works without phantom power. It is safe to use with phantom power, but unnecessary.

What is the microphone's polar pattern?

It has a cardioid pattern, which picks up sound from the front and rejects noise from the sides and rear.

How do I clean the microphone?

Wipe the exterior with a dry, lint-free cloth. Avoid using liquids or inserting anything into the grille. Remove the windscreen and wash it gently with mild soap if needed.

Can I use this microphone for recording?

Yes, it can be used for recording vocals, but it is best suited for live applications due to its dynamic nature.

What is the frequency response?

The frequency response is 50 Hz to 15 kHz, tailored for vocal clarity and feedback rejection.

Is the microphone compatible with all mixers?

Yes, it has a standard XLR output and works with any mixer or audio interface that accepts XLR inputs.

Does the microphone come with a case?

No, only the microphone, clip, and windscreen are included. A protective case or pouch is not provided.

How can I reduce feedback during a live performance?

Position the microphone close to your mouth, avoid pointing it at speakers, and reduce the gain. The cardioid pattern helps minimize feedback.

USER MANUAL NU20 Chord

Dual UHF Wireless System

Item ref: 171.924UK, 171.926UK

User Manual

Product image of a NU20 dual UHF Wireless Microphone System with two external wireless devices and earplands (no visible text or symbols on the devices themselves)

Version 1.2

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing the Chord NU20 wireless system. This professional wireless set provides 2 high quality microphones with UHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.

Package Contents

• NU20 dual UHF wireless receiver
- 19" rack ears
- 2 x UHF aerials
- 2 x BNC antenna cables (for front panel mounting)
• 2 transmitters (NU20-H handhelds or NU20-N bodypacks)
- 2 x neckband and 2 x lavalier microphones (NU20-N only)
- Mains power adapter
• 6.3mm mono jack lead
- 4 x 1.5V AA battery

If you find any accessory is missing or the product has arrived with any problems, contact your retailer.

These products contain no user-serviceable parts inside. Do not attempt to try to fix or modify these items yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or returned demand.

Warning

To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture. If liquids are spilled on any component, stop using immediately, allow unit to dry out and have checked by qualified personnel before further use. Avoid impact or heavy vibration to any of the components, dropping the microphone can cause capsule failure. No user serviceable parts inside transmitter or receiver - refer servicing to qualified service personnel.

Safety

• Ensure that the correct power adaptor is used with adequate current rating (350mA minimum) and that the mains voltage is as stated on the adapter.
• Avoid ingress of water or particles into the transmitters or receiver
• Use alkaline or NiMH batteries in the transmitters and remove if unused for long periods.
• Observe the correct polarity when replacing batteries

Placement

• Keep all components out of direct sunlight and away from heat sources.
• Do not place heavy objects on top of the receiver or transmitters
• If rack-mounting, use rack ears provided and do not place heavy equipment above the receiver.
• Keep the transmitters and receiver away from damp or dusty environments.

Cleaning

• Use a soft cloth with a neutral detergent to clean the body of the handheld transmitter and receiver.
• Lightly damp sterile wipes may be used on the microphone grille for hygiene purposes
- To avoid damage, do not use solvents to clean the components

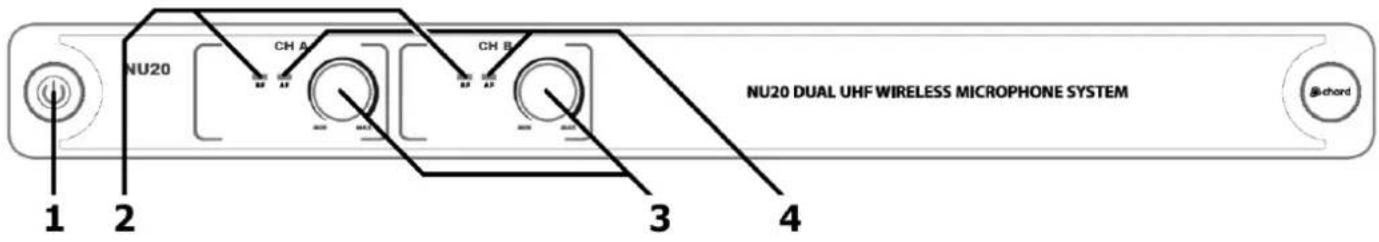

Receiver Front Panel

1. Power on/standby switch

2. RF carrier signal indicators

3. Channel volume controls

4. AF audio signal indicators

Receiver Rear Panel

1. DC power input jack
2. CH.B antenna connection (BNC)

3. 6.3mm jack output (CH.A + CH.B mix)

4. CH.B balanced XLRM output

5. CH.A balanced XLRM output
6. CH.A antenna connection (BNC)

Transmitters

1. On indicator (handheld)
2. On/off switch (handheld)
3. Battery compartment (handheld)
4. Antenna
5. On indicator (bodypack)
6. On/off switch (bodypack)
7. 3.5mm threaded jack socket
8. Gain control
9. Battery compartment (bodypack)

Note: If replacement transmitters are required, these must be genuine Chord branded transmitters which transmit the correct pilot tone to match with the receiver. Transmitters which have the same carrier frequency but not the correct pilot tone will not work with NU-20 receivers.

Setting Up

Insert the supplied AA batteries into the handheld transmitters by carefully unscrewing the base to reveal the battery compartment inside the microphone body, connect the batteries (ensure + and - are the correct way round for each cell) and carefully screw the base back on. For bodypack transmitters, squeeze and flip forward the front cover to reveal the battery compartment and insert AA batteries, observing correct polarity. Connect the 3.5mm jack connector from the neckband or lavalier microphone to the input on top of the bodypack transmitter and rotate to secure the thread.

Position the receiver within the best available line of sight to the transmitters and connect the DC jack of the supplied power adapter to the receiver and the plug-top to the mains outlet. Connect both antennas to the BNC connectors on the rear panel or alternatively, attach to the rack ears, connecting via the BNC extension leads supplied. Turn mic levels down on the receiver.

A choice of mixed output of both microphones on 6.3mm jack or individual balanced XLR outputs is available on the rear panel of the receiver. Connect jack or XLR (optional) leads to the relative output connector(s), turn down the volume of any equipment (mixer, amplifier etc.) that the signal will be fed into and then connect the jack or XLRs to the equipment.

Warning! - take care not to point microphones towards speakers – this can cause damaging feedback (loud whistle or howling noise) – try to aim microphones away from the speaker cabinets.

Operation

Switch on power to the receiver unit.

Move the switch on the handheld transmitter(s) to the fully up position (ON) and gradually increase the microphone level on the receiver (for bodypack transmitters, move the top slide switch to "ON"), then increase the volume on the mixer or amplifier until the sound from each microphone can be heard through the equipment.

Note: if output is low from the neckband or lavalier microphone, it may be necessary to adjust Gain control inside the bodypack unit

After use, slide the transmitter switch to the "OFF" position, which mutes and deactivates the radio signal and powers down the transmitter. Turn down the volume of the mixer or amp and then switch off the receiver.

Please note that each transmitter slide switch has a "MUTE" centre position, which is not used with the NU-series system. Switching the transmitter off automatically mutes the reception channel.

Unplug signal leads from the receiver and mixer or amplifier when moving or packing away.

If the system is not to be used for long periods of time, remove the batteries from the transmitters and unplug the power adapter from the receiver and the mains outlet.

Folding away or removing the antennas can also help avoid damage when the system is not in use.

Specifications

Power supply (receiver)	12 - 18Vdc 350mA adaptor (supplied)
Batteries (transmitters)	4 x AA (2 per transmitter - included)
Carrier frequency	863.8MHz + 864.8MHz
RF power	10mW
S/N ratio	>80dB
THD	<0.5% @ 1kHz
Audio frequency response	50Hz - 18kHz
Range	60m (max)
Output impedance	2.2kΩ
Output level	400mv (balanced), 200mv (unbalanced)
Connectors	DC in, 2 x XLRM, 6.3mm jack, 2 x BNC antenna
Dimensions - handheld transmitter	243 x 48mm∅
Dimensions - bodypack transmitter	205 x 68 x 25mm
Dimensions - receiver	409 x 190 x 44mm
Weight - handheld transmitter	238g (no battery)
Weight - bodypack transmitter	76g (no battery)
Weight - receiver	1.37kg

Troubleshooting

"POWER" LED does not light on receiver	Ensure power adapter is connected to mains and working properly
	Ensure receiver is switched on
"POWER" LED is lit but no "RF" or "AF" LEDs	Ensure transmitter is switched on
	Check that transmitter is not out of reception range
	Check that transmitter batteries are good/charged
"POWER" and "RF" LEDs are lit but no "AF" and no sound	Check that transmitter switch is switched on
	Ensure transmitter has good/charged batteries
	Ensure there is no other nearby transmitter with the same frequency
All LEDs lit but no sound from mic	Make sure receiver is connected to mixer/amplifier
	Ensure that receiver and amplifier/mixer channel volumes are turned up
Microphone output is very loud or distorted	Turn down VOLUME on receiver
	Turn down gain on bodypack transmitter
	Reduce gain on mixer/amplifier
	Ensure that an XLR output is not fed to a line input
Microphone output is very low	Turn up VOLUME on receiver
	Turn up gain on bodypack transmitter
	Increase gain of mixer/amplifier input
	Ensure that a jack output is not fed to a mic input
	Check transmitter batteries

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines

Hereby, AVSL Group Ltd. declares that the radio equipment type 171.924UK and 171.926UK are in compliance with Directive 2014/53/EU

The full text of the EU declaration of conformity for 171.924UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/171924UK%20CE.pdf

The full text of the EU declaration of conformity for 171.926UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/171926UK%20CE.pdf
