TV-48LE74T2 - Television Vivax - Free user manual and instructions

Product Type	LED TV
Screen Size	48 inches (diagonal)
Resolution	Full HD (1920 x 1080 pixels)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Dimensions (without stand)	108.5 x 63.5 x 8.5 cm
Dimensions (with stand)	108.5 x 67.5 x 22.0 cm
Weight (without stand)	9.2 kg
Weight (with stand)	10.1 kg
Power Consumption (operating)	75 W
Power Consumption (standby)	< 0.5 W
Input Voltage	100-240V AC, 50/60 Hz
Connectivity	2 x HDMI, 1 x USB, AV input, RF input, SCART, VGA
Tuner	DVB-T/T2, DVB-C
Audio Output	2 x 8W speakers
Functions	Teletext, EPG, CI+ slot, sleep timer, child lock, VESA mount 200x200
Cleaning Instructions	Use a soft dry cloth. Avoid chemicals and abrasive materials.
Safety Precautions	Do not expose to rain or moisture. Ensure proper ventilation. Do not place near heat sources.
Spare Parts & Reparability	Contact authorized service centers. Spare parts available for at least 7 years after production.
Included Accessories	Remote control, batteries, power cable, user manual
Wall Mount Compatible	Yes, VESA 200x200 (bracket not included)

Frequently Asked Questions - TV-48LE74T2 Vivax

How do I connect my TV to a Wi-Fi network?

This model is a standard LED TV without built-in Wi-Fi. Use an external streaming device connected via HDMI for internet features.

Can I wall mount the Vivax TV-48LE74T2?

Yes, the TV supports VESA 200x200 wall mount. Use a compatible bracket and follow safety instructions in the manual.

How do I clean the screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth. Do not use liquids or abrasive cleaners.

What should I do if the remote control stops working?

First, replace the batteries. If it still doesn't work, check for obstructions and ensure the sensor is clean. Refer to the manual for pairing or reset.

How can I access the channel list?

Press the MENU button on the remote, navigate to 'Channel' or 'DVB settings', and select 'Channel list' or 'Edit channels'.

Does the TV support USB playback?

Yes, the USB port supports playback of video, audio, and photo files. Compatible formats include MP4, AVI, MP3, JPEG (check manual for full list).

How do I perform a factory reset?

Go to MENU > Settings > System > Factory reset. Enter the PIN (default 0000) and confirm. This erases all personal settings.

What is the standby power consumption?

The standby power consumption is less than 0.5 W, making it energy efficient.

Can I connect external speakers?

Yes, use the audio output (3.5mm or optical) or connect via HDMI ARC to a soundbar or home theater system.

Where can I find spare parts for this TV?

Contact Vivax authorized service centers. Visit the official website or call customer support. Provide the model number TV-48LE74T2.

USER MANUAL TV-48LE74T2 Vivax

Illustration showing a no-smoking sign, a traffic cone with smoke, and a computer monitor (no text or symbols)

Simple line drawing of a computer monitor with a cartoon character on screen (no text or symbols)

Sigurnost

Ne čistite televizor benzinom te kemijskim ili alkoholnim razrjeđivačima jer će oštetiti kućište i ekran televizora.

Ekran možete čistiti čistom, mekom krpom no tek nakon što isključite televizor iz struje. Ne grebite ili udarajte ekran tvrdim predmetima jer bi se mogao oštetiti.

Ne postavljajte televizor na nestabilne površine.

Illustration showing a person holding a device with no restrictions, a chair, and a computer monitor (no text or symbols)

Ne postavljajte strujni kabel ili druge kabele na mjesta na kojima se može po njima gaziti. Ne preopterećujte strujni kabel ili utičnicu.

Illustration of a cable being twisted with lightning bolts around a computer monitor (no text or symbols)

Illustration of a person sitting at a desk watching television (no text or symbols visible)

Ne uklanjajte stražnji poklopac jer se unutar uređaja nalazi opasan napon koji može uzrokovati strujni udar. Interna podešavanja i provjere bi trebao vršiti isključivo ovlašteni servis.

Ne postavljajte na ili u blizinu televizora izvore otvorenog plamena.

Illustration of a computer monitor with a crossed-out X symbol and explosion icons above it (no text or symbols present)

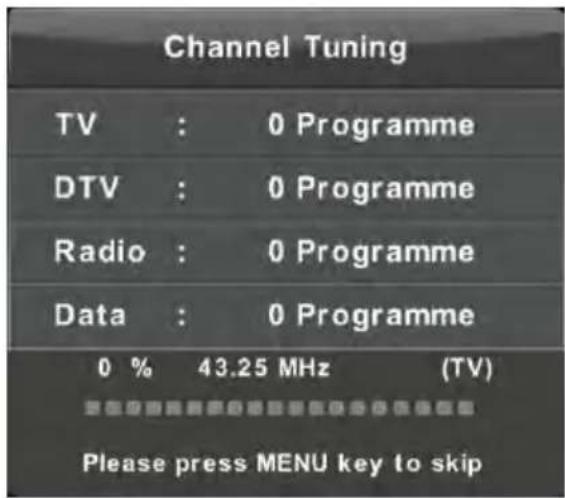

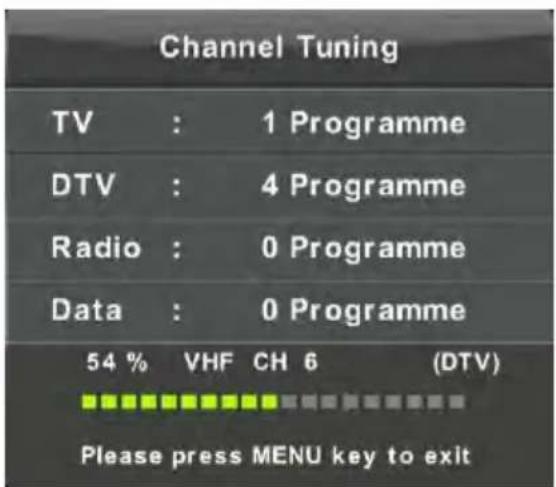

Auto Tuning

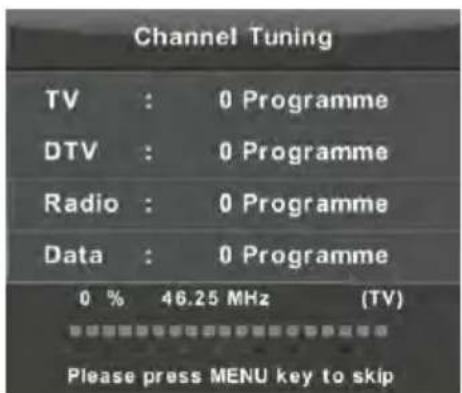

First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

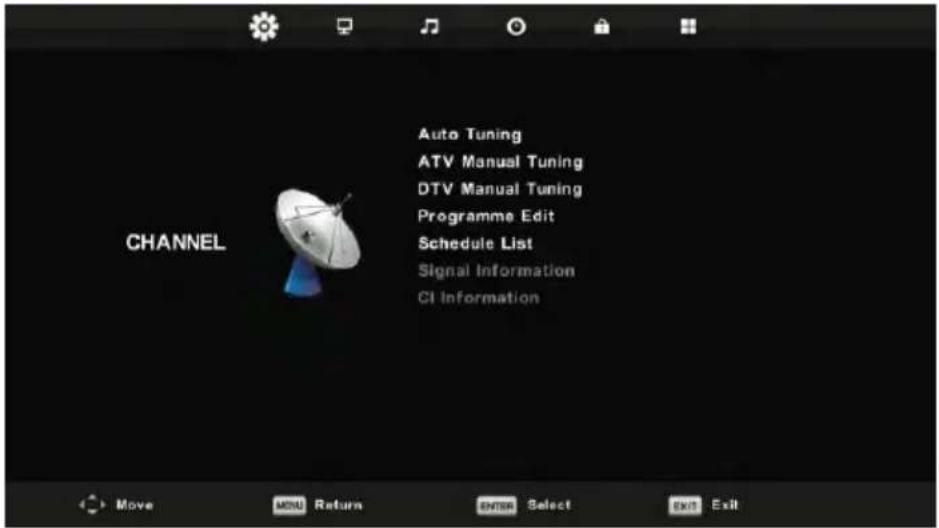

Izbornik kanala

1. Pritisnite ▼ / ▲ tipku za biranje opcije koju želite podesiti u izborniku kanala.
2. Pritisnite Enter tipku za podešavanje.
3. Nakon podešavanja, pritisnite Enter tipku kako biste pohranili promjene i vratili se na prethodni izbornik.
4. Automatsko ugađanje

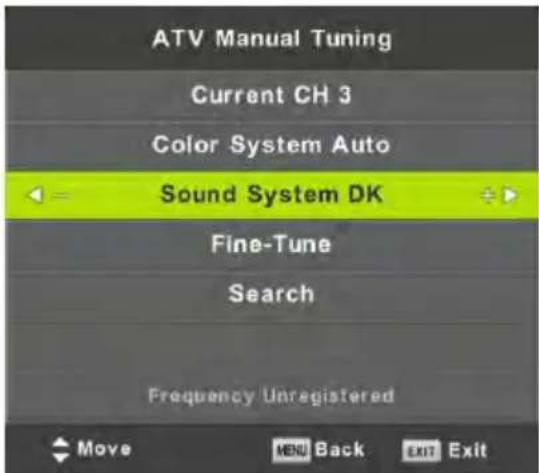

ATV ručno ugađanje

Pretraga
Pretražujte kanale.
Tekući kanal
Postavite broj kanala.
Postavke boja
Postavke zvuka
Odaberite postavke zvuka
Fino ugađanje
Podesite frekvenciju kanala na "fino".

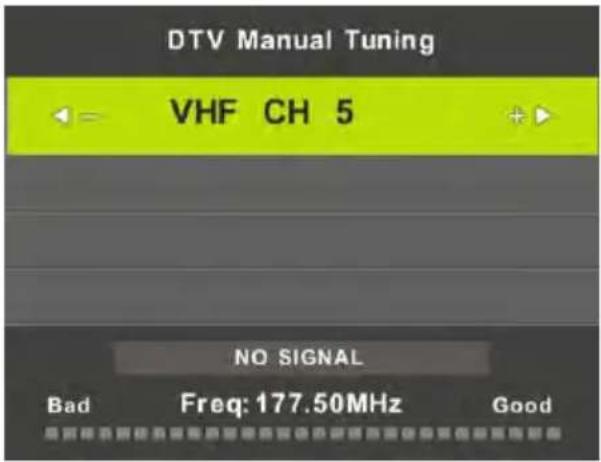

DTV ručno ugađanje

Pritisnite ▼ / ▲ tipku za odabir DTV ručnog ugađanja, zatim pritisnite tipku Enter za ulaz u podizbornik. Pritisnite ◀ / ▶ tipku za odabir kanala, a zatim pritisnite Enter za pretragu programa.

Uređivanje programa

Pritisnite ▼ / ▲ tipku za odabit uređivanja programa, te potom pritisnite Enter tipku za ulaz u podizbornik.

Kljjučevi u tri boje su prečaci za programiranje kanala.

Prvo pritisnite tipku ▼ / ▲ za označivanje željenog kanala, zatim:

pritisnite crvenu tipku za brisanje programa na popisu.

pritisnite žutu tipku za pomicanje kanala na popisu favorita.

Pritisnite plavu tipku za preskakanje odabranog kanala.

Pritsnite Fav tipku za dodavanje ili brisanje kanala s Vaše liste favorita.

(Vaš TV automatski će preskakati kanale prilikom korištenja CH+/- za pregled kanala.)

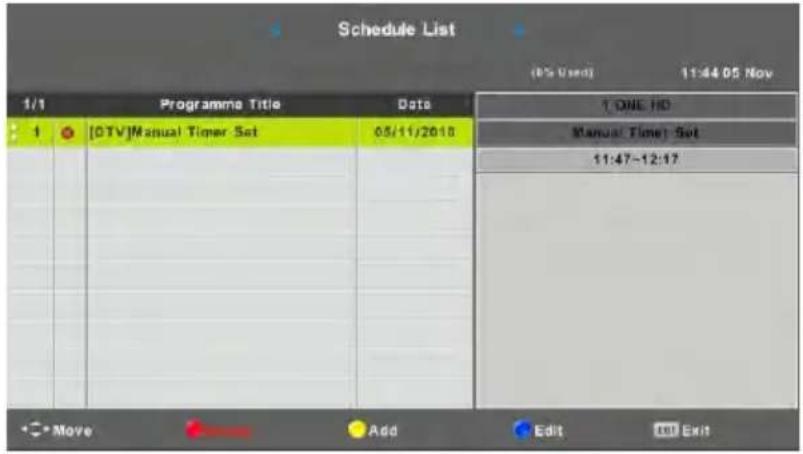

Lista rasporeda

Pritisnite ▼ / ▲ tipku za odabir liste rasporeda. Zatim pritisnite Enter tipku za ulaz u podizbornik

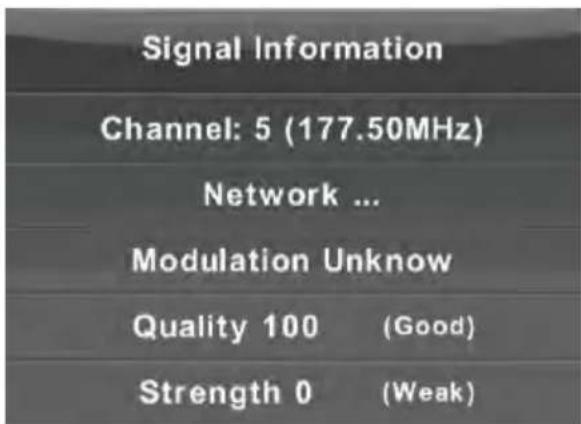

Informacije o signalu

Pritisnite ▼ / ▲ tipku za odabir Informacija o signalu, pritisnite tipku Enter za pregled detaljnijih informacija o signalu. One su dostupne jedino kada je signal u DTV-u.

1. Pritisnite tipku ▼ / ▲ za odabir opcije koju želite podesiti u izborniku za ZAKLJUČAVANJE SUSTAVA (LOCK SYSTEM) menu.
2. Pritisnite tipku Enter/◄ / ► za podešavanje.
3. Nakon završetka ugađanja, pritisnite tipku MENU za pohranu ugađanja i povratak na prethodni izbornik.

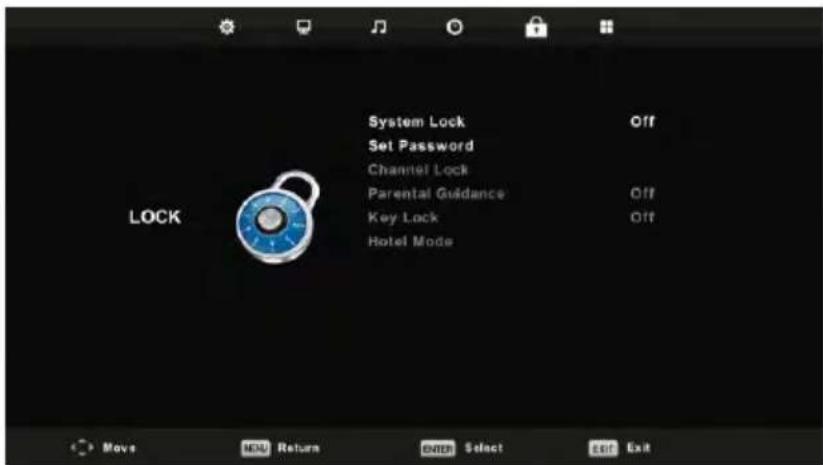

Zaključavanje

Priti snite tipku ▼ /▲ za odabir Ugađanje lozinke ( Set Password), zatim pritisnite ENTER za ulazak u podizbornik za unošenje nove lozinke.

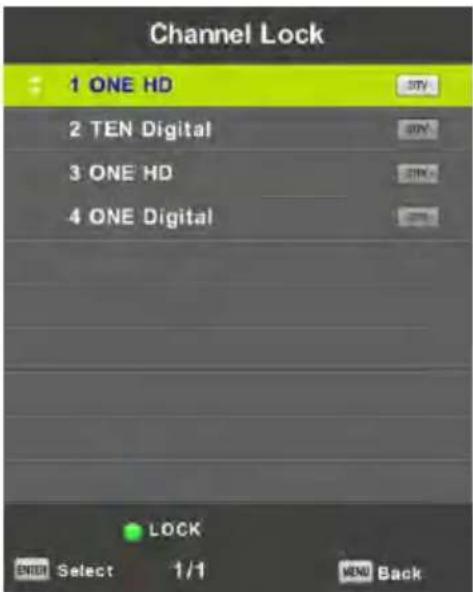

Zaključavanje kanala

Pritisnite tipku ▼ / ▲ za odabir Zaključavanja kanala, zatim pritisnite Enter za ulazak u podizbornik.

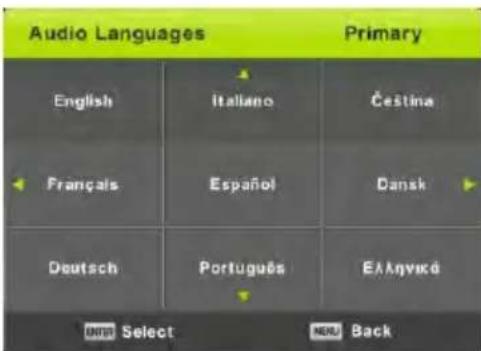

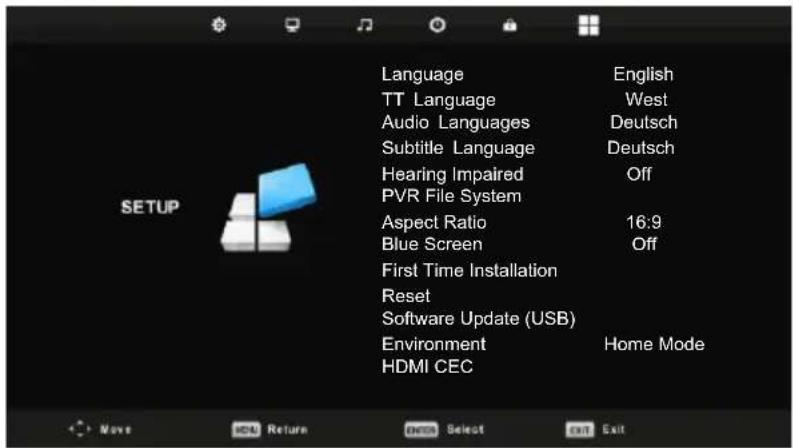

Audio jezik

Pritisnite tipku ▼ / ▲ za odabir Audio jezika, zatim pritisnite tipku Enter za ulazak u podizbornik. Pritisnite tipku ◀ / za odabir primarnog audio jezika. Pritisnite tipke ▼ / ▲ / ◀ / ▶ za odabir audio zvuka.

Jezik podnaslova

Pritisnite tipku ▼ / ▲ za odabir Jezika podnaslova, zatim pritisnite tipku ENTER za ulazak u podizbornik.

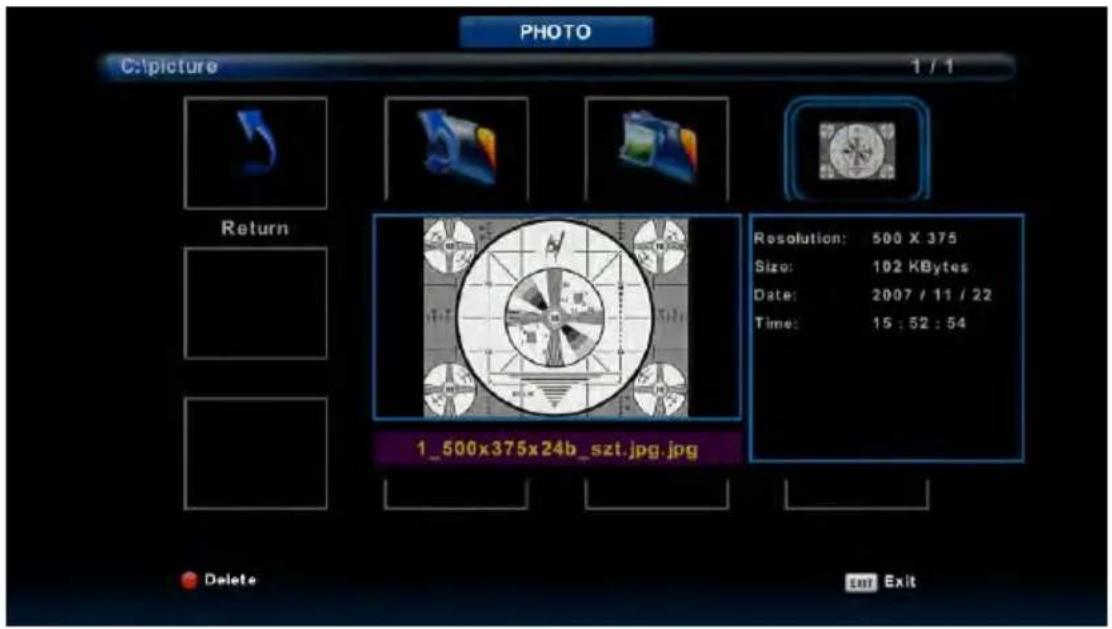

Pritisnite tipku ◀ / ▶ i odaberite mapu koju želite gledati iz izbornika fotografija, te pritisnite tipku MEDIA za njen prikaz.

Izbornik teksta (Text Menu)

Simple line drawing of a blank rectangular frame with a speaker icon emitting sound waves (no text or symbols)

Mogući uzroci:

*Nisu uključeni strujni kabel, antena ili ulazni uređaji;

Simple line drawing of a sad face with a speaker icon below (no text or symbols)

Mogući uzroci:

Simple line drawing of a cow with a speaker icon below (no text or symbols)

Mogući uzroci:

*Antenski i video kabeli su oštećeni ili olabavljeni;

Simple line drawing of geometric shapes including cube, cone, and circle with sound waves (no text or symbols)

Mogući uzroci:

*Neispravna postavka sistema boja; Nisko postavljena razina boja; *

Antena je neispravno postavljena.

Rješenja:

*U izborniku promijenite sistem boja;

*Povećajte razinu boja;

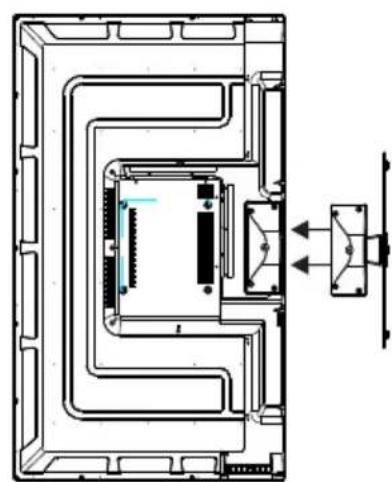

1. Pričvrstite stalak za TV uređaj sa 3 zavrtanja (BM4X10) sa 2 zavrtanja (BM4X14) Kao što je prikazano na slici.

Technical line drawing of a mechanical or electronic component with internal channels and directional arrows (no text or symbols)

1. Postavite stalak u ležište koje se nalazi na donjem delu uređaja.

1. Povežite bazu i vrat stalka. Postavite nosač stalka na stražnji deo stalka i pričvrstite sa 6 zavrtanja (BB4X12) kao što je prikazano na slici.

Upozorenje

Upozorenje

Nema delova koje bi korisnik mogao sam da popravi. Ne otvarajte stražnji poklopac kako biste izbegli strujni udar. U slučaju potrebe kontaktirajte ovlašteni servis

Illustration of a computer monitor displaying a cartoon-style drawing (no text or symbols)

Illustration showing a no-smoking sign, a road with smoke, and a computer monitor (no text or symbols)

Illustration of a person operating a TV with a computer connected to a wall-mounted device (no text or symbols present)

Ekran možete da čistite čistom, mekom krpom ali tek posle isključenja televizora iz struje. Ne grebite ili udarajte ekran tvrdim predmetima jer bi mogla da nastanu trajna oštećenja

Bezbednost

Illustration showing a person using a device with no restrictions, a chair, and a computer monitor (no text or symbols)

Ne postavljajte strujni kabl ili druge kablove na mesta na kojima po njimamože da se gazi. Ne preopterećujte strujni kabl ili utičnicu.

Ne postavljajte televizor na nestabilne površine.

Illustration of a cord being twisted with lightning bolts around a monitor (no text or symbols)

Illustration of a person sitting on a TV with a pointing hand (no text or symbols visible)

Ne uklanjajte stražnji poklopac jer su neki delovi unutrašnjosti uređaja pod visokim naponom koji može da izazove strujni udar. Interna podešavanja i provere bi trebalo da obavlja isključivo ovlašteni servis.

Ne postavljajte na ili u blizinu televizora izvore otvorenog plamena.

Illustration of a computer monitor with a crossed-out black X symbol above it, no text or symbols present.

Tokom grmljavinskih oluja, isključite antenu i uređaj iz struje kako ih ne bi oštetio strujni udar i držite sve osobe (posebno decu) dalje od antenskog kabla.

Sadržaj

Upozorenje 34

Bezbednost 34

Sadržaj 36

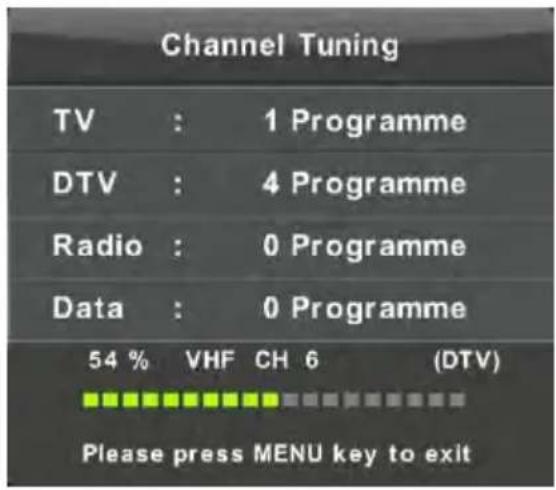

Auto Tuning

First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

Izbornik kanala

1. Pritisnite ▼ / ▲ tipku za biranje opcije koju želite podesiti u izborniku kanala.
2. Pritisnite Enter tipku za podešavanje.
3. Nakon podešavanja, pritisnite Enter tipku kako biste pohranili promjene i vratili se na prethodni izbornik.
4. Automatsko ugađanje

ATV ručno ugađanje

Pretraga
Pretražujte kanale.
Tekući kanal
Postavite broj kanala.
Postavke boja
Postavke zvuka
Odaberite postavke zvuka
Fino ugađanje
Podesite frekvenciju kanala na "fino".

DTV ručno ugađanje

Pritisnite ▼ / ▲ tipku za odabir DTV ručnog ugađanja, zatim pritisnite tipku Enter za ulaz u podizbornik. Pritisnite ◀ / ▶ tipku za odabir kanala, a zatim pritisnite Enter za pretragu programa.

Uređivanje programa

Pritisnite ▼ / ▲ tipku za odabit uređivanja programa, te potom pritisnite Enter tipku za ulaz u podizbornik.

Kljjučevi u tri boje su prečaci za programiranje kanala.

Prvo pritisnite tipku ▼ / ▲ za označivanje željenog kanala, zatim:

pritisnite crvenu tipku za brisanje programa na popisu.

pritisnite žutu tipku za pomicanje kanala na popisu favorita.

Pritisnite plavu tipku za preskakanje odabranog kanala.

Pritsnite Fav tipku za dodavanje ili brisanje kanala s Vaše liste favorita.

(Vaš TV automatski će preskakati kanale prilikom korištenja CH+/- za pregled kanala.)

Lista rasporeda

Pritisnite ▼ / ▲ tipku za odabir liste rasporeda. Zatim pritisnite Enter tipku za ulaz u podizbornik

Informacije o signalu

Pritisnite ▼ / ▲ tipku za odabir Informacija o signalu, pritisnite tipku Enter za pregled detaljnijih informacija o signalu. One su dostupne jedino kada je signal u DTV-u.

1. Pritisnite tipku ▼ / ▲ za odabir opcije koju želite podesiti u izborniku za ZAKLJUČAVANJE SUSTAVA (LOCK SYSTEM) menu.
2. Pritisnite tipku Enter/◄ / ► za podešavanje.
3. Nakon završetka ugađanja, pritisnite tipku MENU za pohranu ugađanja i povratak na prethodni izbornik.

Zaključavanje

Pritisnite tipku ▼ /▲ za odabir Ugađanje lozinke ( Set Password), zatim pritisnite ENTER za ulazak u podizbornik za unošenje nove lozinke.

Zaključavanje kanala

Pritisnite tipku ▼ / ▲ za odabir Zaključavanja kanala, zatim pritisnite Enter za ulazak u podizbornik.

Audio jezik

Pritisnite tipku ▼ / ▲ za odabir Audio jezika, zatim pritisnite tipku Enter za ulazak u podizbornik. Pritisnite tipku ◀ / za odabir primarnog audio jezika. Pritisnite tipke ▼ / ▲ / ◀ / ▶ za odabir audio zvuka.

Jezik podnaslova

Pritisnite tipku ◀ / ▶ i odaberite mapu koju želite gledati iz izbornika fotografija, te pritisnite tipku MEDIA za njen prikaz.

Izbornik teksta (Text Menu)

Simple line drawing of a blank rectangular area with a speaker icon emitting sound waves (no text or symbols)

Mogući uzroci:

*Nisu uključeni strujni kabl, antena ili ulazni uređaji;

Simple line drawing of a sad face with a speaker icon below (no text or symbols)

Mogući uzroci:

Simple line drawing of a cow with a speaker icon below (no text or symbols)

Mogući uzroci:

*Antenski i video kablovi su oštećeni ili olabavljeni;

Simple line drawing of geometric shapes including cube, cone, and circle with a speaker icon (no text or symbols)

Mogući uzroci:

*Neispravna postavka sistema boja;

*Nisko postavljen nivo intenziteta boja;

* Antena je neispravno postavljena.

Rešenja:

*U meniju promenite sistem boja;

*Povećajte razinu boja;

Illustration of a computer monitor displaying a cartoon character (no text or symbols present)

Simple line drawing of a landscape scene with a car and a monitor (no text or symbols)

Illustration of a person operating a TV with a computer monitor, showing a device connected to a wall-mounted unit (no text or symbols present)

Illustration showing a person using a device with no restrictions, a chair, and a computer monitor (no text or symbols)

Illustration of a cable being twisted from a computer monitor to a wire, with lightning bolts indicating electrical hazard (no text or symbols present)

Illustration of a person sitting at a desk watching a television (no text or symbols visible)

Illustration of a computer monitor with a crossed-out X symbol and a leafy top (no text or symbols)

Мени за канали

TT јазик

Audio jazik

Мени видео записи

Мени Текст (Text Menu)

Simple line drawing of a blank rectangle with a speaker icon emitting sound waves (no text or symbols)

Можни причини:

Simple line drawing of a sad face with a speaker icon below (no text or symbols)

Можни причини:

Simple line drawing of a sad face with a speaker icon below (no text or symbols)

Можни причини:

Simple line drawing of geometric shapes including cube, cone, and circle with a speaker icon (no text or symbols)

Можни причини:

Illustration showing a no-smoking sign, a hand holding a car, and a computer monitor (no text or symbols)

Simple line drawing of a computer monitor with a cartoon dinosaur illustration on the screen (no text or symbols)

Illustration showing a person using a device with no restrictions, a chair, and a computer monitor (no text or symbols)

Illustration of a cable being connected to a computer monitor (no text or symbols present)

Illustration of a person sitting on a chair watching television (no text or symbols visible)

Illustration of a computer monitor with a crossed-out X symbol above it, no text or symbols present.

Vendosje automatike

Menuja e kanaleve

Informacione mbi sinjalin

Vendosja e

Kyçja prindërore (Parental Guidance

Gjuha audio

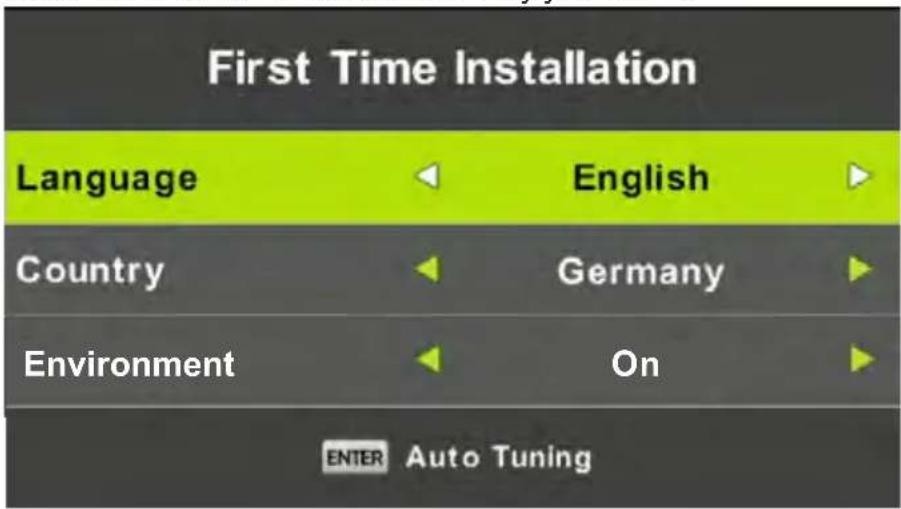

Instalimi i parë(First Time Installation)

Menuja e tekstit (Text Menu)

Simple line drawing of a blank rectangular frame with a speaker icon emitting sound waves (no text or symbols)

Shkaqe të mundshme:

Simple line drawing of a sad face with a speaker icon below (no text or symbols)

Shkage të mundshme:

Simple line drawing of a cow with a speaker icon below (no text or symbols)

Shkaqe të mundshme:

Simple illustration of geometric shapes including cube, cone, and sphere with a speaker icon (no text or symbols)

Shkaqe të mundshme:

1. Connect the stand neck to the base, and put the base holder to the back of the base, then fix them with 6 pcsof screws (BB4x12) a shown on the picture.
2. Place the TV body to a smooth platform, and put the stand into the socket of the TV body.
3. Fix the stand and TV body with 3 pcs of
   screws (BM4x10) 2 pcs of screws (BM4x14)
   as shown on the picture.

Warning

Warning

No any spare parts for maintenance attached. Do not open the back cover to avoid electric shock. Please contact our after-sale service personnel if necessary

Warning: Do not open the back cover to avoid electric shock. No additional spare parts are inside the case. Any questions, please contact our service personnel.

A triangle with a lightning arrow in: Remind you of probable higt voltage here in case of electric shock.

A triangle with an excalmatory mark in :Remind you that the parts here are very important .if replacement etc.is needed,please refer to relevant technical Specifications.

Warning: Do not put the TV in rainy or foggy places to prevent from fire or electric shock. Do not apply hard objects to attrite or knock on the liquid crystal screen since these may cause scratches or damages.

Warning: Modifying the product without any authorization is forbidden.

NOTE:

excessive sound pressure from earphones and headphones can cause hearing loss. An appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Safety

Please immediately pull out the AC power plug from adapter if there is an abnormal sound or smell or the LED TV has sound but no picture, and contact after sales support.

The LED TV should be kept from high temperature heating objects or direct sunlight. It requires good ventilation. Allow 10cm between the LED TV and other appliances or built-in cabinet walls.

Illustration of a computer monitor displaying a cartoon character (no text or symbols present)

The LED TV should be kept free from rain, damp and dust to prevent electrical shock and short circuits. Do not cover the ventilation openings with table clothes, curtains, newspapers etc.

Do not wipe the LED TV with any petrol, chemical or alcohol based solvents as it will lead to product damage of the panel and cabinet.

You may clean the display panel with a soft clean cloth after pulling out the power plug. Do not repeatedly wipe the panel, nor scrape, tap or strike the panel with a hard object.

Illustration showing a person using a large circle to stop a monitor, with a prohibition symbol and a chair nearby (no text or symbols present)

Do not place the power cord or other cables across a walkway in case it is trampled on. Do not overload the power cord or power socket.

Do not place the LED TV on an unstable surface.

Illustration of a cable being connected to a monitor with lightning bolts (no text or symbols)

Cartoon illustration of a person sitting at a desk with a TV, holding a pointer (no text or symbols present)

Do not disassemble the back cover as it contains high voltages inside and will cause electric shock. Internal adjustments and checks should only be conducted by qualified professionals.

Do not place naked flame sources, such as lit candles on or near the LED TV.

Please pull out the power plug and contact after sales support if there are abnormal objects or water in the TV.

Illustration of a computer monitor with a crossed-out floral symbol above it (no text or labels)

Pull out the power cord and antenna cable during electrical storms so the LED TV is not damaged by electrical surges. Keep all people away from the antenna cable during electrical storms.

Table of Contents

Warning....130

Safety.... 130

Table of Contents.... 132

Control Panel.... 133

Terminal Wiring Diagram.... 134

Remote Contro.... 135

First Time Setup 137

Menu Opreation.... 139

USB 156

Photo Menu 157

Music Menu 158

Movie Menu 159

Text Menu 160

Troubleshooting.... 161

Data and information contained in this manual are subject to change at any time without prior notice.

Product introduction

1. Brief Introduction

Production Introduction

Congratulations! You have chosen the latest generation high definition liquid crystal television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation liquid crystal television will bring you safe&comfortable brand new visual experience.

Applying color active matrix TFT with brand new technologies, the product can provide high quality display image, flicker free television, VCD&DVD programs. In addition, it can be used as definition digital television or computer display. We believe the product will surely make you satisfied.

Thank you for purchasing and using our products!

Control panel

The control button for front panel is in the back of TV

LED TV-48LE74T2

① ⏻/POWER

Turn the TV on or enter into standby mode.

② INPUT

Signal source selection button.

③ MENU

Enter/exit the main menu.

④ VOL -

Volume decreasing short cut key; enter into the next menu and adjust OSD options (decreasing).

⑤ VOL +

Volume increasing short cut key; enter into the next menu and adjust OSD options(increasing).

6 CH-

Channel decreasing short cut key; decrease the channel No. and select the last option in the menu.

⑦ CH+

Channel increasing short cut key; increase the channel No. and select the next option in the menu.

Connecting Cables

This LED TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections to other video and audio appliances.

1. USB:

It is used to updating the software of the DVB-T/C and DTV, and it should only be operated by a qualified TV technician.

User can access multi-media files stored in the USB device.

The supported format includes :

*.dat, *.vob, *.mpg and *.avi video formats. Besides, *.jpg, *.bmp and *.mp3

(DTV1080P hd programs burn, you must use more than streaming system of speed or move hard disk).

2/12/13. HDMI1/HDMI2/HDMI3:

High-definition multimedia interface.

Note: Acceptable video signal 480P/576P/720P/1080i/1080P

3. VGA:

This can be connected with the D-sub 15 pin signal cable to your PC.

4. SCART:

Scart input

1. Cl: Cl input.

6.AV

connect to the Composite VIDEO (R/L) output sockets on external video devices.

7. VGA AUDIO:

PC audio input.

8. COAXIAL

Digital TV sound output.

9. RF IN(T)

Antenna/close circuit TV or Digital TV terminal.

10. EARPHONE:

Headphone to headphones.

11. Y/Pb/Pr

Y/Pb/Prinput.

Descriptions of Television Remote Control

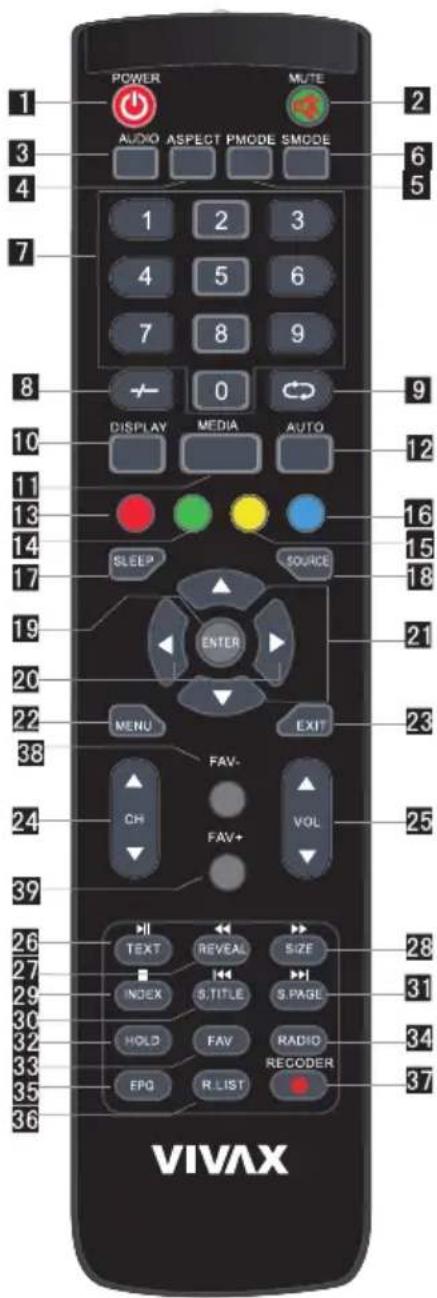

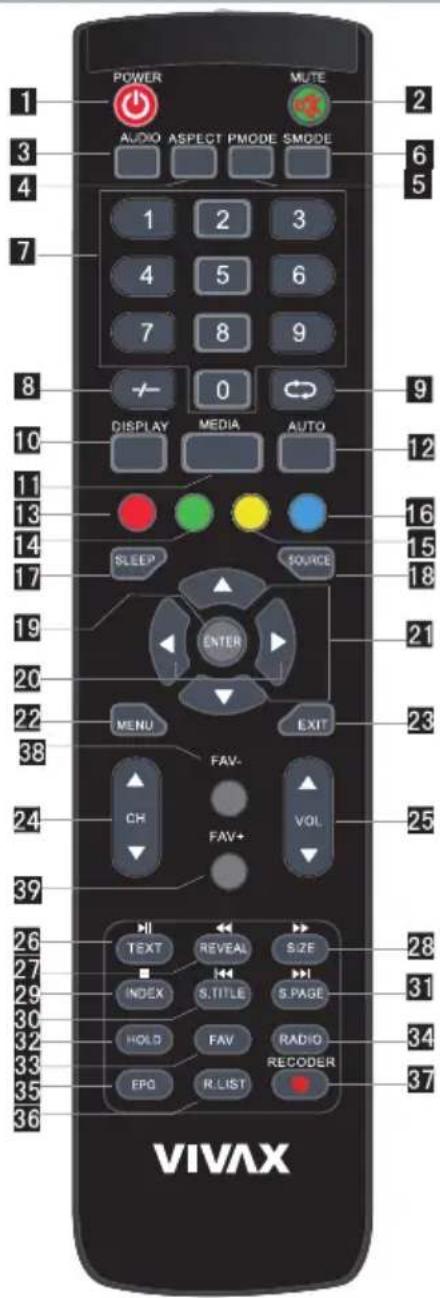

TV MODE:

1. POWER Button( ⏻ ) Press this button to turn the TV on or into standby mode.

2. MUTE Button (☒) Press this button to mute the sound and the sign of mute will appear all the while if you do not press again.

3. AUDIO Button Change audio mode:left, right, mono, stereo.

4.ASPECT Button Select different size. 5.PMODE Button Select the different picture mode directly.

6.SMODE Button Select the different sound mode directly.

1. NUMBER (0-9) Buttons Press these buttons to enter digits. These buttons for direct access to use a channel to enter channel number for both ATV and DTV or enter password for Parental lock.

2. -/-Buttons Press to change the channel bit

3. Button This button is used to return to the previous channel

4. DISPLAY Button Press this button to display the information on current input.

5. MEDIA Button Enter to USB channel

6. AUTO Button PC channel images automatic calibration shortcuts
7. RED Button

Use in TXT, DTV and TV

1. GREEN Button Use in TXT, DTV and TV

2. YELLOW Button Use in TXT, DTV and TV

3. CYAN Button

Use in TXT, DTV and TV

17.SLEEP Button Sleep time setting. 18.SOURCE Button

Source setting.

1. ENTER Button To confirm the choice with the highlighted menu item, to display the channel list in the no-menu.

2. ◀/▶ Button Decrease/increase the option value.

3. ▲/▼ Button Select the previous/next function option.

22 MENU.Button Adjust out the system menu.

23 .EXIT Button Exit function.

1. CH ▲/▼ Buttons Increase/decrease the channel.

2. VOL▲/▼Buttons Increase/decrease the volume.

26. TEXT Button

Display the teletext on screen.

▶1 Button

Play or pause.

27 .REVEAL Button

Display the characters hided.

◀ Button

Fast reverse.

28. SIZE Button

Change the size of current page.

Button

Fast Forward.

29.INDEX Button

Ask for the list of main TV letter broadcast page Number.

Button

Press this button to STOP.

30 .S.TITLE Button

Display/OFF the subtitle on screen.

Button

Skip to previous track or chapter.

31. S.PAGE Button

Display the current sub-page.

Button

Skip to next track or chapter.

32 .HOLD Button

Hold the current page and prevent against being updated.

On DTV, press the button to enter the Time Shift function.

33.FAV Button

Favourite program channel button

34 .RADIO Button

In the DTV source, press is to enter "Radio" channel and press it again to enter

DTV channel

35.EPG Button

To show the Electronic Program Guide during no-menu state only.

36.R.LIST Button

Open the recording documents list

1. ● Button

Record

38. FAV-button

Favourite program channel down button

39. FAV+ button

Favourite program channel up button

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the liquid crystal television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight.

Be careful to use the remote control .avoid falling off or being trampled or splashed with liquids.

Press INPUT button to display the input source list,

Press ▼ / ▲ or OK button to select the input source you want to,

Press OK button to enter the input source,

Press EXIT button to quit.

Connect an RF cable from the Tv's input called "RF-In" and to your TV Aerial socket.

Select Language

Press ◀ / ▶ button to select the language to be used for menus and message.

Select Country

Press ▼ / ▲ button to highlight country menu.

Press ◀ / ▶ button to select the country you want to.

First Time Setup

Auto Tuning

First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

Channel Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Auto Tuning

Press ▼ / ▲ button to select Auto Tuning, then press Enter/▶ button to enter.

Menu Operation

ATV Manual Tuning

Current CH

Set the channel number.

Color System

Select the color system

(Available System: AUTO, PAL, SECAM)

Sound System

Select the Sound system

Fine-Turn

Adjust the frequency of the channel finely.

Search

Start searching channel.

Menu Operation

DTV Manual Tuning

Press ▼ / ▲ button to select DTV Manual Tuning, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select channel, then press Enter button to search program.

Program Edit

Press ▼ / ▲ button to select Program Edit, then press Enter button to enter sub-menu.

The three colored key is the shortcut key for programming the channel.

First press ▼ / ▲ to highlight the channel you want to select, then:

Press the Red button to delete the program in the list.

Press the Yellow button to move the channel in favorite list.

Press the Blue button to skip the selected channel.

Press Fav button to add or remote the channel to your favorite list.

(Your TV set will skip the channel automatically when using

CH+/- to view the channels.)

Menu Operation

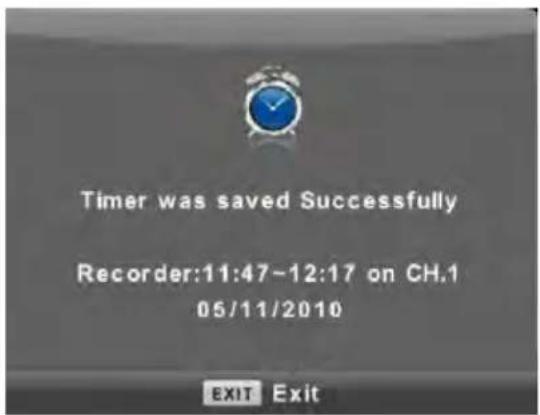

Schedule List

Press ▼ / ▲ button to select Schedule List, then press Enter button to enter sub-menu. It is available in source.

Press the YELLOW button to enter the interface below.

When the time appointment is conflict, it will produce a warning message.

Signal Information

Press ▼ / ▲ button to select Signal Information, press the Enter button to see the detail information about the signal. Only available when there is signal in DTV.

Picture Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select PICTURE in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Picture Mode

Press ▼ / ▲ button to select Picture Mode, then press OK button to enter sub-menu.

You can change the value of contrast, brightness, color, sharpness and tint when the picture is in Personal mode.

TIPS: You can press PMODE button to change the Picture Mode directly.

Menu Operation

Contrast/ Brightness/ Color/ Tint / Sharpness

Press ▼ / ▲ button to select option, then press ◀ / ▶ button to adjust.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Color Adjust the saturation of the color based on your own like.

Tint Use in compensating color changed with the transmission in the NTSC code.

Sharpness Adjust the peaking in the detail of the picture.

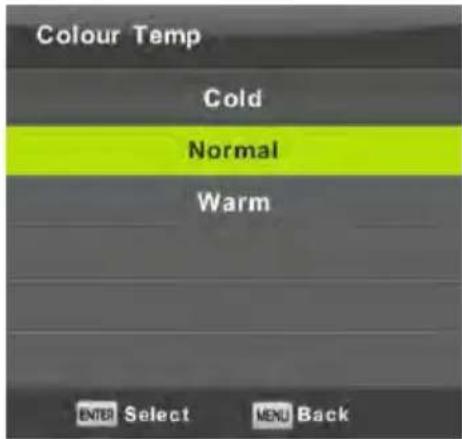

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temperature, then press OK button to enter sub-menu.

Press ◀ / ▶ button to select. (Available Picture mode: Cool, Medium, Warm).

You can change the value of red, green and blue when the color temperature is in User mode.

Cold Increase the blue tone for the white.

Normal Select standard white balance.

Warm Increase the red color for the white.

Noise Reduction

To filter out and reduces the image noise and improve picture quality.

Press ▼ / ▲ button to select Noise Reduction, then press OK button to enter sub-menu.

Menu Operation

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

Sound Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SOUND in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Sound Mode

Press ▼ / ▲ button to select Sound Mode, then press Enter button to enter sub-menu.

Press▼/▲ button to select.

Menu Operation

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Standard Produces a balanced sound in all environments.

Music Preserves the original sound.Good for musical programs.

Movie Enhances treble and bass for a rich sound experience.

Sports Enhances vocals for sports.

Personal Select to customize picture settings.

Note: The treble and bass are only available in User mode, you can adjust them as you like.

Balance

Press ▼ / ▲ button to select option, Press ◀ / ▶ button to adjust.

Auto Volume level

Press ▼ / ▲ button to select Auto Volume Level, then press ◀ / ▶ button to select On or Off.

SPDIF Mode

Press ▼ / ▲ button to select SPDIF Mode, then press ◀ / ▶ button to select Off / PCM / Auto.

AD Switch

Press ▼ / ▲ button to select AD Switch, then press ◀ / ▶ button to select On or Off. Amblyopia function for the blind, the tracks will be mixed describe the current screen. It need codestream to support.

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position. Auto Volume: This item is used for reducing the difference between channel and program's volume automatically.

Time Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select TIME in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu.
2. Press Enter button I to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Time Zone

Press ▼ / ▲ button to select Time Zone, then press Enter button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select time zone.

Sleep Timer

Press ▼ / ▲ button to select Sleep Timer, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select. (Available options are: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min).

Auto Standby

Press ▼ / ▲ button to select Auto Standby, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select.

Tips: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

OSD Timer

Press ▼ / ▲ button to select OSD Timer, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select.

Lock Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select Lock in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press Enter/◄ / ► button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu

Menu Operation

Lock System

Press ▼ / ▲ button to select Lock System, then press Enter button to make the following 3 options valid.

Default password is 0000, and if forget what you set, please call the service center.

Set Password

Press ▼ / ▲ button to select Set Password, then press Enter button to enter sub-menu to set new password.

Channel Lock

Press ▼ / ▲ button to select Channel Lock then press Enter button to enter sub-menu to select.

Press button to lock or unlock the Green channel.

Menu Operation

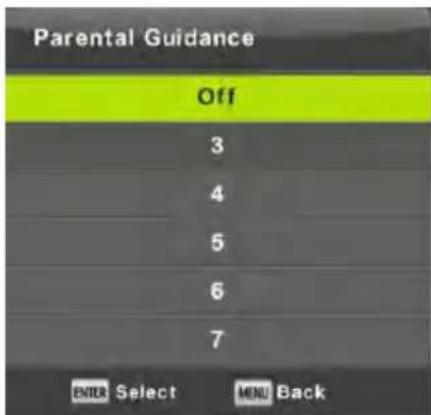

Parental Guidance

Press ▼ / ▲ button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children.

Key Lock

Press ▼ / ▲ button to select Key Lock, then press ◀ / ▶ button to select Off or On. When Key Lock's statue is on, you can't use the Key panel button.

Hotel Mode

1. Press ▼ / ▲ button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-menu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Hotel Mode

Press ▼ / ▲ button to select Hotel Mode, then press ◀ / ▶ button to select on or off.

Source Lock

Press ▼ / ▲ button to select Source Locke, then press Enter button to enter sub-menu to select.

Default Source

Press ▼ / ▲ button to select Default Source, then press Enter button to enter sub-menu to select.

Default Prog

Press ▼ / ▲ button to select Default Prog, then press ◀ / ▶ button to adjust. It is available when the default source is TV.

Max Volume

Press ▼ / ▲ button to select Max Volume, then press ◀ / ▶ button to adjust.

Clear Lock

Press ▼ / ▲ button to select Clear Lock, then press Enter button to clear the setting you have done before.

Setup Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SETUP in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SETUP menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

OSD Language

Select an OSD menu language can be displayed. Default English

is selected as menu language.

Press ▼ / ▲ / ◀ / ▶ button to select Menu Language.

TT Language

Press ▼ / ▲ button to select TT Language, then press Enter button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select TT language.

Menu Operation

Audio Languages

Press ▼ / ▲ button to select Audio Languages, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select the primary of Audio Languages.

Press ▼ / ▲ / ◀ / ▶ button to select the Audio Languages.

Subtitle Language

Press ▼ / ▲ button to select Subtitle Language, then press Enter button to enter sub-menu.

Press ◀ / ▶ button to select the primary of Subtitle Language.

Press ▼ / ▲ / ◀ / ▶ button to select the Subtitle Language.

Hearing Impaired

Press ▼ / ▲ button to select Hearing Impaired, then press Enter button to select On or Off.

PVR File System

Press ▼ / ▲ button to select PVR File System, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select Check PVR File System, then press Enter button to enter. Then it will check the USB speed.

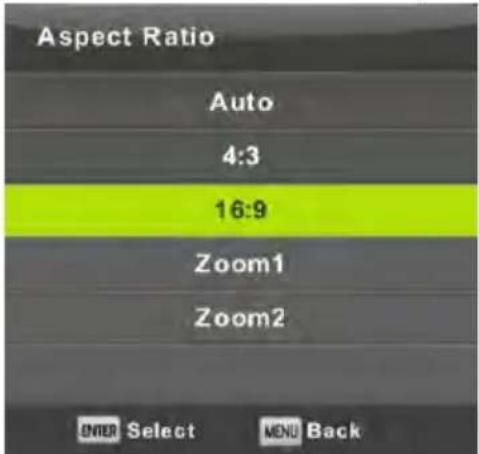

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select aspect ratio. (Available options are: Auto, 4:3, 16:9, Zoom1, Zoom2).

Blue Screen

Press ▼ / ▲ button to select Blue Screen, then press Enter button to select On or Off.

First Time Installation

Press ▼ / ▲ button to select First time installation, then press Enter button to enter.

Reset

Press ▼ / ▲ button to select Reset, then press Enter button to enter sub-menu.

Software Update(USB)

Press ▼ / ▲ button to select Software Update (USB), plug your USB device in the USB slot, then press Enter button to update the right software.

HDMI CEC

Press ▼ / ▲ button to select HDMI CEC, then press Enter button to enter the sub-menu.

HDMI CEC Press ◀ / ▶ button to turn the HDMI CEC on or off.

HDMI ARC Press ◀ / ▶ button to turn the HDMI ARC on or off.

Auto Standby Press ◀ / ▶ button to turn the Auto Standby on or off.

Device List Press Enter button to open the main menu of device.

Screen Menu(Only PC Mode)

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SCREEN in the main menu.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SCREEN menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Auto Adjust

Press Enter button to start adjusting H-Offset/V-Offset/Size/Phase automatically.

H-Offset.

Adjust the horizontal position of the picture.

Press ▼ / ▲ button to select H-Offset, then press Enter button to enter sub-menu.

V-Offset

Adjust the vertical position of the picture.

Press ▼ / ▲ button to select V-Offset, then press Enter button to enter sub-menu.

Size

Adjust the display size.

Press ▼ / ▲ button to select Size, then press Enter button to enter sub-menu.

Phase

Adjust the horizontal interfering lines.

Press ▼ / ▲ button to select Phase, then press Enter button to enter sub-menu.

Position Reset

Press ▼ / ▲ button to select Position Reset, then press Enter button to enter.

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. AD Switch in SOUND option is invalid.
3. TIME menu and description are the same as that for mode.Air
4. Block Program and Parental Guidance in LOCK option is invalid.
5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in SETUP option is invalid.
6. mode has no CHANNEL menu. PC

USB

Note: Before operating Media menu, Plug in USB device, then press INPUT button to set the Input Source to Media.

Press ▼ / ▲ button to select Media in the Source menu, then press Enter button to enter.

Press ◀ / ▶ button to select the option you want to adjust in the main Media menu, then press Enter button to enter.

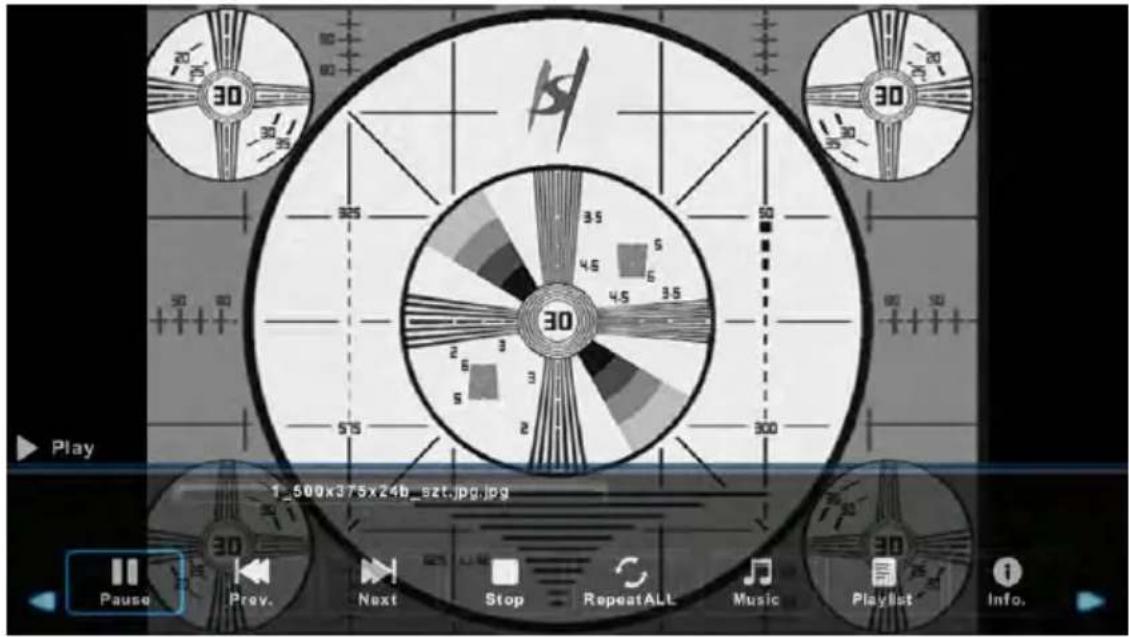

Photo Menu

Press ◀ / ▶ button to select PHOTO in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press ◀ / ▶ button to select the file you want to watch in the file selecting menu, then press media button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

Music Menu

Press ◀ / ▶ button to select MUSIC in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press ◀ / ▶ button to select drive disk you want to watch, then press Enter button to enter. Press ◀ / ▶ button to select return option to the previous menu.

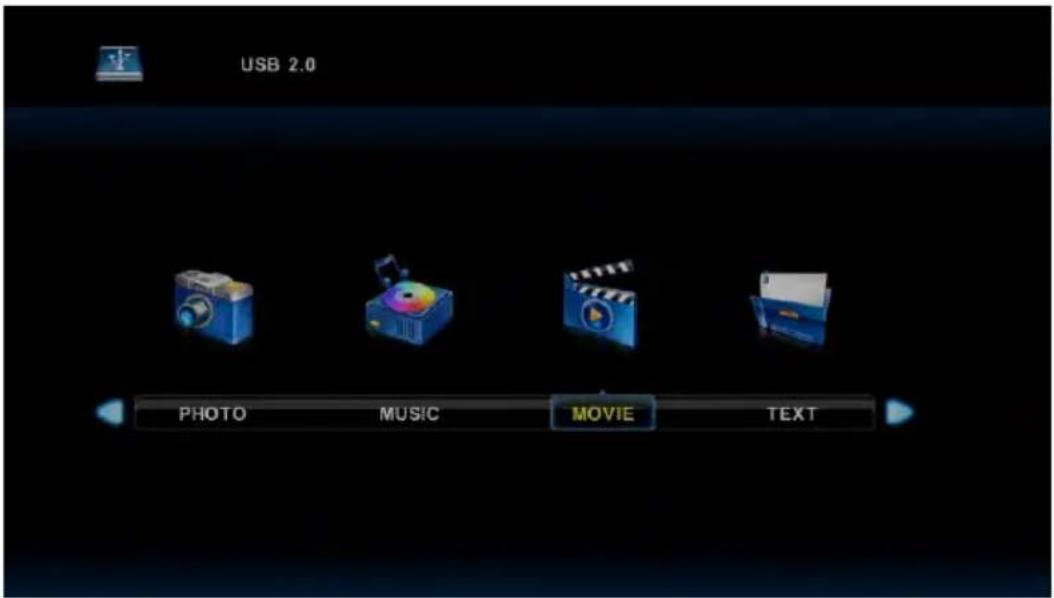

Movie Menu

Press ◀ / ▶ button to select MOVIE in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press ◀ / ▶ button to select drive disk you want to watch, then press Enter button to enter. Press media button to play the selected movie.

Press display button to select menu in the bottom you want to run, then press Enter button to operate.

Press Exit button to back to the previous menu and exit button to quit the entire menu.

Text Menu

Press ◀ / ▶ button to select TEXT in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press ◀ / ▶ button to select drive disk you want to watch, then press Enter button to enter.

Press ◀ / ▶ button to select return option to back to the previous menu.

Troubleshooting

No image and voice

Possible causes:

*Power cord, antenna or input devices are not connected;

*The TV se is not powered on.

Resolutions:

*Check Power cord, antenna and input devices;
*Press Power key on the remote control;
*Press Power key on the set to power it off for 5 secpmds and then re-power it on.

No voice

Possible causes:

*The volume is too low; Muted or cancelled;

*Incorrect sound system.

Resolutions:

*Press Volume key to turn up the volume;
*Press Mute key to cancel Mute mode.
Well connect vonconnection to the background sound;
*Change the sound system in the menu.

Snows and noises:

Possible causes:

*The cable is damaged or gets loose;
*Incorrect channel preset;
*Improper antenna positioning.

Resolutions:

*Check whether the connection of the antenna cable,
DVD and the cables is correct;
*Reset channels or fine tune the channel;
*Adjust the direction of the antenna.

Achromatic colour

Possible causes:

*Incorrect Colour system settings; Low chroma level setting ;
*Improper antenna positioning.

Resolutions:

*Change the colour system into the local system in the menu;
*Increase chroma level;
*Adjust the direction of the antenna.

Remote control is no effect :

Possible causes:

*Battery runs up;
*Incorrect battery loading;
Resolutions:
*Check the battery electricity or replace the battery;
*Check if the poles of the battery are correct.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories

EU Waste Electrical and Electronic Equipment (WEEE)

This symbol on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.

Alternatively, in some countries, you may be able to return your products to your local retailer upon purchase of an equivalent new product.

Disposing of this product correctly will help save valuable resources and prevent any

otherwise arise from inappropriate waste handling.

Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with you national legislation.

For professional users in the European Union

If you wish to discard electrical and electronic equipment (EEE), please contact your dealer or supplier for further information.

For disposal in countries outside of the European Union

This symbol is only valid in the European Union (EU). If you wish to discard this product please contact your local authorities or dealer and ask for the correct method of disposal.

Hereby, M SAN Grupa d.d. declares that the radio equipment type TV set is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, mollimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVODI

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.
2. UVJETI GARANCIJE Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija će se produžiti za vrijeme trajanja popravka.
4. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
5. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.
6. GARANCIJA NE OBUHVAĆA

BROJ RAĆUNA PRODAVCA

POTPIS I PEČAT PRODAVCA

• Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti.
• Ovom izjavom o saobraznosti ističemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predvidjenom roku za reklamaciju.
  • USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
• U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
• Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, iuz ovu izjavu o saobraznosti koja mora biti ispravno popunjena, odnosnomora sadržati datum prodaje, pečati potpis prodavca.
• Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.

PRAVO NA REKLAMACIJU NE OBUHVATA

Kosova Electronic Service Center

Kosova Electronic Service Center

-VIVAX Air Conditions; White Goods and Small Home Appliances

TÊ NDERUAR!
