Brand	Infiniton
Model	MW-F102
Product Type	Solo Microwave
Capacity	20 Liters
Power Output	700 Watts
Power Consumption	1050 Watts
Dimensions (W x D x H)	440 x 360 x 260 mm
Weight	10.5 kg
Mains Voltage	230 V / 50 Hz
Functions	Defrost, Auto Cook, Express Cook, Timer, Clock
Control Type	Mechanical Dial + Push Buttons
Door Opening	Side opening with handle
Interior Light	Yes
Turntable Diameter	245 mm
Child Lock	Yes (press START for 3 seconds)
Cleaning	Wipe interior with damp cloth; do not use abrasives
Accessories Included	Glass turntable, rotating ring, user manual
Spare Parts Availability	Contact Infiniton customer service
Repairability Index	7 / 10 (estimated)
Warranty	1 year

Frequently Asked Questions - MW-F102 Infiniton

How do I set the clock on the Infiniton MW-F102?

Press the Clock button once, then use the dial to set the hour. Press Clock again and set minutes. Confirm by pressing Clock a third time.

Can I use metal containers in the microwave?

No, metal objects can cause sparks and damage the microwave. Use only microwave-safe glass, ceramic, or plastic containers.

How do I activate the child lock?

Press and hold the START button for 3 seconds until a beep sounds. The display shows a lock icon. Repeat to unlock.

What is the maximum cooking time?

The maximum time you can set is 99 minutes and 99 seconds (99:99).

How do I defrost food?

Press the Defrost button, then enter the weight of the food in grams. The microwave automatically sets the time and power level.

Why does the microwave make a humming noise?

This is normal operation of the magnetron and cooling fan. If the noise becomes very loud or unusual, contact support.

Can I cook with the turntable removed?

No, the turntable ensures even cooking. If you need larger dishes, use only flat microwave-safe containers that fit without rotating.

How do I clean the microwave interior?

Wipe with a damp cloth and mild soap. Do not use abrasive cleaners. For odours, place a cup of water with lemon juice and heat for 1-2 minutes.

What does 'E-01' error mean?

The E-01 error indicates a problem with the door or door latch. Ensure the door is fully closed and clean the contact area.

Where can I download the full user manual?

The manual is available for free at notice-facile.com or Infiniton support page in PDF format.

USER MANUAL MW-F102 Infiniton

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MW-F102 / MW-F201
Rated Voltage:	230V~ 50Hz
Rated Input Power (Microwave):	1150W
Rated Output Power (Microwave):	700 W
Oven Capacity:	20 L
External Dimensions:	459x381x286mm
Net Weight:	Approx. 11.6kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (For appliance with type Y attachment)

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative door open. (For ovens with a decorative door.)

20. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. The appliance shall not be cleaned with a steam cleaner.

4. The appliance is intended to be used freestanding. The rear surface of appliances shall be placed against a wall.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If along cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

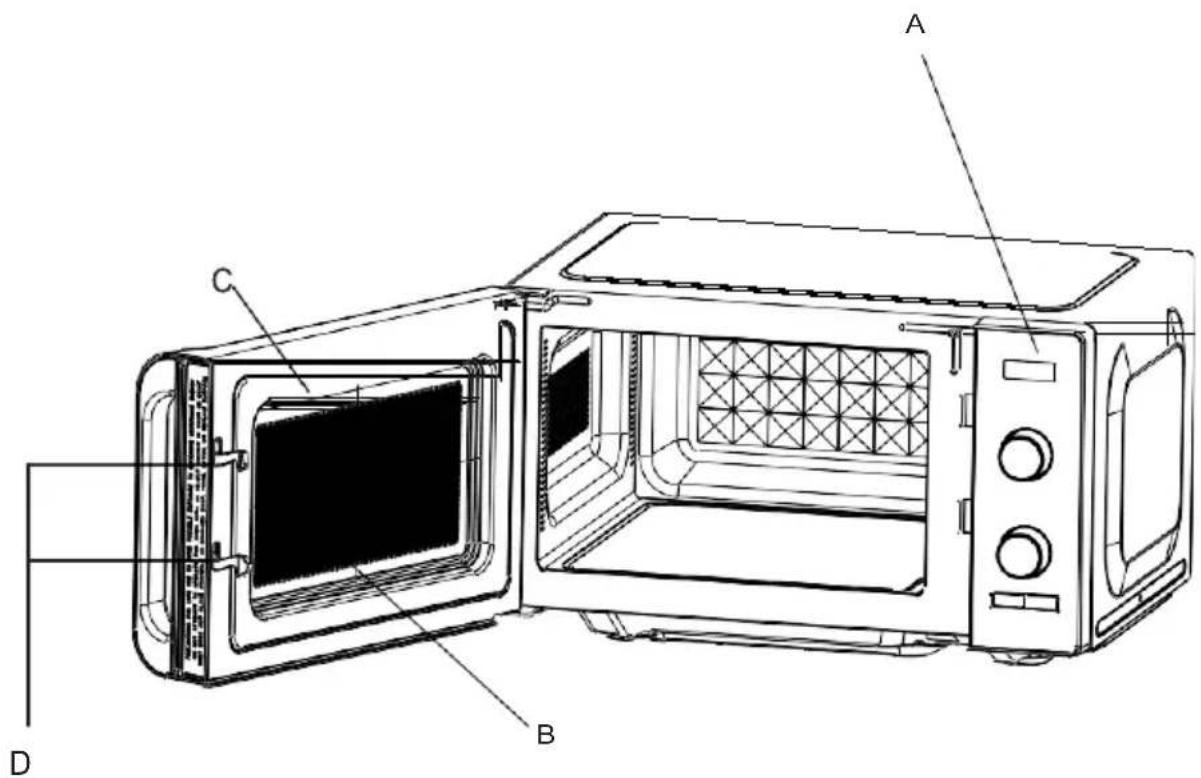

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Instruction Manual 1

A) Control panel
B) Observation window
C) Door assembly
D) Safety interlock system

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

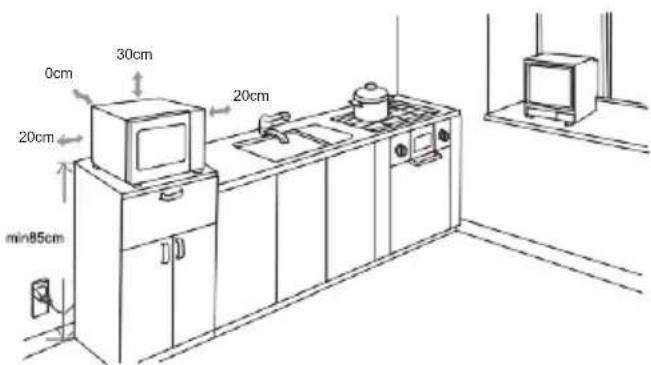

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.

(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency are the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface maybe hot during operation.

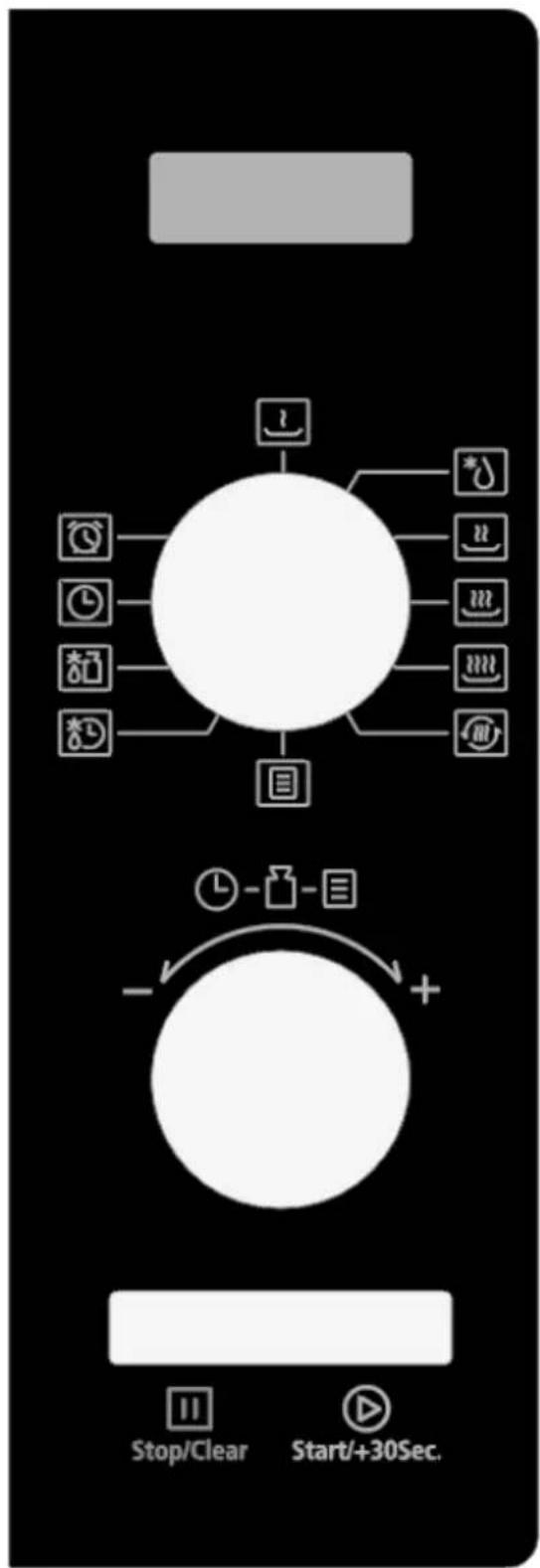

CONTROL PANEL


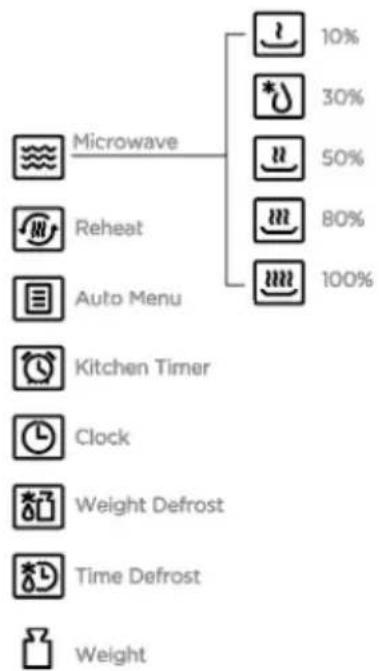


This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

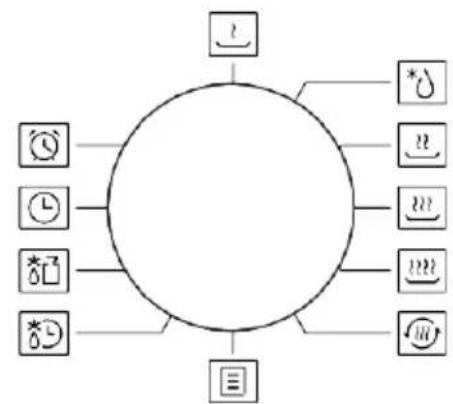

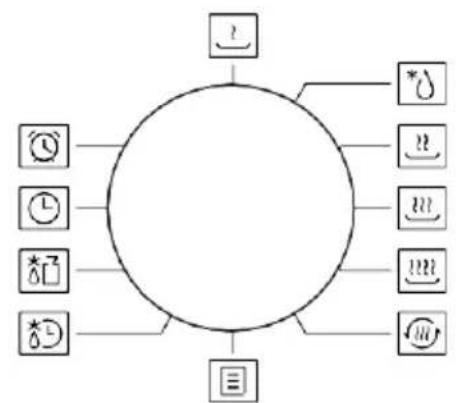

Knob Instructions

There are two knobs on the panel. For better operations, the manual call the left knob for parameter knob. Call the right knob for function knob.

4. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. Then the unit enters waiting states.

5) Turn function knob to "CLOCK", the hour figures flash.
6) Turn parameter knob to adjust the hour figures, the input time should be within 0--23.
7) Press "Start/+30Sec." to confirm, the minute figures will flash.
8) Turn parameter knob to adjust the minute figures, the input time should be within 0--59.
9) Press "Start/+30Sec." To finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you do not press "Start/+30Sec." to confirm in 1 minutes, the oven will go back to the previous status automatically.

5. Kitchen Timer

1) Turn function knob to "CLOCK", the screen will display "00:00".
2) Turn parameter knob to enter the correct time.

(The maximum time is 95 minutes)

3) Press " Start/+30Sec. " to confirm setting.
4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock has been set (24-hour system), screen will display the current time.

Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

6. Microwave Cooking

4) Turn the function knob to " ☐ ", " *☐ "...." ☐". It refers to microwave power. And "P10", "P30"..... "P100" displays.
5) Turn the parameter knob to adjust the cooking time.

(The maximum cooking time is 95 minutes)

6) Press " Start/+30Sec. " to start cooking. Buzzer sounds once.

NOTE: the step quantities for the adjustment time are as follow:

Microwave Power Chart

Microwave Power	High	M.High	Med	M.Low	Low
Display	P100	P80	P50	P30	P10

7. Reheat

1) In waiting state, turn the function knob to "REHEAT", "200" will display.
2) Turn parameter knob to set the food weight, and "200", "400" or "600" will display in turn.
3) Press " Start/+30Sec. " To start cooking;

8. Speedy Cooking

1) In waiting state, Press " Start/+30Sec. " To start cooking with P100 power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of
" Start/+30Sec. " can increase 30 seconds of cooking time.
3) In waiting state, turn parameter knob left to set cooking time with P100
microwave power, then press " Start/+30Sec. " to start cooking.

9. Defrost By Weight

1) When function knob pointing at "WEIGHT DEFROST ", "dEF1" displays;
2) Turn parameter knob to select the food weight. The range of weight is 100-2000g.
3) Press " Start/+30Sec. " to start defrosting.

10. Defrost By Time

1) When function knob pointing at "TIME DEFROST", "dEF2" displays;
2) Turn parameter knob to select defrost time. The range of time is 0:05-95:00.
3) Press "Start/+30Sec." to start defrosting. The defrost power is P30.
It cannot be changed.

11. Auto Menu

1) Turn function knob to "AUTO MENU" to choose auto cooking. "A-1" flash;
2) Turn parameter knob to choose the menu you need. "A-1", "A-2"..." A-8" will display.
3) Press " Start/+30Sec. " to confirm the menu you choose;
4) Turn parameter knob to choose the food weight;
5) Press " Start/+30Sec. " to start cooking;

12. Lock-out Function for Children

Lock: In waiting state, press " Stop/Clear " for 3 seconds, there will be a long beep

denoting entering the children-lock state and current time will display if the time has been set, otherwise, the screen will display [---]

Lock quitting: In locked state, press be a long

"Stop/Clear" for 3 seconds, there will

"beep" denoting that the lock is released.

13. Mute Function

In waiting state, press "Stop/Clear" twice within 1 seconds, the buzzer will sound once and the oven will enter to mute mode. Any operation cannot make the buzzer sound.

In mute state, press "Stop/Clear" twice within 1 seconds, the buzzer will sound once and the oven will exit mute mode.

14. Specification

1) The buzzer will sound once when turning the multi-function;
2) " Start/+30Sec. " must be pressed to continue cooking if the door is opened during cooking;
3) Once the cooking program has been set, " Start/+30Sec." is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
4) Buzzer sounds five times to remind you the cooking is finished.

Menu Chart

Menu	Weight	Display
A-1 Auto Reheat	200 g	200
	400 g	400
	600 g	600
A-2 Vegetable	200 g	200
	300 g	300
	400 g	400
A-3 Fish	250 g	250
	350 g	350
	450 g	450
A-4 Meat	250 g	250
	350 g	350
	450 g	450
A-5 Pasta	50 g (with 450g cold water)	50
	100 g (with 800g cold water)	100
A-6 Potato	200 g	200
	400 g	400
	600 g	600
A-7 Milk	200 g	200
	400 g	400
A-8 Soup	200 ml	200
	400 ml	400

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

Microwave Oven

INSTRUCTION MANUAL

MW-F102: 8436546197430

MW-F201: 8436546197416

Model:	MW-F102 / MW-F201
Rated Voltage:	230V~ 50Hz
Rated Input Power (Microwave):	1150W
Rated Output Power (Microwave):	700 W
Oven Capacity:	20 L
External Dimensions:	459x381x286mm
Net Weight:	Approx. 11.6kg

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

• Linha Branca: rmablanca.infiniton.es
• Linha Marrom: rma.infiniton.es

INFINITION WORLD ELECTRONIC S.I.

C/Baza 349, naves 4-6

Poligone Juncar

18220 ALBOLOTE (Granada)

e-mail: [e-mail]

INFINITON
