VP29 - Hi-Fi System ROLLS - Free user manual and instructions

Product Type	Hi-Fi System
Brand	Rolls
Model	VP29
Dimensions (W x H x D)	300 x 200 x 150 mm
Weight	3 kg
Power Supply	AC 230V, 50Hz
Output Power (RMS)	2 x 20W
Frequency Range	AM 530-1600 kHz, FM 88-108 MHz
Playback Media	CD, USB, AUX
Bluetooth	Yes, version 4.2
Speaker System	2-way, bass reflex
Remote Control	Included
Headphone Jack	3.5 mm
Main Functions	Radio, CD player, USB playback, Bluetooth streaming, AUX input
Maintenance & Cleaning	Wipe with a soft, dry cloth; do not use liquid cleaners
Safety	Unplug before cleaning; do not expose to moisture; keep ventilation holes unblocked
Spare Parts & Repairability	Contact Rolls customer service for spare parts; device is not user-serviceable
General Information	Suitable for home use; supports multiple audio sources

Frequently Asked Questions - VP29 ROLLS

How do I connect Bluetooth to the Rolls VP29?

Press the Bluetooth button on the front panel or remote control until the indicator flashes. Enable Bluetooth on your device and select Rolls VP29 from the list. Once paired, the indicator will stay solid.

What should I do if the CD player skips or doesn't read discs?

Clean the disc with a soft cloth and ensure it is not scratched. Also, check that the disc is inserted correctly with the label facing up. If the problem persists, try a different disc.

How can I reset the Rolls VP29 to factory settings?

Unplug the unit from the power outlet for 30 seconds, then plug it back in. This will reset the system. For a full reset, press and hold the Power button for 10 seconds while the unit is on.

Why is there no sound from the speakers?

Check that the volume is turned up and not muted. Ensure the correct input source is selected (e.g., Bluetooth, CD, AUX). Also, verify that the speakers are properly connected to the main unit.

Can I play music from a USB flash drive?

Yes, plug a USB drive (FAT32 format) into the USB port. The system will automatically play MP3 or WMA files. Use the USB button to select this source.

How do I set the clock on the VP29?

Press and hold the Clock button for 3 seconds until the hour digits flash. Use the +/- buttons to adjust the hour, then press Clock again to set minutes. Press Clock once more to confirm.

What is the maximum power output of the VP29?

The system delivers 2 x 20W RMS output power, suitable for small to medium-sized rooms.

Can I connect devices using an AUX cable?

Yes, use a 3.5mm stereo audio cable to connect your device to the AUX IN jack on the front panel. Press the AUX button to switch to this input.

How do I clean the Rolls VP29?

Always unplug the unit first. Wipe the exterior with a soft, dry cloth. Do not use any liquid cleaners, abrasive agents, or spray directly onto the device.

What should I do if the remote control stops working?

Replace the batteries with new CR2025 coin cells. Make sure there are no obstructions between the remote and the unit. If still not working, try resetting the remote by removing batteries for 10 seconds.

USER MANUAL VP29 ROLLS

Thank you for your purchase of the Rolls VP29 Phono Preamp. The VP29 is designed to amplify an RIAA equalized phono signal to a Hi-Fi level signal, and it works well with magnetic pickups.

INSPECTION

1. Unpack and Inspect the VP29 package

Your VP29 was carefully packed at the factory in a protective carton. Nonetheless, be sure to examine the unit and the carton for any signs of damage that may have occurred during shipping. If obvious physical damage is noticed, contact the carrier immediately to make a damage claim. We suggest saving the shipping carton and packing materials for safely transporting the unit in the future.

WARRANTY:

For complete warranty information please visit our website at www.rolls.com, and click on the Register Your Warranty Here button.

DESCRIPTION

PWR INPUT: 12 - 16 Volts DC, tip negative jack.

GROUND CONNECTOR: Connects to the Ground of the phono player

INPUT: Stereo RCA jacks for connection to the phono player OUTPUT: Stereo RCA jacks for connection to a stereo system or amplifier.

OUTPUT: 1/4" Tip-Ring-Sleeve jack for connection to a stereo amplifier.

OPERATION

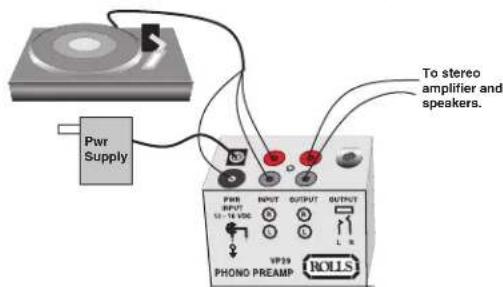

Shown below is an example of how to connect your VP29.

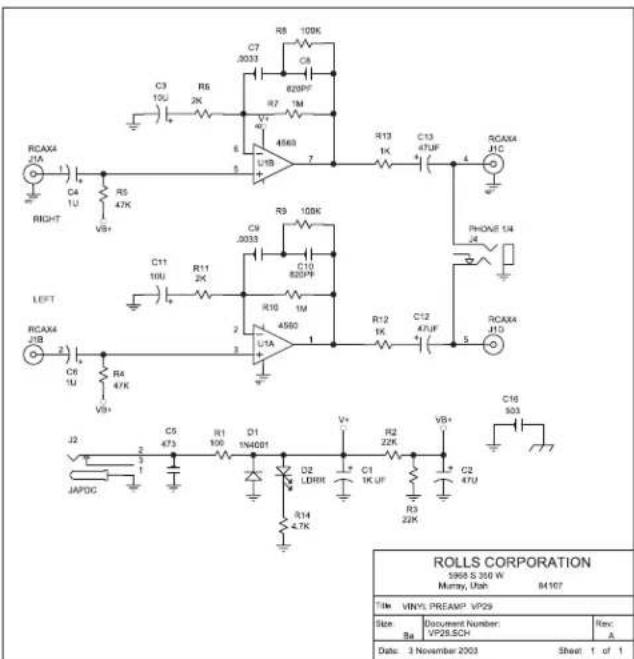

SCHEMATIC

... anywhere you need clean R14A EQ to professional line level conversion.

ROLLS

- Broadcast

- Studio

- Home

Vp29 PHONO PREAMP

VPO90 PRJAMP PHONO PRJAMP

ROLLS

VP29 Phono Preamp

• Converts RIAA Phono signals to Line Level
• Works well with magnetic phono pickups
• Stereo RCA and 1/4" outputs

Phono players require special equalization because of the frequency response of recording on vinyl.

The VP29 equalizes and amplifies the phono signal to a clean, and full line level for professional amplification.

SPECIFICATIONS

I/ O Connectors: RCA, 1/4" TRS Stereo

Input Sensitivity: 35 dBV gain @

1kHz, 47k Ohms Input Z

Input Capacitance: 5pf + cable capacitance

Input Impedance: 50k Ohms

Output Impedance: 1 K Ohms

Max Output Level: >10dB @ 1kHz at at 1% dist.

Frequency Response: + / - 1.5dB 20 Hz - 20 kHz

(Conforms to RIAA

Equalization Curve)

THD .02% @ 1 kHz

S/N Ratio: >80 dB unweighted

PWR: 12 - 18 VDC

Size: 3.25 × 2 × 1.5

Weight: 1 lb

ROLLS

Rolls Corporation Salt Lake City, UT 11/03
