MS211 - Microphone ROLLS - Free user manual and instructions

Product Type	Dynamic Microphone
Model	MS211
Brand	Rolls
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15 kHz
Impedance	600 ohms
Connector	XLR (3-pin male)
Power Requirement	Passive (no phantom power needed)
Dimensions (Length x Diameter)	160 mm x 50 mm
Weight	250 g (0.55 lbs)
Material	Metal body with mesh grille
Includes	Microphone clip, carrying pouch
Applications	Vocals, public address, home recording
Maintenance	Wipe with a soft, dry cloth. Avoid moisture.
Safety Precautions	Do not drop; keep away from liquids and extreme temperatures.
Spare Parts / Repairability	Non-user-serviceable; contact Rolls for service.

Frequently Asked Questions - MS211 ROLLS

How do I connect the Rolls MS211 microphone?

Use a standard XLR cable to connect the microphone to a mixer, audio interface, or PA system. Ensure the cable is securely inserted.

Does the MS211 require phantom power?

No, the MS211 is a dynamic microphone and works without phantom power.

What is the best placement for vocal recording?

Position the microphone about 2–6 inches from your mouth, slightly off-axis to reduce plosives. Use a pop filter for best results.

Can I use this microphone for instruments?

Yes, it can be used for loud instruments like guitar amps, drums, and brass. For optimal sound, place it close to the sound source.

How do I clean the microphone?

Gently wipe the metal body and grille with a slightly damp cloth. Do not use harsh chemicals or immerse in water.

Why is there no sound coming from the microphone?

Check the XLR cable connection, ensure the mixer/interface channel is turned up, and verify mute is off. Test with another cable if possible.

Is the microphone compatible with my laptop?

Direct connection to a laptop requires an audio interface or USB adapter with an XLR input. The MS211 itself uses XLR output.

What accessories are included?

The package includes the microphone, a stand clip, and a carrying pouch. A cable is not included.

How do I reduce handling noise?

Use a microphone stand or boom arm instead of hand-holding. The internal suspension helps, but a shock mount is recommended.

What is the warranty period?

Rolls typically offers a one-year limited warranty from the date of purchase. Contact their support for details.

USER MANUAL MS211 ROLLS

1 - This owners manual

0 - Power supply (its an all passive unit)

Thank you for purchasing the MS211. We sincerely appreciate the opportunity to build a product for you and participate in your love of quality music and sound. We love what we do and we're happy to help. Rolls products are hand built in Salt Lake City, Utah by people who care about high quality audio.

The MS211 PTT or PTM mic stand is a passive design.

That means NO power required, NO electronics used and NO distortion will ever be added.

The chassis is made from .090" steel, meaning it is 3 times thicker than most chassis. Female XLR jack for connection to your mic and Male XLR for output.

All this and it is 100% Handcrafted in Salt Lake City, UT.

ROLLS

MS211 Push to talk or Push to mute Mic Stand

MS211 Mic Stand

• XLR input and output jacks
• Momentary Switch
• Bottom panel screw holes for convenient mounting
• Can function as push to talk or Push to mute

This device momentarily mutes (or talks) a microphone signal. This function is very handy in the event of a sneeze, cough, or other possible distracting noise. Or when you need to control when a mic is active for announcing or paging.

SPECIFICATIONS:

IN Connectors: XLR OUT Connectors: XLR

Size: 5"w x 5"d x 1.5"h

Passive design, NO power, NO electronics and NO distortion.

Thick powder coated steel chassis..

100% Handcrafted in Salt Lake City, UT.

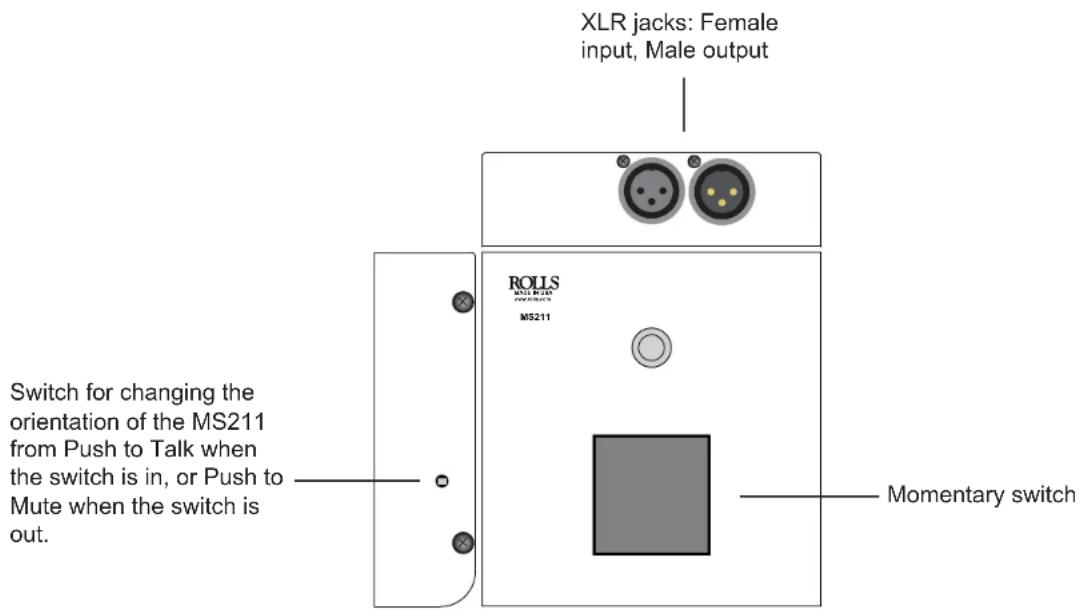

OPERATION: To mute a microphone signal, connect the balanced XLR cable to the microphone, and to the female input jack on the MS211. Connect the XLR male output jack to another cable, and its end to your next device. Press and hold the switch for the amount of time you want the signal muted. To hear the mic signal again, release the switch. The MS211 can be configured to "push to talk" or "Push to mute" by selecting the internal switch. The switch can be accessed from the side of the MS211.

The MS211 rear panel has two screw holes for convenient mounting.
