Product Type	Telephone Hybrid / Phone Patch Interface
Brand	Rolls
Model	PI9 Phone Patch II
Dimensions (H x W x D)	1.75 x 8.5 x 6.0 inches (44 x 216 x 152 mm)
Weight	1.6 lbs (0.73 kg)
Power Supply	18V AC, 300 mA (external adapter included)
Input Impedance	600 ohms (balanced/line)
Output Impedance	600 ohms (balanced/line)
Frequency Response	20 Hz - 20 kHz
Total Harmonic Distortion	< 0.01%
Signal-to-Noise Ratio	> 90 dB
Main Functions	Telephone line interface for audio systems; allows mixing phone audio into PA or recording
Controls and Indicators	Input level knob, output level knob, phone switch, power LED
Connectors	Phone line (RJ11), line input (1/4" TRS), line output (1/4" TRS), power jack
Construction	Steel chassis, half-rack width
Care and Cleaning	Wipe with a soft, dry cloth; do not use solvents
Safety Precautions	Use only supplied power adapter; avoid moisture; disconnect during storms
Spare Parts / Repairability	Contact Rolls authorized service center for repairs; no user-serviceable parts
General Information	Designed for broadcast, recording, and live sound applications

Frequently Asked Questions - PI9 Phone Patch II ROLLS

What is the Rolls PI9 Phone Patch II used for?

The PI9 Phone Patch II is a telephone interface that allows you to connect a standard analog phone line to an audio mixing console or recording system for broadcast, podcasting, or live sound applications.

Does the PI9 require a power supply?

Yes, it requires an external 18V AC power supply (included). Do not use any other adapter.

What type of phone line does it support?

It works with standard analog POTS (plain old telephone service) lines via an RJ11 connector.

Can I use the PI9 with a digital phone line?

No, it is designed only for analog lines. Digital lines (VoIP, ISDN, etc.) are not compatible.

How do I adjust the audio levels?

Use the input level knob to adjust the incoming phone audio and the output level knob to set the overall level sent to your mixer or recorder.

What is the 'Phone Switch' for?

The Phone Switch engages or disengages the phone line connection. When off, the line is disconnected (on-hook).

Is the PI9 compatible with balanced or unbalanced signals?

The line input and output are balanced on 1/4" TRS jacks, but can be used unbalanced with a mono TS plug.

What is the frequency response of the PI9?

The frequency response is 20 Hz to 20 kHz, ensuring full audio bandwidth for phone calls.

Can I mount the PI9 in a rack?

It is half-rack width (8.5") and can be mounted using optional rack ears (sold separately) or placed on a desktop.

How do I clean the PI9?

Disconnect power and wipe the surface with a soft, dry cloth. Do not use liquids or cleaning agents.

USER MANUAL PI9 Phone Patch II ROLLS

Output Impedance: 10 K Ohms

Input Level: +15 dB max

Output Level: +5 dB max

Ringer Equivalence: 0.0A, 0.0B

Connections: 2; RJ11 phone jack,

2; RCA jacks

1: Tip-Ring-Sleeve 3.5mm jack

Size: 2.7" W x 1.45" H x 2.32" D

Weight: 1 lb.

Quick Start Guide

INTRODUCTION

Thank you for your purchase of the PI9 PhonePatch II. The PI9 takes a signal from a standard telephone jack and, via transformer isolation, connects to a pair of RCA jacks, or a stereo 1/8" (3.5mm) jack. The isolation keeps the output signal separate from the telephone line, and will not keep the line open unless the HOOK switch is in the ON positin as described later in the guide. Applications for the PI9 include broadcast, conference rooms, phone training, laptop presentations, or wherever a phone conversation needs to be recorded or heard over a PA system.

The PI9 also works for putting audio onto a phone line. However, you must ensure the signal level is no hotter than line level (+4 dB) or you will get distortion on the phone line.

WARRANTY

For information on the Rolls One Year Limited Warranty, and to register this product, visit our website at www.rolls.com

DESCRIPTION

INPUTS: 2 ea: Standard RJ11 phone jacks.

AUDIO LINE: Stereo RCA, 1/8" (3.5mm) jack

ON/MUTE switch: Connects or disconnects the Phone/Line jacks to the transformer and the Audio output. With the switch in (ON) the audio is active. When the switch is out (MUTE) the audio signal is muted.

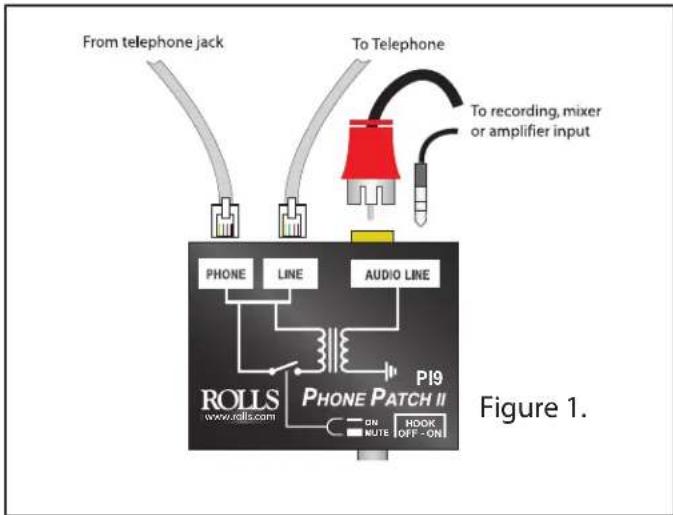

CONNECTION : Referto Figure 1.

Connect a standard telephone cable to an active telephone line, and to the PI9 Phone Input. To pass the signal on to another telephone, connect another standard telephone cable from the PI9 Line jack to a telephone.

Connect either a stereo RCA cable, or stereo 1/8" (3.5mm) cable to an AUDIO LINE output jack.

HOOK: OFF - ON

An option on the PI9 is the ability to select whether or not the unit will hold a line open. A line being "held open" acts like a telephone is off the hook. ON is for the line to be left open and OFF is when the phone is hung up.

The P19 is a passive device for connecting a phone line to an audio system or vice versa. Handy for phone interviews, broadcast, or laptop presentations with a remote phone signal.

- RCA and 1/8" (3.5mm) Inputs and Outputs - RJ11 Phone and Line jacks

PI9 PhonePatch II
