Reserve RSM1.2000D - Receiver Soundstream - Free user manual and instructions

Product Type	Car Audio Monoblock Amplifier
Brand	Soundstream
Model	Reserve RSM1.2000D
RMS Power @ 4 ohms	500W x 1
RMS Power @ 2 ohms	1000W x 1
RMS Power @ 1 ohm	2000W x 1
Frequency Response	10Hz - 250Hz
Signal-to-Noise Ratio	>100 dB
Input Sensitivity	0.2V - 6V
Low Pass Filter	40Hz - 250Hz, 12dB/octave
Subsonic Filter	10Hz - 40Hz, 12dB/octave
Bass Boost	0 - 12dB @ 45Hz
Phase Shift	0° / 180°
Speaker Impedance	1-4 ohms (stable at 1 ohm)
Input Connections	RCA (2 channels)
Output Connections	Speaker wire terminals (0-8 AWG)
Power Supply	12V DC (10-16V)
Fuse Rating	250A (ANL type)
Dimensions (W x L x H)	10.6 x 18.1 x 2.2 inches (270 x 460 x 56 mm)
Weight	12.4 lbs (5.6 kg)
Protection Features	Thermal, over-current, under-voltage, short circuit
Recommended Wire Gauge	Power: 0 AWG, Ground: 0 AWG, Remote: 18 AWG
Mounting	In-vehicle (dry, ventilated area)
Warranty	1 year limited warranty

Frequently Asked Questions - Reserve RSM1.2000D Soundstream

What is the recommended power wire gauge for the Soundstream Reserve RSM1.2000D?

Use 0 AWG for both power and ground connections to ensure sufficient current delivery. The remote turn-on wire should be 18 AWG.

Can the RSM1.2000D be bridged?

No, it is a monoblock amplifier designed to power a single subwoofer. Bridging is not applicable.

What is the minimum impedance load for this amplifier?

The amplifier is stable down to 1 ohm, delivering 2000W RMS. Avoid running below 1 ohm to prevent damage.

How do I set the gain correctly?

Set the head unit volume to about 75% of max, then adjust the gain until you hear distortion, then back off slightly. Use a multimeter for precise voltage matching.

What type of fuse does the RSM1.2000D require?

It requires a 250A ANL fuse (not included). Install it within 18 inches of the battery.

Does the amplifier have a subsonic filter?

Yes, it has a subsonic filter adjustable from 10Hz to 40Hz to protect your subwoofer from ultra-low frequencies.

What are the dimensions of the Soundstream Reserve RSM1.2000D?

The amplifier measures 10.6 x 18.1 x 2.2 inches (270 x 460 x 56 mm).”

Why is my amplifier going into protect mode?

Common causes include a short circuit, impedance too low, overheating, or under-voltage. Check wiring, speaker impedance, and ensure proper ventilation.

Can I use this amplifier with a 4 ohm subwoofer?

Yes, it will output 500W RMS at 4 ohms. You can also wire multiple subs to achieve 1 or 2 ohms.

What is the recommended wire gauge for the speaker output?

Use 8 AWG to 12 AWG speaker wire depending on power and distance. For high power, 8 AWG is preferred.

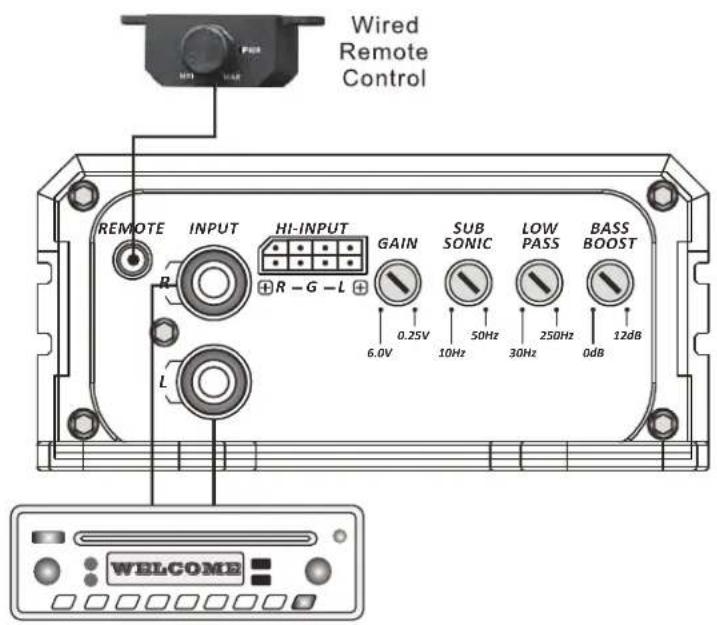

USER MANUAL Reserve RSM1.2000D Soundstream

Proper system planning is the best way to maximize your amplifier performance. By planning your installation carefully you can avoid situations where the performance of the reliability of your system is compromised. Your authorized dealer has been trained to maximize your system's sonic potential. Your dealer is a valuable resource in helping you with your system design and installation.

Speaker Requirements

Each channel of your amplifier can easily drive 4Ω speaker loads when used in the stereo mode. When a channel-pair is bridged, the recommended minimum load impedance is 3Ω for subwoofer use, and 4Ω for full range operation. Although operation with lower impedances is not likely to cause immediate damage to the internal circuitry, the unit will most likely overheat, causing the thermal protection circuitry to shut down the amplifier. When the chassis cools down, normal operation will resume. Continuing to operate the amplifier under these conditions is not recommended and will reduce its life expectancy.

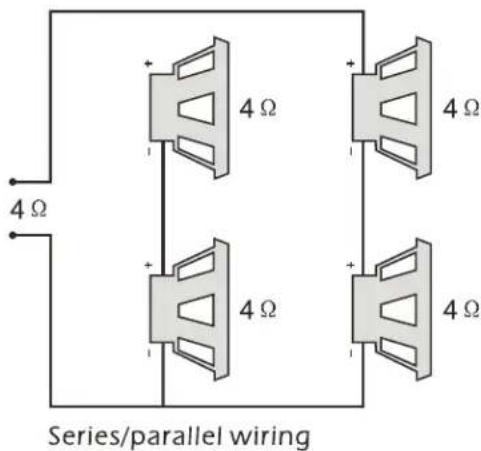

Most speakers designed for car audio operation are 4Ω impedance. Connecting two such speakers in parallel will result in a 2Ω impedance load as seen by the amplifier. Some subwoofer models feature a dual 4Ω voice coil design. Connecting these voice coils in parallel will result in a 2Ω nominal impedance, which is not recommended for use with bridged channels of your amplifier.

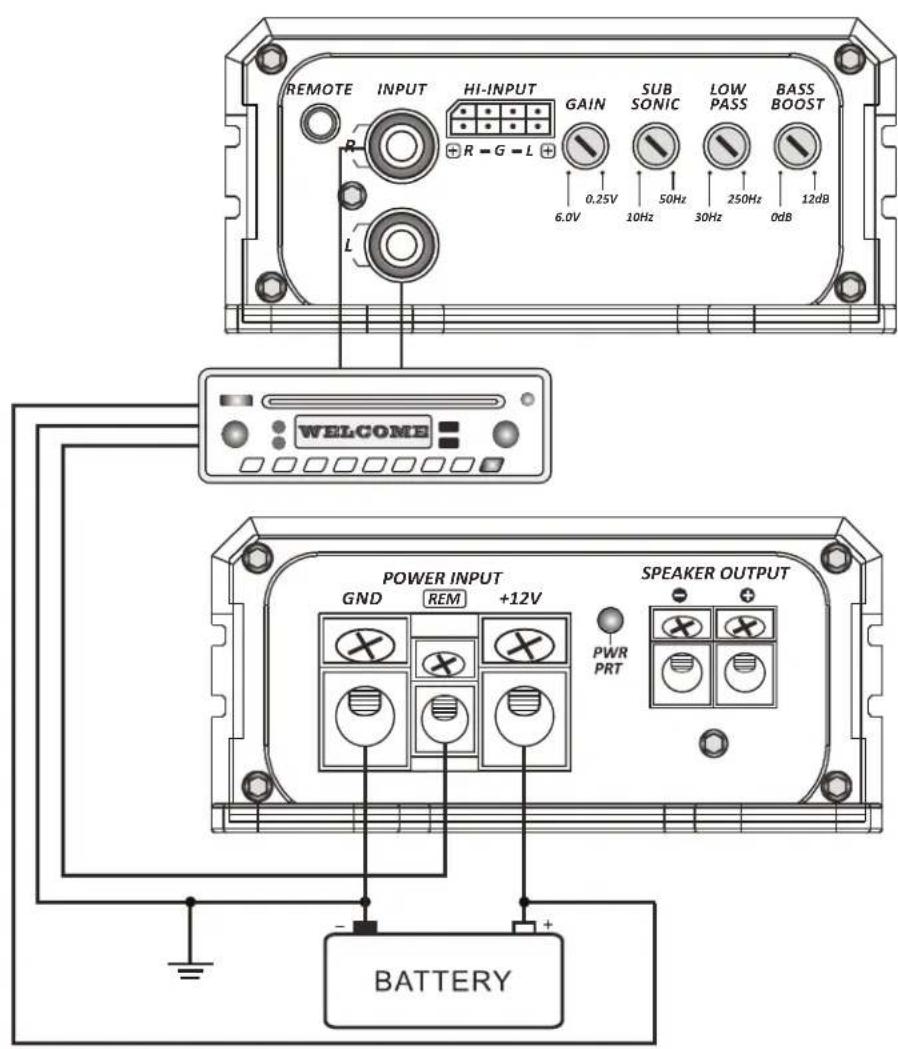

Power Connection Leads

Notes on the power supply

Connect the +12V power input lead only after all other leads have been connected. Be sure to connect the ground wire of the unit securely to a metal part of the car. A lose connection may cause a malfunction of the amplifier.

REMOTE: The unit is turned on by applying +12Volts to this terminal This terminal dose not draw heavy current like the two power terminal so a thinner connecting wire is acceptable. Standard 18 GAUGE is fine and the standard colour is yellow. If the radio is equipped with a power antenna control wire, it can drive this terminal. If the power antenna wire is already in use, you can still splice into it. With this method, the unit will turn on automatically with the radio. Use the power supply lead with a fuse attached whose value is the same as original fuse.

Place the fuse in the power supply lead as close as possible to the car battery. During a full power operation, Maximum current will run through the system. Therefore, Make sure the that the leads to be connected to the +12v and GND terminals of the unit respectively must be larger than 10-Gauge (AWG.10).

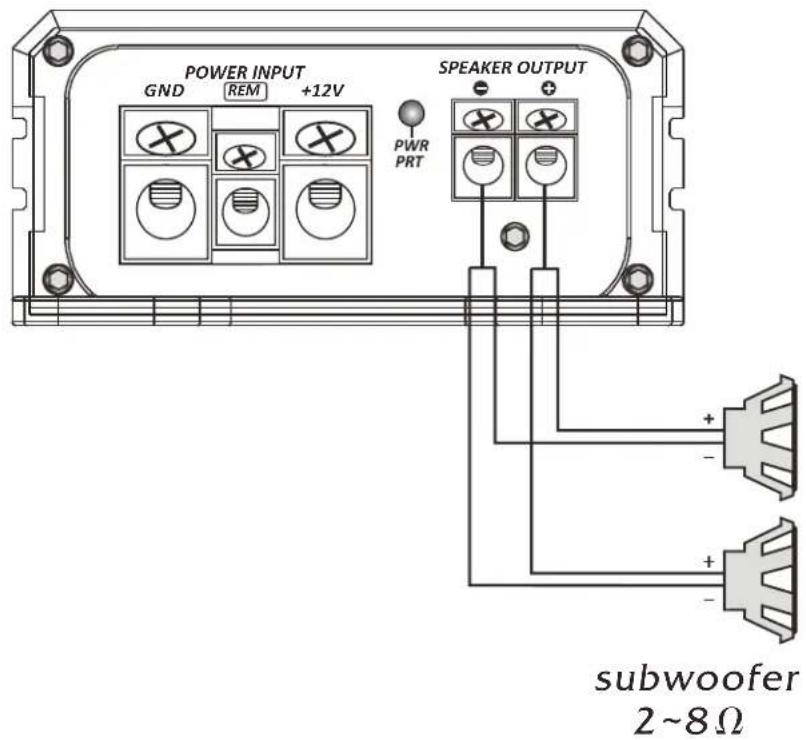

System 1 connection subwoofer

subwoofer 2\~8Ω

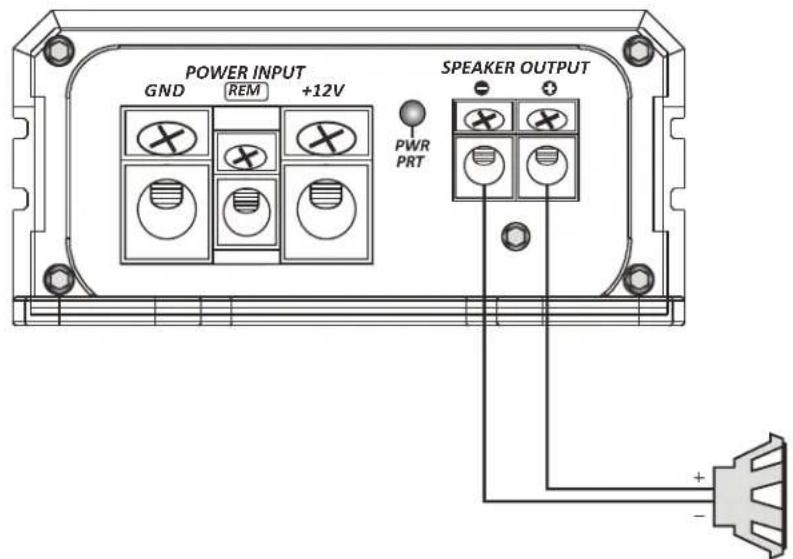

System 2 connection subwoofer

Trouble Shooting

Symptom no output	Possible Cause low or no remote turn-on input	Action to Take check remote turn-on voltage output at amplifier and correct as needed
	fuse blown	check power wire integrity and reversed polarity ,repair as needed and replace fuse
	power wires not connected	check power wire and ground connections and repair of replace as needed
	audio input not connected or no output from source	check input connections and signal integrity , repair or replace as needed
	speaker wires not connected	check speaker wires and repair or replace as needed
audio cycles on and off	speakers are blown	check system with known working speaker and repair or replace speakers as needed
	thermal protection engages when amplifier heatsink temperature exceeds 90°C	make sure there is proper ventilation for amplifier and improve ventilation as needed
	loose or poor audio input	check input connections and repair or replace as needed
distorted output	amplifier level sensitivity set too high; exceeding maximum output capability of amplifier	reset gain referring to the tuning section of the manual for detailed instructions
	impedance load to amplifier too low	check speaker impedance load if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance
	shorted speaker wires	check speaker wire connections and repair or replace as needed
	speaker not connected to amplifier properly	check speaker wiring and repair of replace as needed refer to the installation section of this manual for detailed instructions
Symptom	Possible Cause	Action to Take
distorted output (cont'd)	speakers are blown	check system with known working speakers and repair or replace as needed
poor bass response	speakers wired wrong polarity causing cancellation at low frequencies	check speaker polarity and repair as needed
	crossover set incorrectly	reset crossovers referring to the multi-cross crossover configuration section of this manual for detailed instructions
battery fuse blowing	impedance load to amplifier too low	check speaker impedance load, if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance
	short in power wire or incorrect power connections	check power and ground connections and repair as needed
	fuse used is smaller than recommended	replace with proper fuse size
	too much current being drawn	check speaker impedance load, if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance
	short in power wire or incorrect	check power and ground connections and repair as needed
amplifier fuse blowing	too much current being drawn	check speaker impedance load, if below 2Ω stereo or 4Ω mono rewire speakers to achieve a higher impedance and replace with recommended fuse size
	fuse used is smaller than recommended	check power and ground connections and repair as needed

Specifications

RSM1.2000D

360wx1@4-ohm Mono

480wx1@2-ohm Mono

600wx1@1-ohm Mono

2000w MAX Power

Variable 30-250Hz 12dB Low Pass Crossover

Variable 10-50Hz 12dB Subsonic Crossover

Variable 0-12dB 45Hz Bass Boost

Total Harmonic Distortion: 0.5%@4-ohm

Frequency Response: 10-250Hz

Signal-to-noise Ratio: 70dB

Input Sensitivity: 250mV-6V

Dimensions. 3.75"wx1.75"hx7.50"l

RSM1.4000D

600wx1@4-ohm Mono

850wx1@2-ohm Mono

1200wx1@1-ohm Mono

4000w MAX Power

Variable 30-250Hz 12dB Low Pass Crossover

Variable 10-50Hz 12dB Subsonic Crossover

Variable 0-12dB 45Hz Bass Boost

Total Harmonic Distortion: 0.5%@4-ohm

Frequency Response: 10-250Hz

Signal-to-noise Ratio: 70dB

Input Sensitivity: 250mV-6V

Dimensions. 3.75"wx1.75"hx9.25"l
