Product Type	Mono Car Audio Amplifier
Brand	Soundstream
Model	BXA1-5000D
Peak Power Output	5000 Watts
RMS Power Output (4Ω)	2500 Watts x 1
RMS Power Output (2Ω)	5000 Watts x 1
RMS Power Output (1Ω)	5000 Watts x 1
Number of Channels	1
Frequency Response	10 Hz - 250 Hz
Signal-to-Noise Ratio	>100 dB
Dimensions (L x W x H)	15.4 x 2.6 x 11.8 inches
Weight	15.4 lbs
Power Supply Voltage	12V DC (10-16V)
Input Sensitivity	200 mV - 6V
Low Pass Filter	Variable 40 Hz - 250 Hz
Subsonic Filter	Fixed 15 Hz
Bass Boost	0-18 dB at 45 Hz variable
Speaker Impedance	1 - 8 Ω stable
Fuse Rating	300A (external)
Protection Circuitry	Thermal, Overload, Short Circuit
Controls	Variable Gain, Bass Boost, LPF, Phase Switch (0°/180°)
Recommended Fuse	300A ANL fuse not included
Wiring Kit Required	0/1 AWG power and ground
Cooling	Convection cooled with heat sink fins
Removable Terminal Blocks	Yes
Compliance	CE, RoHS
Included Accessories	Remote bass knob, mounting screws, manual

Frequently Asked Questions - BXA1-5000D Soundstream

What is the power output of the BXA1-5000D?

The amplifier delivers up to 5000 watts peak and 2500 watts RMS at 4 ohms, with full power at 1 or 2 ohms.

What size power wire do I need?

Use 0/1 AWG power and ground wires for optimal performance. The amplifier requires an external 300A fuse.

What is the minimum speaker impedance?

The amplifier is stable down to 1 ohm nominal. It can handle 1-8 ohm loads.

Does it have a remote bass knob?

Yes, a remote bass level control is included for adjusting bass from the driver's seat.

What type of filter does it have?

It features a variable low-pass filter (40-250 Hz) and a fixed subsonic filter at 15 Hz.

Can I bridge this amplifier?

No, it's a mono amplifier designed for a single subwoofer or multiple subs wired in parallel.

What is the voltage requirement?

It operates on 12V DC systems (10-16V range). Do not exceed 16V.

How do I protect the amplifier?

Ensure proper wiring with a fuse, use the correct impedance, and allow adequate ventilation. The amplifier has built-in thermal, overload, and short circuit protection.

Is a wiring kit included?

No, a wiring kit is not included. You need to purchase a separate kit with 0/1 AWG cables and a 300A fuse.

What size is the amplifier?

Dimensions are approximately 15.4 x 2.6 x 11.8 inches and it weighs about 15.4 lbs.

USER MANUAL BXA1-5000D Soundstream

Check Power and Remote turn-on wire for voltage.

Make sure Ground wire is secure.

See your Authorize Sound Stream Dealer.

SOUND IN ONE CHANNEL ONLY

Reverse left and right speakers by unplugging the speaker connector, turning it over and plugging it back in.

SOUND IS NOW ON

OPPOSITE CHANNEL

Reverse RCA inputs

1

SOUND IS NOW ON

OPPOSITE CHANNEL

Reverse RCAs at head unit

|

SOUND IS NOW ON

OPPOSITE CHANNEL

Problem is in the head unit

or before the amplifier

SAME CHANNEL

Problem is in the speaker of

speaker wire of the silent channel

SAME CHANNEL

Problem is in the Amplifier, See your

local Authorized Dealer

SAME CHANNEL

Problem is in the RCA cables

PROTECTION CIRCUIT

Short Circuit Protection engaged: The amplifier will turn off and try to come back on immediately. The amplifier will cycle like this indefinitely, with "blips" of sound each time. If this is the case, check your speakers and wiring for low impedance and short circuits.

Thermal Protection engaged: The amplifier will turn off and several minutes later will come back on. In this case, ensure that there is nothing blocking the normal convective airflow of the amplifier. No obstruction should be within 2" of the amplifier on all sides.

NOTE: Low battery voltage will cause the amplifier to run warmer and possibly damage the amplifier.

Caution:

Please do not plug in or unplug RCA

plugs to the amplifier inputs while

the amplifier is turned on. Doing

so is potentially harmful to the amplifier

by allowing RF (radio frequencies)

into the amplifier, causing

instability during the brief period while

the RCA shield is not connected, and the

power is connected. Only plug in or unplug

RCA plugs with the amplifier off as

standard practice with all audio equipment.

SOUNDSTREAM®

T E C H N O L O G I E S

Owner's Manual and Installation Guide

BX-10-3500D

BXA1-5000D

BXA1-7500D

BXA1-10000D

CONGRATULATIONS!

You now own a SOUNDSTREAM BASS XTREME Amplifier, the product of an uncompromising design and engineering philosophy.

To maximize the performance of your system, we recommend that you thoroughly acquaint yourself with its capabilities and features. Please retain this manual and your sales receipt four future reference.

Soundstream amplifiers are the result of American innovation and the highest quality control standards. When properly installed, they will provide you with many years of listening pleasure. Should your amplifier ever need service or replacement due to theft, please record the following information which will help protect your investment.

Serial #

Dealer's Name.

Date of Purchase

Installation Shop

Installation Date

CAUTION!

Prolonged listening at extremely high levels may result in hearing loss. Even though your new Soundstream Bass Xtreme Amplifier sounds better then anything you've heard, exercise caution to prevent hearing damage.

SPECIFICATIONS:

MODELS	BX-10-3500D	BXA1-5000D	BXA1-7500D	BXA1-10000D
4-ohm Mono	550w x 1	700w x 1	1,000w x 1	1,400w x 1
2-ohm Mono	800w x 1	1,100w x 1	1,500w x 1	2,100w x 1
1-ohm Mono	1,150w x 1	1,650w x 1	2,500w x 1	3,300w x 1
MAX Power	3,500w	5,000w	7,5000w	10,000w
Variable Low Pass X-over	40-150Hz 12dB	40-150Hz 12dB	40-150Hz 12dB	40-150Hz 12dB
Variable Subsonic X-over	10-50Hz 12dB	10-50Hz 12dB	10-50Hz 12dB	10-50Hz 12dB
Phase Shift	180	180	180	180
THD	<0.3%	<0.3%	<0.3%	<0.3%
Freq. Response	15-500Hz	15-500Hz	15-500Hz	15-500Hz
Input Sensitivity	105dB	105dB	105dB	105dB
Dimensions: 7.25"w x 2.5"h x I	14.75" |	---	---	---
Dimensions: 8.125"w x 2.125"h x I	---	11.125" |	15.75" |	19.75" |

FEATURES

• Class D Monoblock Car Subwoofer Amplifier
• w/ BX-10 Bass Enhancing Equalizer Built-in
• Continuously Variable Low Pass Crossover 40-150Hz 12dB
• Continuously Variable Subsonic Crossover 10-50Hz 12dB
- Remote Subwoofer Level Control
• Continuously Variable Input Gain Control
• Nickel Plated RCA and Speaker Level Inputs
• Remote Turn-On/ Turn-Off Circuit
- Soft Turn-On Circuit
• Thermal and Speaker Short Protection Circuitry
• LED Power and Protection Indicators

PANELS LAYOUT:

BX-10-3500D, BXA1-5000D, BXA1-7500D, BXA1-10000D

FRONT PANEL

REAR PANEL

Electrical Wiring

All SOUNDSTREAM amplifiers are equipped with easy top access screw terminals. These terminals are nickel-plated in order to ensure excellent electrical contact and to resist corrosion.

When making electrical connections to the amplifier, please observe the that:

• Use at least 8 gauge or heavier wire for power and ground connections.
• Wire the amplifier directly to the car battery. Make sure there is circuit protection (Such as a fuse) on the positive power lead, within 18 inches of the battery.
• For the ground connection, use the shortest possible wire to a good chassis ground point.

Remote Subwoofer Level Control

The SOUNDSTREAM power amplifiers are equipped with a dashboard mount remote subwoofer level control. Run the supplied dashboard remote control from the front panel of your amplifier. By turning the level knob clockwise, you will increase the output of amplifier.

Fuses

Fuses protect both the amplifier and the electrical system of your vehicle from faulty conditions. If you must replace the fuse in your amplifier, use a fuse of exactly the same type and rating. A different type or rating may result in damage or cause a fire.

Mounting the Amplifier

Mark the location for the mounting screw holes by positioning the amplifier where you wish to install it and use a scribe (or one of the mounting screws) inserted in each mounting hole to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen.

Drill pilot holes in the mounting surface for the mounting screws and insert the mounting screws into these holes. Tighten them securely.

Note: Before beginning your installation, be sure to take note of any wires, lines or other devices in your vehicle which may be located behind any mounting surface.

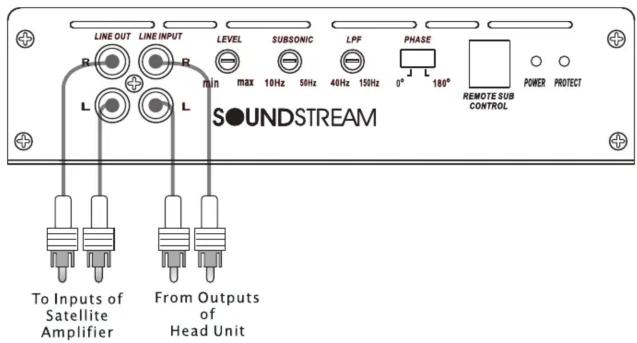

FRONT PANEL CONNECTIONS

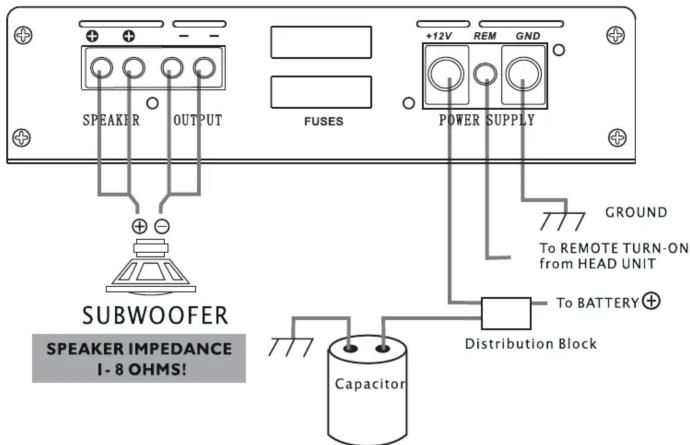

REAR PANEL CONNECTIONS

NOTE: The amplifier may receive its input signal from a head unit or signal processors subwoofer output.

For those who want the most out their car audio system, quality sound processing is a must. After some slight adjustments, your system can sound like it has been tuned by audio professionals, Bass Xtreme amplifiers offer similar sound processing options by including the functions of a Bas Equalizer. Commonly added in-line before subwoofer amplifiers. Bass Equalizers boost lower frequency harmonics that have been compressed or removed from today's music recordings. Dial-in the exact sound you want by tuning the frequency to boost, then increase the bandwidth range from that frequency to boost the harmonics around it. Unlock the best bass from any system with Bss Xtreme amplifiers.

1. WIDTH increases or decreases the band width range, or "Q" boosting frequencies near the "center frequency." Narrow Q focuses on harmonics immediately surrounding the center frequency. Wide Q unlock harmonics all around the center frequency.

2. SWEEP selects the frequency boosted by the equalizer. This is the "center frequency", which can be as low as 27Hz, or as high as 63Hz. Choosing this frequency depends on your taste in music.

3. OUTPUT VOLTAGE is the amount of boost level. Your instincts might be to choose 10V because why not, but hold on a second... More isn't necessarily better. In this case, more can be dangerous, potentially damaging your subwoofers.

4. MAX BASS INDICATOR lights above the equalizer controls is a visual representation of the boost level. Bright, continuous illumination indicates maximum bass enhancement levels have been reached. Remember, more isn't necessarily better ...

5. BASS ENHANCERING SYSTEM ON/OFF

1. DASH MOUNT CONTROL included with this amplifier can be mounted anywhere in the vehicle, but near the driver seat is recommended. The output level of the Bass Equalizer can be controlled, as well as the amplifiers gain level.
