M-10042 - Makeup Mirror HOMEDICS - Free user manual and instructions

Product type	Makeup mirror
Brand	Homedics
Model	M-10042
Dimensions (approx.)	8 x 6 x 12 inches
Weight	1.5 lbs
Power source	3 AA batteries (not included) or USB-C (adapter not included)
Lighting type	LED, adjustable brightness and color temperature (warm/cool)
Magnification options	1x and 5x magnification
Swivel mechanism	360-degree rotation
Base stability	Non-slip base
Material	ABS plastic and glass mirror
Care and cleaning	Wipe with a soft, damp cloth; avoid abrasive cleaners
Safety features	Auto shut-off after 30 minutes; low voltage operation
Spare parts availability	Replacement bulbs and stands available via Homedics support
Repairability	User-replaceable batteries; professional repair for LED failure
Warranty	1-year limited warranty

Frequently Asked Questions - M-10042 HOMEDICS

How do I change the batteries in my Homedics M-10042 mirror?

Locate the battery compartment on the back or base of the mirror. Slide open the cover, remove old batteries, and insert 3 new AA batteries following the polarity markings. For USB-C, simply connect a cable to a power source.

Can I use the mirror while charging via USB?

Yes, the mirror can be used while connected to USB power. The batteries will not charge; they only power the mirror when disconnected.

How do I adjust the light brightness and color?

Press and hold the power button to cycle through brightness levels. Tap quickly to switch between warm and cool light settings. Refer to the manual for exact button layout.

What is the best way to clean the mirror surface?

Use a soft, lint-free cloth slightly dampened with water or a gentle glass cleaner. Avoid spraying liquid directly onto the mirror. Wipe gently to avoid scratches.

Does the mirror have an auto shut-off feature?

Yes, the mirror automatically turns off after 30 minutes of inactivity to conserve battery life. You can press the power button to restart.

Can I mount this mirror on a wall?

The M-10042 is designed for tabletop use with a stable base. It does not include wall-mounting hardware. For wall mounting, consider a different model.

What should I do if the LED lights stop working?

First check battery installation or USB connection. If still not working, contact Homedics customer support for possible replacement under warranty. The LEDs are not user-replaceable.

Is the mirror easy to travel with?

The mirror is compact and lightweight, making it suitable for travel. However, it requires batteries or USB power, so pack accordingly. A protective pouch is recommended.

How do I switch between 1x and 5x magnification?

The mirror has two sides: one side provides 1x normal reflection, and the other side provides 5x magnification. Flip the mirror to the desired side.

Where can I find replacement parts or accessories?

Visit the official Homedics website or contact their customer service. Common accessories like stands, bulbs, and chargers may be available individually.

USER MANUAL M-10042 HOMEDICS

Homedics Consumer Relations

Service Center (Dept. 168

9000 Perniac Hall Commerce Township, MI 48390

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI

48390

1.800.466.3342

8:30 - 5 p.m. (EST) M-F

Correo electrónico:

[e-mail]

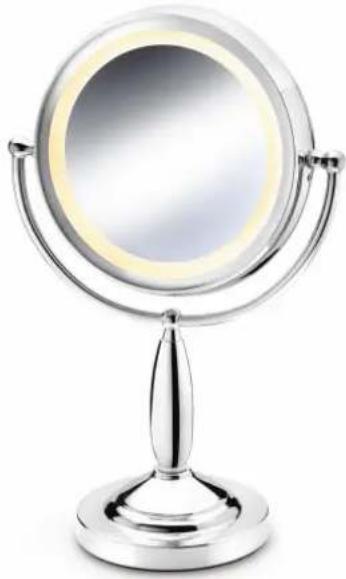

Modern mirror with metallic glass and stand, no visible text or symbols

Instruction Manual and

Warranty Information

M-10042

2year limit

limited warranty

HOMEDICS®

BODY BASICS

Give Your Face the Attention It Deserves

Thank you for purchasing the Makeup Artist™ Studio Mirror. This, like the entire line of HoMedics products, is built with high quality craftsmanship to ensure years of dependable use.

IMPORTANT SAFETY INSTRUCTIONS

THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE. WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

WARNING—TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS:

• Read all instructions before using.
• To protect against electrical hazards, do not use while bathing or in the shower.
• Close supervision is necessary when any appliance is used by or near children or by invalids.
• Unplug the appliance from outlet when not in use and before cleaning.
• Do not leave appliance unattended when it is plugged in.

• Keep cord away from heated surfaces.

• Do not operate this appliance with a damaged cord or plug or if the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to a HoMedics Service Center for examination, electrical or mechanical adjustment, or repair. No repairs should be attempted by the consumer.

• Use appliance only for intended use as described in this instruction book. The use of attachments not recommended or sold by HoMedics may cause hazards.
• Do not use outdoors or operate where aerosol (spray) products are being used, or where oxygen is being administered.
• Be sure mirror is not in a position where it can reflect sunlight; reflected sunlight can cause fire.
• Do not use on a soft surface such as a bed, where openings may be blocked.
• Turn off and unplug cord before replacing light bulbs.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, unplug it immediately. Do not reach into the water.
• Bulb gets HOT quickly. Touch only the base when turning on.
• DO NOT touch hot bulb, guard, or enclosure.
• Use on any 120 volt 60 hertz AC electric outlet (ordinary house current). Do not use it on any other electrical outlet.

SAVE THESE INSTRUCTIONS

SPECIAL WARNINGS

• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT place in or drop into water or other liquid.
• Use appliance on a sturdy or level surface

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Makeup Artist™ Studio Mirror Features

• Illumi-Touch™ Control – Select from 3 light settings with a gentle touch of the mirror base
• Variable Light Setting – Choose from day, office or evening illumination
• Incandescent Light – Soft glare-free & shadow-free viewing
• 7x/1x Magnification – Two-sided mirror with normal and 7x magnification
• 10" Diameter
  • Stable, non-slip base
• Fog free
  • Mirror Measures 12.25"L x 7.75"W x 19"H
• Chrome Finish
• Includes one replacement light bulb

Instructions for Use

1. Carefully remove all contents from the packaging and inspect the product to make sure all components have been received (Fig 1).
2. Remove protective plastic coating from mirror face.
3. Place mirror on an even surface.
4. Adjust the mirror to either normal or magnified viewing. To do so swivel the mirror to the viewing side of your preference while firmly holding down the base.
5. Plug unit into a 120V household outlet.

6. Select the light setting of your preference with the Illumi-Touch control feature. Touch the base of the mirror to activate:

7. Touch once for evening (Low)

8. Touch a second time for office (Medium)
9. Touch a third time for day (High)
10. Touch a fourth time to turn off

Note: The mirror casing may be hot after prolonged use. Be cautious when adjusting the mirror face.

To Replace Bulb:

Caution: Before replacing the bulb, always turn mirror off and allow it to cool for at least 5 minutes.

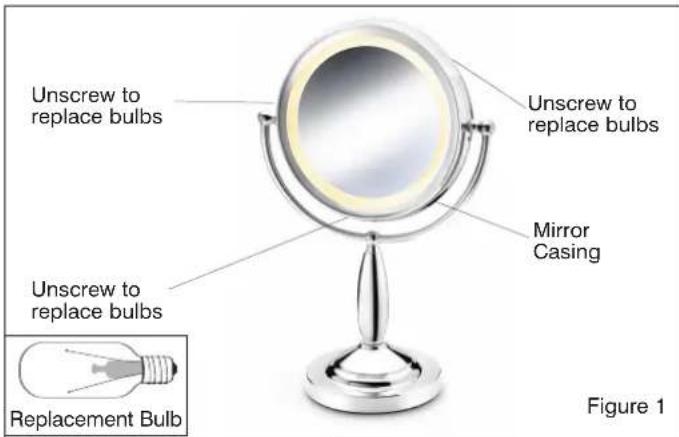

• Remove the three screws on the side of the mirror with a Philips screwdriver (Fig. 1).
  • Take off the mirror casing by gently pulling apart at the seam.
• Unscrew light bulb and replace with a new one. Light bulb is 120v, 25 Watt Type T. For your convenience, one replacement bulb is included
• Replace the mirror casing and line up the screw holes. Screw back into place.

Maintenance

To Store

You may leave the mirror on display or you can store it in its box or a cool, dry place.

• If you choose to store it, NEVER leave the mirror in a position where it can reflect direct sunlight, this may cause a fire.
• Allow to cool to room temperature before storing.
• Do not wrap cord around the mirror.

To Clean

Always unplug before cleaning the mirror. Never use liquids or abrasive cleaners to clean, use only a damp cloth with a mild cleanser.

• Clean the mirror with only a commercial glass cleaner or water. Do not submerge the mirror or use excessive water while cleaning.
• Do not plug mirror in until it is completely dry.

MAKEUP ARTIST™

studio mirror

Replacement Parts Order Form

PART	DESCRIPTION	QUANTITY	COST
PP-MRBLB25	Replacement bulbs 4 bulbs120v 25 WattType T	$5.00

SUBTOTAL

TAX-Michigan Residents add 6%

Total

Mail To:

HoMedics

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

Detach and return order form with check or money order payable to HoMedics, Inc. Please allow 2 to 4 weeks for delivery.

You can also phone in your order at 1-800-466-3342

Name

Address

( )

City

State

Zip Code

Phone Number

HOMEDICS® BODY BASICS™

Mail To:

HoMedics

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI

48390

1-800-466-3342

8:30 - 5 p.m. (EST) M-F

e-mail:

[e-mail]

Two year limited warranty

(Valid in USA only)

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of one year from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid to the following address.

HoMedics Consumer Relations

Service Center Dept. 168

Soho Palma. Natl Commerce Township, MI 49390

No COD's will be accepted.

HoMedics does not authorize anyone, including, but not limited to. Retailers, the subsequent consumer purchaser of the product from a retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse, accident the attachment of any unauthorized accessory, alteration to the product, improper installation, unauthorized repairs or modifications, improper use of electrical/power supply, loss of power, dropped product, malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance, transportation damage; theft, neglect, vandalism, or environmental conditions; loss of use during the period the product is at a repair facility on otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE FROM THE INFORMATION TO THE PROPERTY OF THE OFFICE. A HIGH ARROUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY NO RETURNS WILL BE GIVEN IT REFERENCE PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE. HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIFE OR REPAIR OR REPLACEMENT.

This warranty does not extent to the purchase of open-end, issued, repaired, repackaged and/or rescaled products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any end all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit: www.hemedics.com

HOMEDICS®

BODY BASICS™

MAKEUP ARTIST™

studio mirror

Close-up of a metallic mirror with dual rings and a stand (no text or symbols visible)

©2006 HoMedics, Inc. and its affiliated companies, all rights reserved. HoMedics ® is a registered trademark of HoMedics, Inc. and its affiliated companies. Illumi-Touch™ and Makeup Artist™ are trademarks of HoMedics, Inc. and its affiliated companies. All rights reserved. IB-M10042
