Product Type	Range Hood
Brand	Hoover
Model	HGM900X
Width	90 cm
Depth	50 cm
Height (min-max)	65-110 cm
Weight	Approx. 15 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	250 W
Maximum Suction Capacity	650 m³/h
Noise Level (max)	65 dB(A)
Number of Motors	1
Fan Speeds	3
Filter Type	Aluminum Grease Filter
Lighting	2 x 3 W LED
Controls	Touch Control Panel
Installation Type	Wall-mounted / Ducted or Recirculating
Energy Class	A+
Annual Energy Consumption	30 kWh
Grease Filter Cleaning	Dishwasher safe or hand wash
Charcoal Filter (optional)	For recirculation mode
Duct Diameter	150 mm
Warranty	2 years

Frequently Asked Questions - HGM900X HOOVER

How do I install the HGM900X range hood?

Installation must be done by a qualified professional. Ensure the hood is mounted at least 65 cm above the cooking surface for electric hobs and 75 cm for gas hobs. Use the provided template and fixings. For ducted mode, connect the exhaust pipe to an external vent. For recirculating mode, install charcoal filters.

How often should I clean the grease filters?

Clean the aluminum grease filters every 2-3 months or more frequently with heavy use. They can be washed in a dishwasher or by hand with mild detergent. Allow them to dry completely before reinserting.

What should I do if the hood is not extracting properly?

Check if the grease filters are clogged and clean them. Ensure the duct is not blocked or kinked. Verify that the charcoal filter (if used) is replaced every 6-12 months. Also, make sure the room is well-ventilated to avoid negative pressure.

Can I use the hood in recirculation mode?

Yes, the HGM900X can be used in recirculation mode. You need to install a charcoal filter (sold separately) to absorb odors. The recirculated air is returned to the kitchen.

How do I replace the LED lights?

The LED lights are built-in and should only be replaced by a qualified technician. Contact Hoover support or a certified repair service.

What is the noise level of this hood?

The noise level varies by speed: typically 55 dB at low speed and up to 65 dB at maximum speed. It is considered moderately quiet for a range hood.

How do I pair the remote control (if applicable)?

This model does not come with a remote control. It is operated via the touch control panel on the hood itself.

My hood displays an error code. What does it mean?

Error codes vary. Common ones: E1 indicates a motor fault, E2 a sensor issue. Refer to the user manual for specific codes. If the problem persists, contact customer support.

What is the warranty period for Hoover HGM900X?

The standard warranty is 2 years from the date of purchase. Register your product on the Hoover website to extend coverage or for details.

Can I wash the charcoal filter?

No, charcoal filters are not washable. They should be replaced every 6-12 months depending on usage. Order genuine Hoover replacement filters.

USER MANUAL HGM900X HOOVER

Line drawing of a kitchen air conditioner unit with ventilation slots and mounting brackets (no text or symbols)

ENGLISH (EN)......page 001

&E&2 (&=)...... page 0

6/29\$. (6.)...... page 0

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

These instructions shall also be available in an alternative format, e.g. on a website or on request from the user in a format such as a DVD.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
  ● Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
  ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  ● There is a fire risk if cleaning is not carried out in accordance with the instructions
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
  ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
  ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
  ● Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
  ● WARNING: Danger of fire: do not store items on the cooking surfaces.
  ●A steam cleaner is not to be used.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION(VENTOUTSIDE)

MOUNTINGOFTHEV-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, the outlet may be various according to different models and configuration.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

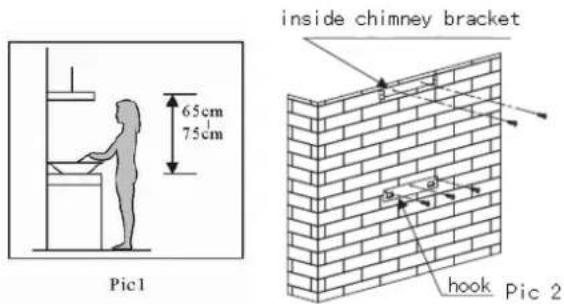

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.
2. Put the glass according to the lead direction and way on the cooker hood, and then use 4pcs screws + gasket + wall plugs to fix the glass.See pic 3.
3. Equip the v-flap and expansion pipe, fix the expansion pipe with cable tie. See pic 4. And then put the cooker hood on the hook. See pic 5.

Technical line drawing of a layered architectural structure with support pillars and structural elements (no text or symbols)

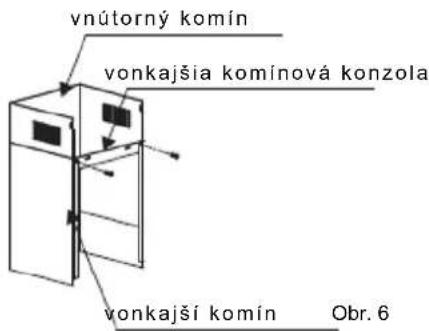

1. Install the outside chimney bracket onto the outside chimney with 2pcs ST4*8mm screws, here should be sure the inside chimney can be moved inside freely. See pic 6. After adjust the height, fix the body with 2 pcs ST4*30mm safety screws. Then put the two chimneys together onto the cooker hood body, also lead the expansion pipe outside of the room. See Pic 7.

1. Adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket by 2pcs ST4*8mm screws. See Pic 8.

Diagram of a brick wall-mounted device with downward arrows indicating airflow or movement, labeled 'Pic 7' (no text or symbols on the diagram itself)

Diagram of a brick wall with a vertical structure and upward arrows, labeled 'Pic 8' (no text or symbols on the diagram itself)

Note: The two safety vents are positioned on the back housing, with diameter of 6mm.

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120^irc ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
  •After the installation, make sure that the cooker hood is level to avoid grease collection at on end.
• Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Pure technical diagram of a chimney or duct with no text, numbers, or symbols

Right

Simple line drawing of a curved structure with a vertical dashed line and three dots at the base (no text or symbols)

Wrong

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Electronic button

There are five buttons: 🎨 (Low), 🎩 (Mid), 🎫 (High), 🌐 (Lamp), (Power). See picture above.

1. After connecting to power, indicator light will lit on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.

2. Power on: Press power button once, its indicator light will lit on, the hood works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and run by circle. The speed buttons and lamp button can work separately and not controlled by the power button. When a certain function button is pressed, the hood operates at that function status. Press (Power) button under any status, the co-ker hood will be switched off without any functions.

3. Press lamp button once; lights will be turned. Indicator light of lamp button and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this.

4. Press the ⚙ (High) button once, motor runs on high speed, the indicator light of high button ⚙ and power button ⏻ will beam. Press high button ⚙ again and the motor will stop. Indicator light of high button and power button will be off, and run by circle.

5. Press the ☑ (Mid) button once, motor runs on middle speed, the indicator light of middle button and power button will be a beam. Press middle button again and the motor will stop. Indicator light of middle button and power button will be off, and run by circle.

6. Press the 🔒 (low) button once, motor runs on low speed, the indicator light of low button 🔒 and power button 🔒 will be aem. Press low but ton 🔒 again and t he motor will stop. Indicator light of low button and power button will be off, and run by circle.

7. Low speed, mid speed and high speed cannot work at the same time. When hood is on high speed, press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will turn to middle speed immediately, and so on.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working Broken/Faulty globes		Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized figure holding a pig, with no text or symbols present.

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

Diagram of a door panel with a mesh grille and directional arrows indicating movement (no text or symbols)

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Before installing or replacing the carbon filters, please remove power to the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both side of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

LED LIGHTS:

• Switch the unit off and pull out the plug first.
• Wait until the light bulb is cooled down before replacement.

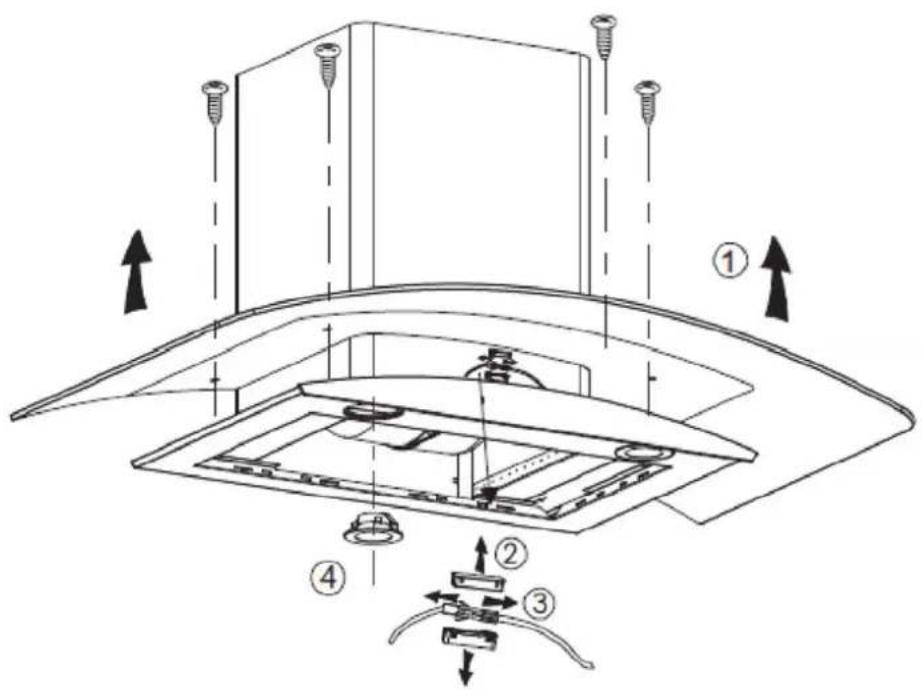

• Remove the front part with the aid of screwdriver.
• Pull out the LED light carefully and replace with the same type and rated LED light (2*2W LSD-B1 LED light)
• Replace the front part back to the unit with screwdriver.
  • ILCOS D code for this lamp is: DSR-1.5/65-S-64
• LED modules, self- ballasted - round lamp
• Max wattage: 2X1.5 W
• Voltage range: DC 12V
• Dimensions:

ENVIRONMENTAL PROTECTION:

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an

important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

+ * 0 □□□; □□

Line drawing of a kitchen air conditioner unit with ventilation grilles and a curved base (no text or symbols)

Obsah

Illustration of a laboratory setup with a lamp, beaker, and control panel (no text or symbols)

Black and white pictogram showing two stylized human figures without any text or symbols

INSTALACE

Two technical illustrations of a brick wall-mounted air duct system with directional arrows indicating airflow or movement (no text or symbols present)

Obr. 7 Obr. 8

Abstract line drawing of a stylized animal figure with wings and body, no text or symbols present

Line drawing of a circular mechanical component with mounting bracket (no text or symbols)

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Line drawing of a kitchen air conditioner unit with ventilation slots and mounting brackets (no text or symbols)

Obsah

Symbolic illustration of two stick figures crossed out of a circle, no text or symbols present

INŠTALÁCIA

Diagram of a mechanical setup with a cylindrical component mounted on a base, next to a brick wall (no text or symbols)

Diagram of a brick wall with a box and directional arrows indicating movement or force, labeled 'Obr. 7' at bottom (no text or symbols on diagram itself)

Diagram of a brick wall structure with a vertical support structure and directional arrows, labeled 'Obr. 8' (no text or symbols on the diagram itself)

Abstract line drawing of a stylized animal figure interacting with a wall (no text or symbols)

Diagram of a device with a panel and screen, showing internal components and directional arrows (no text or symbols)

Simple line drawing of a hat with a flag and a flag symbol, no text or labels present.

Simple line drawing of a hat and a ruler on a surface (no text or symbols)

Line drawing of a circular mechanical component with mounting bracket (no text or symbols)

OCHRANA ŽIVOTNÉHO PROSTREDIA
