ECHO M5 - Access Point SilverNet - Free user manual and instructions

Product Type	Access Point
Brand	SilverNet
Model	ECHO M5
Wi-Fi Standards	IEEE 802.11ac Wave 2, backward compatible with 802.11a/b/g/n
Frequency Bands	2.4 GHz and 5 GHz
Maximum Data Rate	Up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
Ethernet Ports	1x Gigabit Ethernet (10/100/1000) with PoE (Power over Ethernet) support
Power Consumption	12W (via PoE or 12V DC adapter)
Dimensions (W x D x H)	200 mm x 200 mm x 50 mm
Weight	500 g
Antennas	2x internal dual-band antennas
Mounting	Wall or ceiling mountable (bracket included)
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Security	WPA2-PSK, WPA3, 802.1X, MAC filtering
Management	Web interface, SNMP, support for cloud management
LED Indicators	Power, LAN, WiFi (2.4G & 5G)
Reset Button	Yes, factory reset via pinhole
Maintenance	Clean with dry cloth; do not use liquid cleaners
Spare Parts	Power adapter, mounting kit; contact support for replacements
Repairability	No user-serviceable parts; contact authorized service center
Included Accessories	Mounting bracket, screws, quick start guide

Frequently Asked Questions - ECHO M5 SilverNet

How do I reset the SilverNet ECHO M5 to factory defaults?

Locate the reset pinhole on the device. Use a paperclip or similar object to press and hold the reset button for 10 seconds until the LEDs blink. The device will reboot with factory settings.

What is the default IP address and login for the ECHO M5?

The default IP address is 192.168.1.1. Default username is admin and password is admin. It is recommended to change the password after first login.

Can the ECHO M5 be powered via PoE?

Yes, the ECHO M5 supports Power over Ethernet (PoE) 802.3af. Alternatively, you can use the included 12V DC power adapter.

How can I improve the WiFi range of my ECHO M5?

Place the access point in a central location, away from obstacles and electronic interference. Adjust the antennas (if external) or consider using a WiFi extender. Also, select a less congested channel in the web interface.

Does the ECHO M5 support guest networks?

Yes, you can create a separate guest SSID with its own security settings and bandwidth limits via the web management interface.

What security protocols does the ECHO M5 support?

It supports WPA2-PSK, WPA3, WPA-Enterprise (802.1X), and MAC address filtering for enhanced network security.

Can I mount the ECHO M5 on a wall or ceiling?

Yes, the device includes a mounting bracket and screws for wall or ceiling installation. Follow the template provided in the quick start guide.

How do I update the firmware on the ECHO M5?

Download the latest firmware from SilverNet's official website. Log in to the web interface, go to Administration > Firmware Upgrade, and upload the file. Do not power off during update.

What should I do if the ECHO M5 is not connecting to the internet?

Check Ethernet cable connections, ensure PoE or power adapter is working, and verify the uplink port is active. Login to the web interface and check the status page for IP address assignment.

Is the ECHO M5 compatible with mesh systems?

The ECHO M5 does not support mesh protocols by default. It is designed as a standalone access point, but can be used with a mesh controller if the network supports it.

USER MANUAL ECHO M5 SilverNet

White and black reflective lamp with a dome-shaped top (no text or symbols visible)

SIL ECHO M5

User Manual

Version 1.0 (21/11/2017)

SILVERNET

Radio frequency Interference Requirements

The operation of this device in the 5.15 GHz to 5.25 GHz frequency range is restricted to indoor use. FCC regulations require this product to be used indoors while operating at 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference. However, the operation of this device in the 5.25 GHz to 5.35 GHz frequency range is allowed for both indoor and outdoor use. High power radars are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can cause interference with and/or damage to this device.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. No guarantee exists that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the radio/TV receiving antenna.
• Increase the separation between the equipment and the radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the radio/TV receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Modifications made to the product, unless expressly approved by SilverNet Limited, could void the user's authority to operate the equipment.

RF Exposure Requirements

To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide.

SILVERNET

CE Statement

The Pro Range 95 is intended to be used by suitably trained individuals or organisations that are familiar with the requirements of the R&TTE directive. In particular the client must ensure that appropriate antennas and transmit power levels are selected to ensure that all power limits are met. Hereby, SilverNet Limited declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC. However, the use of the following warning symbol

Means that this equipment is subject to restrictions of use in certain countries and selection of the correct country of operation (country code) will ensure that the device operates only on the frequencies permissible within that country. It is also the operator's responsibility to ensure that appropriate licenses have been sought when operating on licensed frequencies, for example UK Band C, 5725-5850 MHz

Copyright Information

Copyright ©2020 all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of the supplier.

SILVERNET

Contents

Radio frequency Interference Requirements ....2

FCC Warning....2

RF Exposure Requirements 2

CE Statement....3

Copyright Information....3

1. Installing the radio ....6

1.1 Instructions before installing....6

1.2 Installation....7

1.3 Powering up the Radio....8

1.4 Accessing the radio....9

2. Software Configuration 10

2.1 Main Page....10

2.1.1 Status-WIRELESS.... 11

2.1.2 Status-NETWORK 12

2.1.3 Status-SYSTEM....14

2.1.4 Monitor-Throughput 15

2.1.5 Monitor-Interfaces.... 15

2.1.6 Monitor-ARP List....16

2.1.7 Monitor-STA Stats....16

2.1.8 Monitor-AP Stats....18

2.2 Radio Page 20

2.2.1 Basic Wireless Settings 20

2.2.2 Advanced Wireless Settings 23

2.2.3 WMM Settings 24

2.3 WIRELESS Page 25

2.3.1 AP/AP WDS Mode 25

2.3.2 Station/Station WDS Mode 27

SILVERNET

2.4 NETWORK....28

2.4.1 Bridge Mode 28
2.4.2 WISP/SOHO Router Mode 31

2.5 SERVICES....34

2.5.1 Web Server 34
2.5.2 NTP Client....35

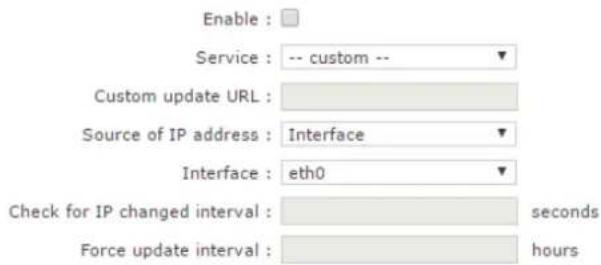

2.5.3 Dynamic DNS 35
2.5.4 Wireless Client Rate Limit 35

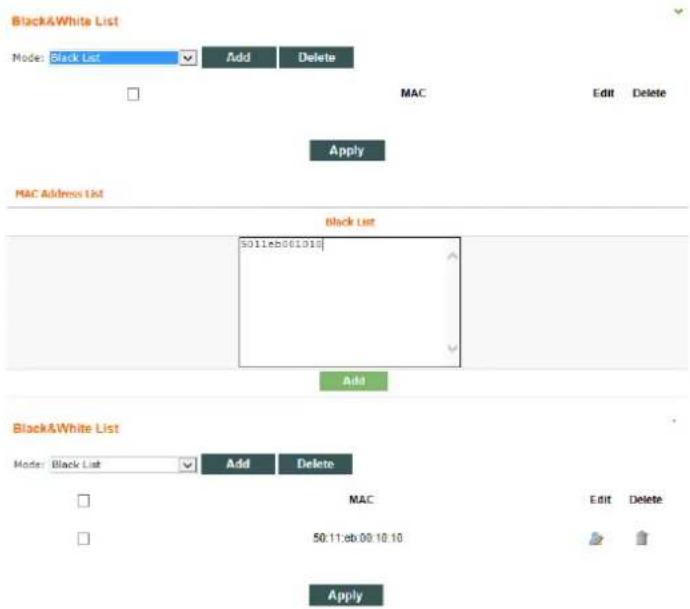

2.5.5 MAC Control....37

2.6 SYSTEM 38

2.6.1 Device....38
2.6.2 Ping Watchdog 39
2.6.3 System Accounts....39
2.6.4 Configuration Management 40
2.6.5 Firmware upgrade 41

2.7 Tools....42

2.7.1 Ping 42

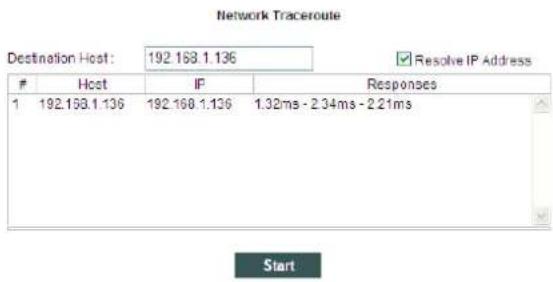

2.7.2 Traceroute 42
2.7.3 Site survey....43
2.7.4 Speed Test 43

Contact Us 44

Online Resources....44

SILVERNET

1. Installing the radio

1.1 Instructions before installing

You will need clear Line-Of-Sight for the units to work correctly. Locate a suitable mounting location with a pole between 30 and 60mm. Do not install anywhere that is illegal and please ensure you obey the local regulatory rules.

You may need the following tools,

Screw Driver

Wire stripper

Cable clamp

Diagonal plier

SILVERNET

1.2 Installation

1. Attach center Pillar to the Dome and the other end of the pillar to the Magnabase

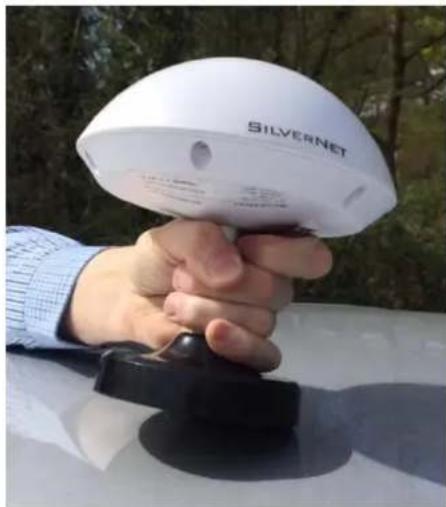

2. Place the Magnabase onto and metal face that is smooth, such as a Vehicle room
3. Route the network cable to the supplied PoE injector

Hand holding a silverernet-based sensor device outdoors, no visible text or symbols on the device itself

SilverNet car parked in front of a modern industrial building (no visible text or symbols on the car or background)

NOTE

If you are using our 5GHz radios these should be connected with a Cat 5 or Cat 6 outdoor shielded grade Ethernet cable.

SILVERNET

1.3 Powering up the Radio

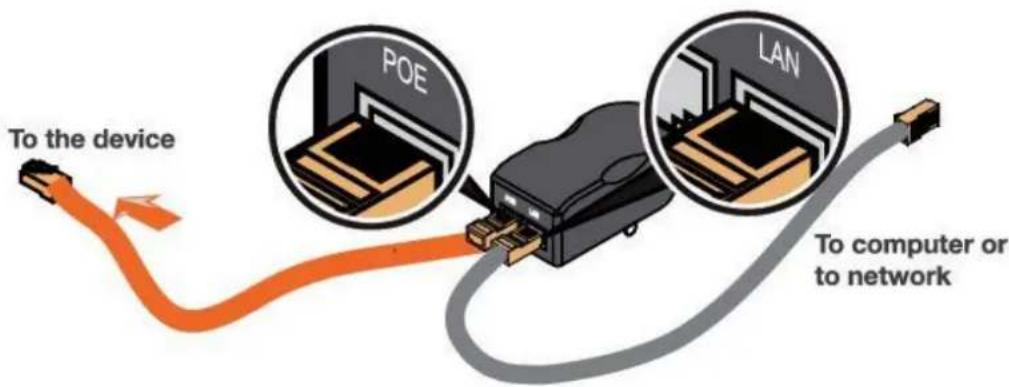

Connect the other end of the Ethernet cable to the PoE port of the provided PoE adapter. Then

connect the LAN port of the PoE adapter to a PC or switch using a separate Ethernet cable.

Finally, plug the PoE adapter into a standard electrical wall socket.

NOTE

If you use a PoE adapter which is not provided by SilverNet, we cannot provide warranty cover if the radio is damaged.

SILVERNET

1.4 Accessing the radio

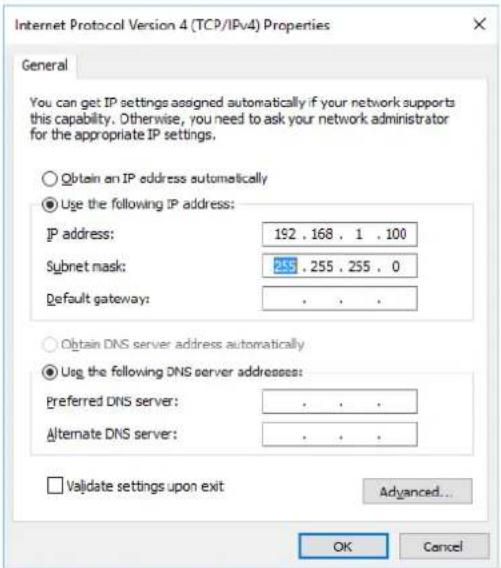

1. Configure the Ethernet adapter on your computer with a static IP address on the 192.168.1.x subnet (for example, IP address: 192.168.1.100 and subnet mask:

255.255.255.0

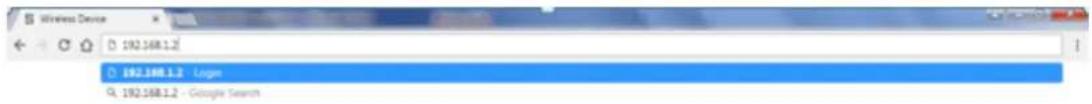

1. Launch your web browser and enter the default IP address of your device (192.168.1.1) in the address field.

1. Enter admin in the Username field and password in the Password field, and click Login.

SILVERNET

2. Software Configuration

2.1 Main Page

Status

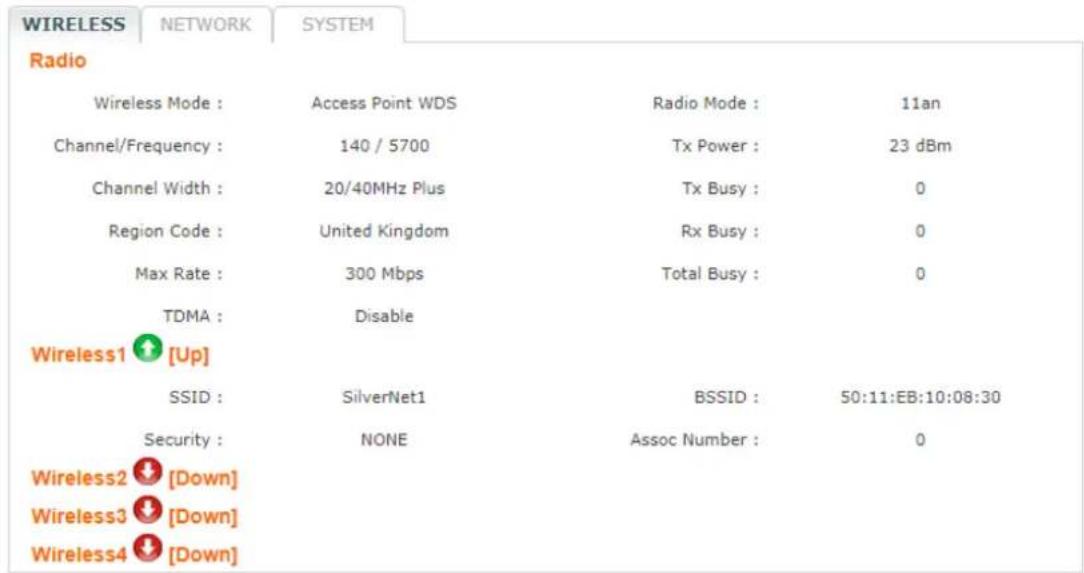

Figure 2-1 Wireless Status (Access Point WDS Mode)

Status

Figure 2-2 Wireless Status (Station Mode)

2.1.1 Status-WIRELESS

The Radio status window displays a summary of the link status information

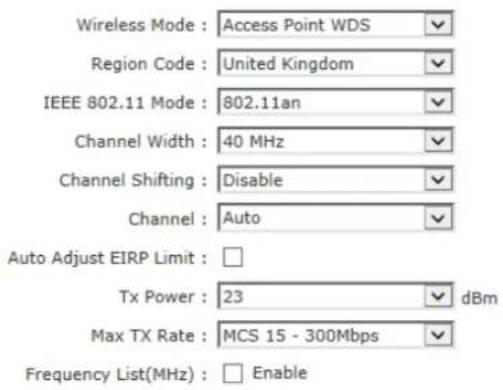

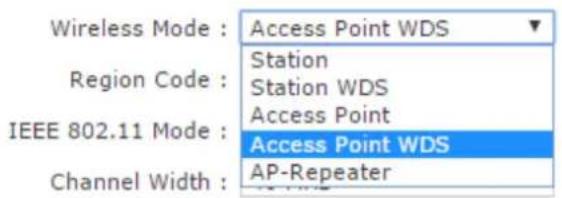

• Wireless mode: The mode the unit is currently set to, there are 4 modes the unit can run in. AP Mode, Station Mode, AP WDS Mode and Station WDS Mode.
• Radio mode: The working mode of the radio, which supports 802.11a/an which are two separate wireless transmission standards.
• Channel/Frequency: The radio's current working channel and working frequency.
• Channel Width: Displays the spectral width of the radio channel. A 40 MHz channel in a minimal interference environment will give up to twice the bandwidth of a 20 MHz channel.
• Country Code: set the country to which the unit is operating this will affect the channels you can use and the power of the radio in order to comply with the countries regulations.

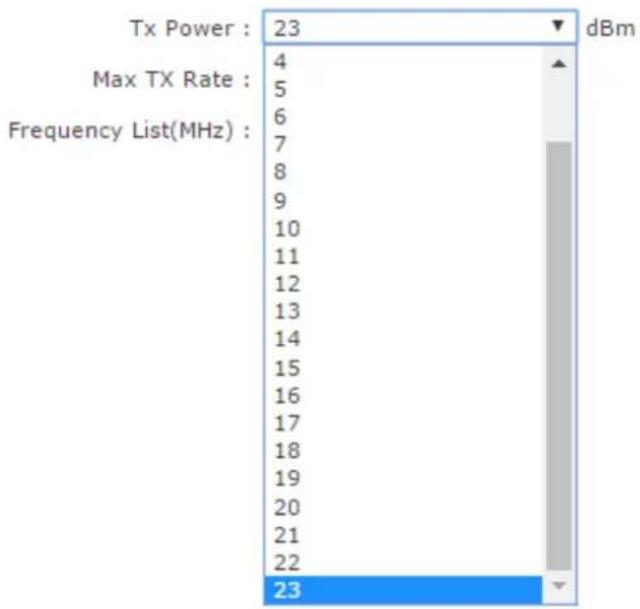

• Tx Power: The transmission power of the radio. The higher your transmission power the more signal strength you will receive on a link.

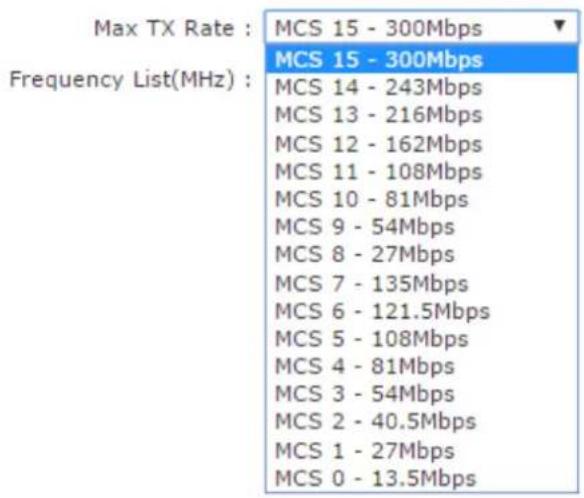

  Max Rate: The max transmission rate of the radio. Different channel bandwidth's have different max rates. A 40 MHz channel max rate is 300Mbps. The higher this rate on both ends of the link the better the transmission of the link.
• TDMA: The status of TDMA - 'enabled' or 'disabled'.

Station status box shows the unit working in Station Mode.

Station1 [Up]
SSID :	SilverNet1	BSSID :	50:11:EB:10:08:30
Security :	NONE	Signal Strength :	-49 dBm

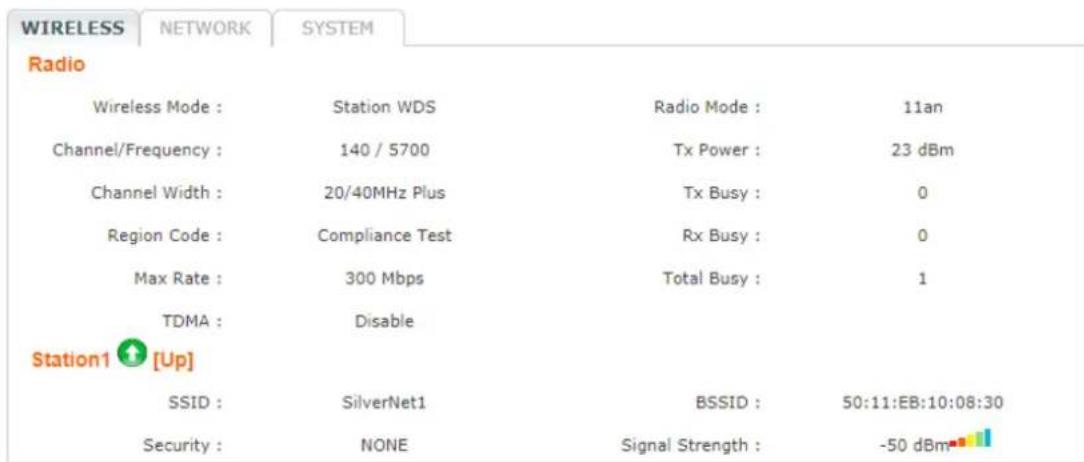

Figure 2-3 Wireless Station Status

• Up/Down: UP means the Station has successfully connected with the AP. Down means there is no link.
• SSID: This is the name of the wireless network the AP is transmitting

SILVERNET

• BSSID: BSSID is the Mac address of the remote device. Use this to lock stations to AP's.
• Signal Strength: When there is a link between an AP and Station there will be a signal strength value. This is displayed as a negative so the smaller the value the better the signal strength.
  ■ Security: This is the level of security on the device

Wireless 1 (2, 3 and 4 only appear in the AP). The device can support up to 4 wireless services 1 to 4.

Wireless1 [Up]
SSID :	Silvernetwireless	BSSID :	50:11:EB:10:08:30
Security :	WPA2AES	Assoc Number :	0
Wireless2 [Down]
Wireless3 [Down]
Wireless4 [Down]

Figure 2-4 Wireless Access Point Status

• Up/Down: UP states the interface is enabled and providing wireless services. Down means it is disabled.
• SSID: This is the name of the wireless network the AP is transmitting
  BSSID: BSSID is the Mac address of the remote device. Use this to lock stations to AP's.
• Signal Strength: When there is a link between an AP and Station there will be a signal strength value. This is displayed as a negative so the smaller the value the better the signal strength.
  ■ Security: This is the level of security on the device
• Assoc Number: current amount of stations connected to the AP.

2.1.2 Status-NETWORK

WIRELESS	NETWORK	SYSTEM
Network Mode
	Mode :	Bridge
	Management IP :	DHCP
LAN

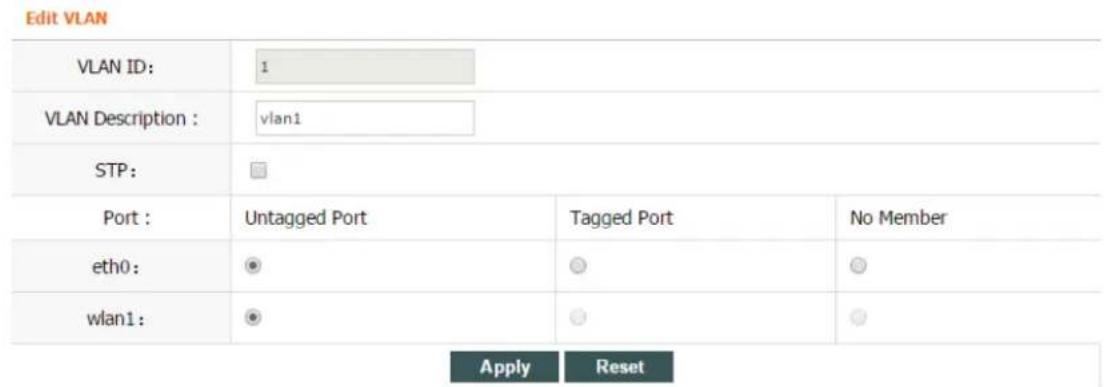

	Bridge Name :	vbr1	VLAN Description :	vlan1
	IP Mode :	DHCP	IP Address :	192.168.1.2
	Port List :	eth0 ath0	Bridge STP :	Disable
Ethernet Interface
	eth0 :	100Mbps/Full

SILVERNET

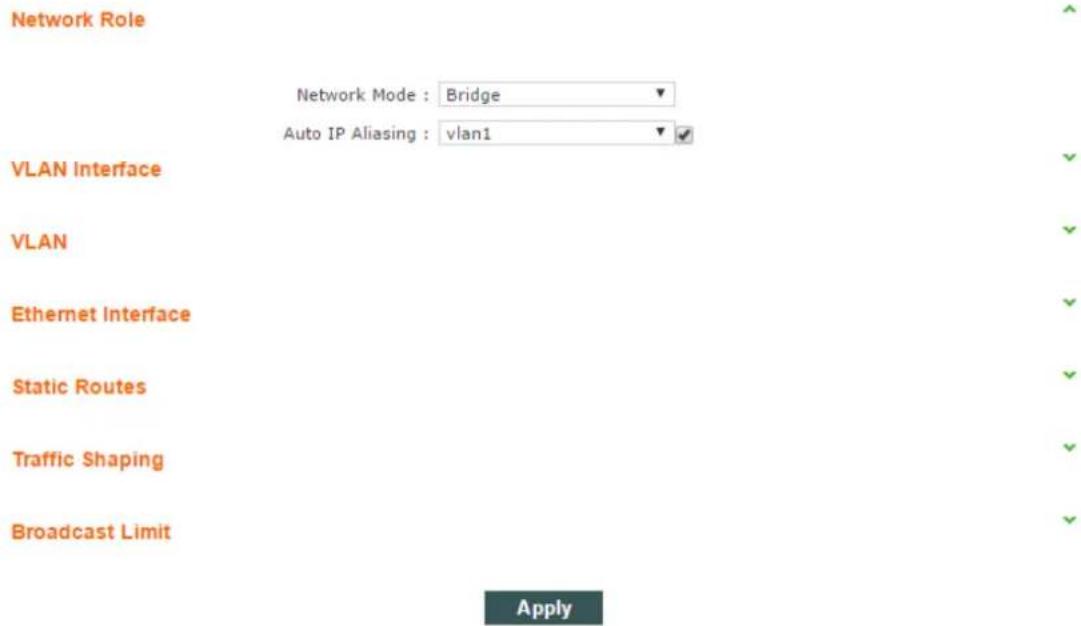

Figure 2-5 Network

Network Mode

- Mode: The device supports 3 different network modes Bridge Mode, SOHO Router Mode and WISP Mode.

A brief introduction to those modes:

1. Bridge Mode: Bridge Mode is a 2-layer network mode. The unit ETH port and wireless interface are working at layer-2.
2. SOHO Router Mode: This mode is typically a network router mode. The ETH port works as a WAN interface by connecting it to another network via an ETH port such as the Internet or personal network.

NOTE

The network mode can only be set as SOHO Router Mode when the unit is in AP Mode or AP WDS Mode.

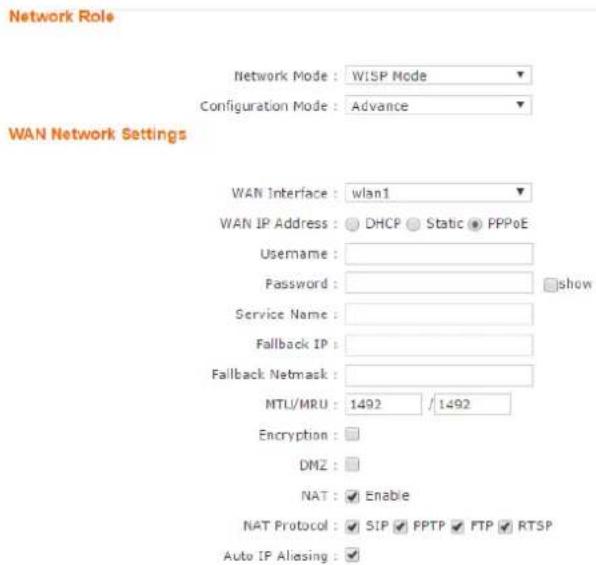

1. WISP Mode: This mode is opposite to the SOHO Router mode. It uses the wireless interface as a WAN to connect to a public network and the ETH port operates as a 2-layer access port.

NOTE

The network mode can only be set as WISP Mode when the unit is in Station Mode or Station WDS Mode.

LAN

• Bridge Name: The name of the bridge interface
  ■ VLAN Description: The name of the VLAN interface
  IP Mode : Will show as "static" or "DHCP" depending on the selected mode
  ■ IP address : The IP address of the device
• Port List: The active ports on the device
  ■ Bridge STP : Wil show as "Enabled" or "disabled"

2.1.3 Status-SYSTEM

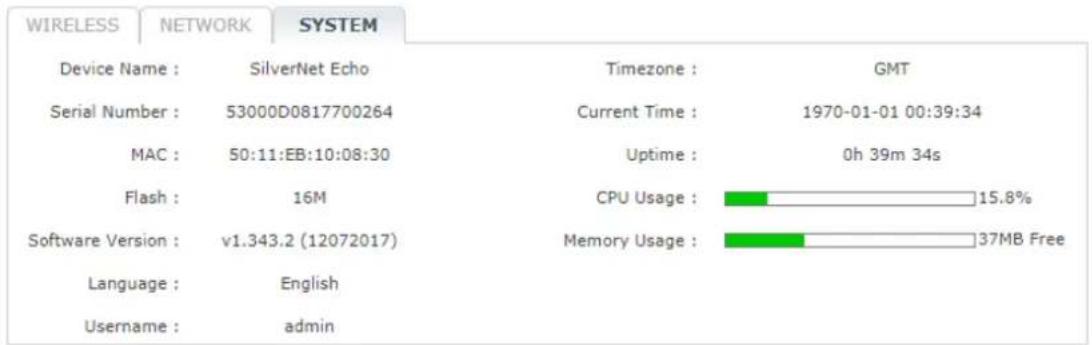

Figure 2-6 System label of status

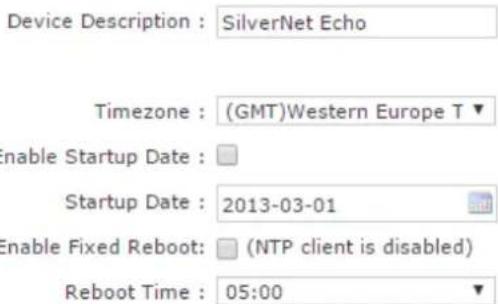

■ Device Name: Device name or model name
- Serial Number: Device serial NO.
- MAC: The MAC address of the device
- Flash: The flash memory of the device
- Software Version: Current software version
■ Language: Current web language
- Username: Username when login
- Time zone: Current time zone
- Current time: Current time
- Uptime: How long the device has been on for
- CPU Usage: Shows the CPU usage as a percentage
- Memory Usage: Shows the memory usage

2.1.4 Monitor-Throughput

Monitor
Throughput | Interfaces | ARP | STA Stats | Routes | Log

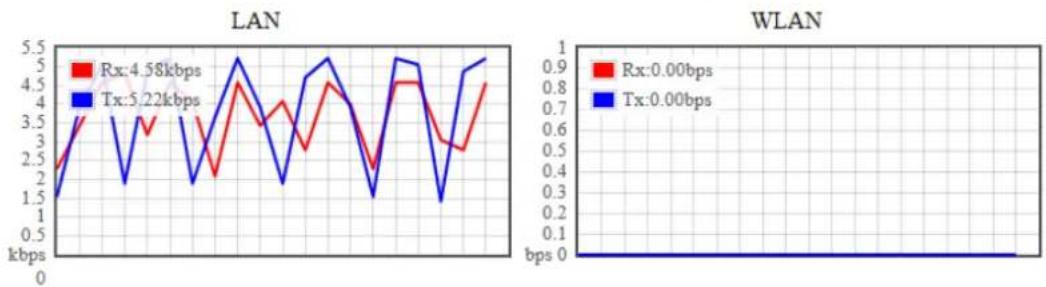

Figure 2-7 Monitor-Throughput

2.1.5 Monitor-Interfaces

Interfaces list counts the send-receive information of all interfaces.

Monitor
Throughput | Interfaces | ARP | STA Stats | Routes | Log

Interface	MAC	Tx Bytes	Tx Packets	Tx Error	Rx Bytes	Rx Packets	Rx Error
eth0	50:11:EB:10:08:30	2.08M	8031	0	1.36M	9602	0
vbr1	50:11:EB:10:08:30	2.03M	8032	0	1.17M	9602	0
ath0	50:11:EB:10:08:30	36.73K	198	0	0.00K	0	0

Figure 2-8 Monitor-Interfaces

• Interface : Listing all interfaces and interface names.
• MAC Address : Listing MAC address of all interfaces.
• Tx Bytes : Sending bytes number.
• Tx Packet : Sending packets.
• Tx Err : Sending error packet.
• Rx Bytes : Receiving bytes.
• Rx Packet: Receiving packet.
• Rx Err: Receiving error packet.

SILVERNET

2.1.6 Monitor-ARP List

ARP List counts the ARP information of device. As Figure 2-9.

Monitor

Throughput | Interfaces | ARP | STA Stats | Routes | Log

IP	MAC	Interface
192.168.1.143	E0:DB:55:AB:3D:B6	vbr1

Figure 2-9 Monitor-ARP List

IP: IP address of device.
■ MAC: MAC address corresponding to IP address of device.
- Interface: Interface of the IP address of device.
■ Type: Interface hardware type of learning ARP.

2.1.7 Monitor-STA Stats

When the unit is set to AP WDS Mode, the list shows STA info of current clients connected as Figure 2-10

Monitor

Throughput | Interfaces | ARP | STA Stats | Routes | Log

MAC	SSID	Device Name	Signal	Type	Distance	IP Address	Connect Time	Action
50:11:EB:10:07:D8	SilverNet1	SilverNet Echo	44	11an	150m	192.168.1.1	00 - 01:03:08	kick

Figure 2-10 Monitor-STA Stats

SILVERNET

MAC:	50:11:EB:10:07:D8	Connection Time:	00 - 01:04:00
AID:	1	Bandwidth:	20/40MHz Plus
SSID:	SilverNet1	PS Mode:	Active
Mode:	11an	Auth Mode:	OPEN
RSSI:	44	Encryption:	NONE
VLAN:	1	Listen Interval:	10
Distance	150m
Tx/Rx Packets:	13843/15614
Tx/Rx Bytes:	2.53M/3.28M
Tx/Rx Rate:	300 Mbps/300.1 Mbps
Tx/Rx Statistic:
Rates:	Tx:	Rx:
6.5	0	0
13.5	0	0
27	0	0
40.5	0	0
54	0	0
81	0	0
108	0	0
121.5	0	0
162	0	2
216	8	67
243	47	783
270	186	1018
300	13601	13708
	Add to Whitelist	Add to Blacklist	Kick	Refresh	Close

Figure 2-11 Station Details

• BSSID : BSSID of station.
• Mode: The mode of Station Radio.
  AID: connecting ID of Station.
  ■ Signal: AP detected RSSI of the Station.
• Assoc Time: Uptime of STA.

- Tx/Rx Packets: send-receive packets between AP and Station. Tx means sending packets, Rx means receiving packets.

- Tx/Rx Bytes: send-receive bytes between AP and STA. Tx means sending bytes, Rx means receiving bytes.

- Tx/Rx Rate: The rate the packets are sent-received between AP and Station.

2.1.8 Monitor-AP Stats

When the unit is in Station Mode, the list shows information of the connected AP, as Figure 2-12

Monitor

Throughput | Interfaces | ARP | AP Stats | Routes | Log

SSID:	SilverNet1	BSSID:	50:11:EB:10:08:30
Device Name:	SilverNet Echo	Distance:	150m
Mode:	11an	Channel:	140
RSSI:	52	Assoc Time:	00 - 01:05:32
Tx/Rx Packets:	15941/15111	Tx/Rx Bytes:	3.33M/2.90M
Tx/Rx Rate:	300 Mbps/300.1 Mbps	Security:	NONE

Figure 2-12 Monitor-AP Stats

• SSID: SSID name of the AP that the Station is connecting to.
  ■ BSSID: BSSID address of the AP that the Station is connecting to.
  ■ Device Name: The name of the device

■ Distance: The estimated distance

■ Mode: The Radio work mode of the AP that the Station is connecting to.
- Channel: The channel of the AP that the Station is connecting to.
■ Signal: station detected AP RSSI.

- RSSI: The Receive signal strength

- Assoc Time: Up time after the station has connected to AP.

- Tx/Rx Packets: send-receive packets between AP and Station. Tx means sending packets, Rx means receiving packets.

- Tx/Rx Bytes: send-receive bytes between AP and STA. Tx means sending bytes, Rx means receiving bytes.

- Tx/Rx Rate: The rate the packets are sent-received between AP and Station.

■ Security: The security mode the device is using

2.1.9 Monitor-Routes

Routes list shows current routing relationship of devices, as Figure 2-13.

Monitor
Throughput | Interfaces | ARP | STA Stats | Routes | Log

Destination	Netmask	Gateway	Interface
192.168.1.0	255.255.255.0	0.0.0.0	vbr1

Figure 2-13 Monitor-Routes

• Destination: Destination address
  ■ Netmask: The subnet mask
• Gateway: The address of the router on the network if applicable.
• Interface: The interface relating to this routing info.

SILVERNET

2.2 Radio Page

The Radio Page is mainly used for setting up the wireless LAN parameters

Basic Settings

Figure 2-17 Radio Page

2.2.1 Basic Wireless Settings

Figure 2-18 Wireless Mode

- Wireless Mode: The mode of the WLAN. There are 4 modes the unit can run in. AP Mode, Station Mode, AP WDS Mode and Station WDS Mode. The default is AP WDS Mode.

SILVERNET

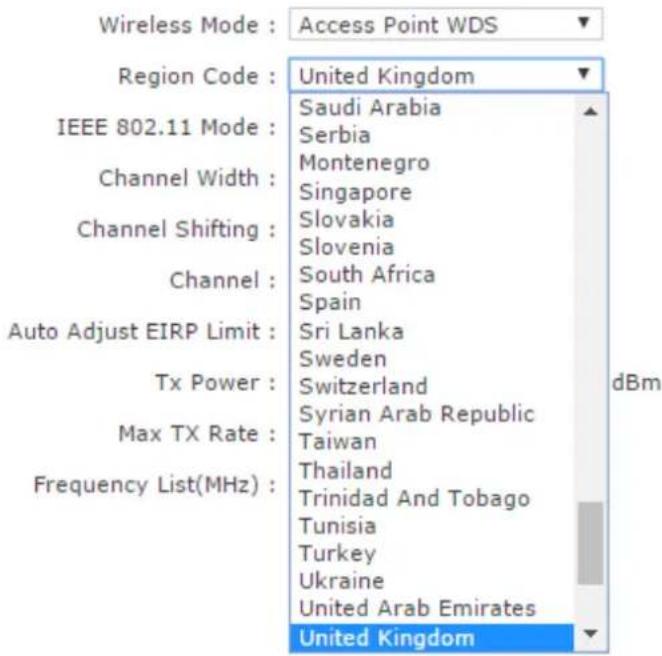

Figure 2-19 Country Code

■ Region code : The default set region code is United Kingdom.

Figure 2-20 IEEE 802.11 Mode

- IEEE 802.11 Mode: The default mode is 802.11an.

Figure 2-21 Channel Width

- Channel Width: The default mode is 20/40MHz.

SILVERNET

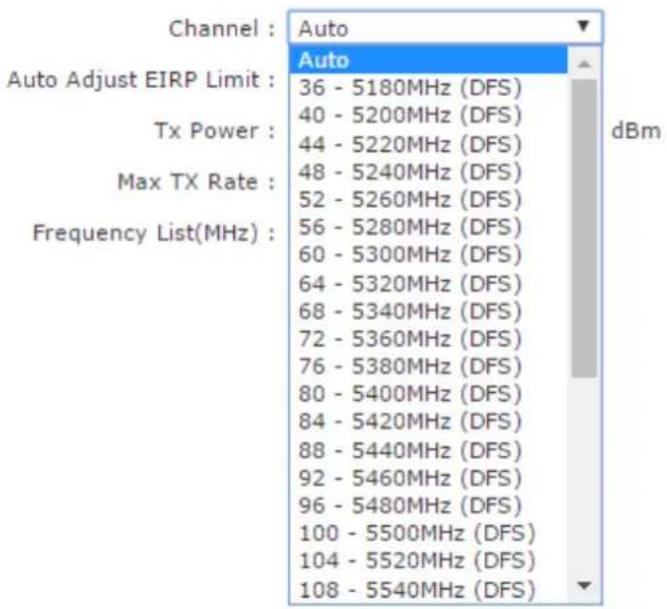

Figure 2-22 Channel

- Channel: This is set to auto channel by default.

Figure 2-23 Tx Power

- Tx Power : The default is 24dBm.

WARNING

Tx power has a different limit for each country. When changing the Tx power the user should follow the regulatory rules.

Transmission power can influence signal strength of the wireless communication. When it transmit distance is long, please increase transmit power intermittently to ensure stronger signal. signal strength.

SILVERNET

Figure 2-24 Max TX Rate

Max TX Rate : 2.4GHz/5GHz radio are 2X2 devices, the max support is MCS=15 which is also the default setting.

2.2.2 Advanced Wireless Settings

Advanced Settings

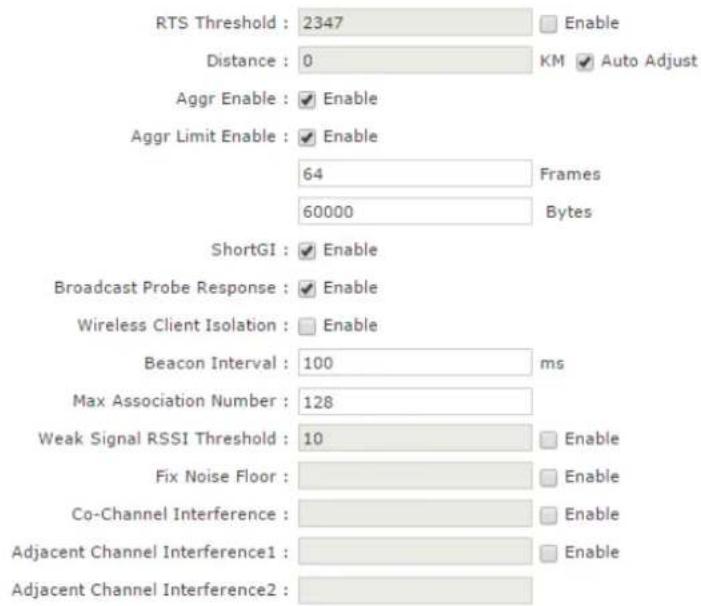

Figure 2-25 RTS Threshold

• RTS Threshold: The default setting for the RTS threshold is 2347. However this is not enabled by default.
• Fragmentation Threshold : This is not set by default

SILVERNET

• Distance: ACK _timeout is enabled by default you can set distance between AP and STA allowing the link to be more stable when it is transmitting in long distance, proper adjustment can improve throughput.
• Aggr Enable : Enable to start function of A-MPDU this is set to enable by default.
• Aggr limit Enable: used o set the sending limit function of A-MPDU, this is set to enable by default. The max Aggr packet is 64 units. The max Aggr length is 60000 bytes.

2.2.3 WMM Settings

WMM Settings

Enable

AP EDCA Parameter :

AC Type

AC_BK

AC_BE

AC_VI

AC_VO

AIFSN

ECWmin

ECWmax

TXOP Limit

No ACK

日

日

日

日

STA EDCA Parameter :

AC Type

AC_BK

AC_BE

AC_VI

AC_VO

AIFSN

ECWmin

ECWmax

TXOP Limit

Figure 2-26 WMM Settings

WMM Settings is used to set AP EDCA parameter and ST EDCA parameter.

• AC Type: Access control, the Enhance Distributed Channel Access (EDCA) has 4 AC types. Each AC type has a specific set of parameters that they follow.
• AIFSN : Arbitration Inter-Frame Space Number. This allows for AC types to be given higher or lower priority.
• ECWmin/max : CW means content window. This can be set according to the traffic expected in each AC. Wider window is set for higher traffic.
• TXOP Limit : TXOP means Tx opportunity. This is a bounded time window in which a unit can send as many frames as possible.
• No ACK: No ACK frames do not have to be acknowledged used to avoid retransmission.

SILVERNET

2.3 WIRELESS Page

The wireless Page is used to set up the WLAN of the AP or the relevant parameters for the Station allowing the station to connect to the AP

2.3.1 AP/AP WDS Mode

When the unit is set as AP/AP WDS Mode, Wireless Page is shown as Figure 3-12.

1. Wireless Settings

• Wireless1/2/3/4 : The unit can be ser with 4 wireless services, name correctly so they can be distinguished from one another.
• Wireless Availability : Weather the wireless service is enabled or disabled by default the status of Wireless1 is enabled, and Disabled for all others.
• Hide SSID : This can be disabled or enabled. This function allows the link to be hidden from all other wireless equipment. By default this is disabled.
• SSID: In this textbox is where you would type the SSID.

Wireless Settings

Wireless1

Wireless2

Wireless3

Wireless4

Wireless Availability : ● Enable Ⓞ Disabled

Figure 2-27 Wireless Page

SILVERNET

2. Wireless Security

- Security: This is where the security settings of the link can be changed the default setting is WPA2 PSK. WEP security type, as shown Figure 2-27.

Wireless Security

Figure 2-28 WEP Security Type

• Authentication Type : Set authentication method, the default is set to open.
  ■ WEP Key Length : Set WEP key length, the default is 64 bit.
  ■ Key Type : Set key type, the default is ASCII type.
  ■ WEP Key : Enter WEP key.
  Key Index : Choose key index, the default is 1.

WPA/WPA2 security type, as shown Figure 2-28.

Wireless Security

Figure 2-29 WPA security type

Wireless Security

Figure 2-30 WPA2 security type

WPA Authentication: Set WPA/WPA2 authentication method
WPA Preshard Key : Set PSK key of WPA/WPA2.

2.3.2 Station/Station WDS Mode

Wireless settings when the unit is set as Station/Station WDS Mode, Wireless is shown as Figure 2-30.

Wireless Settings

Figure 2-31 Wireless Setting Page

1. Wireless Settings

• SSID: Enter the same SSID as you have in the AP. IF you just enter the SSID and do not lock to AP MAC the station will connect to the strongest signal of the same SSID.
• Lock to AP MAC: Here you will enter the Mac of the partner radio making the radios have to meet two conditions before they connect.
• Scan: The scan button is used to scan for SSID's and available channels, as Figure 2-31.

Scan List :

Note: Site Survey can only scan the channel/frequency supported by current region code.

MAC Address	SSID	Device Name	Auth_mode	Encryption	Signal / Noise, dBm	Frequency, GHz	Channel
1. 50:11:EB:10:08:30	SilverNet1	SilverNet Echo			-45 / -95	5.7	140	Lock to AP
2. AC:84:C9:A6:88:CD	BTHub6-WFZC		WPA2 WPS	CCMP	-88 / -95	5.18	36	Lock to AP
			Scan

Figure 2-32 Scan List

■ MAC Address: The BSSID address of the wireless service.
- SSID: The BSSID name of the wireless service, also called ESSID.
- Auth_mode: Authentication method of the wireless service.
■ Encryption: The encryption type of the wireless service.

- Signal/Noise: Ssignal strength of the wireless service.

- Frequency : The frequency of the wireless service.

- Channel: The channel of the wireless service.

- Lock to AP: If this button is pressed the unit would lock to the BSSID of this wireless service.

2. Wireless Security

The unit would automatically choose the right encryption type you would need to manually go and ECHO MANUAL-M5 v1.0 Page 27 of 44

SILVERNET

input the pre shared key to establish connection.

2.4 NETWORK

NETWORK Page is used for setting up the relevant parameters of the network mode. The unit supports

Bridge Mode, SOHO Router Mode and WISP Mode.

SOHO Router Mode and WISP Mode have the same settings page; here is introduction about Bridge

Mode and WISP Mode.

2.4.1 Bridge Mode

Setting of Bridge Mode is shown as Figure 2-32.

Figure 2-33 Bridge Mode

1. Network Role

■ Network Mode: set current network mode.
- Auto IP Aliasing: When this is enable the unit will be recoverable by the IP address set up in whichever Vlan interface the user inputs into the drop down menu

2. VLAN

- ID: The added VLAN ID.

SILVERNET

■ Describe: The description of a VLAN.
- Untagged Port: Untagged ports of this VLAN.
- Tagged Port: Tagged ports of this VLAN.
- Edit: Edit corresponding VLAN
- Delete: Delete corresponding VLAN.

3. VLAN Interface

ID: VLAN ID.
- Interface: corresponding VLAN interface of VLAN ID.
■ Mode: Access of the IP of the corresponding VLAN interface.
IP/ Mask: IP address and netmask of corresponding VLAN interface.
- Gateway: Gateway of corresponding VLAN interface.
- DHCP: Open DHCP server function of corresponding VLAN interface.
- MTU: MTU of corresponding VLAN interface.
- Edit: Edit corresponding VLAN interface.

Figure 2-34 Edit VLAN

• VLAN Description: edit the description of the VLAN
• Port: When set to untagged all traffic can flow through the port tagged and untagged. When set to tagged only traffic with the corresponding Vlan ID can pass through the port.

Edit VLAN DHCP Server Not Connected.

IP :	Static DHCP None
IP Address :	192.168.1.2	Primary DNS :
Netmask :	255.255.255.0	Secondary DNS :
Gateway IP :
MTU:	1500
DHCP Server:

Figure 2-35 Edit VLAN Interface

IP Address: Set static IP address.
■ Netmask: Set netmask of static IP address.
- Gateway IP: Set static gateway address.
■ Primary DNS IP: Set static main DNS address.
■ Secondary DNS IP: Set static backup DNS address.
MTU: Set MTU, the default is 1500 bytes.
- IP Start: Set start IP address of DHCP server
IP End: Set end IP address of DHCP server
- Netmask: Set netmask of DHCP server
- Lease Time: Set lease time of DHCP server

2.4.2 WISP/SOHO Router Mode

WISP/SOHO Router Mode is shown as Figure 2-35.

Figure 2-36 Setting Page

1. Network Role

■ Network Mode: Used to set network mode.

2. WAN Network Settings

• WAN IP Address: The WAN IP address can be obtained in three different ways, Static, DHCP and PPPoE negotiation. WISP Mode uses PPPoE to obtain wan IP address
• Username: Set PPPoE connection username.
• Password: Set PPPoE connection password.
  ■ Service Name: Set PPPoE connection service name.
• Fallback IP: Set fallback IP address after PPPoE negotiation failed.
• Fallback Netmask: Set fallback netmask of IP address after PPPoE negotiation failed.
  MTU/MRU: Set MTU and MRU PPPoE negotiation.
• Encryption: Set MPPE Agreement is enabled when PPPoE negotiation is using Microsoft Point-to-Point Encryption Agreement.
  NAT: Set NAT service to "enabled" or "disabled" with the checkbox.
  DMZ: Set DMZ service of "enabled" or "disabled" with the checkbox
  NAT Protocol: Device supports the following NAT services of SIP, RSTP, FTP and PPTP.

SILVERNET

Static Routes

Enabled

Target Network IP

Netmask

Gateway IP

Comment

Action

Add

Figure 2-38 Static Routes

Static Routes is one kind of special routes, manually configured by the administrator.

• Enable: Set the static routes service to enable or disabled.
• Target Network IP: Set the target network IP address.
• Netmask: set the netmask.
• Gateway IP: Set the gateway IP.
• Comment: Comment can be added for corresponding static routes.
  ■ Action: Add, delete, and edit static routes.

Port Forwarding

Enabled

Private IP

Port

Type

Source IP/mask

Public IP/mask

Public Port

Comment

Action

Add

Figure 2-39 Port Forwarding

Port Forwarding comes into effect when network mode is SOHO Router/WISP.

• Enable: Set the port forwarding to enable or disabled.
• Private IP: Set the forwarded intranet host IP address.
• Private Port: Set the forwarded intranet host protocol a port number.
• Type: Set the forwarded intranet host protocol to either TCP or UDP.
• Source IP/Mask: Set the visiting host source IP and mask.
• Public IP/Mask: Set the forwarded extranet host IP and mask.
  ■ Public Port: Set the extranet port for intranet host forwarding.
• Comment: Add a comment for corresponding forwarding.
  ■ Action: Add, delete, and edit corresponding forwarding.

SILVERNET

Traffic Shaping

No DHCP Client.

Figure 2-40 Traffic Shaping

Traffic Shaping is used to limit ingress and egress bandwidth on the Ethernet port and the wireless interface.

• Enable: set traffic shaping service to enable or disabled for the corresponding interface.
• Ingress: ingress traffic is traffic on the ingressing interface.
• Egress: egress traffic is traffic on the forwarding interface.
• Rate,kbit/s: Set limited max rate.
• Burst,kBytes: Set burst byte length.
  ■ Action: Add, delete, and edit corresponding rules.

SILVERNET

2.5 SERVICES

Services Page is used for setting safe access, access management and so on, as Figure 2-40.

Web Server

NTP Client

Dynamic DNS

Wireless Client Rate Limit

Black&White List

Apply

Figure 2-41 Services

2.5.1 Web Server

Web Server is used to set server port and session timeout of web server.

Web Server

Figure 2-42 Web Server

• Server Port: Set server port of web service, the default is 80.
• Session Timeout: Set web session timeout, the default is 15 minutes.

SILVERNET

2.5.2 NTP Client

NTP means Network Time Protocol. NTP can set the time as the same on all units.

NTP Client

Figure 2-44 NTP Client

• NTP Client: Set NTP Client service as enable or disabled, the default is set to disabled.
  ■ NTP Server: Set IP address or domain name of NTP Server.

2.5.3 Dynamic DNS

Dynamic DNS

2.5.4 Wireless Client Rate Limit

Wireless Client Rate Limit

Disabled All Clients Classified Clients

All Clients:

CIR(Outbound): 0

CIR(Inbound): 0

CIR: Committed Information Rate(kbps)

Figure 2-46 Client Rate Limit-All Clients

• CIR: CIR means Committed Information Rate in other words bandwidth rate limit, kbps is the unit of measure.
• Outbound: Set the outbound rate limit value this is the limited rate of Transmitting.
• Inbound: Set the inbound speed limit value this is the limited rate of the receiving RF.

SILVERNET

Wireless Client Rate Limit

Disabled All Clients Classified Clients

11n Clients:

CIR(Outbound): 0

CIR(Inbound): 0

11a/11g Clients:

CIR(Outbound): 0

CIR(Inbound): 0

11b Clients:

CIR(Outbound): 0

CIR(Inbound): 0

CIR: Committed Information Rate(kbps)

Figure 2-47 Client Rate Limit-Classified Clients

■ 11n Clients: Set the inbound and outbound rate limit of 802.11n clients.
■ 11a/11g Clients: Set the inbound and outbound rate limit of 802.11a/802.11g clients.
■ 11b Clients: Set the inbound and outbound rate limit of 802.11b clients.

SILVERNET

2.5.5 MAC Control

MAC Control means to restrict Internet access by computer MAC address, and manage access and visit of users by supporting blacklist or white list. Don't open MAC control in the case of the default, that is to say, all computers can visit Internet without limit, as Figure 2-51.

Figure 2-52 MAC Control

• Mode: This can be set to either Blacklist or Whitelist, this will deny or allow specific MAC addresses.
  • Mac Address List: Input MAC address, Add.

2.6 SYSTEM

System Page is mainly used for settings relating to device management, as Figure 2-49.

Figure 2-53 System Page

2.6.1 Device

Device

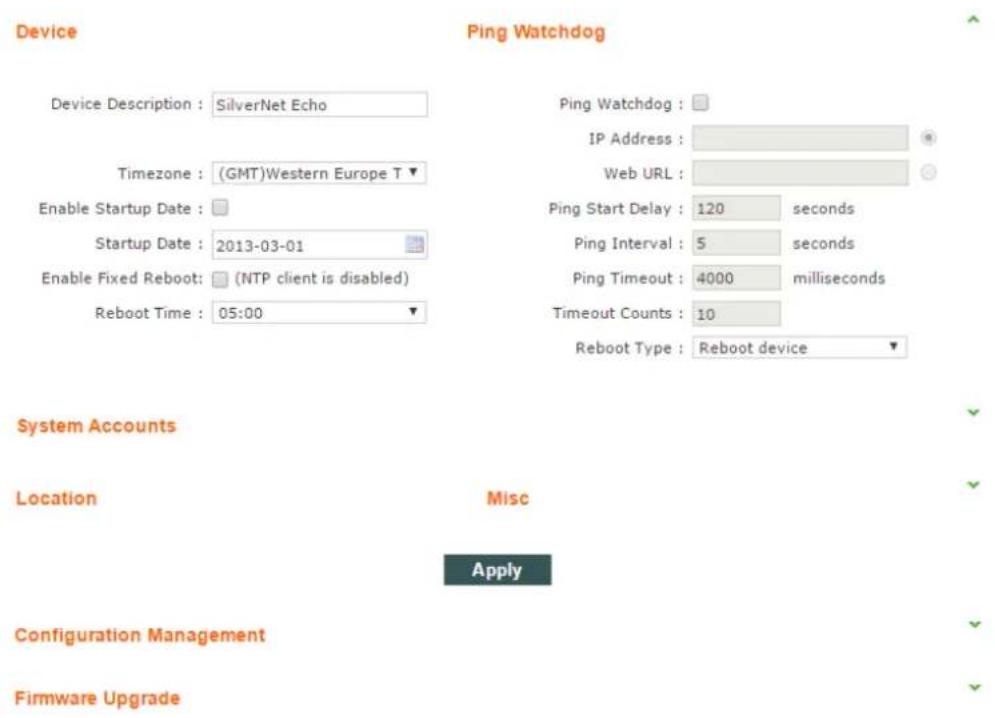

Figure 2-54 Device

■ Device Description: Set the device description.
■ Enable Startup Date: Set to enable startup date, the default is disabled.

SILVERNET

• Startup Date: Set the device startup date.
• Time zone: Set the device time zone.

2.6.2 Ping Watchdog

Ping Watchdog

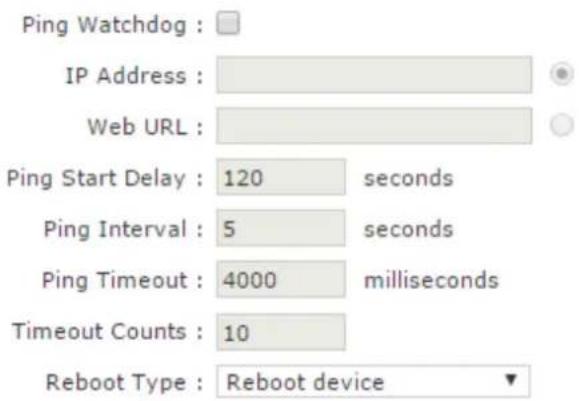

Figure 2-55 Ping Watchdog

2.6.3 System Accounts

System Accounts

Figure 2-56 System Accounts

• Username: Set the admin username.
  ■ Current Password: Input current password.
  ■ New Password: Set a new password.
• Verify New Password: Verify the new password.

SILVERNET

2.6.4 Configuration Management

Location

Figure 2-57 Location Page

• Latitude: Set device latitude.
• Longitude: Set device longitude.

Configuration Management

Reboot : Reboot

Figure 2-58 Configuration Management

Restore Factory-default Settings

Note: Restore factory-default settings will reset the settings to factory-default after the device reboots.

Figure 2-59 Restore Factory-default settings

Import the configuration file

Note: Restore configuration will delete the current settings and reboot the device.

Figure 2-60 Import the configuration file

SILVERNET

Device Reboot

Note: Any configuration changes that have not been saved will be lost after the system reboots.

Reboot after save

Reboot

Cancel

Figure 2-61 Device Reboot

• Restore Factory defaults: Restore to factory default.
• Export Configuration: Export current configuration.
• Import Configuration: Import configuration into device.
  ■ Reboot: Reboot device.

2.6.5 Firmware upgrade

Firmware Upgrade

Version : v1.343.1 (21062017)

Update File : Choose file No file chosen

Save Configuration : √

Flash : 16M

Upgrade

Figure 2-62 Firmware Upgrade

Firmware upgrade is used for upgrading software of the device.

■ Version: displays the current version of firmware.
- Update File: Choose update file.

SILVERNET

2.7 Tools

2.7.1 Ping

The ping test is usually used for measuring the network latency and performance.

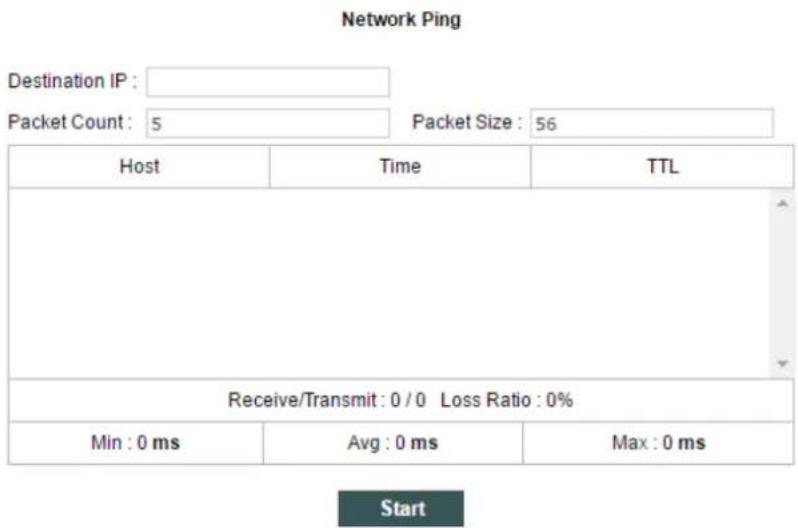

Figure 2-63 Network Ping

• Destination IP: The target IP address.
• Packet Count: Number of the pings.
• Packet Size: Define the ping/ICMP packet size, the larger size of the packet the higher latency for the ping.

2.7.2 Traceroute

Figure 2-64 Network Traceroute

• Destination host: The target IP address/domain for tracing.
• Resolve IP Address: Allows IP address to be entered

2.7.3 Site survey

Scan List :

Note: Site Survey can only scan the channel/frequency supported by current region code.

MAC Address	SSID	Device Name	Auth_mode	Encryption	Signal / Noise, dBm	Frequency, GHz	Channel
1. 50:11:EB:10:08:30	SilverNet1	SilverNet Echo			-45 / -95	5.7	140	Lock to AP
2. AC:84:C9:A6:88:CD	BTHub6-WFZC		WPA2 WPS	CCMP	-88 / -95	5.18	36	Lock to AP
				Scan

Figure 2-65 Scan List

■ MAC Address: BSSID address of the wireless service.
- SSID: BSSID name of wireless service, also called ESSID.
- Auth_mode: Authentication method of the wireless service.
- Encryption: Encryption type of the wireless service.
- Signal/Noise: Signal strength and noise of wireless service.
■ Frequency : The frequency of the wireless service.
■ Channel: The channel of the wireless service.

2.7.4 Speed Test

Figure 2-66 Network Speed Test

• Destination IP : The target IP address is often the IP of the opposite radio.
• Web Port: Default is 80
• Username: Default is admin
• Password: Default is admin
  ■ Type: Transmit/receive/duplex speed performance of wireless
  ■ Test Result: The end of test results.

SILVERNET

Contact Us

SilverNet Ltd

2 Vermont Place

Tongwell

Milton Keynes

MK15 8JA

Online Resources

If you need any further assistance go to our website download centre:

www.silvernet.com/downloadcentre/

View our troubleshooting guide:

http://www.silvernet.com/support/frequently-asked-questions/

Use our online ticket support:

www.silvernet.com/support/

Email us at [e-mail]

www.silvernet.com

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
