Product Type	Vacuum Cleaner
Brand	Bush
Model	V8205_04
Dimensions (L x W x H)	400 x 300 x 200 mm
Weight	4.5 kg
Power Consumption	1200 W
Power Cord Length	5 m
Dust Bag Type	Disposable paper bag
Dust Capacity	2 L
Filtration System	HEPA filter
Noise Level	75 dB
Operating Radius	8 m
Suction Power	250 Air Watts
Variable Power Control	Yes
Accessories Included	Crevice tool, upholstery brush, dusting brush
Maintenance	Empty dust bag when full; clean filter regularly
Safety Features	Automatic overheating protection
Repairability Index	7.0/10
General Information	Upright vacuum cleaner with swivel steering

Frequently Asked Questions - V8205_04 BUSH

How do I replace the dust bag?

Open the bag compartment lid, remove the full bag, and insert a new disposable paper bag until it clicks into place.

How often should I clean the filter?

Clean the HEPA filter every 3 months or when suction drops. Tap it gently or rinse with water and dry completely before reinserting.

What type of dust bag does the V8205_04 use?

It uses standard disposable paper dust bags with a capacity of 2 liters. Compatible with Bush bag type B-20.

Can I use the vacuum without a dust bag?

No, the vacuum requires a dust bag for proper operation and to protect the motor. Using without a bag may cause damage.

How do I rewind the power cord?

Press the cord rewind button located on the back of the vacuum. Hold the plug to avoid whipping.

What accessories are included?

The vacuum comes with a crevice tool, upholstery brush, and dusting brush for various cleaning tasks.

How do I adjust the suction power?

Use the variable power control slider on the handle to increase or decrease suction for different surfaces.

What should I do if the vacuum overheats?

The vacuum has an automatic overheating protection. If it shuts off, turn it off, unplug, and let it cool for 30 minutes before restarting.

How often should I replace the HEPA filter?

Replace the HEPA filter every 6 to 12 months, or sooner if damaged or very dirty, to maintain filtration efficiency.

Can I use extension cords?

It is not recommended. Use the built-in 5m cord directly to a wall outlet. Extension cords may reduce performance and create a safety hazard.

USER MANUAL V8205_04 BUSH

Illustration of a purple and gray BUSH vacuum cleaner with control panel (no text or symbols on body)

210.00 mm

You'll soon be enjoying your new handheld vacuum cleaner

It all begins here, with your instructions. Don't worry, there's nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let's get started.

Help and Guidance

We're here to help you get the most from your vacuum cleaner. Should you require any guidance, a simple solution can often be found online at:

www.argos-support.co.uk

If you still require further assistance, call one of our experts on TMTI HELPLINE 0345 604 0105.

Contents

1 Safety information

Safety information 6

Electrical requirement 8

2 Getting to know your handheld vacuum cleaner

Illustration 11

Features 11

Power controls 12

Charge 12

3 Using your handheld vacuum cleaner

Using the handheld vacuum cleaner 14

4 Care and maintenance

Care for the handheld vacuum cleaner 16

Cleaning the handheld vacuum cleaner 16

Technical specification 18

5 Product support

Toubleshooting 24

Help and assistance 25

Declaration of conformance to product 26

Standards

Disposal 27

Safety information

1

Safety information

Important safety instructions

The use of any electrical appliance requires the following common sense safety rules.

Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

Warning: Danger to the person!

IMPORTANT: Damage to the appliance! In addition we offer the following safety advice.

Location

• Do not use or keep this product outside when it is raining.
• Do not store the appliance near hot ovens or heating appliances.

Mains lead

• Do not allow the mains lead to become strained or run this appliance over it.
• If the electrical cable becomes damaged, the complete cable assembly must be replaced. Do not attempt this task yourself. Contact the local retailers.

Children

• Do not leave the children use the product alone.
  ● The product should be stored somewhere children can't reach

Personal safety

● Never modify the cleaner in any way.
● Never use in the presence of explosive liquids or vapors.
● Never pick up inflammable or poisonous liquids such as petrol, copier toner or other volatile substances. Never pick up acids, asbestos or asbestos dust.
● Repairs to electrical appliances are only to be undertaken by trained personnel.
Unprofessional repairs can be dangerous for users.
● The appliance must never be left running when unsupervised.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions.

Product safety

● Never use the appliance without the filters being installed.
● Never use the appliance to clean hot ashes, broken glass, sharp things and harmful liquids.
● To protect against fire, electric shock and personal injury do not immerse cord, plug or cleaner in water or other liquid.

Electrical requirements

Check that the voltage on the rating plate corresponds with your house electricity supply which must be A.C (alternating current)

If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

You must keep in mind that this product can not be used while it is charging, vice versa.

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Getting to know your vacuum cleaner

2

Abstract geometric pattern with orange triangles and white gaps on a white background (no text or symbols)

Getting to know your vacuum cleaner

You'll be up and running in no time

Ready? Let's begin...

Please read these instructions carefully. They contain important information which will help you get the best from your Vacuum cleaner and ensure safe and correct installation and operation.

If you require any further assistance, our technical experts are happy to help. For full details, refer to the product support section at the end of these instructions.

Getting to know your Vacuum cleaner

You'll be up and running in no time

ILLUSTRATION

Features

1. Sucker
2. Dust cup
3. Small dust cup
4. Filter
5. Main body

6. Dust cup button

7. Indicator

Red: working

Twinkle green: charging

Green: charging completed

1. On/off switch-slider
2. Charge hole
3. Adaptor

Power controls

The on/off control is operated by On/off switch-slider8。(Fig.1)

Fig.1

Diagram of a car interior showing airflow direction and component placement (no text or symbols)

OFF

Diagram of a car air vent with airflow direction arrow and control knob (no text or symbols)

ON

How to charge the appliance

- Connect the adapter with the handheld vacuum cleaner. (Fig.2)

Simple line drawing of a fish pointing at a plug and cable inside a circle (no text or symbols)

Fig.2

Plug the adapter into an earthed 230V\~50Hz mains socket, the indicator around the switch-button will turn green with twinkle. It will take about 13-16 hours.

Please be noticed the different light indicate different status:

Red: working

Twinkle green: charging

Green: charging completed

WARNING: You can leave the vacuum cleaner being charged the appliance will heat up slightly, but this is absolutely safe. However, if you do not use the product for long time, we recommend that you remove it form the charging.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Using your vacuum cleaner

3

Abstract geometric pattern with orange triangles and white gaps on a white background (no text or symbols)

Using your handheld vacuum cleaner

Getting the most from your appliance

First use of handheld vacuum cleaner

● The appliance as you find it in the package is made to vacuum dust or solid materials from broad surfaces.
- For vacuuming dust and solid materials in narrow spaces, use vacuuming sucker 1.
- Once the dust or water has reached the maximum capacity level, empty the dust cup.
● Try to not tilt the appliance upwards so as to avoid spilling the water.
● Always empty the dust cup and dry the filter after each use.

WARNING: Do not vacuum substances or products that are hot (embers, cigarettes, matches), toxic(solvents), flammable or explosive (petrol, alcohol), sharp (glass) or corrosive (acids) or liquids(but water is excepted).

If you have vacuumed liquids, always empty the tank and dry the filter before placing the appliance with the charger.

Line drawing of a handheld electric vacuum cleaner with attached plug (no text or symbols)

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Care and maintenance

4

Abstract geometric pattern with orange triangles and white gaps on a gradient background (no text or symbols)

How to care for the Vacuum Cleaner

● Always disconnect the appliance before performing maintenance.
- Remember that frequent maintenance improves the functional performance of the appliance.

How to clean the dust cup and filter

- Press the dust cup button located on top of the appliance and remove the dust cup (fig.3)

Line drawing of a remote control device with buttons and a scroll, labeled Fig.3 (no text or symbols on the device itself)

● Empty the dust cup and wash it with water and a detergent that does not contain abrasive substances. Carefully dry them with a soft cloth.

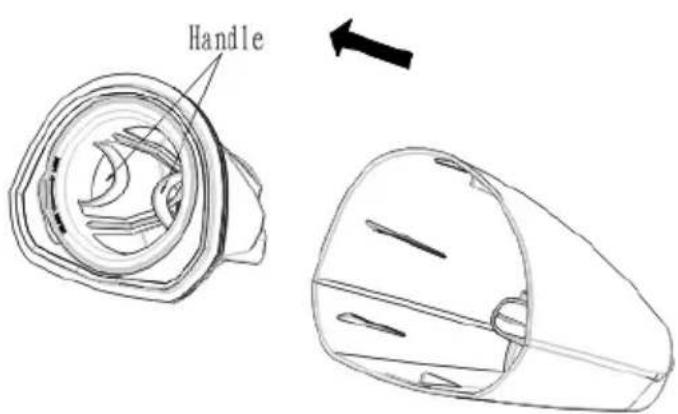

- Remove the filter. fig.4

Fig.4

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

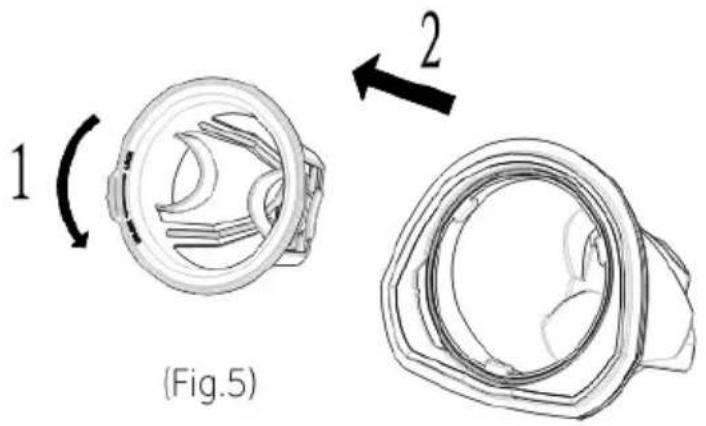

- Remove the Small dust cup, rotator cup as the direction indicated fig.5

• Wash the filter with water and a detergent that does not contain abrasive substances. Dry the filter completely before repositioning it.
• Insert the holder in the dust cup3 and filter5 in the holder.

Remark: the filter must be fitted to the plastic inner adapter very well, otherwise the transparent container can't fit to the main body.

- Reposition the dust cup3 by placing it in the groove and pressing it, until you hear the "click".

Technical Specifications

Model Number	V8205_04
Charge voltage	220-240V~50/60Hz
Battery	9.6V NiMH AA1300 mAh
Capacity	400mL
Running time	10mins
Suction power	70W
Cable length	180cm
Noise function	75dB(A)
Rated input power	Wet & Dry

Product support

5

Abstract geometric pattern with orange triangles and white gaps on a white background (no text or symbols)

Product support

Help is always at hand

TROUBLESHOOTING

Please check the following details before you have your appliance repaired by an authorised servicing agent.

1. Vacuum cleaner does not work.
   You can check if the battery of the product has been run out. Pls double check if the power switch of the appliance is on.
2. Suction power becomes weak.
   You can check if the product has a low battery power. Or check if the dust cup is full or check if the filter sponge is clogged.
   The possible solution is to immediately charging the product, remove the obstruction, or empty the dust cup or clean the filter.
3. Vacuum cleaner is overheating
   You can check if the filter is blocked. The possible solution is to clean the filter.
4. Dust is coming out of the vacuum cleaner
   You can check if the dust container is properly fitted to the cleaner. The possible solution is to refit the dust container to the cleaner.

Product support

Help is always at hand

Help and assistance

If you require any technical guidance or find that your wash vacuum cleaner is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at

www.argos-support.co.uk

If you still require further assistance, call one of our experts on 0345 604 0105. To help give us give you a fast and efficient service please have the following information ready:

Model Ref.

Serial number

Date of purchase

You can find these on the rating plate - a small information panel (usually a sticker or metal plate) on the rear of your appliance

This will be shown on your receipt

Local call rates applies*

Lines open 8am-7pm Monday to Saturday and 10am-4pm Sunday.

*Calls to Argos enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tarif. Mobile and other providers costs may vary, see www.bt.com/pricing for details.

For Security and training purposes, telephone calls to and from customer service centres maybe recorded and monitored. Calls from Republic of Ireland will attract international call charges.

Product support

Help is always at hand

This appliance complies with the following CE directives:

2014/35/EU low voltage directive

2014/30/EU the EMC directive

2011/65/EU the ROHS directive

This is a class II appliance.

Notes on disposal:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

Battery

If you want to dispose of the product yourself, the battery must be remove as described below and disposed of in accordance with local regulations.

• Preferably discharge the battery by operating the appliance until the motor stops.
• Press the dirt cup release button and remove the dust container.
• Remove the five screws holding the body of the appliance together.
• Lift the housing cover away from the assembly.
• Detach all lead connections from the battery pack.
• Remove battery pack and motor assembly.
• Place the battery pack and motor assembly in suitable packaging to ensure that the terminal cannot be short- circuited.
  • Take the battery pack and motor assembly to your service agent or to a local recycling station, Once removed, the battery cannot be refitted.

Product support

Help is always at hand

BUSH

Call us now and activate your 12 month guarantee

Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don't forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.

www.bushregistration.co.uk

FREEPHONE*

0800 597 8548

Lines are open 8am - 8pm, 365 days a year. *Calls may be recorded and monitored.

Your Bush Guarantee

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will be repaired free of charge (or if applicable the product will be replaced or the purchase price refunded) where possible during this period by the dealer from who your purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in the manual.
• It must be used solely for domestic purposes. The guarantee will be rendered invalid if the product is

re-sold or has been damaged by inexpert repair.

• Specifications are subject to change without notice.
• Bush disclaim any liability for loss or damage arising from the breakdown of the product.
• This guarantee is in addition to and does not diminish your statutory or legal rights.

Important Data Protection Information

If you provide us with information about another person, you confirm that they have appointed you to act for them, to consent to the processing of their personal data including sensitive personal data and that you have informed them of our identity and the purposes (as set out in the Important Data Privacy notice displayed overleaf) for which their personal data will be processed.

You are entitled to ask for a copy of the information we hold about you (for which we may charge a small fee) and to have any inaccuracies in your information corrected.

For quality control and training purposes, we may monitor or record your communications with us.

If your personal details change, if you change your mind about any of your marketing preferences or if you have any queries about how we use your information, please let us know by contacting our Data Protection Officer, Domestic & General, Leicester House 17 Leicester Street, Bedworth, Warwickshire CV12 8JP.

Guarantor: Argos Limited - 489 - 499 Avebury Blvd. - Milton Keynes - MK9 2NW

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

BUSH

Contact:

www.argos-support.co.uk

Helpline: 0345 604 0105
