JC-232 - Steam cleaner Cleanmaxx - Free user manual and instructions

Product type	Steam cleaner
Brand	Cleanmaxx
Model	JC-232
Power supply	Mains 220-240 V ~ 50 Hz
Nominal power	1500 W
Tank capacity	350 ml
Heating time	Approximately 15 seconds
Steam pressure	3 bar
Weight	1.2 kg
Dimensions (L x W x H)	30 x 20 x 24 cm
Cable length	4 meters
Included accessories	Fine nozzle, round brush, microfiber cloth, funnel
Water tank	Removable, transparent
Continuous steam function	Yes
Safety shut-off	In case of overheating or water shortage
Child lock	Yes (safe trigger)
Maintenance	Regular descaling with white vinegar or descaling product
Surface cleaning	Suitable for tiles, windows, worktops, joints
Spare parts available	Seal, tank, nozzles, cloths
Warranty	2 years

Frequently Asked Questions - JC-232 Cleanmaxx

How to use the Cleanmaxx JC-232 steam cleaner?

Fill the water tank, plug in the appliance, wait for preheating (about 15 seconds), then press the trigger to release steam. Use the accessories suitable for the surface.

What type of water to use?

Preferably use demineralized water to avoid limescale. Tap water can be used but requires more frequent descaling.

How to descale the steam cleaner?

Mix equal parts of white vinegar and water, pour into the tank, heat for a few minutes, then rinse thoroughly with clean water. Follow the instructions in the manual.

What to do if steam does not come out?

Check that the tank is sufficiently filled, that the appliance is properly plugged in and the ready light is on. If the problem persists, descaling the unit or contact customer service.

Can I use the steam cleaner on clothes?

Yes, provided you use the steaming nozzle and maintain a safe distance. Do not spray directly on delicate fibers like silk.

How to clean windows with the steam cleaner?

Use the fine nozzle and included squeegee. Spray steam onto the window, then squeegee off for a streak-free result.

Can the appliance be used on wooden floors?

It is not recommended on untreated parquet or raw wood. Prefer tiles and PVC floors. Always test on an inconspicuous area.

How to maintain the accessories?

The microfiber cloths can be machine washed at 30°C, without fabric softener. Nozzles and brushes are cleaned with warm water and mild soap.

What to do if the appliance turns off during use?

The automatic safety shut-off triggers in case of overheating or lack of water. Wait for cooling, fill the tank, and restart.

Can I use chemical products in the tank?

No, only water. Adding chemical products could damage the appliance and void the warranty. Use only clean or demineralized water.

USER MANUAL JC-232 Cleanmaxx

Woman using a vacuum cleaner on a white background (no text or symbols visible)

01784

DE

Gebrauchsanleitung

ab Seite 3

EN

Instruction manual

starting on page 12

FR

Mode d'emploi

www.service-shopping.de

Close-up of hands cleaning a white handheld device with a circular mark on the screen (no visible text or symbols)

Safety Instructions 13

Items Supplied and Device Overview 16

Assembling the Device 16

Filling the Water Reservoir 17

Use 17

Cleaning, Care and Storage 18

Troubleshooting 19

Technical Data 19

Disposal 20

Explanation of Symbols

Safety instructions:

Read through these carefully and follow them to prevent personal injury and damage to property.

This device works with hot steam!

Caution: hot surfaces!

Protection class II

Supplementary information

Read operating instructions before use!

Dear Customer,

We are delighted that you have chosen our steam mop.

Before using the device for the first time, please read the instructions through carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.

The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:

www.service-shopping.de

Intended Use

- The device is suitable for cleaning heat-resistant surfaces. It is also suitable for cleaning laminate flooring if the instructions below are followed:

• The laminate should be properly laid and have no gaps or cracks into which moisture can penetrate.
• First test the steam mop at an inconspicuous spot and then check the laminate for any waves or penetrated moisture.
• If the surface is unblemished, the device can be used to clean the entire laminate floor.
• Find out from an expert whether the floor coverings are suitable for cleaning with a steam mop. Always test the cleaning at an inconspicuous spot first.

• The device is not suitable for cleaning unsealed wooden floors, soft plastic, wooden furniture or leather.
• Synthetic fabrics, velvet or other delicate materials must not be treated with the device.

• The device is not designed to be used outdoors.

• The device is designed for personal use only and is not intended for commercial applications. The device should only be used as described in these instructions. Any other use is deemed to be improper.

• The warranty does not cover faults caused by incorrect handling, damage, calcification or repair attempts. This also applies to normal wear and tear.

Safety Instructions

This device may be used by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge, provided they are supervised or have received instruction on how to use the device safely and understand the dangers resulting from this.
■ Children must not play with the device.
- The device should only be used and stored out of the reach of children and animals. Improper use can lead to scalding and electric shock.

- WARNING – Risk of Scalding! This device works with hot steam. Never aim steam directly at people, animals or plants.

■ CAUTION: Hot surface! You should only hold the device by the handle when you are using it.

■ Never point the steam directly at mains cables or parts containing electrical components (for example stereo equipment, televisions, monitors, switches, lamps, microwave ovens etc.).
- Never remove the cap of the water reservoir during use! Always make sure that the water reservoir is firmly closed before the device is used.
- The device must always be disconnected from the mains power when it is left unattended and before assembly, dismantling, before water is poured into the water reservoir or it is emptied, and before cleaning.
- The device must not be used if it has been dropped, if obvious signs of damage are visible or if it has leaks. In the interest of your own safety, check the device, the mains cable and the mains plug for damage every time before use.
If the device, the mains cable or the mains plug of the device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

Risk of Injuries

■ Warning of suffocation! Keep the packaging material away from children and animals.
- Beware of the risk of scalding! Never touch the cleaning foot of the device during operation! Maintain a safe distance of at least 30 cm. Wear shoes when cleaning floors.
■ Beware of falling! Lay the connected mains cable in such a way that it does not present a trip hazard.

Danger of Electric Shock from Water!

■ Use and store only in closed rooms.
■ Do not use the device in rooms with high humidity.
■ Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
- Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!
- Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.

Warning of Electric Shock from Damage and Inappropriate Use!

• Only connect the mains plug to a socket with safety contacts that is properly installed and matches the technical data of the device. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
• Only use suitable extension cables whose technical data is the same as that of the device.
  ■ Remove the mains plug from the plug socket if a fault occurs during operation or before a thunderstorm.
• When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!

Warning of Fire!

• Do not use the device in rooms containing easily ignitable substances or poisonous and explosive fumes.
• Do not use the device in the vicinity of highly flammable materials (curtains, textiles, etc.).
• Do not cover the device during operation in order to prevent it from catching fire.
  In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

Risk of Damage to Material and Property

■ Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces. Do not wrap the mains cable around the device (danger of the cable breaking).
- Check the floor cloth for any wear before each use. Do not use the cloth if it shows any signs of wear or if it is damaged. The flooring could be damaged.
The water reservoir cannot be removed! To fill the water reservoir, use the measuring cup that is also supplied!
- Never pour any cleaning agent or additives into the water reservoir. This may destroy the device and safe working is no longer guaranteed. Use distilled water or cold tap water to fill it.

■ Never operate the device without water.

- Never direct the steam on one spot for longer than around 10 – 20 seconds. This may damage the surface.

In the case of surfaces treated with wax, the heat and steam may remove the wax.

■ Never pull or carry the device by the mains cable.

- Protect the device from heat, naked flames, extreme temperatures, persistent moisture, wet conditions and collisions.

■ Use only original spare parts from the manufacturer.

- Do not place or lay any heavy objects on the device, the mains plug or the mains cable.

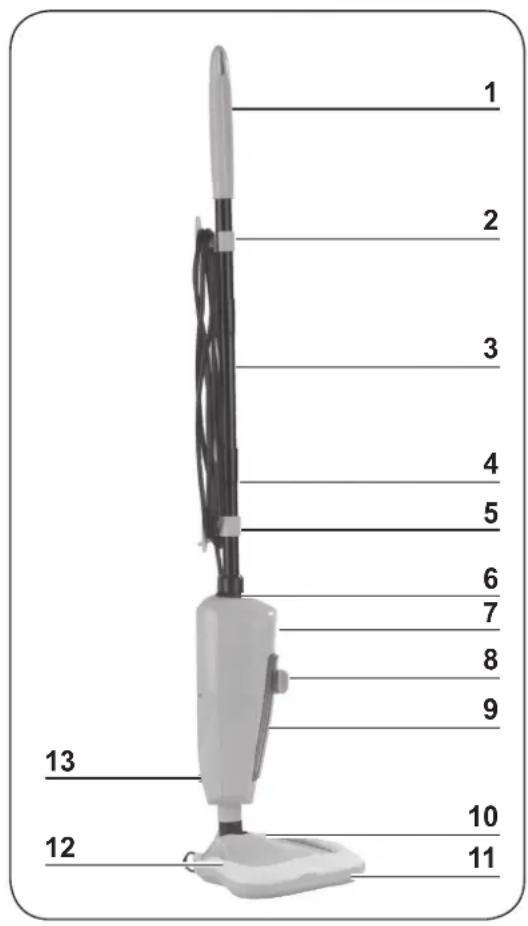

Items Supplied and Device Overview

Unpack all parts and check the items supplied for completeness and any transport damage. If you find any damage to the components, do not use them (!), but contact our customer service department.

Remove any films or stickers that may be present from the device and accessories.

Note: Water residues in the reservoir can be attributed to quality checks performed prior to delivery.

1 Upper handle rod with handle
2 Upper cable winder
3 Middle handle rod
4 Lower handle rod
5 Lower cable winder
6 Main unit
7 On / Off switch (I / 0)
8 Water reservoir cap
9 Water reservoir
10 Cleaning foot
11 Carpet glider
12 Floor cloth
13 Release button for cleaning foot

Not shown:

• Measuring cup
• Instruction manual

Assembling the Device

CAUTION!

■ Warning of electric shock! During assembly and dismantling, the device must not be connected to the mains power and must have been cooled down.

1. Prior to assembly, spread out a protective film if necessary to prevent any damage to delicate surfaces.
2. Plug together the three parts of the handle rod (1+3+4) . When you do this, make sure that the cable winders (2+5) are parallel to one another. To take the handle rod apart, simply pull it apart.

3. Insert the end of the handle rod into the upper opening of the main unit (6). To take the handle rod off, simply pull it off.

4. Insert the cleaning foot (9) into the main unit (6) until you hear the cleaning foot engage. To detach the cleaning foot (10), press the release button (13) on the back of the main unit (6) and pull it off at the same time.

Filling the Water Reservoir

CAUTION!

• The water reservoir cannot be removed! To fill the water reservoir, use the measuring cup that is also supplied!
• Do not overfill the water reservoir, fill it no higher than the MAX marking.
• Never operate the device without water. If it is used for a prolonged period, top it up again promptly.

We recommend that you pour cold distilled water into the water reservoir (8) in order to prevent calcification, particularly if the tap water is very hard.

Close-up of hands using a handheld device to clean or store items (no visible text or symbols)

1. Open the water reservoir cap (8).
2. Tilt the main unit (6) back slightly to make it easier to pour in the water.
3. Use the measuring cup that is also supplied to pour cold, clean water into the water reservoir (9) (note the MAX marking).
4. Close the water reservoir cap (8).

Use

CAUTION!

• Use the device only if it has been fully and correctly assembled and the floor cloth has been attached for cleaning floors.
• Beware of the risk of scalding! After you switch off the device, hot steam may continue to emerge for a few seconds! Even after cooling, the water in the reservoir still remains hot!

We recommend that, before using the device, you sweep the floor with a broom or vacuum it using a vacuum cleaner.

1. Pull the floor cloth (12) over the cleaning foot (10) and pull the draw cord tight so that it cannot slip off.

Use the carpet glider (11) that is also supplied to clean carpets. To do this, place the carpet glider (11) flat on the carpet to be cleaned and place the cleaning foot (10) with the floor cloth (12) on the carpet glider (11).

1. Stand the device upright. The joint of the cleaning foot (10) locks in place in a vertical position.

2. Insert the mains plug into a properly installed plug socket that is easily accessible.

3. Move the On / Off switch (7) to the I position. The On / Off switch (7) lights up when the device is switched on. The device reaches operating temperature after around 20 – 30 seconds and steam emerges from the cleaning foot (10).

4. Hold the device by the handle (1) and tilt it slightly towards the floor to release the locking of the cleaning foot (10).
5. Slide the cleaning foot (10) slowly back and forth over the floor. The floor is cleaned as you do this.
6. If during use no steam or only a small amount of steam is generated, check whether there is sufficient water in the water reservoir (9) and top it up again if necessary (see "Filling the Water Reservoir").
7. When you finish cleaning the floor, move the On/Off switch (7) to position 0 and pull the mains plug out of the plug socket.
8. Allow the device to cool down completely.

Cleaning, Care and Storage

CAUTION!!

■ Warning of electric shock from water! Remove the mains plug from the plug socket before cleaning the device.
- Beware of burns! Always allow the device to cool down completely before cleaning it and / or storing it away.
- Beware of burns! The floor cloth and the cleaning foot may be very hot during and shortly after use. Before removing them, wait a few minutes until the floor cloth and the cleaning foot have cooled down completely.
- Do not use any solvents, aggressive cleaning agents or cleaning pads for cleaning. They could damage the device.

• Completely empty the water reservoir after each use:
  -open the water reservoir cap (8),
• hold the main unit (6) over a sink or similar outlet and tip out the rest of the water,
• ideally do not close the water reservoir (9) again immediately so that the moisture can escape,
• close the water reservoir (8) again using the water reservoir cap (8) before storing it away.

- Wipe down the device with a soft, slightly damp cloth if necessary and then dry it with a soft cloth.

- The floor cloth (12) can be washed in the washing machine. Follow the instructions on the washing label. Do not use any fabric softener or bleach!

- Store the device in a frost-free, dry, clean, cool place that is not accessible to children and animals.

Care

To ensure that the steam cleaner can clean with full force, the water reservoir (9) should be descaled at regular intervals (after approx. 25 - 50 uses).

1. Pour a mixture of one part vinegar and two parts water into the water reservoir (9).
2. Position the device in such a way that the steam that is emitted does not hit any delicate floors or other objects.
3. Insert the mains plug into a properly installed plug socket that is easily accessible.
4. Move the On / Off switch (7) to position I to switch on the device.
5. Allow the vinegar/water mixture to run through once completely until the water reservoir (9) is empty.
6. Move the On/Off switch (7) to position 0 to switch off the device and pull the mains plug out of the plug socket.
7. Rinse the water reservoir (9) with fresh water to remove vinegar residues and odours.

Troubleshooting

If the device does not work properly, first check whether you are able to rectify the problem yourself.

Do not attempt to repair a defective electrical device yourself!

The device does not work. No steam is emerging.

• Is the mains plug inserted in the socket correctly?
• Is the socket defective? Try another socket.
• Check the fuse of the mains connection.
  • Is the device switched on? Move the On / Off switch (7) to the I position.
• The device is not yet ready to operate. The device needs to heat up for around 20 – 30 seconds before the steam can emerge.
• The water reservoir (9) is empty. Top up the water reservoir (9) again (see "Filling the Water Reservoir").
• Is the device scale-encrusted? Descale the water reservoir in the manner described in “Cleaning and Care”, in the “Care” section.

Technical Data

Model number: JC-232

Article number: 01784

Power supply: 220 – 240 V \~ 50 Hz, 1000 W

Protection class / rating: I, IPX4

Disposal

Dispose of the packaging material in an environmentally friendly manner and take it to a recycling centre.

Dispose of the device in an environmentally friendly manner at a recycling centre for used electrical and electronic devices. More information is available from your local authorities.

Customer Service / Importer:

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin

Germany

Tel.: [phone]

(Calls to German landlines are subject to charges. The cost varies depending on the service provider.)

Contenu

Attention, surfaces chaudes!

Classe de protection II

www.service-shopping.de

Close-up of hands cleaning a white handheld device with a circular button (no visible text or symbols)

www.service-shopping.de

Doelmatig gebruik

■ WAARSCHUWING – Verbrandingsge-

Close-up of hands cleaning a white handheld device with a circular button (no visible text or symbols)
