Type	LED Tower Fan
Model	DCTFTT106
Colour	White/Black
Power Supply	220-240V~, 50Hz
Rated Power	45W
Speed Settings	3 (Low, Medium, High)
Modes	3 (Normal, Natural, Sleep)
Timer	0-12 hours (0.5 hour increments)
Air Volume	3265 m³/min
Adjustable Tilt	Up to 7 degrees
Controls	Touch panel or remote control
Carry Handle	Yes
Noise Level	55 dB(A)
Weight (net)	4.3 kg
Dimensions (W x D x H)	310 x 310 x 1060 mm
Application	Indoor residential use only
Remote Control Battery	Button cell (CR2032 or similar, keep out of reach of children)
Cleaning	Wipe with soft damp cloth; do not use abrasive cleaners
Warranty	Refer to warranty card in box
Safety Features	Overheat protection, auto shut-off (implied), tip-over switch? Not specified
Oscillation	Yes, via button on control panel or remote

Frequently Asked Questions - DCTFTT106 DIMPLEX

How do I assemble the tower fan base?

The base comes in two halves. Fit the front half around the oscillation base, aligning screw holes. Thread the power cord through the centre hole, then attach the back half and secure with the four screws provided. Ensure the power cord exits through the cut-out in the back half.

How do I use the timer function?

Press the Timer button repeatedly to set the desired time in 0.5-hour increments, up to 12 hours. The display will show the set time. The fan will automatically turn off after the set duration.

What are the different fan modes?

There are three modes: Normal (constant speed), Natural (cycles through low, medium, high every 5 seconds), and Sleep (adjusts speed over time: from high to medium to low at set intervals). Press the Mode button to cycle through them.

How do I clean the fan?

Turn off and unplug the fan. Use a soft brush to remove dust from the grille, then wipe with a soft damp cloth. For stubborn marks, use mild detergent. Do not use abrasive sponges or allow water to contact the control panel.

How do I replace the remote control battery?

The remote uses a button cell battery (e.g., CR2032). Open the battery compartment, replace the battery with correct polarity, and close securely. Keep batteries away from children; if swallowed, seek medical help immediately.

Can I use the fan outdoors or in a bathroom?

No, this fan is for indoor residential use only. Do not use in bathrooms, near water, or outdoors. It must not be used in the immediate surroundings of a bath, shower, or swimming pool.

How do I adjust the tilt angle?

Gently pull the top of the fan backward to tilt it up to 7 degrees. To return to upright, push the fan forward. This allows you to direct airflow slightly upward.

Why is my fan making noise?

The fan has a noise level of 55 dB(A). If you hear abnormal noise, check for loose parts or obstructions. Ensure the fan is on a flat, stable surface. If noise persists, unplug and contact customer service.

How do I enable oscillation?

Press the Oscillation button on the control panel or remote control. The fan will start oscillating left and right. Press again to stop oscillation.

What should I do if the fan stops working?

First, check that it is plugged in and the socket is live. Ensure the timer is not set to turn off. If it still does not work, unplug the fan and contact the customer care centre at 1300 556 816 (AU) or 0800 666 2824 (NZ). Do not attempt to repair yourself.

USER MANUAL DCTFTT106 DIMPLEX

Line drawing of a vertical cylindrical device with a grid-patterned side panel, no text or symbols present.

LED Tower Fan

Model: DCTFTT106

For domestic household use only.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.

WARNING - This appliance must not be used in a bathroom.

WARNING - Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.

• Never immerse the appliance in water or other liquids.
• Operate this unit only on a firm, flat surface.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or is otherwise damaged.
• If the mains lead is damaged it must only be replaced by the manufacturers service agent or a similarly qualified person in order to avoid a hazard.
• Please ask a professional service agent to repair the product. Improper repair may cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This fan is only intended for INDOOR RESIDENTIAL applications. This fan should not be used for commercial or industrial or leisure applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters.
  • DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord away from traffic areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water collection may lead to a risk of fire or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away from walls, furniture and overhanging objects such as curtains or a shelf.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure they do not play with the appliance.

• To prevent spillage, empty the water tank before lifting or relocating the appliance.

- WARNING: To avoid danger of suffocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children and babies.

- NEVER drop or insert any object or fingers into any openings.

- Do not use the appliance in locations where paint, petrol or other flammable liquids are used or stored.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not use bug sprays or other flammable cleansers/vapour sprays on or around the unit.

• Always switch off the unit and take the plug out of the socket:

• If you are not using the unit

• Before you clean or carry out maintenance on the unit

- If a fault occurs

• In the event of an electrical storm.

- Avoid electromagnetic interference. Keep the unit at least 1 metre away from electrical appliances such as televisions & radios.

WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN

- Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus.

- If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.

- Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if the compartment is not secure.

- Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.

Exposed to the weather outdoors

Near water If the power cable wires are frayed or cut

wires are frayed or cut

Black silhouette of a person running with a crossed red X symbol (no text or numbers present)

Where small children may be left unattended

If an extension lead may become overloaded

Where the power cable may be damaged

Pure graphic of a black rectangle with red X-shaped lines crossing, no text or symbols present.

On a slope or uneven surface

Where there is risk of fire or close to a naked flame

Where it may be damaged by chemicals

Where there is a risk of interference by foreign objects

This product is not made for DIY repair

If there is a risk of water falling on the unit

Specification

Model no. DCTFTT106
Colour	White/Black
Power supply	220-240V~, 50Hz
Rated power	45W
Speed settings	3
Modes 3
Timer 0-12
Air volume 3265m3/min
Adjustable tilt up to 7 degrees
Controls Touch or remote
Carry handle Y
Noise level	55dB(A)
Weight (net) 4.3kg
Dimensions (w x d x h) 310 x 310 x 1060mm

- For greater precision, please always refer to the rating label placed on the product.

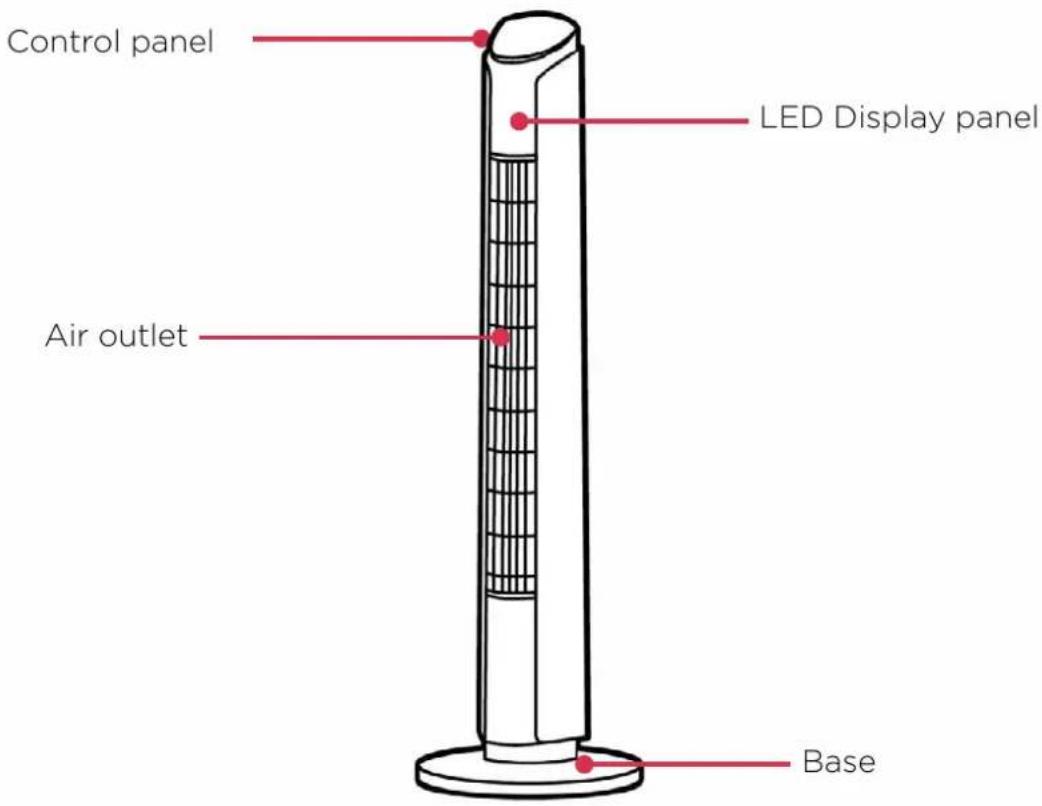

Parts

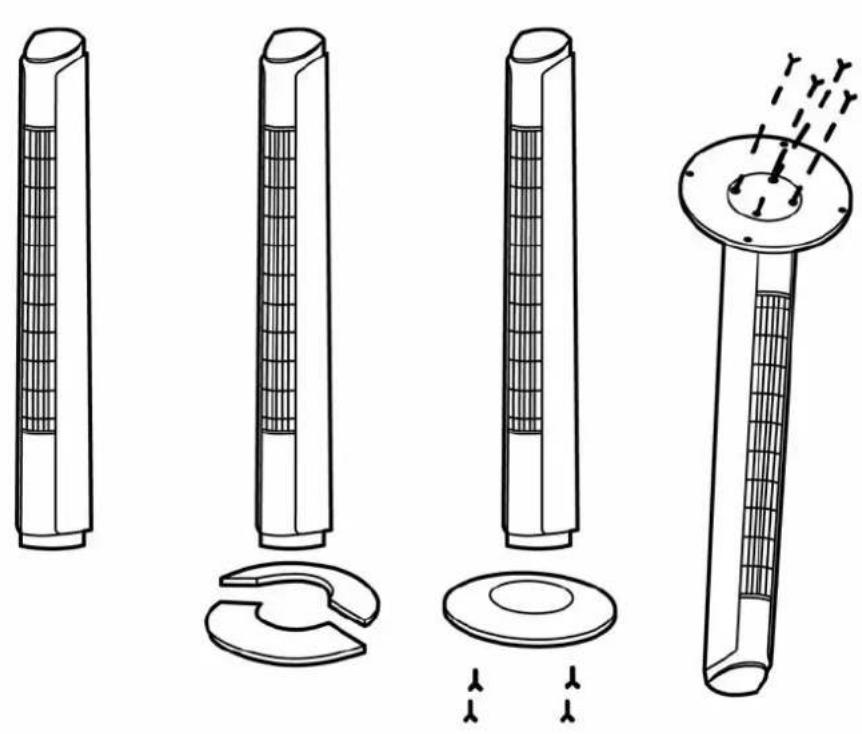

Assembly

The base of the tower fan comes in two parts, which fit around the oscillation base. Both parts fit easily together. The back half has cut-outs for the power supply cord.

1. Attach the front half of the base, aligning the holes in the base with the screw holes in the fan base. Thread the power cord through the centre hole.
2. Connect the back half to the front half of the base and secure the fan body to the base with the four screws supplied.
3. Thread the power cord through the cut-outs in the back half of the base and plug into an appropriate power supply

Technical line drawings of four different types of industrial ventilation or filter structures, showing structural components and mounting features (no text or symbols present)

Operation

This tower fan can be operated by the control panel or remote control. Please refer to the below diagrams for descriptions.

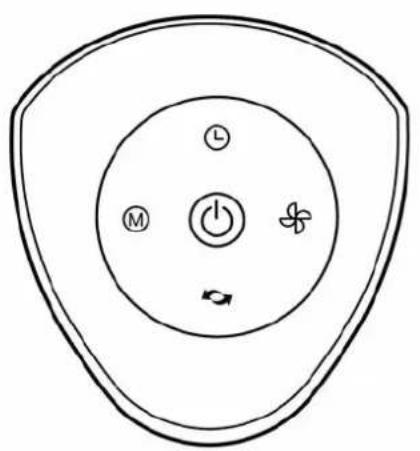

Control Panel

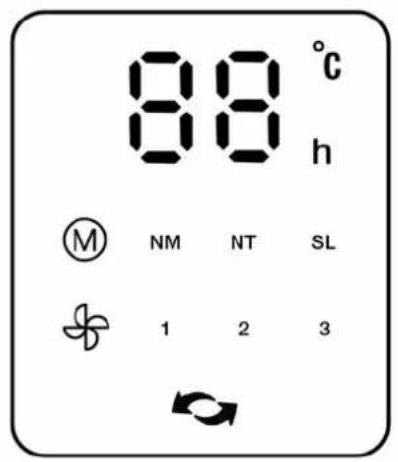

LED Display

Operation

1. Place the fan on a flat stable surface. Plug into an electrical outlet and press the "Power On/Off" button to turn the unit "On". The current room temperature will show on the LED display.
2. Adjust the fan speed by pressing the "Speed" button. There are three speeds - Low, Medium & High and each press will cycle through the speed settings. The speed setting will show on the LED display.
3. Press the "Mode" button to cycle through, Normal (NM), Natural (NT) & Sleep (SL) modes. The indicator light of the chosen mode will illuminate on the LED display.
4. This unit has a 12 hour timer that can be set in 0.5 hour increments. Press the "Timer" button until the desired time is shown on the LED display.
5. Press the "Oscillation" button to enable oscillation. Press again to disable.

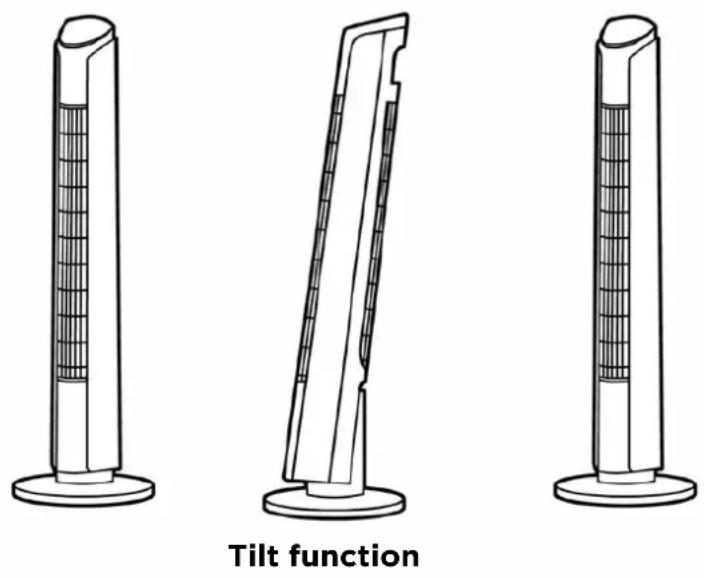

6. This fan has an adjustable tilt feature of up to 7^ . Gently pull the top of the fan backward to tilt (ref. below diagram). Push the fan forward to remove the tilt angle.

MODES

Normal: When this mode is selected, the fan will operate as normal, in the settings selected.

Natural: This mode cycles through Low, Medium, High for 5 seconds each.

Sleep: Low Speed - the fan will work at this speed without change until it is turned off (either manually or by the timer). Medium speed- the fan will work at medium speed for 30 minutes, then switch to low speed until it is turned off. High Speed- the fan will work at high speed for 30 minutes, then switch to medium speed for 30 minutes, and finally work in low speed be-fore it is turned off.

Cleaning

Over time, dust can accumulate on the fan grille, which can affect the fans performance. It is recommended to clean the fan at least once a month.

1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used for any stubborn marks.

Do not use abrasive sponges, scouring pads, or a stiff brush to clean the

IMPORTANT

The control panel and other parts must not come into contact with water or any other liquids.

Storage

If not using the unit for an extended period of time. After cleaning please:

• Turn the unit off, unplug and take care of the mains lead & plug.
• Cover the unit and store it upright in a location where it will not receive direct sunlight. NB- Prolonged exposure to direct sunlight will discolour the enclosure.

Maintenance

If the unit fails to operate efficiently, is broken or other problems arise, unplug and do not operate. Ask for advice by calling your local after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).

Warranty

Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below.

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd

1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,

Scoresby 3179, Victoria Auckland 2013

Australia

New Zealand

Ph: 1300 556 816 Ph: 0800 666 2824

Symbol of a trash bin crossed with two diagonal lines, representing waste sorting or disposal (no text or labels)

Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water, polluting the food chain and damaging health and well-being.

DCDimplex®

Customer Care: 1300 556 816
