Product Type	Refrigerator with Freezer
Brand	Daewoo
Model	RN-331DPW
Total Gross Capacity	331 liters
Fridge Capacity	Approx. 235 liters
Freezer Capacity	Approx. 96 liters
Energy Efficiency Class	A+ (EU standard)
Annual Energy Consumption	Approx. 250 kWh
Climate Class	SN-ST (Subnormal to Subtropical)
Noise Level	39 dB
Dimensions (H x W x D)	1850 x 595 x 630 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Cooling System	Static with automatic defrost in fridge
Control Type	Mechanical thermostat
Interior Lighting	LED
Shelves Type	Adjustable glass shelves in fridge
Door Compartments	3 door bins in fridge, 2 in freezer
Reversible Door	Yes
Freezer Drawers	3 transparent drawers
Defrost Method	Manual for freezer, auto for fridge
Refrigerant	R600a (Isobutane)
Repairability Index	7.5 / 10 (estimation)

Frequently Asked Questions - RN-331DPW DAEWOO

How to adjust the temperature in the fridge and freezer?

Use the thermostat dial inside the fridge compartment. Typically, a setting of 3-4 is recommended for normal use. The freezer temperature is controlled by the same dial; colder settings increase freezer coldness. Refer to the manual for exact recommendations.

Why is my refrigerator making a loud noise?

Normal operation includes sounds from the compressor, fans, and coolant flow. If the noise is excessive, check that the appliance is level and not touching walls or cabinets. Ensure there is proper ventilation around the unit.

How often should I defrost the freezer?

Defrost the freezer when frost buildup reaches about 5 mm. To defrost, unplug the appliance, remove food, and leave the door open. Do not use sharp tools to scrape ice; let it melt naturally.

Can I reverse the door hinge?

Yes, the door is reversible. Follow the instructions in the user manual to swap the door opening direction. You will need a screwdriver and possibly assistance due to the weight of the door.

What should I do if the refrigerator is not cooling?

First, check that the power cord is plugged in and the circuit breaker is not tripped. Ensure the thermostat is set correctly and the door is sealing properly. Clean the condenser coils if dusty. If problem persists, contact a qualified technician.

How to clean the refrigerator interior?

Unplug the appliance and remove all food. Use a mild detergent with warm water to wipe the interior. Avoid abrasive cleaners. Rinse with clean water and dry thoroughly before plugging back in.

What energy class does this refrigerator have?

The Daewoo RN-331DPW is rated A+ for energy efficiency, which means it consumes about 250 kWh per year under standard test conditions.

How to set the thermostat for energy saving?

Set the thermostat to a medium setting (3-4). Keep the refrigerator away from heat sources and direct sunlight. Ensure door seals are clean and tight. Defrost regularly and avoid putting hot food inside.

What spare parts are available for this model?

Common spare parts include door gaskets, shelves, thermostat, and light bulbs. Contact Daewoo service centers or authorized dealers for genuine parts. The product is designed with repairability in mind.

Is there a child lock feature?

No, this model does not have a dedicated child lock. However, the door requires some force to open, and the freezer drawers have a safety stop.

USER MANUAL RN-331DPW DAEWOO

Combi Fridge Freezer No-Frost

Model: RN-331DPS

RN-331NPT

RN-331DPW

Content
1. Safety Information	Page 1~5
2. Overview	Page 6
3. Installation	Page 7~13
4.User interface	Page 14~16
5. Daily Use	Page 17~19

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

⚠ WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. ^1)
• Store pre-packed frozen food in accordance with the frozen food manufacturex instructions ^1)
• Appliancex manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing,
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
  • The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance:
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently:
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

Note: Above picture is for reference only. Real appliance probably is different.

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;
• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at lest 50mm gap at two sides and back.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Door Reversibility

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag:

Left Door Hinge Cover x 1

Left Aid-Closer on Upper Door x 1

Left Aid-Closer on Lower Door x 1

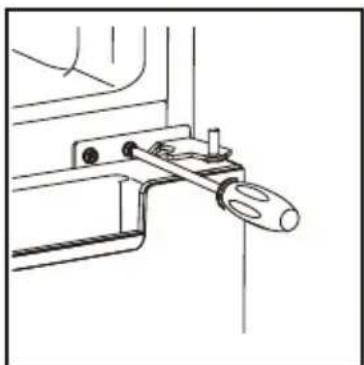

1. Unscrew top hinge cover and disconnect connectors of door switch and harness.

Simple line drawing of a screwdriver inserted into a clamp on a metal bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and railings (no text or symbols)

1. Unscrew top hinge

Technical line drawing of a mechanical assembly with a screwdriver and base mount (no text or symbols)

1. Remove the pin with a screwdriver and filp the hinge bracket. Then refit the pin to hinge bracket

Technical line drawing of two mechanical bracket components with mounting holes and a base mount (no text or symbols)

Technical line drawing of two mechanical clamping components with mounting holes and a screw base (no text or symbols)

4.Move door switch from right hinge cover to left hinge cover in accessory bag.

Simple line drawing of a device with a handle and two small components, no text or symbols present.

Diagram showing a device with a switch and two small components, no text or symbols present

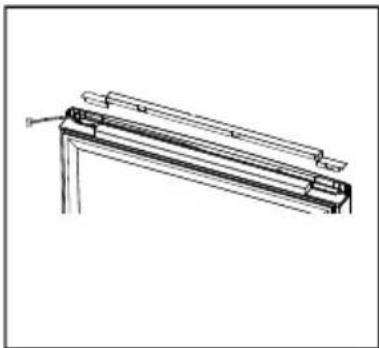

1. Detach cover in top of upper door and move harness from right side to left side, then replace the cover.

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a metal frame or support structure (no text or symbols)

6.Move top left cover to right side

Technical line drawing of a mechanical assembly with a screw and bracket (no text or symbols)

Simple line drawing of a mechanical component with a base and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted into a bracket (no text or symbols)

1. Take off the upper door, take out the screw from the middle hinge by cross screwdriver, then take off the lower door.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

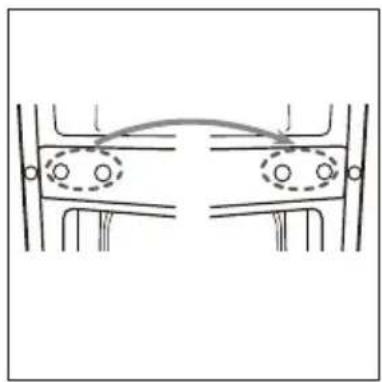

1. Move the hinge hole covers from left side to right side.

Diagram showing two symmetrical mechanical or structural components with circular features, no text or symbols present.

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Technical line drawing of a mechanical frame or bracket with mounting holes and a small inset panel (no text or symbols)

Line drawing of a rectangular frame with vertical supports and a small inset panel (no text or symbols)

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a rectangular frame with supports and mounting holes (no text or symbols)

Simple line drawing of a rectangular frame with vertical supports and mounting holes (no text or symbols)

1. Remove aid-closers from bottom of upper and lower doors, then take new aid-closers from accessory bag and install them to left side.

Line drawing of a computer monitor with an attached cable (no text or symbols)

Line drawing of a computer drive casing with a clip and mounting bracket (no text or symbols)

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Simple line drawing of a folded document or envelope with arrows indicating rotation (no text or symbols)

1. Install the lower door, adjust and fix the middle hinge onto the cabinet.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Replace upper door, please ensure the door align with the cabinet to make sure door gasket seal the cabinet tightly. Then connect door with cabinet by tightly fixed top hinge.

Technical line drawing of a screwdriver inserted into a bracket with mounting holes (no text or symbols)

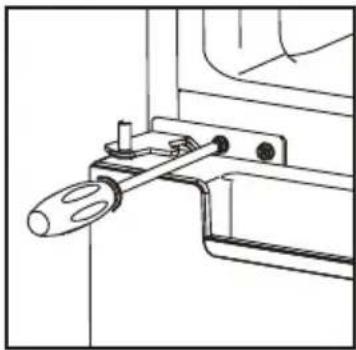

1. Connect harnesses from door and cabinet. Then replace top hinge cover. Before screw the cover, connect terminals of door switch.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a screwdriver clamping a piece of material (no text or symbols)

Install door external handle (if external handle is present)

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

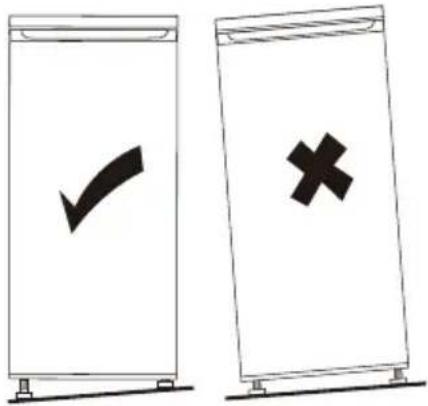

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Using the Control Panel

A. Temperature Control of Fridge Compartment
B. Temperature Control of Freezer Compartment
C. Mode/ Locking / Unlocking

1.2 LED DISPLAY

1. Temperature of Fridge Comparment
2. Temperature of Freezer Comparment
   3.ECO Mode
   4.Holiday Mode
3. Super Mode
4. Locking / Unlocking

a. The control panel is 100% lit up for 3 seconds, which operates exactly as per the setting (mode and temperature) before the poweroff. The system will be automatically locked 25 seconds after the last button operation. After locking, the light of the panel would be out 30 seconds after the last button operation.
b. Both preset temperatures of fridge compartment and freezer compartment would be shown on the display.

2.1 DISPLAY

2.1.1 The panel will be lit up for 2 minutes once the door of fridge compartment is opened.

2.1.2 The panel will be lit up by any button operation whereas the light would be out 2 minutes after the last operation.
2.1.3 Display during normal operation

Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting.

Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.

3.0 ILLUSTION OF THE BUTTON

3.1 Temperature Control of the Fridge Compartment

Temperature Control of the Fridge Compartment:

This button is workable both in User Defined Mode as well as Super Mode. After entering the temperature control of the fridge compartment, this button flashes.

By touching the key consecutively, the temperature would change in a circle of “2°C, 3°C, 4°C, 5°C, 6°C, 7°C, 8°C, after which 5-second flashing means the selection of temperature is settled.

3.2 Temperature Control of the Freezer Compartment

This button is workable both in User Defined Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment, the button flashes.

By touching the button consecutively, the temperature would change in a circle from -14^ to -22^ , after which a 5-second flashing means the selection of temperature is settled.

3.3 Mode

By touching this button consecutively, the operation mode of the refrigerator will change in a circle of "ECO Mode-Holiday Mode-Super Mode-User Defined Mode. A 5-second flashing means the selection of temperature is settled.

3.4 Press Button

Short beep after per press button

All buttons will only valid under unlock mode.

3.5 Lock / Unlock

Press MODE button and hold for 3 seconds to lock other two buttons, then the LOCK icon will be at lock situation after a beep.

To unlock, press MODE button and hold for 3 seconds, then LOCK icon will be at unlock situation after a beep. In unlock situation, all buttons are workable.

If no any operation in 25 seconds, the display will be locked automatically. Keep press "MODE" button to unlock the display.

4.0 ECO mode

Press MODE bottom to choose ECO mode. After 5 seconds of flash, ECO icon will keep bright and ECO mode is confirmed.

In ECO mode, the refrigerator will automatically set temperature of fridge compartment at 5^ C, as temperature of freezer compartment at -18^ C. Except MODE button, other buttons will not response any press.

Press MODE button to exit ECO mode.

4.1 Holiday Mode

Press MODE button to choose Holiday mode. After 5 seconds of flash, Holiday mode icon will keep bright and Holiday mode is confirmed.

In Holiday mode, temperature of fridge will be set at 17^ C. “FRIDGE” button will not response any press.

Press "MODE" button to exit Holiday mode.

4.2 Super mode

Press MODE button to select Super mode. And it will be confirmed after 5 seconds of flash of Super icon.

In Super mode, "FREEZER" button will not response any press.

To exit Super mode,

- Adjust mode by MODE button,

- Or after 50 hours of Super mode, the refrigerator will automatically stop it and enter to previous setting.

Helpful hint:

If you plan to freeze a large number food in one time, please set Super mode 24 hours ahead.

Warning:

In Super mode, the refrigerator will work hard. So the noise of refrigerator will be slightly higher than normal running.

5.0 Door Open Alarm

if fridge (upper) door keeps open for 90 seconds, periodical alarm will be arisen until the door is closed.

First use

Cleaning the Interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has a strong flavour

Hints for refrigeration

Useful hints:

• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Fresh Zone Temperature Control

• Temperature of the fresh can be adjusted according to the type of storage food.
- Push the knob upward from the bottom, temperature in the fresh zone will be gradually decreased.
- When the knob is placed at the "CRISPER" position, the fresh zone can be functioned as a crisper zone and maintain the appropriate temperature and humidity for fruits and vegetable.
- When the knob is placed at the "CHILLER" position, it is suitable for short-term storage of fish or other fresh food. The food will keep fresh but not frozen which makes it the best choice for storing fresh food.
- Tips: When you choose "CHILLER" function, it is recommended to set the refrigerator temperature below 4^ . and preserved lead-time no more than 3 days , in order to keep the best freshness.

CHILLER

Simple line drawing of a paperclip or paperclip shape (no text or symbols)

CRISPER

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  •After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at Super modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a coo setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction shows again, contact the Service Center. These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical line drawing of a mechanical bracket with a circular hole and curved end (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a screwdriver inserted into a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and railings (no text or symbols)

Line drawing of a mechanical setup with a screwdriver and base components (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and a bolt (no text or symbols)

Pure mechanical component diagrams without any text, numbers, or symbols

Simple line drawing of a mechanical device with ports and a connector, no text or symbols present

Simple line drawing of a mechanical device with a small component and an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical support structure with no text or symbols

Simple line drawing of a mechanical bracket or support structure (no text or symbols)

Line drawing of a screwdriver inserted into a bracket with a base (no text or symbols)

Simple line drawing of a mechanical device with a bracket and mounting base (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a mechanical clamp or bracket with a screwdriver inserted (no text or symbols)

Pure diagram of a symmetrical structure with two circular elements and curved lines, no text or symbols present.

Simple line drawing of a rectangular frame with supports and a small inset box (no text or symbols)

Line drawing of a simple rectangular frame with supports and a small square cutout (no text or symbols)

Simple line drawing of a rectangular frame with supports and a small square marker on the top (no text or symbols)

Simple line drawing of a rectangular frame with supports and a small rectangular object on top (no text or symbols)

Line drawing of a computer monitor case with an attached cable (no text or symbols)

Line drawing of a computer drive casing (no text or symbols)

Abstract diagram with a rectangular frame and curved arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Simple line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a clamp bracket (no text or symbols)

Панель управления

Кнопки

Simple line drawing of a paperclip or clip (no text or symbols)

CRISPER

Isometric line drawing of a mechanical bracket with a circular hole and curved end (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Line drawing of a screwdriver inserted into a component on a flat surface (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and a cylindrical shaft (no text or symbols)

Two mechanical linkage diagrams with no visible text or symbols

Two technical line drawings of a mechanical component with no visible text or symbols

Technical line drawing showing two mechanical assembly steps: one with a screwdriver inserted into a bracket, the other with a device mounted on a base (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical diagram showing two circular components mounted on a beam, no text or symbols present

Simple line drawing of a metal frame structure with supports and a small inset panel (no text or symbols)

Line drawing of a mechanical frame or support structure with no visible text or symbols

Technical line drawing of mechanical components including a cylindrical shaft, flange, and housing (no text or symbols)

Two mechanical components with no visible text or symbols, labeled '3' at bottom (no readable text or symbols on parts)

Simple line drawing of a rectangular frame with legs and supports, no text or symbols present

Simple line drawing of a rectangular frame with vertical supports and a small rectangular box on top (no text or symbols)

Line drawing of a rectangular electronic device with a label 'c2' pointing to its side (no text or symbols on the device itself)

Line drawing of a computer drive chassis (no text or symbols)

Abstract diagram with overlapping geometric shapes and arrows, no readable text or symbols

Technical line drawing of a mechanical lever assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Simple line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Simple line drawing of a screwdriver inserted into a clamp (no text or symbols)

Ta-yehca-lneWINIADAEWOO&R/ VG-11 BHHIAДЭУ 10:11ART

Eryhgə-yə□□□□□<21* \□52□*: \1*6\1□*8□*: \1*-8□.25(\$□

Bih3-a-lt3a-htahy[03a-hmg[04u]Qyluygyate
