USER MANUAL T571 NAD

THIS PRODUCT TO RAIN OR MOISTURE. CAUTION THIS DVD RECEIVER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE, SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION WHEN OPEN THE ENCLOSURE. DO NOT STARE INTO BEAM. THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. WARNING CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC RECORD YOUR MODEL NUMBER (Now, while you can see it) The model and serial number of your new DVD player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here MODEL NO. SERIAL NO.

• INTRODUCTION Safety Precautions . Table of Contents .… Precautions
• VIDEO” Notes on Discs compacr Identification of Controls . Front Panel/Display Window Rear Panel Remote Control Preparing the Remote Control Operating with the Remote Control DIGITAL AUDIO mP3 CONNECTIONS Connecting to Surround Sound System -12 Enjoying Dolby Digital Sound 10 Enjoying Dolby Pro Logic Surround Sound 11 Enjoying 2 Channel Digital Stereo Sound 12 Surround Enjoying DTS Sound 2 Sound Connecting to a Stereo System . 13 Connecting to à TV p. 10

+ When shipping the DVD player, always use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory. + Do not use volatile liquids, such as insect spray, near the DVD player. Do not leave rubber or plastic products in contact with the DVD player for à long time. They will leave marks on the finish + The top and rear panels of the DVD player may become warm after à long period of use. This is normal and not à malfunction. + When the DVD player is not in use, be sure to remove the disc and turn off the power. +_fyou do not use the DVD player for à long period, the unit may not function properiy in the future. Turn on and use the DVD player occasionally.

+ When you place this DVD player near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, move the DVD player away from the TV, radio, or VCR.

Use a dry soft cloth for cleaning + For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD player. + If you use a chemical saturated cloth to clean the unit, follow that products instructions. WARNING Geaning and adjustment of lenses and/or other components of playback mechanism should be performed by à qualiied service technician

NOTES ON MOISTURE CONDENSATION

Moisture condensation damages the DVD player. Please read the following carefully: Moisture condensation occurs, for example, when you pour à cold drink into a glass on à warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD player Moisture condensation occurs during the following cases: + When you bring the DVD player direct from a cold place to a warm place + When you use the DVD player in à room where you just turned on the heater, or à place where the cold wind from the air conditioner directly hits the unit + in summer, when you use the DVD player in a hot and humid place just after you move the unit from an air conditioned room + When you use the DVD player in à humid place. Do not use the DVD player when moisture condensation may occur. If you use the DVD player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD player to the wall outlet, turn on the DVD player and leave it “ON” for two or three hours. After two or three hours, the DVD player will have warmed up and evaporated any moisture. Keep the DVD player connected to the wall outlet and moisture condensation will seldom occur.

7571 manual (GB) 19/11/01 2:14 pm Page 5 D Introduction

This section shows you how to handle, clean, and store discs.

+_ Do not touch the playback side of the disc. +_ Do not attach paper or tape to discs.

+ Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outward with a soft cloth. Always keep the disc clean +__1f you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft dloth and finish with a dry cloth. O + Do not use any type of solvents such as thinner, benzine, commercially available cleaners or anti-static spray for vinyl LPS. They may damage the disc.

+ Do not store discs in a place subject to direct sunlight or near heat sources. + Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier. + Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause Warping.

ABOUT THIS OWNER'S MANUAL

+ This owners manual explains the basic instructions of this DVD player. + Some DVD video discs have functions that may not be explained in this owners manual. Therefore, some instructions may differ from this owner manual, and there may be extra instructions. In this case, follow the instructions displayed on the TV screen or package. +“ © " may appear on the TV screen during operation. This icon means the function explained in this owners manual is not available on that specific DVD video disc.

REAR PANEL TV SYSTEM SELECT Sith Refer to explanation below. VIDEO OUT jack TV TRGGER INPUT jack By connecing this DVD player to another NAD audio component or system SADEO OUT jack troller équipped with à 12V trigger output, you can remotely operate the T571 power ON/OFF VIDEO OUTPUT SELECT switch SCARTRGB OUT jack

You can enjoy NTSC or PAL discs by using your TV SYSTEM SELECT switch to choose the appropriate system + _Ifyou try to play back PAL disc with NTSC-TV. The player will not playback the disc. + When the selected TV SYSTEM SELECT switch does not coincide with the system of your TV, normal color picture may not be displayed. + Select the TV SYSTEM SELECT switch when the power is turned off. + When you playback NTSC disc with PAL-TV, some discs may produce black bands at the top and bottom of the screen. Position of TV SYSTEM SELECT switch Connected TV Available disc PAL PAL NTSC/PAL DVD disc NTSC NTSC NTSC/PAL DVD disc AUTO MULTI system TV NTSC/PAL DVD disc

REMOTE CONTROL You will find instructions for each of the remote control functions in the appropriate sections of this instruction manual POWER button REPEAT button:

(up, down, left, right) for use in highlighting a selection on à GUI menu screen, TITLE and MENU screen. ##* TITLE BUTTON Use the TITLE button to display the title screen included on DVD video discs. To operate à menu screen, follow the instructions in “Using a Title Menu” (page 32)

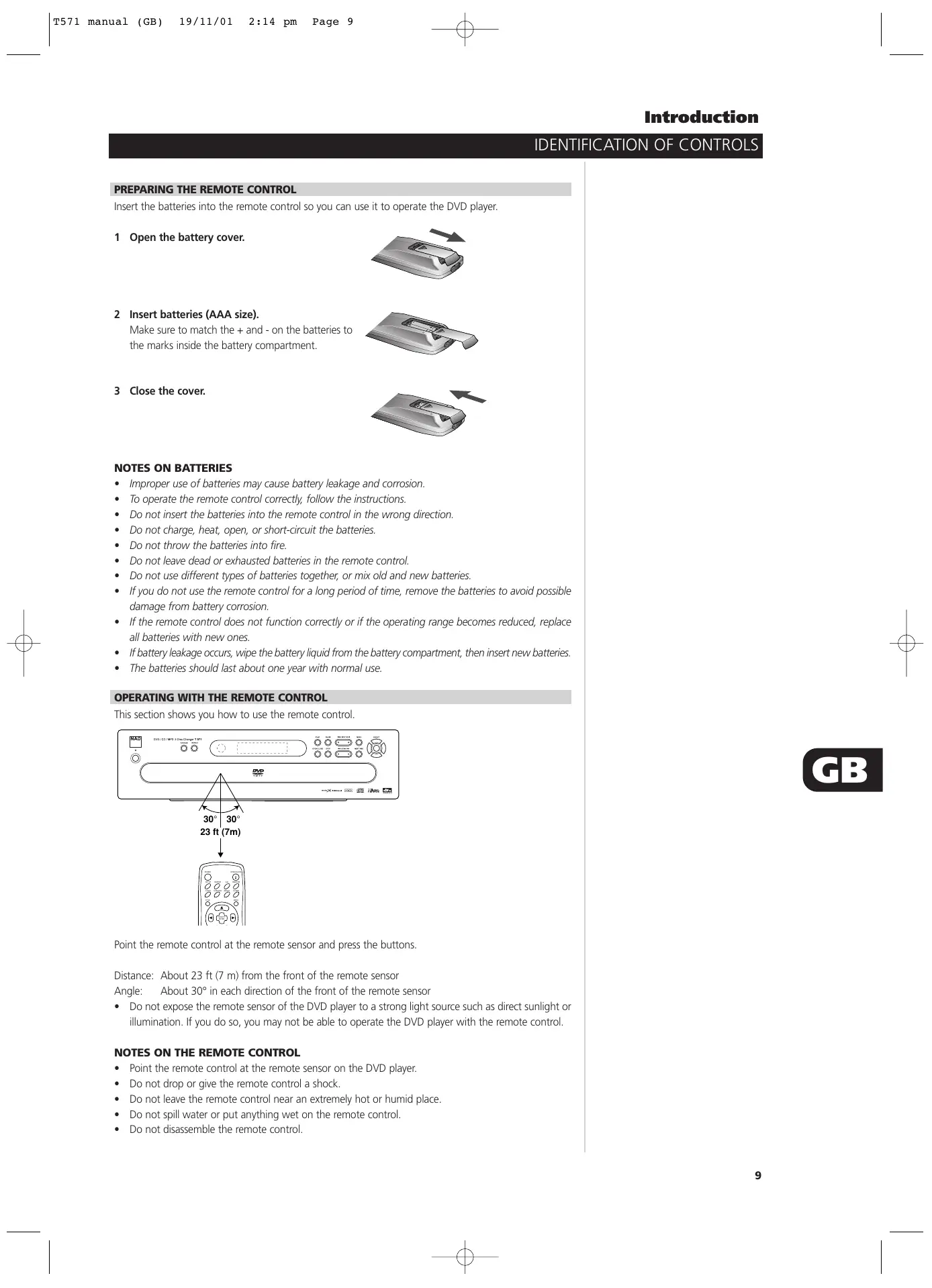

Insert the batteries into the remote control so you can use it to operate the DVD player.

1 Open the battery cover. 2 Insert batteries (AAA size). Make sure to match the + and - on the batteries to the marks inside the battery compartment. 3 Close the cover.

+ _Improper use of batteries may cause battery leakage and corrosion. + To operate the remote control correct} follow the instructions. + Do not insert the batteries into the remote control in the wrong direction. + Do not charge, heat, open, or short-circuit the batteries. + Do not throw the batteries into fire. + Do not leave dead or exhausted batteries in the remote control. Do not use different types of batteries together, or mix old and new batteries + If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion: If the remote control does not function correctiy or if the operating range becomes reduced, replace all batteries with new ones. I battery leakage occurs, wipe the battery liquid from the battery compartiment, then insert new batteries. + The batteries should last about one year with normal use.

OPERATING WITH THE REMOTE CONTROL

This section shows you how to use the remote control 30°] 30° 23 ft (7m)

Point the remote control at the remote sensor and press the buttons. Distance: About 23 ft (7 m) from the front of the remote sensor Angle: About 30° in each direction of the front of the remote sensor + Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or ilumination. If you do so, you may not be able to operate the DVD player with the remote control

NOTES ON THE REMOTE CONTROL

+ Point the remote control at the remote sensor on the DVD player. + Do not drop or give the remote control a shock. + Do not leave the remote control near an extremely hot or humid place. + Do not spill water or put anything wet on the remote control. + Do not disassemble the remote control

You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic, and 2 Channel Digital Stereo. DOLBY DIGITAL Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD player to à 5.1 channel receiver equipped with à Dolby Digital decoder or Dolby Digital processor. D000000000

Te DIGITAL OUT {COAXAL or OPICAL) n Te SVIDEO OUT or VIDEO OUT 75 chm coaxial cable or Optical cable S-Video cable or Video cable To enjoy Dolby Digital sound 7 cit auio Sonnecion example from this DVD player you need the following: acer unoat É + DVD recorded in Dolby Digital CE | + 5.1 channel receiver equipped a: with à Dolby Digital decoder, or Dolby Digital processor and L— b To S-deo Input or Vies put jouer receiver _ E Front speaker (left) Front speaker {right} +5 speakers and 1 sub woofer — Cana aptes = To enjoy Dolby Digital sound à input = S & You need to select “Dolby => = È Digital" on the SETUP menu. = S— = NN # Sub woofer CSA Si Rear speaker (left surround) = Î : 5 Rear speaker (right surround) NOTES Refer to the owner‘s manual of your audio system for operating instructions. +_ Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections. + The output sound of the DVD player has à wide dynamic range. Be sure to adjust the receivers volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound. + um off the receiver before you connect or disconnect the DVD players power cord. If you leave the receiver power on, the speakers may be damaged. Manufactured under license from Dolby Laboratories “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved

You can still enjoy the excitement of Surround Sound even if your A/V receiver does not offer Dolby Digital decoding. If your AW receiver has à Dolby Pro Logic decoder, refer to the following connection diagram. Connect one or two rear speakers Note: The surround effect is greatly enhanced by using two surround speakers.

Rear speaker (left) = TD, fear speaker right)

With a receiver equipped with Dolby Digital Connect the equipment the same way as described in “Enjoying Dolby Digital Sound” on the previous page. Refer to that receivers owners manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound WARNING Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output” on page 21)

You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with à digital audio input and speaker system (right and left front speakers) rep > Recaer euipped it a S-Video cable T7 o\farés TS SZ BÉ DZ DZ

+ Your AW Receiver or processor must be equipped with a DTS Decoder. + The digital output (see selecting digital output page 21) must be set to “stream” + The disc must have a DTS soundtrack. (connection example

Reër speaker TP pear speaker dt suround) . & fight suround) NOTES +_Refer to the owner‘ manual of your audio system for operating instructions. + Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections + The output sound of the DVD player has à wide dynamic range. Be sure to adjust the receiver's volume to à moderate listening level. Otherwise, the speakers may be damaged by à sudden high volume sound. + Tum off the receiver before you connect or disconnect the DVD player power cord. If you leave the receiver power on, the speakers may be damaged. “DTS" and “DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

x == Ï To video input eo cable (supplied) TV or monitor with audiowideo inputs NOTES + _Refer to the owner‘ manual of your stereo system for operating instructions. +_ Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections + _lf you place the DVD player near à tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the tuner and radio. + The output sound of the DVD player has à wide dynamic range. Be sure to adjust the receiver's volume to à moderate listening level. Otherwise, the speakers may be damaged by à sudden high volume sound. + Tum off the receiver before you connect or disconnect the DVD players power cord. If you leave the receiver power on, the speakers may be damaged. WARNING Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output” on page 21)

TV or monitor with Te video input audiwideo inputs NOTES + Refer to the owner's manual of your TV for TV operating instructions. +_ Before you connect the DVD player to your TV, be sure to tum off the power and unplug both units from the wall outiet before making any connections. + Connect the DVD player to your TV directly. # you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs are copy protected. + in case of the TV set corresponding to RGB signal, the RGB signal is automatically selected in the TV (Only when the “VIDEO OUTPUT Switch" is set to “SCART/RGB" on the Rear Panel) WARNING Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as wwellas the speakers (Refer to “Selecting Digital Audio Output” on page 21)

7571 manual (GB) 19/11/01 2:14 pm Page 15 Once the initial settings have been completed, the player can always be operated under the same conditions (especially with DVD discs) The settings will be retained in the memory until they are changed, even if the power is switched off

SELECTION OF INITIAL SETTINGS

1. Press SETUP in the stop or playback mode. The SETUP menu is

displayed Disc Audio : “Original Disc Subtitle English Disc Menu French A" German Password Spanish TV Aspect Htalian E] Menu Language Chinese Polish por ESS Russian Others Other ———— 2 Press A/Y to select the desired item. The screen will show the current setting for the selected item, and the alternate setting(s). Disc Audio (see page 16.) Disc Subtitle (see page 16.) Disc Menu (see page 16.) Rating (see page 17.) Password (see page 18.) TV Aspect (see page 19.) Menu Language (see page 20.) Digital Audio Output (see page 21) Others (see page 22.) 3 Press D and then A/Y to select the desired setting and press SELECT/ENTER. Some items require additional steps. (See the respective page.) When the alternate setting is selected the screen returns to the Initial Settings display.

This is to select the audio soundtrack language, subtile language and the language used in title menus or DVD menus which wi always be used for every disc to be played back. When you play back à DVD video disc, the DVD player automatically displays the pre-selected subtitle language if it is included on the disc. 1 At the setup screen, press A/Y to select “Disc Audio” and press D Disc Audio | Original Disc Subtitle English Disc Menu French Rating German Password Spanish TV Aspect Italian IE Menu Language Chinese Polish Digital Audio Output | Hungarian Russian Others Other ———— 2 Press A/Y to select the desired language and then press SELECT/ENTER. Disc Audio Vorginal Disc Subtitle English Disc Menu French Rating German À rsssuors serie TV Aspect Italian É menctamguge | Gun Polish QG vom auseoumu || munarar Russian Oters Oiner ———— Original : The original language of each disc will be selected English : The English will be Selected Other : Another language can be selected. You can input 4-number language code. (Refer to the language codes on page 23.) The “Disc Subtitle” and “Disc Menu" are selected by the same method. NOTE «If the language selected is not available on the disc, the original language designated by each disc will be selected.

Thisis to prohibit the playing of specified DVDs which are unsuitable for children. Some DVD discs contain à restriction level which enables parents to remove scenes or prevent playback of discs by children. DVD players are equipped with à password designed to prevent children from changing the level SELECTING RATING LEVEL (DVD ONLY) 1 Atthe SETUP screen, press A/Y to select “Rating” and press

Progressive Scan 1 Digital Audio Output | Unlock Others BOOO0O You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function: For example, when you select level 7, discs rated higher than level 7 are blocked and cannot be played The parent lock level is equivalent to the following USA movie ratings. Level7:NC-17 Levelé:R Level 4: PG 13 Level 3: PG Level 1: G + Some titles do not match with the rating level described as above If you change the level and enter a password, playback of all DVDs with ratings higher than your selection will be blocked, unless the correct password is entered again. For example: if you change the level to “5”, the DVD player will not play discs with ratings of “6”, “7" or “8 unless the correct password is entered on the remote control.

7571 manual (GB) 19/11/01 2:15 pm Page 18 D | Initial Settings ELECTING RATING LEVEL AND PASSWO) SETTING YOUR PASSWORD (DVD ONLY) If you change the rating level to 7" or lower, you must enter à 4- number “password” to prevent playback of discs with higher ratings 1 At the SETUP screen, press W to select “Password” and press D Disc Audio Digital Audio Output dome 2 Input a 4-number password and press SELECT/ENTER. Example : 1234 Do not forget your password 3 Input the 4-number password again and press SELECT/ENTER to verify. Setting is complete. + Theratingis locked. Any disc whose rating is higher than the setting, cannot be played back unless the correct password is entered

TO CHANGE/CLEAR MEMORIZED PASSWORD

1 At the SETUP screen, press W to select “Password” and press D

18©0000 Others 3 To change or clear your password, press A/Y to select the “Change” or “Clear” and press SELECT/ENTER. To change the rating leve/password, follow the steps on page 17-18 again

TO CLEAR YOUR 4-NUMBER PASSWORD

If you forget your password, to clear the current password, follow the procedure below. 1 Press SETUP. The SETUP menu is displayed

2. Enter 6-digit number "210499" by pressing number buttons.

The 4-number password is dleared. “P Cr” appears on the display. 3 Enter a new password. Refer to “Setting your password” section on the right.

El Digital Audio Output Others 43 Letterbox : The video material not formatted in the Pan & Scan style is played back in the letterbox style (black bands appear at top and bottom of screen) 4:33 Panscan : Select when à conventional TV set is connected. The video material formatted in the Pan & Scan style is played back in that style (the left and right edges are cut off). 16:9 Wide : Select when a wide-screen TV set is connected. Played in “FULL" size. (Setting the wide-screen TV to “FULL” mode is also necessary.)

+ Each screen shows an example when the video material for a wide- screen is played. (This setting does not affect the video material for conventional size.) 4:3 Panscan 16:9 Wide

Each DVD disc has a variety of audio output options. Set the players Digital Audio Output according to the type of audio system you use 1 At the SETUP screen, press A/Y to select Digital Audio Output and press D Disc Audio > BEL /PCM Disc Subtitle Stream/PCM Disc Menu PCM TV Aspect L Menu Language Digital Audio Output Others 2 Press A/Y to select the SELECT/ENTER. Disc Audio Disc Subtitle Disc Menu Rating Password ‘TV Aspect Menu Language desired output and press SEL /PCM Stream/PCM YPCM Digital Audio Output Others You can select Digital Audio Output or Sampling Frequency item by pressing SELECT/ENTER.

DIGITAL AUDIO OUTPUT

DOLBY DIGITAL/PCM : Select “DOLBY DIGITALPCM" if an active digital output is supplied to à Dolby Digital decoder, (or an amplifier or other equipment with Dolby Digital decoder) Stream/PCM : Select “Stream/PCM” if an active digital output is supplied to an amplifier or other equipment with DTS decoder, Dolby Digital decoder and MPEG decoder. PCM : Select "PCM" if an active digital output is supplied to an amplifier or other equipment with linear PCM only (or MD recorder or DAT deck). SAMPLING FREQUENCY To change the Sample Frequency setting, fist select the desired digital audio output type as indicated above. If your AW receiver or surround processor is NOT capable of handling 96kHz signals, select the 48kHz option. When this choice is made, this unit will automatically convert any 96kHz signals to à 48kHz output so that your system is capable of decoding them. If your AM receiver or surround processor is capable of handling 96kHz signals, select the 96kHz option. When this choice is made, this unit will pass each type of signal through without any further processing (A ET \ OUTPUT Playback Disc Stream/PCM | Dolby Digital/PCM PCM only 96 kHz Linear PCM PCM PCM PCM Dvo DTS DVD DTS bit Stream DTS bit Stream DTS bit Stream Dolby Digital DVD Dolby Digital bit Dolby Digital bit PCM Steam Stream MPEG DVD MPEG bit Stream PCM PCM Audio CD PCM PCM PCM DTS Audio CD DTS bit Stream DTS bit Stream DTS bit Stream NOTES + _ If an active digital audio output signal is supplied to à receiver or other equipment without à corresponding digital decoding cpability à very loud noise may be produced which could permanently damage the speakers. + The DTS DVD disc sound is played back only when the DVD player is connected to à receiver with à DTS decoder

7571 manual (GB) 19/11/01 2:15 pm Page 22 D | Initial Settings OTHERS The DRC settings can be changed ABOUT DRC (DYNAMIC RANGE COMPRESSION) With the DVD format you have the opportunity to hear à programs soundtrack in the most accurate and realistic presentation possible, thanks to the use of digital audio technology. However, in certain instances you may wish to slightiy compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones) so that you may listen to à movie at à lower volume without losing dialogue intelligbility. 1 Atthe SETUP screen, press A/Y to select “Others” and press D Disc Audio PDRC On Disc Subtitle Pseudo PAL On Disc Menu Rating É pasouora TV Aspect Menu Language

G Digital Audio Output Others 2 Press A/Y to select the desired items and press SELECT/ENTER. The setting of the selected item are changed between On and Off

DRC (DYNAMIC RANGE COMPRESSION) ON/OFF

On : Select this option to turn on the Dynamic Range Compression circuitry so that the dialogue remains ear even at low volume levels Off : Select this option to turn off the Dynamic Range Compression and have the soundtrack presented exactly as it was created NOTES + The DRC function works only during playback of Dolby Digital recorded discs. + The level of Dynamic Range Compression may differ depending on the DVD dis.

7571 manual (GB) 19/11/01 2:15 pm Page 24 D Basic Operations BASIC PLAYBACK This section shows you the basics on how to play back a DVD video disc. PREPARATIONS + When you want to play back DVD video discs, turn on the TV and select the video input source connected to the DVD player. + When you want to enjoy the sound of DVD video discs or audio CDS from the audio system, turn on the audio system and select the input source connected to the DVD player. + For connection details, see pages 10 through 14. + Set the playback picture size according to the aspect ratio of the connected TV via the SETUP menu (TV Aspect) +_ If you do not have the necessary equipment to enjoy Dolby Digital sound, set the Digital Audio Output (via the SETUP menu) to “PCM” Press POWER. The DVD player turns on and the power indicator lights. 2 Press OPEN/CLOSE. The disc tray opens. + You can open the disc tray by pressing this button even if the DVD player is in standby mode. 3 Place a disc on the disc tray with the playback side down. + There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD player to malfunction + Do not place anything except 3" discs or 5” discs on the disc traÿ. + Discs can be loaded one at à time by pressing NEXT DISC to rotate the carousel. 4 Press OPEN/CLOSE or PLAY to close the loading drawer. The disc on the tray 1 is ready to be played back. Playback may begin automatically depending on the disc. f no disc is loaded on disc tray 1, select another disc by following step 5. + Do not close the loading drawer by hand +_Ifthe disc is placed in upside down (and it is à single-sided disc), “NO DISC" or DISC ERROR" appears on the TV screen 5 e°e “x

Operating status indicator «If you insert an audio CD, the CD indicator lights up on the display. The title number does not appear. +_After playing back all of the chapters in the title, the DVD player automatically stops and returns to the menu screen.

7571 manual (GB) 19/11/01 2:15 pm Page 25 Basic Operations 5 If you want to select another disc, press NEXT DISC once or more. Also you can select à disc in the DVD player directly by using the remote control, press NEXT DISC and then press à number button (1-5) on the remote control within one second. 6 Press PLAY to begin playback. Playback begins. You can skip this step if the disc is already playing automatical The menu screen appears on the TV screen In the case of interactive DVDs with playback, à menu screen appears on the TV screen. Perform the following steps: 7 Press A/V/4/» and press SELECT/ENTER, or press the numeric button(s), to select the desired item. Playback of the selected item begins

s © N = CR | Example of interactive DVD On-Screen Menu + For further information, refer to the disc jacket of the disc you are playing After operation When the unit is not in use, remove the disc and press POWER to turn off the DVD player. NOTES + Do not move the DVD player during playback. Doing so may damage the disc and the DVD player + Use the OPEN/CLOSE button on the remote control or DVD player to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction: + Do not push up the disc tray or put any objects other than discs on the disc try Doing so may cause the DVD video player to malfunction. + Keep your fingers well clear of the disc tray as it is closing. Be especially careful with children’ fingers around the closing disc tray s there is a risk of personal injury + When “ © ‘appears on the TV screen while a button is pressed, it means that this function is not available on the disc you are playing + Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing.

7571 manual (GB) 19/11/01 2:15 pm Page 26 D Basic Operations BASIC PLAYBACK STOPPING PLAY Press STOP during playback RESUME PLAY + When play is stopped, the unit records the point where STOP was pressed (RESUME function). Press PLAY and play will resume from this point. NOTES + This operation works only with discs for which the elapsed playing time appears in the DVD display window during stop. + Resume function will be cleared when the STOP is pressed in the STOP mode + The Resume function may not be available on some DVD discs

This player memorizes last scene for the last disc you have watched Settings remain in memory even if you remove the disc from the player or switch off the player. If you load à disc that has its settings memorized, Latest Stop Position is automatically recalled PUY STOP NOTES + Settings are stored in memory for use any time. + Switching of the audio mode, etc. is automatic on some discs. + This player does not memorize if you switch off the player when a DVD or title menu appears on the TV screen. + The last scene memory function will be cleared when the STOP is pressed in the STOP mode. SCREEN SAVER The screen saver is useful to prevent your display from becoming damaged. The screen saver picture appears when you leave the DVD player in stop mode for about 5 minutes. Automatic power off function After the Screen Saver has been engaged for about 5 minutes, the DVD player will automatically turn itself off Screen Saver

7571 manual (GB) 19/11/01 2:15 pm Page 27 Basic Operations SKIPPING DISCS Press NEXT DISC during playback or in the stop mode. + Each time the button is pressed, the next disc tray is selected. NEXT DISC NOTES + When the NEXT DISC is pressed during playback or in the stop mode, the disc tray advances to the next disc. + Hfthere is no disc on the selected disc tray, the disc tray of the next number will be selected. OPENCLOSE

EXCHANGING THE DISC AND STARTING PLAYBACK

1 Press OPEN/CLOSE during playback or in the stop mode. Play is stopped (if pressed during playback), the loading drawer opens and the disc tray which was in the play position comes to the center position. 2 Exchange the disc in the center position. Center position PUY 3 Press OPEN/CLOSE or PLAY again. The loading drawer closes, the disc tray returns to the play position and playback begins from the new disc. NEXT DISC

+ With certain DVD disc, the playback picture is flickering or Dot Crawil is shown on straight lines. That means Vertical interpolation or De- interlace is not perfectly matched with DVD disc. In that case, the picture quality can be improved with changing video mode + To change the video mode, press and hold DISPLAY button on the remote control about 3 seconds during playback of DVD disc. + Changed video mode number is displayed on the TV screen. Check whether video quality is improved. You can repeat above procedure until desired picture quality appears. + Procedure of video mode is changed:

MODE2 + MODE3 + MODE4 + MODES + MODE 1

+_ If you turn off the the power, the video mode will be back to initial state (Auto). STILL PICTURE (PAUSE) Press PAUSE/STEP during playback DVD The player wil be placed in the still picture mode CD The player will be placed in the pause mode FRAME ADVANCE (DVD ONLY) Press PAUSE/STEP during still playback (Each time you press PAUSE/STEP the picture advances one frame) To resume normal playback, press PLAY. SKIPPING CHAPTERS AND TRACKS FORWARD OR BACK Skipping forward Press SKIPR>-D1 during playback A chapter (DVD) or à track (CD) is skipped each time the button is pressed Skipping back Press SKIP KA during playback When the button is pressed once midway through a chapter/track, the player returns to the start of that chapter/track. When it is pressed again, a chapter/track is skipped each time the button is pressed HDCD PLAYBACK HDCD is à process that increases the fidelity of both specially encoded HDCD discs and standard CD audio discs. When an HDCD-encoded disc is playing, the special decoder is automatically activated and the HDCD Indicator lights. No user intervention is required To enjoy the benefits of HDCD, your DVD Player must be connected to your AN receiver via the Analog Audio Outputs. However, if your AN receiver or surround processor is equipped with built-in HDCD decoding, you may also use à Coëxial or Optical digital audio connection so that the HDCD processing is done there.

7571 manual (GB) 19/11/01 2:15 pm Page 29 D Basic Operations You can play back discs at various speeds To scan at fast forward or fast reverse playback Press the SCAN 44 or BB button during playback [TV screen] « * | >> x2] + _ The speed of advance (reverse) is relatively slow at first. When the button is pressed again, the speed becomes faster. (Each time the button is pressed, the speed increases up to 4 steps (DVD) or 3 steps (CD)) + _ The speed will be retained even after the button is released To return to normal playback, press PLAY. NOTE + The DVD player does not play back sound during the high speed reverse and forward playback of DVD video discs. However the DVD player plays back sound during fast forward or fast reverse playback of audio CDs. PUY SCAN —À

PLAYING IN SLOW-MOTION (DVD ONLY) L

Press SLOW € or D during playback The playback speed becomes 1/16 of the normal speed SLoW [TV screen] « rm] | > 1/16 +_The speed of slow-motion is slow at first. When the button is pressed again, the speed becomes faster. (Each time the button is pressed, the speed increase up to 4 steps + _ The speed will be retained even after the button is released [8©OO000!

To return to normal playback, press PLAY. NOTES + The sound is muted during slow-motion playback + Subttles do not appear on the screen during slow motion playback + The SLOW buttons do not work with Audio CDs

This unit features GUI Menu Icons showing disc information (title/chapter/track number, elapsed playing time, audio/subitle language, angle, and sound) and player information (repeat play, play mode, marker, etc). Some icons only show the indicated information. Other icons allow the settings to be changed COMMON PROCEDURES 1 Press DISPLAY during playback. Title function can be accessed from the stop mode 2 Press A/Y to select the desired item. The current selected item is indicated by a yellow frame on its GUI menu icons. 3 Press 4/> to select the desired setting. When numbers are displayed (e.g. title number) the numeric buttons can also be used for setting instead of 4/>. For some functions, the setting will be registered immediately; for others, SELECT/ENTER must be pressed To clear the GUI Menu Icons, press DISPLAY agai

EXAMPLES OF GUI MENU ICONS

{The screens may differ depending on the disc contents.) (VD Gui) (CD Gui) (OVD or CD GUI) its 1 S 115 @) 16:57 ? CHAPT \.. STER.

7571 manual (GB) 19/11/01 2:15 pm Page 31 D Operation Using Menu Icons (Graphical User Interface) DETAILED DESCRIPTION OF EACH GUI MENU ICON You can view information about a disc and its operational status on the TV screen Press DISPLAY during playback. FUNCTION {TV SCREEN] DVD GUI (Press A/Y to select desired item) SELECTION METHOD nTe 1 To show the current title nmber, and to jump to the desired title number. + > or Numetc : To show the current chapter number and to jump to the desired chapter 4» or Numeric number SELECT/ENTER SKIP 0:16:57 To show the elapsed time and directly select scenes by the desired time. Numeric

1 ENG SH To show the current audio soundtrack language, encoding method, channel PT bo number and to change the setting, AUDIO 6 CH To show the current subtitles language and to change the settin tr D] EX ATENEAONRES anguen 9 9 SUBTITLE 1 To show the current angle number and to change the angle > ANGLE ne Ron To show te eurent sound (NORMAL 0 3D SURROUND) nd to change the De Press DISPLAY during playback. FUNCTION [TV screen] CD GUI (Press A/Y to select desired item) SELECTION METHOD Or 1 To show the current track number and to jump to the desired track number. nee (@) 16:57 To show the elapsed time (Display only) - To show the current audio (STEREO, LEFT, RIGHT) and to select to the desired PT ),. STER. audio channel AUDIO To show the current sound (NORMAL or 3D SURROUND) and to change the PT NORM. setting SOUND NOTE + Some DVD discs may not provide all of the above GUI menu icons.

Some movie discs may contain two or more titles. If the disc has à title menu recorded on it, the TITLE button can be used to select the movie title. (The details of operation differ depending on the disc used.) Selecting à title may not be possible on certain DVD discs 1 Press TITLE. A list of the titles on the disc is displayed.

É|e Press TITLE again to resume play from the scene when TITLE was first pressed. Resume play may not be possible on certain discs 2 Press A/V/4/» and press SELECT/ENTER or PLAY, or press the numeric button(s), to select desired title. # + de 1 The selected title now starts playing USING À MENU Some DVDs have unique menu structures called DVD menus. For example, DVDS programmed with complex contents provide guide menus, and those recorded with various languages provide menus for audio and subtile language. Although the DVD menus contents and operation differ from disc to disc, the following explains the basic operation when this feature is used 1 Press MENU during play. The DVD menu available on the disc is now displayed uw ND =

Pressing MENU again resumes play from the scene when MENU wes first pressed. Resume play may not be possible on certain discs 2 Press A/V/4/» and press SELECT/ENTER, or press the numeric button(s), to select desired item. The selected item is now executed

It is possible to change the subtile language to a different language from the one selected at the initial settings. (See page 16 for further info.) This operation works only with discs on which multiple subtitle languages are recorded NOTES 0000 + _ In some cases, the subtitle language is not changed to the selected one immediatel + When a disc supporting the closed caption is played, the subtitle and the closed caption may overlap each other on the TV screen. In this case, turn the subtitle off. + When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc. + When the power is turned on or the disc is removed, subtitles appears in the language selected at the initial settings. If this language is not recorded on the disc, the disc's priority language appears. Press SUBTITLE during playback. When no subtiles are recorded, “OFF wi be displayed instead of the language MN OFF number. 2 Press SUBTITLE repeatedly until the desired language is selected. Number of the subtitle language being played back [=] 1 ENG is shown nn _ To eliminate the On Screen Subtitles. Press SUBTITLE repeatedly to select OFF at step 2.

I is possible to change the audio soundtrack language to a different language from the one selected at the initial settings in case of DVD disc. (See page 16 for further info.) This operation works only with discs on which multiple audio soundtrack languages are recorded. And it is possible to change the audio channel in case of audio CD. NOTES + When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc. + When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings. H this language is not recorded on the disc, only the available language on the disc will be heard. + Some discs may not respond to Audio feature. DVD 1 Press AUDIO during play. Number of the audio soundtrack 1 ER language being played back B ooD 6 CH 2 Press AUDIO repeatedly until the desired language (or = encoding method, channel number) is selected. PB guD

• 6 CH Le] 1 Press AUDIO during play. 3 pra B* STER. 2 Press AUDIO repeatedly until the desired sound is LEFT selected. cl

Some DVDs may contain scenes which have been shot simultaneously from à number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.) 5: 8: 1 Press ANGLE during playback. Number of angle being played back ( 2 Press ANGLE repeatedly until the desired angle is mad ee

+ The ANGLE indicator wil blink in the DVD display window at scenes recorded at different angles to indicate that angle sitching is possible. + The angle number can be programmed beforehand: the angle will be switched to the selected number when the ANGLE indicator blinks. NOTE + This function only works for discs having scenes recorded at different angles

This unit can produce à 3D Surround effect, using Spatializer technology, which simulates mult-channel audio playback from two conventional stereo speakers instead of the five or more speakers normally required to listen to mult-channel audio from à home theater. This feature works with DVD discs encoded with Dolby Pro Logic and Dolby Digital (audio tracks. 1 Press SOUND during playback. Each time this button is pressed, the TV screen displays changes. | NORM. 2 Press SOUND repeatedly until the desired sound is selected. né 3D SUR NOTES + This 3D Surround effect may not be available on some DVD discs, such as those recorded with a mono audio sound-track + Tum off the TV surround sound and other surround effects when using this 3D surround effect. + For best 3D Surround effect using only two speakers it is recommended that the two speakers be positioned approximately 2m to 2.5m apart, and the listening position should be 2m to 2.5m away from the speakers.

7571 manual (GB) 19/11/01 2:15 pm Page 35 D Advanced Operation REPEAT P REPEATING VIEWING (LISTENING) Press REPEAT during playback Each time this button is pressed, the TV screen changes as shown below and the disc will repeat à chapter or title (DVD) or à track (CD) DVD Repeat of chapter being played Repeat of title being played L À me Cancel repeat mode (normal play) L D +

Repeat of track being played Drm e— Repeat of entire current disc contents L © Disc Repeat of entire all discs contents L ® Cancels repeat mode (normal plaÿ) L EX + To enjoy program repeat play (CD) If REPEAT is pressed during program play, repeat play is operated as below. Repeat of the current programmed track Dre Repeat of all programs L ? mm Cancel repeat mode (Program play) L D To return to normal play Press REPEAT several times until OFF is displayed. REPEATING SECTIONS BETWEEN TWO SPECIFIC POINTS (A-B REPEAT) 1 Press A-B during play at the point where repeat play is to start (A) You can select OFF at this step by pressing CLEAR A 2 Press A-B during play at the point where repeat play is to be concluded (B) Repeat play of the selection between points A and B starts. ) A B To return to normal play Press A-B once OFF is displayed. NOTES + Repeat play works only with discs for which the elapsed playing time appears in the DVD display window during playback. + Repeat play may not work correctly with some DVDs. + AB repeat play works only within à title (DVD) or à track (CD) + Some subtitles recorded around point A or 8 may fail to appear (DVD)

Storing à MARKER in the DVD memory is similar to marking your page in à book. It allows you to quickly return to any point on the disc.

STORING A MARKER IN THE MEMORY

1 Press MARKER during play at the starting point to be viewed (listened to) again. œ 11 Indicates “1/9 is stored in the memory. Up to 9 marks can be stored in the memory.

RECALLING/CLEARING A MARKER

2 Press SEARCH during playback. The MARKER SEARCH menu will appear on the TV screen. € MARKER SEARCH 4123456789k 3 Press 4» to select the marker to be recalled/cleared. 4 Press SELECT/ENTER to recall a marker. Or press CLEAR to clear à marker. Play resumes from the point corresponding to the selected marker, or the selected marker is cleared NOTES + These operations work only with discs for which the elapsed playing time appears in the DVD display window during playback or stop. + Some subtitles recorded around the marker may fail to appear (DVD): + Allthe markers are cleared when the power is tued off or the disc is removed + The marker is not stored when the DVD or title menu is displayed on the TV screen.

7571 manual (GB) 19/11/01 2:15 pm Page 37 D Advanced Operation ZOOM FEATURE The Zoom function allows you to enlarge the video image and to move through the enlarged image

1. Press ZOOM during playback or still playback to activate the Zoom function. lf you further

press ZOOM repeatedl, the magnification level increases (6 steps) 2 Press A/V/4/» buttons to move through the zoomed picture. 3 Press CLEAR to resume normal playback. NOTES + Some discs may not respond to the Zoom feature. + Zoom does not work on subtitles or menus included on DVD video discs. NOTE This function only works with audio CD discs. Random does not work with DVD movies. You can playback titles or tracks in random order. (Random playback) RANDOM PLAY (CD ONLY) Press RANDOM repeatedly until desired random mode is selected during playback or stop mode. The unit automatically begins Random Playback and RANDOM (1-3) appears on the TV screen + RANDOM: Plays all the tracks on à single disc in random order and then tops + RANDOM: Plays all the tracks on current disc in random order and then plays al the tracks on each succeeding disc in random order and then stops. + RANDOMB3: Plays 2 tracks randomiy from a disc and then plays 2 tracks randomly from à different disc until all tracks on all discs have been played 2 To return to normal playback, press RANDOM repeatedly until NORMAL appears on the TV screen. The RANDOM indicator in the DVD display window disappears NOTES +_ Random playback may not be possible on certain discs + lfyou press the SKIP KE or BBA button during random playback, the DVD player goes to another track randomiy and starts playback +_ Random playback may not be possible on MP3 encoded discs.

7571 manual (GB) 19/11/01 2:15 pm Page 38 D Advanced Operation PROGRAM PLAY The player plays the tracks on the disc in the order you specify. NOTE Program play function is possible only with audio CDs. lt does not work with DVD movie discs 1 Press PROGRAM in the stop mode. The program playback screen appears on the TV screen. Program | CAACACAUARE EEE CACACAA(A (CACACAA(A CACHCKA + To exit the screen, press PROGRAM or RETURN 2 Enter the disc number using the numerical keys (1-5) and then press SELECT/ENTER. 3 Enter the track number using the numerical keys (0-9) and then press SELECT/ENTER. The next area is selected 4 Repeat steps 2 to 3. Up to 20 tracks can be programmed 5 Press PLAY to exit the screen. The selected tracks are stored in the player memory and playback begins with the first programmed sequence After playback of all tracks programmed Play is stopped

CLEARING THE PROGRAM

To clear the programmed tracks one by one Press A/W/4/» to select the unwanted number and then press CLEAR. To clear all the programmed tracks Press A/W/4/® to select “Clear All” and then press SELECT/ENTER. Press PROGRAM or RETURN to exit the screen. (The programs are also cleared when the power is turned off or the disc is removed.)

1 Load an MP3 disc. The MP3 menu is displayed. 2 Press A/Y button to select the desired MP3 file and then press PLAY to start playback of the file.

+ Press SKIP BL or SKIP HA to play the next fill or previous file during playback + Press DISPLAY to move to the next page: + Press PAUSEISTEP to enter the pause mode, press PLAY or PAUSEISTEP again to retum to normal playback + Press STOP to stop the playback

TO PLAY AN MP3 FILE REPEATEDLY

+ _ If you press REPEAT once during play, the current MP3 file will play repeatediy. + _ If you press REPEAT twice during play, all MP3 files on the disc will play repeatedhy. + _ If you press REPEAT three times, repeat play will be cancelled Progi FTRAGK Smpa REPEAT Symbol NOTES + The file name is only displayed in English + _Hfthere is an impossible code to display, it will be displayed underlned (_) instead of English. + This unit can play up to 200 files per disc. À disc recorded with more than 200 files cannot be played + Disc format is compatible with IS09660 only + lf you record MP3 files using the software which cannot create à FILE SYSTEM, for example “Direct- CD" etc. it is impossible to playback MP3 files. We therefore recommend that you use “Easy-CD Creator”, which creates an 1509660 file system + A single session disc requires MP3 files in the first track. there is no MP3 file in the 1st track, it cannot playback MP3 files. If you wish to playback MP3 files, format all the data in the disc or use à new one. + _ If there are already data files which are not MP3 files on the CD-R disc, please, do not use that disc; use à new one instead. However, if the disc is à CD-RW disc, this does not apply + Direct access to individual tracks may not work with MP3 encoded discs

1 Load an MP3 disc. The MP3 menu is displayed 2 Press STOP to stop playback. 3 Press PROGRAM to enter the Program Edition mode in the stop mode. The mark [E] appears on the right of the word Program on the right side of MP3 menu. Press RETURN to exit the Program Edition mode, the [E] mark wil disappear. ms Program El 4 Press A/Y to select the desired MP3 file and then press SELECT/ENTER to add the MP3 file En 5 TRAGK 2mp3 to the program list. tm Lee) pee Sn + Repeat step 4 to select another track. pus +_Up to 60 files can be programmed rer Ever ET ae . = 5 Press PLAY to play. The playback now begins in the programmed sequence. RAC mp3 Lee) por TRAGK mea por Lrore) Dons rer rer Dons TA n TRACE mp En If you want to enter the main menu, press “button After playback of all tracks programmed Play is stopped

CLEARING THE PROGRAM

To clear the program one by one In the Program Edition mode, press A/W/4/% to select the unwanted MP3 flle on the program list and then press CLEAR To clear all the programs In the Program Edition mode, press A/V/4/» to select the “Clear All" and press SELECT/ENTER

TO PLAY AN MP3 FILE REPEATEDLY

+ _ If you press REPEAT button once during plaÿ, the current MP3 file will play repeatediy + _ If you press REPEAT button twice during play, all MP3 files on the program list will play repeated. + _ If you press REPEAT button three times, repeat play will be cancelled [Program L Program (@) Ÿ rRacx2mp9 3 TRACK mp3 TRAGK Gimp TRAGK Spa V TRACK2mp3 BOOOO

DISC R PLAYABLE DISCS This DVD player can play back the following discs. Disc Mark Contents Disc size Maximum playback time Approx. 4 hours (single sided disc) 12cm Approx. 8 hours (double sided disc) DVD video discs DVD can Video ss nr moving pictures) Approx. 80 minutes (single sided disc) Approx. 160 minutes (double sided disc) compact 12cm 74 minutes Audio CDs Audio DGA AUDI 8m 20 minutes In addition, this unit can play back à CD-R or CD-RW that contains audio titles or MP3 files. And this unit can play back à HDCD also You cannot playback discs other than those listed above. (Video CD, CD-ROM, CD-Extra, CD-G, photo CD, and CD discs can not be played on this DVD player) HDCD®, High Definition Compatible Digital and Pacific Microsonics'" are either registered trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries. HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following; In the USA: 5,479,168; 5,638,074; 5,640,161; 5,808,574; 5,838,274; 5,854,600; 5,864,311; 5,872,531; and in Australia 669114. Other patents pending

REGION MANAGEMENT INFORMATION

Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc. The Region number of this DVD player is 2

NOTES ON UNAUTHORIZED DISCS

You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business purposes. When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen

I is forbidden by law to copy, broadcast, shows, broadcast on cable, play in public, and rent copyrighted material without permission: DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited

Check the following guide for the possible cause of à problem before contacting service. SYMPTOM CAUSE CORRECTION No power. The power cord is disconnected Plug the power cord into the wal outlet securely. The power is on, but the DVD player does not work. No disc is inserted Insert a disc. (Check that the DVD ox, audio CD indicator in the DVD display is li.) No picture The TV is not set to receive DVD signal output: Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen. The video cable is not connected securely Connect the video cable into the jacks secure. The connected TV power is turned off. Turn on the TV. No sound The equipment connected with the audio cable is not set to receive DVD signal output. Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player The audio cables are not connected securely. Connect the audio cable into the jacks securely The power of the equipment connected with the audio cable is turned of. Turn on the equipment connected with the audio cable. The Digital Audio Output is set to the wrong position Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing the POWER button. The playback picture is poor The disc is dir Clean the disc. The DVD player does not start playback No dis is inserted Insert a disc (Check that the DVD, or audio CD indicator in the DVD display is li.) An unpleyable disc is insertedl Insert à pleyable disc. (Check the disc type, color system and Regional code.) The disc is placed upside dou. Place the disc with the playback side doun: The disc is not placed within the guide. Place the disc on the disc tray correcliy inside the guide The disc is dir Clean the disc. ‘A menu is on the TV screen Press the SETUP button to turn off the menu screen. The Rating level is set. Cancel the Rating function or change the rating level The remote control does not work properly. The remote control is not pointed at the remote sensor of the DVD player. Point the remote control at the remote sensor of the DVD player. The remote control is too far from he DVD player. Operate the remote control within about 23 ft (7m) There is an obstacle in the path of the remote control and the DVD player. Remove the obstacle The batteries in the remote control are exhausted. Replace the batteries with new ones.
