AJCM08ACG - Air-conditioner GE - Free user manual and instructions

Product Type	Window / Wall Air Conditioner
Brand	GE
Model	AJCM08ACG
Cooling Capacity	8,000 BTU/h
EER (Energy Efficiency Ratio)	12.1
Dimensions (L x H x D)	46.0 x 36.2 x 41.1 cm
Net Weight	27.2 kg
Power Supply	115 V ~ 60 Hz, 7.5 A
Cooling Power Consumption	730 W
Main Functions	Cooling, Dehumidification, Ventilation, Energy Saving
Remote Control	Yes, with LED display
Programmable Timer	Delayed On/Off (1-24h)
Sleep Mode	Yes
Dirty Filter Indicator	Yes, indicator light
Air Filter	Washable, removable
Ventilation Grille	Directional, adjustable
Indoor/Outdoor Noise Level	55/62 dB(A)
Maintenance and Cleaning	Clean the filter every 2 weeks; use a vacuum cleaner and lukewarm water
Safety	Automatic shut-off in case of overheating; child lock (remote control)
Spare Parts and Repairability	Filters, remote control, capacitor available on pieces-detachees.ge.com
General Information	1-year warranty; Energy Star certified

Frequently Asked Questions - AJCM08ACG GE

How to clean the filter of the GE AJCM08ACG air conditioner?

Turn off and unplug the appliance. Remove the filter from the front. Vacuum the dust or rinse with lukewarm water. Let dry completely before reinstalling. Never use chemical products.

What is the required electrical power for this air conditioner?

The GE AJCM08ACG operates on 115 V ~ 60 Hz, 7.5 A. Use a standard grounded outlet. Avoid extension cords.

Why does the unit display an Error code?

Common codes include E1 (indoor sensor defective) and E2 (outdoor sensor). Try restarting the unit. If the code persists, contact customer service.

The remote control does not work, what to do?

Check the batteries (AAA) and their polarity. Make sure no obstacle blocks the receiver on the unit. If necessary, reset the remote control by removing the batteries for 30 seconds.

What is the maximum cooling area?

This model is suitable for a room of about 20 to 30 m² (depending on insulation). Ideally 25 m² for optimal comfort.

Can I use the air conditioner without mounting it in a window?

No, this model is designed for fixed installation in a window or wall. It requires exhaust of hot air to the outside.

How to use the timer?

Press the Timer button on the remote control. Set the on or off time (1 to 24h). Confirm with Set. An indicator lights up.

The unit is freezing, what should I do?

This can happen if the outside temperature is low or if the filter is dirty. Turn off the unit and let it defrost for 24h. Clean the filter and check that the vents are not obstructed.

How to activate energy saving mode?

Press the Energy Saver button on the remote control. The fan stops when the compressor stops, reducing consumption.

Where to find spare parts?

Visit the official website pieces-detachees.ge.com or contact GE customer service. Common parts (filter, remote control) are available.

USER MANUAL AJCM08ACG GE

Owner's Manual and Installation Instructions

Safety Instructions ..... 2, 3

About the Controls ....4 - 9

Cool Models 4,5

Heat Models 6,7

Vent Control....8

Care and Cleaning

Grille and Case 10

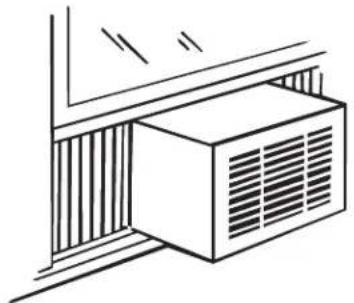

Outdoor Coils 10

Front Grille 10

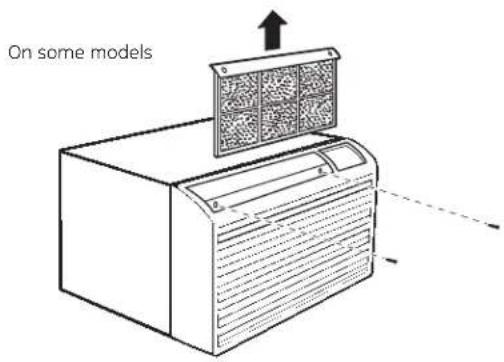

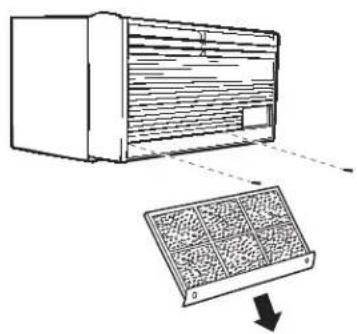

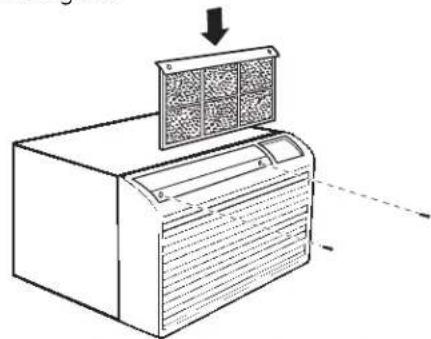

Air Filter 10-11

Long Term Storage 12

Installation Instructions

Before You Begin .....12-13

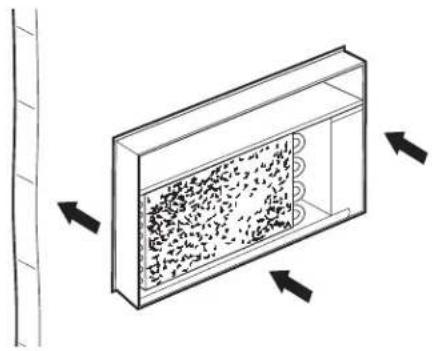

Installing a J-Model in

an Existing Wall Case .....14

Through-the-Wall

Installation 15

Troubleshooting Tips ..... 16

Normal Operating Sounds ..... 16

Consumer Support

Warranty 19

Consumer Support..... Back Cover

Cool Only: AJCM 08, 10 ACG

AJCM 10, 12 DCG

AJCQ 06 LCG

AJCQ 08, 10, 12 ACG

AJCQ 09, 10, 12 DCG

Heat/Cool: AJEM 12 DCF

AJEQ 06 LCF

AJEQ 08 ACF

AJEQ 09, 10, 12 DCF

Español

For a Spanish version of this manual, visit our Website at GEAppliances.com.

For a French version of this manual, visit our Website at GEAppliances.com.

Write the model and serial

numbers here:

Model # ____

Serial # ____

Find these numbers on a label on the front of the base pan behind the front grille.

SAFETY INFORMATION

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety sages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:

DANGER

WARNING

CAUTION

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

SAFETY PRECAUTIONS

WARNING

Risk of electric shock. Can cause injury or death. For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

Use this appliance only for its intended purpose as described in this Owner's Manual.
This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ Turn OFF and unplug your air conditioner before making any repairs or cleaning.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

WARNING

HOW TO CONNECT ELECTRICITY

WARNING

Risk of electric shock. Can

cause injury or death. This appliance must be properly grounded. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
- Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Power cord may include a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

USE OF EXTENSION CORDS

WARNING

RISK OF FIRE. Could cause

serious injury or death.

USE OF ADAPTER PLUGS

WARNING

Risk of electric shock. Can cause injury or death.

We strongly recommend against the use of an adapter plug.
If you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.
The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

WARNING

Risk of electric shock. Can cause injury or death.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

DO NOT use an extension cord with this Built-in Air Conditioner.
DO NOT use surge protectors or multi-outlet adaptors with this Built-in Air Conditioner.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.
If the adapter ground terminal breaks, DO NOT USE it, the air conditioner until a proper ground has been established.
Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

About the controls on the air conditioner—Cool Only Models

Appearance may vary.


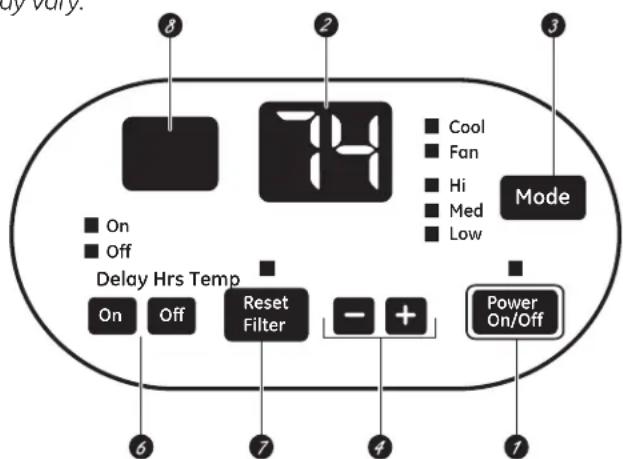

Air Conditioner Controls

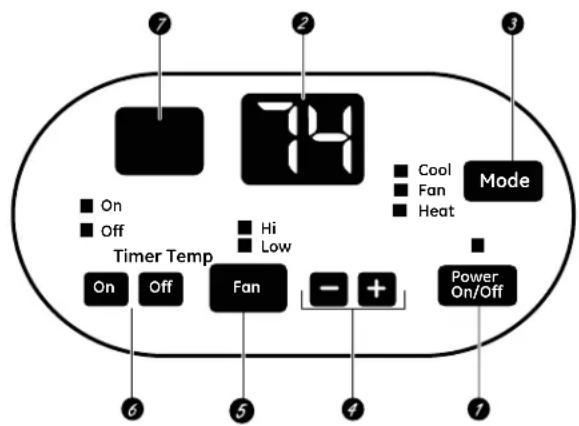

Lights beside the touch pads on the air conditioner control panel indicate the selected settings.

Remote Control

Controls

1. Power On/Off

Turns air conditioner on and off.

2. Display

Displays the temperature setting. Displays hours when setting the timer.

3. Mode

On the remote control, use to set the air conditioner to Cool or Fan mode.

On the air conditioner controls, use to set Cool or Fan mode at High, Med or Low fan speed. Indicator lights on the air conditioner controls will show the mode and fan speed selected.

4. Temp Increase + /Decrease - Pads

Use to set temperature when in COOL mode.

5. Fan Speeds

Use to set the fan speed at Low, Med or High.

6. Delay Hrs

On—When the air conditioner is off, it can be set to automatically turn on in half an hour to 24 hours at its previous setting. Each touch will set the time in half hours up to 10 and then in hours up to 24.

To cancel the Delay Timer, press the On pad until "CL" appears. Then wait until the display turns off.

Off—When the air conditioner is on, it can be set to automatically turn off in half an hour to 24 hours. Each touch will set the time in half hours up to 10 and then in hours up to 24.

To cancel the Delay Timer, press the Off pad until "CL" appears and wait for the set temperature to be displayed. The unit will now resume normal operation.

7. Reset Filter

LED will turn on when fan has accumulated 250 hours of run time as a reminder to clean filter. Press Reset Filter to turn off the LED and reset the accumulated run time.

8. Remote Control Signal Receiver

NOTE: When the air conditioner is turned on, it will automatically start in the setting last used.

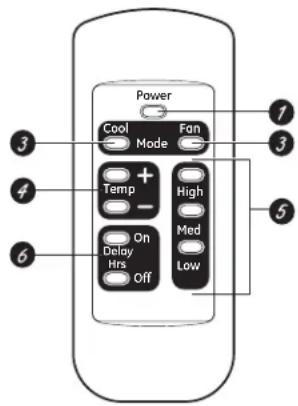

Remote Control

■ To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up to 21 feet.

■ Make sure nothing is between the air conditioner and the remote control that could block the signal.
■ Make sure batteries are fresh and installed correctly—see the Care and Cleaning section.

Cool Mode

Remote Control

1. Press Cool pad.
2. Press Low, Med or High pads to set desired fan speed.
3. Press the Increase +/ Decrease – pads to set the desired temperature 60°F to 85°F in 1°F increments.

Control Panel

1. Press the Mode pad until the Cool indicator light is lit and the Low, Med or High indicator light is lit for the desired fan speed.

2. Press the Increase + / Decrease – pads to set the desired temperature 60°F to 85°F in 1°F increments.

A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler.

Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to Cool, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.

For Maximum Cooling—Select the Cool mode and HIGH fan with a lower set temperature.

For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set temperature.

NOTE: If you switch from a Cool setting to Off or to a fan setting, wait at least 3 minutes before switching back to a Cool setting.

FAN MODE

Use the Fan mode to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a temperature setting will not be displayed.

Remote Control

Press Fan pad. Press Low, Med or High pads to set desired fan speed.

Control Panel

Press the Mode pad until the Fan indicator light is lit and the Low, Med or High indicator light is lit for the desired fan speed.

About the controls on the air conditioner—Heat/Cool Models

Appearance may vary.

Air Conditioner Controls
Lights beside the touch pads on the air conditioner control panel indicate the selected settings.

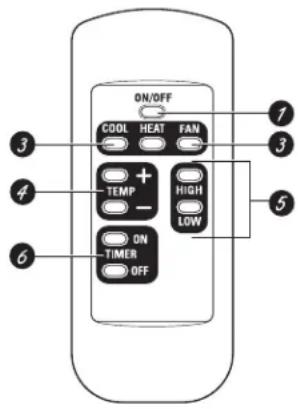

Remote Control

Controls

1. ON/OFF

Turns air conditioner on and off.

2. Display

Displays the temperature setting. Displays hours when setting the timer.

3. MODE

On the air conditioner controls, use to set COOL, HEAT or FAN mode. Indicator lights on the air conditioner controls will show the mode selected.

4. TEMP Increase + /Decrease - Pads

Use to set temperature when in COOL or HEAT mode.

5. FAN Speeds

Use to set the fan speed at LOW or HIGH. Indicator lights will show the speed selected.

6. TIMER

ON—When the air conditioner is off, it can be set to automatically turn on in half an hour to 24 hours at its previous setting. Each touch will set the time in half hours up to 10 and then in hours up to 24.

To cancel the On Timer, press the ON pad until "CL" appears. Then wait until the display turns off.

OFF—When the air conditioner is on, it can be set to automatically turn off in half an hour to 24 hours. Each touch will set the time in half hours up to 10 and then in hours up to 24.

To cancel the Off Timer, press the OFF pad until "CL" appears and wait for the set temperature to be displayed. The unit will now resume normal operation.

7. Remote Control Signal Receiver

NOTE: When the air conditioner is turned on, it will automatically start in the setting last used.

Remote Control

■ To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up to 21 feet.

■ Make sure nothing is between the air conditioner and the remote control that could block the signal.
■ Make sure batteries are fresh and installed correctly—see the Care and Cleaning section.

COOL MODE

Remote Control

1. Press COOL pad.
2. Press LOW or HIGH pads to set desired fan speed.
3. Press the INCREASE + / DECREASE - pads to set the desired temperature 60^ to 85^ in 1^ increments.

Control Panel

1. Press the MODE pad until the COOL indicator light is lit.
2. Press the FAN pad until HIGH or LOW indicator light is lit for desired fan speed.
3. Press the INCREASE + / DECREASE - pads to set the desired temperature 60^ to 85^ in 1^ increments.

A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler.

Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH fan with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH fan with a lower set temperature.

For Quieter and Nighttime Cooling—Select the COOL mode and LOW fan with a middle set temperature.

NOTE: There will be a 3-minute delay between setting changes such as COOL to OFF and back to COOL.

HEAT MODE

Remote Control

1. Press HEAT pad.
2. Press LOW or HIGH pads to set desired fan speed.
3. Press the INCREASE + / DECREASE - pads to set the desired temperature 60°F to 85°F in 1°F increments.

Control Panel

1. Press the MODE pad until the HEAT indicator light is lit.
2. Press the FAN pad until HIGH or LOW indicator light is lit for desired fan speed.
3. Press the INCREASE + / DECREASE - pads to set the desired temperature 60^ to 85^ in 1^ increments.

A thermostat is used to maintain the room temperature. The heater will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a higher number and the indoor air will become warmer.

Set the thermostat at a lower number and the indoor air will become cooler.

NOTE: If the air conditioner is off and is then turned on while set to HEAT, it will take approximately 1 minute for the heater to start and heating to begin.

Heating Descriptions

For Normal Heating—Select the Heat mode and HIGH fan with a middle set temperature.

For Maximum Heating—Select the HEAT mode and HIGH fan with a higher set temperature.

For Quieter and Nighttime Heating—Select the HEAT mode and LOW fan with a middle set temperature.

FAN

Use the FAN to provide air circulation and filtering without cooling or heating. Since fan only settings do not provide cooling or heating, a temperature setting will not be displayed.

Remote Control

Press FAN pad. Press LOW or HIGH pads to set desired fan speed.

Control Panel

Press the MODE pad until the FAN indicator light is lit and the LOW or HIGH indicator light is lit for the desired fan speed.

About the controls on the air conditioner

Vent Control

The vent control is located behind the front grille on the right side of the air discharge area. When CLOSED, only the air inside the room will be circulated and conditioned. When OPEN, the vent allows outdoor fresh air exchange.

To open or close the vent:

1. Remove the front grille.
2. Remove the vent card screw.
3. Remove vent card, turn it over and replace it by locating rear hole in card over locating pin inside air discharge and reattaching screw at front.

The unit leaves the factory set at the CLOSE position.

OPEN position (Mesh end toward back)

CLOSE position (Mesh end toward front)

Air Direction

Line drawing of a hand holding a ruler or ruler, no text or symbols present

Horizontal louvers on the front grille let you control the air direction up and down.

Illustration of a hand inserting into a grid-like structure (no text or symbols)

Remove the front grille to adjust the vertical louvers side-to-side to direct the air left or right.

Cool Only Models

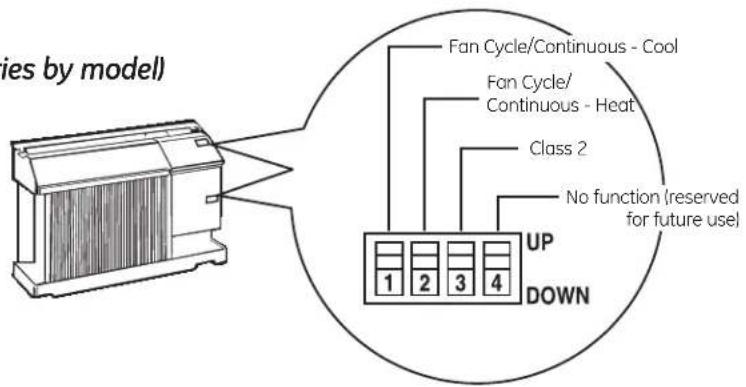

Auxiliary Controls - Dip Switches (location varies by model)

The auxiliary dip switch controls are located behind the room cabinet—as shown in this figure.

The owner is responsible for checking switches and ensuring they are in the desired position.

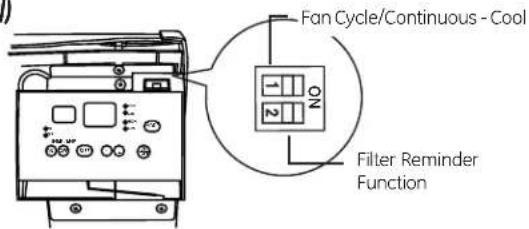

Fan Cycle/Continuous - Cool

When this switch is enabled (RIGHT), it allows the indoor fan to cycle on/off with the compressor. When this switch is disabled (LEFT), it allows the indoor fan to run continuously. The default setting is right (fan cycle).

Filter Reminder Funtion

When this switch is enabled (RIGHT), an LED will light up the user interface after 250 of accumulated fan run time. It serves as a reminder to clean the filter. When this switch is disabled (LEFT), the function is disabled. The default setting is right (enabled).

Heat/Cool Models

Auxiliary Controls - Dip Switches (location varies by model)

The auxiliary dip switch controls are located behind the room cabinet—as shown in this figure.

The owner is responsible for checking switches and ensuring they are in the desired position.

Fan Cycle/Continuous - Cool

When this switch is enabled (UP), it allows the indoor fan to cycle on/off with the compressor. When this switch is disabled (DOWN), it allows the indoor fan to run continuously. The default setting is DOWN (continuous).

Fan Cycle/Continuous - Heat

When this switch is enabled (UP), it allows the indoor fan to cycle on/off with the heater operation. When this switch is disabled (DOWN), it allows the indoor fan to run continuously. The default setting is UP (cyclic).

Class 2 - Remote Thermostat

When this switch is enabled (UP), it allows the unit to operate with a Class 2 Remote Control Wall Thermostat. The unit controls are disabled. The default setting is DOWN (disabled).

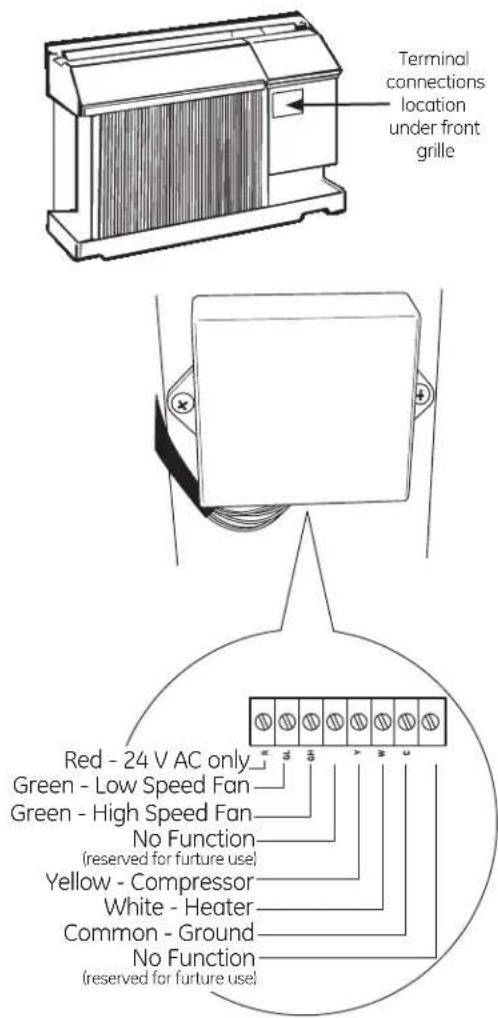

Terminal Connections Remote Thermostat - Class 2 (on some models)

The controls are located under a plastic cover behind the front grille.

1. Remove the front grille. See the Front Grille section of Care and Cleaning.
2. Remove the screws securing the plastic cover over the wiring connections. Set aside screws and plastic cover.
3. To make wiring connections, insert the wires into the bottom of the terminals and tighten screws securely.
4. After all desired connections have been made, replace the plastic cover and front grille.

The owner is responsible for making all connections and setting the appropriate dip switches.

When connected, the unit will be controlled by a remote thermostat.

NOTE: The number 3 dip switch must be in the enabled (UP) position to activate the remote thermostat. (See the installation instructions supplied with the remote thermostat.)

IMPORTANT:

The thermostat connections provide 24 V AC only.

If using a digital/electronic wall thermostat, ensure it is compatible with 24 VAC signal. See the Installation Instructions for the wall thermostat.

NOTICE:

Damage to a wall thermostat or to the electronics can result from improper connections. Special care must be used in connecting the wires. No line voltage connections should be made to any circuit. Isolate all wires in building from line voltage.

Care and cleaning of the air conditioner.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly.

If they are clogged with dirt or soot they may be professionally steam cleaned, a service available through your GE service outlet.

Line drawing of a wall-mounted air conditioner unit with ventilation slots (no text or symbols)

Front Grille

The front grille can be removed for more thorough cleaning and to locate the model and serial numbers on the front of the base pan.

To remove:

1. Pull the filter out.
2. Remove the two grille screws.

On some models

Diagram of an air conditioner unit with airflow direction and grid pattern (no text or symbols)

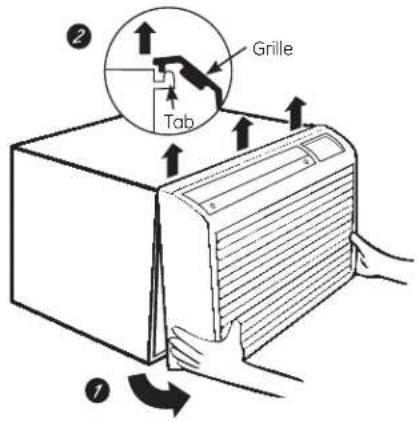

1. Pull the grille out from the bottom and lift up from the tabs on the top of the case.

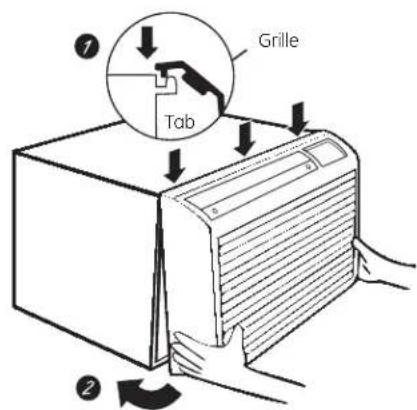

To replace:

Hook the tabs on the front grille even with the tabs on the case and snap into place.

Replace the screws and filter.

To maintain optimum performance, clean the filter at least every 30 days.

Air Filter

Dirty filter—Needs cleaning

Clogged filter—Greatly reduces cooling, heating and airflow.

Turn the air conditioner off before cleaning.

The most important thing you can do to maintain the air conditioner is to clean the filter at least every 30 days. A clogged filter reduces cooling, heating and air flow.

Keeping the air filter clean will:

■ Decrease cost of operation.
■ Save energy.
■ Prevent clogged heat exchanger coils.
■ Reduce the risk of premature component failure.

To clean the air filters:

■ Vacuum off the heavy soil.
■ Run water through the filters.
■ Dry thoroughly before replacing.

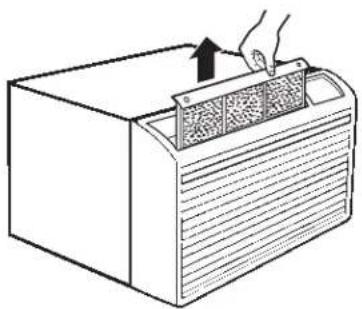

To remove the air filter, on some models:

Carefully pull the tab forward, up and out.

Line drawing of a hand inserting a component into a device (no text or symbols)

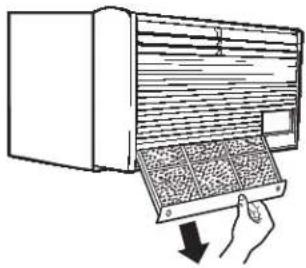

To remove the air filter, on other models:

Pull it down.

Illustration of a hand inserting a rack into an air conditioner unit (no text or symbols)

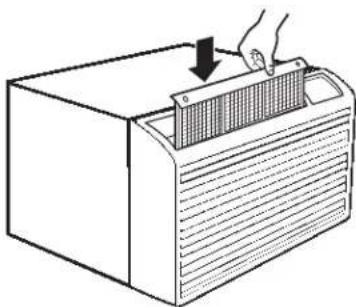

To replace the air filter:

Replace the clean filter by pushing it back into place.

Illustration of a hand placing a component into a rack with a downward arrow (no text or symbols)

NOTICE: Do not operate the air conditioner without the filter in place. If a filter becomes torn or damaged it should be replaced immediately.

Operating without the filter in place or with a damaged filter will allow dirt and dust to reach the indoor coil and reduce the cooling, heating, airflow and efficiency of the unit.

Replacement filters are available from your salesperson, GE dealer, GE Service and Parts Center or authorized Customer Care® servicers.

Care and cleaning of the air conditioner.

How to Insert the Batteries in the Remote Control

1. Remove the battery cover by sliding it according to the arrow direction.
2. Insert new batteries making sure that the (+) and (−) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTES:

■ Use 2 AAA (1.5 volt) batteries. Do not use rechargeable batteries.
■ Remove the batteries from the remote control if the system is not going to be used for a long time.
■ Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

Long Term Storage

When the room air conditioner is not in use it is recommended that the unit be covered to eliminate drafts and limit energy loss.

Insulated covers that mount to the front of the unit, that are designed to eliminate drafts and energy loss are recommended. Approximate size of indoor cover should be 26 in * 16 in. * 7 in..

Unplug the unit before adding the cover. Follow cover manufacturer's installation instruction to install cover.

Cover should be removed prior to running the unit.

Installation Instructions

Air Conditioner

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT — Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
  • Completion time – Approximately 1 hour
  • We recommend that two people install this product.
  • Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

Air conditioner break-in period

NOTE – As with any mechanical device with moving parts, this unit will have a wear-in period. AFTER INSTALLATION, this unit should be operated for 48 hours to achieve optimum efficiency.

ELECTRICAL REQUIREMENTS

WARNING

Risk of electric shock. Can cause injury or death. This appliance must be properly grounded. Where a 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong outlet.

Some models require a 115/120-volt a.c., 60-Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

IMPORTANT!

GE strongly recommends the removal of the old wall case and the installation of a new GE Wall Case. If you DO NOT use a GE Wall Case, you run the risk of poor performance or product failure. This is not covered under the terms of the GE warranty.

Read these instructions completely and carefully.

Power cord may include a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button.

If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

TOOLS YOU MAY NEED

Hand or Saber Saw

GE KIT NUMBERS

USE GEKIT NUMBER: FOR: DESCRIPTION:
RAB46A,46, 47A, 47, 48A, 48B & 48 not listed and replace.		Standard wall case for “J” model chassis. RAG13 stamped aluminum exterior grille included. Remove the existing case
RAK65A1	All GE Models Kit for window installation.
RAK690	RAB36, 37, 38, 46, 47 or 48 (J-Chassis)	If you attach a custom architectural outdoor grille, use this kit to ensure proper airflow.
RAG13	RAB36, 37, 38, 46, 47 or 48 (J-Chassis)	Standard aluminum exterior grille (included with RAB46, 47, 48, RAB46A, 47A, 48A, and 48B wall cases).
RAG14E	RAB36, 37, 38, 46, 47 or 48 (J-Chassis)	Architectural louvered exterior grille.

ADA Compliance

Operation by Remote Control	A Remote Control device is shipped with GE Built-In Air Conditioners. When operated by Remote Control GE Built-in ACs meet all federal ADA compliance requirements.
Operation at Control Panel	GE Built In Air Conditioners intended to be operated at the control panel meet federal ADA compliance requirements when installed so that the controls are more than 15" from ground and less than 48" from the ground.
Operation by Thermostat	GE Air Conditioners intended to be operated via a wall thermostat meet federal ADA compliance requirements when used in conjunction with an ADA compliant wall thermostat mounted more than 15" and less than 48" from the ground.

INSTALLING A J-MODEL IN AN EXISTING WALL CASE

Read these instructions completely and carefully.

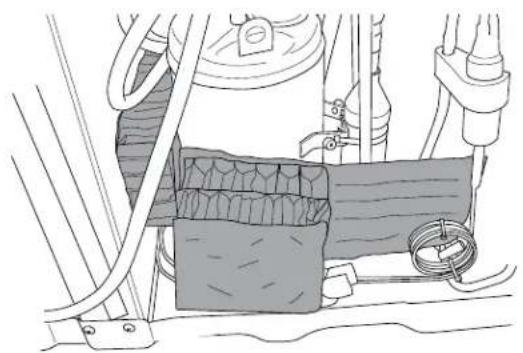

① REMOVE ALL SHIPPING MATERIAL (IF PRESENT) INSIDE AIR CONDITIONER NEXT TO COMPRESSOR

Technical line drawing of a mechanical assembly with hoses and a coiled spring (no text or symbols)

③ CAREFULLY SLIDE AIR CONDITIONER INTO CASE

Make sure that the tubing on the unit does not touch the wall case and that the case installation is secure.

Diagram of a container with granular material inside, showing directional arrows indicating flow or movement (no text or symbols)

② REMOVE THE FILTER AND FRONT GRILLE

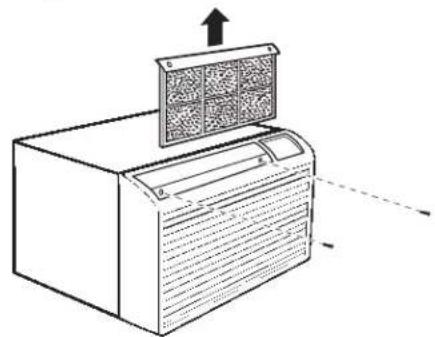

Remove the two screws behind the filter then remove the front grille.

Line drawing of a server rack with a fan cover and directional arrow (no text or symbols)

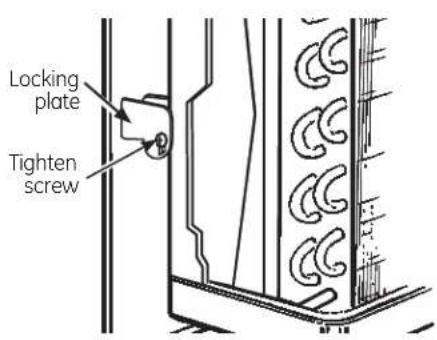

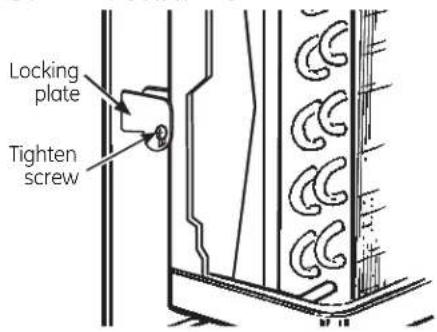

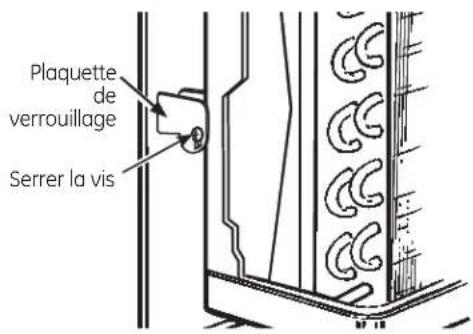

4 REINSTALL LOCKING PLATE WITH TAB BEHIND WALL CASE FLANGE. TIGHTEN SCREW

5 An opening for the power cord is on the bottom of the front grille.

Line drawing of an air conditioner unit with a grid cover and airflow direction indicator (no text or symbols)

INSTALLING THROUGH THE WALL

Read these instructions completely and carefully.

① PREPARE OPENING IN WALL

Make certain a wall receptacle is available close to the hole location or make arrangements to install a receptacle.

The cord length for the 115-volt models is 72" to the right and 47" to the left.

For the 230/208-volt models the cord length is 65" to the right and 39" to the left.

MINIMUM FINISHED OPENING DIMENSIONS*		CASE DIMENSIONS
Height	Width	Height	Width	Depth
138"	26 18"	15 18"	26 116"	16"

* Dimensions may need to be increased to fit unique situations in the field if using case angles.

③ SUPPORT REQUIREMENTS FOR AIR CONDITIONER

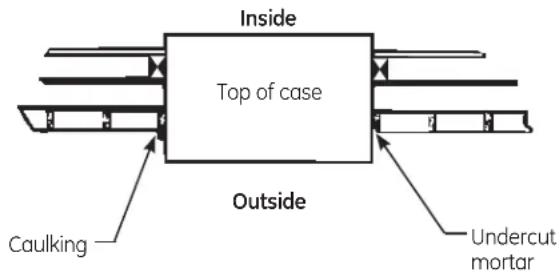

Mortar between the case and the brick wall around the case may be undercut at about 45^ for improved caulking.

② SUPPORT REQUIREMENTS FOR AIR CONDITIONER

The air conditioner wall case may be installed with 1/4" min. extension out from the inside wall or with 1/4" min. extension out from the outside wall. The finished sides of the opening should be structural wall members.

Lintel – Use a lintel in brick veneer and brick and block types of wall to support the bricks or blocks above the opening. Do not allow the wall case to be used in lieu of a lintel.

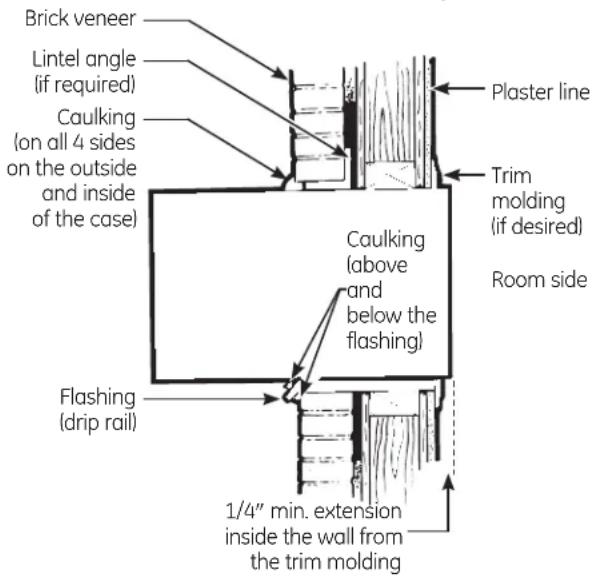

Flashing – Install flashing (drip rail) as shown to prevent water from dripping inside the wall and down the outside of the building.

Before you call for service...

Troubleshooting Tips: Save time and money! Review the chart below first and you may not need to call for service.

Problem Possible Causes What To Do
Air conditioner does not startbreaker is tripped. the fuse or reset the breaker.	The air conditioner is unplugged.	Make sure the air conditioner plug is pushed completely into the outlet.
	The fuse is blown/circuit	Check the house fuse/circuit breaker box and replace
	Power failure.	If power failure occurs, turn the air conditioner OFF. When
power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.	The current interrupter device is tripped.	Press the RESET button located on the power cord plug.If the RESET button will not stay engaged, discontinue use technician.
of the air conditioner and contact a qualified service
Air conditioner does not cool or heat (some models) as it shouldto allow time for the room to cool down.	Airflow is restricted.the front of the air conditioner.	Make sure there are no curtains, blinds or furniture blocking
	The temp control may not be set correctly.	In COOL mode or HEAT mode (some models), press the DECREASE – pad.
	The air filter is dirty.	Clean the filter at least every 30 days.See the Operating Instructions section.
	The room may have been hot.	When the air conditioner is first turned on, you need
	Cold air is escaping.	Check for open furnace registers and cold air returns.
Make sure the air conditioner's vent is in the closed position.	Cooling coils have iced up.	See “Air conditioner freezing up” below.
Air conditioner freezing up	Ice blocks the airflow and stops the air conditioner from cooling the room.	Set the controls at HIGH FAN or HIGH COOL and set the thermostat to a higher temperature to allow the ice to melt.Check filter for cleanliness.
The remote control is not working	The batteries are inserted incorrectly.	Check the position of the batteries. They should be inserted correctly.
	The batteries may be dead.	Replace the batteries.
Water drips outside	Hot, humid weather.	This is normal.
Water drips indoors	The air conditioner is not tilted to the outside.	For proper water disposal, make sure the air conditioner case is level or slants slightly from the case front to the rear.
Water collects in base pan	Moisture removed from air and drains into base pan.	This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas.

Normal Operating Sounds

■ You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
■ You may hear the thermostat click when the compressor cycles on and off.

■ Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
■ The fan may run even when the compressor does not.

Notes.

Air Conditioner Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). For service in Canada, contact Gordon Williams Corp. at 1.888.209.0999. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year	Any part of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the original purchase and related service to replace the defective part.

Five YearsFrom the date of the original purchase

Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship.During this four-year limited additional warranty, GE will also provide, free of charge, all labor and related service to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.
In commercial locations labor necessary to move the unit to a location where it is accessible for service by an individual technician.

■ Replacement of house fuses or resetting of circuit breakers.
- Failure due to corrosion on models not corrosion-protected.
■ Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this air conditioner.
■ Damage caused after delivery.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA and Canada. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliancesparts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

4. Temp Increase +/Decrease - Pads

MODE VENTILATEUR (FAN)

4. TEMP Increase +/Decrease - Pads

Line drawing of a hand holding a ruler above a striped surface (no text or symbols)

Illustration of a hand placing a small object into a grid-like structure (no text or symbols)

Line drawing of a cabinet or air conditioner unit mounted on a wall, with no visible text or symbols.

Grille frontale

Diagram of a wall-mounted air conditioner unit with a grid-patterned panel below, showing airflow direction (no text or symbols)

Illustration of a hand placing a textured object into a rectangular box (no text or symbols)

Illustration of a hand inserting a grid into a rack inside a cabinet (no text or symbols)

Diagram of a hand placing a grid into a rack with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and a coiled spring (no text or symbols)

④ REPOSEZ LA PLAQUETTE DE VERROUILLAGE AVEC LA LANGUETTE DERRIÈRE LE BORD DU LOGEMENT MURAL. SERREZ LA VIS.

② ENLEVEZ LE FILTRE ET LA GRILLE FRONTALE

Line drawing of an air conditioner unit with a fan cover and airflow direction indicator (no text or symbols)

5 FIXEZ LA GRILLE FRONTALE

Line drawing of a server unit with a grid-patterned top panel and directional arrow (no text or symbols)

3 FAITES GLISSER AVEC PRÉCAUTION LE CLIMATISEUR DANS SON LOGEMENT

Diagram of a container with internal granular material and directional arrows indicating flow or movement (no text or symbols)

INSTALLATION À TRAVERS LE MUR

Garant : General Electric Company. Louisville, KY 40225

Line drawing of a hand holding a tab with horizontal stripes (no text or symbols)

Illustration of a hand inserting into a grid-like structure (no text or symbols)

Simple line drawing of a cabinet or enclosure with ventilation grilles, no text or symbols present

Rejilla delantera

Diagram of an air conditioner unit with airflow direction and a grid-patterned panel below (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Illustration of a hand inserting a grid into an air conditioner unit (no text or symbols)

Illustration of a hand placing a component into a rack with a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no visible text or symbols)

4 VUELVA A INSTALAR LA PLACA DE BLOQUEO CON LA LENGÜETA DETRÁS DE LA PESTAÑA DE LA CAJA DE PARED. AJUSTE EL TORNILLO

2 RETIRE EL FILTRO Y LA PARRILLA FRONTAL

Line drawing of an air conditioner unit with a fan cover and directional arrows indicating airflow (no text or symbols)

5 ADHIERA LA PARRILLA FRONTAL

Line drawing of a server rack with a grid-patterned top panel and directional arrow (no text or symbols)

3 CON CUIDADO DESLIZE EL ACONDICIONADOR DE AIRE EN LA CAJA

Diagram of a container with granular material inside, showing directional arrows indicating flow or movement (no text or symbols)

CÓMO INSTALAR A TRAVÉS DE LA PARED

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
