Product Type	Electric Fan Heater
Model	HMK-20
Brand	Infiniton
Heating Power	2000 W
Heat Settings	2 levels (1000 W / 2000 W)
Fan Speeds	2 speeds
Oscillation	Yes, 70°
Thermostat	Adjustable thermostat
Safety Features	Overheat protection, tip-over switch
Dimensions (W x H x D)	15 x 25 x 12 cm
Weight	1.2 kg
Power Supply	220-240 V, 50 Hz
Noise Level	≤ 45 dB
Heating Element	PTC ceramic
Material	ABS plastic
Control Type	Rotary knobs
Maintenance	Clean with dry cloth, do not immerse
Spare Parts	Replacement fan, thermostat available
Certifications	CE, RoHS

Frequently Asked Questions - HMK-20 Infiniton

How do I turn on the Infiniton HMK-20 heater?

Plug the heater into a power outlet, then rotate the thermostat knob clockwise to the desired temperature setting, and select the fan speed using the speed selector knob.

What should I do if the heater does not turn on?

Check that the power cord is securely plugged in and the outlet is working. Ensure the thermostat is set above room temperature. If it still does not turn on, check the overheat protection reset button (if available) or contact customer support.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended. Always turn off and unplug the heater when leaving the room. The heater has tip-over protection, but for safety, do not leave it on unsupervised.

How often should I clean the heater?

Clean the heater regularly, at least once a month during use. Use a dry cloth to wipe the exterior and a vacuum with a brush attachment to clean the air inlet and outlet grilles to prevent dust buildup.

What is the maximum room size for this heater?

The Infiniton HMK-20 has a heating power of 2000 W, which is suitable for rooms up to approximately 20-25 m², depending on insulation.

Is the heater suitable for bathroom use?

This heater is not designed for bathroom installation. It should be kept away from water and moisture. Use only in dry indoor areas.

How do I reset the overheat protection?

If the heater shuts off due to overheating, unplug it and allow it to cool down for about 10-15 minutes. Look for a reset button on the back or bottom; press it with a paper clip. Then plug back in and use.

Can I adjust the thermostat precisely?

The thermostat is a simple knob with a temperature range. It does not have a digital display, so you may need to adjust by feel. Set to a higher position for more heat, lower for less.

What does the tip-over switch do?

The tip-over switch automatically cuts power if the heater is accidentally knocked over, preventing fire hazards. Once upright, the heater will not restart automatically; you must turn it on again.

Are replacement parts available for the HMK-20?

Yes, replacement parts such as the fan motor, thermostat, and knobs are available. Contact Infiniton customer service or authorized dealers. Always use genuine parts to ensure safety.

USER MANUAL HMK-20 Infiniton

Black and white photo of a flat-screen electric heater with heat sinks and wheels (no text or symbols visible)

• THE GUARD ON THIS APPLIANCE IS TO PREVENT RISK OF FIRE OR INJURY FROM BURNS AND NO PART OF IT SHOULD BE PERMANENTLY REMOVED
• LA REJILLA EN ESTE APARATO ES EVITAR EL RIESGO DE INCENDIO O LESIONES POR QUEMADURAS, NO QUITAR.
• LA REJILLA EN ESTE APARATO ES EVITAR O RIESGO DE INCÊNDIO O LESIONES POR QUEMADURAS. NÃO QUITAR.

Description of The Symbols:

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

This symbol, marking a point of safety, indicates a caution, warning or danger. Ignoring this warning can result in an accident to yourself or others. To limit the risks of injury, fire or electrocution, always follow the recommendations indicated.

Before any use, refer to the corresponding section in this user manual.

In accordance with European directives applicable to this product

Warning: To avoid overheating, do not cover

Caution, hot surface

Recycle unwanted materials instead of disposing of them. All appliances and packaging should be sorted and tendered at a regional recycling centre into to be processed in an ecological manner.

General safety Warning:

- Open the package, take out the body, check whether the supplied accessories and the body are complete and intact.

- Power on (plug such as electrical outlet) after the equipment is installed in place according to installation instructions and requirements. Requirements for power outlet and power: AC 230V, frequency 50/60Hz

- Read the service manual before you use the electric heater. Keep the manual and have it attached with the heater in case you offer the heater to others as a gift.

● The heater is only suitable for indoor use. Do not use it outdoors!

- Do not leave the heater unattended during use. Keep the heater out of the reach of children. Do not use automatic switch device on the heater (for example, time switch), otherwise automatic operation of the electric heater which is left unattended may be caused.

- Maintain a sufficient safe distance from in-flammables and explosives to avoid risks of fires and explosions.

- Inserting other items into the shell or protection grid of the electric heater is strictly prohibited, or electric leakage and shock may be caused.

- Do not touch the metal housing as it will get hot during the running of the electric heater, and keep the heater away from children to avoid risk of burns. Set aside some time to let the heater cool before you turn it off and store it.

- If the electric heater has been idle for a long time, plug the power plug from the outlet.

- Prior to the use of the electric heater, make sure that the heater is in a good condition and intact. In case the heater shell, wire or plug is damaged, the heater may not be connected to power

- The heating unit of the heater (the heating film at the back of the protection grid of the heater) may be damaged from fall. Please confirm the heating unit is not damaged prior to each use. Do not use the electric heater if the heating element is broken.

- Disconnect the power plug when moving or cleaning this appliance. When disconnecting the appliance connection, first turn off the switch, then unplug the plug. Do not yank the power cable.

- Demolition of the electric heater with authorization is strictly prohibited. Please look for professional service personnel if the heater is damaged.

● The product is limited to home use.

- During normal use, do not let bare skin touch the surface of the appliance, so as not to be burnt

- Avoid the use of the heater if children, animals or the disabled and those who lack self control are present while nobody else is taking care of them.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not share the socket with other electrical appliances to avoid current overload, or fire risks may be caused by excessive load
• CAUTION: covering of the cooling device is prohibited to avoid overheating, or dangerous accidents may be caused.
• In order to avoid overheating do not cover the heater.
  ● The heater must not be located immediately below an electrical socket-outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• Avoid the use of an extension cord as this may overheat and cause a risk of fire.
• This heater is not intended for use in bathrooms, laundry areas or similar indoor locations where there may be moisture. Never place heater where it may fall into a bathtub or other water receptacle
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
  ● Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
  CAUTION- Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
  ● WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot
  • A steam cleaner is not to be used.
• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical Specifications:

Model	Rated Voltage	Frequency	Rated Power	Protective Class
MH-20K 230V~ 50/60 Hz 2000 W I

List of main parts (Fig. 1)

1. Handle
2. Thermostat
3. Rotary Switch
4. Indicator Light
5. Power Cable Holder
6. Grill
7. Supporter and Wheel

1. Taking the heating body and all accessories out from the package.

2. Put the heater on a soft surface with up on bottom position.

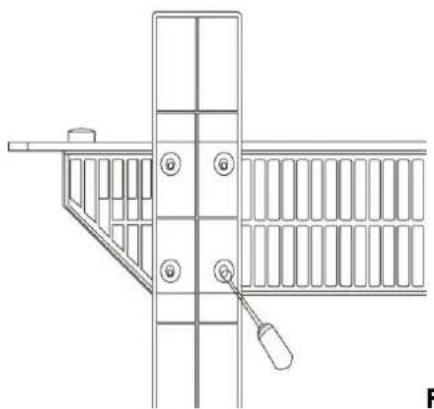

3. Attach the two feet to the bottom, and fix it with the provided screws at the help of the screw tool, each foot with 3 screws (Fig. 2)

Technical line drawing of a door frame with a screwdriver inserted, showing structural details without any text or symbols.

Fig.2

Operation

1. After assembly the feet to the body, put the heater on up right position

2. Connect to the socket with voltage 230V 50Hz

3. Rotate the thermostat knob from "min" to "max" position, when you hear a "click" sound, then the heater has been connected.

4. Then rotate the switch knob to choose the power "I" 1200W, and "II" 2000W

Maintenance:

1. Always disconnect the appliance and let it completely cool before any maintenance.

2. Use a vacuum cleaner to remove dust on grilles.

3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, nor let water drip into the unit.

Overheat Safety Device:

Your heater is fitted with a safety device to switch off the heater in the event of overheating. If the safety device operated, please turn the heater off, unplug the appliance and let it completely cool, inspect for blockage of air inlet or outlet, attempting to restart the heater then after.

If the heater fails to operate or the safety device switches the heater off again, return heater to your nearest service center for examination or repair.

Storing:

1. Always disconnect the appliance, let it completely cool and clean it before storing.

2. If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.

3. Do not place any heavy items on top of carton during storing as this may damage the appliance.

Technical line drawing of a metal fence structure with railings and a screwdriver (no text or symbols)

Fig.2
