Product Type	Wine Cellar
Brand	Hanseatic
Model	JC-201M
Capacity	20-30 bottles (est.)
Dimensions (H x W x D)	Approx. 82 x 50 x 53 cm
Weight	Approx. 28 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	Approx. 100-150 kWh/year
Noise Level	< 40 dB
Temperature Range	5°C to 18°C
Cooling Type	Compressor
Shelves	5-7 wooden or wire shelves
Door Type	Reversible, double-glazed with UV protection
Interior Light	LED (on/off switch)
Thermostat	Adjustable with digital display
Lock	Yes, with key
Defrost Type	Manual defrost (automatic defrost cycle)
Installation	Freestanding
Climate Class	SN, N, ST (ambient 10°C-38°C)
Energy Efficiency Class	F (est.)
Safety Features	Anti-tip bracket, child lock (optional)
Maintenance	Clean with soft cloth; vacuum condenser coils annually
Spare Parts	Shelves, door handle, thermostat available for order

Frequently Asked Questions - JC-201M Hanseatic

How do I set the temperature on my Hanseatic JC-201M wine cellar?

Use the buttons on the control panel to select the desired temperature. The range is 5°C to 18°C. Wait 24 hours for the temperature to stabilize. Refer to the manual for precise button functions.

What is the ideal temperature for storing red wine?

Red wines are best stored between 12°C and 18°C. For long-term aging, keep them at the lower end of this range. The JC-201M can maintain this range easily.

Can I store both red and white wine in the same cellar?

Yes, but it's optimal to set a single temperature. A compromise is 12°C to 14°C, which works for most wines. For dual zones, separate cellars are recommended.

How do I clean my wine cellar?

Unplug the unit. Use a soft damp cloth with mild detergent to wipe interior and exterior. Do not use abrasive cleaners. Clean condenser coils yearly with a vacuum.

Why is my wine cellar making noise?

Some noise is normal: the compressor and fan may cycle on and off. If it's excessive, check that it's level and not touching walls. Unusual sounds may require service.

Where should I place my wine cellar?

Place it in a cool, dry area away from direct sunlight and heat sources. Ensure adequate ventilation around the unit (10 cm rear clearance). Do not install outdoors.

Does the JC-201M have a lock?

Yes, it comes with a lock and key to secure the contents. Use the key to lock/unlock the door handle.

How do I reverse the door opening direction?

You can reverse the door by transferring the hinges to the other side. The manual includes step-by-step instructions with diagrams. Requires basic tools.

What should I do if my wine cellar is not cooling enough?

Check that the thermostat is set correctly, the door is sealed, and condenser coils are clean. Allow 24 hours after setting. If still warm, contact customer support.

How long is the warranty period?

Hanseatic typically offers a 2-year warranty from date of purchase. Keep your receipt and register the product online. Check your manual for exact terms.

USER MANUAL JC-201M Hanseatic

Line drawing of an open refrigerator with multiple shelves and a door (no text or symbols)

Gebrauchsanleitung

Weinkühlschrank

Inhaltsverzeichnis

Lieferung DE-3

Lieferumfang DE-3

Line drawing of an open refrigerator with multiple shelves and a door (no text or symbols)

Lieferumfang

Simple electrical circuit symbols: one with power and light bulb, the other without any text or labels

(6) (7) (8)

(9)

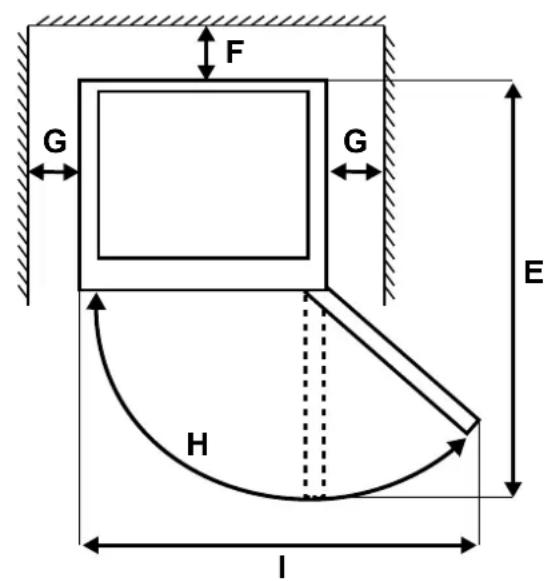

Simple geometric diagram showing a rectangle with a smaller square inside, labeled 'D' on the left side (no text or symbols within the shapes)

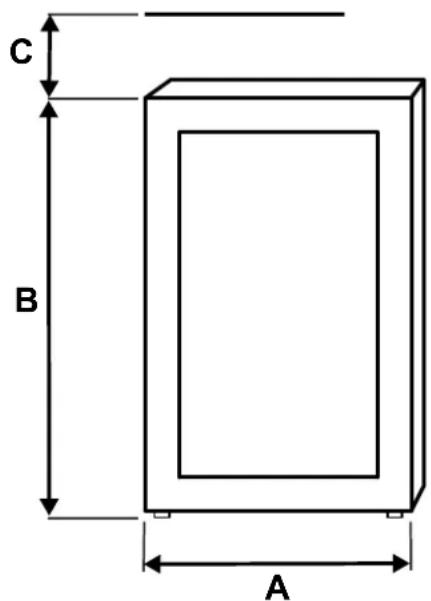

A: 480 mm B: 1285 mm

C: 100 mm D: 575 mm

E: 1050 mm F: 100 mm

G: 50 mm H: 150°

l: 890 mm

Line drawing of an open refrigerator with multiple shelves and a door (no text or symbols)

User manual

Wine refrigerator

Table of contents

Delivery EN-3

Package contents ..... EN-3

Check the delivery ..... EN-3

Packaging tips ..... EN-3

Appliance parts ..... EN-4

Safety EN-5

Intended use..... EN-5

Explanation of symbols ..... EN-5

Explanation of terms ..... EN-5

Safety notices.... EN-6

Operation EN-10

The control panel.... EN-10

Before getting started ..... EN-10

Key tones EN-10

Switching the appliance on and off EN-10

Key lock....EN-11

Setting the temperature .....EN-11

Changing the temperature unit . . . .EN-11

LED light....EN-11

Interior equipment ..... EN-12

Storing bottles ..... EN-13

Filling the appliance ..... EN-13

Maximum storage capacity ..... EN-13

Maintaining quality ..... EN-14

Care and maintenance ..... EN-15

Checking and cleaning door seals . EN-15

Clean exterior EN-15

Cleaning the back of the appliance EN-15

Defrosting the appliance ..... EN-15

Cleaning the inside of the

appliance....EN-16

Replacing the LED light ..... EN-16

Start-up.... EN-17

Before starting to use the

appliance EN-17

Moving and unpacking ..... EN-17

Choosing a suitable location ..... EN-17

Setting up and aligning the

appliance....EN-19

Basic cleaning EN-19

Connecting the appliance ..... EN-19

Troubleshooting table ..... EN-21

Service EN-23

Advice, order and complaint ..... EN-23

Repairs and spare parts ..... EN-23

Environmental protection ..... EN-24

Disposing of old electrical devices

in an environmentally-

friendly manner ..... EN-24

Our contribution to the

protection of the ozone layer ..... EN-24

Product fiche concerning

Regulation (EU) No 1060/2010..... EN-25

Technical specifications ..... EN-26

You can find more information on setting up the appliance and starting it up for the first time

from page EN-17.

Please read through the safety instructions and user manual carefully before using the

appliance. This is the only way you can use all the functions reliably and safely.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

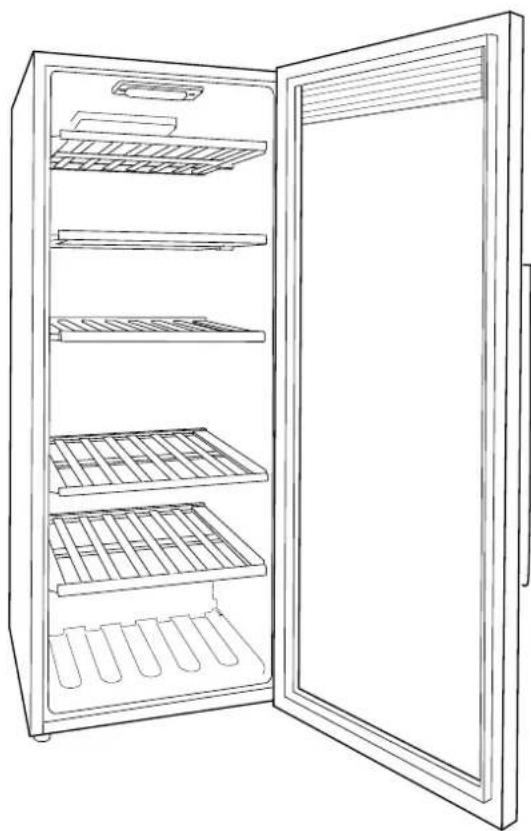

Line drawing of an open refrigerator with multiple shelves and a door (no text or symbols)

Package contents

1× Wine refrigerator

5× bottle shelf

1× User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see „Start-up“ on page EN-17).

2. Remove all parts of the packaging, plastic profiles, tape and foam padding.

3. Check that the delivery is complete.

4. Check whether the appliance was damaged during transit.

5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see page EN-23).

WARNING!

Risk of electric shock! Never use a damaged appliance.

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If

the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

Should you choose not to keep the packaging, please dispose of it in an environmentally friendly way.

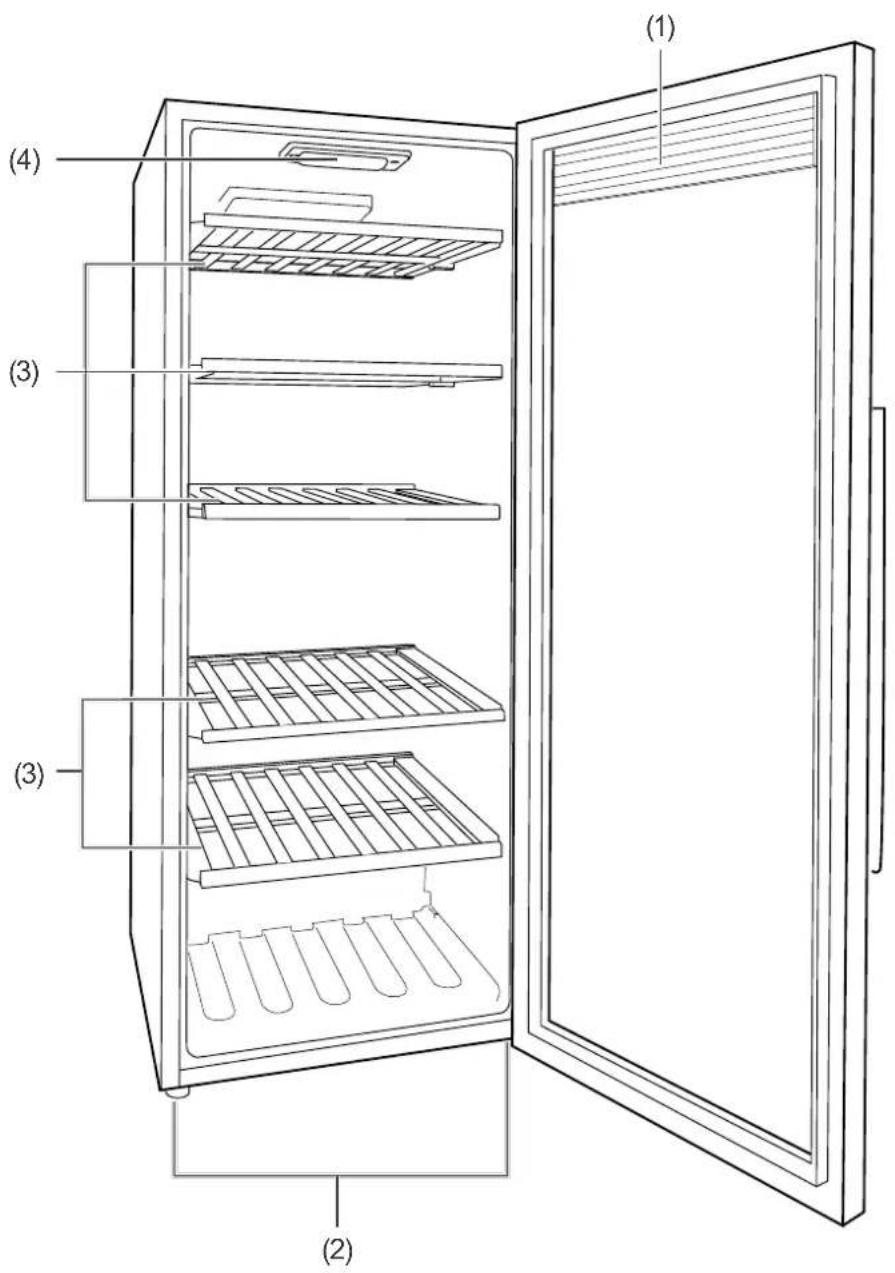

Appliance parts

(1) Glass door
(2) Screw feet
(3) Bottle shelves
(4) LED light

Safety

Intended use

This appliance is intended solely for storing wine.

The wine refrigerator is designed for private household use. It is not suitable for commercial applications or shared use (e.g. use by several parties in a block of flats).

The appliance is not a built-in device and is not suitable for insertion into cabinets, etc.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of symbols

Caution: Fire hazard / flammable materials

This appliance complies with the relevant European and national guidelines. This is confirmed with the CE label (corresponding explanations are available from the manufacturer).

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if
– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
– it makes unfamiliar noises.

In such cases, remove the mains plug from the socket and contact our service department (see page EN-23).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. When connecting, make sure that it has the right voltage. You can find more detailed information about this on the nameplate.

■ The appliance must only be completely disconnected from the power supply by pulling out the mains plug. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected

from the power supply in the event of breakdown.

• Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Keep the mains plug and the mains cord away from open flames and hot surfaces.
  ■ Always touch the mains plug, not the mains cord.
  ■ Never touch the mains plug with wet hands.
  ■ Never immerse the appliance, mains cord or mains plug in water or any other liquids. Never expose electrical equipment to water.
  ■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Inspections and repairs to the appliance may only be carried out by authorised specialists (see „Service“ on page EN-23).
  ■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair a defective or suspected defective appliance yourself.
  ■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts correspond-

ing to the original appliance specifications may be used for repairs.

• In the event of a defect, disconnect the mains plug from the plug socket before carrying out any extensive cleaning work or before repositioning the appliance.
• Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects in them.
• Check the appliance regularly for damage.
  ■ Do not remove the LED light covers.
  ■ Do not attempt to replace the LED light yourself.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi Im.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.

Risks associated with chemical substances

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally-friendly, but flammable refrigerant R600a (isobutane).

• Keep the appliance away from open flames and hot surfaces.
  ■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.

• Do not damage the refrigerant circuit, for example, by piercing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, cutting open the insulation, etc.
  ■ Refrigerant is fl ammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

• To prevent the formation of a fl ammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. Information on the amount of refrigerant contained in your appliance can be found on the data sheet at the end of this user manual.

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

• Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
  ■ Never use defrosting sprays. They can generate explosive gases.

CAUTION

Risks for certain groups of people

Danger to children and people with impaired physical, sensory or mental abilities!

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Make sure children do not have unsupervised access to the appliance.

Risks when dealing with fridge and freezer appliances

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
■ To ensure adequate air circulation, keep ventilation openings, in the appliance enclosure, clear of obstruction.
- Do not place the appliance directly against the wall. Adhere to minimum distances (see „Choosing a suitable location“ on page EN-17).

Health hazard!

Inappropriate use of this appliance can damage your health.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, and dry it, and leave the door open to prevent mould developing within the appliance.

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance and changing the door hinges.
- Check that entry route and installation location are free of obstacles (e.g. closed doors or objects lying on the floor).
■ Wear protective gloves when moving/installing the appliance and changing the door hinges.
■ Bases, doors, etc. must not be used as steps or for support purposes.
■ Do not place any heavy objects on the appliance.
■ Take care to prevent the risk of tripping when laying the mains cord.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always adhere to the prescribed ambient temperature (see data sheet at the end of this user manual).

NOTICE

Risk of damage

If the appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ Do not tilt the appliance more than 45^ or lay it on its side.
- Allow the cooling unit to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

• Do not use the door to pull or lift the appliance.
• The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
• Do not operate the appliance near sinks, taps or containers filled with liquids such as vases, aquariums, etc. Make sure that the appliance does not get wet.
  ■ Make sure that the ventilation slots are not covered.
  ■ The maximum load of 14 bottles per bottle shelf must not be exceeded.

■ Do not use sharp or pointed objects to unpack it.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ When cleaning, please note:
- Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
- Do not clean the appliance parts in the dishwasher.
– Use only soft cloths for cleaning.
- Wait 5 minutes after switching off. Only then switch the appliance on again.
■ Only use original accessories.

Operation

The control panel

(5)

Simple diagram with two circular icons: one with a power button and the other with a light bulb, connected by a battery and switch (no text or symbols)

(5) Key ⏻ „On/Off“
(6) Key ✱ „Light on/off“
(7) Temperature indicator

Before getting started

• Read the „Safety“ chapter from page EN-5.
• Set up and connect the appliance as described in chapter „Start-up“ from page EN-17.

Key tones

You will hear a beep each time you press one of these keys: (5), (6), (8) and (9). This tells you that the appliance has registered your keypress.

Switching the appliance on and off

Switching on for the first time

- If you have not already done so, insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz).

The temperature indicator will show the current temperature in the appliance.

(8) Key "Increase temperature"
(9) Key ▼ „Decrease temperature“

You will hear the compressor start to work, and the appliance will begin cooling.

The appliance is switched on.

The key lock is activated the first time it is switched on.

Switching on

- Press the ⏻ key (5).

A beep will sound.

The temperature indicator (7) will show the current temperature in the appliance.

You will hear the compressor start to work, and the appliance will begin cooling.

The appliance is switched on.

Switching off

- Press the key (5).

The temperature indicator (7) will go out. The compressor will not work and the appliance will stop cooling.

The appliance is switched off.

Key lock

The key lock will be automatically activated approx. 20 seconds after the settings have been changed using the control panel. This is to prevent users from making any unintentional changes to the settings. You can deactivate the key lock at any time.

• To deactivate the key lock, press and hold the ⏻ key (5) and the ⚡key (6) simultaneously for approx. 2 seconds.
  You will hear a beep sound indicating the key lock is now deactivated. You can now enter your desired settings.
• To activate the key lock, press and hold the ⬆key and the key simultaneously for approx. 2 seconds again.
  You will hear a beep sound indicating the key lock is now active.

Setting the temperature

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always adhere to the prescribed ambient temperature (see data sheet at the end of this user manual).

Select an internal temperature to suit the wine. Further information on the optimum storage temperature can be found in the section „Maintaining quality“ on page EN-14.

You can set the appliance to a temperature from +5°C to +20°C (41°F to 67°F).

• To set
  – the temperature higher, press the ▲ key (8) repeatedly until the desired temperature is shown.
  – the temperature lower, press the key (9) repeatedly until the desired temperature is shown.
  After a short while the flashing will stop and the desired temperature will be set.

The appliance will adjust itself to the set temperature while showing the current internal temperature.

Changing the temperature unit

You can choose whether the internal temperature is shown in Celsius (°C) or Fahrenheit (°F).

You can find the current setting on the temperature indicator.

- To change the temperature unit, press the key (8) and the key (9) simultaneously.

LED light

- To switch the LED on or off, press the * key (6).

Interior equipment

The bottle shelves (3) can be removed and rearranged as necessary.

Removing the shelves

- Lift the bottle shelf slightly and pull it out.

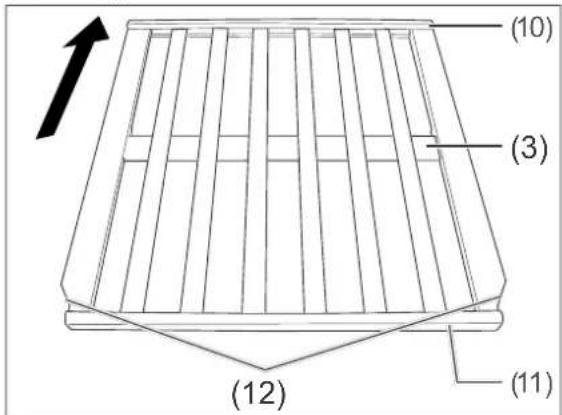

Inserting the shelves

1. Position the bottle shelf (3) so that the front rail (11) and back rail (10) are facing up and the chamfered edges (12) are facing forward.

2. Insert the bottle shelf (3) into the side brackets and slide it all the way back.

Storing bottles

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

CAUTION

Health hazard!

Inappropriate use of this appliance can damage your health.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, and dry it, and leave the door open to prevent mould developing within the appliance.

Filling the appliance

• Lay bottles in the slots between the wooden rails on the bottle shelves (3).
  The bottle tops should be facing the glass door (1).
• Make sure that the bottles do not directly touch the interior walls of appliance or the glass door.
• Remove the packaging (e.g. cardboard) before placing items in the appliance.
• Systematically fill the appliance so the wine you want is easy to reach so that you do not have to move the wine bottles around a lot.
• Only store strong alcohol standing upright and closed tightly.
• Make sure that the appliance is at least 70% filled in order to counteract fluctuations in temperature.

Maximum storage capacity

NOTICE

Risk of damage!

Damage may be caused to the appliance by placing too much weight on the bottle shelves.

■ The maximum load of 14 bottles per shelf must not be exceeded.

The appliance is designed to only hold a certain number of bottles, the so-called nominal capacity.

The nominal capacity indicates how many standard 0.75 litre bottles you can store in the appliance. You will find information about the 'Nominal capacity' in the data sheet at the end of this user manual.

- Abide by the nominal capacity.

Maintaining quality

Storage temperature

The optimum storage temperature varies depending on the type of wine, due to the fact that wines have different shelf lives and age differently.

Wine Storage temperature
Semi-sparkling wine	+6 °C to +10 °C
Sparkling wine +10 °C
White wine +10 °C to +12 °C
Red wine +12 °C to +14 °C
Rosé wine +12 °C to +16 °C

• Avoid strong and frequent variations in temperature.
• Ensure that there is enough space between the bottles to promote the circulation of air inside the appliance.
• The appliance's interior temperatures can increase and lead to increased energy consumption
• if the glass door is opened frequently or for a prolonged period.
• if the temperature falls below or exceeds the prescribed interior temperature.
• if a large number of bottles is put into storage at once.
• if the appliance's nominal capacity is exceeded.

Storage period

The storage periods of wines differs and is dependent on many factors. Use the following storage periods as a general guideline:

Wine Storage period
Rosé wine, light red wine	1 to 2 years
White wine 3 to 5 years
Red wine approx. 6 years
Very sweet wines +15 years

Additional factors

• Make sure to move the wine as little as possible during storage. Frequently moving the wine around can lead to rapid ageing.
• Ensure that the wine is kept as far away as possible from light and stored in the dark.
• Do not turn the LED light (4) on frequently. Exposure to light may affect the taste of wine.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, pull the mains plug out of the socket.
- When pulling out the mains plug, always take hold of the mains plug itself and never the mains cord.

CAUTION

Danger to children and people with impaired physical, sensory or mental abilities!

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

Risk of injury!

Sharp-edged appliance parts beneath the appliance may lead to cuts.

■ Exercise caution when cleaning the appliance.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Clean exterior

– Painted surfaces Use only light pH-neutral soapy water.
- Stainless steel surfaces Use special stainless steel cleaner from a specialist shop. Never use polish.

Cleaning the back of the appliance

Dust deposits on the back of the appliance can affect the appliance's performance and lead to increased energy consumption.

- Remove dust and clean the back of the appliance and the compressor once or twice a year. Use a soft brush to do this.

Defrosting the appliance

No defrosting is required as the appliance has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the inside of the appliance

NOTICE

Risk of damage!

Improper cleaning of the appliance parts can lead to damage.

- Do not clean the appliance parts in the dishwasher.

1. Disconnect the mains plug from the socket.
2. Take out the wine bottles and temporarily store them in a cool room.
3. Remove the bottle shelves (3).
4. Wipe off all parts with a damp cloth. Use lukewarm rinsing water to remove stubborn stains. Wipe down with clean water.
5. Dry all parts thoroughly.
6. Wash the interior with warm water and washing-up liquid. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
7. Wipe the interior dry and leave the glass door (1) open for a while to air.

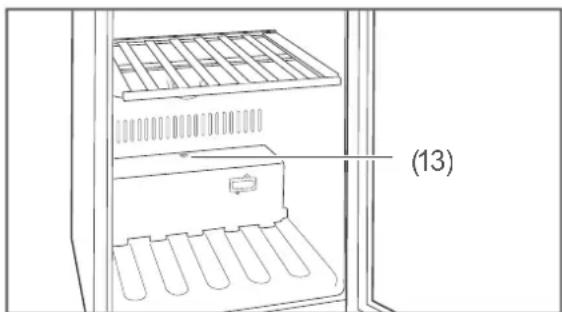

Line drawing of a refrigerator interior showing the exterior and front panels with no text or symbols

1. Clean the opening of the thaw water drain (13) using a cleaning rod.
2. Only clean the door seals with clean water; they are sensitive to oil and fat.
3. Replace all removed parts.
4. Put the wine bottles back in the appliance.
5. Insert the mains plug into a properly installed socket.

Replacing the LED light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the LED light covers.
■ Do not attempt to replace the LED light yourself.

Maintenance-free LEDs are used to light the appliance.

Should the LED light (4) ever malfunction, contact an authorised professional (see "Service" on page EN-23).

Start-up

Before starting to use the appliance

Re-read the „Safety“ chapter from page EN-5.

Moving and unpacking

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi Im.
■ Prevent children from pulling small parts off the appliance or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance.
■ Bases, doors, etc. must not be used as steps or for support purposes.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ Do not tilt the appliance more than 45°.
- Do not use sharp or pointed objects to unpack it.
- When unpacking the appliance, never damage the insulation material on the back of the appliance.

1. Move the appliance using a dolly or with a second person.
2. Unpack the appliance and carefully remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.

Choosing a suitable location

WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally-friendly, but flammable refrigerant R600a (isobutane).

- Keep the appliance away from open flames and hot surfaces.

Dangers from the refrigerant!

• Do not damage the refrigerant circuit, for example by piercing the refrigerant channels of the condensate vaporiser with sharp objects, bending the tubing, etc.
  ■ Refrigerant is fl ammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

NOTICE

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always adhere to the prescribed ambient temperature (see data sheet at the end of this user manual).

Space required according to the appliance dimensions

Simple geometric diagram showing a rectangle with a smaller square inside, labeled 'D' on the left side (no text or symbols within the shapes)

A: 480 mm B: 1285 mm

C: 100 mm D: 575 mm

E: 1050 mm F: 100 mm

G: 50 mm H: 150°

I: 890 mm

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 4.7m^3 .
• The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.

• Suitable locations are dry, well-ventilated areas that are cool if possible.

• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.
  – The following minimum distances must be maintained:

– to electric stoves: 20 cm
– to oil and coal burning stoves: 100 cm
– to other refrigeration appliances: 20 cm
– to washing machines/ dishwashers: 20 cm

• If you would like to reduce these distances, you can fit an insulation plate between the appliances.
• If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.

Setting up and aligning the appliance

1. Place the appliance on as flat and as firm a base as possible.
2. To ensure adequate air circulation,

- do not place the appliance directly against the wall. Leave a gap of at least 10 cm to the back wall and 5 cm to the side.

1. Check the position with a spirit level.


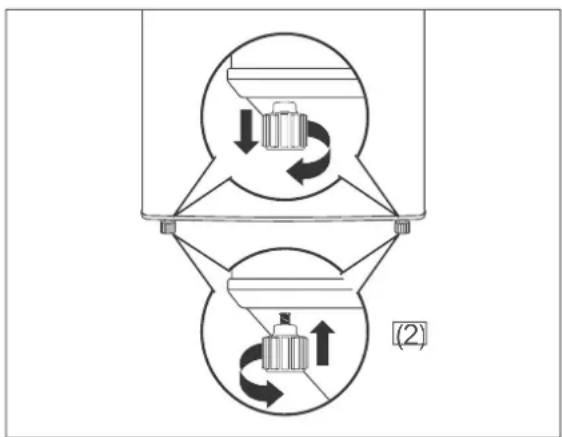

1. Level out any unevenness on the ground using both of the front screw feet.

2. Close the glass door (1).

3. Tilt the appliance backwards slightly and screw/unscrew the screw feet (2).
4. Stand the appliance back up again and check the alignment with a spirit level. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the glass door.

Basic cleaning

To remove the odour that comes with all new appliances, clean the appliance before using it (see „Care and maintenance“ on page EN-15).

Connecting the appliance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
– it makes unfamiliar noises.

In such cases, remove the mains plug from the socket and contact our service department (see page EN-23).

■ Connection to a timer or separate remote control system for the purposes of remotely monitoring and controlling it is not permitted.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the cooling unit has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz). The temperature indicator (7) will light up. The appliance is switched on.

You will find all important information about operation from page EN-10.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor OFF, control element OFF.	No electricity to socket. Check the socket with another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, control unit on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Temperature has been set too low.	Select a higher setting (see „Setting the temperature“ on page EN-11).
The appliance doesn’t cool sufficiently.	Temperature has been set too high.	Select a lower setting (see „Setting the temperature“ on page EN-11).
	Door not tightly closed or door seal is not completely tight.	See ‘Checking and cleaning the door seals’ on page EN-15.
	The appliance is near a heat source or sunlight.	Place insulation plate between the appliances or change location.
	Minimum distances not maintained (too short).	Adhere to the minimum wall distances (see „Choosing a suitable location“ on page EN-17).
	Too many bottles of wine stored.	Do not exceed the maximum nominal capacity (see data sheet at the end of this user manual).
	Ambient temperature too low or too high.	Adjust the ambient temperature according to the climate class (see data sheet at the end of this user manual).
	Compressor seems defective.	Set the temperature to 5°C (41°F). If the compressor does not switch on within an hour, please contact our Service department (see page EN-23).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Instability or foreign objects.	Check that it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.
Water has accumulated in the appliance.	Defrost drain is blocked. Unblock the thaw water drain with the help of the supplied cleaning swab.

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Article number
hanseatic Wine refrigerator	JC-201M 3767 0744

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

– Please contact our technical service: Phone [phone]

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone and reduces the greenhouse effect.

Product fiche concerning Regulation (EU) No 1060/2010

Trade mark	hanseatic
Model identifier	3767 0744 / JC-201N
Category of the household refrigerating appliance model	2, Refrigerator-cellar, Cellar and Wine storage appliances
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A
Energy consumption 150 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Rated capacity (number of standard bottles of 75 centil t res)	86
Coldest storage temperature	+5°C
Power cut safe	-h
Freezing capacity	-kg /24 h
Climate class: SN-N-ST. This appliance is intended to be used at an ambient temperature between +10 °C and +38 °C.
Airborne acoustical noise emissions	42 dB(A) re 1 pW
Built-in appliance	no

This appliance is intended to be used exclusively for the storage of wine.

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Item number	3767 0744
Name of appliance	Wine Cooler
Model identifier	JC-201N
Device measurements (Height × Width × Depth with connections)	1285 mm × 480 mm × 575 mm
Unloaded weight	45 kg
Refrigerant	R600a
Filling capacity refrigerant	37 g
Foaming agent	cyclopentane
Rated power	70 W
Supply voltage / frequency / rated current	220-240 V ~ / 50 Hz / 0.8 A
Protection class	I
