Product Type	Built-in Microwave Oven
Brand	Fagor
Model	3MWB-25BEGX
External Dimensions (H x W x D)	388 x 595 x 400 mm
Net Weight	20.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1450 W
Microwave Output Power	900 W
Grill Output Power	1000 W
Oven Capacity	25 L
Turntable Diameter	315 mm
Operating Frequency	2450 MHz
Noise Level	63 dB(A) re 1 pW
Control Type	Electronic with rotary knob and buttons
Display	LED
Cooking Modes	Microwave, Grill, Combi (2 modes), Defrost by Weight/Time, Auto Menu (8 programs)
Additional Functions	Kitchen Timer, Clock, Child Lock, Quick Start, Multi-section Cooking
Interior Light	Yes (may dim at low power)
Accessories Included	Turntable, Rotating Trolley, Grilling Rack, Operating Instructions
Cleaning	Wipe with damp cloth; use lemon water for odors
Safety Features	Safety interlocks, child lock, grounded plug, overheat protection
Installation	Built-in; requires cabinet of 60 cm width, 85 cm height from floor

Frequently Asked Questions - 3MWB-25BEGX FAGOR

How do I set the clock on the Fagor 3MWB-25BEGX?

Press Kitchen Timer/Clock twice. The hour digits will flash. Turn the rotary knob to set the hour (0-23). Press Kitchen Timer/Clock again; minute digits flash. Turn the knob to set minutes (0-59). Press Kitchen Timer/Clock to confirm.

What cookware materials are safe to use in this microwave?

Use heat-resistant glass, microwave-safe plastic, ceramics (without metal trim), and paper products for short cooking. Avoid metal, aluminum foil (except small pieces for shielding at least 2.5 cm from walls), and sealed containers.

How do I defrost food by weight?

Press Weight/Time Defrost once; display shows 'dEF1'. Turn the knob to select food weight from 100 to 2000 g. Press Start/+30Sec./Confirm to begin defrosting.

What is the maximum cooking time I can set?

The maximum cooking time is 95 minutes. You can set it by turning the rotary knob after selecting power or mode.

How do I use the grill function?

Press Micro./Grill/Combi. repeatedly until 'G' appears on the display. Press Start/+30Sec./Confirm, then set time by turning the knob and press start. Place food on the grilling rack on the turntable. Halfway through, the oven will beep; turn food over for even grilling.

Can I use the microwave without the turntable?

No, the turntable and rotating trolley must always be in place during cooking. They ensure even heating. Do not operate the oven without them.

Why does the oven light dim during cooking?

Dimming is normal when using low microwave power levels. The light may appear dimmer; this is not a malfunction.

How do I clean the interior of the microwave?

After use, wipe the interior with a damp cloth. For stubborn odors, put half a lemon in 300 ml of water and run at 100% power for 10 minutes. Then unplug and dry with a soft cloth.

What should I do if the oven does not start?

Check if the power cord is securely plugged in. If it is, wait 10 seconds and plug it back in. If still not working, check the fuse or circuit breaker. If the outlet is faulty, test with another appliance. If problem persists, contact service.

Is it safe to heat baby food or milk in this microwave?

No, do not heat baby bottles or baby food in the microwave. Uneven heating can cause burns. Use traditional methods instead.

USER MANUAL 3MWB-25BEGX FAGOR

IO-MWS-0482/2 (02.2022)

ES Horno de microondas

PT Forno microondas

EN Microwave oven

cs Mikrovlnná trouba

SK Mikrovlnná rúra

3MWB-25BEGX

Model Modelo Modelo 3MWB-25BEGX
Power supply Alimentación Potência 230V~ / 50Hz
Operating frequency [MHz] Frecuencia de trabajo [MHz]		Frequência operacional [MHz]	2450
Noise level [dB(A) re 1pW]	Nivel de ruido [dB(A) re 1pW]	Nivel de ruído [dB (A) re 1pW]	63
Power Consumption [W] Consumo de potencia [W] Exigência energética [W] 1450
Nominal output power of microwaves [W]	Potencia nominal de salida de las microondas [W]	Potência de saída nominal das microondas [W]	900
Nominal output power of grill [W]	Potencia nominal de salida de la parrilla	Potência de saída nominal do grelhador [W]	1000
Oven capacity [l]	Capacidad del microondas [l]	Capacidade do microondas [l]	25
Turntable diameter [mm]	Diámetro del plato giratorio [mm]	Diâmetro do prato rotativo [mm]	315
External Dimensions (H x W x D) [mm]	Medidas exteriores (al x an x prof) [mm]	Dimensões exteriores (alt. x largura x prof.) [mm]	388 x 595 x 400
The oven is a built-in appliance	Aparato apto para encastrado	Aparelho de encastramento √
Net weight [kg] Peso neto [kg] Peso líquido [kg] 20,5
CS / SPECIFKACE SK / SPECIFKACIJA
Model Model 3MWB-25BEGX
Napafieri Nagafiane 230V~ / 50HZ
Provozni kmitocet [MHZ] Prevedzkovy kmitocet [MHZ] 2450
Haldina hlasitosti [dB(A) re 1pw] Haldina hlasitosti [dB(A) re 1pw] 63
Prikon [W] Pirkon [W] 1450
Jmenovity vystupri vykcon mikrovin [W]	Menvotiy vystupry vykcon mikrovin [W]	900
Jmenovity vystupri vykcon mikrovin [W]	Menvotiy vystupry vykcon mikrovin [W]	25
Obsah mikrovlinky [I]	Obsah runy [I]	25
Prümert otočenho talite [imm]	Prümert otočenho taniera [mm]	315
External Dimensiovanješi rozmery (Výska x šrika x įtoustka) [imm]ns (H x W x D) [mm]	Vonkajšie rozmery (Výska x šrika x hrubka) [mm]	388 x 595 x 400
Spotřebić je pripusobeny vestavba do nabýtku	Spotřebić je príspádobyety vstaveniu do nabýtku	√
Hmotnost netto [kg]	Hmotnost netto [kg]	20,5

DISPOSAL OF OLD APPLIANCE 62

INSTALLING THE APPLIANCE 63

OPERATION 64

TROUBLESHOOTING 68

CLEANING 68

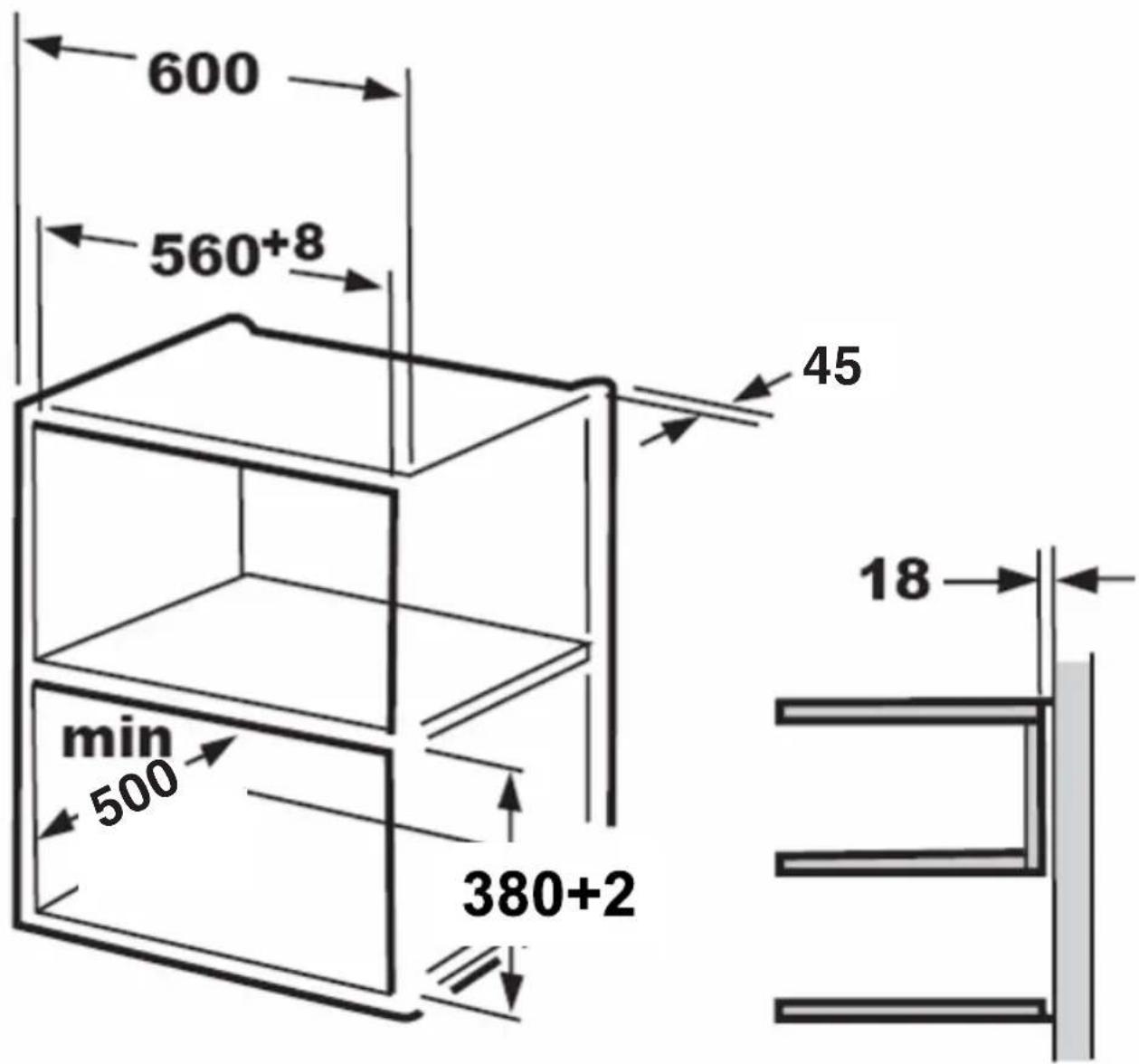

MOUNTING 69

WARRANTY AND AFTER SALES SERVICE 73

WARRANTY 73

CS - Obsah

BEZPEČNOSTNÍ PROSTŘEDKY 75

POKYNY TÝKAJÍCÍ SE BEZPEČNÉHO POUŽÍVÁNÍ 76

INSTALACE OCHRANNÉHO OBVODU 80

NÁDOBÍ 81

MATERIÁLY, KTERÉ NENÍ MOŽNÉ POUŽÍVAT V MIKROVLNNÉ TROUBĚ 81

MATERIÁLY, KTERÉ JE MOŽNÉ POUŽÍVAT V MIKROVLNNÉ TROUBĚ 82

NASTAVENÍ MIKROVLNKY 83

NÁZVY ELEMENTŮ VYBAVENÍ MIKROVLNKY 83

TURNTABLE INSTALLATION 83

ROZBALENI 84

VYRAZENÍ Z PROVOZU 84

INSTALACE SPOTŘEBIČE 85

OBSLUHA 86

ODSTRAŇOVÁNÍ PORUCH 91

ČIŠTĚNÍ 91

NÁVOD K MONTÁŽI 92

ZÁRUKA, POPRODEJNÍ SERVIS 96

ZÁRUKA 96

SK - Obsah

BEZPEČNOSTNÉ PROSTRIEDKY 98

BEZPEČNOSTNĚ POKYNY POUŽIVANIA 99

INSTALÁCIA OCHRANNÉHO VODIČA 103

RIAD

104

MATERIÁLY, KTORÉ NIE JE MOŽNÉ POUŽÍVAŤ V MIKROVLNNÉ RÚRE 104

MATERIÁLY, KTORÉ JE MOŽNÉ POUŽÍVAŤ V MIKROVLNNEJ RÚRE 105

NASTAVENIE RÚRY 106

NÁZVY ELEMENTOV VYBAVENÍ RÚRY 106

INSTALÁCIA OTOČNÉHO TANIERA 106

ROZBALENIE

107

DISPOSAL OF OLD APPLIANCE 107

INSTALÁCIA SPOTREBIČA 108

OBSLUHA

109

ODSTRAÑOVANIE PORÚCH 114

ČISTENIE 114

NÁVOD NA MONTÁŽ 115

ZÁRUKA, POPREDAJNÝ SERVIS

ZÁRUKA

119

119

Estimado Cliente

Line drawing of a plug with two leads (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

				[Kitchen Timer/Clock]
				[Start/+30Sec./Confirm]
		[D7A2]		[Micro./Grill/Combi.]
				[Weight/Time Defrost]
				[Stop/Clear]

Simple line drawing of a 3D rectangular box (no text or symbols)

Simple line drawing of a 3D box with a vertical rod inserted into the interior, no text or symbols present.

Screw A

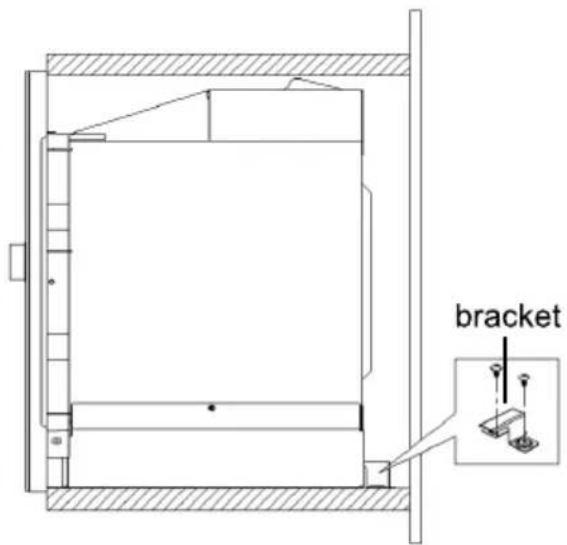

Bracket

Line drawing of an open oven with a door and vent, showing internal airflow direction (no text or symbols)

Line drawing of a plug with two leads (no text or symbols)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

			[Kitchen Timer/Clock]
			[Start/+30Sec./Confirm]
			[Micro./Grill/Combi.]
			[Weight/Time Defrost]
			[Stop/Clear]

Simple line drawing of a 3D rectangular box (no text or symbols)

Simple line drawing of a 3D box with a vertical rod inserted into the interior, showing no text or symbols.

Screw A

Bracket

Line drawing of a closed oven with an open door and internal door, showing a right vent (no text or symbols)

From now on, your daily housework will be easier than ever before. Your appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

FAGOR

ELECTRODOMÉSTICO

PRECAUTIONS

• TO AVOID POSSIBLE OVER-EXPOSURE TO MICRO-WAVE ENERGY
- Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them.
- Do not place anything between the front surface of the oven and the door or allow dirt or detergent residue to gather on sealing surfaces.
- Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to:

1. Door (dents, cracks)

2. Hinges and locks (broken, cracked or loose)

3. Door seals and sealing surfaces

4. Any adjustments, maintenance or repairs should only be entrusted to the manufacturer's properly qualified service personnel. In particular, the work associated with removing the cover that protects the user against microwave radiation.

5. Keep the appliance and its power cord away from children under 8 years old.
6. Microwave oven should not be placed in a cabinet*
7. WARNING: The appliance and its accessible parts become hot during use. Avoid contact with hot parts. Children under the age of 8, should be kept away from the appliance, unless supervised by an adult person;
8. Do not clean the appliance with steam
9. Surfaces of the cabinet may become hot when the oven is operating;

SAFETY INSTRUCTIONS FOR USE

• READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• To reduce the risk of fire, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:
• Read the Operating Instructions before using the appliance.
• Close supervision is needed to reduce the risk of fire inside the oven chamber.
• Use this appliance only for its intended purpose as described in the manual. Do not use corrosive chemicals in the appliance. Oven is specifically designed for heating or cooking food. It is not intended for industrial or laboratory use.
• WARNING: When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generated;
• WARNING: Liquids and other foodstuffs may not be heated in sealed containers as the containers could explode;
• WARNING: This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
• Use only cookware that is suitable for use in microwave ovens;

• When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;

• If you see smoke or fire, turn off the appliance or unplug it from power and keep the door closed until the flames are smothered;

• Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;
• Cleaning instructions for door seals and adjacent parts may be found in an appropriate section of this operating instructions.
• The oven must be cleaned regularly. Remove any deposits of food and leftovers
• Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations
• Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.
• Before using the oven, test heat the grill heater (smoke can be given off through ventilation grid):
• switch on the ventilation in the room or open a window,
• set the oven to heat the grill heater only for about 3 minutes without heating food.
• Oven must be placed on flat a surface.
• Turntable and rotating trolley unit should be in the oven during cooking. Carefully put cooked food on the turntable, and handle it carefully to avoid any breakage.
• Improper use of the browning plate may cause cracking of the turntable due to the high temperature.
• Only use bags for cooking in microwave ovens, which are correct size.
• Microwave oven has several in-built circuit breakers to prevent emission of radiation, while the door is open. Do not tamper with these circuit breakers.
• Do not operate the oven when empty. Operating the oven without food or dish with very low water content may result in fire, carbonization, arcing and damage to the internal chamber shell.
• Do not cook food directly on the turntable. Excessive local heating of turntable may cause its rupture.

- Do not heat baby bottles or baby food in the microwave. Uneven heating may occur and cause physical injury.

- Do not use narrow-necked containers such as bottles for syrups.

- Do not fry in deep fat in the microwave.

- Do not do home canning in a microwave oven because not always the entire contents of pot reaches boiling point.

- Do not use microwave oven for commercial purposes. This appliance is intended for use at home or in facilities, such as*: kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities*;

- In order to avoid delayed boiling of hot liquids and beverages and the risk of burns, stir the liquid before placing the container in the oven and again in the middle of cooking time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.

- Do not forget that there is a dish in the microwave oven to avoid burning due to excessive cooking.

- When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision the high temperatures generated;

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.

- Do not overcook dishes

- Do not use the oven for storage. Do not store flammable objects inside the microwave oven, such as bread, cookies, paper products, etc. If lightning hits the power line, the oven may switch on automatically.

- Remove the wire clamps and metal fixtures from containers / paper or plastic bags before placing them in the oven.

- Microwave oven must be grounded. Only connect to a

wall socket with the proper protective conductor. See “Installing the protective circuit.”

• Some products, such as whole eggs (boiled or fresh), water, oil or grease, sealed containers and closed glass jars may explode and therefore should not be heated in the oven.
• Operating the microwave oven should be done with adult supervision at all times. Do not allow children to play with the appliance or have access to the controls.
• Do not operate the oven when its terminal strip or plug is damaged, it is not working properly, or if it has been damaged or dropped.
• Do not cover or block the air vents on the oven.
• Do not store or use the oven outdoors.
• Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool.
• Do not immerse the power cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow the connection cord hanging over the edge of a table or counter.
• The appliance must be used with mounted decorative frame*
• The inner cavity surface is hot after use of the microwave oven.
• Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven
• Metallic containers for food and beverages are not allowed during microwave cooking
• Care should be taken not to displace the turntable when removing containers from the appliance

Accessible surfaces may become hot during operation.

Warning symbol of steam inside a triangle (no text or numbers)

INSTALLING THE PROTECTIVE CIRCUIT

DANGER

Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance.

WARNING

Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded.

Line drawing of an electrical outlet plug with two leads (no text or symbols)

This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be inserted into a properly installed and grounded outlet.

If you do not completely understand earthing instruction or you are unsure whether the appliance is properly grounded, please contact a qualified electrician or service technician. If you must use an extension cord, use only a three-wire extension with an earthing connector.

The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit.

A short power cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

If you use the extension cord:

• Extension cord must be capable of withstanding nominal current required by the appliance.
• Extension cord must be 3-wire with earthing,
• Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.

COOKWARE

WARNING

Risk of injury. Tightly closed containers may explode. Closed containers must be opened and plastic bags pierced before cooking.

Materials that can be used and materials to be avoided in the microwave oven.

The use of some non-metallic cookware may not be safe in the microwave oven. If in doubt, you can check the cookware following this procedure.

Checking the cookware:

1 Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same with the test cookware.
2 Operate the oven with the maximum power for 1 minute.
3 Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven.
4 Do not exceed 1 minute cooking time.

Materials that cannot be used in a microwave oven

Type of cookware Comments

Aluminium tray	May cause an electric arc. Transfer food to microwave-safe cookware.
Cardboard box with metal handle	May cause an electric arc. Transfer food to microwave-safe cookware.
Metal or cookware with metal frame	Metal shields the food from microwave energy.Metal frame can cause an electric arc.
Metal closure - tightened May cause an electric arc and fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid in it when exposed to high temperatures.
Wood	Wood dries out when it is heated in the microwave oven and can crack or break.

Materials that can be used in a microwave oven

Type of cookware Comments

Aluminium foil Only as shielding. Small and smooth pieces can be used for the coating of thin pieces of meat or poultry, to prevent excessive cooking. Arc discharge may occur if the foil is too close to the oven walls. Film must be at least at a distance of 2.5 cm from the oven walls.
Browning plate Observe the manufacturer's instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable.
Dinner dishes Suitable for microwave ovens only. Observe the manufacturer's instructions.Do not use cracked or chipped cookware.
Glass jars Always remove the lid. Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode.
Glassware Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware.
Bags for microwave cooking Observe the manufacturer's instructions. Do not seal with metal clamps.
Paper plates and cups Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unattended while cooking.
Paper towels Use to cover food to be heated to absorb fat.Use only for short cooking under constant surveillance.
Parchment paper Use as a cover to prevent splashing or as a container for evaporation.
Plastics Suitable for microwave ovens only. Should be labelled "for use in microwave ovens." Some plastic containers soften when the content is warmed up. Bags for microwave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package.
Plastic packaging Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food.
Thermometers	Suitable for microwave ovens only. (Temperature probes for meat and sugar).
Wax paper	Used as a covering to prevent splashing and to keep moisture.

Cookware material	Microwave	Barbecue grill	Combi Mode
Heat-resistant glass	YES	YES	YES
Regular glass	NO	NO	NO
Heat-resistant ceramics	YES NO	NO
Microwave-safe plastic utensils	YES NO	NO
Kitchen paper	YES NO	NO
Metal container	NO YES	NO
Metal rack (provided for the oven)*	NO	YES NO
Aluminium foil and foil containers NO YES	NO

* Available on selected models

Microwave oven accessories

Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories:

Turntable 1

Rotating trolley 1

Operating Instructions 1

Grilling rack 1*

B) System security lock - disconnects power to the oven when the door is opened during operation.

TURNTABLE INSTALLATION

1. Never compress or place the turntable upside down.
2. When cooking, always use turntable and rotating trolley.
3. For cooking or heating always put the food on the turntable.
4. If the turntable breaks, please contact the nearest authorized service centre.

Individual fittings:

1. Grilling rack
2. Turntable
3. Rotating trolley

* Available on selected models Note: The grilling rack supplied with the appliance should only be used when the appliance is set to "GRILL". Place the rack on the turntable.
** Trolley is available in two versions, depending on the model. These are not interchangeable.
*** Some models not include turntable. You must prepare the food on Your own plate according to the cookware part in this user manual

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appli- ance are environmentally friendly; they are

100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INSTALLING THE APPLIANCE

• Remove all packaging materials and components.
• Check the oven for damage such as dents or door misalignment or breakage.
• Remove any protective film from the surface of the cabinet.
• Do not install the oven if it is damaged.

Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron.

Installing

1. The appliance is designed for household use only.
2. The appliance can be used only after fitting in kitchen furniture.
3. For fitting instructions, please refer to "Installation guide"*.
4. Microwave oven should be installed in a cabinet with a width of 60 cm and a height of 85 cm from the kitchen floor*.

Do not remove the legs located in the bottom of the appliance*.

Blocking the inlet and outlet openings may damage the microwave oven. Place the oven as far away from radio and television as possible. Operating microwave oven may cause interference to radio and television reception.

1. Insert the oven power plug into a standard household wall socket. Make sure beforehand whether voltage and frequency are the same as on the oven's rating plate.

WARNING: Do not install the oven on the gas hob or other heat producing appliance. In the event of such installation, the oven may be damaged and void the warranty.

OPERATION

	[Kitchen Timer/Clock]
	[Start/+30Sec./Confirm]
	[Micro./Grill/Combi.]
	[Weight/Time Defrost]
	[Stop/Clear]

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display „0:00“, buzzer will ring once.

1) Press [Kitchen Timer/Clock] twice to select clock function, the hour figures will flash.
2) Turn [] to adjust the hour figures, the input time should be within 0-23.
3) Press [Kitchen Timer/Clock] the minute figures will flash.
4) Turn [] to adjust the minute figures, the input time should be within 0--59.
5) Press [Kitchen Timer/Clock] to finish clock setting. ":" will flash, and the time will light.

Note:

1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press [Stop/Clear] the oven will go back to the previous status automatically.

2. Microwave Cooking

Press [Micro./Grill/Combi.] the LED will display „P100”. Press [Micro./Grill/Combi.] four times or turn [] to choose the power you want, and „P100”, „P80”, „P50”, „P30” or „P10” will display for each added press. Then press [Start/+30Sec./Confirm] to confirm, and turn [] to set cooking time from 0:05 to 95:00. Press [Start/+30Sec./Confirm] again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press [Micro./Grill/Combi.] once, the screen display „P100”.
2) Press [Micro./Grill/Combi.] once again or turn [] to choose 80% microwave power.

3) Press [Start/+30Sec./Confirm] to confirm, and the screen displays „P 80”.
4) Turn [] to adjust the cooking time until the oven displays „20:00”.
5) Press [Start/+30Sec./Confirm] to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

0 - 1 min : 5 seconds

1 - 5 min : 10 seconds

5 - 10 min : 30 seconds

Press [Micro./Grill/Combi.] the LED will display"P100", and press [Micro./Grill/Combi.] four times or turn the [☐] to choose the power you want, and „G”, "C-1" or „C-2" will display for each added press. Then press [Start/+30Sec./Confirm] to confirm, and turn [☐] to set cooking time from 0:05 to 95:00. Press [Start/+30Sec./Confirm] again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press [Micro./Grill/Combi.] once, the screen display „P100”.
2) Press [Micro./Grill/Combi.] four times or turn [☐] to choose combi. 1 mode.
3) Press [Start/+30Sec./Confirm] to confirm, and the screen displays „C-1”.
4) Turn [💡] to adjust the cooking time until the oven displays „10:00”.
5) Press [Start/+30Sec./Confirm] to start cooking

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press [Start/+30Sec./Confirm] to continue cooking. If no operation, the oven will continue working.

4. Quick Start

1) In waiting state, Press [Start/+30Sec./Confirm] to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of [Start/+30Sec./Confirm] can increase 30 seconds of cooking time.
3) In waiting state, turn [💡] left to set cooking time with 100% microwave power, then press [Start/+30Sec./Confirm] to start cooking.

5. Defrost By Weight

1) Press [Weight/Time Defrost] once, and the oven will display „dEF1”.
2) Turn [] to select the weight of food from 100 to 2000 g.
3) Press [Start/+30Sec./Confirm] to start defrosting.

6. Defrost By Time

1) Press [Weight/Time Defrost] twice, and the oven will display „dEF2”.
2) Turn [ ] to select the defrost time. The MAX time is 95 minutes.
3) Press [Start/+30Sec./Confirm] to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

1) Press [Kitchen Timer/Clock] once, LED will display 00:00.
2) Turn [] to enter the correct timer.(The maximum cooking time is 95 minutes.)
3) Press [Start/+30Sec./Confirm] to confirm setting.

When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set (24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

8) Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press [Weight/Time Defrost] twice, and the oven will display "dEF2".
2) Turn [] to select the defrost time till "5:00" display.
3) Press [Micro./Grill/Combi.] once, the screen display "P100".
4) Press [Micro./Grill/Combi.] once again or turn [] to choose 80% microwave power.
5) Press [Start/+30Sec./Confirm] to confirm, and the screen displays "P 80".
6) Turn [d] to adjust the cooking time till the oven displays "7:00".
7) Press [Start/+30Sec./Confirm] to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

9. Auto Menu

1) Turn [] right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.
2) Press [Start/+30Sec./Confirm] to confirm.
3) Turn [] to choose the default weight as the menu chart.
4) Press [Start/+30Sec./Confirm] to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn [] clockwise till "A-6" display.
2) Press [Start/+30Sec./Confirm] to confirm.
3) Turn [] to select the weight of fish till "350" display.
4) Press [Start/+30Sec./Confirm] to start cooking.

The menu chart:

		DisplayWeight [g]Menu
A-1Pizza		200200
		400400
A-2Meat		250250
		350350
		450450
A-3Vegetable		200200
		300300
		400400
A-4Pasta		5050 (with 450ml cold wa
		100100 (with 800ml cold v
A-5Potato		200200
		400400
		600600
A-6Fish		250250
		350350
		450450
A-7Beverage		11 cup (120ml)
		22 cups (240ml)
		33 cups (360ml)
A-8Popcorn	50	50
		100100

10. Inquiring Function

1) In states of microwave, grill and combination cooking, press [Micro./Grill/Combi.], the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
2) In cooking state, press [Kitchen Timer/Clock] to inquire the time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press [Stop/Clear] for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display. And lock indicator lights.

Lock quitting: In locked state, press [Stop/Clear] for 3 seconds, there will be a long "beep" denoting that the lock is released.

TROUBLESHOOTING

Microwave oven interferes with the TV reception	Television and radio reception may be disrupted when the microwave oven is operating. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal.
Dimmed oven lighting.	When cooking with low microwave power, oven light may be dimmer.This is normal.
Condensation forms on the door, hot air comes out through vents.	When cooking, steam can be released from food. Most of the steam escapes through the vents.However some steam can collect in the form of condensation on cooler parts, such as oven door. This is normal.

Fault Possible cause How to correct

Oven does not start.	Power cord unplugged or not plugged properly into the socket	Pull the plug and put it back in after 10 seconds.
	Blown fuse or tripped circuit breaker.	Replace the fuse or turn on the circuit breaker (any repairs by producers service only)
	Problem with the power outlet	Check the outlet by plugging in other appliance.
The oven does not heat. The door is not closed properly. Close the door fully.
Turntable makes noise when oven operates	Rotating ring or bottom of the oven dirty.	See "Microwave oven maintenance"

CLEANING

Before cleaning, make sure the oven is disconnected from the power source.

a) After use, clean the inside of the microwave oven with a damp cloth.
b) Clean the accessories in the normal way in soapy water.
c) Dirty door frame, seal and adjacent elements should be cleaned gently with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth.

When cleaning glass door, do not use any abrasive cleaners or sharp metal washers, as this may cause scratches on the surface and damage the glass.

In order to clean the inner cavity: put half a lemon in a bowl, add 300 ml of water and turn on the microwave oven at 100% power for 10 minutes.

After cleaning, disconnect the microwave oven from the power and wipe the inside with a soft, dry cloth.

MOUNTING

Please Read the Manual Carefully Before Installation

Do not trap or bend the power cable

1.

1.

The bracket and bottom cabinet template are needed when installing in both installations.

B. Prepare the cabinet

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

Simple line drawing of a 3D rectangular prism (no text or symbols)

1. Make the marks on the bottom plane of cabinet according to marks "a" of the template

Simple line drawing of a 3D box with a vertical rod inserted into the interior, showing no text or symbols.

Screw A

Bracket

1. Remove the bottom cabinet template and fix the bracket with screw A.

C. Install the oven

1. Install the oven to the cabinet

2. Make sure the back of the oven is locked by bracket.

3. Do not trap or kink the power cord.

Line drawing of a closed oven with an open door and internal door, showing a rightward arrow indicating direction (no text or symbols)

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Vážený kliente,

Warning symbol with steam inside a triangle (no text or numbers)

INSTALACE OCHRANNÉHO OBVODU

NEBEZPEČÍ

Line drawing of a plug with two pins and a socket (no text or symbols)

TURNTABLE INSTALLATION

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

	[Kitchen Timer/Clock]
	[Start/+30Sec./Confirm]
	[Micro./Grill/Combi.]
	[Weight/Time Defrost]
	[Stop/Clear]

1. Nastavení hodin

Simple line drawing of a 3D rectangular box (no text or symbols)

Simple line drawing of a 3D box with a vertical rod inserted into the interior, no text or symbols present.

Screw A

Bracket

Line drawing of a closed storage cabinet with an open door and internal door, showing a rightward arrow indicating direction (no text or symbols)

Warning symbol of steam inside a triangle (no text or numbers)

INŠTALÁCIA OCHRANNÉHO VODIČA

NEBEZPEČENSTVO

Line drawing of a plug with two pins and a socket (no text or symbols)

INŠTALÁCIA OTOČNÉHO TANIERA

Simple line drawing of a three chasing recycling symbol (no text or labels)

symbolom.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INŠTALÁCIA SPOTREBIČA

	[Kitchen Timer/Clock]
	[Start/+30Sec./Confirm]
	[Micro./Grill/Combi.]
	[Weight/Time Defrost]
	[Stop/Clear]

1. Nastavení hodin

Simple line drawing of a 3D rectangular box (no text or symbols)

Simple line drawing of a 3D box with a vertical rod and a small rectangular base, no text or symbols present.

Screw A

Bracket

Line drawing of a closed oven with an open door and internal door, showing a right vent (no text or symbols)

1. Otvorte dvierka, v montážnom otvore pomocou skrutky B pripevnite mikrovlnku k skrinke. Potom pripevnite umelohmotný ochranný kryt v montážnom otvore.

ZÁRUKA, POPREDAJNÝ SERVIS

Záruka

Abstract black circular logo with white horizontal stripes (no text or symbols)

www.fagorelectrodomestico.com
