USER MANUAL THC-B120-M HiLook

Abstract geometric design with blue and gray diamond shapes, a globe icon, and a blue square (no text or symbols)

TURBO HD

Bullet & Turret Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Model
Type I Camera	THC-B123-MTHC-B123-P
Type II Camera	THC-B223THC-B223-M
Type III Camera	THC-T123THC-T123-P
Type IV Camera	THC-T123-M
Type V Camera	THC-T223-P
Type VI Camera	THC-T223-M

This manual may contain several technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Direcve 2014/35/EU, the EMC Direcve 2014/30/EU, the RoHS Direcve 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Warning

This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into “Warnings” and “Cauons”.

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
• Make sure that the device is rmly xed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn o the power at once and unplug the power cord, and then contact the service center.
• Never aempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• Do not place the camera in extremely hot, cold (the operang temperature shall be -40°C to 60°C), dusty or damp locaons, and do not expose it to high electromagnec radiaon.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnec radiaon or extremely hot, cold, dusty or damp environment.

• To avoid heat accumulaon, good venlaon is required for the operang environment.

• Keep the camera away from liquid while in use for non-water-proof device.

• While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

Mark Descripon
Table 0-1 Mark Descripon

Mark	Descripon
——	DC Voltage

1.1 Product Features

The main features are as follows:

• High performance CMOS sensor
- IR cut Iter with auto switch
- OSD menu with congorable parameters
• Auto white balance
- Internal synchronizaon
- SMART IR mode
• 4 in 1 video output (TVI/AHD/CVI/CVBS)
- 3-axis adjustment

1.2 Overview

1.2.1 Type I Camera

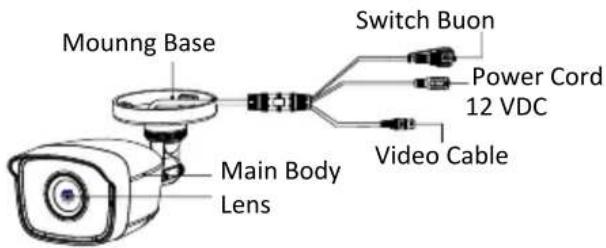

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.2 Type II Camera

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

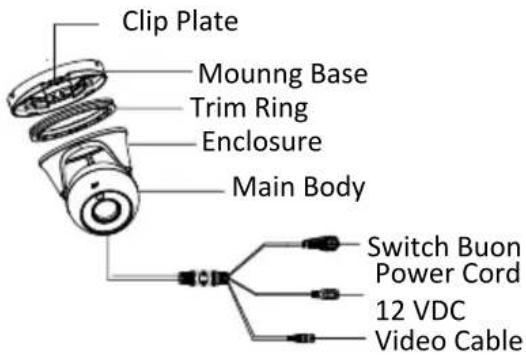

1.2.3 Type III Camera

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.4 Type IV Camera

Figure 1-4 Overview of Type IV Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.5 Type V Camera

Figure 1-5 Overview of Type V Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.6 Type VI Camera

Figure 1-6 Overview of Type VI Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

Purpose:

Call the menu by clicking buon ☐ on the PTZ Control interface, or call the preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the monitor, shown as the gure 3-1.

Figure 2-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ buon, or call the preset No. 95.

    C --> I["GLOBAL"]
    C --> J["BLC"]
    C --> K["WDR"]

    D --> L["MODE"]
    D --> M["BACK"]
    D --> N["EXIT"]
    D --> O["SAVE & EXIT"]

    E --> P["IMAGE MODE"]
    E --> Q["BRIGHTNESS"]
    E --> R["CONTRAST"]
    E --> S["SHARPNESS"]
    E --> T["SATURATION"]
    E --> U["3DNR"]
    E --> V["AGC"]
    E --> W["SLOW SHUTTER"]
    E --> X["MIRROR"]
    E --> Y["BACK"]
    E --> Z["EXIT"]
    E --> AA["SAVE & EXIT"]

Figure 2-2 Main Menu Overview

1. Click the direcon arrow to control the camera.
   1). Click up/down direcon buon to select the item.
   2). Click Iris + to conrm the selecon.

3). Click le/right direcon buon to adjust the value of the selected item.

2.1 VIDEO FORMAT

You can select the video format as 2MP@25fps, or 2MP@30fps.

Note:

When switching the video output as CVBS, you can set the video format as PAL, or NTSC.

2.2 EXPOSURE

You can set the EXPOSURE MODE as GLOBAL, BLC, or WDR.

- GLOBAL

GLOBAL refers to the normal exposure mode which adjusts lighng distribuon, variaons, and non-standard processing.

- BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light to the object in the front to make it clear, but this may cause the over-exposure of the background where the light is strong.

● WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear images even under backlight circumstances. WDR balances the brightness level of the whole image and provides clear images with details.

2.3 DAY/NIGHT

COLOR, B&W (Black White), and AUTO are selectable for DAY and NIGHT switches.

COLOR

The image is colored in day mode all the me.

B/W

The image is black and white all the me, and it is beer to turn the IR LIGHT on in poor light conditions.

- IR LIGHT

You can turn on/o the IR LIGHT to meet the requirements of dierent circumstances.

- SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure.

You can select the mode as MODE 1, or MODE 2.

MODE 1 is the default mode that can be applied to both indoor condions, and outdoor condions. When selecng the MODE 1, the IR Light has more obvious eects.

- LEVEL

The LEVEL value can be adjusted from 0 to 3. The greater the value is, the more obvious eects are.

AUTO

You can turn on/o the IR LIGHT, and set the value of SMART IR in this menu.

DAY/NIGHT

MODE	AUTO
IR LIGHT	ON
SMART IR	MODE1
LEVEL	2
D → N THRESHOLD	7
N → D THRESHOLD	7
BACK
EXIT
SAVE &EXIT

Figure 2-3 DAY NIGHT

- IR LIGHT

You can turn on/o the IR Light to meet the requirements of dierent circumstances.

- SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure.

You can select the mode as MODE 1, or MODE 2.

MODE 1 is the default mode that can be applied to both indoor conditions, and outdoor conditions. When selecng the MODE 1, the IR Light has more obvious eects.

- LEVEL

The LEVEL value can be adjusted from 0 to 3. The greater the value is, the more obvious eects are.

● D-N THRESHOLD ((Day to Night Threshold)

Day to Night Threshold is used to control the sensitivity of switching the day mode to the night mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.

● N-D THRESHOLD (Night to Day Threshold)

Night to Day Threshold is used to control the sensitivity of switching the night mode to the day mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.

2.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. IMAGE MODE, BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, 3DNR, AGC, SLOW SHUTTER, and MIRROR are adjustable.

VIDEO SETTINGS

IMAGE MODE	ST D
BRIGHTNESS	5
CONTRAST	5
SHARPNESS	5
SATURATION	5
3DNR	5
AGC	LOW
SLOW SHUTTER	OFF
MIRROR	OFF
BACK
EXIT
SAVE & EXIT

Figure 2-4 VIDEO SETTINGS

IMAGE MODE

IMAGE MODE is used to adjust the image saturaon, and you can set it as STD (Standard) or HIGH-SAT (High Saturaon).

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image. The greater the value is, the brighter the image is.

CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 9.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 9.

SATURATION

Adjust this feature to change the saturaton of the color. The value ranges from 1 to 9.

3DNR

The 3DNR funcon can decrease the noise eect and deliver more accurate and sharp image. You can set the 3DNR value from 1 to 9.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light conditions. The AGC level can be set as HIGH, MEDIUM, or LOW.

Note:

The noise will be amplified when seng the AGC level. The higher the level is, the more obvious the noise is.

SLOW SHUTTER

SLOW SHUTTER increases the exposure me on a single frame, which makes the camera more sensitive to the light so that it can produce images even in low lux conditions.

You can set the SLOW SHUTTER funcon as OFF, x2, x4, x6, x8, x10, x12, x14, or x16 according to the dierent light conditions.

MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror funcon is disabled.

H: The image ips 180° horizontally.

V: The image ips 180° vercally.

HV: The image ips 180° both horizontally and vercally.

2.5 FACTORY DEFAULT

Reset all the sengs to the factory default.

2.6 EXIT

Move the cursor to EXIT and click Iris+ to exit the menu.

2.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the sengs, and exit the menu.
