Network Bullet Camera - Security Camera HiLook - Free user manual and instructions
Find the device manual for free Network Bullet Camera HiLook in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Network Bullet Camera |
| Brand | HiLook |
| Model | Network Bullet Camera |
| Resolution | 2 MP (1920 × 1080) |
| Lens | 2.8 mm / 4 mm / 6 mm fixed |
| Night Vision | IR up to 30 m |
| Weatherproof Rating | IP67 |
| Power Supply | PoE (802.3af) / 12 V DC |
| Power Consumption | ≤ 7 W |
| Dimensions (Φ × L) | 186.6 mm × 93.2 mm |
| Weight | Approx. 600 g |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Operating Temperature | -30 °C to 60 °C |
| Installation | Wall or ceiling mount with bracket included |
| Network Interface | 1 RJ45 10/100 M |
| Smart Features | Motion detection, tampering alarm, line crossing |
| Maintenance | Clean lens with soft dry cloth; check cable connections |
| Security | Use strong password, enable HTTPS, update firmware |
| Spare Parts & Repairability | Not user-serviceable; contact authorized service center |
| General Information | Indoor/outdoor use, compatible with HiLook NVRs |
Frequently Asked Questions - Network Bullet Camera HiLook
How do I install the HiLook Network Bullet Camera?

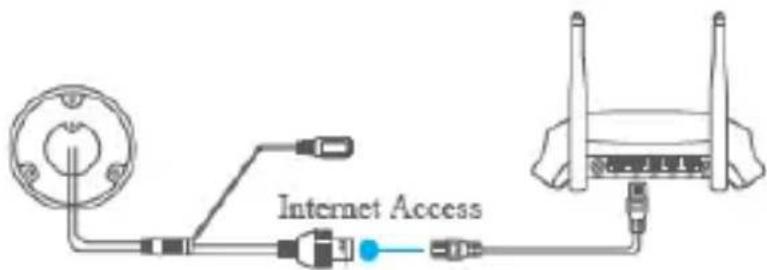

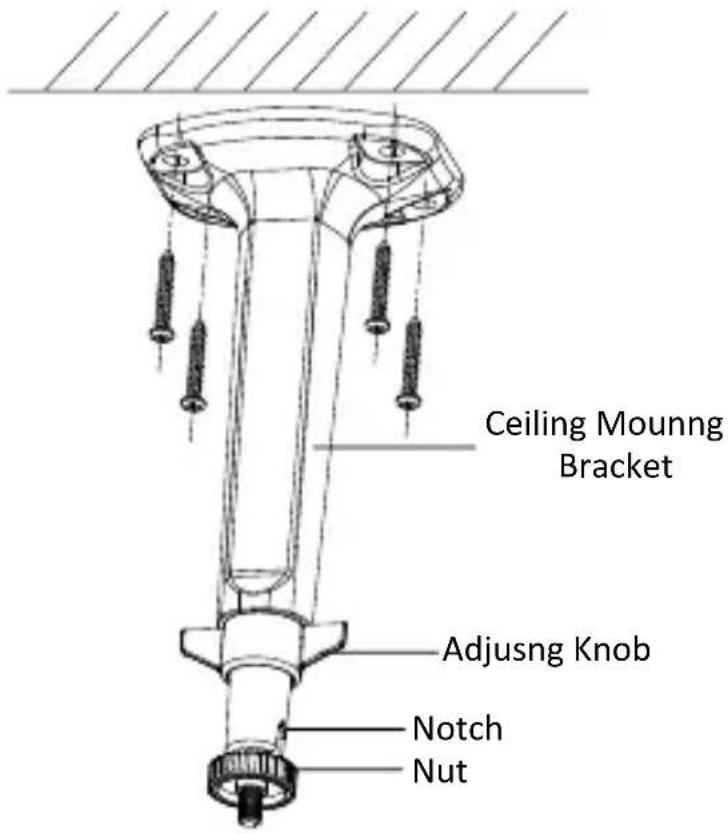

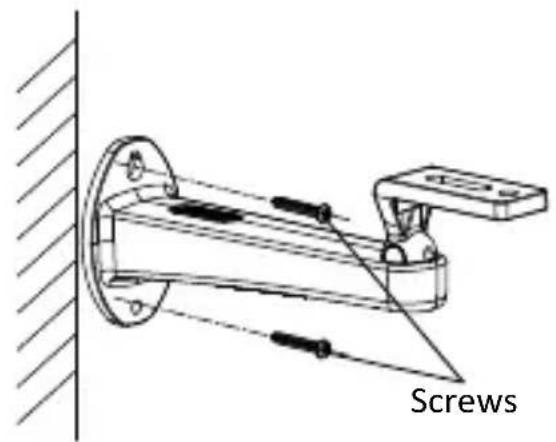

Mount the camera using the supplied bracket, connect the Ethernet cable for PoE or use a 12 V DC power adapter, then access the camera via a web browser or the HiLook app.
How do I reset the camera to factory defaults?
Press and hold the reset button on the camera body for 10 seconds until the status indicator blinks. The camera will reboot with default settings.
What is the night vision range?
The camera provides infrared night vision up to 30 meters (98 feet) in complete darkness.
Does this camera support Wi-Fi?
No, this model is a wired Ethernet camera. It uses PoE or 12 V DC for power and data transmission.
Can I use the camera without a recorder?
Yes, the camera supports onboard microSD card storage (up to 256 GB) for local recording, or you can stream to a PC software.
What mobile app works with this camera?
Use the HiLook app (available for iOS and Android) to view live footage, manage recordings, and receive alerts.
How do I enable motion detection?
Log into the camera web interface, go to Event > Motion Detection, enable it, and draw detection zones. You can also set up email or app notifications.
Is the camera weatherproof for outdoor use?
Yes, it has an IP67 rating, meaning it is dust-tight and protected against immersion up to 1 meter of water for 30 minutes.
What power supply is included?
The package includes a 12 V DC power adapter. PoE switch or injector is required if using Power over Ethernet.
How do I update the firmware?
Download the latest firmware from the HiLook website, log into the camera web interface, navigate to Maintenance > Firmware Upgrade, and upload the file.
