Product Type	Washing Machine
Brand	Khind
Model	WM717
Capacity	7 kg
Type	Top Load
Dimensions (H x W x D)	850 mm x 600 mm x 600 mm
Weight	35 kg
Power Supply	220-240 V, 50 Hz
Motor Type	Induction Motor
Spin Speed	1000 rpm
Number of Programs	8
Water Level	Adjustable (Low/Medium/High)
Energy Rating	3 Stars (MEPS)
Child Lock	Yes
Delay Start	Yes (Up to 24 hours)
Safety Features	Overflow Protection, Lid Interlock
Cleaning	Wipe with damp cloth; regularly clean lint filter
Spare Parts Availability	Inlet hose, outlet hose, lid assembly, control board
Repairability	Designed for easy access to major components

Frequently Asked Questions - WM717 Khind

What is the capacity of the Khind WM717 washing machine?

The Khind WM717 has a capacity of 7 kg, suitable for small to medium families.

How do I clean the lint filter on the WM717?

To clean the lint filter, open the filter cover located at the bottom front, remove the filter, rinse it under running water, and replace it securely.

Can I use a delay start feature on this washer?

Yes, the WM717 features a delay start function that allows you to set a timer up to 24 hours.

What should I do if the machine does not spin properly?

Check that the load is balanced; redistribute clothes evenly. Also ensure the drain hose is not kinked and the filter is clean. If issue persists, contact service.

Is there a child lock on the Khind WM717?

Yes, the WM717 is equipped with a child lock feature to prevent accidental operation during wash cycles.

What type of detergent is recommended for this machine?

Use low-sudsing detergent designed for top load washing machines. Use appropriate amount based on load size and water hardness.

How do I install the WM717 washing machine?

Place the machine on a firm, level surface. Connect the inlet hose to a water tap and ensure the outlet hose is properly inserted into a drain pipe or standpipe.

What does the 'Pause' button do?

Pressing Pause will stop the current cycle. You can open the lid (if safe) to add or remove items. Press Start to resume the cycle.

The machine vibrates excessively. What can I do?

Ensure the machine is level by adjusting the feet. Also make sure transport bolts were removed during installation. Avoid overloading.

Where can I find the user manual for the WM717?

The user manual is available for free download on notice-facile.com in PDF format.

USER MANUAL WM717 Khind

1. Observe the following items in order to prevent injury to yourself or to others and damage to property. Please make sure that the power supply is 220-240V\~50/60Hz.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

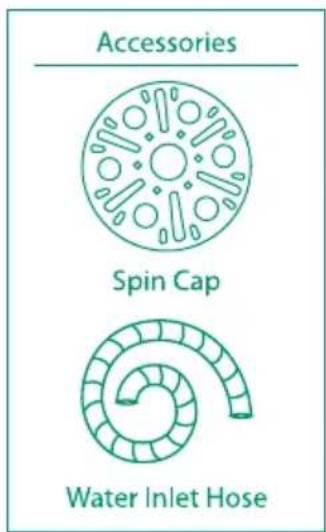

4. Always use the Spin cap for the spinning operation.

5. Do not wash laundries with volatile materials (such as thinner, petrol etc.)

6. Do not wash water-proof laundries like the raincoat, bike covers etc. to avoid abnormal vibrations in spinning.

7. Always take out all coins, buttons, sand, hairpins or other foreign materials from the pocket before washing.

8. Ensure the quantities of the laundries do not exceed the maximum washing & spinning capacity of the appliance as specified.

9. This appliance is for indoor household use only, do not use at outdoor. Commercial use will void warranty.

Warning

Please do not dismantle the unit. Maintenance can only be done by a qualified technician.

Please do not insert your hand inside the Spin Tub before it fully stops.

Please do not place the unit in a wet place to avoid any electric shock and fire.

Simple line drawing of a container with a cross mark and a wavy line below, on a grid background (no text or symbols)

Please do not spray water directly on the unit.

Please do not let children operate the unit.

Simple line drawing of a child sitting at a desk with stairs (no text or symbols)

Please do not place any hot and flammable items on top of the unit.

Simple line drawing of a rectangular object with a cross mark and a pencil, no text or symbols present.

The water temperature should not exceed 50°C.

Please make sure that the unit is properly earthed to socket.

Simple line drawing of a rectangular device connected to a power outlet with a plus sign (no text or symbols)

Do not expose the unit directly to sunlight or rain.

Simple line drawing of a sun, cloud, and a washing machine with a cross symbol (no text or labels)

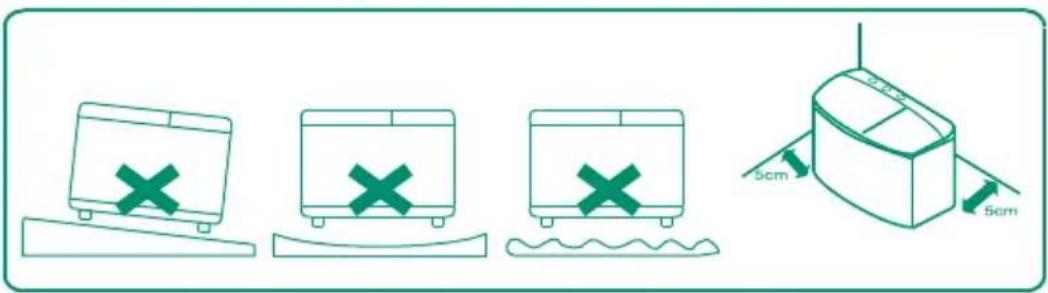

Placement

The unit must be placed on a flat & solid surface. The placement of the unit must be more than 5 cm away from surrounding walls for proper ventilation to avoid noise during spin function.

Cleaning and maintenance

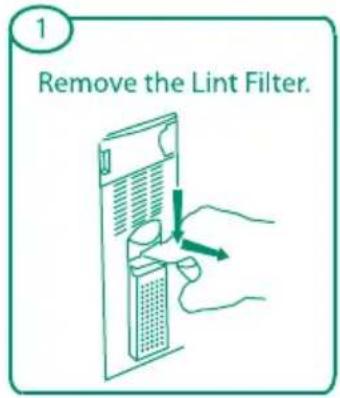

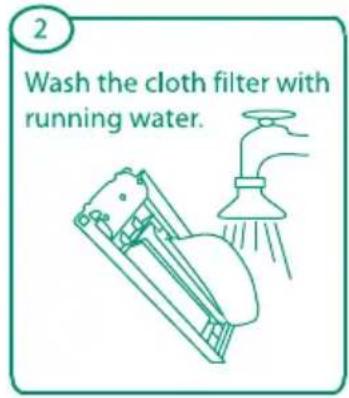

Lint Filter

The Unit

1. Please make sure that, all the water is drained from Wash Tub and Spin Tub after being used.
2. Switch off the power at the wall socket and remove the plug.
3. Wipe off any moisture or liquid on the unit with a dry or wet cloth.
4. Do not spray water directly onto the unit.
5. Do not use any flammable liquid cleaner to clean the unit, as this will spoil the appearance.
6. Allow the wash cover & spin cover to be opened to keep the internal area dry after cleaning.

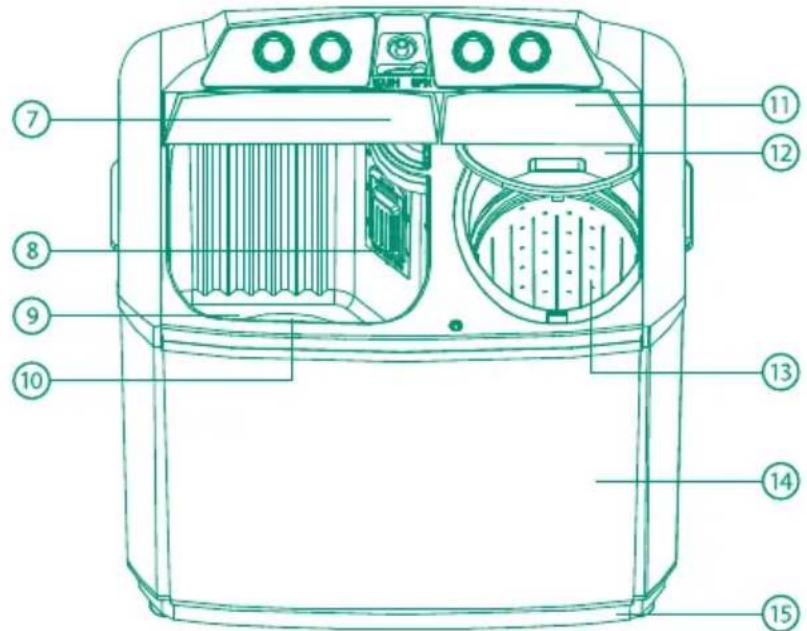

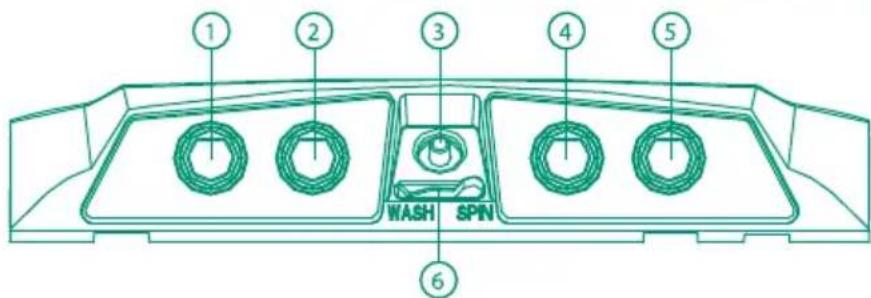

Parts Identification

1. Wash Timer Knob
2. Wash Selector Knob
3. Water Inlet
4. Programme Selector Knob
5. Spin Timer Knob
6. Wash / Spin Water Inlet Selector
7. Wash Lid
8. Lint Filter
9. Wash Tub
10. Pulsator
11. Spin-Tub Lid
12. Spin-Tub Safety Lid
13. Spin-Tub
14. Outer Body
15. Base

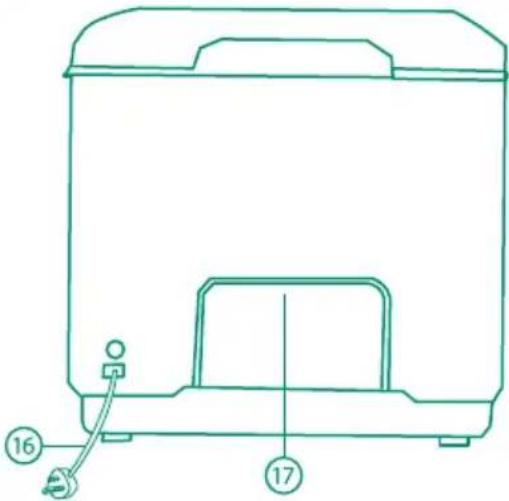

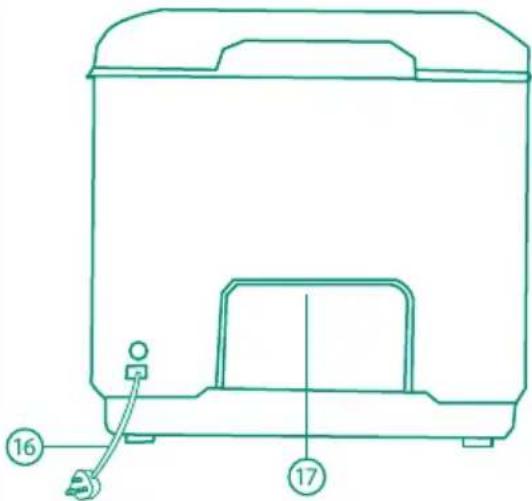

16. Cabel & Plug
17. Back Cover

Specifications

Model	WM717	WM1017
Voltage	220-240V~50-60Hz	220-240V~50-60Hz
Wash Consumption	380W	500W
Spin Consumption	150W	200W
Wash Capacity	7 kg	10 kg
Spin Capacity	5.5 kg	6 kg

* Specifications are subject to change without prior notice.

How to Use

Washing

1. Put the clothes and correct amount of detergent into the tub. Excessive detergent will make it difficult to get rid of the soap suds and may require additional rinsing.
2. Turn on the tap valve and water will flow through the inlet. Adjust the water level according to the size of the load.
3. Set the Wash Selector to depending on the material and weight of the clothes (Normal, Strong).
4. Set the Wash Timer Knob to the proper position and start to wash.
5. After washing, set the wash / drain switch to the drain position to drain off water.

Spin Drying

1. After draining water, put the clothes into the Spin Tub (right-hand side) and hold down the clothes.
2. It is not recommended to put delicate clothes into the Spin Tub to Spin Dry.
3. The spin capacity is less than the wash capacity so you may need to split the drying into 2 or 3 lots.
4. Put down the spin cap, close the Spin Tub Safety Lid and then the Spin Tub Lid.
5. Set the Spin Timer to commence Spin Dry.

Rinsing

1. After spinning has finished, change inlet water to the Spin Tub for 20-30 seconds.
2. Set the Spin Timer to commence Spin Dry again.

Final Rinsing

1. After spinning has finished and the spin tub stops, open the Spin Tub Lid and Spin Tub Safety Lid. Take out the clothes and put them in the washing tub and prepare to rinse.
2. Apart from putting detergent, the rinsing process is the same as the washing process.

Troubleshooting

Before calling for a technician or sending the unit for repair, please check from the troubleshooting table below. IMPORTANT : IF BELOW PROBLEMS CANNOT BE SOLVED, PLEASE CALL KHIND CUSTOMER SERVICES, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSON. DO NOT ATTEMPT TO REPAIR THE UNIT BY YOURSELF.

PROBLEM	REASON	SOLUTION
The pulsator cannot rotate	Power out or switch ‘OFF’	Switch ‘ON’ plug
Abnormal noise and vibration	The clothes in the spin tub is unbalanced	Place the clothes neatly
	There is something between the pulsator and the wash tub	Remove it
Water leaks from wash tub	The water hose is not securely fitted.	Tighten it
Spin Tub not rotating	The shaft of spin tub is snared by the clothing.	Remove the obstacles
The spin-tub will not drain	An object could be lodge between the spin tub and containing basket.	Remove it

Peringatan

Simple line drawing of a mug with a cross mark and wavy line below, on grid background (no text or symbols)

Simple line drawing of a person sitting on a bench, no text or symbols present

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Simple line drawing of a sun, cloud, and a washing machine with a cross symbol (no text or labels)

Line drawing of a portable appliance with labeled parts (16 and 17), no text or symbols present.

Spesifikasi

Model	:	WM717	WM1017
Voltan	:	220-240V~50-60Hz	220-240V~50-60Hz
Kuasa Basuhan	:	380W	500W
Kuasa Pengeringan	:	150W	200W
Kapasiti Basuhan	:	7 kg	10 kg
Kapasiti Pengeringan	:	5.5 kg	6 kg
