Product Type	Washing Machine
Brand	Khind
Model	WM1017
Load Type	Front Load
Capacity	10 kg
Dimensions (H x W x D)	850 mm x 595 mm x 550 mm
Weight	72 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	A++
Spin Speed	1200 rpm
Number of Programs	15
Programs	Cotton, Synthetic, Delicate, Quick, Wool, Hand Wash, Rinse, Spin, Drain
Features	Delay Start, Child Lock, Digital Display, Stain Treatment
Water Consumption	50 L per cycle
Noise Level (Wash/Spin)	58 dB / 76 dB
Safety Features	Overflow protection, Unbalanced load detection, Door lock
Maintenance	Clean filter every 30 cycles, descale every 3 months
Spare Parts Availability	Yes, through authorized service centers
Repairability Index	8.5/10

Frequently Asked Questions - WM1017 Khind

How do I install the WM1017 washing machine?

Remove all packaging, level the feet, connect water inlet hose to a tap, attach drain hose to a standpipe or sink, and plug into a grounded outlet. Refer to the manual for detailed steps.

What is the maximum load capacity?

The Khind WM1017 can handle up to 10 kg of dry laundry. Do not overload to ensure effective cleaning.

How do I clean the filter?

Turn off and unplug the machine. Open the filter cover at the bottom front, turn the filter counterclockwise to remove, clean under running water, and reinstall securely.

What should I do if the machine does not start?

Check that the door is closed properly, the water supply is on, the machine is plugged in, and the circuit breaker is not tripped. Also ensure the program is selected and the Start button is pressed.

How do I use the delay start function?

Select the desired program, then press the Delay Start button repeatedly to set the delay time (up to 24 hours). The machine will start automatically at the set time.

Can I wash delicate fabrics like wool?

Yes, use the Wool or Hand Wash program with cold water and a low spin speed. Always check garment care labels.

Why is the machine vibrating excessively?

Ensure the machine is level, transport bolts are removed, and the load is balanced. Overloading or uneven distribution can cause vibration.

How do I descale the washing machine?

Run an empty cycle at 90°C with a descaling agent or vinegar according to manufacturer instructions. Repeat every 3 months.

What do the error codes mean?

Error codes like E1 (water inlet issue), E2 (drainage problem), E3 (unbalanced load) indicate specific faults. Refer to the manual for detailed explanations.

Where can I find spare parts?

Contact Khind authorized service centers or visit the official website. Provide the model number WM1017 for compatibility.

USER MANUAL WM1017 Khind

1. Observe the following items in order to prevent injury to yourself or to others and damage to property. Please make sure that the power supply is 220-240V\~50/60Hz.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

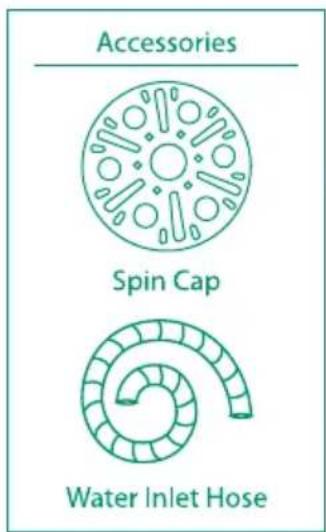

4. Always use the Spin cap for the spinning operation.

5. Do not wash laundries with volatile materials (such as thinner, petrol etc.)

6. Do not wash water-proof laundries like the raincoat, bike covers etc. to avoid abnormal vibrations in spinning.

7. Always take out all coins, buttons, sand, hairpins or other foreign materials from the pocket before washing.

8. Ensure the quantities of the laundries do not exceed the maximum washing & spinning capacity of the appliance as specified.

9. This appliance is for indoor household use only, do not use at outdoor. Commercial use will void warranty.

Warning

Please do not dismantle the unit. Maintenance can only be done by a qualified technician.

Please do not insert your hand inside the Spin Tub before it fully stops.

Please do not place the unit in a wet place to avoid any electric shock and fire.

Simple line drawing of a container with a cross mark and a wavy line below, on a grid background (no text or symbols)

Please do not spray water directly on the unit.

Please do not let children operate the unit.

Simple line drawing of a child sitting at a desk with stairs (no text or symbols)

Please do not place any hot and flammable items on top of the unit.

Simple line drawing of a rectangular object with a cross mark and a pencil, no text or symbols present.

The water temperature should not exceed 50°C.

Please make sure that the unit is properly earthed to socket.

Simple line drawing of a rectangular device connected to a power outlet with a plus sign (no text or symbols)

Do not expose the unit directly to sunlight or rain.

Simple line drawing of a sun, cloud, and a washing machine with a cross symbol (no text or labels)

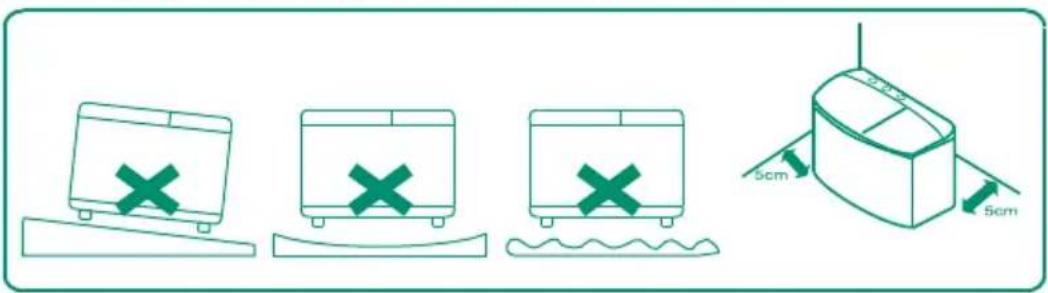

Placement

The unit must be placed on a flat & solid surface. The placement of the unit must be more than 5 cm away from surrounding walls for proper ventilation to avoid noise during spin function.

Cleaning and maintenance

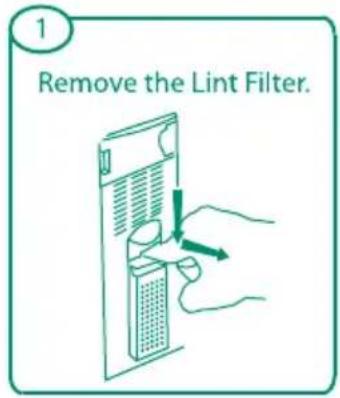

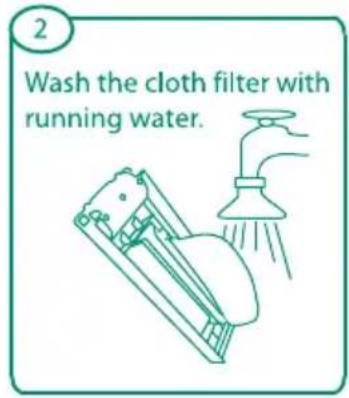

Lint Filter

The Unit

1. Please make sure that, all the water is drained from Wash Tub and Spin Tub after being used.
2. Switch off the power at the wall socket and remove the plug.
3. Wipe off any moisture or liquid on the unit with a dry or wet cloth.
4. Do not spray water directly onto the unit.
5. Do not use any flammable liquid cleaner to clean the unit, as this will spoil the appearance.
6. Allow the wash cover & spin cover to be opened to keep the internal area dry after cleaning.

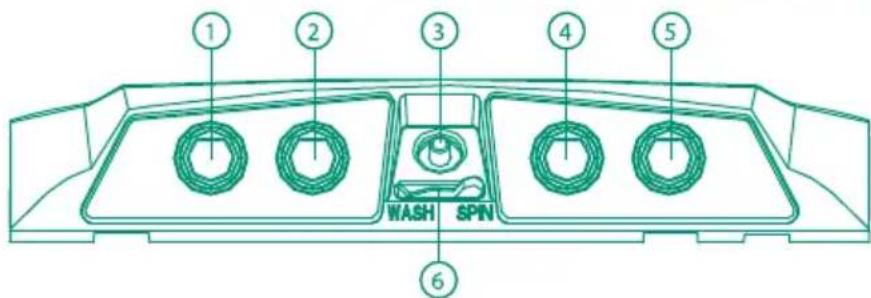

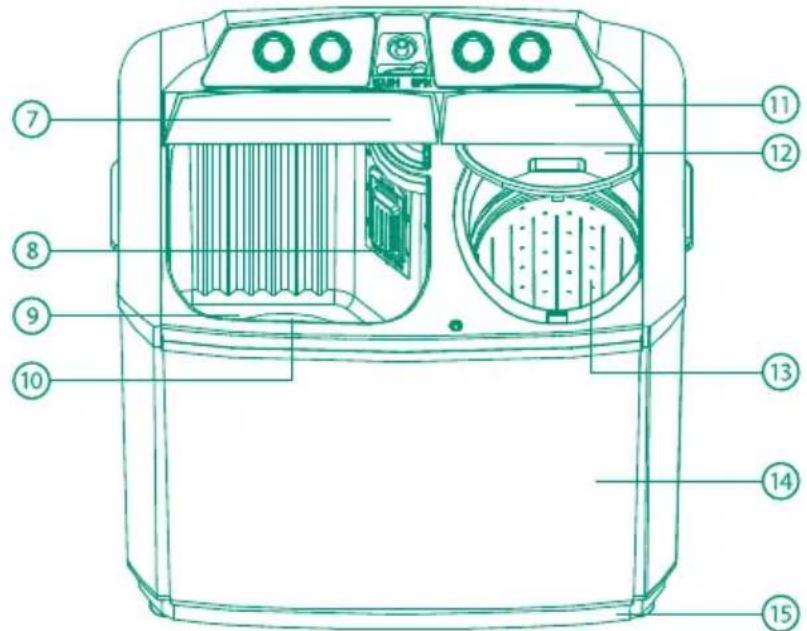

Parts Identification

1. Wash Timer Knob
2. Wash Selector Knob
3. Water Inlet
4. Programme Selector Knob
5. Spin Timer Knob
6. Wash / Spin Water Inlet Selector
7. Wash Lid
8. Lint Filter
9. Wash Tub
10. Pulsator
11. Spin-Tub Lid
12. Spin-Tub Safety Lid
13. Spin-Tub
14. Outer Body
15. Base

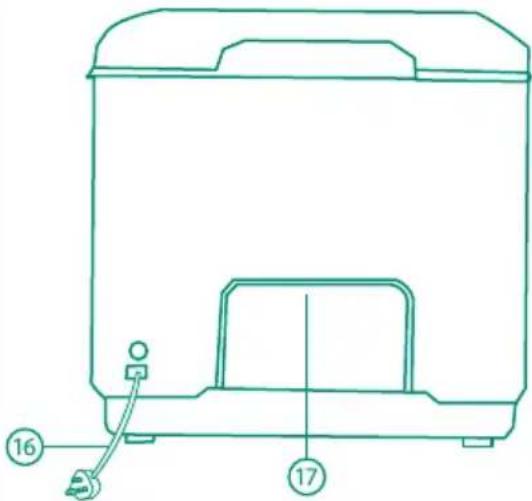

16. Cabel & Plug
17. Back Cover

Specifications

Model	WM717	WM1017
Voltage	220-240V~50-60Hz	220-240V~50-60Hz
Wash Consumption	380W	500W
Spin Consumption	150W	200W
Wash Capacity	7 kg	10 kg
Spin Capacity	5.5 kg	6 kg

* Specifications are subject to change without prior notice.

How to Use

Washing

1. Put the clothes and correct amount of detergent into the tub. Excessive detergent will make it difficult to get rid of the soap suds and may require additional rinsing.
2. Turn on the tap valve and water will flow through the inlet. Adjust the water level according to the size of the load.
3. Set the Wash Selector to depending on the material and weight of the clothes (Normal, Strong).
4. Set the Wash Timer Knob to the proper position and start to wash.
5. After washing, set the wash / drain switch to the drain position to drain off water.

Spin Drying

1. After draining water, put the clothes into the Spin Tub (right-hand side) and hold down the clothes.
2. It is not recommended to put delicate clothes into the Spin Tub to Spin Dry.
3. The spin capacity is less than the wash capacity so you may need to split the drying into 2 or 3 lots.
4. Put down the spin cap, close the Spin Tub Safety Lid and then the Spin Tub Lid.
5. Set the Spin Timer to commence Spin Dry.

Rinsing

1. After spinning has finished, change inlet water to the Spin Tub for 20-30 seconds.
2. Set the Spin Timer to commence Spin Dry again.

Final Rinsing

1. After spinning has finished and the spin tub stops, open the Spin Tub Lid and Spin Tub Safety Lid. Take out the clothes and put them in the washing tub and prepare to rinse.
2. Apart from putting detergent, the rinsing process is the same as the washing process.

Troubleshooting

Before calling for a technician or sending the unit for repair, please check from the troubleshooting table below. IMPORTANT : IF BELOW PROBLEMS CANNOT BE SOLVED, PLEASE CALL KHIND CUSTOMER SERVICES, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSON. DO NOT ATTEMPT TO REPAIR THE UNIT BY YOURSELF.

PROBLEM	REASON	SOLUTION
The pulsator cannot rotate	Power out or switch ‘OFF’	Switch ‘ON’ plug
Abnormal noise and vibration	The clothes in the spin tub is unbalanced	Place the clothes neatly
	There is something between the pulsator and the wash tub	Remove it
Water leaks from wash tub	The water hose is not securely fitted.	Tighten it
Spin Tub not rotating	The shaft of spin tub is snared by the clothing.	Remove the obstacles
The spin-tub will not drain	An object could be lodge between the spin tub and containing basket.	Remove it

Peringatan

Simple line drawing of a mug with a cross mark and wavy line below, on grid background (no text or symbols)

Simple line drawing of a person sitting on a bench, no text or symbols present

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Simple line drawing of a sun, cloud, and a washing machine with a cross symbol (no text or labels)

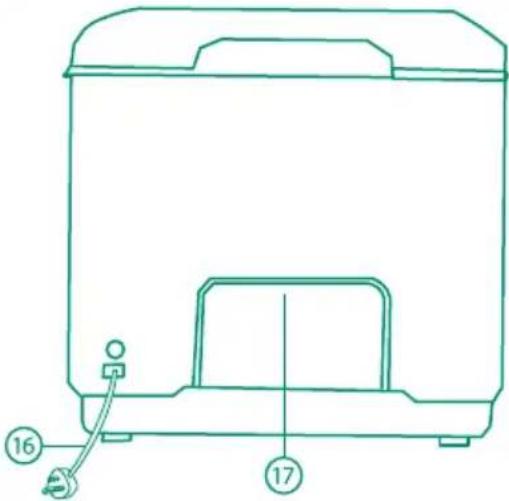

Line drawing of a portable appliance with labeled parts (16 and 17), no text or symbols present.

Spesifikasi

Model	:	WM717	WM1017
Voltan	:	220-240V~50-60Hz	220-240V~50-60Hz
Kuasa Basuhan	:	380W	500W
Kuasa Pengeringan	:	150W	200W
Kapasiti Basuhan	:	7 kg	10 kg
Kapasiti Pengeringan	:	5.5 kg	6 kg
