Product Type	Freestanding Dishwasher
Model	KDW2758
Brand	Kunft

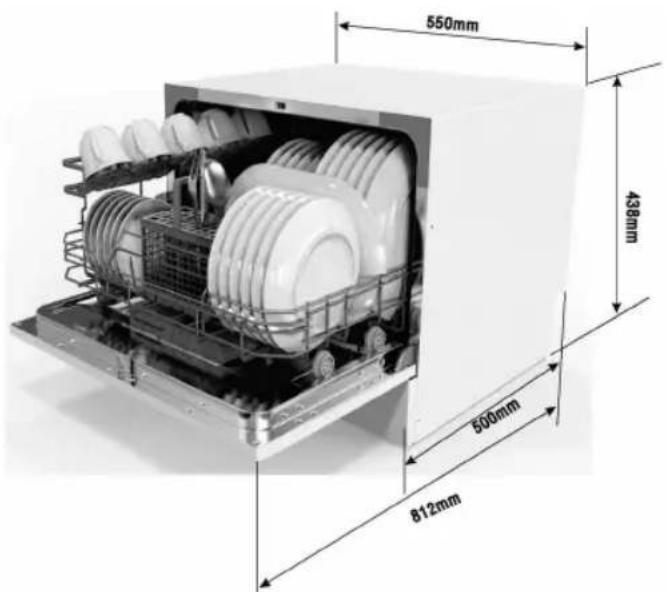

Dimensions (H x W x D)	438 x 550 x 500 mm
Capacity	6 place settings
Voltage / Frequency	220-240 V ~ 50 Hz
Power Consumption (Standby)	0.49 W
Water Pressure (Min - Max)	0.04 - 1.0 MPa
Wash Programs	Intensive, Normal, Eco, 90 min, 1 Hour, Quick
Energy Consumption (Eco program)	0.61 kWh (per cycle)
Water Consumption (Eco program)	6.5 L (per cycle)
Noise Level	Not specified (estimate: 49-52 dB)
Water Softener	Yes, adjustable salt consumption (H1-H6)
Rinse Aid Dispenser	Yes, adjustable (settings 4-6)
Detergent Dispenser	Yes, with main and pre-wash compartments
Filter System	3-stage: coarse, fine, micro

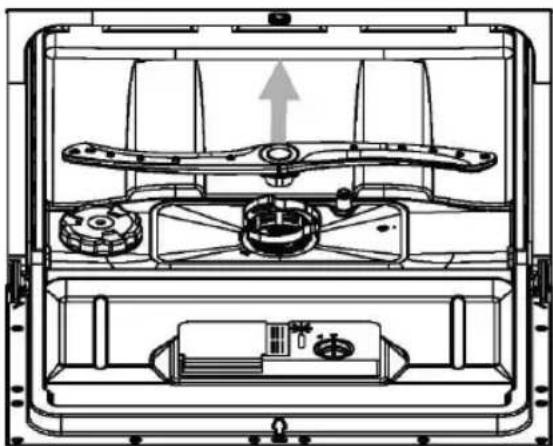

Spray Arms	Removable, cleanable

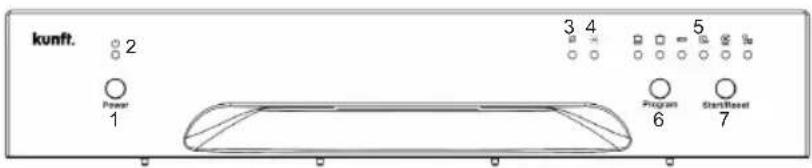

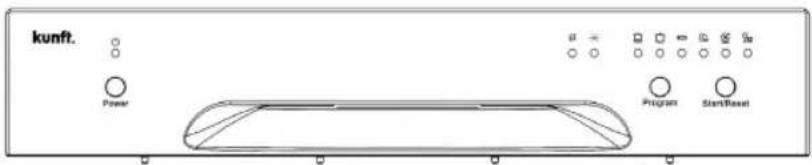

Control Panel	Buttons with indicators (Power, Salt, Rinse Aid, Program, Start/Reset)
Safety Features	Earthing, child lock (door), overflow protection
Warranty	2 years (manufacturing defects)

Frequently Asked Questions - KDW2758 Kunft

What should I do if the dishwasher doesn't start?

First, check if the power cord is plugged in and the door is closed securely. Also verify that the fuse or circuit breaker is not blown/tripped. If the problem persists, contact customer service.

How do I adjust the salt consumption for water softener?

Within 60 seconds of powering on, close the door and press the Start/Reset button for 5 seconds. Then press Start/Reset repeatedly to cycle through levels H1 to H6 based on your water hardness. The machine exits adjustment mode after 5 seconds of inactivity.

Why are there spots or streaks on my dishes?

This is usually due to insufficient rinse aid. Check the rinse aid level and adjust the dispenser setting (increase to 5 or 6). Also ensure you are using a suitable dishwasher detergent and loading dishes properly.

Can I open the dishwasher during a cycle to add dishes?

Yes, press the Start/Reset button to pause, then open the door carefully (hot steam may escape). Add dishes, close the door, and press Start/Reset again. The cycle will resume after about 10 seconds.

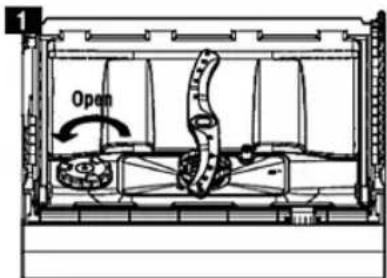

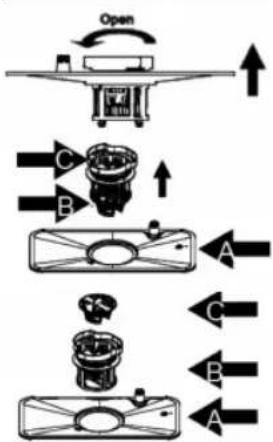

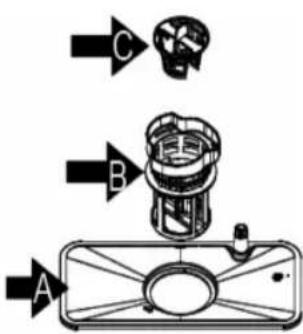

How do I clean the filters?

Remove the filter assembly by rotating it counterclockwise and lifting. Separate the coarse, fine, and micro filters. Rinse them under running water and use a brush if needed. Reassemble in reverse order. Clean filters regularly for best performance.

What detergent should I use?

Use only detergent specifically made for automatic dishwashers (powder, gel, or tablets). Do not use soap, laundry detergent, or handwash. Follow the manufacturer's dosage recommendations. For hard water, add more detergent.

Why is there water left in the bottom of the dishwasher?

This is normal after a cycle; the dishwasher is wet inside. If there is excessive water, check if the drain hose is kinked or the filter is clogged. Also ensure the kitchen sink drain is not blocked.

How do I change a wash program after starting?

Press the Start/Reset button to pause, then press the Program button for 3 seconds to cancel the current program. Select a new program and press Start/Reset again. Note that if detergent has already been released, you may need to refill the dispenser.

What do the error codes mean?

If the Rapid indicator flickers, it indicates long water inlet time (check faucet). If the 90 min indicator flickers, it indicates overflow (check for leaks). In case of overflow, turn off water supply before calling service.

How do I install the dishwasher?

Ensure the appliance is placed near a water tap, drain outlet, and power socket. Connect the cold water hose to a 3/4 inch threaded tap. Insert the drain hose into a drain pipe (min diameter 4 cm) or sink, with the free end lower than 60 cm. Level the dishwasher and secure it. Electrical connection must be earthed.

USER MANUAL KDW2758 Kunft

Front view of a white kitchen appliance with control buttons and indicator lights (no visible text or symbols on the device itself)

dishwasher

is perfectly enough

KDW2758

kunft.

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

2

dishwasher

KDW2758

EN

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 6
1.3. Humidity and Water ...... 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS 8

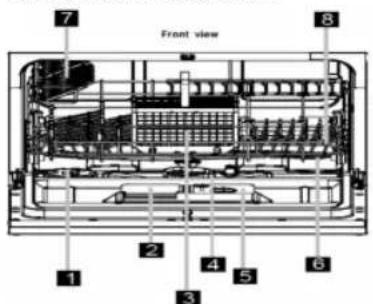

2.1. Product Description.... 14
2.2. Using the Product 15
2.3. Maintenance 28
2.4. Troubleshooting 32

1. TECHNICAL SPECIFICATIONS .... 35

2. POST-SALE SERVICE 36

3. ENVIRONMENTAL PROTECTION 36

kunft.

1. SAFETY INSTRUCTIONS

WARNING

Risk of Electric Shock Do Not Open

Warning: to avoid the risk of electric shock, do not remove the cover.

The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

7

kunft.®

2. OPERATING INSTRUCTIONS

Quick Operation Guide

For a detailed operating guide please read the corresponding content in the instruction manual.

Power on the appliance Press the Power Button to power on the appliance. Open the door.

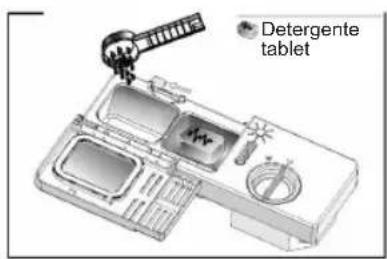

Fill the detergent dispenser

Compartment A: For each wash cycle.

Compartment B: For programmes with pre-wash only. (Follow the user instructions)

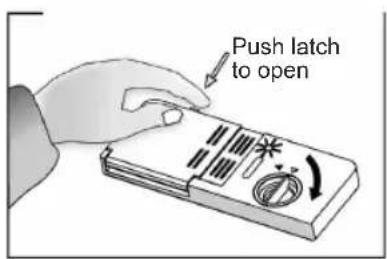

Check the rinse aid level	Mechanical Indicator C: Electric indicator on the control panel (if provided).
Check the softener salt level	(On models with water softener system only.)Electric indicator on the control panel (if provided).If there is no salt warning light on the control panel (which is the case for some models) you can estimate when to place salt in the softener by the number of cycles the dishwasher has been through.

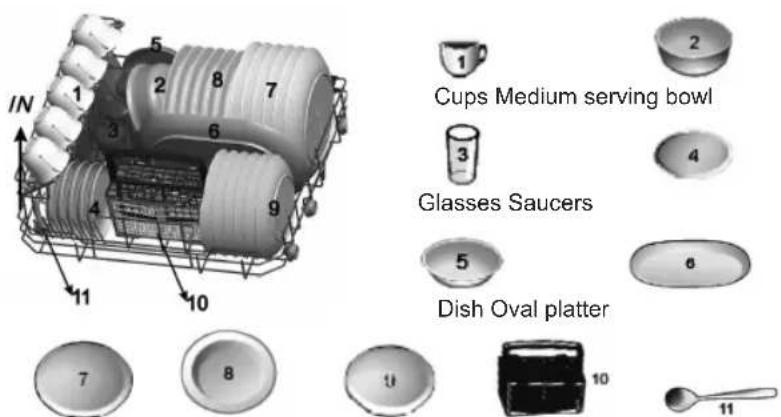

Load the baskets	Scrape off any large food remnants. Soften any remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.
Select a programme	Close the door. Press the programme button until the selected programme indicator lights up. (See the section entitled “Operating Instructions”)
Running the dishwasher	Turn on the water tap and press the Start/Reset Button. The machine will start working after about 10 seconds.

WARNING!

Open the door carefully.

Hot steam may escape when the door is opened!

dishwasher

KDW2758

EN

Changing the programme	1. A running cycle can only be changed if it has only been running for a short time. Otherwise, the detergent may have already been released and the water already drained. Should this be the case, the detergent dispenser must be refilled.2. Press the Start/Reset Button, then press the programme button for more than 3 seconds to cancel the running programme.3. Select a new programme.4. Restart the dishwasher.
Add forgotten dishes in the dishwasher.	1. Press the Start/Reset Button to stop the machine.2. Open the door.3. Add the forgotten dishes.4. Close the door, then press the Start/Reset Button, the dishwasher will start running again after 10 seconds.
If the appliance is switched off during a wash cycle.	If the appliance was switched off during a wash cycle, when it is switched on again, please re-select the washing programme and start the dishwasher cycle from the beginning).Switch off the appliance
Close the water tap, unload the baskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scalding yourself, as the dishes and utensils are still hot and more susceptible to breaking. They will also dry better.

WARNING!

When using your dishwasher, follow the precautions listed below:

• This appliance is intended to be used in a household setting and other similar settings such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• B&Bs (bed & breakfast).
• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe

kunft.®

way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision. (For EN60335-1)

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1) I This appliance is for indoor use and household use only. To guard against the risk of electric shock, do not immerse the unit, cord or plug in water or other liquids.
• Please unplug before cleaning or performing maintenance on the appliance. To clean the appliance, use a moist soft cloth with mild soap followed by a dry cloth.

EartHING INStructloNS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance to electric current. This appliance is equipped with a cord which includes an earthing wire and an earthing plug.

The plug must be plugged into an appropriate socket that is installed and earthed in accordance with all local codes and ordinances.

Improper earthing due to faulty connection poses an electric shock hazard. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.

Do not modify the plug provided with the appliance; If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

• Do not abuse, sit on, or stand on the dishwasher's door or dish rack.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is in operation, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

- Place sharp items so as to ensure that they are unlikely to damage the door seal;

- Warning: Knives and other utensils with sharp points must be loaded in the basket with their points pointing downwards or placed in a horizontal position.

- Check that the detergent powder has been completely used up after completion of the wash cycle.

dishwasher

KDW2758

EN

• Do not wash plastic items unless they are marked dishwasher safe or equivalent. For plastic items without these markings, check the manufacturer's recommendations.
• Only use detergent and rinse additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or handwash in your dishwasher.
  • Children should be supervised to ensure that they do not play with the appliance.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply cord must not be excessively or dangerously bent or flattened.
• Do not tamper with the appliance's controls.
• The appliance must be connected to the water mains using new hose sets and old hose-sets must not be reused.
  • The maximum number of place settings is 6.
• The maximum allowed inlet water pressure is 1MPa.
• The minimum required inlet water pressure is 0.04MPa.

Disposal

• Dispose of the dishwasher packaging material correctly.
• All packaging materials can be recycled.
• Plastic parts are marked with the standard international abbreviations:
• PE - for polyethylene, e.g. sheet wrapping material.
• PS - for polystyrene, e.g. padding material.
• POM - polyoxymethylene, e.g. plastic clips.
• PP - polypropylene, e.g. Salt Filler.
  • ABS - Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

• Packaging material could be dangerous for children!
• In order to dispose of packaging and the appliance please do so through a recycling centre, ensuring that the power supply cable is cut off and the door closing mechanism is rendered unusable.
• Cardboard packaging is manufactured from recycled paper and should be disposed of through waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment

kunft.®

and human health, which could otherwise be caused by the inappropriate disposal of this product.

• For more detailed information about recycling and the disposal of this product, please contact your local city office and your household waste disposal service.
  • DISPOSAL: Do not dispose of this product as unsorted municipal waste. This product and any waste resulting from its disposal must be collected separately as special treatment is required.

Installation Instructions

Attention:

The installation of the pipes and electrical equipment should be done by qualified professionals.

Warning

Electric Shock Hazard. Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock.

Preparing for Installation

The dishwasher should be installed next to an existing water inlet tap, drain outlet and power socket.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

About Power Connection

WARNING!

For personal safety:

Do not use an extension cord or an adapter plug with this appliance.

Do not cut or remove the earthing under any circumstances.

Connect the appliance through the power cord.

Electrical Requirements

Please check the rating label for the voltage rating and connect the dishwasher to the appropriate power supply. Use the requisite 10amp fuse, time delay fuse or the recommended circuit breaker and provide a separate circuit serving only this appliance.

Electrical Connection

Ensure the voltage and frequency of the power supplied to the appliance corresponds to those on the rating label. Only insert the plug into an electrical socket which is properly earthed. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using adaptors or the like as they could cause overheating and burns.

Insure proper earthing is in place before use

Water Connection

Cold Water Connection

Connect the cold-water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Please note that: if the supplied hose does not fit your tap you should please contact your local plumbing supply centre where adapters are available for purchase.

WARNING! please close the tap after using.

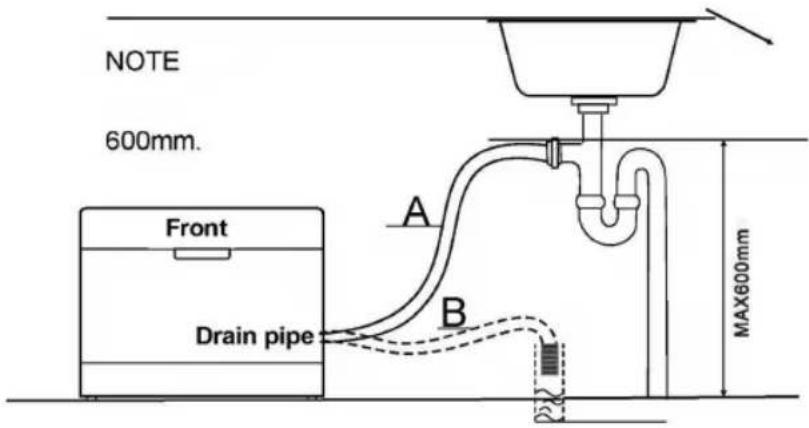

Connecting the Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. The free end of the hose must be at a height lower than 60cm and must not be immersed in water to avoid backflow.

PLEASE INSTALL THE DRAIN HOSE AS SUGGESTED EITHER IN A OR B

Counter

The top of the hose must be less than 4 > 40mm

13

kunft.®

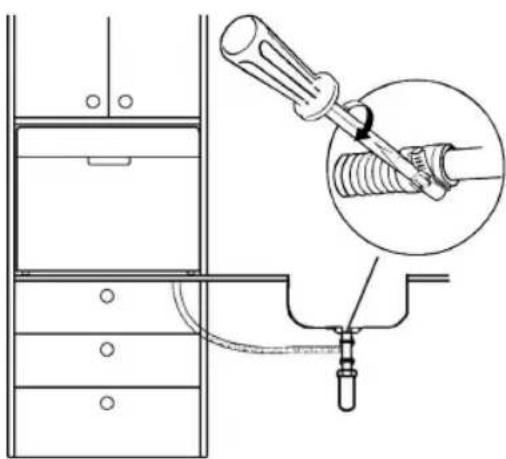

Technical diagram showing a screwdriver inserted into a threaded component, with no visible text or symbols.

How to Drain Excess Water from Hoses

If the sink is more than 1000 mm above the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.

Starting the dishwasher

The following things should be checked before starting the dishwasher. That:

The dishwasher is level and fixed properly.

• The inlet valve is open.
- Inlet hose connections are fully tightened and not leaking.

The wires are tightly connected.

• The power is switched on.
• The inlet and drain hoses are not kinked.

- All packing and print materials should be taken out of the dishwasher.

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful for anyone who uses the dishwasher.

2.1. Product Description

IMPORTANT

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Control Panel

1. Power Button: Press to Power on the device.
2. Power Indicator Light: Turns on when the Power Button is pressed down.
3. Salt Warning Light: Turns on when the softener needs to be refilled.
4. Rinse Aid Warning Light: Turns on when the rinse aid dispenser needs to be refilled.
5. Programme Indicator Lights.
6. Washing Programme Selector: Press the button to select the washing programme.
7. Start/Reset Button: Press this button to start or pause the dishwasher, the process pilot lamp will be blinking when starting.

Dishwasher Features

Front view Back View

1. Salt Container

2. Cutlery Basket

3. Rinse Aid Dispenser

4. Cup Shelf

5. Basket

6. Inlet Pipe Connector

7. Detergent Dispenser

8. Filter Assembly

9. Spray Arms

10. Drain Pipe Connector

2.2. Using the Product

NOTE: If your model does not have a water softener, you may skip this section.

A. Loading the Salt into the Softener

Always use salt intended for use with a dishwasher.

The salt container is located beneath the basket and should be filled as follows:

kunft.®

Attention!

Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher. Note that table salt is unsuitable for use with the dishwasher and will damage the water softener. Damages caused by the use of unsuitable salt are not covered by the manufacturer's warranty and the manufacturer is not liable for any such damage.

Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water which may have split over from remaining at the bottom of the machine for any period of time, which may cause corrosion.

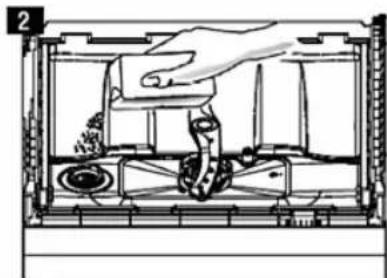

Diagram of a hand pressing down on a mechanical component inside a device (no text or symbols visible)

A. Remove the basket and then unscrew and remove the cap from the salt container. (Please see 1.)
B. Before the first wash, pour 1 lt. of water into your machine's salt container.
C. Place the end of the funnel (supplied) into the hole and introduce about 1 kg of salt. It is normal for a small amount of water to come out of the salt container. (Please see 2.)
D. After filling the container, screw the cap back on tightly (clockwise.)
E. Usually, the salt warning light will turn off within 2-6 days after the salt container has been filled with salt.
F. Immediately after pouring the salt into the salt container, a washing programme should be started (suggestion: choose a short programme). Otherwise, the filter system, pump or other important parts of the machine may be damaged by salty water, which is not covered by the warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light on the control panel comes on. Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is full. If there is no salt warning light on the control panel (which is the case for some models) you can judge when to load the salt into the softener by the number of cycles that the dishwasher has been through.

2. If salt has been spilt, a soak or a short programme should be run to remove the excess salt.

Adjusting Salt Consumption

Step 1: Enter the salt-consumption adjustment mode

Close the door within 60 seconds after powering on the dishwasher, press the Start/Reset button and hold it for 5 seconds: the machine will enter the salt-consumption adjustment mode.

Step 2: Select the appropriate level of salt consumption

Press the Start/Reset button to select the appropriate setting according to your local water hardness level. The settings change in the following sequence: H1 -> H2 -> H3 -> H4 -> H5 -> H6;

Step 3: Exit the salt-consumption adjustment mode

If the machine receives no input for five seconds it automatically exits the salt-consumption adjustment mode and enters standby mode.

There are of 6 salt-consumption levels in total. We recommend you select the appropriate level according to table below:

Water Hardness Level Water softener setting		Digital display stalls
°dH1) mmol/l 2)
0 - 5 0 - 0.9 1 H1: Short
6 - 11 1.0 - 2.0 2 H2: 1 Hour
12 - 17 2.1 - 3.0 3		H3: 1 Hour & Rapid
18 - 22 3.1 - 4.0 4* H4: 90 min
23 - 34 4.1 - 6.1 5		H5: 90 min & Rapid
35 - 45 6.2 - 8.0 6		H6: 90 min & 1 Hour

Note:
1) German measure of water hardness
2) millimol, international measure of water hardness
*) factory setting

Contact your local water board for information on the hardness of your water supply.

kunft.®

B. Fill the Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks on the dishes. It also improves drying by allowing water to form thin sheets and slide off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser up to the indicated level or the optical indicator goes completely dark. The volume of the rinse aid container is about 110 ml.

Rinse Aid Function

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid meant for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This will damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning indicator light on the control panel, you can judge the amount of rinse-aid by the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid is used up, the size of the dark dot decreases. You should never let the rinse aid dispenser get below 1/4 full.

As the rinse aid is used up, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4 full
1/2 full
1/4 full Should refill to spot and streak free rinsing
○ Empty

How to fill the Rinse Aid Dispenser

Illustration of a hand holding a device with a magnified view of its screen (no text or symbols visible)

dishwasher

KDW2758

EN

1. To open the dispenser, turn the cap in the direction of the "open" (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill it.
3. Place the cap back in place by inserting it aligned with the "open" arrow and turning it in the direction of the "close" (right) arrow.

NOTE: Clean up any rinse aid spilt during filling using an bent cloth in order to avoid excessive foaming during the next Don't forget to replace the cap before you close the dishwasher

Adjusting the Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes are still not drying properly or have spots on them, adjust the dial to the next number up, until your dishes are spot-free. The recommended setting is "4". (The factory default is "4".)

NOTE: Increase the amount of rinse aid which is dispensed if are drops of water or lime spots on the dishes after washing.

Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

c. Detergent

Detergents have chemical ingredients that are necessary to remove dirt, break down dirt and remove it from the dishwasher. Most commercial detergents are suitable for this purpose.

Normally, new pulverised detergents do not contain phosphate, thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6° dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a program with higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

• Conventional, alkaline detergents with caustic components.
  • Those with a low alkaline concentration and natural enzymes.

The use of the Normal washing programme in combination with concentrated detergents reduces pollution and is good for your dishes.

kunft.®

Detergent Tablets

Detergent tablets of different brands dissolve at different rates. For this reason, some detergent tablets do not dissolve in time and cannot provide their full cleaning power during short programmes. Therefore, please use long programmes when using detergent tablets to ensure the complete removal of detergent residue.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. Dirtier items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it may get damp and not dissolve properly.

Adding detergent to the dispenser

1

2

NOTE:

If the lid is closed, push the latch to open.

Always add the detergent just before starting each wash cycle.

Only use branded detergent and rinse aid with the dishwasher.

WARNING!

Dishwasher detergent is corrosive!

Take care to keep it out of reach of children.

Proper Use of Detergent

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

Fill up the detergent dispenser

Fill up the detergent dispenser with detergent. The marking indicates the appropriate amount to add, as illustrated on the right:

dishwasher

KDW2758

EN

A. Main cycle detergent compartment.

B. Pre-wash cycle detergent compartment.

Please observe the manufacturers' quantity and storage recommendations as stated on the detergent packaging.

Close the lid and press it down until it locks in place.

If the dishes are very dirty, place an additional

amount of detergent in the pre-wash detergent compartment. This additional amount of detergent will then be released during the pre-wash phase.

NOTE:

• You will find information on the amount of detergent for the single programme on page 9.
• Please be aware that dirt levels and water hardness can affect the results of the washing process.
• Please observe the manufacturer's recommendations as stated on the detergent packaging.

Loading the Dishwasher Baskets

Recommendation

• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as "kind to dishes". If necessary, seek further information from detergent manufacturers.
• For particular items you may have to select a programme with as low a temperature as possible.
• To prevent damage, do not take glasses and cutlery out of the dishwasher immediately after the programme has ended.

Suitability for use in the dishwasher

Not suitable for use

• Cutlery with wooden, horn china or mother-of-pearl handles.
- Plastic items that are not heat resistant.
- Older cutlery with glued parts that is not temperature resistant.
• Bonded cutlery items or dishes.
- Pewter or copper items.
- Crystal glass.
• Steel items subject to rusting.
- Wooden platters.
- Items made from synthetic fibres.

Limited suitability

• Some types of glasses can become dull after a large number of washes.
• Silver and aluminium parts have a tendency to discolour during washing.
- Glazed patterns may fade if machine washed frequently.

kunft.

Attention Before or After Loading the Dishwasher Baskets

(For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from those that are supplied with you model.)

Scrape off any large food remnants. Soften burnt food remnants in pans.

It is not necessary to rinse the dishes under running water.

Place items to be washed in the dishwasher in following way:

1. Face down, for Items such as cups, glasses, pots/pans, etc.
2. At an angle (slanted) for curved items, or those with recesses, so that water can run off.
3. Ensure all utensils are stacked securely and cannot tip over.
4. Place all utensils in a manner which enables the spray arms to rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher. They could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect inside them.
• Dishes and cutlery must not be placed inside one another, or over each other.
  • To avoid damage to glasses, they must not touch each other.
• Knives with long blades which are stored in an upright position are a potential hazard!
• Long and/or sharp cutlery such as carving knives must be positioned horizontally in the basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable energy consumption.

Loading the Basket

Position the dishes and cookware so that they will not get moved by the spray of water.

Dinner plates Soup plates Dessert plates Cutlery basket Serving spoons

Cutlery Basket

Place the dishes and cookware in the Cutlery Basket such that they do not get moved by the spray of water.

1. Forks 2. Soup spoons
2. Dessert spoons 4. Teaspoons
3. Knives 6. Serving spoons
4. Gravy ladles 8. Serving forks

WARNING!

Do not place any item in a manner which allows it to extend through the bottom of the basket.

Always load pointy utensils with the sharp point facing down!

For personal safety and the best cleaning quality, ensure silverware items are placed in the basket so that:

• They do not nest together.
• Their handles face downwards.
- Knives and other potentially dangerous utensils have their handles facing upwards.

kunft.®

Starting a washing programme
Wash Cycle Table

Programme	Cycle Purpose	Cycle Description	Detergent Amount
Intensive	For heavily soiled crockery, and normally soiled pots, pans, dishes etc. with dried-on soiling	Pre-wash (50°C)Wash (70°C)RinseRinse (70 C)Drying	3/15 g(or 3 in 1)
Normal	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-washWash (60°C)RinseRinse (70 C)Drying	3/15 g(or 3 in 1)
(*EN 5242)	This is the standard programme. It is suitable to clean normally soiled tableware and it is the most efficient programme in (*EN 50242) terms of its combined energy and water consumption for that type of tableware.	Pre-washWash (50°C)RinseRinse (70 C)Drying	3/15 g(or 3 in 1)
90 min	For lightly soiled crockery and glass.	Wash (65°C)Rinse (70 C)Drying	18 g(or 3 in 1)
1 Hour	For lightly soiled loads that do not need excellent efficiency.	Wash (65°C)Rinse (50°C)Drying	18 g(or 3 in 1)
Quick	A shorter wash for lightly soiled loads and a quick wash.	Wash (40°C)RinseRinse (40°C)	15 g.

NOTE:

* EN 50242: This programme is the test cycle. The information for comparison tests is provided in accordance with EN 50242, as follows:

• Capacity: 6 setting
• Rinse aid setting: 6
  • The power consumption of standby mode is 0.49W

dishwasher

KDW2758

EN

Running Time

(min) Energy (Kwh) Water (I) Rinse Aid

140 0.9 10

120 0.7 8

180 0.61 6.5

90 0.65 7

60 0.55 6

30 0.23 6

25

kunft.®

Powering On the Appliance

Starting a wash cycle...

Draw out the basket (see the section entitled "Loading the Dishwasher").

Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").

Insert the plug into the socket. The power supply is 220-240 VAC 50 HZ, and socket specification 10 A250 VAC.

Make sure that the water supply is turned on to full pressure.

Press the programme button, the wash program will change in the following sequence

ECO -> 90 min -> 1 Hour -> Rapid -> Intensive -> Normal;

If a programme is selected, the programme indicator light will light up. Next, press the Start/Reset button and the dishwasher programme will start.

NOTE:

When you press the Start/Reset during washing, the programme will be paused, the programme indicator light will stop flashing and the dishwasher will produce a warning sound every minute, until the Start/Reset button is pressed to resume the programme.

Changing the Programme

You can change the washing programme if the dishwasher has only been in operation for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. in this case, the detergent dispenser must be refilled (see the section entitled "Detergent").

Press the Start/Pause Button to pause the machine when the door is closed. Press the Programme Button for more than three seconds to put the machine in standby mode. You can now change the programme to the desired cycle setting (see the section entitled "Starting a washing programme").

The programme light indicators indicate the status of the dishwasher:

a) A single programme indicator is on ---- stand by or paused.

b) A single programme indicator is flashing ---- in operation.

NOTE: If you open the door during washing, the machine will pause. When you close the door, and press the Start/Pause Button, the machine will resume the programme after 10 seconds.

If your mode's memory function is broken, the machine will go on to finish the selected programme after a power cut.

dishwasher

KDW2758

EN

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1. Press the Start/Pause Button.
2. Open the door a little to interrupt the washing.
3. After the spray arms stop working, you can open the door completely.
4. Add any forgotten dishes.
5. Close the door.
6. Press the Start/Pause Button. The dishwasher will resume the programme after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the dishwasher buzzer will emit a sound 8 during seconds, then stop. Turn off the appliance using the ON/OFF Button, shut off the water supply and open the dishwasher door. Wait a few minutes before unloading the dishwasher to avoid scalding yourself. Note also that the dishes and utensils will still be hot and more susceptible to breaking. They will also dry better.

Switch Off the dishwasher

1. Switch off the dishwasher by pressing the ON/OFF Button.
2. Turn off the water tap!

Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should be allowed to cool down for approximately 15 minutes before they are removed from the appliance.

Open the dishwasher's door, leave it ajar and wait for a few minutes before removing the dishes. In this way, they will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside.

WARNING!

It is dangerous to open the door when washing as you may be scalded by hot water.

kunft.®

2.3. Maintenance

filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump.

The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

Main filter A

Food and soil remnants trapped by this filter are broken down by a special jet on the spray arm and washed down to drain.

Fine filter B

This filter holds soil particles and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

Coarse filter C

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by this filter, gently squeeze the tap on the top of this filter and lift it out.

filter assembly

The filter efficiently removes food remnants from the wash water, allowing them to be recycled during the cycle. For best performance and results, the filter assembly must be cleaned regularly. For this reason, it is a good idea to remove the larger food remnants which is trapped in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull the cup handle in the upward direction.

WARNING!

Never run the dishwasher without the filters in place. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance of the appliance and damage dishes and utensils.

dishwasher

KDW2758

EN

Step 1: Counter-rotate the filter assembly (A,B and C), then lift it all up.

Step 2: Lift B and C up from A;

Step 3: Separate B and C.

NOTE:

If Step 1 to Step 3 are performed in this order, the filter system will be removed. To install the filter perform them in reverse order, from Step 3 to Step 1.

Notes:

• Inspect the filters for blockages every time the dishwasher is used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

WARNING! When cleaning the filters, don't knock them over

or drop them. Otherwise, the filters can become contorted and the performance of dishwasher may decrease.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly. For the outside of the appliance, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Isometric line drawing of a rectangular frame with internal components, no text or symbols present

kunft.

WARNING!

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
• Abrasive agents or paper towels should not be used because of the risk of scratching or leaving spots on the stainless-steel surface.

Protect Against Freezing

Please take frost protection measures for the dishwasher in winter. After each washing cycle, please proceed as follows:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve (use a pan to catch the water.)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, e contact an authorised service person.

Cleaning the Spray Arms

The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

Grasp the middle of the spray arm and pull it upwards to remove it. Wash the arm under a jet of running water and place it back carefully in its seat. After reassembly, check that the spray arms rotate freely. Otherwise, check that they have been installed correctly.

Technical line drawing of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

dishwasher

KDW2758

EN

How to Keep your Dishwasher in Working condition

After Every Wash

After every wash, turn off the water supply to the appliance and leave the doors slightly open so that moisture and odours are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No Solvents or Abrasive Cleaning Products

To clean the outside and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. only use a cloth with warm soapy water.

To remove spots or stains from the inside of the dishwasher, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals last longer and prevent odours from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

kunft.®

2.4. Troubleshooting

Before Calling for Service

Review the tables on the following pages as they may spare you a phone call for service.

Problem Possible Causes What To Do
Dishwasher doesn't start.	Blown fuse, or a tripped circuit breaker.	Replace the fuse or reset the circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.
		Make sure the power cord is properly plugged into the wall socket.
Technical problems.	The dishwasher door is not properly closed.	Make sure to close the door property and latch it.
Water not pumped from dishwasher.	Kink in the drain hose.	Check the drain hose.
	Filter clogged. Check the coarse filter.
Not functioning well.	Kitchen sink clogged.	If the problem is the kitchen sink not draining, you may need a plumber rather than a serviceman for the dishwasher.
Suds in the tub.	Improper detergent.	Use only the special dishwasher detergent to avoid suds. If this occurred, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then start any wash cycle to drain out the water. Repeat if necessary.
	Spilled rinse-aid. Always wipe rinse-aid spills immediately.
Stained tub interior.	Detergent with colourant was used.	Make sure that the detergent is one without colourant.
White film on General inside surface problems.	Hard water minerals.	To clean the inside of the appliance, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any cleaner other than dishwasher detergent to avoid suds.
There are rust stains on cutlery.	The affected items are not corrosion resistant.
A programme was not run after dishwasher salt was added.	Traces of salt have got into the wash cycle.	Always run the Quick wash programme. without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
Noise. The lid of the softner is loose.		Check the latch.
Knocking noise in the wash cabinet.	The spray arm is knocking against an item in the basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet.	Loose crockery in the wash cabinet.	Interrupt the programme, and rearrange the crockery.
Knocking noise in the water pipes.	This may be caused by the on-site installation or the cross-section of the piping.	This has no influence on dishwasher function. If in doubt, contact a suitably qualified plumber.
The dishes are not clean.	The dishes were not loaded correctly.	See notes in “Loading the Dishwasher Baskets”.
	The programme was not powerful enough.	Select a more intensive programme. See “Wash Cycle Table”.
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items blocking the path of the spray arms.	Rearrange the items so that the spray can rotate freely.

kunft.®

Problem Possible Causes What To Do

Unsatisfactory washing result.	The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly. Clean the spray arm jets. See “Cleaning the Spray Arms”.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and clean it.
Black or grey marks on dishes.	Aluminium utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups.	Dishes block detergent cups.	Re-load the dishes properly.
The dishes are not drying.	Improper loading Too little rinse-aid.	Load the dishwasher as suggested in the instructions.
		Increase the amount of rinse-aid/Refill the rinse-aid dispenser.
Unsatisfactory drying result.	Dishes are removed too soon.	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water from dripping off dishes in the upper basket.
	Wrong choice of programme. In short programmes, the washing temperature is lower.	This also lowers cleaning performance. Choose a programme with a long washing time.
	Water drainage is more difficult for cutlery.	Low-quality coating cutlery or dishes are not suitable for washing in the dishwasher.

Error Codes

In the event of a malfunction, the appliance will display error codes to warn you:

Codes Meanings Possible Causes

The Rapid programme indicator light flickers briefly

Long inlet time. The faucet is not open, or water intake is restricted or water pressure is too low.

The 90 min. programme indicator light flickers briefly

Overflow. Some part of the dishwasher is leaking.

WARNING!

If overflow occurs, turn off the main water supply before calling for service. If there is water in the base pan because of an overflow or a small leak, the water should be removed before restarting the dishwasher.

3. TECHNICAL SPECIFICATIONS

Height: 438mm

Width: 550mm

Depth: 500mm

Voltage rating: see rating label

Water pressure: 0.04-1.0MPa

Power supply: see rating label

Capacity: 6 place settings

kunft.®

4. PoSt-SaLE SErvlcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENvlroNMENtaL ProtEctIoN

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

lavavajillas

KDW2758

ES

Estimado cliente:

Technical diagram showing a screwdriver inserted into a threaded component, with a pipe and tubing (no text or labels)

Cross-sectional diagram of a mechanical device showing internal components and a hand holding a component (no text or labels)

Illustration of a device with a handle and a small circular symbol (no text or labels)

Hand inserting a card into a rectangular device (no text or symbols visible)

Illustration of four different types of kitchen utensils (spoon, fork, spoon, and knife) with no text or symbols on the objects themselves.

Isometric line drawing of a mechanical component or frame structure (no text or symbols)

kunft.®

¡ADVERTENCIA!

Technical line drawing of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

Altura: 438mm

Anchura: 550mm

Grosor: 500mm

Technical diagram showing a screwdriver inserted into a pipe with a magnified inset illustrating the process (no text or labels present)

Diagram of a mechanical assembly with a hand pressing down on a component, showing internal components and motion lines (no text or symbols)

máquina de lavar loiça

KDW2758

PT

Illustration of a device with a handle and circular button (no text or symbols)

Hand pressing a button on a card (no text or symbols visible)

Isometric line drawing of a mechanical component or frame structure (no text or symbols)

kunft.®

AVISO!

Technical line drawing of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

102

máquina de lavar loiça

KDW2758

PT

Altura: 438mm

Largura: 550mm

Profundidade: 500mm

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

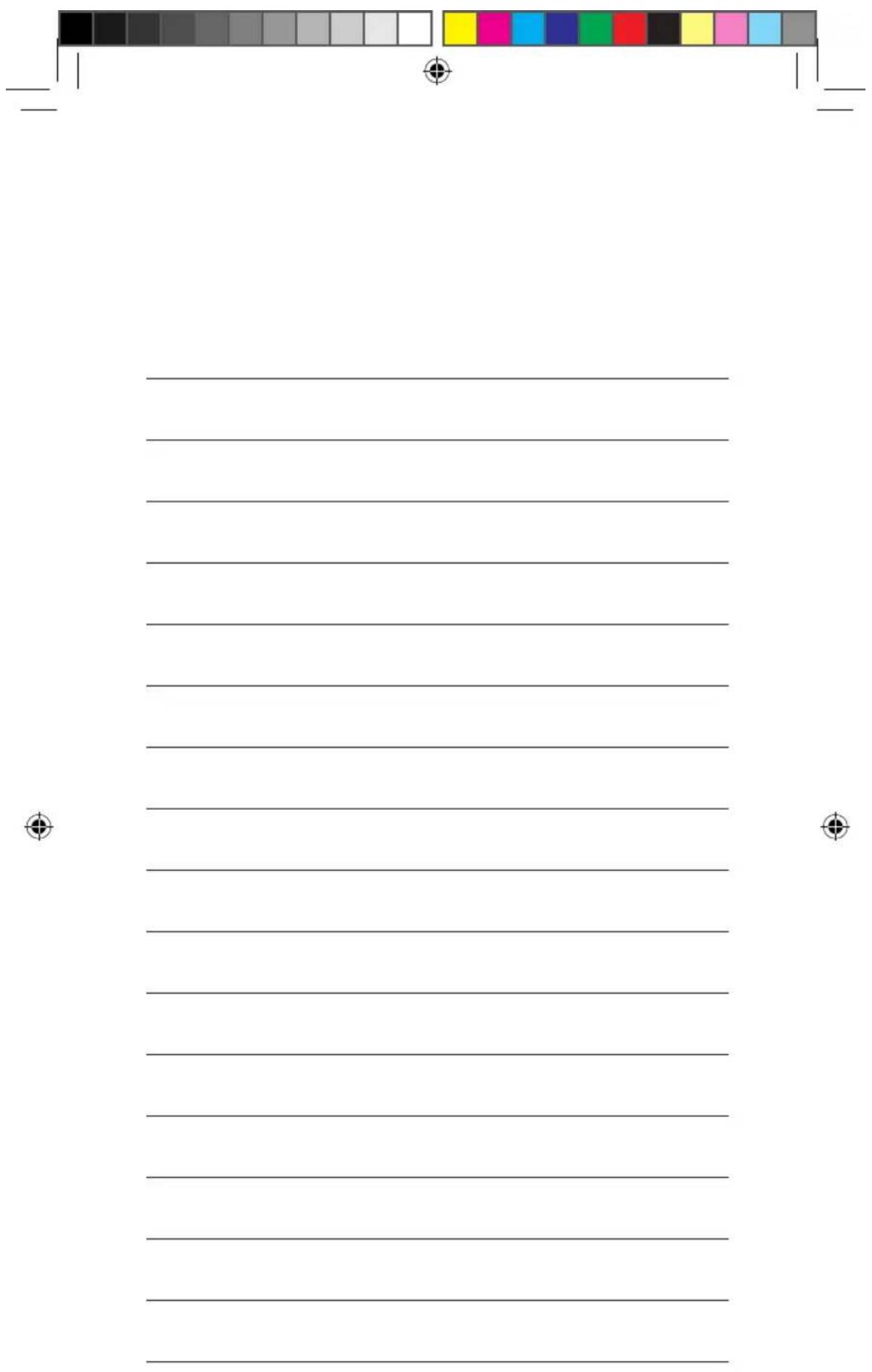

NOTES / NOTAS

109

110

111

kunft.®

dishwasher

is perfectly enough

KDW2758
