L20MF13 - Milk frother Logik - Free user manual and instructions

Product Type	Electric Milk Frother
Model	L20MF13
Brand	Logik
Power Supply	220-240V ~ 50Hz
Power Consumption	450W
Functions	Frothing and/or heating milk with selectable modes
Modes	Froth & Heat (1 press), Heat Only (2 presses), Froth Only (3 presses)
Maximum Milk Volume (Frothing)	100 ml
Maximum Milk Volume (Heating)	200 ml
Heating Temperature	Approximately 68°C (±10°C)
Paddles Included	Frothing paddle and Heating paddle
Jug Material	White ceramic
Stand	Included, with power connector
Automatic Shut-Off	Yes, after cycle completion
Safety Features	Auto shut-off, dry heating protection, cool-down period, child safety (8+ years)
Cooldown Time Between Uses	3 minutes (can be shortened by rinsing with water)
Safety Mode	After 5 consecutive uses, locks for 5 minutes (blue flashing indicator)
Cleaning – Components	Hand wash lid and paddles with warm soapy water
Cleaning – Interior	Wipe with damp non-abrasive sponge/cloth
Cleaning – Exterior & Stand	Wipe with damp cloth, do not immerse electrical parts
Spare Parts Availability	Contact Partmaster (UK) at 0844 800 3456 or www.partmaster.co.uk
Warranty & Support	Visit www.knowhow.com/knowledgebank or call 0844 5611234 (UK)
Included Accessories	Milk frother stand, lid, frothing paddle, heating paddle, instruction manual
Intended Use	Indoor household and similar (e.g., farm houses, hotels, B&Bs)

Frequently Asked Questions - L20MF13 Logik

How do I froth milk with the Logik L20MF13?

Insert the frothing paddle, pour milk up to the lower MAX level (100 ml), close the lid, place on stand, and press the power button ONCE for frothing and heating, or THREE TIMES for frothing only (blue flashing indicator). The device will stop automatically.

Can I heat milk without frothing?

Yes, use the heating paddle and pour milk up to the upper MAX level (200 ml). Press the power button TWICE for heating only. The indicator will light blue and the paddle will rotate until the milk is heated.

What is the maximum milk capacity for frothing?

For frothing, do not exceed 100 ml to prevent spillover. The lower 'MAX' mark inside the jug indicates this limit.

How do I clean the milk frother?

After each use, hand wash lid and paddles with warm soapy water. Wipe the interior and exterior with a damp non-abrasive cloth. Never immerse the stand or jug in water. Ensure electrical contacts stay dry.

Why is the power indicator flashing blue after several uses?

This indicates the automatic safety mode after 5 consecutive uses. The appliance will lock for 5 minutes. Wait until the indicator turns red before using again.

How long should I wait between uses?

Wait at least 3 minutes between frothing or heating cycles. Rinsing the jug with water and wiping it dry can shorten this time.

What should I do if the milk frother does not start?

Check that the paddle is locked properly, the lid is firmly closed, the jug is placed correctly on the stand, and the mains cable is connected. If the indicator is red, press the power button as required.

Can I use the milk frother for anything other than milk?

No, the appliance is designed only for heating and frothing milk. Do not use it for other liquids or foods.

Where can I buy spare parts like paddles?

In the UK, contact Partmaster at 0844 800 3456 or visit www.partmaster.co.uk. They stock spares and accessories for Logik appliances.

Is the milk frother safe for children to use?

Children aged 8 years and above can use the appliance under supervision. Children under 8 should be kept away. The appliance and cord should be out of reach of children under 8.

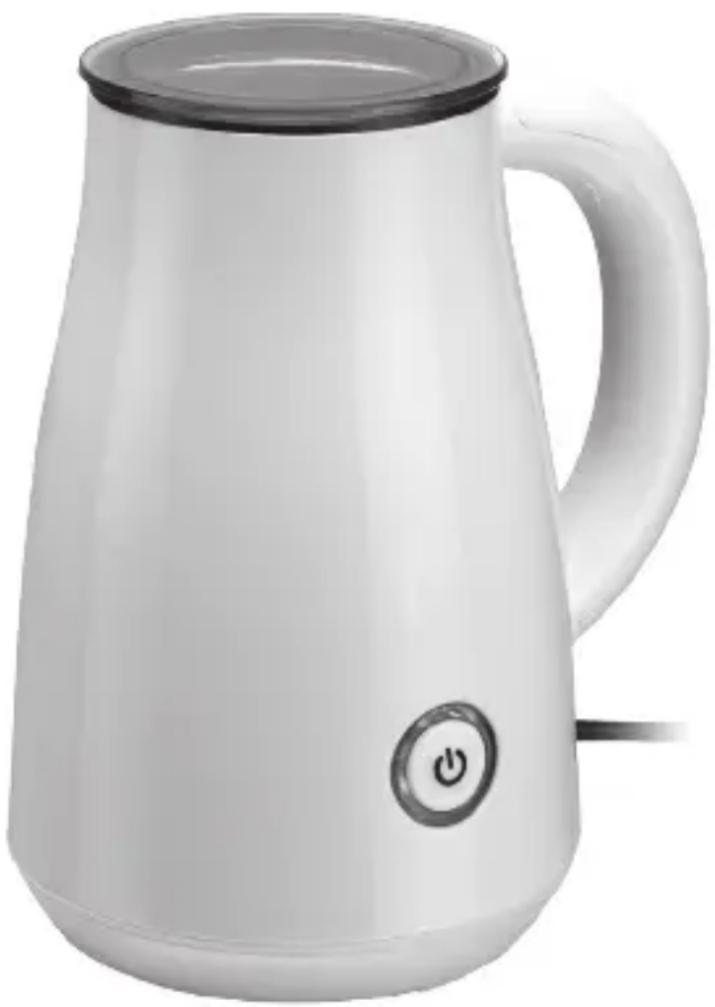

USER MANUAL L20MF13 Logik

Electric Milk Frother

L20MF13

White ceramic kettle with a power button and handle, no visible text or symbols

Contents

Safety Warnings....4

Unpacking......6

Product Overview....7

First Time Use....7

Operation 8

Cleaning the Milk Frother 10

Washing the Components 10

Washing the Interior.... 10

Cleaning the Exterior 10

Hints and Tips....11

Specifications....11

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using this appliance and keep them for future reference.
• Retain the manual. If you pass the appliance on to a third party, make sure to include this manual.
• Unplug the appliance from the mains socket when not in use, or before cleaning any part of the appliance.
• Allow the appliance to completely cool down before cleaning.
• Never immerse the appliance in water and always keep the electrical contacts dry.
• Never place the appliance on or near a source of heat such as a cooker ring or gas flame.
• Always place the appliance on a dry, flat and stable surface.
• To prevent from heating dry, ensure the milk level is no less than the frothing level indicator on the appliance.
• Do not use the appliance to heat anything other than milk.
• Do not interfere with the normal working of the switch.
• Always keep the appliance out of the reach of small children.

- This appliance can be used by persons aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instructions concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years old and are supervised.

• Keep the appliance and its cord out of reach of children less than 8 years old.
• This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environment;
— bed and breakfast type environment;
- catering and similar non-retail applications.

• Children should be supervised to ensure that they do not play with the appliance.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.
• Do not open the lid while the milk is heating.

Thank you for purchasing your new Logik Milk Frother.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

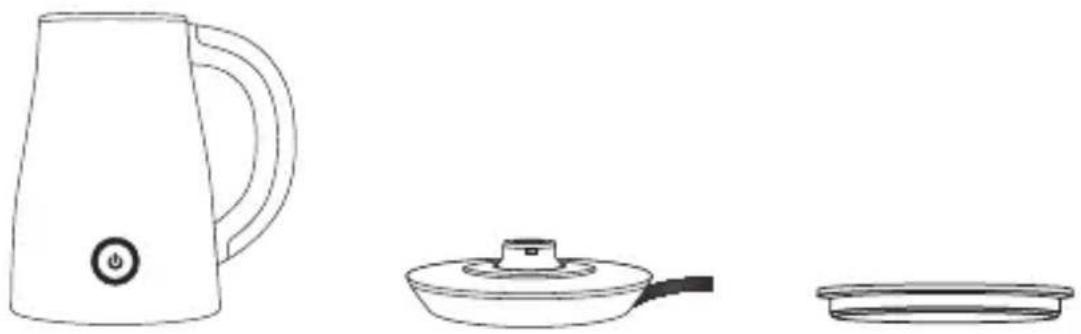

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

The Main Unit Milk Frother Stand Lid

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component with a cylindrical top and flanged base (no text or symbols)

Frothing Paddle Heating Paddle Instruction Manual

If items are missing or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

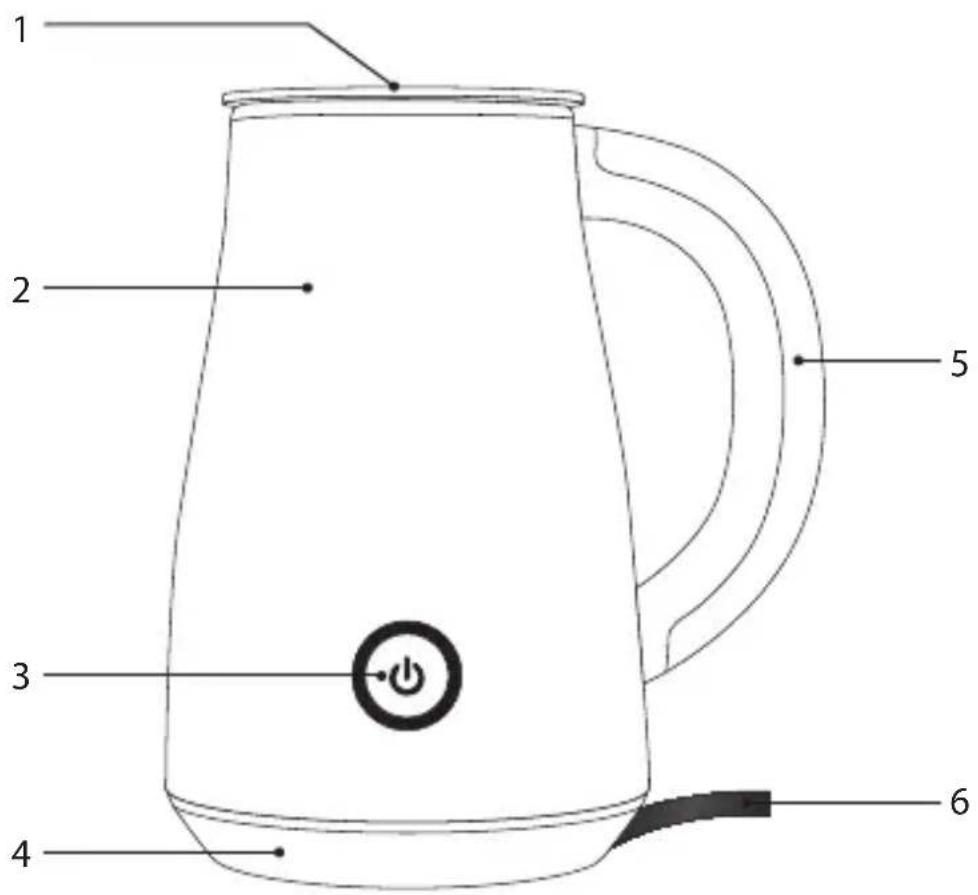

Product Overview

1. Lid
2. Milk Jug

3. ⏻ Power Button with Indicator

4. Milk Frother Stand

5. Handle
6. Mains Cable

First Time Use

Clean the lid, frothing paddle and mixing paddle by hand thoroughly with warm soapy water. Rinse and allow to dry.

Wipe the exterior of the milk frother stand with a damp cloth, avoiding the Power Connector Hole.

Do not immerse any parts the appliance in water.

The milk frother comes with two paddles, one for frothing and one for heating milk.

Technical line drawing of a mechanical device with no visible text or symbols

Frothing Paddle

Use for heating and/or frothing milk.

Simple line drawing of a mechanical component with no text or symbols

Heating Paddle

Use for heating milk.

1. Place the milk frother stand on a flat stable surface, away from walls and over hanging cupboards.
2. Open the lid and insert the appropriate paddle onto the shaft in the milk jug. Push down gently but firmly to ensure the paddle locks into place.
3. Pour fresh milk into the jug, making sure not to exceed the maximum level marked on the inside of the jug. (The lower "MAX ⚙" marking is for frothing milk, the top "MAX ⚙" marking is the maximum level for heating milk.)

• Only a maximum of 100ml of milk can be frothed to prevent spillover after frothing.

• Only a maximum of 200ml of milk can be heated.

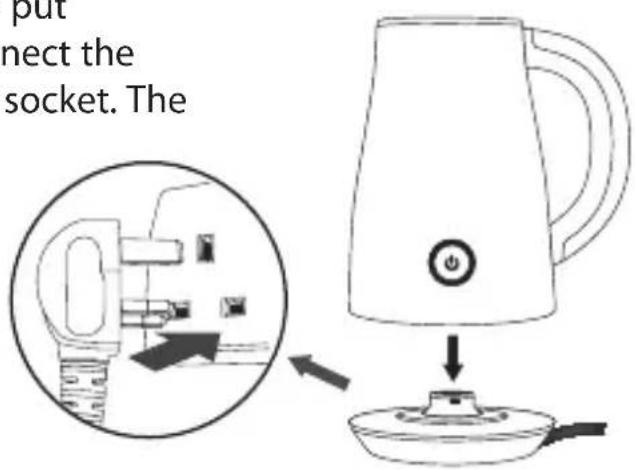

• Place the lid firmly on the jug and put the milk frother on its stand. Connect the stand's mains cable to the mains socket. The indicator will light up red.

The milk frother must only be used with the stand provided.

5. (a) Frothing and Heating (MAX ☉)

Press the ⏻ button ONCE, the indicator will light up blue. The paddle will start to rotate. When the milk is frothed and heated, the milk frother will stop automatically and the indicator will light up red.

Ensure the milk inside the jug is below the marked "MAX" to prevent spillover after frothing.

(b) Heating Only (MAX )

Press the ⏻ button TWICE, the indicator will light up blue. The paddle will start to rotate. When the milk is heated, the milk frother will stop automatically and the indicator will light up red.

Ensure the milk inside the jug is below the marked "MAX

(c) Frothing Only (MAX ⓒ)

Press the ⏻ button THREE TIMES, the indicator will up flash blue. The paddle will start to rotate. When the milk is frothed, the milk frother will stop automatically and the indicator will light up red.

Ensure the milk inside the jug is below the marked "MAX" to prevent spillover after frothing.

You can press the ⏻ button at any time to stop.

1. When the milk frother has stopped, carefully remove the lid and pour the warmed or frothed milk into your beverage.
2. After frothing or heating, wait 3 minutes before reusing the milk frother. To shorten this time, rinse with water and wipe dry after each use. Do not immerse the appliance in water.

The milk frother will enter an automatic-safety mode after 5 consecutive uses. The power indicator will flash blue and the button will not be usable for 5 minutes.

1. Always turn off the milk frother and disconnect the power supply when not in use.

Washing the Components

Wash the lid, frothing paddle and mixing paddle by hand thoroughly with warm soapy water immediately after each use. Rinse and allow to dry.

Washing the Interior

After each use, immediately wipe the interior clean with a damp, soapy, non-abrasive sponge or cloth. Rinse thoroughly, then dry.

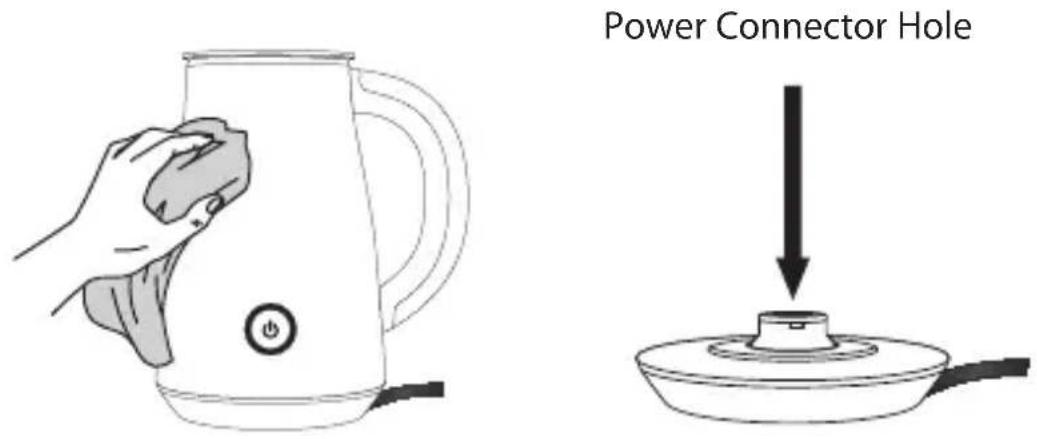

Cleaning the Exterior

The milk frother exterior should be cleaned with a soft damp cloth. Do not use abrasive cleaners or scouring pads which may damage the finish of the milk frother.

• Do not insert any foreign objects or allow any liquid to spill into the Power Connector Hole.
• Never immerse the milk frother or the stand in water and always keep the electrical contacts dry. Always disconnect from the mains before cleaning the stand.

Hints and Tips

• Always froth or heat the milk before making coffee or hot chocolate. When the milk is ready, add to the beverage and serve immediately.
- Milk heats to approximately 68^ ( ± 10^ ). This is the ideal temperature to ensure the flavour of your coffee is not impaired and so you don't have to wait too long until you can start sipping on your drink.
- Keep the paddles in a safe place. They are small and can easily be lost.
- After frothing or heating, wait 3 minutes before reusing the milk frother. To shorten this time, rinse with water and wipe dry after each use.

Specifications

Model L20MF13
Mains Supply 220-240V, 50Hz
Power Consumption 450W

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct

to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.
