| Product Type | Electric Lawn Mower |
| Model | FRM 1200 C3 |
| Brand | Florabest |
| Power | 1200 W |
| Power Source | Mains-powered (corded electric) |
| Cutting Width | 32 cm (approx.) |
| Grass Box Capacity | 30 L (approx.) |
| Cutting Height Adjustment | Central lever, 5 positions (20-60 mm) |
| Handle Type | Foldable, height-adjustable handle |
| Weight | 10.5 kg (approx.) |
| Dimensions (L x W x H) | 72 x 34 x 45 cm (approx.) |
| Safety Features | Safety switch; motor brake; blade guard |
| Blade Type | Steel rotary blade |
| Mulching Function | Yes (with mulching plug) |
| Side Discharge | No (collection or mulching only) |
| Noise Level | 96 dB (A) (approx.) |
| Vibration Level | 2.5 m/s² (approx.) |
| Grass Catcher Indicator | Filling level indicator |
| Maintenance | Regular blade sharpening; clean under deck; check cables |
| Spare Parts Availability | Blade, grass box, wheels available from Florabest service |
| Warranty | 2 years (subject to registration) |
| Included Accessories | Grass box, mulching plug, cable relief |
Frequently Asked Questions - FRM 1200 C3 FLORABEST
User questions about FRM 1200 C3 FLORABEST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual FRM 1200 C3 - FLORABEST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FRM 1200 C3 by FLORABEST.
USER MANUAL FRM 1200 C3 FLORABEST
TOSAERBA ELETTRICO FRM 1200 C3
IT MT
TOSAERBA ELETTRICO
Translation of original operation manual
DE AT CH
ELEKTRO-RASENMÄHER
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB / MT Translation of original operation manual Page 17
84 dB (A); KpA = 3 dB (A)
IT MT
Intended purpose ......17
General description ......18
Scope of delivery 18
Overview 18
Functional description .....18
Technical specifications ....18
Safety precautions ....19
Pictorial Diagrams on the Equipment 19
General notes on safety .....19
Assembly 22
Assembling the Curved Handle .....22
Assembling the Grass Box ......22
Operation 23
Hanging On / Removing
the Grass Box 23
Adjusting the Cut Height .....23
Switching On and Off 23
Working with the Lawnmower .....23
Cleaning, Maintenance and Storage ....24
General Cleaning and Maintenance Work 24
Changing the Blade .....24
Storage....24
Disposal/Environmental Protection ....25
Spare Parts ....25
Trouble shooting 26
Guarantee 27
Repair Service ....28
Service-Center 28
Importer 28
Translation of the original EC declaration of conformity .....43
Exploded Drawing ......47
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases.
This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Intended purpose
The equipment is designed only for mowing domestic lawns and grass areas.
Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.
The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.
The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.
This equipment is not suitable for commercial use.
Commercial use will invalidate the guarantee.
General Description Scope of Delivery
Carefully remove the equipment from the packaging and check whether the following parts are complete:
- Lawnmower and curved handle with connection cable
- Lower bar
- Lawn box (in three parts)
- 2 screws to attach the bar
- 2 wing nuts and screws for attaching the curved handle
- 2 holders to attach the connection cable
- Wheels
- Instruction Manual
Overview
1 Curved handle
2 Wing nuts
3 Lower bar
4 Grass box
5 Wheels
6 Lawnmower housing
7 Collision guard
8 Cable holder
9 Power cable outlet

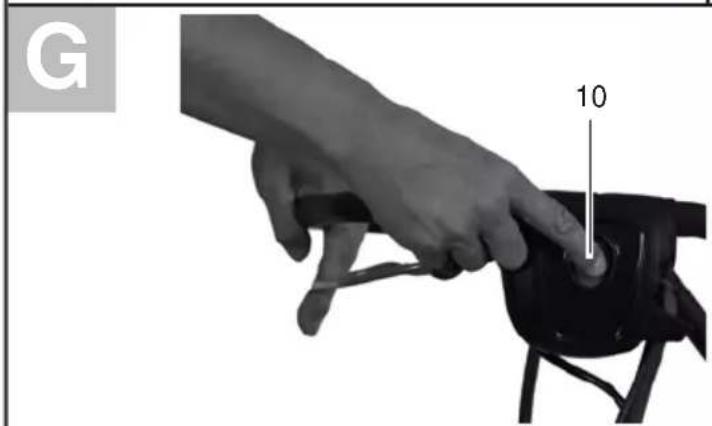

10 Release button

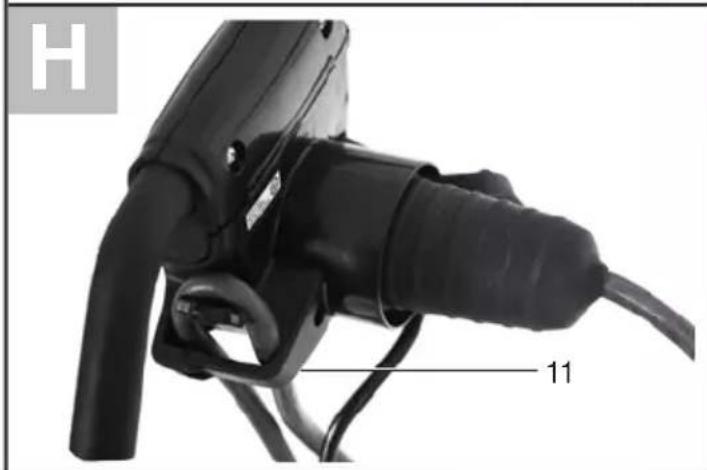

11 Cable strain relief
12 Start lever
B 13 Screws for lower bar
C 14 Screws for curved handle
D 15 Handle
16 upper part of grass box
20 Level gauge
17 Blade screw 18 Blade 19 Motor spindle
Function Description
The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is equipped with a high performance electric motor, robust plastic housing, safety switch, collision guard, and grass box. Additionally, the equipment is height adjustable to three levels and has smooth-running wheels.
For the function of the operating parts, please refer to the descriptions below.
Technical Specifications
Electric Lawnmower .. FRM 1200 C3
Motor input power ......1200 W
Mains voltage .. 220 V-240 V\~, 50/60 Hz Idling speed .... 3350min ^1
Blade width 31 cm
Cut height 20 / 40 / 60 mm
Protection class ...... □ II
Protection type IP 24
Weight 8.2 kg
Lawn box volume ....30 l
Sound pressure specification (LpA) .....
84 dB (A); KpA = 3 dB (A)
Noise level specification measured (LWA) ....
......93 dB (A); KwA = 3 dB (A)
guaranteed 96.0 dB (A)
Vibration on the handle (an) ....1.3 m/s²
The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.
The stated vibration emission value may also be used for a preliminary exposure assessment.
Warning:
The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.
Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).
The noise and vibration values have been determined in accordance with the standards and regulations specified in the declaration of conformity.
Technical and visual modifications may be made without notice in the course of further development. All dimensions, information and specifications in these operating instructions are therefore not guaranteed. As such, no assertion of legal claims can be enforced on the basis of the operating instructions.
Safety precautions
This section covers the basic safety regulations when working with the electric lawnmower.
Pictorial Diagrams on the Equipment
tion!
Read the operating instructions carefully.
Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.
Risk of injury from parts being thrown up.
nearby people away from the mower.
Caution – sharp cutting blade! Keep feet and hands away. Risk of injury!
off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.
Danger of damaged power cable. Keep the power cable away from the cutting blade!
tion! lawnmower blade continues on after switching off.
Wear eye and ear protection.
Noise level specification L_wa in dB.
Protection class II
Do not dispose of electrical equipment in domestic waste.
Cutting circle
General notes on safety
This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.
Preparation:
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
- Do not use the equipment when people and particularly children or pets are nearby.
- Children should be supervised to ensure that they do not play with the appliance.
- The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
- Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.
- Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals.
- Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.
- Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.
- Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.
Working with the Equipment:
Do not place feet or hands near or under rotating parts when working. Risk of injury!
Observe the noise protection and local regulations. The use of the equipment may be restricted or prohibited on certain days (e.g. Sundays and public holidays), at certain times of day (lunchtimes, nighttimes) or in certain areas (e.g. health resorts, hospitals etc.).
- Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
- Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
- Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
- When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
- Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.
- Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.
- Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this
case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.
- Do not work without the grass box or collision guard. Keep away from the ejection hole at all times.
Caution! Danger! The blade continues to run after switching off. There is a risk of injury.
- The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.
- Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.
- Do not leave the equipment unattended in the workplace.
- Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.
- Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
- Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.
- Do not lift or carry the equipment when the motor is running.
- Switch off the equipment and disconnect the plug:
- Whenever you leave the machine,
- Before cleaning the ejection hole or removing blockages,
- When the equipment is out of use,
- Before checking, cleaning or working on the equipment,
- If the power cable is damaged or frayed,
- If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applicable.
- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.
Maintenance and Storage:
- Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
- Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
- Keep the equipment in a dry location and out of reach of children.
- Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.
- Wear protective gloves when changing the cutting device.
- Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.
- Check that only replacement tools authorised by the manufacturer are used.
Electrical Safety:
- Ensure that the mains voltage matches the specifications on the rating plate. - If possible, connect the equipment only to a socked with a residual current-operated protective device (RCD) with a release current of more than 30 mA.
- Avoid bodily contact with earthed parts (e.g. metal fences, metal posts).
- Use only authorised power cables of type H05RN-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 mm ^2 . Always completely unroll cable drums before use. Check the cable for damage.
- To fix on the power cable, use the cable suspension intended for the purpose.
- Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable behind the operator.
- Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.
- Switch off the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.
- Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.
Assembly
Disconnect the plug before any work on the equipment. There is a risk of injury.
Assembling the Curved Handle
B 1. Insert the lower bar (3) into the slot on the lawnmower housing (6).
-
Fix the bar (3) using the enclosed screws (13).
-
Screw all four wheels (5) onto the lawn mower housing (6). All of the wheels must be set to the same height.
-
Fix the curved handle (1) using the enclosed screws (14) and the wing nuts (2) on the lower bar (3). There are two possible positions.
-
Clip the cable holder (8) into the bar (3) and thus fix the cable.
When both wing nuts are loosened, the curved handle can be folded down for storing the equipment. Ensure that the power cable is not caught.
Assembling the Grass Box
-
Connect the two pieces of the collection box (4).
-
Connect the handle (15) in one of the two pieces of the collection box (16).
Do not work with the lawn mower without impact protection. There is a risk of injury.
We recommend always using the grass box when working with the lawn mower, otherwise the mowing result may be significantly impaired.
Operation
Hanging On / Removing the Grass Box
-

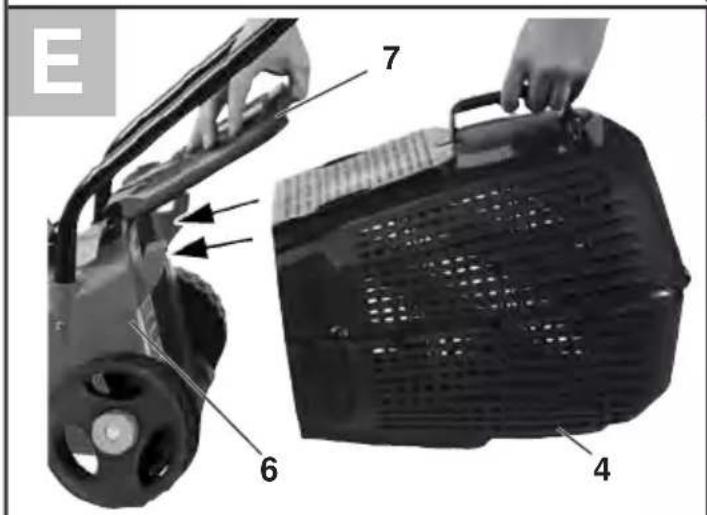

To hang on the grass box (4), lift the collision guard (7) and hang on the grass box. Fold the collision guard (7) onto the grass box (4). It holds the grass box in the correct position.
-
To remove the grass box (4), lift the collision guard (7) and detach the grass box. Fold the collision guard (7) back onto the mower housing (6).
The level gauge (D 20) is located on the side of the grass catcher (4).
Flap (D 20) open: grass catcher (4) empty
Flap (D 20) closed: grass catcher (4) full
Adjusting the Cut Height
Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury.
The lawn mower can be set to the following cut heights by means of three position changes of the front and rear wheels, adjusting the individual wheels:
60 mm - Tall cutting height 40 mm - Medium cutting height 20 mm - Short cutting height
-
Unscrew the wheels (5).
-
Screw the wheels (5) back on in the desired position.
The correct height is around 25 – 40 mm for a decorative lawn and around 30 – 60 mm for a used lawn.
A higher cut height should be selected for the first cut of the season.
Observe the noise protection and local regulations.
Switching On and Off
-
Insert the power cable plug into the socket (A 9) on the curved handle (A 1).
-
To relieve the strain, form a loop with the end of the power cable and hang this into the strain relief (11). See the diagram H.
-
Connect the equipment to the power supply.
-
Before switching on, ensure that the equipment is not in contact with any objects.
-
To switch on, press the release button (10) on the handle at the same time as pressing the start lever (12). Release the release button (10).
-
To switch off, release the start lever (12).
After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.
Working with the Lawnmower
Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn.
The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.
- Start mowing near the socket and work away from the socket.
GB MT
• Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.
- Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
- Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
- On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
- Clean the equipment after each use, as described in the chapter on "Cleaning, Maintenance and Storage".
Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.
Cleaning, Maintenance and Storage
Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.
Wear gloves when handling the blade.
Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.
There is a risk of injury.
General Cleaning and Maintenance Work
Do not hose down the lawnmower with water.
• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
- After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
- Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.
Changing the Blade
If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").
- Turn the equipment over.
- Use sturdy gloves and hold the blade (18) firmly. Turn the blade screw (17) anticlockwise off of the motor spindle (19) using a screwdriver (A/F width13).
- Install the new blade (18) in the reverse order. Ensure that the blade (18) is positioned correctly and the screw (17) tightened firmly.
Storage
- Keep the equipment dry and out of reach of children. Loosen the wing nuts and fold down the handle bar so the equipment takes up less space. Ensure that the cable is not caught.
- Allow the motor to cool before storing the equipment in a confined space.
- Do not cover the equipment with nylon bags as moisture could build up.
We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.
Disposal / Environmental Protection
Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center.
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.
Machines do not belong with domestic waste.
The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
Spare parts
The following spares are available from Service-Center. Please indicate the machine type and the number of the spare part with your order.
Spare blade 18....13700209
Lawn box A 4 91093478
Trouble Shooting
| Problem Possible Cause | Fault Fixing | |
| Equipment does not start | Power is off | Check the socket, cable, wire and plug and have any repairs carried out by an electrician |
| Defective on/off switch (A 12) | Repair by customer servicesWorn carbon brushes | |
| Defective motor | ||
| Grass too long | Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar (1). | |
| Motor stops Blockage by foreign object | Remove the foreign object | |
| Result unsatisfactory or motor labours | Cut height too low Set a higher cut height | |
| Blade (1 18) blunt | Have the blade sharpened or replace it | |
| Blade area blocked Clean the equipment | ||
| Blade assembled incorrectly | Install the blade correctly | |
| Blade fails to turn | Blade blocked by grass Remove the grass | |
| Blade screw (1 17) loose | Tighten the blade screw | |
| Strange noises, rattling or vibrations | Blade screw (1 17) loose | Tighten the blade screw |
| Blade damaged Replace the blade | ||
Guarantee
Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.
The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and item number (e.g. IAN 43002) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you.
Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain
Tel.: 0871 5000 720
(£ 0.10/Min.)
E-Mail: grizzly@lidl.co.uk
IAN 43002
MT Service Malta
Tel.: 80062230
E-Mail: grizzly@lidl.com.mt
IAN 43002
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Service-Center ....41
Importeur ....41
Original-
84 dB (A); KpA = 3 dB (A)
93 dB (A); KwA = 3 dB (A)
 |  |
| We hereby confirm that the Electric Lawnmower Design Series FRM 1200 C3 Serial number 201309000001 - 201312062700 conforms with the following applicable relevant version of the EU guidelines: | |
| 2006/42/EC 2004/108/EC 2000/14/EC 2005/88/EC 2011/65/EU | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60335-1/A14:2010 • EN 60335-2-77:2010 EN 55014-1/A1:2009 • EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 • EN 61000-3-3:2008 • EN 62233:2008 | |
| We additionally confirm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 96 dB(A) measured: 93 dB(A) Compliance evaluation process carried out in accordance with Appendix VI, 2000/14/EC Registered Office: TÜV Süd, NB 0036 | |
Grizzly Gartengeräte GmbH & Co. KG Am Gewerbepark 2 64823 Groß-Umstadt 24.02.2014 Germany  |  Volker Lappas Documentation Representative |
informativo, informativ, informative
FRM 1200 C3
GRIZZLY GARTENGERÄTE GMBH & CO. KG
Am Gewerbepark 2
- TOSAERBA ELETTRICO FRM 1200 C3
- TOSAERBA ELETTRICO
- ELEKTRO-RASENMÄHER
- IT MT
- Introduction
- Intended purpose
- General Description Scope of Delivery
- Overview
- Function Description
- Technical Specifications
- Electric Lawnmower .. FRM 1200 C3
- Warning:
- Safety precautions
- Pictorial Diagrams on the Equipment
- General notes on safety
- Preparation:
- Working with the Equipment:
- Maintenance and Storage:
- Electrical Safety:
- Assembly
- Assembling the Curved Handle
- Assembling the Grass Box
- Operation
- Hanging On / Removing the Grass Box
- Adjusting the Cut Height
- Switching On and Off
- Working with the Lawnmower
- GB MT
- Cleaning, Maintenance and Storage
- General Cleaning and Maintenance Work
- Changing the Blade
- Storage
- Disposal / Environmental Protection
- Spare parts
- Guarantee
- Terms of Guarantee
- Guarantee Period and Statutory Claims for Defects
- Guarantee Cover
- Processing in Case of Guarantee
- Repair Service
- Service-Center
- Importer
Brand : FLORABEST
Model : FRM 1200 C3
Category : Lawn mower
