L1GMP309 - Mp3 player Logik - Free user manual and instructions

Product Type	MP3 Player
Brand	Logik
Model	L1GMP309
Dimensions	Approximately 4.0 x 3.0 x 1.0 cm
Weight	Approximately 30 g
Battery Type	Rechargeable lithium-ion
Battery Life	Up to 10 hours of playback
Storage Capacity	8 GB internal (expandable via microSD)
Supported Audio Formats	MP3, WMA, WAV
Display	1.5-inch color LCD
FM Radio	Yes
Voice Recording	Yes, built-in microphone
Connectivity	USB 2.0, 3.5mm headphone jack
Main Functions	Music playback, FM radio, voice recording, photo viewer
Care and Cleaning	Wipe with a soft dry cloth; avoid moisture and extreme temperatures
Safety Warning	Keep away from water; do not disassemble; use only provided charger
Spare Parts and Repairability	Replacement battery and USB cable available; contact Logik support
General Information	Portable personal music player with simple controls

Frequently Asked Questions - L1GMP309 Logik

How do I turn on the Logik L1GMP309 MP3 player?

Press and hold the Power button for 2-3 seconds until the screen lights up.

How do I transfer music to the device?

Connect the player to your computer via USB, then drag and drop music files into the Music folder.

What audio formats are supported?

The device supports MP3, WMA, and WAV formats.

How can I expand the storage capacity?

Insert a microSD card (up to 32GB) into the memory card slot on the side.

How do I listen to FM radio?

Go to the main menu, select FM Radio, and press play to auto-scan stations.

My device is frozen. What should I do?

Press and hold the Power button for 10 seconds to force a reset.

How do I record voice memos?

From the main menu, select Voice Recorder, press play to start recording, and press play again to stop.

How long does the battery last?

The battery lasts up to 10 hours of continuous music playback.

Can I use the device while charging?

Yes, you can use the player while it is charging via USB, but charging may take longer.

How do I clean the device?

Wipe gently with a soft, dry cloth. Do not use solvents or immerse in water.

USER MANUAL L1GMP309 Logik

Black LOGIK device with external USB port and control panel (no visible text or symbols on device body)

	2017		2016
	金额(万元)	占总资产比例(%)	金额(万元)	占总资产比例(%)
一、营业收入	3,458.9	10.0	3,458.9	10.0
二、营业成本	2,678.8	8.0	2,678.8	8.0
三、营业利润	-1,453.2	-100.0	-1,453.2	-100.0
四、净利润	-1,453.2	-100.0	-1,453.2	-100.0
五、其他综合收益	-1,453.2	-100.0	-1,453.2	-100.0
六、综合收益总额	-1,453.2	-100.0	-1,453.2	-100.0
七、每股收益:
(一)基本每股收益	-1.04	-100.0	-1.04	-100.0
(二)稀释每股收益	-1.04	-100.0	-1.04	-100.0
八、其他综合收益总额	-1.04	-100.0	-1.04	-100.0
九、综合收益总额	-1.04	-100.0	-1.04	-100.0
十、每股收益:
(一)基本每股收益	-1.04	-100.0	-1.04	-100.0
(二)稀释每股收益	-1.04	-100.0	-1.04	-100.0
八、其他综合收益总额	-1.04	-100, 100.0	-1.04	-100, 100.0
九、综合收益总额	-1.04	-100, 100.0	-1.04	-100, 100.0
十、每股收益:
(一)基本每股收益	-1.26	-100.0	-1.26	-100.0
(二)稀释每股收益	-1.26	-100.0	-1.26	-100.0
八、其他综合收益总额	-1.26	-100, 100.0	-1.26	-100, 100.0
九、综合收益总额	-1.26	-100, 100.0	-1.26	-100, 100.

Congratulations on the purchase of your new Logik MP3 Player. It has many exciting features to make your listening to music experience more enjoyable.

We recommend that you spend some time reading this instruction manual in order to fully understand these features.

You will also find some tips and help with troubleshooting common issues.

Read all the safety instructions carefully before using the MP3 Player and keep this instruction manual for future reference.

Contents

Product Overview 5

Unpacking the MP3 Player 5

Identification of Parts and Controls 6

Battery Installation 7

Battery Level Indication ....7

Connecting to a Computer 8

System Requirements 8

Loading Files from a Computer to the MP3 Player .....8

Basic Operation 9

Power On/Off the MP3 Player 9

Unlock All Buttons 9

Entering the Main Menu 9

Listening to Music.... 10

Playing Music 10

Setting the Music Playing Mode ....11

Managing the Audio Files 12

Voice Recording 13

Recording a Voice 13

Playing Voice Recordings ....14

Setting the Voice Playing Mode ....15

Managing the Voice Files ....16

Folder Navigation 17

Customising the Settings 18

Hints and Tips.... 20

Specifications 21

Safety Warnings 22

Product Overview

Unpacking the MP3 Player

Remove all packaging from the MP3 player. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a stylized microphone with two earphones and a bow (no text or symbols)

MP3 Player Earphones

Instruction Manual

Identification of Parts and Controls

Simple line drawing of a car front panel with a circular button labeled '1' (no text or symbols beyond the label)

GB

1. Earphones jack

2. USB cap for USB connector

3. USB connector

4. Display screen

5. Left/Previous button

6. Volume up button

7. Right/Next button

8. Play/Pause button

• To play/pause the music/recording playback
• Press and hold to enter the main menu
- Press and hold to unlock when the buttons are locked

1. Volume down button

2. Microphone

3. button

• Press and hold to turn the MP3 player on/off
• Enter submenu for each mode
- Exit and return to the previous menu

1. Neck strap holder

Battery Installation

1. Remove the USB cap.

2. Remove the battery compartment cover on the back of the MP3 player by sliding it in the direction of the arrow.

3. Insert a AAA battery (not supplied) into the battery compartment.

Simple line drawing of a device with an arrow indicating direction (no text or symbols)

Simple line drawing of a device with a handle and internal components (no text or symbols)

Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment.

1. Close the battery compartment cover.

Battery Level Indication

The approximate power levels of your battery are indicated as follows:

Full Two-thirds full Half full Low Empty

Connecting to a Computer

System Requirements

Your computer system must meet the following requirements:

• Pentium 200MHz or above
• Microsoft Windows 2000 / XP / Vista®
• 120MB of available hard disk space
• USB port supported

GB

Loading Files from a Computer to the MP3 Player

Files can be transferred directly to the MP3 player by using the USB connector.

1. Make sure your computer system has started up before you start.

2. Pull off the USB cap.

3. Insert the USB connector into a free USB port on your computer.

4. The computer system will detect "New hardware" and start to install the driver automatically. Wait for the system to finish the installation. When it has finished, a new "Removable Disk" will be created in "My Computer".

5. Select the files on your computer and simply drag and drop into the "Removable Disk".

6. To disconnect the MP3 player from the computer, double click the "Safely Remove Hardware" icon on the task bar. Select the "USB Mass Storage Device", and then click "STOP". The "Stop a Hardware device" pop-up window will appear, select "USB Mass Storage Device" and click "OK". Then you can unplug the MP3 player safely.

Please do not disconnect the MP3 player from the computer during file transfers as it may cause the file transfer process and MP3 player to malfunction.

Simple line drawing of a handheld device with a handle and spout (no text or symbols)

Basic Operation

Power On/Off the MP3 Player

Make sure the battery power level is sufficient and the earphones are connected.

• Press and hold the button to power on.
• Press and hold the button to power off.

Unlock All Buttons

All the buttons will automatically lock if the MP3 player remains idle for a short period of time. This prevents you from accidentally pressing the buttons while using the MP3 player on the move.

To unlock, press and hold the ▶ button when the buttons are locked. You can set this time period in the "Setting" section of the main menu. (see page 19).

Entering the Main Menu

1. Press and hold the button to enter the main menu.

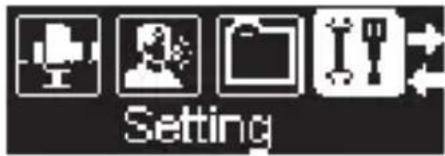

1. Press the buttons to select: Music, Record, Voice, Folder, and Settings.
2. Then press the button to enter the desired settings.

Main Menu Description
Music	Listening to Music
Record	Voice Recording
Voice	Listen to Voice Recordings
Folder	Folder Navigation
Settings	Customising the Settings

GB

Listening to Music

Playing Music

Make sure the battery power level is sufficient and the earphones are connected correctly.

GB

1. Press and hold the button to enter the main menu.

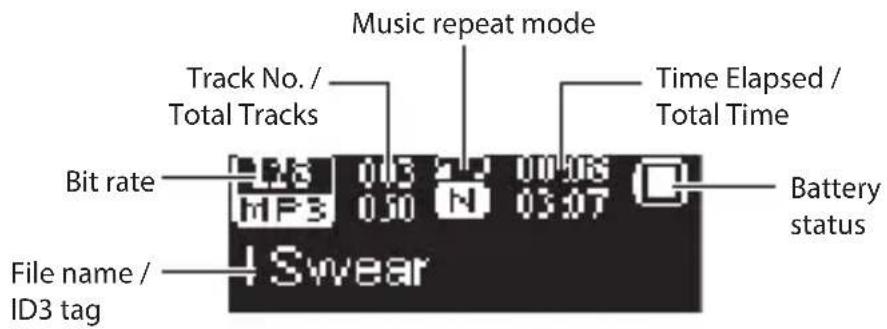

1. Press the buttons to select Music. Then press the button to display the following screen.

1. Press the button to play the music.

While playing music, you can:

• Pause/Resume Playing: Press the button to pause playing. Press the button again to resume playing.
• Skipping Tracks: Press the◀buttons to skip to previous/next track.
• Searching: Press and hold the◀buttons to fast rewind/fast forward within a track.
• Adjust Volume: Press the ▲buttons to increase/decrease the volume.
• Exit: Press and hold the button to return the main menu.

Setting the Music Playing Mode

1. While playing music, press the button to set the Music Playing mode.

1. Press the buttons and then the button to access the following:

Repeat

To set the music repeat mode.

Use the ◀ buttons to select among: Normal, Repeat One, Repeat All, Random, and Intro.

Press the ▶ button to confirm.

Equalizer

To set the music-playing mode.

Use the ◀buttons to select among: Natural, Rock, Pop, Classic, Soft, Jazz. Press the ▶ll button to confirm.

Exit

To exit and return to Music Playing mode. Press the button to confirm.

Managing the Audio Files

1. To manage your audio files, make sure the music is paused and then press the button.

GB

1. Press the buttons and then the button to access the following:

Local folder

To view all audio files from local folder.

Use the ◀buttons to select an audio file or a folder, and then press the ▶button to select the file and enter music playing mode.

Delete file

To delete the current file.

Use the ◀buttons to select "YES" or "NO", and then press the ▶button to confirm.

Delete all

To delete all files stored in the local folder.

Use the ◀buttons to select "YES" or "NO", and then press the ▶button to confirm.

Exit

To exit and return to Music Playing mode. Press the ▶ button to confirm.

Voice Recording

Recording a Voice

1. Press and hold the button to enter the main menu.

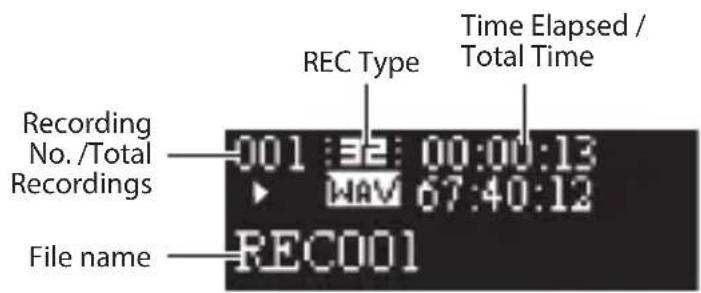

1. Press the ▶buttons to select Record. Then press the ▶button to display the following screen.

1. Press the button to start recording.

During recording, you can:

• Pause/Resume Recording: Press the ▶ II button to pause recording. Press the ▶ II button again to resume recording.

• Save the Recording: Stop the recording pressing the ▶ button, and then press and hold the ▶ button to save the recording and return to the voice recording interface.

• The recordings can be listened in the Voice mode, see page 14 for details.

Voice recording is automatically stopped when the memory of the MP3 player is full. Data that has been already recorded is automatically saved.

Playing Voice Recordings

1. Press and hold the button to enter the main menu.

GB

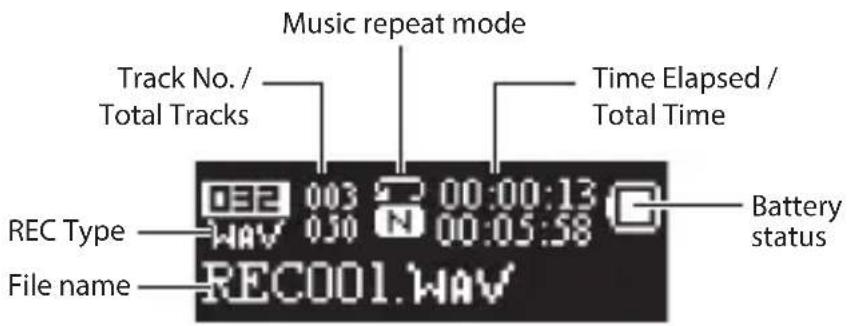

1. Press the buttons to select Voice. Then press the button to display the following screen.

1. Press the button to start playing voice recording.

While playing voice recording, you can:

• Pause/Resume Playing: Press the button to pause playing. Press the button again to resume playing.
• Skipping Tracks: Press the◀buttons to skip to previous/next track.
• Searching: Press and hold the◀buttons to fast rewind/fast forward within a track.
• Adjust Volume: Press the ▲buttons to increase/decrease the volume.
• Exit: Press and hold the button to return the main menu.

Setting the Voice Playing Mode

1. While playing voice, press the button to set the Playing Voice Recordings mode.

1. Press the 🔵 buttons and then the button to access the following:

Repeat

To set the music repeat mode.

Use the ◀ buttons to select among: Normal, Repeat One, Repeat All, Random, and Intro.

Press the ▶ button to confirm.

Exit

To exit and return to Music Playing mode. Press the ▶ button to confirm.

1. Press the button to enter.

Managing the Voice Files

1. To manage your voice files, make sure the music is paused and then press the button.

GB

1. Press the buttons and then the button to access the following:

Local folder

To view all record files from voice folder. Use the ◀buttons to select voice folder, and then press the ▶button to select the file and enter music playing mode.

Delete file

To delete the current record file.

Use the ◀buttons to select "YES" or "NO", and then press the ▶button to confirm.

Delete all

To delete all record files stored in the voice folder. Use the ◀buttons to select "YES" or "NO", and then press the ▶button to confirm.

Exit

To exit and return to Playing Voice Recording mode. Press the ▶ button to confirm.

Folder Navigation

In the File View mode, you can browse all the files stored in the MP3 player.

1. Press and hold the button to enter the main menu.

1. Press the buttons to select Folder. Then press the button to display the following screen.

1. Press the buttons and then the button to access the following:

Local folder

Use the ▶ buttons to select a file, and then press the ▶ button to open files.

Exit

To exit and return to Folder mode. Press the ▶ button to confirm.

1. Press the button to return to the previous menu or press and hold the button to display the main menu.

Customising the Settings

The system settings let you customise and configure your MP3 player.

1. Press and hold the button to enter the main menu.

GB

1. Use the buttons to select Settings. Then press the button to display the following screen.

1. Press the buttons and then the button to access the following:

Backlight

Set up the backlight time of the LCD.

Use the ◀ buttons to select among: 0s, 5s, 10s, 15s, 20s, 25s, 30s. Press the ▶ button to confirm.

Language

Set up the display language.

Use the ◀buttons to select the desire language. Press the ▶button to confirm.

Power Off

Use the ◀buttons to select Off time to power off automatically after a certain time in standby mode. The available options include: 0s, 10s, 20s, 30s, 40s, 50s, 60s. Press the ▶button to confirm.

Use the ◀buttons to select Sleep time to power off automatically after the preset time. The available options include: 0m, 10m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 110m, 120m. Press the ▶button to confirm.

Version

To view software version.

Reset

Reset all settings back to default settings. Use the ◀buttons to select Y or N. Press the ▶button to confirm.

Lock

Set key locked time.

Use the ▶buttons to select among: 0s, 10s, 20s, 30s, 40s, 50s, 60s. Press the ▶button to confirm.

Exit

Exit and return to the main menu.

1. Press the button to return to the previous menu or press and hold the button to return the main menu.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Cannot power on	The battery may be exhausted. Replace battery with a new one.
Files cannot be downloaded	Check if the driver is installed correctly in the computer.Check the connection between the MP3 player and computer.
No sound from the earphones	Check that the volume is on.Check the connection between the earphones and MP3 player.Check if the music file format is supported by the MP3 player.
Recording cannot be done	Check if there is enough memory and battery capacity.
The buttons do not work	The key may be locked. Press and hold the button to deactivate the lock function.

GB

Specifications

Model L1GMP309 / L2GMP309 / L4GMP310
Audio Format	MP3/WMA/WAV
MP3 bit Rate	8~320Kbps
WMA bit rate	5Kbps-384Kbps
S/N rate ≥80dB
Dynamic range	≥80dB (1 KHz)
Distortion <0.2%
Power out 2*5mW
EQ Natural, Rock, Pop, Classic, Soft, Jazz
Recorded format	WAV
Size (L*W*H)	85*28*20.5mm
Weight <25g (without accessories)
Frequency response	20Hz~20KHz
Dynamic current	≤40mA (Play Mp3, backlight off)
Power off current	≤0.30mA
Storage condition	Humidity <90%, Normal temperature
Working condition	Humidity <85%, 0~45°C

Safety Warnings

- Retain the manual. If you pass the unit onto a third party make sure to include this manual.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off and consult your dealer.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• Do not expose this unit to rain, moisture, dripping or splashing.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off and consult your dealer.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted picture or sound.

Earphones

• For traffic safety, do not use earphones while driving or cycling.
• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Maximum output voltage ≤ 150 mV Wide band characteristic voltage ≥ 75 mV

Batteries

- Please dispose of the battery correctly by following the guidance in this manual.

Service

- Do not open any fixed covers. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

Maintenance

• Ensure to switch off the unit before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection

systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Important Notice for the battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, disposal of used batteries according to your local laws or regulations. Do not dispose of batteries with the normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead • Herts • HP2 7TG • England
