L20CTH10 - Heating Logik - Free user manual and instructions

Product Type	Fan Heater
Brand	Logik
Model	L20CTH10
Category	Heating
Color	White/Black
Heating Element	Ceramic
Power Output	2000W
Heat Settings	2 (Low, High)
Fan Speeds	2
Coverage Area	Up to 20 sqm
Thermostat	Adjustable
Control Type	Rotary Dial
Overheat Protection	Yes
Tip-Over Switch	Yes
Dimensions (HxWxD)	24.5 x 18.5 x 13.5 cm
Weight	1.2 kg
Power Cord Length	1.5 m
Energy Source	Electric
Voltage	220-240V ~50/60Hz
Noise Level	< 50 dB
Certifications	CE, UKCA
Warranty	2 years
Included Accessories	User Manual

Frequently Asked Questions - L20CTH10 Logik

How do I turn on the Logik L20CTH10 heater?

Plug the heater into a suitable power outlet. Turn the mode dial to select a heat setting (Low or High). The fan will start immediately.

Can I use the heater in a bathroom?

No, this heater is not designed for bathroom use. It should only be used in dry indoor areas away from water sources.

How do I clean the filter?

Ensure the heater is unplugged and cool. Use a vacuum cleaner with a brush attachment to gently clean the air intake grille. Do not use water or solvents.

Why does the heater turn off automatically?

The heater has overheat protection and a tip-over switch. If it overheats or is knocked over, it will shut off. Let it cool down and place it on a stable, flat surface before restarting.

What is the maximum power consumption?

The heater has a maximum power output of 2000W on the high setting.

Can I use an extension cord?

It is not recommended. Plug the heater directly into a wall socket to avoid overheating and fire risk.

How long is the power cord?

The power cord is approximately 1.5 meters long.

Does the heater have a fan-only mode?

No, this model does not have a fan-only mode. It operates only with heat.

What should I do if the heater emits a burning smell?

A slight smell on first use is normal. If persistent, unplug the heater and clean it. If the smell continues, discontinue use and contact customer support.

Is the Logik L20CTH10 suitable for outdoor use?

No, this heater is for indoor domestic use only. Do not expose it to rain or moisture.

USER MANUAL L20CTH10 Logik

Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock.

• Read this Instruction Manual carefully to maximise this appliance's performance and keep for future reference.
• This appliance is not intended for commercial use or any other uses than its intended use.
• Always ensure that your power supply voltage matches this appliance's rating label.
• Do not use if there are any visible signs of damage to the appliance.
• Do not operate with wet hands or spill water or other liquids on to the appliance the mains cable or plug.
• Never leave the appliance unattended while in operation.
• Do not place any part of your body near the air inlet and outlet to avoid personal injury, electric shock or fire.
• Avoid obstructing the air inlet and the air outlet.
• Children should be supervised to ensure that they do not play with the appliance. Do not place the appliance in places that are easy to reach by children.
  • Always unplug the appliance when not in use.
• Do not repair the appliance yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains cable may only be replaced by the manufacturer or a similarly qualified person.
• Do not operate the appliance in direct sunlight, near heat sources, humid environments or in places near water or other liquids such as bathrooms, shower or swimming pool.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

WARNING: In order to avoid overheating, do not cover the appliance.

- The heater must not be located immediately below a mains socket. Do not use the appliance with a programmer, timer or any other device that switches the appliance on automatically. A fire risk exists if the appliance is covered or positioned incorrectly.

SPECIFICATIONS

Power supply : 220-240V\~ 50Hz

Power Consumption : 2000W (High),

1200W (Low),

25W (Fan)

We continually strive to improve our products, specifications may change without prior notice.

Partmaster \_\_\_\_.co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available

we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England

GB-5

(P.N. L20CTH10-001)

LOGIK

Ceramic Tower Heater

Instruction Manual

L20CTH10

Black industrial electrical heater with visible cooling fans and control knobs (no text or symbols)

Congratulations on the purchase of your new Logik Ceramic Tower Heater.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

UNPACKING

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to any local regulations.

The following items are included:

The Main Unit

The Instruction Manual (P.N.: L20CTH10-001)

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

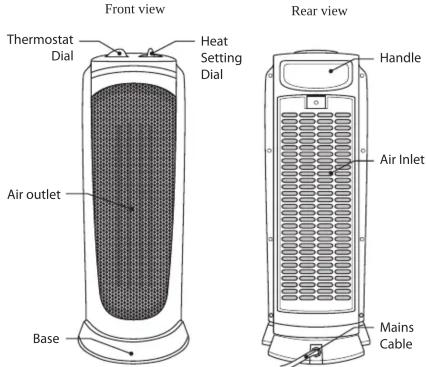

PRODUCT OVERVIEW

CONTROL PANEL

GB-1

OPERATION

The heater is fitted with a safety tip over switch, therefore to ensure correct operation it must be placed on a flat and stable surface. The heater must not be placed on the mains cable as this could cause the tip over switch to operate.

1. Set the Heat Setting Dial to "OFF" position.
2. Insert the mains plug into the mains socket. Set the Heat Setting Dial to "HIGH & OSC" position and the Thermostat Dial to the "MAX" position to warm up the room. The Power Indicator will illuminate when the power is on.
3. Once the room reaches the desired temperature adjust the Heat Setting Dial to the "LOW" position and rotate the Thermostat Dial anticlockwise until the heater shuts off. The thermostat will now turn the heater on/off to maintain the room temperature. During particularly cold weather the low setting may be insufficient to satisfy the thermostat. In this case select the high setting.

For fan only operation, select the "COOL" or "COOL & OSC" position on the Heat Setting Dial. Set the Thermostat Dial to "MAX" position.

1. The heater can operate in 6 modes, "COOL", "LOW", "HIGH", "COOL & OSC", "LOW & OSC" and "HIGH & OSC".

2. COOL mode: The heater is in fan mode and the heating power is a constant 25W.

3. LOW mode: The heater is in economy mode and the heating power is a constant 1200W.
4. HIGH mode: The heater is in maximum power and the heating power is a constant 2000W.
   • COOL & OSC mode : The heater will oscillate while in fan mode.
5. LOW & OSC mode: The heater will oscillate while in economy mode.
6. HIGH & OSC mode: The heater will oscillate while in maximum power.

7. Please allow 5-10 seconds for a setting change.

8. To switch off the heater, adjust the Heat Setting Dial to the "OFF" position. The fan will continue to operate for 5-10 seconds, and then it will switch off.

It is normal for the heater to emit some smell and fumes when it is turned on for the first time or when turned on after not being used for a long period of time. This smell will disappear when the heater has been turned on for a short while.

The heater is equipped with an oscillation feature. If you want to obtain a wider area of heat circulation, adjust the Heat Setting Dial to "COOL & OSC", "LOW & OSC" or "HIGH & OSC" position.

Always ensure the mains cable can move freely while in oscillation mode to prevent damage to the heater.

SAFETY PROTECTIVE DEVICES

1. Overheat Protection System

The power to the heater will automatically cut off if the temperature of the heater exceeds a certain limit. In the event of overheating, the heater will stop operating. Switch the heater off and allow it to completely cool. The heater will then resume operating as normal.

1. Tip-over Protective Switch

When you use the heater in an upright position on a flat and stable surface, the tip-over protect switch will be on. In the event the heater is knocked over, the heater will stop functioning automatically.

Do not override the Tip-over Protective Switch as this may cause a hazard. Using the unit on a deep pile carpet may activate the tip-over protective switch.

CLEANING

Your heater should be cleaned regularly to stop dirt and dust building up which will affect its performance. Ensure the air inlet and the air outlet are not blocked. This can be done with a vacuum cleaner, using the brush attachment.

Ensure you unplug your heater from the mains socket and wait for the heater to cool down completely before cleaning.

HINTS AND TIPS

My heater does not work when I turn it on
1. Check that your heater is plugged in and the power is turned on at the mains socket.
2. Set the Heat Setting Dial to the highest in "HIGH" position.
3. Try replacing the BSI or ASTS approved 13 Amp BS1362 fuse in the plug.
4. If the heater still doesn't work, do not try to repair the heater yourself.
If your radiator's power is automatically cut o follow the steps below:
1. Unplug your radiator and allow it to cool down.
2. Inspect your radiator.
3. Plug-in the radiator and switch it on again. If it cuts off again, move the radiator to a better ventilated location.
4. If there is any sign of physical damage (e.g. melting, or burning of the case), do not attempt to use your radiator. Please leave all maintenance work to qualified personnel.
