LKBWLBL13 - Keyboard Logik - Free user manual and instructions

Product Type	Wireless Keyboard
Brand	Logik
Model	LKBWLBL13
Connectivity	Bluetooth 5.0
Layout	QWERTY (UK)
Number of Keys	78
Key Type	Scissor-switch
Wireless Range	Up to 10 meters
Power Source	2 x AAA batteries (included)
Battery Life	Up to 12 months (typical usage)
Dimensions (L x W x H)	285 x 120 x 20 mm
Weight	280 g (with batteries)
Compatible Systems	Windows, macOS, Android, iOS, Chrome OS
Multimedia Keys	Yes (volume, play/pause, etc.)
Color	Black
Material	Plastic
Auto Sleep Mode	Yes (to save battery)
Cleaning	Wipe with a soft, damp cloth; do not use solvents
Storage Temperature	-20°C to 60°C
Included in Box	Keyboard, AAA batteries, User manual

Frequently Asked Questions - LKBWLBL13 Logik

How do I pair the Logik LKBWLBL13 keyboard with my device?

Turn on the keyboard using the power switch. Press the Bluetooth button to enter pairing mode (the LED will blink). On your device, go to Bluetooth settings and select 'Logik LKBWLBL13' from the list. If a PIN is requested, enter '0000'.

What type of batteries does the keyboard use and how long do they last?

The keyboard uses 2 AAA batteries (not included). Under typical usage, the batteries can last up to 12 months. When the battery is low, the LED indicator will flash red.

Why is my keyboard not connecting to my computer?

Ensure the keyboard is turned on and in pairing mode. Check that Bluetooth is enabled on your computer. Also, verify that the batteries are not depleted. If it still fails, remove the device from your Bluetooth list and try pairing again.

Can I use this keyboard with an iPad or iPhone?

Yes, the Logik LKBWLBL13 is compatible with iOS devices (iPad, iPhone, iPod touch). Pair it via Bluetooth in the same way as with a computer. The keyboard supports all standard iOS keyboard functions.

How should I clean the keyboard?

To clean the keyboard, use a soft, slightly damp cloth (water only). Do not use any cleaning solvents, alcohol, or abrasive materials. Ensure no moisture enters the keys or openings. Allow the keyboard to dry completely before use.

Does the keyboard have a numeric keypad?

No, the Logik LKBWLBL13 is a compact keyboard without a separate numeric keypad. It features a standard QWERTY layout with function keys and multimedia shortcuts.

What do the LED indicators on the keyboard mean?

The keyboard has a single LED. A blinking blue light indicates pairing mode. A solid blue light (if present) may indicate connection. A red flashing light signals low battery.

Can I use the keyboard while it is charging?

No, this keyboard uses disposable AAA batteries and does not have a rechargeable battery or charging port. You cannot use it while charging.

What is the wireless range of the keyboard?

The Bluetooth range is up to 10 meters (30 feet) in open space. Obstructions like walls may reduce the range.

Where can I download the user manual for the Logik LKBWLBL13?

You can download the free user manual in PDF format from notice-facile.com by searching for 'Logik LKBWLBL13'. Alternatively, check the Logik support website.

USER MANUAL LKBWLBL13 Logik

Black rectangular keyboard with various function keys and labels (no readable text beyond standard font)

Safety Warnings....4

Unpacking....5

Product Overview......6

Front....6

Back....6

Installing the Batteries....7

Connecting the USB Receiver 8

Activating the Keyboard....8

Function Keys....9

Other Function Keys....10

Hints and Tips....10

Specifications....11

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

Wireless Devices:

• Before boarding any aircraft or packing a wireless device in luggage that will be checked in, remove the batteries from the wireless device.
• Wireless devices can transmit radio frequency (RF) energy, whenever batteries are installed and the wireless device is turned on (If it has an On/Off switch).

Battery-Powered Devices:

• Improper use of batteries may result in battery fluid leakage, overheating, or explosion.
• Released battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if swallowed.
• Don't disassemble the keyboard or remove any parts.
• Don't immerse the keyboard in water or any liquid.
• Don't use the keyboard close to heat sources or expose to high temperatures.
• Don't use the keyboard where strong electromagnetic waves are present. Strong electromagnetic waves will cause damage to the keyboard.
• Keep the keyboard away from direct sunlight, moisture, dirt or abrasive chemical products (cleaning products etc).

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Wireless Keyboard

Two battery components shown: a small connector and two stacked batteries with positive and negative charges (no text or symbols)

USB Dongle 2 x AAA Batteries

Product Overview

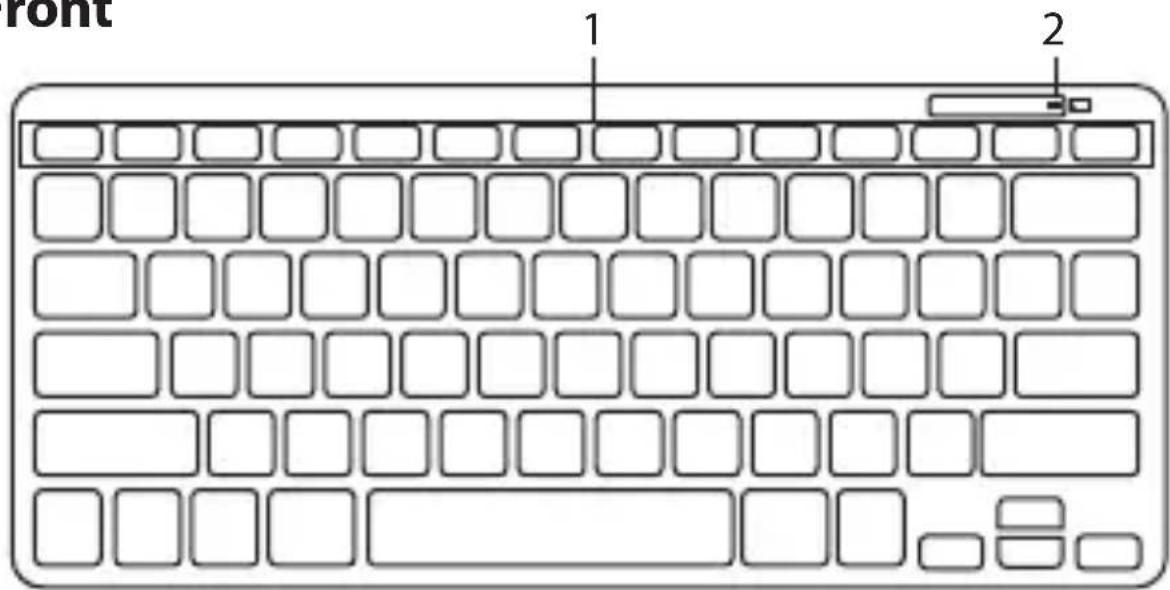

Front

1. Function keys x 14 2. LED indicator

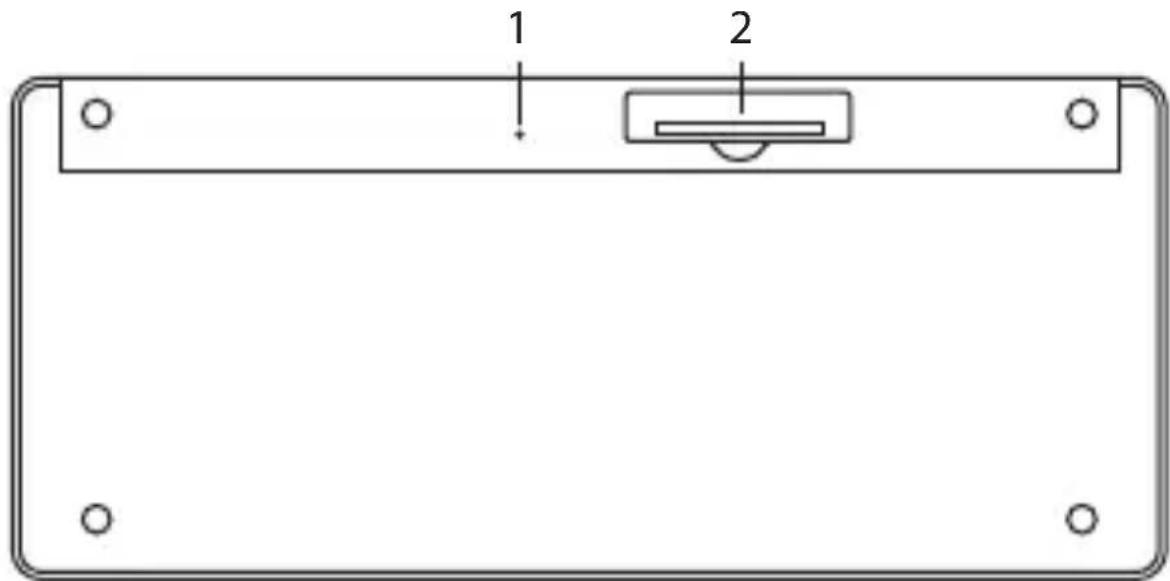

Back

1. Connection Button
2. Battery Compartment

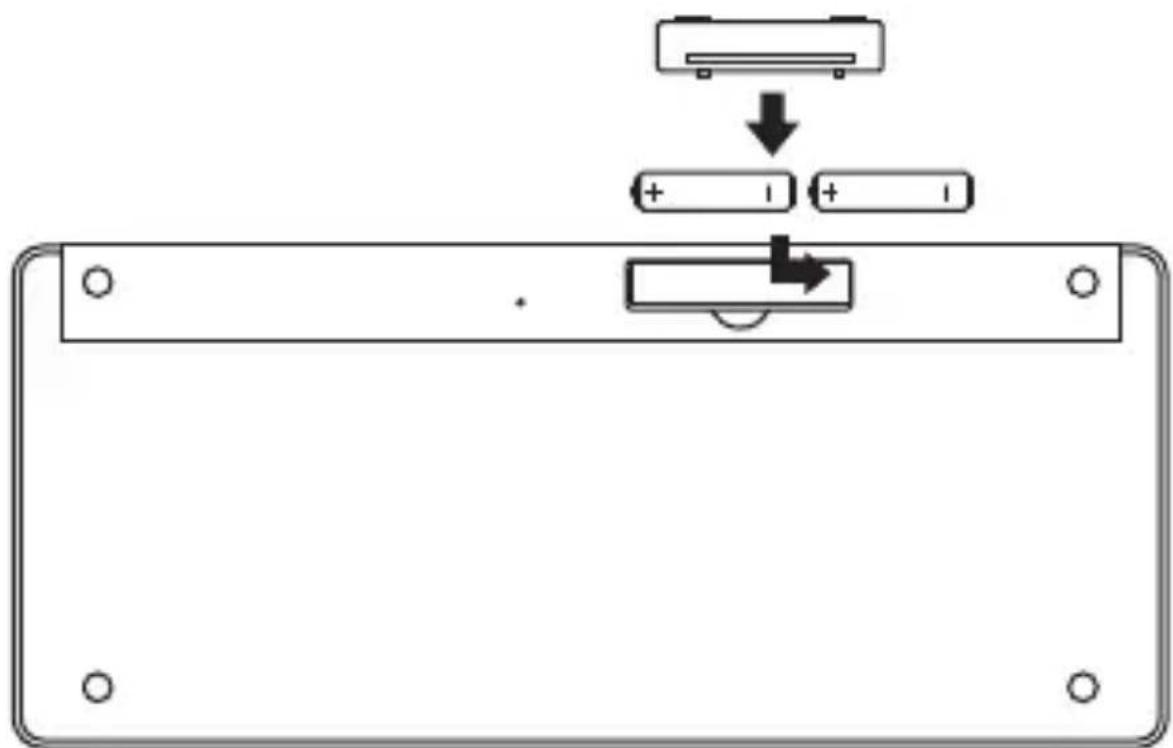

Installing the Batteries

You will need to install 2 x AAA batteries before using the keyboard.

If the battery indicator starts to flash the battery power is getting low. Replace both batteries at the same time.

* Images are for indication only. Please refer to your individual item for details.

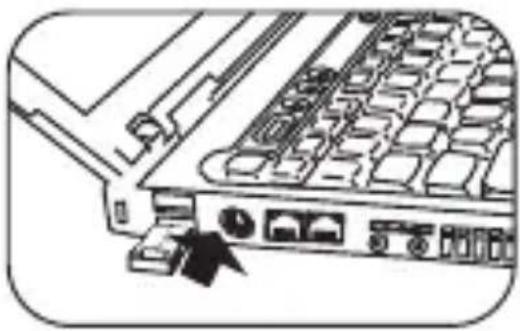

Connecting the USB Receiver

1. Remove the Dongle.
2. Leave your computer on.

3. Plug the Dongle directly into your computer's USB port.

4. The keyboard will automatically connect to the computer.

Diagram of a computer drive bay with ports and connectors (no text or symbols)

Activating the Keyboard

If the keyboard does not respond, do the following:

1. Remove the dongle.
2. Re-insert dongle into the USB port.
3. Press the Connection button at the bottom of keyboard.

To access the primary functions, press the keys* as normal. To access the secondary functions (different coloured text on the keys), press the Fn key and the desired key together.

KEY PRIMARY FUNCTION SECONDARY FUNCTION
ESC	Cancel a command or action	N/A
F1 - Open Help for some PC applications			Return to Home Screen
F2 - Different menu functions for some PC applications			Open default email client
F3 - Different menu functions for some PC applications			Open search
F4 - Different menu functions for some PC applications			Stop loading a web page
F5 - Different menu functions for some PC applications			Open default media application
F6 - Different menu functions for some PC applications			Stop music / film
F7 - Spell check functions for some PC applications			Backward skip music /films, hold to search backwards
F8 - Different menu functions for some PC applications			Play music / film
F9 - Different menu functions for some PC applications			Forward skip music / films hold to search forwards
F10 - Different menu functions for some PC applications			Mute sound
F11 - Different menu functions for some PC applications			Decrease volume
F12 - “Save as” function for some PC applications			Increase volume
DEL	Delete character after cursor	N/A

*Some function keys may not be available depending on operating system.

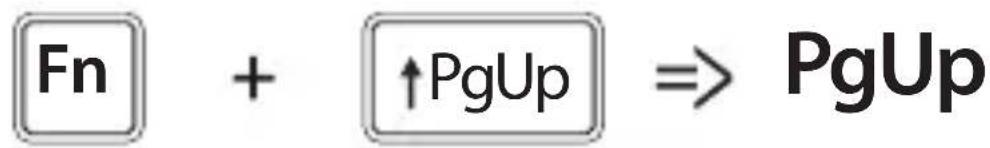

Other Function Keys

To access other function keys (highlighted in a different colour on the keyboard), Press both the "Fn" button and the desired function keys*.

*Some function keys may not be available depending on operating system.

Hints and Tips

Keyboard Not Working :

1. Change both batteries at the same time.
2. Ensure your computer's operating system supports wireless input devices (e.g. mice and keyboards), and is the latest version.
3. Ensure your computer's wireless feature is active.
4. Move the keyboard closer to the computer.

Model LKBWLP	P13 / LKBWLPK13/ LKBWLRD13 / LKBWLBL13
Shortcut Function Keys	14 (some may not be available depending on operating system)
Power Consumption	DC 3V Working: 15mA Standby: 3mA Sleep: 45uA
Battery Type 2 x AAA batteries (3.0V)
Weight 400g (approx.)
Dimensions 286mm(L) x 120mm(W)x 20mm(H)
Operating Systems	Windows® 2000/Vista®/XP®/7®/8®/Mac OS X
