FH 5025 - Heating Orbegozo - Free user manual and instructions

Product Type	Supplementary Heating
Brand	Orbegozo
Model	FH 5025
Dimensions (W x H x D)	25 x 40 x 15 cm (approx.)
Weight	2.5 kg (approx.)
Power supply	220-240 V, 50 Hz
Maximum power	2000 W
Power settings	2 levels (1000 W / 2000 W)
Thermostat	Yes, adjustable
Overheat protection	Yes, automatic shut-off
Oscillation function	Yes (approx.)
Heating type	Forced convection (fan)
Noise level	Approx. 45 dB
Recommended use	Medium-sized room (20-25 m²)
Maintenance and cleaning	Unplug before cleaning; use a dry cloth; do not immerse
Safety	Anti-frost protection, safety switch
Spare parts and repairability	Parts available through Orbegozo customer service; repairable
Color	White (approx.)

Frequently Asked Questions - FH 5025 Orbegozo

How to clean the FH 5025 heater?

Unplug the device and let it cool. Use a soft, dry cloth to remove dust. Never use water or abrasive products.

What is the power of the FH 5025 heater?

The FH 5025 has a maximum power of 2000 W with two adjustable levels.

Is the Orbegozo FH 5025 heater quiet?

It emits approximately 45 dB, equivalent to a quiet conversation. It is not completely silent but remains discreet.

How to set the desired temperature?

Turn the thermostat knob clockwise to increase the temperature. The device automatically stops when the set temperature is reached.

Does the heater have overheat protection?

Yes, the FH 5025 is equipped with overheat protection that cuts off the power if the internal temperature becomes too high.

What is the recommended heating area?

This heater is suitable for a room of about 20 to 25 m².

Can I use the heater in a bathroom?

No, the FH 5025 is not designed for use in damp rooms. It must be used in a dry place.

How to install the heater?

Place the device on a flat, stable surface, at least 1 meter away from any flammable objects. Plug it into a power outlet.

Does the heater consume a lot of electricity?

At full power (2000 W), it consumes 2 kWh per hour of use. Use the thermostat to reduce consumption.

Where to find spare parts for the FH 5025?

Spare parts are available from Orbegozo customer service or on their official website.

USER MANUAL FH 5025 Orbegozo

FAN HEATER - INSTRUCTION MANUAL

RADIATEUR SOUFFLANT - MANUEL D'INSTRUCTIONS

THERMOVENTILADOR - MANUAL DE INSTRUÇÕES

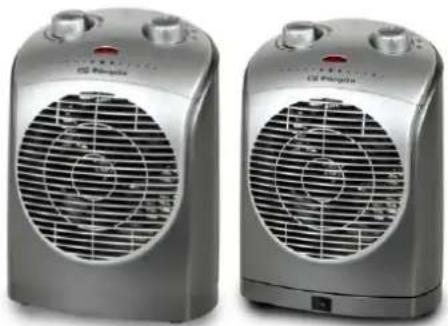

Two silver portable electric heaters with heat sinks and ventilation grilles (no visible text or symbols)

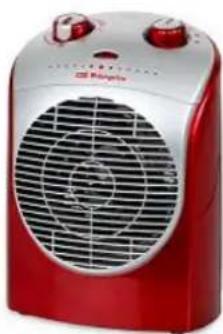

Red and silver portable electric heater with a circular vent grille (no visible text or symbols)

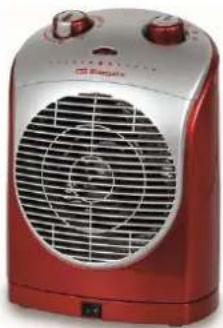

Red and silver portable electric heater with visible fan grille and control knobs (no text or symbols)

Black electric heating fan with two copper heat sinks and a mesh grille (no visible text or symbols)

FH 5021 - FH 5022 - FH 5025 - FH 5026 - FH 5036

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Symbol of a trash bin with crossed lines indicating no waste or plastic discharge (no text or labels)

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user

maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
3. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
4. Never pull on the cord when unplugging.
5. Do not use the unit with a damaged cord or plug, or if it is not working properly.
6. Do not handle the appliance with wet hands.
7. Never immerse the appliance in water or any other liquid.
8. Make sure the appliance has been unplugged before cleaning.
9. This appliance must be installed following the national regulations for electrical installations.
10. This appliance is for household use only.
11. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
12. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

• The meaning of figure 📋 in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

- Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

- Do not use this heater in the immediate vicinity of a bath, shower or pool.

• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top.
  • Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.

These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner!

SAFE POSITIONING

1. The heater must not be located immediately below a socket outlet
2. For your own safety and that of others: water and electricity are a dangerous combination! Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Ensure that the appliance cannot fall into water (bath wash basin, shower cubicle, etc.)
3. Please read also the safety information's before using.
4. Do not use the heater on extremely deep-pile carpets!
5. Do not use the heater in an upright position.

GENERAL DESCRIPTION

A. Air inlet grille
B. Air outlet grille
C. Selector switch
D. Thermostat knob
E. Control lamp
F. Oscillation

INSTRUCTIONS FOR USE

The selector switch and the thermostat knob enable you to select the following functions:

Selector switch:

⑩ : OFF. Both the fan and the two heating elements are switched off

: "Cool air". Only the fan is switched on

- : "Warm air for gradual heating-up. ECO position (1100 W): the fan andone of the heating leements are switched on.

: "Hot air" for quick heating-up. Full power (2200 W): the fan and the two heating elements are switched on.

Thermostat knob:

With the thermostat knob you can set a constant room temperature. When the selector switch is set to position I or position II the heater will automatically switch on as soon as the room temperature falls below the set temperature.

As soon as the set temperature falls is reached, the switch will turn off.

Rotate the knob clockwise to obtain a higher temperature setting or anti-clockwise for a lower temperature setting.

You may adjust the thermostat during use.

Oscillation (FH 5022 - FH 5025)

With the rocker switch you can switch on or off the oscillation of the fan heater. The oscillation function can be operated to every function separately.

Control lamp:

The control lamp indicates the operation if step ( ) is turned on in combination with the thermostat switch.

• The control lamp shines so long, since the thermostat switches off the device with reaching of the opposed ambient temperature and begins again if the thermostat again turns on the device.
• If the steps switch turned on position ① or the device by the electricity mains is taken, the control lamp goes out.

OVERHEATING SAFETY DEVICE

To prevent damage and risks due to overheating, the built-in overheating safety device cuts off the power as soon as the heating elements become too hot.

MAINTENANCE

We recommend that you clean your heater at least twice a year to remove accumulated dust and dirt.

• Set the selector switch to position® to switch off. Remove the mains plug from the wall socket. Wait for the heater to cool down sufficiently.
• You may clean the outside of the heater with a damp cloth or brush. Do not use water or allow water to come into the appliance. Do not use any abrasive and caustic cleaning agents!
• Never touch the heater in water! Danger to life!
• Clean the air inlet and outlet grilles regularly with a vacuum cleaner, using the brush attachment.

Storage

Keep the original box in which the heater was packed to store it during the warmer months when it is not in use. Clean the heater according to the instructions under Cleaning.

Pack the heater in the original box and store it in a cool, dry place.

TECHNICAL CHARACTERISTICS

Model: FH 5021 - FH 5022 - FH 5025 - FH 5026 - FH 5036

Voltage: 220 V - 240 V

Power: Maximum 2200 W

Tension: 50 Hz.

Disposal of old electrical appliances.

The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

This product is only suitable for well insulated spaces or occasional use

Item FH 5021 -FH 5022 - FH5025 - FH 5026 -FH 5036	Symbol		Value	Unit		Item FH 5021 - FH 5022 - FH 5025 - FH 5026 - FH 5036	Unit
Heat output						Type of heat input, for electric storage local space heaters only(select one)
Nominal heat output	P_nom		2.2	KW		manual heat charge control, with integrated thermostat	N/A
Minimum heat output(indicative)	P_min		1.1	KW		manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P_max,c		2.2	KW		electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption						fan assisted heat output	N/A
At nominal heat output	el_max		0.014	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min		0.014	KW		single stage heat output and no room temperature control	NO
In standby mode	el_SB		0	W		Two or more manual stages, no room temperature control	NO
						with mechanic thermostat room temperature control	YES
						with electronic room temperature control	NO
						electronic room temperature control plus day timer	NO
						electronic room temperature control plus week timer	NO
						Other control options (multiple selections possible)
						room temperature control, with presence detection	NO
						room temperature control, with open window detection	NO
						with distance control option	NO
						with adaptive start control	NO
						with working time limitation	NO
						with black bulb sensor	NO
Contact details info		SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
