Product type	Combination microwave (microwave, grill, convection)
Brand	Hotpoint Ariston
Model	MWHA 424.1 X
Oven capacity	44 L
Microwave power (output)	900 W
Microwave power (input)	1650 W
Grill power	1750 W
Convection power	1750 W
Rated voltage	230 V ~ 50 Hz
Turntable diameter	360 mm
External dimensions (W x H x D)	594 x 454.5 x 568 mm
Net weight	Approximately 41 kg
Cooking functions	Microwave, Grill, Convection, Fan grill, Convection + bottom heat, Microwave + Grill, Microwave + Convection, Microwave + Fan grill, Microwave + Convection + bottom heat
Automatic programs	14 programs (defrost, vegetables, side dishes, poultry/fish, pastry, reheating, convenience)
Microwave power levels	5 levels: 100 W, 300 W, 450 W, 700 W, 900 W
Convection temperature range	50 to 230 °C
Maximum timer	90 min (microwave), 5 h (convection/grill), 90 min (combinations)
Included accessories	Enamel plate, turntable ring assembly, ridged pan, short and long grill supports, user manual
Safety	Child lock, automatic shut-off after 5 min of inactivity, overheat protection
Maintenance and cleaning	Clean the interior with a damp cloth; for easy cleaning, heat half a lemon in 300 ml of water for 10 min at full power
Installation	Built-in; leave at least 10 cm clearance at the back and sides; flat, stable surface
Repairability index	Not communicated

Frequently Asked Questions - MWHA 424.1 X Hotpoint Ariston

How to set the clock on the Hotpoint Ariston MWHA 424.1 X microwave?

After powering on, the display flashes '00:00'. Turn the ^-+ knob to set the time (between 00:00 and 23:59), then press the 'L' button to confirm. To change the time later, hold the 'L' button for 3 seconds.

What utensils can I use in this microwave?

Use only microwave-safe utensils: heat-resistant glass, microwave-safe plastic, parchment paper, etc. Avoid any metal (aluminum, metal utensils) as it may cause arcing. See the manual for a full list.

How to use the grill function?

Press the 'ON/OFF' button, turn the knob to select the grill mode (the '' indicator lights up). Press '' to choose the level (1 to 3), then set the cooking time (max 90 min). Press 'START PAUSE' to start.

Why does the oven light dim during cooking?

This is normal. At low microwave power, the light may dim. It does not affect the appliance's performance.

How to easily clean the microwave interior?

Place half a lemon in a bowl with 300 ml of water and heat at full power (900 W) for 10 minutes. The steam loosens residues. Then wipe with a soft, dry cloth.

What to do if the oven does not start?

Check that the power cord is plugged in. Ensure the door is properly closed. If the problem persists, test the outlet with another appliance or check the circuit breaker. Do not attempt to repair yourself.

Can I use the microwave empty?

No, it is dangerous to operate the oven empty. It can damage the appliance and create a fire hazard. Always put at least a glass of water or food inside.

How to activate the child lock?

In standby mode, press the 'START PAUSE' and '' (or 'L' depending on the panel) buttons simultaneously until you hear a long beep. The '' indicator displays. To deactivate, press the same buttons again for 3 seconds.

What is the maximum capacity of the turntable?

The turntable has a diameter of 360 mm. Never place food or containers that extend beyond the turntable or touch the walls, as they may block rotation.

How to preheat the oven in convection mode?

Select a cooking mode with convection (e.g. 'Hot air'). Press the 'Preheat' button (icon ). Set the desired temperature, then press 'START PAUSE'. The oven emits three beeps when the temperature is reached.

USER MANUAL MWHA 424.1 X Hotpoint Ariston

Line drawing of an open microwave oven with screwdriver and lid, showing internal components and mounting base (no text or symbols)

Symmetrical geometric diagram with concentric circles and directional arrows, no text or symbols present

Three types of metal grateware: a circular fan with slats, a flat plate with legs, and a circular tray with handles (no text or symbols)

Line drawing of an oven with a tray, sink, and screwdriver inserted (no text or symbols)

Technical line drawing of a microwave oven with a central hexagonal chamber and control panel (no text or symbols)

Pure geometric diagram with concentric circles and arrows, no text or symbols present

Three technical illustrations of a fire extinguisher fan with labeled parts (8, 9, 10), no text or symbols on the fans or background.

MODELO: MWHA 424.1 X

Índice

Instalación, 38-40

Instalación

Colocación

Empotrado

Line drawing of an open microwave oven with screwdriver and dish, no text or symbols present

Symmetrical geometric diagram with concentric circles and arrows, no text or symbols present

Three different types of outdoor heating fans or trays, shown in 3D rendering with no text or symbols on the surfaces themselves.

Line drawing of an oven with a tray, screwdriver inserted, and a lid on the door (no text or symbols)

Symmetrical diagram with concentric circles and directional arrows, no text or symbols present

Three types of outdoor heating fans with different sizes and mounting feet, shown from top to bottom (no text or symbols)

Line drawing of an oven with screwdriver inserted, showing internal components and a tray (no text or symbols)

Symmetrical geometric diagram with concentric circles and arrows, no text or symbols present

Specifications

Three types of outdoor heating fans with numbered labels (8, 9, 10) showing different sizes and mounting feet (no text or symbols on the fans themselves)

Line drawing of an oven with screwdriver inserted, showing internal components and a tray (no text or symbols)

Symmetrical geometric diagram with concentric circles and arrows, no text or symbols present

Three types of outdoor heating fans with numbered labels (8, 9, 10) showing different sizes and mounting feet (no text or symbols on the fans themselves)

Line drawing of an open microwave oven with screwdriver and tray (no text or symbols)

Pure geometric diagram with concentric circles and arrows, no text or symbols present

Three types of outdoor heating fans with different sizes and mounting feet, shown from top to bottom (no text or symbols)

Line drawing of an oven with screwdriver inserted, showing internal components and a tray (no text or symbols)

Symmetrical diagram with concentric circles and arrows, no text or symbols present

Three types of outdoor heating fans with numbered labels (8, 9, 10) showing different frame designs (no text or symbols on the fans themselves)

Turntable Installation

Setting up your oven, 151

Names of Oven Parts and Accessories

Control Panel and Features

Overall view

Start-up and use, 152-157

Operations instruction

Important safety instructions, 158 - 159

Utensils, 160

Materials you can use in microwave oven

Materials to be avoided in microwave oven

Maintenance and care, 161

Cleaning

Troubleshooting, 162

Assistance, 163

Hotpoint

ARISTON

! Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

I SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
(d) WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
(e) Accessible parts may become hot during use. Young children should be kept away.
(f) Steam cleaner is not to be used.
(g) Surface of a storage drawer can get hot.
(h) Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
(i) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

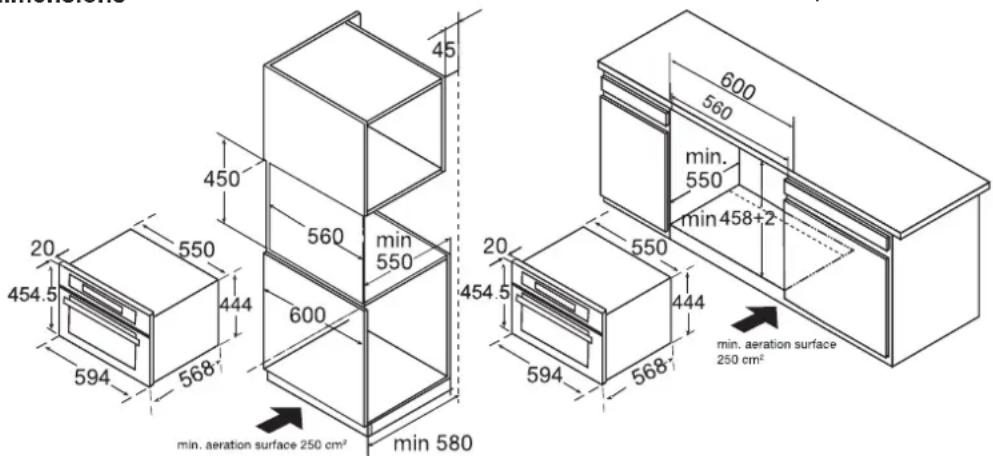

Installation dimensions

Note: There should be gap above the oven.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Installation

Important information about installing

• This appliance is NOT intended for use in a commercial environment.
• Please observe the installation instructions provided and note that this appliance should only be installed by a qualified technician.
• The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
• In case a new socket is needed, installation and cable connection must only be done by a qualified electrician. If the plug is no longer accessible following installation, a pole disconnecting device must be present on the installation site with a contact gap of at least 3 mm.
• Adapters, multiway strips and extension cords must not be used. Overloading can result in fire.
• If the appliance is not fitted with a supply cord and a plug, the connection equipment must have a contact separation in all poles that provide full disconnection, and the appliance must be incorporated in the fixed wiring in accordance with the wiring rules.

The accessible surface may be hot during operation.

Placement

• Danger! Do not disassemble this appliance. Touching internal components of this appliance can cause serious personal injury or death.
• Place the microwave oven on a firm, flat surface.
• Make sure that there is sufficient ventilation around the microwave oven. At the rear and sides keep at least 10 cm free.
• Do not cover the air vents.
  • The adjustable feet should not be removed.
• Do not place the microwave oven near a heat source.
  • Transmitting and r receiving equipment such as radios and televisions can affect the operation of the microwave oven.

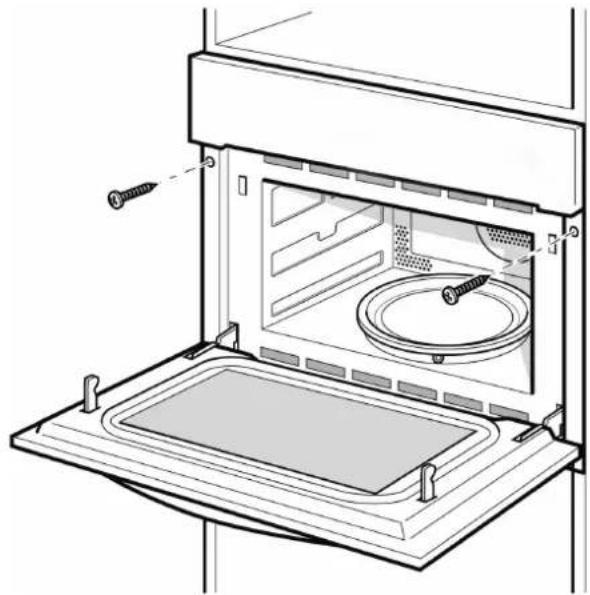

Building in

• Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.
• Carefully push the microwave into the box, making sure that it is in the centre.
• Open the door and fasten the microwave with the screws that were supplied.

Line drawing of an open microwave oven with screwdriver and lid, showing internal components and mounting base (no text or symbols)

• Fully insert the appliance and centre it.
• Do not kink the connecting cable.
- Screw the appliance into place.
- The gap between the worktop and the appliance must not be closed by additional battens.

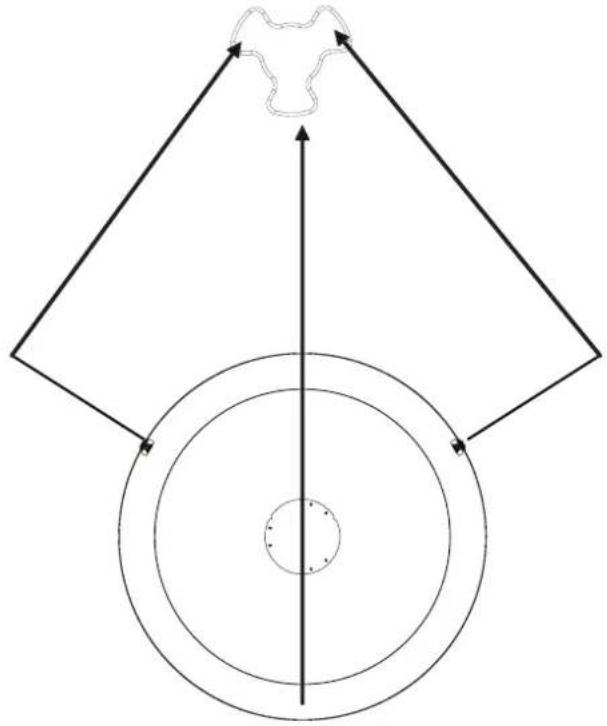

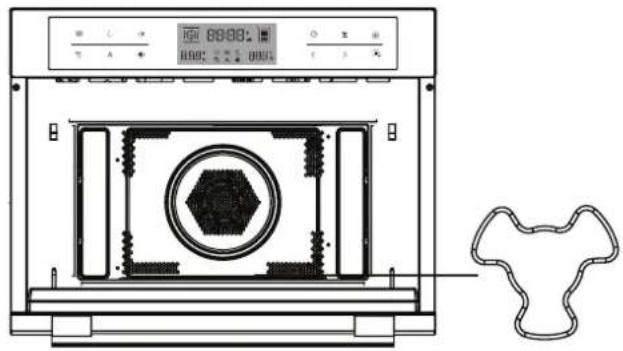

Install the grill pan

1. Be sure the angle of the shaft.

1. Adjust the angel of the grill pan and the shaft.

Pure geometric diagram with concentric circles and arrows, no text or symbols present

1. Put the pan into the cavity and adjust slightly.

Turntable Installation

a. Never place the enamel tray upside down. The enamel tray should never be restricted.
b. The enamal tray must always be used during cooking.
c. All food and containers of food are always placed on the enamel tray for cooking.
d. If enamel tray cracks or breaks, contact your nearest authorized service center.

Specifications

Model: MWHA 424.1 X
Rated Voltage: 230V~50Hz
Rated Input Power(Microwave): 1650W
Rated Output Power(Microwave): 900W
Rated Input Power(Grill): 1750W
Rated Input Power(Convection): 1750W
Oven Capacity: 44L
Turntable Diameter: 360mm
External Dimensions: 594x454.5x568mm
Net Weight: Approx. 41 kg
	According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household.

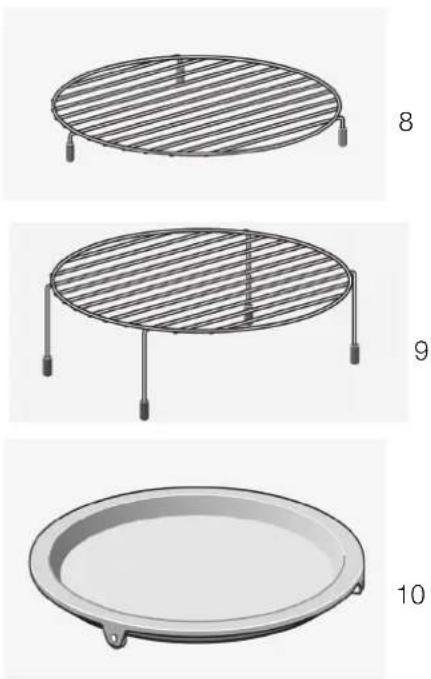

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity Your oven comes with the following accessories:

Enamel Tray 1

Turntable ring assembly 1

Instruction Manual 1

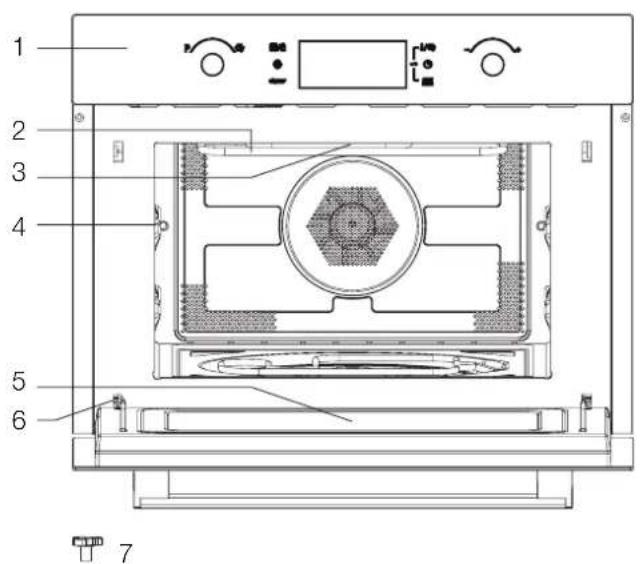

1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge
7. Turntable shaft

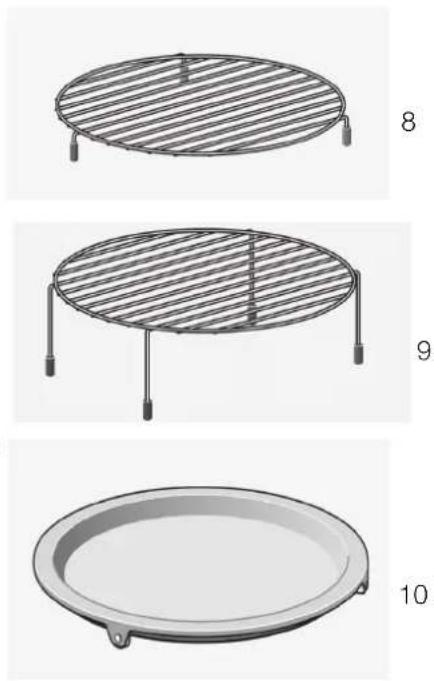

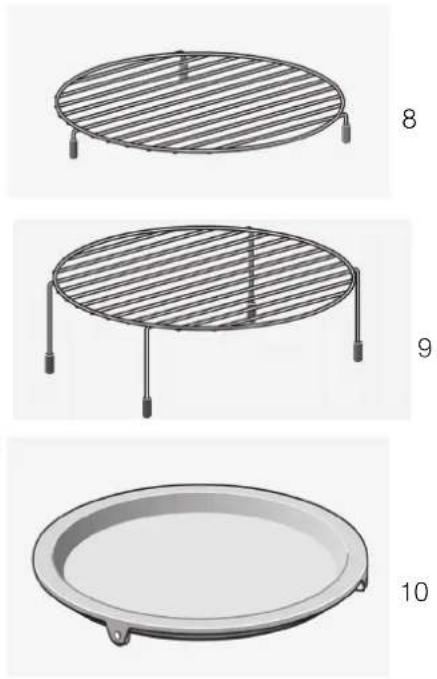

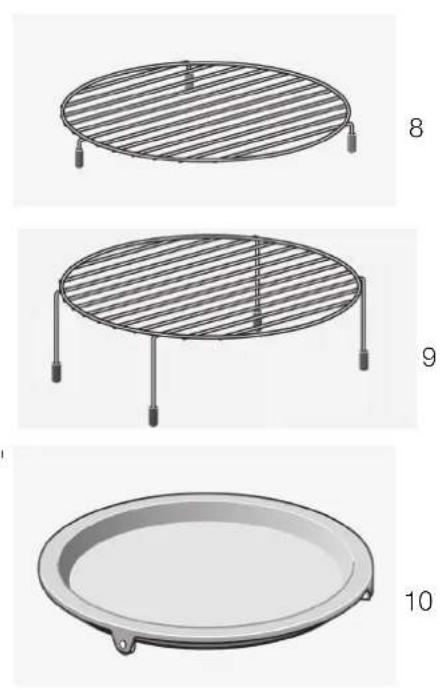

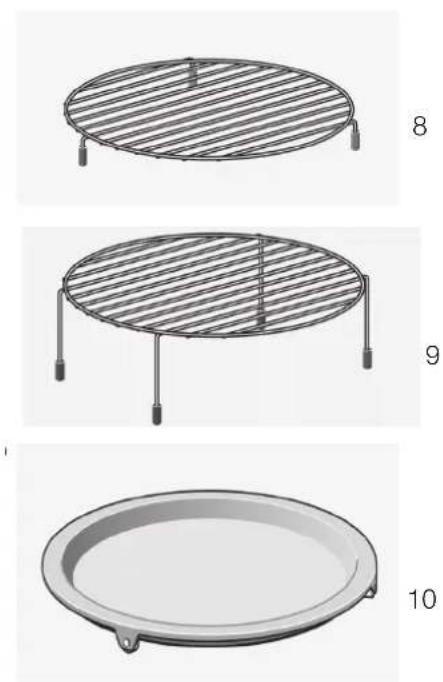

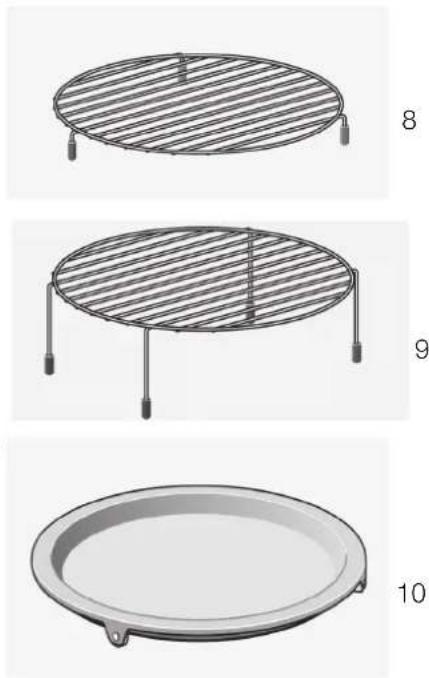

8. Short Grill Rack
9. Long Grill Rack
10. Enamel tray

Three types of metal grateware: a circular fan with slats, a flat plate with legs, and a circular basin with feet (no text or symbols)

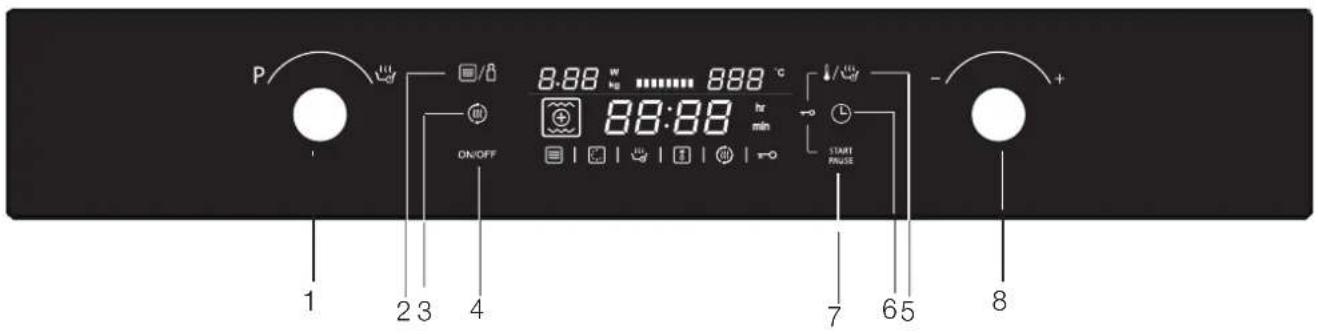

Control Panel and Features

1) Function knob

2) Power/Weight button

3) Quickly preheating button

4) On/Off Button

5) Temperature/automenu button

6) Clock button

7) Start/Pause button

8) Selection knob

Operation instruction

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.

1) Turn -^+ knob to set the right time (between 00:00 and 23:59.)
2) After you have set the right time, press “L”. The clock has been set.

Note:

1) If you want to change the time, you have to press and hold the "L" button for 3 seconds. The actual time disappears and then the time will blink in the display.

Turn ^+ knob to set the new time and press the “L” button to confirm the setting.

2) If you do not want to see the clock in the display, press "L" button briefly. The time disappears. Press "L" again, and the clock appears in the display again.

2. Microwave Cooking

1) Press the "ON/OFF" button to activate the microwave function. "01:00" is blinking in the display and the microwave icon appears. If no operation in 10 seconds, the current power will be confirmed automatically.
2) Turn -^+ knob to set the cooking time. The max. cooking time depends on the power that has been set. When the power is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.
3) Press "☐/☐" button to adjust the microwave power.
4) Turn -O^+ knob to set the microwave power. (between 100W to 900W).

START 5) Press "PAUSE" button to start cooking.

Note:

the step quantities for the adjustment time of the coding switch are as follow:

0---1 min 1 second
1---5 min 10 seconds
5---15 min 30 seconds
15---60 min 1 minute
60 min 5 minutes

Microwave Power Chart

Display

900W 700

W 450W

300W 100W

You can see from the table below from which power levels you can choose and for which foods the power levels are suitable.

Power level	Food
900 W	- Boiling water, reheating- Cooking chicken, fish, vegetables
700 W	- Reheating- Cooking mushrooms, shell fish- Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W	- Defrosting- Melting chocolate and butter
100 W	- Defrosting sensitive/delicate foods- Defrosting irregularly-shaped foods- Softening ice cream- Allowing dough to rise

Functions

Function Mode
	Microwave Micro		MicrowaveUse the microwave function to cook and reheat vegetables, potatoes, rice, fish and meat.
	Heating		Hot air	Hot airWith hot air you can prepare meals in the same way as you do with a conventional oven. The microwave is not activated.You are advised to pr eheat the oven before e putting the meal in the oven.
			Grill with fan	Grill with fanUse this function to roast meals evenly and at the same time give the meal a brown crust.
			Grill	GrillThe grill is very suitable to prepare thin pieces of meat and fish.

Function Mode
	Heating		Hot air+Bottom heat	Use this function to roast big pieces of meat, pizza, etc.
+	Combination		Hot air	Microwave + Hot airUse this function to roast meals quickly.
			Grill with fan	Microwave + Grill with fan
			Grill	Microwave + GrillUse this function to cook meals quickly and at the same time give the meal a brown crust (also au gratin). The microwave and the grill are activated at the same time. The microwave is cooking and the grill is roasting.
			Hot air+Bottom heat	Microwave + Hot air + Bottom heatUse this function to roast big pieces of meat, pizza, etc.
'	Auto-programs P01 - P13			Automatic cooking programs
	Defrost			Defrost

3. Grill Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn ^® knob to set the cooking mode.

"☐" indicator lights. The default grill power is the third level. "\~\~" indicator will light when grill function is selected.

3) Press "to enter to the grill level.

4) Turn ^- to select the level 3(the MAX.), level 2 or level 1(the MIN.).

Press "L" to select the time setting mode. The default time is 10 minutes.

5) Turn to select the cooking time of grill. The MAX time is 90 minutes.

6) Press "PAUSE" to start cooking.

4. Convection Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn " knob to set the convection mode. " indicator lights. " lights. The default temperature is 180 degrees.

3) Press "● to enter to the temperature mode.

4) Turn to select temperature. The temperature is from 50 to 230 degrees.

Press "L" to select the time setting mode. The default time is 10 minutes.

5) Turn ^- to select the cooking time. The MAX time is 5 hours.

6) Press "PAUSE" to start cooking.

5. Grill Fan Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn "to select grill fan mode. " indicator lights. If no operation in 10 seconds, the current temp will confirmed automatically. The default temperature is 180 degrees. " indicator will light when grill fan function is selected.

3) Press " to enter to the temperature selection.

4) Turn to select the temperature between 100 to 230 degrees. The temperature are 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230. Press "L" to select the time setting mode. The default time is 10 minutes.

5) Turn to select the cooking time. The MAX time is 5 hours.

6) Press "PAUSE" to start cooking.

6. Convection + Bottom heat Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn to select bottom+convection mode. “” indicator lights. If no operation in 10 seconds, the current temp will confirmed automatically. The default temperature is 180 degrees. “” indicator will light when convection + bottom function is selected.

3) Press " to enter to the temperature selection.

4) Turn to select the temperature between 100 to 230 degrees. The temperature are 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230.

Press "L" to select the time setting mode. The default time is 10 minutes.

5) Turn to select the cooking time. The MAX time is 5 hours.

6) Press "PAUSE" button to start cooking.

7. Microwave + Grill Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn " to select the combination mode. " " and " will light.

The default power is level 3.

“” indicator will light when grill function is selected.

3) Press "to enter to the temperature selection.

4) Turn - to select the power.

5) Press "to select the power. The default power is 300W.

6) Turn - to select 700W,450W,300W and 100W.

7) Press “” to select the time setting mode. The default time is 10 minutes.

8) Turn to select the cooking time. The MAX time is 90 minutes.

9) Press "PAUSE" on to start cooking.

8. Microwave + Convection Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn to select the convection mode. " " and " will light.

The default temperature is 180 degrees.

“+” lights.

3) Press "to enter to the temperature selection.

4) Turn - to select the temperature between 50 to 230 degrees.

5) Press "to select the power. The default power is 300W.

6) Turn - to select 700W,450W,300W and 100W.

7) Press "L" to select the time setting mode. The default time is 10 minutes.

8) Turn to select the cooking time. The MAX time is 90 minutes.

9) Press "PAUSE" on to start cooking.

9. Microwave + Grill Fan Cooking

1) Press the "ON/OFF" button to activate the microwave function.

2) Turn " to select the combination mode. " " and " will light. The default temperature is 180 degrees. " " indicator will light when this function is selected.

3) Press "● to enter to the temperature selection.

4) Turn to select the temperature between 100 to 230 degrees.

5) Press "To select the power. The default power is 300W.

6) Turn - to select 700W,450W,300W and 100W.

7) Press "L" to select the time setting mode. The default time is 10 minutes.

8) Turn to select the cooking time. The MAX time is 90 minutes.

9) Press "PAUSE" on to start cooking.

Start-up and use

EN

10. Microwave + Bottom + Convection Cooking

1) Press the "ON/OFF" button to activate the microwave function.
2) Turn " to select the combination mode. " " and " will light.
The default temperature is 180 degrees.
“⊕” indicator will light when this function is selected.
3) Press "● to enter to the temperature selection.
4) Turn ^- to select the temperature between 100 to 230 degrees.
5) Press "to select the power. The default power is 300W.
6) Turn - to select 700W, 450W, 300W and 100W.
7) Press " " to select the time setting mode. The default time is 10 minutes.
8) Turn to select the cooking time. The MAX time is 90 minutes.
9) Press "PAUSE" button to start cooking.

11. Auto Cook

There are 14 automatic cooking programs. You only have to choose the program and set the weight. The power, the time and the temperature are already set.

1) Press the "ON/OFF" button to activate the microwave function.
2) Turn to select the auto mode. "☐" or "☐" will light when defrost auto menu selected. Time, weight, the first number of the automatic programs are shown in the display. "d01" or "P01", "P02".... "P13" will display.
3) Press "button"
4) Turn - to select weight of the menu.

START

5) Press "PAUSE" on to start cooking.

Program Category Item
Defrost ** Meat		If you hear a beep, the combi microwave oven stops. Turn the food and press the start/pause button to continue the defrosting pr ogram.
P01** Vegetables Fresh vegetables
P02**	Side dishes	Potatoes - peeled/cooked
P06*	Side dishes	Potatoes – roastedIf you hear a beep, turn the food. The combi micr owave oven starts the next fase automatically.
P07 Poultry/ Fish		Chicken pieces/ Fish piecesIf you hear a beep, turn the food. The combi micr owave oven starts the next fase automatically.
P08* Bakery Cake
P09* Bakery Apple pie
P10* Bakery Quiche
P03** Reheat Drink/soup
P04** Reheat Plated meal
P05** Reheat Sauce/stew/dish
P11* Convenience Frozen - pizza
P12* Convenience		Oven chipsIf you hear a beep, turn the food. The combi microwave oven starts the next fase automatically.
P13* Convenience Frozen - lasagne

• The programmes with a * are preheated. During preheating, the cooking time pauses and the preheating symbol is on. After preheating, you will hear an alarm and the preheating symbol will blink.
• The programmes with ** only use the microwave function.

12. Preheating Function

The preheating function can be activated after you have chosen the functions: Convection, Grill fan, bottom -convection, MW-convection, MW-Grill fan and Microwave -Bottom-convection.

1) Press "button.

The preheat icon appears in the display.

START

2) Press "PAUSE" button to start preheating. If the right temperature is reached, you will hear three beeps. You can stop the preheating by opening the oven door or by pressing the "ON/OFF" button.

Note:

1. The preheating function only works if you have already chosen one of the modes above. During preheating, the microwave function is switched off.
2. Only when you can hear alarm and preheating icon is blinking you can open the door and put food inside.

13. Lock-out Function for Children

Lock: In waiting state, press "PAUSE" and "/☐" at the same time, there will be a long "beep" denoting entering into the children-lock state and "☐" indicator will light.

Unlock: In locked state, press "PAUSE" and "/ / 1/20" for 3 seconds, there will be a long "beep" denoting that the lock is released, and "→" indicator will disappear.

Note: Child lock can be selected only before selecting a function.

14. Display Specification

(1) When setting, if no other operation, it will confirm automatically after 10 seconds.
Except clock setting for the first time.
(2) During setting program, after adjusted for 3 seconds, it will confirm automatically.
(3) When the oven is in setting state or pause state, including auto menu and defrost program, if no operation in 5 minutes, it will enter into the off state.
(4) The oven lamp will light all the time if the door is open.
(5) The oven lamp will light all the time if the oven is paused.
(6) 'PAUSE' button must be pressed to continue cooking if the oven door is open during cooking process.

START

EN

WARNING : To reduce the risk of fire, electric shock, injury to persons or exposure to excessive steam oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to steam energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.(only for grill series)
5. Only use utensils suitable for use in steam ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE STEAM ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in steam ovens since they may explode, even after steam heating has ended.
15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from

heated surface, and do not cover any events on the oven.

1. Do not let cord hang over edge of table or counter.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
4. Steam heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
5. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. The steam oven shall not be placed in a cabinet unless it has been tested in a cabinet.
8. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
9. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
10. Accessible parts may become hot during use. Young children should be kept away.
11. Steam cleaner is not to be used.
12. Surface of a storage drawer can get hot.
13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
15. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
16. The rear surface of appliance shall be placed against a wall.
17. WARNING: When move the oven, do not carry handle. (Oven is overweight, handles are easily broken).

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION

Personal Injury Hazard

It is hazardous for anyone

other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Disposal

• When disposing of packaging material: observe local-legislation so that the packaging may be reused.
• The European Directive 2012/19/EEC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

EN

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way
   in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners
   or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch:
   Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.
   Wipe the oven clean using a soft, dry cloth.

EN

Problem Possible causes/Remedy

Microwave oven interfering TV reception

Dim oven light

Steam accumulating on door, hot air out of vents

Oven started accidentally with no food in

Oven can not be started.

Oven does not heat.

Glass turntable makes noise when microwave oven operates

There are sparks coming from the appliance.

- Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

- In low power microwave cooking oven light may become dim. It is normal.

- In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.

- It is forbidden to run the unit without any food inside. It is very dangerous.

- Power cord not plugged in tightly. Unplug. Then plug again after 10 seconds.

- Fuse blowing or circuit breaker works. Replace fuse or reset circuit breaker (repaired by professional personnel of our company).

• Test outlet with other electrical appliances

- Door not closed well. Close door well.

- Dirty roller rest and oven bottom. Refer to "Maintenance of Microwave" to clean dirty parts.

- Clean the appliance thoroughly; remove any traces of grease, bits of food, etc. Make sure that are no metal abjects close to the oven walls. Never use metal abjects with the shelf. Never operate your oven when it is empty.

Before contacting the After Sales Service:

• make sure you can't fix the anomaly yourself;
- if you can't, contact an authorized Technical Assistance Service.
! Never engage non-authorized technicians.

Report:

• the type of anomaly;
• the oven model (Mod.);
• the serial number (S/N).

This information is on the ratings plate on the Microwave Oven.

EN

Indesit Company S.p.A.

Viale Aristide Merloni, 47

60044 Fabriano (AN)
