PB01 - Mobile Device Charger Valore - Free user manual and instructions

Product Type	Mobile Device Charger (Power Bank)
Model	PB01
Brand	Valore
Battery Capacity	10000 mAh (typical)
Input	Micro USB 5V/2A
Output	USB-A 5V/2.1A
Number of USB Ports	2
Dimensions	140 x 70 x 15 mm
Weight	230 g
Material	ABS plastic
LED Indicator	Yes, 4 LED power level
Overcharge Protection	Yes
Short Circuit Protection	Yes
Included Cables	Micro USB cable (30 cm)
Compatible Devices	Smartphones, tablets, GPS, cameras
Charging Time	Approx. 5-6 hours
Standby Time	Over 6 months
Operating Temperature	0°C to 45°C
Storage Temperature	-10°C to 60°C
Certification	CE, RoHS

Frequently Asked Questions - PB01 Valore

How do I charge the Valore PB01 power bank?

Use the included Micro USB cable to connect the power bank to a USB charger (5V/2A). The LED indicators will show the charging status. A full charge takes approximately 5-6 hours.

How many times can the PB01 charge my phone?

With a 10000 mAh capacity, the PB01 can charge a typical smartphone (3000 mAh battery) about 2-3 times, depending on usage and efficiency.

What devices are compatible with the PB01?

The PB01 is compatible with most USB-charged devices, including smartphones, tablets, Bluetooth speakers, GPS units, and cameras. It outputs 5V/2.1A, suitable for standard charging.

How do I know the battery level of the power bank?

Press the power button on the side. A row of four LED lights will indicate the remaining charge: 1 LED = 0-25%, 2 LEDs = 25-50%, 3 LEDs = 50-75%, 4 LEDs = 75-100%.

Can I charge two devices at the same time?

Yes, the PB01 has two USB output ports. When charging two devices simultaneously, the output current is shared, which may slow down charging speed.

Is the PB01 safe to use overnight?

Yes, the PB01 has built-in overcharge, over-discharge, and short circuit protection. It is safe to leave charging overnight, though it's best to disconnect once fully charged.

How do I clean the power bank?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners. Avoid getting moisture into the ports.

What should I do if the power bank stops working?

First, try charging the power bank for at least 30 minutes. If it still doesn't work, press the reset button (if available) or contact Valore support. Do not attempt to disassemble it.

Can I take the PB01 on a plane?

Yes, power banks with a capacity of 10000 mAh (37 Wh) are allowed in carry-on luggage. Check with your airline for specific regulations, as it must be carried in the cabin.

How long does the PB01 hold its charge when not in use?

When fully charged and stored in a cool, dry place, the PB01 retains its charge for up to 6 months. Recharge it every 3 months to maintain battery health.

USER MANUAL PB01 Valore

Thank you for purchasing the Valore 8000mAh Power Bank.

Switch easily between charging your iOS or Android devices. Built-in micro USB cable with detachable 8-pin adaptor means you will always have your charging cable with you.

Important: Please read the user manual thoroughly before using your 8000mAh Power Bank.

Specifications:

• Battery type: Built-in Polymer Lithium-ion
• Battery capacity: 8000mAh
• Input: 5V/2.0A (max)
  • Output: 5V/2.1A (max)
• Charging time: 5 hours (5V/2.0A USB adapter)
• Recharging cycle: 500 times cycle
• Successful transfer rate: >85%
• Operating temperature: 5^ to 45^
• Material: ABS + PC
• Dimensions (H x W x D): 140 x 72 x 10mm
• Weight: 188g

Package Contents:

- 8000mAh Power Bank

UNDERSTANDING THE PRODUCT

① USB charging connector (5V/2.0A)
② Micro USB charging connector (5V/2.1A)
③ Detachable 8-pin charging adaptor (5V/2.1A)
④ LED indicator

START USING THE 8000MAH POWER BANK

1) Charging the power bank (2.0A USB adapter to wall plug)

Connect your power bank to the USB adapter (2.0A) using the built-in charging cable.

When the LED indicator displays 4 blue LED lights, it indicates that the

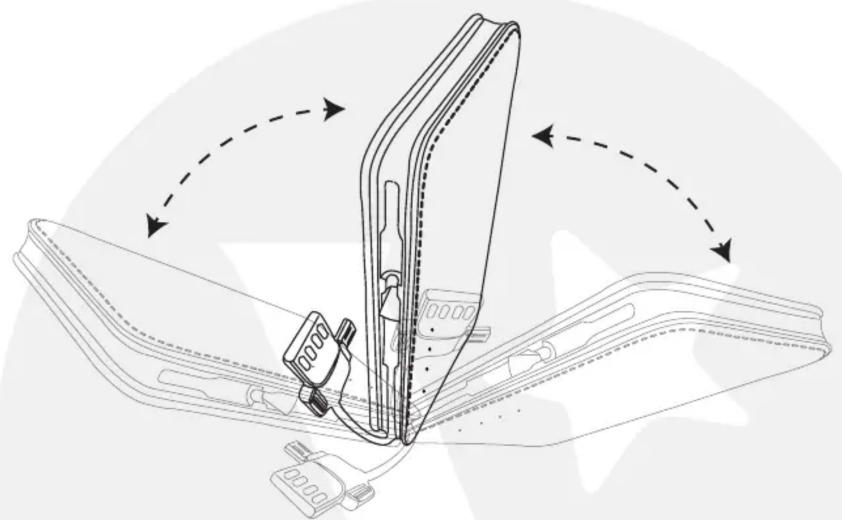

battery is fully charged. Gently shake the power bank forward and backwards 90^ for awhile, and the LED indicators will light up.

Technical line drawing of a mechanical component with directional arrows indicating motion or assembly (no text or symbols)

Power level:

One LED: <25%

Two LED: <50%

Three LED: <75%

Four LED: < 100%

*The above mentioned is for reference only

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries.

Recharge your power bank once every three months when not in use or seldom used.

2) Charging of micro usb devices

Connect your power bank to your mobile device's micro usb port, using the built-in charging cable.

3) Charging of iOS devices

Connect your power bank to your iOS device's charging port, using the built-in charging cable and 8-pin adaptor provided.

Diagram showing a device connected to a smartphone via battery, with no text or symbols present.

*IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAR for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank
