PB12 - Mobile Device Charger Valore - Free user manual and instructions

Product Type	Mobile Device Charger
Brand	Valore
Model	PB12
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	5V DC
Output Current	2.1A
Number of USB Ports	1
Dimensions (L x W x H)	7.0 x 4.0 x 2.0 cm
Weight	50 g
Power Cord Length	1.0 m
Compatible Devices	Smartphones, tablets, and other USB-powered devices
Charging Cable Included	Yes, USB to micro-USB cable
Protection Features	Overcharge, short-circuit, and overheat protection
Housing Material	ABS plastic
Color	White
LED Indicator	Yes, power status light
Usage	Indoor use only
Maintenance	Clean with a dry cloth; do not expose to water
Spare Parts Availability	No replaceable parts; unit is non-serviceable
Certifications	CE, RoHS

Frequently Asked Questions - PB12 Valore

What devices can I charge with the Valore PB12?

The Valore PB12 can charge any device that charges via USB, such as smartphones, tablets, MP3 players, and Bluetooth speakers.

How do I know if the charger is working?

When plugged in, the LED indicator on the charger will light up. If it does not, check the power outlet and connections.

Can I use the PB12 while traveling abroad?

Yes, the charger supports input voltages from 100V to 240V, so it is compatible with most countries. You may need a plug adapter for the outlet.

Is the PB12 safe for overnight charging?

Yes, the charger includes overcharge protection, which stops charging once the battery is full, making it safe for overnight use.

What should I do if the charger gets hot?

The PB12 has overheat protection. If it becomes excessively hot, unplug it and let it cool. Ensure it is used in a well-ventilated area.

Does the charger come with a cable?

Yes, it includes a USB to micro-USB cable. If your device uses a different connector (e.g., USB-C or Lightning), you will need your own cable.

Can I charge multiple devices at once?

No, the PB12 has only one USB port, so it can charge only one device at a time.

How do I clean the charger?

Unplug the charger and wipe it with a dry, soft cloth. Do not use water, liquids, or abrasive cleaners.

What is the output current of the PB12?

The output is 5V DC with a maximum current of 2.1A, suitable for fast charging compatible devices.

Is the charger covered by a warranty?

Valore typically offers a 1-year warranty. Check your purchase receipt or contact Valore support for details.

USER MANUAL PB12 Valore

Thank you for purchasing the Valore 10000mAh Power Bank.

Massive charging power now comes in a slimmer and lighter form! Stretch your device's usage with 10,000mAh of power encased in a beautiful aluminum alloy case. A 3-in-1 cable (micro USB, Type-C and 8-Pin) lets you charge different types of devices conveniently.

Important: Please read the user manual thoroughly before using your Power Bank.

Specifications:

• Battery type: Built-in Polymer Lithium-ion
• Battery capacity: 10000mAh
  • 8-pin input: 5V/1.5A (max)
• Micro USB input: 5V/2.0A (max)
  • Output 1: 5V/1.0A (max)
  • Output 2: 5V/2.0A (max)
• Charging time: 6 hours (5V/2.0A USB adaptor)
• Recharging cycle: 500 times cycle
• Operating temperature: -10^ to 45^
• Material: Aluminum
• Dimensions (H x W x D): 138 x 72 x 12mm
• Weight: 250g

Package Contents:

• 10000mAh Power Bank
- 3-in-1 cable
(Micro USB, Type-C, 8-Pin)
- Soft pouch

UNDERSTANDING THE PRODUCT

① Micro USB charging port
② USB port
③ 8-Pin charging port
④ USB port
⑤ LED indicator
⑥ Power button

START USING THE 7000MAH POWER BANK

1) Charging the power bank

Connect your power bank to the USB adapter (2.0A) using the charging cable provided. When the LED indicator displays 4 blue LED lights, it indicates that the battery is fully charged.

Power level:

One LED: <25%

Two LED: <50%

Three LED: <75%

Four LED: < 100%

*The above mentioned is for reference only

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to maximise the battery performance and prolonging the life of lithium ion batteries. Recharge your power bank once every three months when not in use or seldom used.

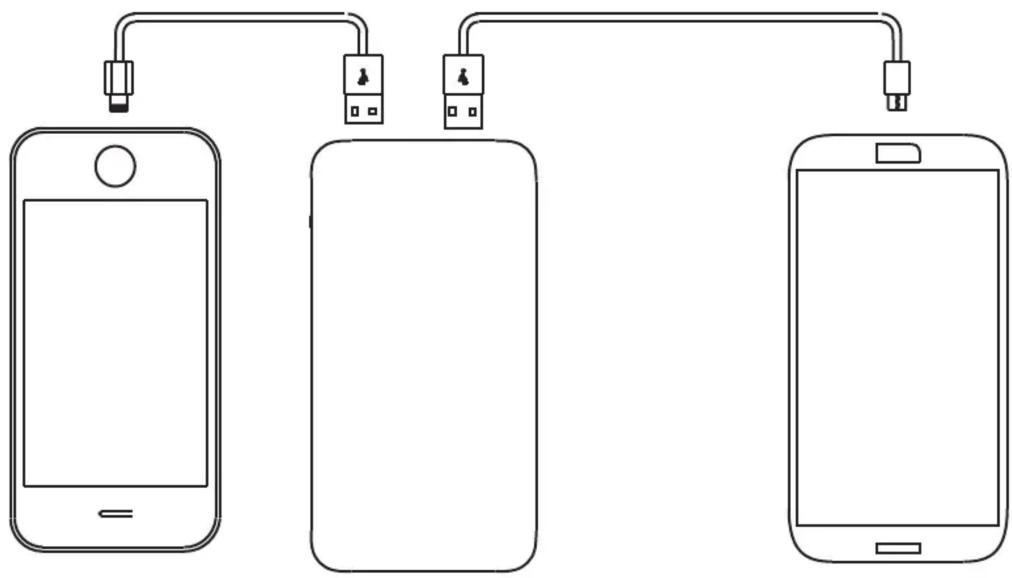

2) Charging of devices

Connect your power bank to your mobile device's charging port using the charging cable provided.

TROUBLESHOOTING

Issue 1:

Power bank is unable to charge your mobile device

Problem 1: Power bank battery is flat

Solution: Fully charge the power bank and resume charging your mobile device.

Issue 2:

Power bank drains off quickly

Problem: Running multiple applications on your mobile device

Solution: Turn off all running applications on the mobile device and leave it to charge till full.

Extra consumption of energy would be due to heat produced during the charging of your mobile device.

Issue 3:

Unable to charge (power indicator is not flashing)

Problem 1: The voltage of the power adapter is too low.

Solution: Use 5V supply with at least 800mAR for charging.

Problem 2: Faulty cable

Solution: Check the cable to ensure that it is well connected or replace damaged cables.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not dismantle or open the power bank
• Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy object on the power bank.
• Do not expose the power bank to water or other liquids
• Do not expose the power bank to hear and/or fire. Avoid storage in direct sunlight.
• Do not attempt to insert foreign objects into the power bank. Do not short-circuit the power bank by storing it haphazardly in receptacle where it may be short-circuited by other metallic or conductive objects.
• Do not use any charger* other than that specifically provided for use with the power bank. Battery usage by children should be supervised.
  *The charger may also be known as the adaptor, and is used to charge the power bank
