HOW TO READ THIS MANUAL

For first-time users Please read the sections on “SETUP" and “SIMPLE” in this manual, as well as the included “QUICK GUIDE” to familiarize yourself with Your camera's operation. To use the various camera features Please read the sections on “NORMAL' and “OPTION SETTINGS" in this manual. To view on a TV, please read the section on “OTHER DEVICES AND CONNECTIONS" in this manual. To connect to a computer, please see the “Xacti Software CD INSTRUCTION : MANUAL. To use additional features To use a computer to edit the recorded data or to save data to a DVD, please read the “Xacti Software CD INSTRUCTION MANUAL". You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS" (page 143) and TROUBLESHOOTING: (page 150). Symbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Relfer to the page indicated for detailed information. English

Install the battery pack and card À insert the battery pack. Battery pack slot Lever @ Press the latch Bottom side 2 insertthe SD Memory Card. + An SD Memory Card is not included with your camera. Please purchase a commercially sold card. +_ in this manual, the SD Memory Card is referred to as the “card”. Card slot English iv

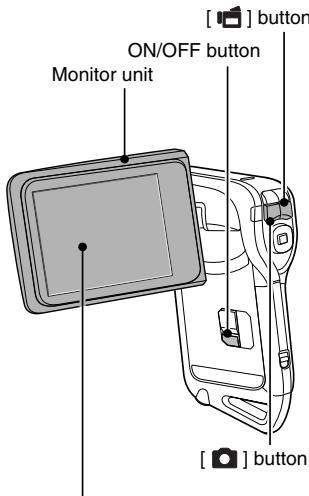

Shooting AVideo clip recording La ] button ON/OFF button Monitor unit À open the monitor unit, and press the ON/OFF button for at least 1 second. + The camera turns on. +_Ifthe screen to set the date and time appears, press the MENU button 2 times to cancel it. For how to set the date and time, see page 32. 2 Record. To record a video clip: Press the [ #%] button to begin recording a video clip. Press the [ #4] button again to endthe recording. To take a phot + Press the [ (ÊN ] button. + A still image is captured. V English

Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go + Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw. Playback À Press the REC/PLAY button. SET button +_ The display changes to the Playback Screen. REC/PLAY button 2 Selectthe image to play back. + Press the [4] or[»] button to move the orange frame to the image you wish to play back. The image information for the framed image is shown at the bottom of the screen. Orange frame English Vi

3 Press the SET button. <Video clip playback> +_ Playback begins. <To return to the recording mode> + Press the REC/PLAY button. When you are finished using the camera... Press the ON/OFF button for at least 1 second to turn the camera off. To continue to the next operation. Please confirm that your computer is connected to the Internet. VIT English

Burn your recorded video clips onto a DVD (Windows Vista) Using the supplied CD-ROM (Xacti Software CD), you can store your captured images on a DVD. Detailed information about the Xacti Software CD can be found on page 4 in the Xacti Software CD INSTRUCTION MANUAL. Install application program À Setthe supplied CD-ROM in your computer's DVD drive. + The installation window opens. 2 Click on [TotalMedia Extreme for SANYO]. + After clicking on the application program, follow the instructions shown on the monitor to install the program. + When the window appears requesting to restart your computer, click the [Finish] button to reboot. 3 Remove the CD-ROM from the computer's DVD drive. <About the Kodak online service> + When the installation window closes, a dialog box to connect to the website introducing Kodak's online service appears. Check the [No thanks !] option button, and then click on the [OK] button.

Copy data from your camera to the computer Connect your camera to a computer, and copy the desired data to the computer. À rum onthe computer, and use the supplied dedicated USB interface cable to connect your camera to the computer. + Connect the cable between the camera's USB/AV terminal and the computers USB connector. 2 Turn on the camera (page 30). + The USB Connection Screen appears on the camera's monitor. SET button Supplied dedicated USB interface cable To USB connector on the computer To USB/AV terminal on the camera HUCANCEL #0Kk iX English

Select “COMPUTER”, and press the SET button. +_ The screen to select the computer connection mode appears. USB:CONRECTION CARD READER MTP SCREEN CAPTURE

PC CAMERA CANCEL [EE] Select “CARD READER”, and press the SET button. Copy data from your camera to a computer. English

Burn video clips onto a DVD (For Windows Vista users) Here's how to write your recorded data onto a DVD in the mpeg? format. For information on other operations, please see the Help file for TotalMedia Extreme. To access the TotalMedia Extreme Help fie, click the [?] Help button on the TotalMedia Extreme start screen. insert a blank DVD in your computers DVD drive. 2 bouble-click the [TotalMedia Extreme] icon on your desktop. + The TotalMedia Extreme application starts, and the startup page appears. [Create video] icon Xi English

3 ciickthe [Create video] icon. +_ The “Create DVD” window appears. [Video] button 4 click the [Video] button in the “Insert” field. +_ The screen to select the video clip file to write to a DVD appears. + Click the file you wish Lo write to a DVD. +_ To select multiple files, keep the [Ctrl] key pressed while selecting files. English Xii

5 ciick on the [Open] button. = The fle(s) selected in step 4 and the DVD file capacity appear in the “Create DVD" window. [Design] tab English

6 ciickthe [Design] tab. +_ The window appears to design the title menu for when the DVD is played back. + Select the desired design. {Preview/Produce] tab English Xiv

7 Ciickthe [Preview/Produce] tab. + A warning regarding the image qualit of the preview image appears. 8 ciickthe [OK] button. + The screen to begin burning to disk appears. [Burn] button 9 bouble-click the [Burn] button. + The “save project’ confirmation window appears. XV English

10 ciickthe [Yes] button. + Enter a name for the project fie 11 ciick the [Save] button. +_ The “Burn disk” window appears. [OK] button : 12 ciick the [OK] button. + Burning begins. + Depending on your computers capacity, it may take some time to burn a large file. + When burning is completed, the DVD is ejected from ihe DVD drive. English XVi

13 ciickthe [OK] button. 14 ciick the p«] button to close the “Create DVD" window. + The TotalMedia Extreme top page appears. 15 ciick the [x] button to close the startup page. + TotaMedia Extreme is exited. XVIÏ English

CAUTION Does the window requesting confirmation to enable the MPEG-2 Codec appear? When using TotalMedia Extreme for the first time, a window requesting you to confirm activation of the MPEG-2 Codec appears during the procedure. The MPEG-2 Codec must be activated in order to burn files to a DVD. Complete the following procedure to activate the MPEG-2 Codec. + Note that your computer must be connected to the Internet in order to complete this procedure. Please contirm that your computer is connected to the Internet. @ When the window requesting confirmation to activate the MPEG-2 Codec appears, click the [Yes] button. + The ArcSoft website appears. @ Click on [Special downloads]. + The window appears for you to enter your email address, name, license ID, etc. + Enter the correct information. @ Click the [Submit] button. + Soon thereafter, the URL for the download to activate the MPEG-2 Codec will be sent to the email address you entered in step ©. @ Click the download URL link. + The program will be downloaded to your computer. © Double-click the icon for the downloaded program. + Follow the instructions to activate the MPEG-2 Codec. + DVD burning via the TotalMedia Extreme program is now enabled. + When the procedure above has been completed, continue to the procedure to burn to DVD. United States/Canada Tel: +1-510-979-5599 Web: http://mww.arcsoft.com/support/ E-mail Support: htip://wwwarcsoft.com/public/ content_page.asp?pagelD=83 Hours: M-F from 9:00am - 5:00pm {Pacific Standard Time, excluding holidays observed by ArcSoft) Language: English

Europe Tel: +353 (0) 61-702087 Web: http:/Mww.arcsoft.com/en/support Email Support: eurosupport @ arcsoft.com Hours: M-Th from 8:30am - 5:30pm GMT {excluding holidays observed by ArcSofts Affiliate) F from 8:30am - 5:00pm GMT {excluding holidays observed by ArcSofts Affiitate) (Adjusted for daylight savings time when applicable) Language: English, French, ltalian, German, Spanish and Dutch China Tel: +86 (0) 571-88210575 Web: http:/www.arcsoft.com.cn/support E-Mail Support: support @ arcsoft.com.en Hours: M-F 8:30am-5:30pm (Beijing local time) (excluding holidays observed by ArcSoft) Language: Chinese XiX English

How was that? The convenient accessories not only let you immediately view images captured with the camera, but you can also upload images to your computer and create your original DVDs. Read the following explanations to find out how you can fully enjoy your camera's digital video feature. English XX

Concerning your camera's waterproof feature This camera complies with JIS IPX8 (formerly JIS protection grade 8) waterproof standard and can be used in water. Note, however, that failing to heed the following precautions may result in damage or injury that is not covered by the warranty. Please take the time to carefully read and heed the following cautions. NOTE B Before using the camera + When closing the battery/card compartment cover, make sure that no foreign object such as sand, hair, dust, etc. is caught in the seal. + Make sure that the battery/card compartment cover is completely and securely closed to prevent water from getting inside the camera and damaging it. + Please note that the camera accessories are not waterproof. H Cautions concerning use in water + The waterproof properties of the camera apply to fresh water and saltwater only: they do not apply to cleaning substances, chemicals or water from spas, etc. In case of a splash, immediately wipe off any moisture. + Do not immerse in water at a depth greater than 1.5 m (4921). + Do not Subject the camera to high-pressure water. + Do not immerse in water for longer than 60 minutes. (©) After 60 minutes of use in water, allow it to dry for at Zi least 10 minutes. Æ + Do not immerse in water that is warmer than 40 °C e & Bone | + Do not open and close the battery/card compartment cover when the camera is wet or while it is immersed in water. + Do not open and close the battery/card compariment cover with wet hands. + Do not open the battery/card compartiment cover on the beach or at the poolside. + Do not joit the camera while it is immersed in water. Doing so may cause the battery/card compartiment cover to open. XXI English

NOTE & Storing and maintaining your camera + Do not leave the camera unwashed after it has been immersed in salt water or if salt water is adhering to it. Doing so may cause corrosion and discoloration of l to the plating, as well as deterioration of the camera's RE waterproof capability. After the camera has been used in water, use fresh water to wash it. Never use soap or detergent to clean the camera, as doing so will cause deterioration of the camera's waterproof capability. After washing the camera, take care to completely drain it, and use a dry cloth to wipe off any drops of water adhering to it (page 67). Do not leave the camera in an environment colder than 0 °C (32°F) or warmer than 40 °C (104°F), as doing so may cause deterioration of the camera's waterproof capabiliy. Waterproof seals are used in this camera. It is recommended that the waterproof seals be replaced every year with new ones. For replacing the seals, please consult your dealer.

• Please note that there is a fee for replacing the waterproof seal. M Other cautions + Do not subject the camera to severe jolis, as doing so may deform the battery/card compartment cover or camera body, thus compromising its waterproof capability. If the camera has been subjected to a strong jolt, please consult with your dealer. HINT What is “JIS IPX8” (formerly “JIS protection grade 8")? + “JIS IPX8" specifies that a device is protected against the effects of continuous immersion in water. English XXii

CONTENTS QUICK SEARCH BY OPERATION ..

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories … Media cards that can be used with this camera . What “card” means in this manual SPECIAL FEATURES Waterproof capability Movable monitor for any shooting angle … Capture st shots while recording a video clip … Lots of accessories for optimal use of Your captured images . SYSTEM MAP nm SETUP PARTS NAMES .

CHARGING THE BATTERY PACK

Recharging the battery pack …. .

INSTALLING THE BATTERY PACK AND CARD

Instal the battery pack .. Installing the DC adaptor (sol Separate Install the card . About the temperature alert icon [ZA] .

TURNING THE CAMERA ON AND OFF

Turning on the camera . Tuming on the camera when the power save is leep) function is active . nn Tuming off the camera .

Suitching between the SIMPLE and NORMAL modes Accessing/exiting the SIMPLE/NORMAL Mode Menu Screen Overview of the SIMPLE Mode Setting Screen Overview of the NORMAL Mode Setting Screen . 1 English

E SIMPLE SHOOTING BEFORE TAKING PICTURES . For best results Using the autotocus . Select the recording size Select the focus setting Hints for taking pictures

DISPLAY THE OPTION SETTING MENU ……

INTRODUCTION TO THE OPTION SETTING M

Setting up the Shortcuts TV output setting . File No. continued setting Formatting (initializing) CHECKING THE REMAINING CARD MEMORY . Checking the remaining number of images and video recording time For audio recordings

CHECKING THE REMAINING BATTERY PACK CHARGE

# OTHER DEVICES AND CONNECTIONS

CONNECTING TO A TV. Connecting to a standard Video input terminal. Connect to the 480p/720p terminal

PLAYING BACK ON A TV

CONNECTING TO A PRINTER

PRINTING Print preparations English 4

Notes regarding the Scene Select feature and filters SPECIFICATIONS . ns Camera Camera connectors . Battery lite Possible No. of Images/Possible Shooting Time/ Possible Recording Time Conceming the mult-indicator Supplied battery pack charger Supplied Li-ion battery pack Others .. en . Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go … HINTS FOR TAKING PICTURES .

Your camera has an abundance of convenient features and functions. From creating precisely the photo you want, to viewing images using various techniques, you can locate the exact operation for your purposes in the following table. Basic operation MConvenient functions: Getting started Log the date and time | For more accurate shooting/recording | of your photos focus + “VIDEO CLIP + “DATE AND TIME + “How to use the manual RECORDING- on SETTING" on page 32 | _ focus” (manual focus) on page 59 Zoom in on the page 87 + “SHOOTING SINGLE | subject Set the focus to a SHOTS" on page 60 | + ‘MACRO- narrow range + “Sequential shots” on PHOTOGRAPHY + “Focus mode setting" on page 83 {Z0OM) on page 66 page 88 + “Audio recording" on | Close-up Reduce noise when page 80 photography recording + “Focus range” (super | + “NOISE REDUCTION macro mode) on setting” on page 120 ages 42 and 48 + “Select the focus setting” {super macro mode) on page 57 Optimize the photo | Setthe camera's color/contrast quality characteristics + “Select the recording | + “mage quality setting” on page 120 size” on pages 42 and + “Video seting' on pages 46 and 80 + “Still image setting” on pages 46 and 83 Capture fast-moving subjects + “Scene select” (sports mode) on page 46 Suppress camera shake effect + “Video stabilzer setting” on pages 48 and 86 English 6

Shooting/recording Convenient functions Basic operation Shoot in dark conditions + “Exposure compensation” on page 94 + “Using the flash on pages 42, 46 and 62 Scene select seting (night view portrait mode/ireworks modelamp mode) on pages 46 end84 Increase the camera's sensitivity 1S0 sensitiity seting” on pages 48 and 89 + “High sensitity mode seting' on pages 50 and 93 Photographing people + “Scene select setting” (portrait mode/night view portrait mode) on pages 46 and 84 _-Filer seting" (cosmetc filer) on pages 46 and 84 Sharp face shots ‘Face chaser setting" on pages 50 and 22 Simplified operation for shooting/playback + “SWITCHING BETWEEN THE RECORDING MODE AND PLAYBACK MODE” on page 35 Photographing landscapes +_ “Scene selecl (landscape mode) on page 46 Take a self-photo + “Seltimer setting” on pages 46 and 85 Make images lighter | Measure the or darker brightness of a + “Exposure compensation” | specific area on page 94 + “Lightmeasurng mode + “High sensiiity mode seling” on pages 48 and seting' pages S0and93 | 88 Adjust the camera's sensitivity + *1S0 sensitviy seting" pages 48 and 89 For a more precise exposure setting + “Exposure setting {manual exposure control) on pages 50 and 91 Change the color of | Make white appear the images natural + “Fier setting" + “White balance seing” on {monochrome fiter/sepia | pages 50 and 90 fiter) on pages 46 and 84 7 English

Basic operation JConvenientfunctions. Getting started Adjustthe speaker | Change the angle of viewing images volume view + “PLAYING BACK VIDEO | + “PLAYBACK VOLUME" | + “Rotate”on pages 51 and GLIPS AND STILL pages 44 and 73 99 IMAGES onpage 69 | Search forimage/ | Reduce the photo audio files size + “Mutisimage display” on | + “Resize” on pages 51 page 77 and 99 + “Selecting the playback folder on pages 52 and

Magnify an image + “Magnifing (200ming in) the image” on page 79 + “Audio playpacke on Adjust the speaker volume page 82 + “PLAYBACK VOLUME" on pages 44 and 73 Continuous playback

• “SLIDESHOW PLAYBACK" on pages 44, 72 and 96 Adjust the monitor brightness + “BRIGHTNESS seing” on page 120 Playback on a TV

+ “PLAYING BACK ON AT

Set the TV system “TV output setting" on pages 120 and 125 on page 139 English 8

File managing/processing Basic operation | Convenient functions Search for image/audio files + “Muïtrimage display” on page 77 + “Selecting he playback folder” on pages 52 and 78 Delete files Protect files from accidental erasure + “DELETING FILES" on | + “File protect setting” on pages 51 and 97 pages 44 and 74 Format a card _“Formatting (initilizing)” on pages 122 and 131 Delete a part of a video clip and join video clips +_ “Editing video clips” on pages 52 and 101 Specify the number of prints, index print, and date imprint + “Printing instructions” on pages 52 and 112 View the settings that were in effect when the image/audio files were recorded +_ “FILE INFO DISPLAY” on page 115 9 English

Using with a computer Basic operation JConvenientfunctions Use the camera as a card reader + “SETTING THE CONNECTION MODE” on page 9 in the Xacti Software CD INSTRUCTION MANUAL. + “USING AS A CARD READER' on page 11 in the Xacti Software CD INSTRUCTION MANUAL Use your computer to organize/edit files that were recorded with your camera +_‘The software" on page 4 in the Xacti Software CD INSTRUCTION MANUAL Copy data from your | Using with Windows Vista camera to a computer | + “SETTING THE CONNECTION MODE” on page 9 in + "Copy data from your the Xacti Software CD INSTRUCTION MANUAL camera to the computer" on page x “Operating environment" on page 6 in the Xacti Software CD INSTRUCTION MANUAL “SETTING THE CONNECTION MODE" on page 9 in the Xacti Software CD INSTRUCTION MANUAL Playback + “About video clip files recorded with this camera” on page 8 in the Xacti Software CD INSTRUCTION MANUAL Using as a webcam + “USING AS A PC CAMERA" on page 14 in the Xacti Software CD INSTRUCTION MANUAL Record an image of the computer screen INSTALLING THE APPLICATION SOFTWARE" on page 15 in the Xacti Software CD INSTRUCTION MANUAL +_ "SCREEN CAPTURE on page 16 in the Xacti Software CD INSTRUCTION MANUAL English 10

CHECKING THE INCLUDED

{safety precautions booklet) Please read this booklet carefully before using the camera. English 12

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories M Handstrap 13 Engish

CHECKING THE INCLUDED ACCESSORIES

Media cards that can be used with this camera The types of card that can be inserted into and used with this camera are: + SD Memory Card + SDHC Memory Card What “card” means in this manual + In this manual, SD Memory Cards and SDHC Memory Cards that can be used in this digital camera are referred to as “card”. 15 English

SPECIAL FEATURES Your dual camera can not only record video clips, you can also take still photos and make audio recordings. For example, you can snap a still image while recording a video clip, or make just an audio recording. Waterproof capability The camera is equipped to safely be used in water at a temperature of less than 40 °C (104°F), at a depth of less than 1.5 m (59 in.), for up to approximately 60 minutes. You can enjoy taking pictures at the beach or by the pool. English 16

SPECIAL FEATURES Movable monitor for any shooting angle The movable monitor lets you shoot from any angle. Hold the camera high to get a great view of a parade, or swivel the monitor around to snap a photo of yourself. I you sivel he | monitor unit lo its | | farthest position, the image on ihe monitor will be inverted. 17 English

Capture still shots while recording a video clip (page 64) Suppose that while you're recording a video clip, there's a scene you'd like to keep as a still photo. Your camera makes it possible to record the still photo without interrupting the video clip recording. gs = English 18

SPECIAL FEATURES Lots of accessories for optimal use of your captured images (page 20) Use the accessory cables to view images on a TV or computer. Or connect the camera directly to a printer to make prints of your photos. And with the software in the supplied CD-ROM (Xacti Software CD), you can create your original DVDs and CDs. 19 English

SYSTEM MAP You can connect the camera to various devices to expand its capabilties. Internet L 14 Computer Dedicated USB interface cable Printer Dedicated AV interface cable L_ L_ oc adaptor AC adaptor (Opional) (Optional) Card reader DPOF-compatible Commercially available printer SD Memory Card + Photo shop English 20

ON/OFF button Strap holder There are places in the camera where water might accumulate, but this will not affect its waterproof properties. Concerning the drainage holes, see page 67. 21 English

Ÿ [T/O.] button SET button Monitor + When the camera is set to the HD mode, black bars appear along the top and bottom borders of the monitor, and the screen display changes to the 16:9 aspect ratio. In the Instruction Manual, however, these black bars are not shown in the Tipod stand hole illustration of the screen. compartment cover English 22

Please charge the supplied battery pack before using it. À insert the battery pack inthe CHARGE indicator battery charger. + Insert it in the direction [AI mark indicated by the [A] mark Battery pack: on the battery pack. Socket 4 2 Connect the supplied power To power outlet k cord to the socket on the battery pack charger. +_ Insert the connector straight and securely. Power cord + 3 Plug the power plug into a power outlet (AC 100 V to CHARGE indicator 240 V). S + Charging begins. + During charging, the CHARGE indicator is lit red. +_The charging time is approx: 90 minutes. + 4 When the CHARGE indicator turns off, unplug the power cord from the power outlet, and remove the battery pack from the charger. 23 English

Recharging the battery pack Be sure to fully charge the supplied or separately sold battery pack before using it in your camera. For charging the battery pack, use the supplied charger. Charge the battery pack if it is being used for the first time, and recharge it whenever the remaining charge is low (see “CHECKING THE REMAINING BATTERY PACK CHARGE" on page 134). I there is interference to your TV or radio during recharging... + Move the battery pack and charger further away from the TV or radio. Ambient temperature during recharging + During recharging, the charger and battery pack will be warm. This is normal and does not indicate a malfunction. + Itis recommended that the ambient temperature during recharging be between about 0 °C and 40 °C (32°F and 104°F). Due to the characteristics of the battery pack, at temperatures below 0 °C (32°F), it may not be possible to sufficiently recharge it. + When the battery pack temperature is high, it may take longer to recharge it. Recharge a battery pack in the following cases + A battery pack which has not been used for a long time + Newly purchased battery pack English 24

AND CARD Make sure that the battery pack and the card orientation are correct. Install the battery pack À openthe battery/card compartment Lever cover. + While gentiy pressing the lever, open the battery/card compartment cover.

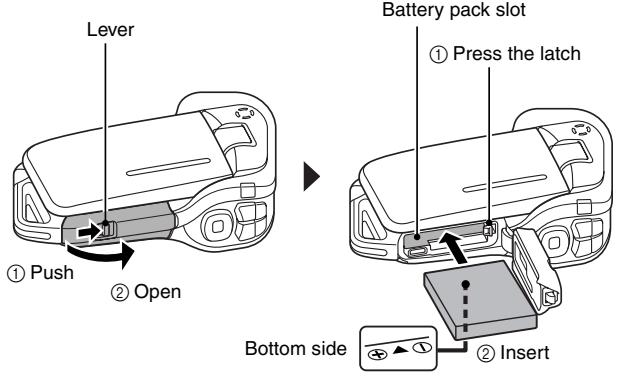

2. insert the battery pack. Battery pack slot

+ Press the latch, insert the battery pack, and firmly push it all the way in. Bottom side @ Insert 25 English

<To remove the battery pack...> @ Press the latch + Press the latch securing the battery pack, and remove the battery pack. 3 ciosethe battery/cardcompartment Press the PUSH LOCK part cover. to securely close the cover. + Press the PUSH LOCK part to close the cover securely. + Atthe time of purchase the battery pack is not charged. Be sure to fully charge the battery pack (page 23). Installing the DC adaptor (sold separately: VAR-A2U/A2EX) @ insert @ Connect the AC adaptor To power outlet English 26

CAUTION Close the battery/card compartment cover securely + Ifthe battery/card compartment cover is not closed or is not closed completely, the camera will no longer be waterproof. When closing the battery/card compartment cover, make sure that no foreign object such as sand, hair, dust, etc. is caught in the seal. Do not charge the battery pack immediately after the camera has been in continuous use for a long time + The battery pack becomes hot when the camera is used continuously for a long time. if you attempt to charge the battery pack in this state, the charge indicator may flash red and it may not be possible to charge the battery pack. Wait until the battery pack has cooled down before attempting to charge it. Does the battery pack appear swollen? + The lithium-ion battery used in this camera may expand slightly when stored in a hot environment or repeatedlÿ used, but this is not a safety hazard. HINT About the internal backup battery + This camera's internal battery serves to maintain the date and time settings, as well as the shooïng settings. The backup battery will be fully charged when the battery pack is kept in the camera continuously for about 2 days. In the fully charged state, the backup battery will maintain the camera settings for about 7 days. When not using the camera for a long time, remove the battery pack + À small amount of power is still used even if the camera is tumed of, and it is therefore recommended that the battery pack be removed from the camera i it is not going to be used for a long time. Note that when the battery pack is removed for a long period, the time and date settings may be cleared. Before using your camera again, be sure to confirm that the camera settings are correct. To prolong the life of the battery pack + Although the battery pack is an expendable item, you can maximize the life of the battery by heeding the following suggestions. + Do not leave the battery under the hot summer sun or exposed to other high-temperature environments. + Do not continually recharge the battery when it is already fully charged. After fully charging it once, for example, use it for a while to partially discharge it belore recharging it again. + When the battery is not to be used for a long time, if possible store the partially charged (not fully charged) battery in a cool environment. 27 English

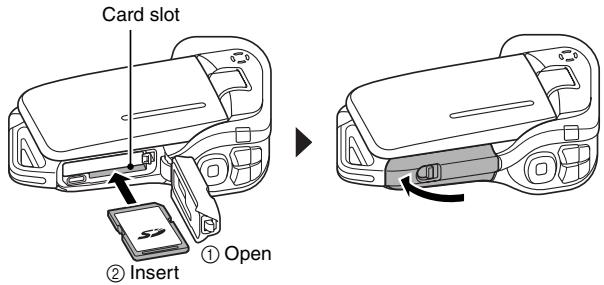

Install the card The card can be used after it has been formatted with the camera (page 131). À open the batteryicard compartment cover. Card slot 2 insertthe card. + Firmly insert the card until it clicks into place. @ Insert 3 close the battery/card compartment cover. <When removing the card.…> @ Open + To remove the card, press it down, and then release. The © Pur card will protrude slightly, and you can then pull it out. English 28

CAUTION Do not attempt to forcibly remove the card + Never remove the card when the mult-indicator is flashing red. In doing so, you risk losing the data stored in the card. HINT Shooting without a card installed + When a card is installed, images are recorded to and played back from the card. When no card is installed, images are recorded to and played back from the cameras internal memory. When the camera is turned on with no card installed, the internal memory icon fs is shown on the monitor to let you know that the images you capture will be saved to the camera's internal memory. About the temperature alert icon During camera use, if the temperature of the battery or inside the camera {excluding the battery) rises, a temperature alert icon [ZA] will appear as described below. M When the battery or internal camera (excluding battery) temperature es during use During camera use, if the temperature of the battery or inside the camera (excluding the battery) rises, a [ZA] icon lights e monitor. It is still possible to record and play back even when th icon is lit; however it is advised that you discontinue use as soon as possible and turn the camera of. If the temperature rises further, the camera will turn off automatically. The camera cannot be turned on until the temperature has dropped (or as long as the [ZA] icon remains flashing). Please wait until the temperature has dropped before resuming use. During video recording, a countdown indicator will show the time Starting about 15 seconds before shutdown. When the indicator shows 0 seconds, recording stops. + Ifthe camera is turned off while the temperature is high (that is, while icon is flashing), it cannot be turned on again until the temperature has dropped (or as long as the [/A] icon remains flashing). icon will start to flash, and the 29 English

Turning on the camera À open the monitor unit, and press the Monitor unit ON/OFF button for at least 1 second. If you press the REC/PLAY button for at least 1 second, the camera turns on in the playback mode. If you press the ON/OFF button once, the camera will switch to the power save mode. ON/OFF button Turning on the camera when the power save (sleep) function is active In order to preserve battery pack power, the power save (sleep) function will automatically turn off the camera after about 1 minute of no use during Shooting, or about 5 minutes of no use during playback (factory-preset setting). + When the power save function is active, you can restore the power by any of the following methods: - Press the ON/OFF button. + Press the [ © ] or [' ] button. + Open the monitor unit. - Press the SET button. + The camera will switch to the standby mode after the power save function has been active for about 1 hour, or when you close the monitor unit. + The power save mode will not be activated while you are recording. + The user can specify the time elapsed before the power save function is activated (page 122). + When the camera is connected to a computer or printer using the dedicated USB interface cable, the power save function is disabled, and the camera turns off after about 12 hours. English 30

Turning off the camera À Press the ONOFF button for at least 1 second. +_The camera turns off. +_ To turn off the camera while it is in the recording mode or power save mode, press the ON/OFF button for at least 1 Second. HINT To immediately activate the power save function + Press the ON/OFF button briefly to activate the power save function. About the standby mode + To turn off the camera only briefly, you can close the monitor unit to put the camera in the standby mode. The standby mode uses almost no power. When the monitor unit is opened again, the camera turns on immediately and you are ready to shoot or view images without any delay. CAUTION If the (©7] icon appears. + When a picture is taken, the date and time it was captured are recorded with it. Ifthe date and time settings have not been completed (page 32), the date and time cannot be recorded with the captured images. For this reason, immediately after the camera is turned on, the “Set date and time” screen appears. To have the date and time recorded with the images, please complete this setting before capturing images. 31 English

The camera will record the date and time an image or audio recording is. taken so that you can display them during playback. Therefore, before capturing images, make sure the correct date and time are set.

• To correct the date and time setting, please see under HINT on page 34. Example: To set the clock to 7:30 p.m. on December 24, 2009 À rurn on the camera (page 30), and press the SET button. SET button +_ The Clock Set Screen appears. + Follow the procedures below to MENU button enable or disable the date display during playback, to set the display format for he date, and to set the date and time. + To display the Recording or Playback Screen, press the MENU button 2 times. English 32

2 setthe date. @ Select “DATE”. © Press the SET button. +_ The Set Date Screen appears. @ Set the date to “2009/12/24”. + The date is set in the following order: Set the year — Set the month —> Set the day. Press the [<] or [æ] button to select year, month or day. Press the [T/O.] or [W/ÆS] button to increase or decrease the number. @ Press the SET button. icLock ser 3 setthe clock. @ Select “TIME”. © Press the SET button. +_ The Set Time Screen Pers. © Set the time to “19:30”. + The time is set in the following order: Set the hour — Set the minute. + A 24-hour clock is used for the time display. @ Press the SET button. 33 English [OjcLock ser TUE [4 0 | [EE] ok

4 Setthe order in which the date is displayed during playback. [Okuocx ser @ Select “DISP”. © Press the SET button. +_ The Set Date Format Screen appears. | DSP | © Press the [T/CS] or (W/ES] button. [EE] ok + Press the [T/On.] button to change the displayed date order as follows: LCYMIDD MONDE — Press the [W/Æ#] button to change it in the reverse order. @ Press the SET button. 5 Press the MENU button. +_ The date and time setting is completed. + To display the Recording or Playback Screen, press the MENU button. HINT About the settings backup + Under normal conditions, while the battery pack is being replaced, an internal battery will maintain the date and time settings. However, there is a small chance the settings may be lost (the backup wil last for about 7 days). Itis recommended to check that the date and time settings are still correct after replacing the battery pack and before shooting or recording of any type (follow step 1). To correct the date and time settings @ Tum on the camera. @ Display the Option Menu [ %e 1] (page 116). @ Select “CLOCK SET” and press the SET button. +_ The screen to set the date and time appears. +_ The current date and time settings are shown. @ Select the line you wish to change, and make the correction. English 34

Switch between the recording mode (for shooting) and the playback mode (for viewing your recorded images). À turn on the camera (page 30). 2 Press the RECIPLAY button. + The mode changes. +_ The mode changes each time the REC/PLAY button is pressed. REC/PLAY button <Example o of tre recording ue TT Le

The “SIMPLE mode” comprises only those functions that are most often used and necessary to operate the camera, while the “NORMAL mode" enables full use of all the camera's many functions. Select the mode that is suitable for your purposes. Switching between the SIMPLE and NORMAL modes À rum on the camera (page 30). +_ The previous mode is active. 2 Press the MENU button. + The Menu Screen for the active mode appears. 3 Select the operating mode icon, and press the SET button. + Switch from the SIMPLE mode to the NORMAL mode, or from @ the NORMAL mode to the ri SIMPLE mode. EN suitch to detales + Press the MENU button to normal menu cancel the Menu Screen. HHEXT Operating mode icon <SIMPLE Mode Menu Screen> Press SET button toswitchto Simple Menu Operating mode icon <NORMAL Mode Menu Screen> English 36

Using the SIMPLE Mode Menu 4 Press the [1/0] or [W/ÆB] button to select the item you wish to change, and press the SET button. + The Setting Screen for the selected item appears. Select an item to change Description of (ed item Select video d photo sie EXT &0k C3 To keepin HDTV size

<Setting Screen> English 38

Using the NORMAL Mode Menu 4 Press the [T/O..] or [W/Æ8] button to select a tab. +_ The Menu Screen for the selected tab appears. EUMUEXT +40K

6 press the [T/0<] or [W/ÆS] button to select the item you wish to change, and press the SET button. + The Setting Screen for the selected item appears. + To return to the Menu Screen, press the MENU button. Select an item to change ASELE-TINER JEUEXiT ok Appicable mode D on & DE) <Setting Screen> HINT About the applicable mode indicator + This indicator shows the shooting mode(s) for which the selected setting is effective. Qi: This setting is effective during still image shooting. w : This setting is effective during video clip recording. : This setting is effective during still image shooting and video clip recording. English 40

@ Recording size (page 56) + Select the video clip size to record, and the still image size to shoot. : The video clip size will #0) be 1280 x 720 pixels, and the still image size will be 3456 » 2592 pixels. : The video clip size will be 640 » 480 pixels, and the still image size will be 1600 » 1200 pixels. @ Focus range (page 57) + Select the focus range that corresponds to the distance to the subject (4): The camera automatically focuses on the subject within a range of 50 cm (19.69 in.) to infinity (normal). The camera focuses on a subject within a range of 1 cm (0.39 in.) to 80 cm (81.50 in.) (super macro). @ Flash (page 62) + Specify how the flash will operate. GŒA): The camera detects the subject brighiness and uses the flash only when necessary. (}: The flash operates with every image captured regardiess of the conditions. CA): The flash does not operate even in dark situations. @ EN (page 36) + Set to the NORMAL mode. © Remaining battery power indication (page 134) English 42

© Slideshow (page 72) © Delete (page 74) + Specity the slideshow settings + Delete files. and play the slideshow. @ SN (page 36) @ Playback volume (page 73) + Set to the NORMAL mode. + Adjust the volume for video © Remaining battery power clip and audio file playback. indication (page 134) English 44

© Video clip settings (page 80) <HD mode> Record at 1280 » 720 pixels, 30 fps (30p). ‘SD mode> Record at 640 x 480 pixels, 60 fps (60p) Record at 640 x 480 pixels, 30 fps (30p) LE: Make an audio recording. © Still image settings (page 83) Image size is 4000 » 3000 pixels. Image size is 3456 « 2592 pixels (low compression). Image size is 3456 « 2592 pixels (normal compression). Eï: Image size is 3456 x 1944 pixels (16:9 aspect ratio). La]: Image size is 1600 x 1200 pixels. I: Image size is 1280 x 720 pixels (16:9 aspect ratio). Hi: Image size is 640 x 480 pixels. 3456 « 2592-pixel sequential shots. E): 1600 x 1200-pixol sequential shots. @ Scene select (page 84) Full auto setting Sports mode Portrait mode Landscape mode Night view portrait mode Snow & beach mode Underwater mode Fireworks mode Lamp mode @ Filter (page 84) No filter Cosmetic filter [©]: Monochrome filter C1: Sepia filter © Flash [A]: The camera will detect the subject brighiness and use the flash only when necessary. [#1]: The flash will operate with every image captured regardiess of the conditions. TF1: The flash will not operate even in dark situations. imer (page 85) Selt-timer is off. Shooting begins 2 seconds after the [ ÉD Lor [4] button is pressed. Shooting begins 10 seconds after the [ C3] or [ ap ] button is pressed. @ Remaining battery power (page 134) [es [Eu © Set English 46

@ Video stabilizer (page 86) + Compensate for camera shake during video clip recording. [: Record with image stabilzer on. Record without image stabilizer. @ Focus range (page 87) + Select the focus range that corresponds to the distance to the subject (Œ: The camera automatically focuses on the subject within a range of 50 cm (19.69 in.) to infinity (normal). [NF]: Set the focus distance manually (manual). The camera focuses on the subject within a range of 1 cm (0.39 in.) to 80 cm (81.50 in.) (super macro). @ Focus mode (page 88) 9-point range finder focus ar: Spot focus @ Light-measuring mode (page 88) Multi-section light measuring Center-weighted light measuring Spot light-measuring co! ISO sensitivity (page 89) Sensitivity is set automatically Sets sensitivity to ISO 50 Sets sensitivity to ISO 100 Sets sensitivity to ISO 200 Sets sensitivity to ISO 400 Sets sensitivity to ISO 800 Sets sensitivity to ISO 1600

• The indicated ISO value is the standard output sensitivity. © Remaining battery power (page 134) English 48

@ White balance (page 90) @ High sensitivity mode White balance is (page 93) automatically adjusted [HS]: increased sensitivity depending on the ambient Normal sensitivity lighting (auto). © Digital zoom For one a DH: Enable the digital zoom. For shooting in overcast Disable the digital zoom. conditions (cloudy) © Remaining battery power For shooting under indication (page 134) fluorescent lighting (luorescent) EÆ]: For shooting under incandescent lighting incandescent) [Æ]: For setting the most accurate white balance {one push) @ Exposure (page 91) CP]: The exposure is set automatically. CS]: Set the shutter speed manuallÿ. [A]: Set the aperture manually. Set the aperture and shutter speed manually. @ Face chaser (page 92) [#]: Enable face chaser. Disable face chaser. English 50

NORMAL Mode Playback Menu <Tab 1> PLAYBACK MENU1 58 SLIDESHOW di PLAY VOLUME 9 PROTECT © Slideshow (page 96) + Specily the slideshow settings and play the slideshow. @ Playback volume (page 73) +_Adjust the volume for video clip and audio files playback. @ Protect (page 97) + File protect setting (delete prohibited) 51 English @ Delete (page 74) + Delete files. © Rotate (page 99) + Rotate a still image. © Resize (page 99) + Reduce the resolution of a still image @ Remaining battery power (page 134)

Ê SELECT FOLDER [HTIEXIN @ Edit photo (page 100) + Repair the “red-eye" caused by the flash, reduce the blur from camera shake, or ‘enhance the contrast (still images only). @ Video clip edit (page 101) + Edit video clips. © Printing instructions (page 112) + Specify the printing instructions (DPOF settings). Sok LA @ Select folder (page 78) + Select a folder to play back. © Copy + Copy files from the card to the internal memory, or vice versa. © Remaining battery power indication (page 134) English 52

For best results Hold the camera securely, keeping your elbows close to your body and making sure the camera is stable. Correct hold Incorrect hold ee æ

<Holding the camera> A finger is blocking the lens or flash. Example 1: CR 7) Grip the camera by wrapping ÿ the fingers of the right hand, from the little finger to the middle finger, around the camera, and hook the index finger above the lens. CR Example 2: Grip the camera by wrapping the fingers of the right hand, from the little finger to the index { finger, around the camera. Make sure that the lens and flash are not blocked by your fingers or the handstrap. 53 English

Using the autofocus The autofocus will work in almost all situations; however, there are certain conditions that may cause the autofocus function to not work properly. f the autofocus function is not working properly, set the focus range to capture images (page 57). M Conditions that may cause incorrect focus The following examples are some of the situations where the autofocus function may not work. + Subjects with low contrast, very bright subjects at the center of the image or dark subjects or locations Use the focus-lock function to lock the focus on an object with contrast at the same distance as the desired subject. Subjects without vertical lines Use the focus-lock function to lock the focus while framing the subject vertically, then re-orient the camera to compose a horizontally framed image. H ONILOOHS/31dWIS English 54

The following examples are some of the situations where the autofocus function may work, but not as desired. + When both near and far objects are present Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture. + Fast-moving subjects Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture. HINT. + Still images can be rotated when they are played back (page 99). + When the [ 1 ] button is pressed halfway, the image in {he monitor may waver vertically. This is the result of internal image processing and is not a malfunction. This wavering is not recorded and will not affect your images in any way. + When the optical zoom is used or when the autofocus is operating, the image may appear to waver, but this is not a malfunction. 55 English

Select the recording size The larger the image size (number of pixels), the better the image quality will be, but the file size will also be larger. Select the image quality that is correct for the intended purpose. À Display the SIMPLE Mode Recording Menu (page 37), select the recording size setting, and press the SET button. To keep in HDTV size 3: The video clip size will be 1280 x 720 pixels, and the still image size will be 3456 x 2592 pixels. The video clip size will be 640 x 480 pixels, and the still image size will be 1600 x 1200 pixels. 2 Select the desired video clip recording size, and press the SET button. + This completes the recording size setting. English 56 H ONILOOHS/31dWIS

Select the focus setting Select the focus range corresponding to the distance between the camera and the subject. À Display the SIMPLE Mode Recording Menu (page 37), select the focus setting, and press the SET button. All ranges Æ Automatic focus people, landscape, etc.) ŒEXT æok (@%): The camera automatically focuses on the subject within a range of 50 cm (19.69 in.) to infinity (normal). The camera focuses on a subject within a range of 1 cm (0.39 in.) to 80 cm (31.50 in.) (super macro). 2 Select the desired focus range, and press the SET button. +_ This completes the focus range setting. 57 English

ts for taking pictures Muting the operation sounds + The audio guidance that sounds when you operate the camera can be muted (page 118). Where are the image and audio files saved? + Allthe image and sound files are recorded on the card installed in the camera or in the camera's internal memory. Taking pictures in backlight conditions. + When taking pictures with the light coming from behind the subject, due to the characteristics of the lens, ghost patterns (flare phenomenon) may appear in the captured image. In this situation, it is recommended that you avoid taking pictures with the subject lit from behind. While the image files are being recorded... + While the mult-indicator is flashing red, the image files are being written to the memory, during which time it is not possible to capture another image. Another image can be captured after the flashing red indicator turns off. However, even when the mult-indicator is flashing red, depending on the camera's internal memory remaining capacity, in some cases the next image can be captured about 2 seconds after shooting. English 58 H ONILOOHS/3IdIS

À rum on the camera (page 30), and set it to the #é ] button recording mode (page 35). 2 Press the [#f ]button. Recording begins. Iis not necessary to Keep the [ef ] button pressed while recording. When the remaining recording time available forthe currently recording clip becomes little, a countdown of the remaining recording time appears on the display. 3 End the recording. + Press the [ #9 ] button again to stop recording. Available recording time remaining 59 English

Capture a still image (single-shot). À rurn on the camera (page 30), and set it to the recording mode (page 35). 2 Press the [ © ] button. @ Press the [ [3 ] button halfway. + The autofocus operates, and the image is focused focus lock). @ Continue to gentiy press the [ I ] button all the way. The shutter releases and the image is captured. You can view the captured image on the monitor by keeping the [ (Ê ] button depressed when you capture the image.

Target mark English 60

HINT Adjusting the monitor brightness + While the Recording Screen is active, you can quickly access the screen for adjusting the brightness of the monitor (page 120) by pressing the MENU button for at least 1 second. What is the camera focusing on? Target mark + A target mark £ on the monitor shows the area the camera is focusing on. The camera automatically determines the correct focus by measuring from 9 different focus points within the shooting area. If the target mark is at a position that is different from the point you wish to focus on, you can refocus, for example, by changing the shooting angle. The large target mark appears when the camera focuses on a wide area in the center of the screen. The focus and exposure can be locked (NORMAL mode) + By assigning an operation shortcut to an arrow button (page 123), you can set the autolocus or the exposure to a fixed setting. When the exposure setting is fixed, the WEB] icon appears on the monitor; when the autofocus setting is fixed, the [Fâ] icon appears on the monitor. + When the focus range (page 57) setting is changed, the focus lock is released The shutter speed and aperture are displayed (NORMAL mode) + Inthe NORMAL mode, the shutter speed and aperture settings are shown on the Recording Screen. You can use them as a reference when shooting. Ifthe camera shake icon Ki appears... (NORMAL mode) + During still image shooting, if the shutter speed is slow and the possibility that the image may be blurred due to camera shake becomes high, the camera shake icon may appear on the monitor. In this case, use a tripod to stabilize the camera when shooting, or set the flash operation mode to automatic (page 62). + When shooting with the scene select function set to the fireworks mode, the camera shake icon always appears, but this is normal.

Using the flash The flash is not only used for photographing under dark conditions, but is also convenient for example when the subject is in shadow or li from behind. The flash is available only when shooting Single-shot still images. À Display the SIMPLE Mode Recording Menu (page 37), select the flash setting, and press the SET button. + The screen to select the flash operation appears. HEUEXIT ok GA): The camera detects the subject brightness and uses the flash only when necessary. (): The flash operates with every image captured regardiess of the conditions. CH): The flash does not operate even in dark situations. H ONILOOHS/31dWIS 2 Select the desired flash operation, and press the SET button. +_ This completes the flash operation setting. 3 Press the [ 9 1 button to take the picture. English 62

CAUTION Do not touch the flash unit when shooting + The flash unit becomes very hot and may cause a burn. Avoid touching the flash unit when shooting. HINT + The flash works only when shooting single-shot still images. + The flash cannot be used during video clip recording. + By assigning an operation shorteut to an arrow button (pages 120 and 123), you can change the flash mode from the Recording Screen {NORMAL mode). 63 English

You can capture a still image (a single-Shot) while recording a video clip. À rurn on the camera (page 30), and set it to the recording mode (page 35). Le ] button C@) butte 2 Press the [w$] button. When you see a scene you'd like to capture as a Still image. press the [ ] button. 4 Press the [we ] button to end the video clip recording. English 64 H ONILOOHS/3IdIS

SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP HINT. + When shooting a still image while recording a video clip, the flash does not operate. + When the remaining video recording time becomes approximately 50 seconds, it will no longer be possible to capture a still image while recording a video clip. The exact remaining recording time at which this occurs will differ depending on the subject and on the video clip mode setting (page 80). I you intend to capture a still image while recording a video clip, it is suggested that you take note of the remaining video recording time. About the recording size of still images + The size of a still image captured during video clip recording depends on the video clip recording size. Video clip recording size setting Still image recording size LE] (16:9) {4:3) [au] (4:3) {4:3) + Iis not possible to capture sequential shots. 65 English

MACRO-PHOTOGRAPHY (ZOOM) Your camera has two zoom functions: optical zoom and digital zoom. À point the camera lens atthe subject. [M] or [W] button bc: pe: 2 Press the [T/C<] or [WÆS] button to compose the desired image. [T/Où}: Zoom in on the subject. (WE } Zoom out. + When the zoom switch is pushed, the zoom bar appears on the monitor. When the optical zoom factor is at maximum, zooming stops temporarily, When the [T/C=.] button is pressed again, the mode changes to the digital 200m mode and zooming continues. Monitor 3 Take the picture. For video clip recording, see page 59. For shooting single shots, see page 60. For shooting sequential shots, see page 83. Zoom bar When both oplical and digital 200m are enabled Optical zoom Digital zoom (yellow) When opt 200m only is enabled Pointer English 66 H ONILOOHS/3IdIS

After using the camera in water, wash it with fresh water and dry it completely. À Tum off the camera, and close the battery/card compartment cover securely. 2 Wash the camera with fresh water. + Filla shallow basin with fresh water, and immerse the closed camera for about 5 minutes. Rotate the monitor unit several times to clean it completely. 3 allow the water to drain out through the drainage holes. + Drain the water through the five drainage holes. Monitor unit Monitor unit Drainage hole Drainage hole 67 English

4 ory the camera. + Use a dry cloth to wipe off any drops adhering to the camera, and leave it to dry completely in a well-ventilated place away from direct sunlight. + Water may seep out from the drainage holes if the camera is not completely dry inside. Take special care not to let water get inside the battery/card compartment. + Do not use a hair dryer or the like to dry the camera. Exposing the camera to high temperatures may cause the camera and/or waterproof seal to become deformed. English 68 H ONILOOHS/3IdIS

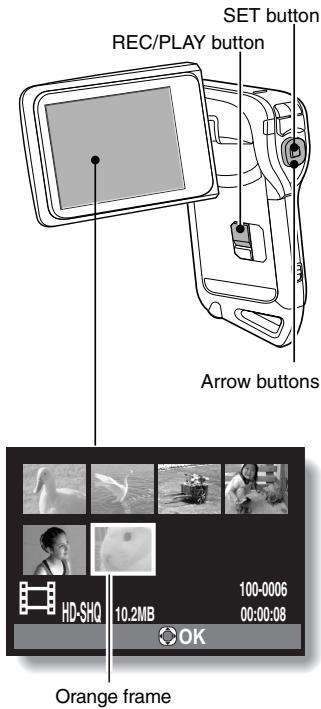

STILL IMAGES À Set the camera to the playback mode (page 35). 2 Press the [<] or D>] button to display the image you wish to play back. SET button 4:

Arrow buttons Orange frame 3 Press the SET button. REDIPLAY + The image you selected in step 2 is displayed fullscreen. = +_ Ifa video clip was selected, playback e FE begins. jerayl <To return to the screen to select mage playback: Press the [W/Æ#] button: During video clip playback: Press the [W/Æ5] button once to stop video clip playback, and press the [WE] again. 69 English

To do this. Do this Normal forward playback Press the SET button. Stop playback During playback, press the [W] button. During playback, press the SET button or Pause press the [T] button. During accelerated playback, press the [T] button ane navet After pausing playback, press the [»] button. taime | (single verse nn) | platoack |Mer pausing playback, press he [€ button. Forward |Affer pausing playback, press and hold he Slow playback __|D>]button. playback | Reverse — |Añler pausing playback, press and hold ine playback _ |[A]button. During forward playback, press ne [> ] button.

• The playback speed changes each time the Forward | {>] button is pressed, as follows: playback | Normal playback -> 2x > 5x -» 10x > 15x Press the [<] button to resume normal R ; playback speed. Fyback During forward playback, press îhe [] button.
• The playback speed changes each time the Reverse | [4] button is pressed, as follows: playback | 15% 10x € 5x Press the [>] button to resume normal playback speed. Relum to normal playback speed Press the SET button. HINT If the F#1 icon appears on the Playback Screen... + The [#4 icon appears when playing back a file that was saved in segments (page 81). Although playback of these multiple files is continuous, there is a slight pause at the point where the files are joined. English 70 H HOVEAVId/3TIdUIS

PLAYING BACK VIDEO CLIPS AND STILL IMAGES How to save one frame from a video clip as a mage À PIay back the video clip. Pause the playback at the point you wish to “snap” a photo. 2 Press the [O3] button. +_ The currently displayed frame is saved as a still image. HINT The size of a video clip file is very large + Therefore, be aware that if the video clip is uploaded to a computer to be played back, the computer may not be able to play back the video fast enough, making it appear jerky. (The video will always be displayed properly on the monitor or a television.) + Depending on the card, shooting may end even before the possible Shooting time indicated. Display the video clip playback point + During video clip playback, press the MENU button for at least 1 second to display a bar showing the current playback point in the video clip. + Press the MENU button for about 1 second to cancel the bar. CAUTION During video clip playback, the sound of a motor is audiblk + During recording, the sound of the optical zoom movement or autofocus movement was recorded. This is not a malfunction. If no audio is heard. + The audio is not played back when the video clip is played back in the frame-by-frame, fast playback or reverse playback mode. 71 English

SLIDESHOW PLAYBACK You can play back files in succession with the “slideshow playback” feature. À pisplay the SIMPLE Mode Playback Menu (page 37), select the slideshow setting, and press the SET button. Play back all files. ÆX: Play back video clips and audio files. > SstarT Play back still image files. FSLIDESHOW 2 Selectthe type of file to play back, and press the SET button. + Slideshow playback begins. + To stop slideshow playback, press the SET button or MENU button. HINT About the slideshow settings + The slideshow settings can be changed from the NORMAL Mode Playback Menu (page 96). English 72 H HOVEAVId/3TIdUIS

PLAYBACK VOLUME Adjust the playback volume for video clips and audio files. À Display the SIMPLE Mode CHJPLAY VOLUME Playback Menu (page 37), select the playback volume setting, and press the SET button. +_ The volume control bar appears. 2 Press the [4] or [>] button to set the volume, and press the SET button. + The playback volume is set, and the display returns to the SIMPLE Mode Playback Menu. HINT In the NORMAL mode + When you select ‘PLAY VOLUME" from the NORMAL Mode Playback Menu and press the SET button, the volume control bar appears. 73 English

DELETING FILES You can delete files if you no longer need them. You can delete single files, selected files or all the files at one time. Delete single/delete all À oisplay the SIMPLE Mode Playback Menu (page 37), select the delete setting, and press the SET button. DELETE SINGLE: Deletes one file at a time. DELETE SELECTED: Deletes the selected files (page 75) DELETE ALL: Deletes all files. Ci JoeLeTE

2 Selectthe desired delete mode, and press the SET button. +_The Delete Confirmation Screen appears. <DELETE SINGLE> + Press the [4] or [>] button to select the file you wish to delete. + There is no confirmation screen when deleting single files. Please make sure that the displayed image is one you wish to delete. <DELETE ALL> + Press the [4] or {»] button to confirm the files to delete. English 74 H HOVEAVId/3TIdUIS

DELETING FILES 3 Select “DELETE", and press the SET button. <DELETE SINGLE> +_ The currently displayed file is deleted. + To delete other files, select the files, select “DELETE" and press the SET button. <DELETE ALL> + The Delete Confirmation Screen again appears. To delete the files, select “YES”, and press the SET button. When file delete is completed, “No image” is shown Delete selected Delete selected files. À Display the SIMPLE Mode Playback Menu (page 37), select the delete setting, and press the SET button. 2 Select“DELETE SELECTED", and press the SET button. + The screen to select files to delete appears. HER 22 mans HOSNQ 10.18 00:00:08 6l<DELETE {OK 3 Select an image you wish to delete. *_ Press the [4] or [>] button to move the orange frame to the file you wish to delete. 75 English

4 Press the SET button. + The selected file is marked with the delete icon [ ]. + Up to 100 files can be selected. + To cancel a delete selection and remove the delete icon from a file, move the orange frame to the marked file and press the SET button. 5 Pressthe[@/#4] button. + The Confirm Delete Screen appears. 6 select “YES", and press the SET button. + The selected files are deleted. HINT In the NORMAL mode + When you select ‘DELETE" from the NORMAL Mode Playback Menu and press the SET button, the Delete Screen appears. CAUTION + Files that are protected from accidental delete cannot be deleted. To delete protected files, set the protect setting for the files to off (pages 51 and 97), and then follow the file delete procedure. English 76 HOVSAVId/31dNIS

PLAYBACK MODES mage display À oisplay the image you wish to play back. Arrow buttons —s: SET button ES) à) ew J 2 Press the [W/Æ8] button. + The 21-image display appears 3 Select the image to play back. + Press the [4] or [>] buttons to move the orange frame to the desired image, and press the SET button to switch to normal ull-screen) playback of the selected image. Ifthe [W/E&] button is pressed while the 21-image display is shown, the display changes to the screen to select a folder (page 78). Itis not possible to perform the file delete or file protect settings on the 21-image display. han 1228 1426 10-021 77 English

Selecting the playback folder Ifthe card contains multiple folders, you can select from which folder you would like to play back. À bisplay the Playback Screen. 2 Press the [W/ÆS] button 2 times. +_ The screen to select the playback folder appears. + Ifthe [T/On.] button is pressed, the camera changes to the 21-image display (page 77). 3 Press the [1/0] and [W/ÆS] buttons to select the desired folder to play back, and press the SET button. + The files in the selected folder are displayed in the Playback Screen. HINT In the NORMAL mode + When you select “SELECT FOLDER" from the NORMAL Mode Playback Menu and press the SET button, the screen to select the playback folder appears. English 78 H HOVEAVId/3TIdUIS

PLAYBACK MODES Magnifying (zooming in) the image À Display the image that you want to magnity. 2 Push the [T/C-] button. + Magnification is enabled. +_ The image is magnified, and the central portion of image is displayed. To magnify: Magnification increases each time the [T/O=.] button is pressed. To return to normal size: Magnification decreases each time the [W/ÆS ] button is pressed. + You can press the SET button to switch to the scan operation. Use the arrow buttons to see different parts of the image. Press the SET button again to switch to the magnity/reduce operation. Press the MENU button to return to the normal (100%) view. HINT The magnified portion of the image can be saved as a separate image + Press the [ ÊA] button. The magnified portion is saved as a new still image. 79 English

RECORDING MENU 1 leo setting You can record video clips in either the HD mode (16:9 horizontal to vertical aspect ratio) or the SD mode (4:3 aspect ratio). In addition, the higher the frame rate number, the smoother playback will be. However, as with the recording size, the file size is also proportionately larger, using up more memory. This menu is also used when making audio recordings. CAUTION When editing video clips... + In order for video clips to be joined, they must have been photographed in the same mode. + Video clips that were photographed in different modes cannot be joined Audio recording = Audio recording À Select CE], and press the SET Remaining time button. +_ The audio recording mode is enabled. + The menu display is canceled if the MENU button is pressed. (| English 80 ONILOOHS/TVWEHON

RECORDING MENU 1 2 Press the [w] button. + Audio recording begins. During recording, MX appears in the monitor. It is not necessary to continue pressing the [ 16% ] button while recording. Length of recording 3 Endthe recording. +_ Press the [ f] button again to stop recording. HINT You can capture a still image during an audio recording + Press the [ 3] button during audio recording to capture a [Eu still image. About files saved in segments + When the video setting is set to a voice memo [ #] that exceeds about 18 hours, the recorded file is saved once, and the recording continues in a new file. For other video settings, when the file size exceeds 4 GB, the recorded file is saved once, and the recording continues in a new file. (These 4 GB segments are automatically created. The recording session continues until you stop recording, but video clip or voice memo recording is temporarily interrupted while the file is being saved.) 81 English

Audio playback À oisplay the desired audio file. 2 Play back the recording. To do this. Do this rs ack | Press the SET button. Normal | pause Press the SET button, playback Press the [T/On.] button. Dback Press the [W/BS] button. During playback, press the [>] button Fast Each time the [>] button is pressed, the ad | Speed increases. Ifthe [4] button is pressed during fast forward, the speed decreases. During playback, press the [<] button Fast Fast Each time the [4] button is pressed, the forward/ reverse speed increases. Ifthe [>] button is fast reverse pressed during fast reverse, the speed decreases. Pause Press the [T/On.] button. Return to normal Press the SET button playback CAUTION If no audio is heard... + The audio is not played back when the audio recording is played back in the fast playback or fast reverse mode. English 82 ONILOOHS/TVWEHON

RECORDING MENU 1 Still image setting For still images, you can select either the 4:3 or 16:9 horizontal to vertical aspect ratio. This menu is also used for shooting sequential shots. Sequential shots À select and press the SET button. +_The camera changes to the sequential shots mode. 2 Press the [O3 ]button. + Shooting begins. Shooting continues as long as the [ I ] button is kept pressed. HINT. What is the maximum number of images in a sequential shots sequence? : 15 images : 13 images + If you continue shooting even after the maximum number of images has been captured, recording does not stop. + If you continue shooting after the maximum number of images has been captured, subsequent captured images will overwrite the sequence aptured, beginning from the first image in the sequence. setting> + After 13 images have been captured, the images are saved and recording Stops. About the focus when shooting sequential shots + When sequential shots are captured, the autofocus operates when the LM] button is pressed halfway, fixing the focus. Can the flash be used? + The flash does not operate when shooting sequential Shots. 83 English

Scene select setting You can select from various preset settings (aperture, shutter speed, etc.) for specific shooting conditions. HINT + To return to normal photography, select and press the SET button. + When capturing images using the lamp F4], fireworks or night view portrait (&*] setting, use a tripod or other method to stabilize the camera. + in the sequential shots mode, it is not possible to select night view portrait Æ*), fireworks or lamp F8]. + À table showing the limitations for settings corresponding to scene select icons other than ALT is on page 158. Filter setting The filter feature changes image characteristics such as color tones, to apply unique effects to the photographed image. from the scene select menu, HINT + To return to normal photography, select press the SET button. + À table showing the limitations for settings corresponding to filter icons other than [ÆY is on page 159. from the filter menu, and English 84 ONILOOHS/TVWEHON

RECORDING MENU 1 Self-timer setting By assigning an operation shorteut to an arrow button (pages 120 and 123), you can set the self-timer from the Recording Screen. HINT To pause or cancel the self-timer function... + lfthe [ ÉA ] button or [ æ ] button is pressed again before the shutter is released, the self-timer countdown temporarily stops. Press the [ (J] button or [ 48% ] button one more time to restart the self-timer. + To cancel self-timer photography, select the FE) icon from the self-timer menu, and press the SET button. + The self-timer is automatically reset to off after the power save mode is activated and the camera turned off. When + When the { A ] button or [ ef button is pressed, the multi-indicator will blink for about 10 seconds, and then the image is captured. Also, 4 seconds before the shutter releases, the indication shown in the illustration appears on the monitor. 85 English

RECORDING MENU 2 Your camera can minimize a jittery picture by compensating for unintentional hand motion during video clip recording. HINT If the motion compensation does not seem to be working... + Due to the mechanical characteristics of this function, it may not be possible for the camera to compensate for violent motion. + Ifthe digital zoom (page 66) is being used, the large magnification factor may make it difficult for the motion compensation function to work correctiy. + When the scene select function is set to night view portrait [&*] or lamp E1, the motion compensation effect may be insignificant. When motion compensation is enabled, + The following icons are shown on the monitor: ff Image stabilizer icon English 86 ONILOOHS/TVWEHON

RECORDING MENU 2 Focus range setting How to use the manual focus 1 Select [NF], and press the SET button. + The focus distance adjustment bar appears 2 Press the [4] or D>] button to adjust the focus distance, and press the SET button. + The focus distance is set, and you are returned to the Recording Screen. HINT About the focus range + The focus distance indication shows the distance between the center of the lens and the subject + In some cases there may be a slight variance between the distance {numerical figure) you set in the manual focus mode and the actual distance. About zoom movement when using the manual focus + Ifthe focus distance is set to 70 cm (27.56 in.) or less, the zoom changes to the largest setting that is suitable for that focus distance. + When the focus distance is set to 70 cm (27.56 in.) or less, the zoom will function only within the range at which the image is focused. About the super macro mode + When the focus range is set to super macro set to the wide end. + By assigning an operation shortcut to an arrow button (pages 120 and 123), you can change the focus range setting from the Recording Screen. the z00m is temporarily 87 English

Focus mode setting When the spot focus setting is selected, the focus mark + appears in the center of the monitor. Light-measuring mode setti When spot light-measuring is selected, the light-measuring spot mark C] appears in the center of the monitor.

RECORDING MENU 2 ISO sensitivity setting With the initial settings, the ISO sensitivity is automatically set according to the brightness of the subject. However, the ISO sensitivity can be set to a fixed setting. HINT + Atthe AIT] setting, the ISO sensitivity is set automatically (video clip recording: ISO 200 to 1600; still image shooting: ISO 50 to 400). + By setting a higher ISO sensitivity, you can set faster shutter speeds and capture images in darker locations, but noise in the captured images may increase or the images may be irregular. + By assigning an operation shortcut to an arrow button (pages 120 and 123), you can change the ISO setting from the Recording Screen. CAUTION Does the image appear to flicker when recording a video clip? + Ifrecording a video clip under fluorescent lights with the ISO sensitivity set to [400] or higher, a noticeable flicker may appear in the image. 89 English

RECORDING MENU 3 White balance setting This camera automatically adjusts the white balance under most lighting conditions. However, if you want to specify the lighting conditions or change the overall tone of the image, the white balance can be manually set. How to use the one push set À Selectthe icon. 2 Fillthe entire screen with a plain white card (or piece of paper, etc.), and press the SET button. +_ This completes the white balance setting. HINT To cancel the white balance setting + Select AB, and then press the SET button. English 90 ONILOOHS/TVWEHON

RECORDING MENU 3 Exposure setting The shutter speed and aperture size can be set individually. À Selectthe desired icon tromthe exposure menu, and press the SET button. <if CS], CA] or [I] was selected> @ Press the [W/B] or [T/Où] button to select aperture value or shutter speed. @ Press the [<] or] button to change the setting for the selected parameter.

Ce speed Aperture 2 Press the SET button. +_ This completes the exposure setting. HINT + To prevent the effects of camera shake at slow shutter speeds, it is recommended to use a tripod or other method to stabilize the camera. + A slow shutter speed may be useful for photographing in a darker environment, but noise in the image may be increased. + To minimize noise in the image, complete the noise reduction setting (page 120). + The exposure setting automatically becomes [P] if the scene select function is active + In the sequential shots mode, the shutter speed is faster than 1/15 sec. + Even if the shutter speed is set to slower than 1/29 sec., the shutter speed during video clip recording is 1/30 sec. + Ifthe exposure setting is set to LS], LA] or [ID], by assigning an operation shortcut to an arrow button (pages 120 and 123), you can select the LS ], CA] or [M] exposure setting from the Recording Screen. 91 English

Face chaser setting As you record, the face chaser detects the subjects face, and adjusts the brighiness and focus in a way that produces a clear and bright photo of the subjects face. HINT When the face chaser is set to ON... + Each face in the Recording Screen is marked with a green frame. + Faces that are in focus are marked with a double green frame. + When shooting begins, the frames marking the faces that are in focus change to orange. + Ifthe scene select function setting was fireworks automatically changes to + The light measuring mode changes to multi-section light measuring. + When you play back an image that was captured using the face chaser function and magnify it, the magnified image will be centered on the face(s) that were focused on. or landscape [eë), it CAUTION + The face chaser function does not work while the digital zoom is being used. + The face chaser function does not work when zooming in or out. + The face chaser function may not work when the subjects face in the monitor is relatively small or appears dark. English 92 ONILOOHS/TVWEHON

RECORDING MENU 3 High sensitivity mode setting When you shoot in the high sensitivity mode, the captured image appears even brighter than that specified by the ISO sensitivity and exposure ‘compensation settings. CAUTION Limitations of the high sensitivity mode + When the shutter speed is reduced to create a bright image, video clip motion will appear uneven during playback. + When shooting in a dark environment, the autofocus and auto exposure may not function effectively. 93 English

By assigning the exposure compensation operation shortcut to an arrow button (pages 120 and 123), you can make the image lighter or darker when capturing images. À assign the operation shorteut to the SET button (pages 120 and 123). 2 Press the arrow button to which the operation shorteut was assigned. +_ The exposure compensation bar appears: 3 Pressthe [4jor{>]button to adjust the exposure. +_ The exposure ‘compensation numerical value is shown at the left end of the exposure ‘compensation bar. The exposure ‘compensation can be set to a value from —1.8 EV to +1.8 EV. The exposure ‘compensation bar is canceled when the MENU button or the SET button is pressed. [] or D] button [

RECORDING MENU 3 HINT The exposure compensation setting is canceled in the following cases: + When the pointer is set to the center position. + When the camera is set to the playback mode. + After the power is turned off + When the camera is set to the standby mode. 95 English

PLAYBACK MENU 1 Specify the settings for playing back files continuously in a “slideshow” format. In a slideshow of still images, you can set the transition time, transition effects and BGM. Changing a setting À select the item you wish to change, and press the SET FMISLIDESHOW button. 2 Press the [T/C-] or [WÆ8] button to change the setting. 3 Press the SET button. Begin the slideshow À Select “START” and press the SET button. + Slideshow playback begins. + To stop slideshow playback, press the SET button or MENU button. HINT BGM for video clips? + When video clips are played back in a slideshow, the recorded audio track is played back: the BGM is not played. English 96 HOVSAVId/IVNEHON

PLAYBACK MENU 1 File protect setting Prevent accidental erasure of image and audio files: Protect files one by one À Display the file that you want to protect rom accidental erasure, and display the NORMAL Mode Playback Menu (page 37). 2 Select “PROTECT” and press the SET button. 3 Select “PROTECT SINGLE" and press the SET button. F-JPROTECT. + "LOCK" appears. + Ifthe protect mode has already been enabled for the file, then “UNLOCK appears. 4 press the [T/C<] or [WES] button to select “LOCK”, and press the SET button. + The protect mode is set for the file. +_ The protect mark that the file is locked. CAUTION + Even if the protect mode is set for certain files, they will be deleted if the card is reformatted 97 English

HINT To select a different image in step 3... + Press the [4] or [>] button To cancel the protect mode for a file. + Display the desired file and repeat steps 1 to 4. The protect mark disappear and the protect mode is canceled. English 98 HOVSAVId/IVNEHON

PLAYBACK MENU 1 Protect selected files Select multiple files to protect. À Display the NORMAL Mode Playback Menu (page 37). 2 Select “PROTECT” and press the SET button. 3 Select “PROTECT SELECTED" and press the SET button. +_ Press the [4] or [»] button to move the orange frame to the file you wish to protect. PE MAS 1o0ts JS _2.4u8 LOCK 4 Press the SET button. +_The selected file is marked with the protect icon [ an ] + To cancel a protect selection and remove the protect icon from a file, move the orange frame to the marked file and press the SET button. Resize A captured image can be resized to a smaller size and saved as a separate image. HINT Why can't the image be resized? + An image can be resized only to a smaller (or the same) size, not to a larger size. Rotate Captured still images can be rotated to the correct orientation for viewing. HINT + An image for which the protect mode has been enabled cannot be rotated To rotate a protected image, cancel the protect mode before beginning the rotate image procedure (pages 51 and 97) 99 English

PLAYBACK MENU 2 Correcting the image Repair the red-eye effect in still images to make the eyes appear more natural, enhance the contrast, or correct a blurry image due to camera shake. HINT W the “Contrast correction not successful”, “Red-eye correction not successful” or “Blur correction not successful” message appears. + The camera was not able to successfully repair the image. + The correction function works to automatically edit laws that the camera detects in captured images. In some cases, the camera may fail to correct a law. Concerning the date and time information for the saved image + When an image is corrected and saved, the recorded date and time of capture (Exif information) remains unchanged from the original image. However, the file date shown on the computer changes to the date and time the image was revised. English 100 HOVSAVId/IVNEHON

PLAYBACK MENU 2 Editing video clips You can trim away unwanted portions from a video clip and save it as a new video clip (video clip cutting [extracting]). You can also join video clips together and save them as one separate clip (‘joining'). Procedure to cut (extract) a portion of a video clip Specify the frames Ÿ © (®, ©) where the LL video clip is to be nr FP F à RÈ Û a #l “ bebe)

Extract the specified portion. [wo ways to cut the video clip] +_ Tim away portions @® and ©), and save portion ®). + Delete portion ©), and join portions @ ++ and ©, + The original video clipis not affected. À] TR

lan) HER CRIRCE {You can also choose to erase the original video clip when the new clip is saved.) 101 English

Procedure to join video clips Specify the video clip that will come first.

Join the video clips. + The video clips are joined. + The original video clips are not affected. {You can also choose to erase the original video clips when the new clip is °° saved) English 102 HOVSAVId/IVNEHON

PLAYBACK MENU 2 CAUTION Caution when editing video clips + When editing video clips, do not press the REC/PLAY button. lf you press the REC/PLAY button while editing video clips, not only will the editing not be properiy completed, but the original video clip may also be erased. + As the number or size of the video clips increases, the card memory may become full, making it impossible to edit or save the video clips. In this case, you will need to free some of the memory on the card by deleting files that are no longer necessary (pages 44 and 74). Regarding the capture date of the saved files + The capture date of edited images changes to the date that the files are saved. 103 English

Video clip cutting (extracting) À bisplay the video clip from which you wish to extract a segment.

isplay the NORMAL Mode Playback Menu (page 37), select “EDIT VIDEO”, and press the SET button. Select “CUT” and press the SET button. + The Cutting Screen appears. BEUMTE

PLAYBACK MENU 2 4 Specity the start point of the extract. + Use the procedure below to specify the frame from which the video clip extract will start. + Play the video clip until approximately the desired point, pause the video clip, then play the video clip one frame at a time, stopping at the Start point of the extract. This will be the first frame of the extract. +_ Ifthe start point of the video clip is also the start point of the extract, proceed to step 5. <Procedure> Play: After pausing playback, press and hold the [>] button for about 2 seconds for forward playback, or to the [] button for reverse playback. Pause: During playback, press the SET button. Accelerated playback: During playback, press the [4] or [>] button to change the playback speed. Single frame: After pausing playback, press the [>] button to move forward one frame, or the [<] button to move back one frame. 105 English

5 Press the (T/O..] button. +_ The start point of the video clip extract is set, and the screen to specify the end point appears. + Specify the end point of the extract by following the same procedure as in step 4. <When joining the first and later portions> © Press the [W/ÆA] button. + Each time the [W/ÆA ] button is pressed, the sections to delete and the sections to save are reversed. @ Specity the end point of the extract. The frame following the end point of the extract will be the start point of the latter portion to be joined. Approximate playback time ErCur 00:00:02

Portion to be End point deleted English 106 HOVSAVId/IVNEHON

PLAYBACK MENU 2 6 Pressthe LÔ ; 6] button. + A screen appears for you to select either to save the edited video clip as a new (separate) file, or to delete the original video clip and replace it with the edited video clip. SAVE AS NEW: The edited video clip will be saved as a new file. The original video clip remains unchanged. OVERWRITE: The original video clip will be deleted. Only the edited video clip will be saved. REVIEW CLIP: Play back the edited video clip before saving it. 107 English

T_ Select the desire option, and press the SET button. + Editing stars. + When editing ends, you are returned to the NORMAL Mode Playback Menu. HINT + You will not be able to overwrite the file if the original fil is protected. + Ifthe ‘Insufficient memory remaining” message appears, you will need to free some of the memory by deleting files that you do not need to keep. CAUTION Warning concerning the battery pack remaining charge + During the editing of lengthy video clips, the time to process the large amount of data can become quite long. To avoid problems caused by the battery pack becoming depleted in the middle of video clip editing, before Starting to edit be sure that a sufficientiy charged battery pack is installed in the camera, or connect the AC adaptor. + Itis recommended that a computer be used to edit long video clips. English 108 HOVSAVId/IVNEHON

PLAYBACK MENU 2 Joining video clips CAUTION + Video clips that were photographed in different modes cannot be joined. À Display the NORMAL Mode Playback Menu (page 37), select [EDIMMDEO, “EDIT VIDEO”, and press the SET button. x CUT EU) +0Kk 2 Select “JOIN” and press the SET button. +_ The 8-image playback display for video clips appears. 3 Move the orange trame to the video clip you wish to join, and press the SET button. +_ The specified video clip is labeled with a number. + Up to 9 video clips can be E selected ‘ + To cancel a selection and FA po oo remove the number label from a DE video clip, select the video clip and press the SET button. 109 English

4 Press the LÔ ; 6] button. +_À screen appears for you to select either to save the joined video clip as a new (separate) file, or to delete the original video clips and replace them with the joined video clip. SAVE AS NEW: The joined video clip will be saved as a new file. The original video clips remain unchanged. OVERWRITE: The original video clips will be deleted. Only the joined video clip wil be saved. REVIEW CLIP: Play back the joined video clip before saving it. 5 Select the desired option, and press the SET button. + Editing starts. + When editing ends, you are returned to the NORMAL Mode Playback Menu. English 110 HOVSAVId/IVNEHON

PLAYBACK MENU 2 HINT + Ifthe file size of the video clip after editing exceeds 4 GB, itis not possible to either “SAVE AS NEW" or “OVERWRITE”. + You will not be able to overwrite the fie if the original file is protected. you want it to be erased, you will need to first remove the protection (pages 51 and 97). + Ifthe “insufficient memory remaining” message appears, you will need to free some of the memory by deleting files that you do not need to keep. CAUTION Warning concerning the battery pack remaining charge + During the editing of lengthy video clips, the time to process the large amount of data can become quite long. To avoid problems caused by the battery pack becoming depleted in the middle of video clip editing, before Starting to edit be sure that a sufficiently charged battery pack is installed in the camera, or connect the AC adaptor. + Itis recommended that a computer be used to edit long video clips. 111 Engiish

Printing instructions In addition to using your printer to print out still images captured with your camera, as with conventional film, you can have prints made at shops offering digital print services. Moreover, this camera is DPOF-compatible, so you can use the camera to specify the number of prints, whether or not the date is displayed on the print, and also to request an index print. Display the printing instructions screen À nisplay the NORMAL Mode Playback Menu (page 37), select “PRINT INSTRUCTIONS", and press the SET button. ALL IMAGES: The specified printing instructions apply to all the images. EACH IMAGE: The printing instructions are specified for each individual image. INDEX: DPRINT EURE All the still images are printed as miniature images (thumbnail images), several images on one print. ALL CLEAR: Clear all the printing instructions. This cannot be selected if no printing instructions have been specified for the image. HINT. Printing a single frame from a video clip + To print with a printer or have the digital print service shop print out a still image from a video clip, you must first save it (extract still) as a still image (page 71). About the DPOF format + DPOF (Digital Print Order Format) is a print order format. You can connect your camera to a DPOF-compatible printer to produce your prints. You can also set the printing instructions for the desired images, and then have the requested images printed automatically (page 141). About the finished prints + Rotated images (page 99) will be printed in their original orientation. + The quality of the print output wil differ depending on the print service and printer used. English 112 HOVSAVId/IVNEHON

ALL IMAGES: ve The printing instructions are applied to ALL IMAGES all the images. EACH IMAGE

EACH IMAGE: PS INDEX

The printing instructions are applied only to the image currently displayed 3 press the SET button. + The Date/Copies Print Screen qu IMAGES appears. Éccn + IF'EACH IMAGE" was selected, E “ press the [4] or [æ] button to display the desired image to print. | « SEXE > The printing instructions that are currently active for the displayed Eu ok image are shown. You can press the [<] or [>] button to confirm the Printing printing instructions for each image. _ instructions <Completed printing instructions> 113 English

4 specity whether the date is displayed on the print, and the number of prints. <Specify the number of prints> + Press the [T/O.] or [W/ÆS] button. + The quantity indication changes. +_ Display the desired number of prints. + Press the SET button. + The number of prints is set. <Specify dated prints> + From the screen on which the number of prints is set, press the MENU button. +_The screen to confirm dated prints appears. YES: Print the date on the photo. NO: Do not print the date. + Press the [T/OS j or [W/Æ] button to indicate your selection. Quant Dated prints. = Specify date imprint? 5 Press the SET button. + The printing instructions for the requested print quantities and dated prints are stored Index print Printing out many small images on one sheet is called an “index print”. This is convenient for use as a list of the images you have captured. English 114 HOVSAVId/IVNEHON

On the Information Screen you can check what the settings were when a file was recorded with your camera. À oisplay the desirea file on the camera monitor. 2 Press the MENU button for at least 1 second. +_The Information Screen appears. + Ifthe MENU button is pressed again, the information Screen is canceled. @ Video clip mode settings @ Image or sound number @ Protect setting © File size © Shooting or recording time © Exposure compensation setting @ Aperture value Shutter speed © Remaining battery charge and time of image mage resolution @ ISO sensitivity setting 115 English

DISPLAY THE OPTION SETTING

MENU The camera settings are executed via the Option Setting Menu. À Setthe operating mode to the NORMAL mode (page 36). 2 Press the MENU button to display the Menu Screen. 3 Select an Option tab (1, 2 or 3), and press the SET button. +_ The Option Setting Menu appears. To access a Setting Screen

@ CLOCK SET setting (page 32) + Set the camera's clock. @ INFO DISPLAY setting + Specify the information to display on the playback screen. SHOW ALL: Display the capture date and playback time (video clips). DATE & TIME: Display the capture date. COUNTER: Display the playback time when playing back a video clip. OFF: Do not display the capture date or playback time. @ STARTUP DISPLAY setting + Select the display that appears on the monitor when the camera is turned on in the recording mode. DATE & TIME: The camera's date and time setting is shown. Xacti: The Xacti logo is shown. PENGUIN: ‘An animated character {penguin) is shown. OFF: No startup display. @ OPERATION BEEP setting + Settings for the camera's operation sounds, audio guide and volume. TURN ON/OFF: Mute or enable the sounds when the camera is turned on or off. SHUTTER: Select the sound that is produced when the [ j button is pressed. KEY SW: Set the sounds that are produced when the camera is turned on or off, the audio guide setting, and the operation sounds for the camera buttons ([ CA] button, SET button, etc.). AUDIO GUIDE: Mute or enable the camera's audio help guide. OPERATION VOL: Adjust the volume of the operation sounds. © POST VIEW setting + Specify the duration that the captured image is shown on the monitor (post-view) after the [ ÔA ] button is pressed. © REC FOLDER setting @ Remaining battery charge display (page 134) English 118 SONILL3S NOILdO

@ SHORTCUTS setting (page 123) @ NOISE REDUCTION setting + Compared to normal shooting, when the PHOTO NR function is ON, the image processing time after shooting a still image is slight longer. VIDEO NR: Tumm ON/OFF the image noise reduction function during video clip recording. PHOTO NR: Turn ON/OFF the image noise reduction function during still image shooting. WIND SOUND NR: Turn ON/OFF the wind noise reduction function during video clip/audio shooting. @ Image quality setting + Set the vividness and sharpness of the images. @ BRIGHTNESS setting + Adjust the brightness of the camera's monitor display. © LANGUAGE setting © TV OUTPUT setting (page 125) @ Remaining battery charge display (page 134) English 120 SONILL3S NOILdO

@ POWER SAVE setting (page 30) + Specify the elapsed period of inactivity before the power save mode (to conserve battery power) is activated. @ FILE NO. CONT'D setting (page 129) @ FORMAT (page 131) @ RESET SETTINGS + Reset the camera settings to the factory-preset settings. +_The following settings do not change with this procedure: Date and time setting Language setting TV system setting © Remaining battery charge display (page 134) English 122 SONILL3S NOILdO

Setting up the shortcuts Assign functions (operation shorteuts) to the [<] and [>] buttons when they are pressed when the Recording Screen is displayed. À Display the Option Setting Menu [2] (page 116). 2 Select “SHORTCUTS”, and press the SET button. [SIsHoRTQurs The Shortcuts Screen appears. Assign the function when the [4] button is pressed. Assign the function when the [>] button is pressed. RECOMMENDED SETTINGS: nm The most commonly used settings are automatically assigned. 3 Select the button to which you wish to assign the function, and press [SsHorTcuTs the SET button. Le [9 1 +_The screen to assign a function to the button appears. OFF: No operation shorteut is assigned to the button. AF LOCK: Lock the focus (page 61). . AE LOCK: Lock the exposure “When © ls selacted> setting. [#] FLASH: Set the flash operation (page 62). EXPOSURE: Adjust the exposure (page 94). ISO: Set the ISO sensitivity (page 89). SELF-TIMER: Set the self-timer (page 85). EXPOSURE: Set the exposure value for the exposure setting (pages 50 and 91) DISP. ON/OFF: Turn the shooting settings display on/ofl. [6%] SEQUENTIAL: Switch between sequential shots and single shots 123 English

4 Press the [T/O..] or [W/ÆB] button. + Select the function you wish to assign to the button. 5 Press the SET button. + The selected function is assigned to the button, and you are returned to the Shorteuts Screen. + To assign functions to the other button, repeat steps 3 through 5. 6 Press the MENU button. + The screen to confirm the shorteut settings appears, and then you are returned to the Option Setting Menu. + This completes the shorteuts setting. <To confirm the assigned shortcuts> + On the screen in step 2, press the MENU button, and the screen to confirm the shorteut settings appears. RECOMMENDED SETTINGS [EI ETS <When “RECOMMENDED SETTINGS" is selected> [Eishorreurs 5 (CEA English 124 SONILL3S NOILdO

TV output setting Specify the type of image signal that is output from your camera's USB/AV terminal. À select “TV OUTPUT", and press the SET button. TV SYSTEM: Set the type of TV signal that is output from the USB/AV terminal. TV TYPE: Set the TV's aspect ratio. COMPONENT: Set the signal that is output from the USB/AV terminal. 125 English

Select the desired setting, and press the SET button. + The screen to change the parameter for the selected setting appears. <if “TV SYSTEM" is selected> NTSC: Outputs NTSC video signals. PAL: Outputs PAL video signals. <if “TV TYPE" is selected> 4:3: Use this setting when a TV having an aspect ratio of 4:38 is connected. 16:9: Use this setting when a TV having an aspect ratio of 16:9 is connected. <if “COMPONENT" is selected> 720p: Choose this setting if the video clip was recorded in the EH] mode. (Also, choose this setting if your TV is equipped with a 720p connector.) 480p: Choose this setting if the video clip was recorded in th mode. (Also, choose this setting if your TV is equipped 480p connector.) + Does not work with 480 connector. + Select the setting that matches the mode in which the video clip was recorded. However, your TV may not support the recorded mode, so please refer to the specifications for the TV type indicated in parentheses. Press the [T/C.. ] or [W/Æ%] button to select the desired parameter. Press the SET button. Press the MENU button. +_ This completes the TV output setting. English 126 SONILL3S NOILdO

Relation between “TV TYPE” setting and TV display The tables below show the video signal that is output when the “TV TYPE" setting is changed. However, note that for some TVs that have an auto-detect function, the output may not conform to the table, or the TV display may not change at all. AVTVPE | TViype io be | Image file 1obe x setting _ | connected displayed WWE Still image (433) Video clip in SD 43 43 mode Video clip in HD mode 127 English

FIVIVPE" | TViypetobe | Image file lobe u setting connected displayed TV display Still image (4:3) ‘ , Video clip in SD 16:9 16:9 mode Video clip in HD mode CAUTION I the TV display is not correct. + Ifthe appearance of the image on the TV monitor is not correct, you can either change the camera's “TV TYPE” setting, or change the screen size setting on your TV. To change the screen size setting on your TV, please refer to the instruction manual for your TV. The aspect ratio of the output st + The still image output will be mode. mage does not change to 16:97 for images captured in a 4:3 still image English 128 SONILL3S NOILdO

File No. continued setting If a newly formatted card is used, the file name (image number) of the captured image automatically begins from 0001. If the card is subsequently reformatted, or if a different reformatted card is used, the file names again begin from 0001. This is because the file number continued function is set to “OFF”, and consequently it results in more than one card containing images with the same numbers. By setting the file number continued function to “ON”, even if the card is reformatted or the card is replaced with another card, the consecutive numbering of file names continues from the last number recorded by the camera. <File number continued function “OFF"> File name (image number) Card A | 0001, 0002.....0012, 0013 Replace card

+ If Card B already has files in it when it replaces Card À, file names are assigned as follows. When the highest file number on Card B (before replacing) is lower than the highest file number on Card A: the file name of the next recorded image continues from last file name recorded on Card A. [Gard A T 0001, 0002... 0012, 0013 ] Replace card

Previously recorded files When the highest file number on Card B (before replacing) is higher than the highest file number on Card A: the file name of the next recorded image continues from last file name recorded on Card B. [Gard A T 0001, 0002... 0012, 0013 ] Replace card

Previously recorded files HINT + Unti the file number continued function is turned “OFF”, consecutive file names are assigned. It is recommended that the file number continued function be retumed to “OFF” at the end of each photography session. English 130 SONILL3S NOILdO

Formatting (initializing) À card must be formatted with this camera: + After purchasing, when used for the first time, or + Ifitwas formatted using a personal computer or another digital camera. The card cannot be formatted if the lock switch is set to the “LOCK” position. Proceed with the format procedure after setting the lock switch to the unlocked position. CAUTION Caution during formatting + Do not turn off the power to the camera or eject the card during formatting. Formatting erases the data + When a storage medium is formatted, all recorded files on the medium are erased. Protected data (pages 51 and 97) is also erased, so before formatting a card, any data you want to keep should be copied to your personal computer hard disk or other storage medium. Caution regarding disposing/transterring the card (recovering data from a reformatted card) + If a card is reformatted or the data is erased from the card using the camera or a computer, the card's control data may be merely modified and the data itself may not be completely erased from the card. + In some cases it may be possible to recover the data from a reformatted card using special software for that purpose. However, if the camera is used to execute a full format, it will be impossible to recover the data even by the use of data recovery software. + If you are disposing of a card, it is recommended that you physically destroy it. If you are transferring the card to someone else to use, it is recommended that you use the camera’ full format function to reformat the card, or use commerciallÿ available software for erasing card data. Managing data is the responsibility of the user. 131 English

MEMORY You can check how many images can be captured and how much recording time is available on the card. For a table showing the maximum number of images and recording time for specific cards, please see “Possible No. of Images/Possible Shooting Time/Possible Recording Time” on page 165. Checking the rem. ng number of images and video recording time À setthe camera to the recording Remainini mode (page 35). Famber cP + The remaining number of images images Remaining video appears in the upper left of the recording time monitor. l | The remaining video recording time appears in the upper right of the monitor. The remaining number of images sl and video recording time will differ depending on the resolution and compression settings. English 132 SONILL3S NOILdO

For audio recordings À Setthe camera to the audio recording mode (page 80). +_The remaining audio recording time is shown: Remaining timi HINT. + When the remaining number of images or the remaining video recording time is “0”, you cannot capture any more images. To capture more images, either install a new card, or save the images to a computer and then delete them (page 74) from the card. + When the remaining number of images or the remaining video recording time is “O”, it may be possible to capture a few more images by setting a lower resolution setting (pages 56, 80 and 83), or selecting a different image quality setting. 133 English

CHECKING THE REMAINING

When using the battery pack, the remaining battery pack charge can be checked on the monitor. Make sure to check this indicator before capturing an image. For an indication of the possible length of time for battery pack operation, see page 164.

Display the Recording Menu or Playback Menu (page 37). A RES + The battery pack remaining charge indicator appears in the lower right corner of the monitor. + Due to the battery pack characteristics, when the ambient temperature is low, {Æ may appear early for an incorrect indication of the remaining charge. Also, depending on the conditions of use of the camera or the ambient conditions (temperature, etc.), the indicated remaining charge may change. Therefore, this indication can only be used as a general approximation of the remaining charge. Battery pack remaining charge indicator English 134 SONILL3S NOILdO

Battery pack remaining Battery remaining charge charge indicator Approx. full. Power is low. IE will soon be impossible to capture or play back images. this icon flashes when the [ @J ] button or L'f ] button is pressed, images cannot be captured. Recharge the battery pack O-|0 818 HINT + Ifany file is present, you can also check the remaining battery pack charge on the Information Screen (page 115). + Battery life may differ even among battery packs of the same type. + Depending on the usage of the camera (such as the number of times the flash is used, the use of the monitor, etc.) or the ambient temperature {temperatures below 10 °C [50°F]), the number of images that can be saved on a fully charged battery pack will vary greatly. + Itis recommended that you prepare an extra battery pack(s) when taking pictures at a wedding or while traveling, for example, so you don't miss capturing images of important moments due to the battery pack power running out. The same is recommended for taking photos in cold environments. (In a ski area, for example, the battery pack can be kept warm in your pocket until ready to use.) 135 English

CAUTION Insert and pull out the cable carefully + When connecting the cables, make sure that the cable plugs are correctly oriented and that they match the shapes of the terminal sockets on the devices. Push the plugs in straight when connecting them. If undue force is used to connect a cable, it may permanently damage the connector pins in the terminal socket. + Do not use excessive force when connecting and disconnecting cables. About image output: The image output destination differs depending on the camera status Connection | Image output Recording mode Playa = destination [ Standby_| Recording | _ mode NTSC: © = Dedicated AV Camera monitor 0 o interface cable r) TV © x o

Dedicated Camera monitor x o x component = = cable TV e] x o O:images are output X: Images are not output English 136

Connecting to a standard video input terminal To the USB/AV terminal on the camera Supplied dedicated AV interface cable Yellow plug To the VIDEO input terminal White plug: To the AUDIO input (L) terminal Red plug: 0 the AUDIO input (A) terminal HINT Copying (dubbing) images to a DVD recorder + Please refer to the section on “Dubbing’ in the instruction manual for your DVD recorder. 137 English

Connect to the 480p/720p terminal If your TV has a 480p/720p input terminal, you can enjoy the high video quality of component output from your camera. Dedicated component cable (optional) White plug: ‘To AUDIO input (L) terminal Red plu To AUDIO input (R) terminal Set the input to VIDEO". TO USB/AV terminal on the camera To 480p/720p input terminals CAUTION your TV does not have 480p/720p video input capability + The images will not appear on the TV. English 138

+ After connecting the camera to the television, switch the TV input to the terminal to which the camera is connected. + The playback method is the same as when viewing images on the camera's monitor (use the TV to adjust the volume). + The same playback procedure as when playing back with the camera is used to play back audio recordings as well 139 English

PRINTING Your camera supports the PictBridge function. By connecting the camera directly to a PictBridge-enabled printer, the camera's monitor can be used to select images and initiate printing (PictBridge printing). Use the dedicated USB interface cable to connect the camera to a printer. Print preparations d USB interface cable to À rurn the printer on, and use the supi connect the camera to the printer. + Connect the cameras USB/AV terminal to the printers USB connector. 2 Tu on the camera (page 30). + The USB Connection Screen appears on the cameras monitor. SET button To the USB/AV terminal on the camera Supplied dedicated USB interface cable USB CONNECTION OMPUTER To USB connector INTER. on the printer NCEL FucancEL #0k English 140 H31NIHd Y OL ONILIANNOI

PRINTING 3 Select “PRINTER”, and press the SET button. 4 The PictBridge printing mode is activated. + The camera switches to the PictBridge printing mode, and the PictBridge Menu appears. nr PictBridge MENU

5 Select the desired type of printing, and press the SET button. PRINT 1 IMAGE: Select the still mages you wish to print. PRINT ALL IMAGES: Print all the stil images. INDEX: Print all the still images as thumbnail images, many images per print. DPOF: Print images according to the print order settings. PRINTER SETTINGS: Print images according to settings specified by the camera, such as paper size, type, size, layout, printing quality, etc. 141 English

HINT To cancel printing @ During printing, press the [W/ÆS] button. + The confirmation screen to cancel printing appears. @ Select “CANCEL” and press the SET button. + IF“EXIT” is selected and the SET button is pressed, printing resumes. About printing all the images + Printing is not possible if there are more than 999 images in the card. + Delete unwanted images before printing, About DPOF printing + DPOF printing is not possible if your printer is not DPOF-compatible. About the printer settings + The printer setting parameters shown on the Printer Settings Screen will differ depending on the printer that is connected. + To use printer values that do not appear on your cameras Printer Settings Screen, select + If a function set by the camera is not availal printer setting will automatically change to “ the printer, the cameras CAUTION Insert and pull out the cable carefully + When connecting the cables, make sure that the cable plugs are correctiy oriented and that they match the shapes of the terminal sockets on the devices. Push the plugs in straight when connecting them. If undue force is used to connect a cable, it may permanentiy damage the connector pins in the terminal socket. + Do not use excessive force when connecting and disconnecting cables. Caution when connecting a printer + Ifthe power to the printer is turned off while it is connected, the camera may not operate correctiy. If the camera does not operate correctiy, disconnect the USB interface cable, turn off the camera, and then reconnect the cable. + During PictBridge printing, the cameras button operation response is slower. + Ifthe camera is powered by the battery pack for printing, make sure that the remaining battery charge is sufficient. English 142 H31NIHd Y OL ONILIANNOI

If you have a question about the camera operation, you might find the answer in this compilation of commonly asked questions. Question Answer Action Why doesntihe | Due to cold Place the camera in power turn on? | temperatures, the | your pocket to warm battery pack it up before using it. temporarily lost its power. Whyis the battery | The ambient Keep the battery pack consumed | temperature is | packin an So quickly even | very low. environment of 10 to after it was fully 40 °C (50 to 104 °F). Power | recharged? Why doesn't The battery pack | Replace with a new recharging end? | life has expired. | battery pack. If this is not effective, consult your dealer. Why does the The remaining | Use the AC adaptor, battery pack and DC adaptor ©. icon power is low. (optional) or replace appear? the battery pack with a fully charged one. Why does the A recorded file is | Not a malfunction. multi-indicator | being saved on | Wait until the multi flash red? the card! indicator turns off. = [Whydoesntihe |Thecamerahas | Nota malfunction. Shooting | flash operate? determined that | Capture the image: the image is bright | the camera will enough and the … | determine when the flash is not flash is necessary. necessary. 143 Engiish

Question Answer Action Shooting Are ihe settings retained even after the camera is turned off? All settings except the self-timer and the exposure compensation are retained even after the camera is tumed of. Which resolution setting should | use? Selectthe resolution setting according to the intended use. Appropriate for printing letter-size or larger, and for printing a close-up of part of a photo timing). La] For printing standard photo (photo service) sizes Gui, di. For photos displayed on a web page, or sent as e-mail attachments. English 144 S39IQN34dv

Question Answer Action Whatis the — Because shooting difference with the optical between the 200m uses the digital zoom and optics of a physical the optical zoom? lens, you can shoot without losing minute details in the image. The digital 200m, on the other hand, works by magnifying a portion of the image that . hits the image Shooting sensor and may produce a coarser image. How can I get the — Set the scene select distant view into function to the focus? landscape [ei] mode when photographing. Or, set the focus range setting to manual focus [MF], and set the distance to ©. 145 English

Question Answer Action When used in Condition due to | Nota malfunction. cold weather, why | the monitor Spots that appear in does the image | characteristics. | the monitor only seem to leave appear in the traces as it monitor and will not moves? be recorded with the Monitor | Why does the images. displayed image contain some red, blue and green dots, or why are black spots visible? Whyis the image | The subject was | When capturing an 100 bright? 100 bright. image, devise a way to compensate for à bright subject, for example, by changing the Shooting angle. Whyisthe image | The focusis not | Holdihe camera out of focus? locked property. … | correctiy and slowly Viewing press the [ ©] images button halfway to lock the focus. Then press the [ ©] button all the way to capture the image. Why is a part of the image missing? The image was captured at close range. When capturing an image at close range, compose the image using the monitor. English 146 S39IQN34dv

Question Answer Action Whyis there no | This may happen | Play back images image ([?] is when trying to that were recorded shown)? play back images | on a card using this Stored on a card | camera. from a different digital camera. Whyis the IFthe subject Not a malfunction. playback image | moves orthe This is a distorted? camera is moved | characteristic of the during recording, | CMOS sensor. a distorted image may sometimes occur. Whyisn'tihe Due to the Not a malfunction. magnified image | characteristics of clear? the camera, magnified images appear less clear. Why isn'tihe caplured image clear? The image was captured using the digital zoom Not a malfunction. Can 1 play back image and sound files that | edited Using my computer? We cannot guarantee the accurate playback of files that have been edited using a computer. Whyis there a motor-like sound during video clip playback? The sound of the camera's mechanical action was recorded. Not a malfunction. Connecting toaTV Why is there no sound? The volume on the TV is set to the minimum. Adjust the volume on the TV. 147 Engiish

Question Answer Action Why does a message appear There is a problem with the Please refer to the instruction manual Printing | during PictBridge | printer. for your printer. printing? The “Cannot edit_ | Vou have Select video clips video clips with | attempted to join | that have the same unike settings” | video clips having | resolution andframe message different rate. appears. resolutions or frame rates. Whyisanoise | Electromagnetic | Move the AC heard from a waves are emitted | adaptor further away nearby TV or from the charger. | from the TV or radio radio during when recharging the battery battery pack. recharging? h Whydoesthe | Thereisnomore | Delete unnecessary Misc. “insufficient available memory | files, or use a card memory on the card or in | that has more remaining” the cameras memory available. message appear? internal memory. Why does the The lock switch on Move the lock switch “Card is the cardis inthe | to the unlocked protected" locked (protect) … | position. message appear? | position. Why cantihe À temporary Remove the battery camera be operated? internal circuitry problem may be the cause. pack from the camera, wait a few minutes, then reinstall the battery pack and try again. English 148 S39IQN34dv

Misc. Question Answer Action A problem such | The card contains | After saving your as inability to files that were files to a different record or play saved using a medium, format the back occurs. device other than | card. this camera. Can Luse my — When the camera is camera abroad? connected to a TV, you can switch the camera's video output to NTSC or PAL. If you have questions about using the charger and power cord abroad, please consult with a dealer near you for advice. Why does the “System error" message appear? À problem has occurred within the camera or card Check the following items: @ Remove the card and then install it again. @ Remove the battery pack and then install it again. @ Install a different card. 1f“System error still appears after performing the above steps, then take the camera to the dealer for service: 149 Engiish

TROUBLESHOOTING Before taking your camera to the repair shop, check the following table for a possible solution to the problem. Camera Problem Cause Action age No power. The battery Recharge the pack is dead. | battery pack, or replace with a fully charged battery pack. Or connect the AC adaptor and DC 23,25 adaptor (optional). The battery Reinsert the pack has not | battery pack, Power been inserted_ | making sure to correctiy. orient it correctly. A blinking The battery Wait for the temperature | pack is too hot. | battery pack to warning icon cool down. [A] is shown, 29 and the camera does not turn on. The camera The power Turn on the turns off by save function | camera again. 30 itself. is operating. English 150 S39IQN34dv

TROUBLESHOOTING Or connect the AC adaptor and DC adaptor (optional) Reference Problem Cause Action Pac Animageis |Thepoweris | IFihe power not captured | not turned on. | save function when the was activated, [I Jbutton or turn on the [6 ] button is camera before pressed. shooting, 30 Ifthe camera was turned off, press the ON/ OFF button to turn it on. The maximum | Install a new 2 number of card images that | Delete the can be images that are capluredorthe | not necessary. maximum Shooting video clip 74 recording time has been reached. The flash does | The flash off | Setthe flash to not operate. | mode is automatic flash | 46 62 selected. mode or forced " flash mode. The battery | Recharge he pack is dead. | battery pack, or replace with a fully charged battery pack. 23,25 151 English

Reference Problem Cause Action A The digital | Thestilimage | Setthe still zoom does not | is set to [f2u. | image to Work. The digital | orlower. 46,50 zoom settingis | Set the digital * setto*OFF”.. | zoom setting to *oN Awarningione | The batery | Recharge the (beep-beep- | packis battery pack, or beep) sounds, | consumed. | replace with a and itis not fully charged possible to battery pack | 3 25 take a picture Or connect the " using the self- AC adaptor timer. and DC adaptor . (optional). Shooting non zooming | The optical Nota in or out, the | zoom has malfunction. z00m moved to the _ | Release the 66 movement | maximum [T/O.] button stops magnification _ | once, then momentariy.… | position. press it again. There is noise | The ISO Set the ISO inthe captured | sensitivity sensitiviy to a 80 image. setting is too | lower setting, high. The cameras | Discontinue appears, and | internal shooting, and shooting is not | temperature is | wait for the 2 possible. high. camera to cool down before using it again. No playback | The camerais | Press the REC/ image not set to the _ | PLAY button to Monitor | appears. playback setihe camera | 35 mode. to the playback mode. English 152 S39IQN34dv

TROUBLESHOOTING e Reference Problem Cause Action ae Theimageis |Theflashwas | Hoïdine 100 dark. blocked by a | camera finger or other | correct, and 5 object. make sure the flash is not obstructed The subject | Capiure the was toofar | image inthe away. range of 163 operation ofthe flash Viewing The subject | Usethelorced | 46 g2 Images was lit from flash mode. " behind. Use the exposure compensation 84 function Use the spot light-measuring | 88 mode. There isnot | Adjustie ISO enough light. | sensitivity 8 setting. Theimageis |Thelomed |Selecta too bright. flash mode is | differentilash | 46,62 selected. mode. The subject | Use the Viewing was too bright. | exposure o4 V compensation images function. The ISO Setthe ISO Sensitivity Sensitivity to 8 setting is incorrect. 153 English

Reference Problem Cause Action en Theimageis | The subjectis | Caplureihe not in focus. | too close tothe | image with the camera. subject within The focus É tographabl setingis not | Photographable | à; ag correct. range ' Select he correct focus setting for your needs. Thecamera | Holdine Viewing moved when | camera images te [D] correcliy and button was | slowly press pressed the [D] (camera button halfway Shake) to lock the 58,60 Thefocusis | focus. Then notlocked | Pressthe[ proper button all ie Way to capture the image. Thelensis | Cleantholens. | dirty. English 154 S39IQN34dv

TROUBLESHOOTING Reference Problem Cause Action Pac The colors of | Thisisdueto | Capture the the images | ambient image using 46.62 captured fighting. the forced flash » indoors are not mode. correct. The white Set the white balance setting | balance setting | 90 isincorrect. | correct. Apartoïthe | Thestrapora | Holdthe image is finger was camera missing. blocking the | correctly, and 5 Viewing lens. make sure the images lens is not obstructed. "Noimage"is | Thereisnofile | Play back after shown. inthe internal | capturing memory or in | images or _ the installed | making audio card. recordings. During audio | The playback | Adjustihe playback, there | volume setting | playback 7 isno sound. | onthe camera | volume is 100 low. Thereisno | The TV output | Selectthe Connecting | Col"inthe | setingis not | correct TV Toarv | image correct output setting. 125 The image is distorted. 155 English

Reference Problem Cause Action ten Noimageor | Thecamerais | Followine sound not correctiy | instructions to connected to _ | make the the TV. connection : correctiy. 120, 136 Sonnecng The TVinputis | Set the input not set on the TV to correctiy. “VIDEO”. Thoedgeof |Thisisa Nota the image is | characteristic | malfunction. _ cut of. ofthe TV. image | oucannot | The protect | Canceline age |editorrotate |modeisset. | protect mode. 97 editing an image The batery | Correclly Make sure hat packis not | insertthe the battery charging. battery packin | pack is Charging the charger. | correctiy 23 oriented when inserting it in the charger. The“mageis | Youhave Setihe protect protected’ atempted to | setting for the message delteafle | fileto Misc. | appearsand | thatis “UNLOCK”. o7 the file cannot | protected from be deleted. | accidental erasure. English 156 S39IQN34dv

TROUBLESHOOTING : Reference Problem Cause Action Page The audio The audio Setthe audio guide does not | guide setting is | quide settingto | 118 sound. setto"OFF”. | "ON. The recording capacity is less The recording capacity is less Depending on the card, the Misc. than that than the value | capacity may indicated in the | specified for | beless thanthe section the card specified value. “Possible No. Please refer to of Images/ the instructions — Possible that Shooting Time/ accompanied Possible the card Recording Time” (page 165). The battery | Normalchange | Not a safety pack appears | occurring with | hazard. Ifthe to be swollen. | battery use. | battery quickly Even with normal correct use ofthe lithium-ion battery, ithas a tendency to swell as the number of charge and discharge cycles adds up andit gradually approaches the end of its service life. becomes. depleted, for example, it has reached the end of its service life. Replace it with a new battery pack. 157 English

Notes regarding the Scene Select feature and filters Scene Select Setting Remarks Sports FI Focus range: Fixed at (Eu. Portrait Exposure: Fixed at [P ]. [ol] Landscape Focus range: Fixed at [ui]. Face chaser: Fixed at “OFF” Exposure: Fixed at [P]. Night view portrait

Focus range: Fixed at (S]. Exposure: Fixed at [ P |. Stil image setting: When sequential shots is active, changes to fi]. Snow & beach Focus range: Fixed at (S]. Exposure: Fixed at [P ]. Focus range: Fixed at (&m]. Flash: Fixed at [4]. Fireworks ISO sensitivity: Fixed at [UTO. Face chaser: Fixed at "OFF" Exposure: Fixed at [ P]. Stil image setting: When sequential shots is active, changes to English 158 S39IQN34dv

TROUBLESHOOTING Setting Remarks Focus range: Fixed at [SM] Flash: Fixed at [3]. Still image NR: Fixed at “OFF”. Lam Exposure: Fixed at [P]. Er] Still image setting: When sequential shots is active, changes to [2u] When set to [F1] or larger, the setting becomes [2]. 1$0 sensitivity: Fixed at IUT)

• The shutter speed decreases to 1/15 sec. Filter Setting Remarks Monochrome Still image mode: [f2u] cannot be selected. Sepia About the scene select function and focus range settings scene select function changes to AUTO when the focus range is set to

+ Even if you set the focus range to r [MF], it changes to [EM] when the scene select function is set to any setting other than 159 English

SPECIFICATIONS Camera Recorded image file format Still images: JPEG format (DCF, DPOF, Exif 2.2 compliant) Note: Designed mainly by the Japan Electronics and Information Technology Industries Association (JEITA), DCF (Design rule for Camera File system) is standard for digital still camera image files to provide interoperabilty between digital photography devices for the images stored on removable memory cards. However, it is not guaranteed that all devices will support the DCF standard. leo clips: Conforms to ISO-standard MPEG-4 AVC/H.264 Audio: MPEG-4 audio (AAC compression) 48 kHz sampling rate, 16-bit stereo format Data storage media Internal memory: Approx. 43 MB SD Memory Card (accepts a maximum 32 GB SDHC Memory Card) Image sensor/ camera effective number of pixels 1/2.5-inch (1.0 cm) CMOS sensor Still images: Approx. 9 milion pixels: Videos (HD mode): Approx. 7.31 million pixels Videos (SD mode): Approx. 8.84 million pixels

• Video clip files recorded with models VPC-CA65 and VPC-CG65 are in the same H.264 format as this model. However, such files cannot be played back, since they are not compatible due to differences such as the data compression method. English 160 S39IQN34dv

SPECIFICATIONS Still image Ar: 4000 x 3000 pixels (approx. 12 million pixels) Shooting mode 3456 x 2592 pixels (approx. 9 million pixels, (recording low compression) resolution) 3456 x 2592 pixels (approx. 9 million pixels, normal compression) : 3456 x 1944 pixels (approx. 6.7 milion pixels, 16:9 aspect ratio) : 1600 x 1200 pixels (approx. 2 million pixels) 1280 x 720 pixels (approx. 900,000 pixels, 16:9 aspect ratio) 640 x 480 pixels (approx. 300,000 pixels) 3456 x 2592 pixels (approx. 9 milion pixels, sequential shots) 1600 x 1200 pixels (approx. 2 million pixels, sequential shots) Video clip HD mode recording mode 1280 x 720 pixels, 30 fps (30p) (recording SD mode resolution) 640 » 480 pixels, 60 fps (60p) 640 » 480 pixels, 30 fps (30p) + The 60 fps frame rate of this camera is 59.94 fps, and the 30 fps frame rate is 29.97 fps. Lens Focal length: f = 6.3 mm to 31.7 mm, Optical 5x zoom Open: F = 3.5 (Wide) to 4.7 (Tele) 8 groups, 11 elements (including three with five aspheric surfaces) Galvanometer iris Internal ND filter 35 mm film camera conversion Still image shooting: 38 mm to 190 mm (5x) Video clip recording: 38 mm to 190 mm (5x) Exposure control type Programmable AE/Shutter speed priority AE/ Aperture priority AE/Manual exposure control Exposure compensation available from the shooting Setting Screen (0 +1.8 EV in 0.3 EV steps) Light-measuring mode Multi-section measuring, center-weighted measuring, spot measuring 161 English

Range Normal mode: 50 cm (19.69 in.) to infinity Super macro mode: cm (0.39 in.) to 80 cm (31.50 in.) (Wide end only) Digital zoom For shooting: 1x to approx. 12x For playback: 1x 0 62.5x (varies with resolution) Shutter speed Stil image shooting mode: 1/2 to 1/1,500 sec. {Maximum approx. 2 seconds when scene select function set to lamp E&) (During flash: 1/30 to 1/1,500 sec.) Sequential shots mode: 1/15 to 1/1,500 sec. (no flash) Video clip recording mode: 1/30 to 1/10,000 sec. {1/15 sec. max.: when the scene select function is set to lamp or in the high sensitivity mode) Sensitivity Still image shooting (standard output sensitivity"}/ video clip recording mode: Auto (video clip recording: ISO 200 to 1600; still image shooting: ISO 50 to 400)/1SO 50, ISO 100, 150 200, ISO 400, ISO 800, and ISO 1600 {switchable from shooting Setting Screen) + Sensitivity measured in compliance with the 160 standard (ISO 12232:2006). + Maximum ISO sensitivity up to 3200 equivalent when Scene Select function is set to Ed]. Minimum subject illumination 16 lux (1/80 sec in the scene select AUTO mode) 4 lux (1/15 sec in the HIGH SENSITIVITY or lamp mode) Image stabilizer Video: Electronic Still image: Electronic English 162 S39IQN34dv

SPECIFICATIONS Monitor 2.5" (6.4 cm) low-temperature polysilicon TFT color liquid crystal, approx. 150,000 pixels Flash working GN=3.0 environment range Approx. 10 cm (3.94 in.) to 1.7 m (5.58 f1.) (Wide) Approx. 80 cm (31.50 in.) to 1.3 m (4.27 ft.) (Tele) Flash modes Auto-flash, forced flash, flash off Focus TTL-type AF (still image shooting mode: 9-point range finder/spot focus: video clip recording mode: Continuous focus), manual focus (16 steps) Self-timer Approx. 2-second delay, 10-second delay Ambient Temperature | O to 40 °C (32 to 104 °F) (operation), —20 to 60 °C (-4 to 140 °F) (storage) Humidity 80 to 90% (operating, no condensation) 10 to 90% (storage, no condensation) Water-resistant Compliant with JIS protection grade 8 standards {according to tests conducted in-house by Sanyo) Can be submerged at a maximum depth of 1.5 m, for up to 60 minutes. Power supply Battery pack | Li-ion battery pack (DB-L20): supplied) 1 supplied AC adaptor | VAR-GE {sold For use with DC adaptor VAR-A2 separately) | (sold separately) Power consumption 3.1 W (When using the Li-ion battery during recording) Dimensions (excluding protrusions) | 70.4 (W) x 40.5 (D) x 111.4 (H) mm

2.77 (W) x 1.59 (D) x 4.39 (H) in.

{Maximum dimensions) Volume: Approx. 192 cc Weight Approx. 230 g (8.11 02.) (camera only [without battery pack and card]) Approx. 249 g (8.78 oz.) (including battery pack and card) 163 English

Camera connectors USB/AV Dedicated regrouped jack (communication/audio lAudio | 310 mVrms (-8 dBs), 47 KQ, stereo and video output) output terminal Video | 1.0 Vp-p, 75 © unbalanced, sync output … | negative, composite video, NTSC color TV system/PAL TV system {switchable from the Option Setting Menu) USB USB 2.0 High Speed PC camera: USB video class Battery life Shooting | Stilimage Approx. 170 images: shooting mode CIPA standard (when a Sandisk 2 GB SD Memory Card is used) Video clip Approx. 70 minutes: recording mode Recorded in ES] mode Playback Approx. 220 minutes: Monitor on, continuous playback + Until battery pack runs out when using a fully charged battery pack at a 25 °C (77 °F) ambient temperature. + The operation time may vary depending on the conditions of the battery pack and the conditions of use. Especially when used at temperatures below 10 °C (50 °F), the battery pack operation time is significantly reduced. English 164 S39IQN34dv

SPECIFICATIONS Possible No. of Images/Possible Shooting Time/ Shooting SD Memory Card Rnon |Resoltion| Internal cordng | seting memory 868 16 GB 9'images| _ 1.680 images | 3,370 Images 8images| _ 1.530 images | _ 3,080 images Ttimages| 2,120 images] _4.260 images T4images| 2.670 images] _ 5,360 images Stilimage 32images| 5,790 images | 11,600 images 41 images] _ 7,540 images | 15,100 images 53 images| 9,570 images |_ 19.200 images Ttimages| 2,120 images] 4.260 images 32 images] _ 5,790 images |_ 11,600 images 38sec.| 1h. 55 min.| 3h. 51 min. Video cp S6sec] Z2hr51min| 5h43 min. Tmin. 49 sec.[ 5 hr 32 min. Tr. Audio recording | — 48 min 130 hr. 261 hr. mode + Ifthe continuous recording time of a voice memo exceeds about 13 hours, the recorded file is saved once, and then recording continues in a new file. In the video clip recording mode, when the size of the file being recorded exceeds 4 GB, the recorded file is saved once, and then recording continues in a new file. (These 4 GB segments are automatically created. The recording session continues until you stop recording, but video clip or voice memo recording is temporarily interrupted while the file is being saved.) + The above values apply when an SD Memory Card by Sandisk is used. + Even with cards of the same capacity, the amount of data that can actually be Stored may differ depending on the card brand, etc. + The continuous shooting time for each video clip will differ depending, for example, on the card capacity, environmental conditions (temperature and shooting conditions, etc.). 165 English

Concerning the multi-indicator The camera's multindicator will light or flash depending on the different camera operations. Multi-indicator ! tu Color us Camera status Connected to Lit computer or printer Green (USB) Power save mode Flashing " Jactivated sa jusenme Red _|Flashing Ps Fes lAccessing internal memory/card data Orange Lit Connected to TV/ VIDEO (AV) Multi-indicator English 166 S39IQN34dv

SPECIFICATIONS Supplied battery pack charger Part No. VAR-L20N AC 100 to 240 V, 50 to 60 Hz, 10 VA, Power source MAX D. 1 À Rated output DC 42 V, 650 mA Compatible batteries Supplied or separately sold Lithium-ion battery pack (DB-L20) © 10 40 <C (32 to 104°F) (When charging) Ambient Temperature | _29 to 60 °C (-4 to 140°F) (storage) environment Humidity. 10 to 90% (no condensation) 46 (W) x 92 (D) x 21.2 (H) mm Dimensions 1.81* (WW) x 3.62" (D) x 0.83" (H) in. Weight (without power cord) | Approx. 55 g (1.9 02.) Power cord | VPC-CA9 AC 125 V.7A rated value | VPC-CASEX AC 250 V, 2.5 À + The VPC-CA9GX model is supplied with a power cord that is appropriate for the region of destination. + When using the supplied battery pack charger abroad, the power cord may need to be replaced in accordance with local requirements. Please contact your local dealer for details. Supplied Li-ion battery pack Model number DB:-L20 Voltage 37V Capacity 720 mAh Ambient Temperature | O to 40 °C (82 to 104 °F) (during use, environment when charging) -10 to 30 °C (14 to 86 °F) (storage) Humidity. 10 to 90% (no condensation) Dimensions 39.4 (W) x 35.5 (D) x 6.0 (H) mm

1.55 (W) x 1.40 (D) x 0.24 (H) in.

Weight Approx. 19 g (0.7 oz.) 167 English

Others Mac OS and QuickTime are trademarks of Apple Inc. registered in the U.S. and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the USA and other countries. Intel and Pentium are registered trademarks of Intel Corporation (USA). In this manual, the Microsoft® Windows® 2000 operating system, Microsoft® Windows® XP operating system, and Microsoft® Windows® Vista operating system are collectively referred to as “Windows”. Software Red Eye by FotoNation! 2003-2005 is a trademark of FotoNation® Inc. ArcSoft is a registered trademark of ArcSoft, Inc. Red Eye software® 2003-2005 FotoNation In Camera Red Eye - covered by UsS. Patent No. 6,407,777. Other patents Pending. SDHC is a trademark. All other company and product names are registered trademarks or trademarks of their respective owners. CAUTION + Itis forbidden to copy this manual, whole or in part, without prior written permission. + Allimages and illustrations given in this manual are for explanation purposes and may differ slightly from that of the actual product. Also, actual specifications are subject to change without prior notice and therefore may differ from the contents of this manual. English 168 S39IQN34dv

SPECIFICATIONS Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go + Sanyo Electric shall not be held responsible for any problems resulting from the use of this camera. + Sanyo Electric declines all responsibility for damages due to improper use of the camera, failure to adhere to the instructions given in this manual, or repairs or changes done by those other than a technician authorized by the manufacturer. + Sanyo Electric shall not be held responsible for any damage caused by optional devices or consumable items used with the camera other than those supplied with the camera or those specified by Sanyo Electric. + Sanyo Electric shall not be held responsible for any losses or loss of revenue resulting from the loss of data caused by the malfunction, or the repairing of a malfunction, of the camera. + The images captured with this camera will differ in quality from pictures taken with a standard film camera. 169 English

Taking great pictures in difficult surroundings is easier than you might think. By keeping a few points in mind and choosing the correct settings, you can create photos that you'll be proud to display and share. If images are blurred even when the autofocus is used Your camera employs an autofocus function. When you snap a picture using the autofocus, the camera automatically adjusts the settings so that the image will be in focus. If you are getting blurred images even when using the autofocus, one or more of the following might be the reason. M How the autofocus works The autofocus is activated when the [ fÿ ] button is gently pressed halfway. Press the [ A ] button slightly, and the target mark will appear on the monitor to indicate that the autofocus has been activated. Next, continue to gently press the [ @ ] button all the way to snap the picture. This two-step method is the way to ensure that your photos are perfeclly focused. <The shutter speed and aperture are displayed> + In the NORMAL mode, the shutter speed and aperture settings are shown on the Shooting Screen. You can use them as a reference when shooting. M Reasons for unfocused images @ The [ A] button was pressed all the way in one step. @ After the image was focused, the subject moved. + Even if camera focuses the subject once, if the distance between the camera and the subject is changed, the subject may become out of focus. @ The focus setting is not set for the correct distance. +_ If you shoot a close-up subject with the camera set to the normal focus mode, or if you shoot a subject at normal distance with the camera set to the super macro (close-up) mode (pages 57 and 87), the image will not be in focus. M Preventing blurred images @ Confirm that the camera is set to the correct focus mode for your subject @ Hold the camera correctly, and press the { ÿ ] button halfway. @ Wait for the target mark to appear in the monitor, and holding the camera steady, gently continue to press the [ Êÿ ] button all the way down. Following these steps for a gentle but firm pressing of the [ ÿ ] button will ensure that you get beautifully focused photos. English 170 S39IQN34dv

Photographing a moving subject Situation: You would like to snap an action shot of a moving child or pet. The autofocus is activated, but because the subject is moving, the image may be blurred. In particular, when the distance between the camera and the subject is changing, it is difficult to lock the focus on the subject. Here are some hints for successfully capturing images of moving subjects. M Reasons for unfocused images When the [ A ] button is gently pressed halfway, the camera's autofocus works by determining the distance between the camera and the subject. Once the subject is in focus, if it then moves before the picture is snapped, the image may be out of focus. This often happens when you once lock the focus on a subject and then wait for the right moment to snap the picture. And, conversely, a blurred image may result if you press the [ (ÊY ] button all the way in one step in an attempt to quickly capture an action scene, thus failing to activate the autofoeus in time. M Preventing blurred images (How to use the manual focus [page 87]) In addition to the autofocus, a manual focus mode is also incorporated in your camera. In the autofocus mode, the distance between the camera and the subject is automatically determined when you press the [ [X ] button halfway. In contrast to this, with the manual focus mode, you manually set the focus by specifying the correct distance between the camera and the subject before taking the picture. 1 How to photograph a moving subject © Set the camera's focus mode to the manual focus. Set the focus distance to the correct distance between the camera and the subject. © When the subject is at the set focus distance, gentiy press the [ É3 button all the way down. <Advantage of using the manual focus> + Images can be quickly captured without waiting for the autofocus to activate. + Because you are presetting the focus distance, the focus can be more accurate. <Using the manual focus effectively> + When photographing a moving subject, press the [ (ÊA ] button just before the subject reaches the focus distance, and the shutter will be released when the subject is at the correct distance. + Use manual focus to avoid incorrect} focused images when there is an object between the camera and the subject you wish to focus on. 171 English

Shooting portraits (portrait mode + Choose a background that doesn't detract from your subject + Move in close to your subject. + Pay attention to lighting and how it affects your subject. NOTE + Ifthe background is distracting, it will not show your subject to his best advantage. Move in closer to your subject or zoom in so that the background does not compete with the subject. + In portrait photography your subject is clearly the central figure, so try techniques that allow the subject to stand out. + flight is coming from behind your subject (backlit), his face will appear dark. You can get a better picture by using the flash, for example, or changing the exposure compensation setting. Photographing moving subjects (sports mode ints: + Maïch he camera's movement with that of the subject. + Set the zoom to the Wide end (wide-angle). + Don't be too hesitant to press the [ IE ] button, or you'l miss the action NOTE + Tips to not missing those great action shots: Make sure you're holding the camera correctly. Keep the subject in the lens at all times, moving the camera with him while waiting for the right shot, Move your whole body-not just your arms-with the camera while shooting, + Blurred images are more likely when the zoom is set to the Tele end than the Wide end. Set the zoom as close as possible to the Wide end. + Learn to press the [ A ] button quickly yet smoothly the instant your photo chance occurs. English 172 S39IQN34dv

Night photography (night view portrait mode Points: + Avoid camera shake. + Increase the ISO sensitivity. NOTE + Camera shutter speed during night photography is considerable slower, so there is a much greater chance that your photographed images will be blurry. Stabilize the camera when shooting. + You can photograph your subject with the night scene in the background by using the flash. Be careful not to shoot too close to the subject, however, or your subjects face will appear too bright. + After the flash operates, keep the camera and the subjects motionless for about 2 seconds. Photographing scenery (landscape mode [eàl) Points: + Shoot using a high resolution. + For zoom photography, use the optical zoom. + Pay attention to picture composition. NOTE + When shooting with a wide-angle setting, or if you intend to enlarge the photo, the higher the resolution, the better. + To zoom in on distant scenery, its better to use the optical zoom. Using the digital zoom produces a coarser image. Hold the camera securely, keeping your elbows close to your body and making sure the camera is stable. Taking care to stabilize the camera will increase the likelihood of getting a clear photo. + Don't forget to pay attention to picture composition; note perspective and be aware of how ihe placement of objects affects the scene. 173 English
